07-03-2009, 12:48 PM
boredgunner

You guys have some innovative setups that I've never seen before. Mine is more on the "plain and simple" side.

Prolimatech Megahalems FTW.

http://img44.imageshack.us/img44/3759/img2612z.jpg
By boredgunner, shot with Canon PowerShot A590 IS at 2009-06-11
http://img19.imageshack.us/img19/9129/img2613r.jpg
By boredgunner, shot with Canon PowerShot A590 IS at 2009-06-11
http://img31.imageshack.us/img31/5182/img2614.jpg
By boredgunner, shot with Canon PowerShot A590 IS at 2009-06-11
http://img13.imageshack.us/img13/4171/img2619pke.jpg
By boredgunner, shot with Canon PowerShot A590 IS at 2009-06-11
http://img32.imageshack.us/img32/8290/img2623x.jpg
By boredgunner, shot with Canon PowerShot A590 IS at 2009-06-11

CPU idle temps are 33-37 degrees Celsius, max load temps in Prime95 are 46-49 degrees Celsius. I'm using two Scythe Slipstream 120mm x 25mm fans on it, each are rated at 1900 RPM/110 CFM. I use OCZ Freeze thermal paste. I put a BB sized drop on the center of the CPU and then I put the cooler directly on top of it (best method). I have the COOLER MASTER ATCS 840 case with 10 fans. There are 11 in this pic, but that fan right in front of the video card is now right below the identical one in the 5.25" bay. Those dark blue LED fans are the COOLER MASTER R4 series fans, 2000 RPM/90 CFM. They're more quiet than my Scythe Slipstream fans, and way more quiet than my old Antec TriCool fans (2000 RPM/79 CFM). They push much more air and spin faster according to my fan controller. According to my fan controller, the Antec's spun at 1850-1900 RPM max. These spin at 1900-1950 RPM.

http://img268.imageshack.us/img268/7775/img2280m.jpg
By boredgunner, shot with Canon PowerShot A590 IS at 2009-06-05

The fans. I have three with blue LEDs (two visible in the pic above, and one on the rear) and two with no LEDs (one in my Scythe Kama Bay using a fan grill, the other in the external air duct).
http://img40.imageshack.us/img40/2847/img2131k.jpg
By boredgunner, shot with Canon PowerShot A590 IS at 2009-06-04

I disabled the 230mm top exhaust fan closest to the drive bays. It drew air out of the case prematurely and added to the negative air pressure. I tried making it an intake and it didn't help.
http://img32.imageshack.us/img32/1955/img1823q.jpg
By boredgunner, shot with Canon PowerShot A590 IS at 2009-05-23

CPU Idle Temps: 33-37 degrees Celsius
CPU Load Temps (Prime95): 46-49 degrees Celsius
CPU Load Temps (OCCT Linpack): 56-59 degrees Celsius
GPU Idle Temps: 47-48 degrees Celsius (GTX 260), 42-45 degrees Celsius (9800GT)
GPU Load Temps (260 only, can't stress the 9800GT because it is a PPU): 67 degrees Celsius (ATItool)
GPU Load Temps (260 only, can't stress the 9800GT because it is a PPU): 73 degrees Celsius (Furmark)
GPU Load Temps (260 only, can't stress the 9800GT because it is a PPU): 81 degrees Celsius (OCCT GPU Test)
HDD Temps: 34 degrees Celsius max

☢
07-03-2009, 03:00 PM
Unrealer

http://i20.photobucket.com/albums/b2...D/Dsc01347.jpg
http://i20.photobucket.com/albums/b2...D/Dsc01318.jpg
http://i20.photobucket.com/albums/b2...D/Dsc01333.jpg
http://i20.photobucket.com/albums/b2...D/Dsc01342.jpg

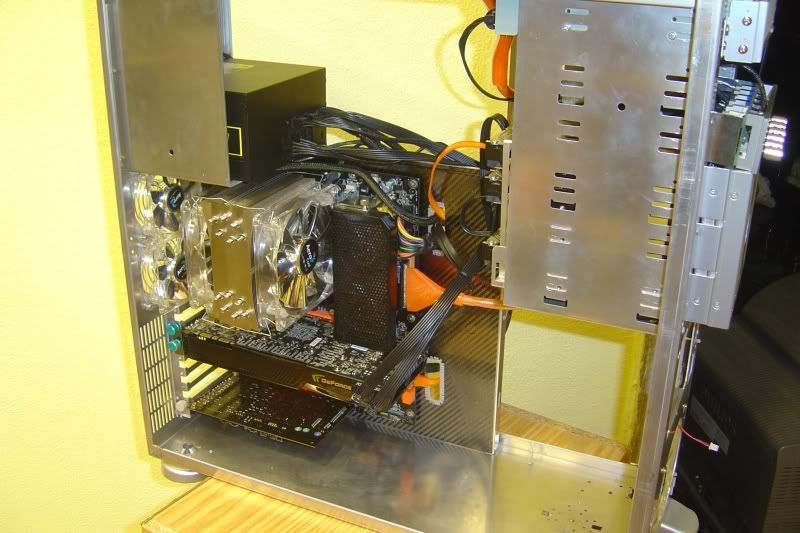

http://i20.photobucket.com/albums/b2...D/Dsc01314.jpg
07-03-2009, 03:25 PM
illidan

is that a new case build?
07-03-2009, 03:38 PM
Unrealer

Quote:

Originally Posted by illidan

is that a new case build?

nope:
http://www.xtremesystems.org/forums/...ght=unreal+mod
07-03-2009, 04:00 PM
illidan

and that's real carbon fiber or vinyl?
07-03-2009, 04:17 PM
Unrealer

Quote:

Originally Posted by illidan

and that's real carbon fiber or vinyl?

sticker :)
07-03-2009, 07:39 PM
gOtVoltage

Quote:

Originally Posted by Unrealer

sticker :)

Still looks unique:up: clean and simple. That case makes every thing look like it has more than enuff room too.:D
07-03-2009, 09:50 PM
nipper575

Quote:

Originally Posted by salucard

hi guys,I came in this awsome forum to discuss about the beautiful world oh hardwareland lol,I came from Italy,in a little and beautiful country called abruzzo,nice to meet you all

Hi Salucard,

Welcome to XS.

Your introduction made me laugh because half my family originates from Abruzzo. My Grandparents came to Australia from Castel di leri.

Nice PC by the way, I'm thinking of getting a HAF 932 soon, love the space in them considering their affordable price.
07-03-2009, 10:06 PM
bigwill68

Quote:

Originally Posted by salucard

hi guys,I came in this awsome forum to discuss about the beautiful world oh hardwareland lol,I came from Italy,in a little and beautiful country called abruzzo,nice to meet you all

:welcome:Hey man Welcome aboard you'll learn alot around here helpful hints and people that's welling to give you a hand if you run into a problem that you can't solve on your own now lets work to get your (Specs) posted up on your sig to see what your working over there:up: I see your parts are housed by a Cooler Master 932 Haf can you tell the story on the rest:confused:...lol Enjoy the site my friend talk at you later
07-04-2009, 02:08 AM
salucard

thanks to all
to nipper I'll say that to have some origins from abruzzo it's very very important,because we are a people that live in the pride of our customs,and you can transmit that customs to own sons

to bigwill:I don't know why,but my sign can't appear on my profile,so I'll try to describe here my specs:

intel core 2 quad q9650 @4,0ghz
Scythe Orochi with thermaltake thunderblade red led 120mm
Asus striker II formula 780i SLI
4gb kit OCZ blade 9600
2xAsus en8800gtx SLI
2x accelero xtreme 8800
Asus Ageia physx p1
Ocz gamexstream 850w
cooler master HAF932

this is my last 3dmark06 result,but I'll work soon on it to increase the result
http://img30.imageshack.us/img30/6380/3dmark06v.jpg

these are thespecification about that score:

CPU:3,890ghz 1,30v
RAM(with Corsair Dominator kit) 1100mhz 5-7-7-24 2,10v
GPU:the clock that you can see on the screen
07-04-2009, 04:03 AM
Andrea deluxe

Quote:

Originally Posted by salucard

thanks to all
to nipper I'll say that to have some origins from abruzzo it's very very important,because we are a people that live in the pride of our customs,and you can transmit that customs to own sons

to bigwill:I don't know why,but my sign can't appear on my profile,so I'll try to describe here my specs:

intel core 2 quad q9650 @4,0ghz
Scythe Orochi with thermaltake thunderblade red led 120mm
Asus striker II formula 780i SLI
4gb kit OCZ blade 9600
2xAsus en8800gtx SLI
2x accelero xtreme 8800
Asus Ageia physx p1
Ocz gamexstream 850w
cooler master HAF932

this is my last 3dmark06 result,but I'll work soon on it to increase the result
http://img30.imageshack.us/img30/6380/3dmark06v.jpg

these are thespecification about that score:

CPU:3,890ghz 1,30v
RAM(with Corsair Dominator kit) 1100mhz 5-7-7-24 2,10v
GPU:the clock that you can see on the screen

OT

sono pure io abruzzese......:D......

di dove sei di preciso?
07-04-2009, 04:21 AM
deepsilver

http://img.3d-nexus.de/main.php?g2_v...serialNumber=1

Core i7 920 @ 3.6GHz
9GB Corsair XMS3 @ 1440MHz
Asus P6T Deluxe
GF 9600GT SLI :)
07-04-2009, 05:00 AM
Ar3s

hey ! that orange sponge looks familiar...
07-04-2009, 06:44 AM
salucard

Quote:

Originally Posted by Andrea deluxe

OT

sono pure io abruzzese......:D......

di dove sei di preciso?

hi andrea,i came from sulmona,in the valle peligna,the lovely valle peligna:rofl:(speak in english for the understanding of the other users:D)

end OT
07-04-2009, 08:38 AM
Andrea deluxe

Quote:

Originally Posted by salucard

hi andrea,i came from sulmona,in the valle peligna,the lovely valle peligna:rofl:(speak in english for the understanding of the other users:D)

end OT

:yepp:

I came from Gissi.....:p:
07-04-2009, 10:39 AM
JaccoW

@Deepsilver: Were you running out of memory or something? All six dimms occupied. :D
07-05-2009, 06:32 AM
deepsilver

Quote:

Originally Posted by JaccoW

@Deepsilver: Were you running out of memory or something? All six dimms occupied. :D

They were cheap that time, so I bought them without any reason. :D
07-05-2009, 06:33 AM
patrock84

Quote:

Originally Posted by IKIKUINTHENUTZ

To: patrock84

The Top one is from Thermalright?

The bottom image is Scythe heatsink?

First: XILENCE Black Hawk Copper
Second: Scythe Zipang 2
07-07-2009, 02:29 AM
Tommy_Hewitt

http://www.abload.de/img/img_00214qnn.jpg

http://www.abload.de/img/img_0022eu2e.jpg

http://www.abload.de/img/img_0024ftg9.jpg
07-07-2009, 11:00 PM
sithdarklord

My Stacker:

http://img403.imageshack.us/img403/5183/aqua17.jpg
http://img444.imageshack.us/img444/482/aqua18.jpg
http://img403.imageshack.us/img403/5112/aqua16h.jpg
http://img18.imageshack.us/img18/8156/aqua12.jpg
http://img403.imageshack.us/img403/9631/aqua4.jpg
07-07-2009, 11:50 PM
celemine1Gig

Quote:

Originally Posted by Tommy_Hewitt

[/img]http://www.abload.de/img/img_00214qnn.jpg[/img]

[/img]http://www.abload.de/img/img_0022eu2e.jpg[/img]

[/img]http://www.abload.de/img/img_0024ftg9.jpg[/img]

Tommy, did you lap the Hammer's base, or does the Thor's Hammer not come with nickle plating on the base?
07-08-2009, 12:37 AM
IKIKUINTHENUTZ

Doesn't look like it's lapped
07-08-2009, 12:54 AM
celemine1Gig

OK. Just had a few minutes time and looked at some reviews. According to this, for example

http://www.silenthardware.de/2009/02...ammer-s126384/

Tommy's heatsink is either lapped or pre-production.
07-08-2009, 04:59 AM
rockfella

^ Xigmatek revised Thor's design, they released PDF file also to show improvements. Now its shines w/ new improved base.
07-08-2009, 06:40 AM
N19h7m4r3

The Thor is gorgeous!

I'd love to get two of those for a dual socket workstation :p:
