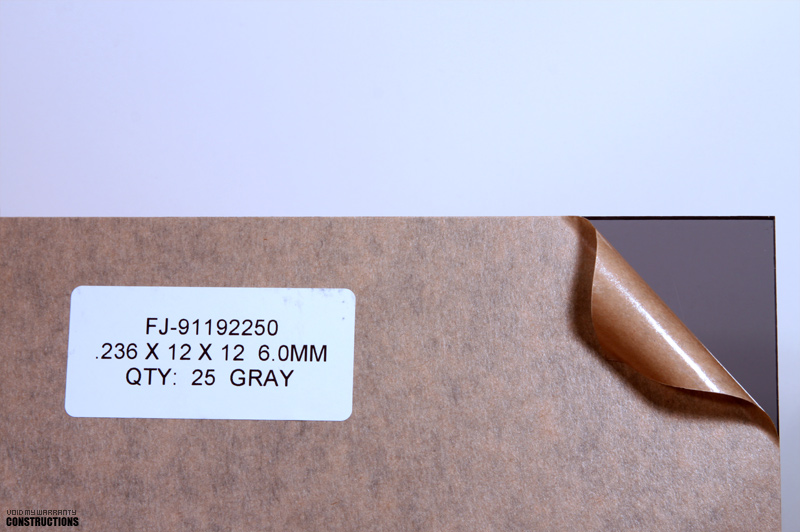

I started off with a gray, 12" x 12", 6mm piece of acrylic:
http://lh5.ggpht.com/_QLiEm5wyerY/S5...0/IMG_5059.jpg

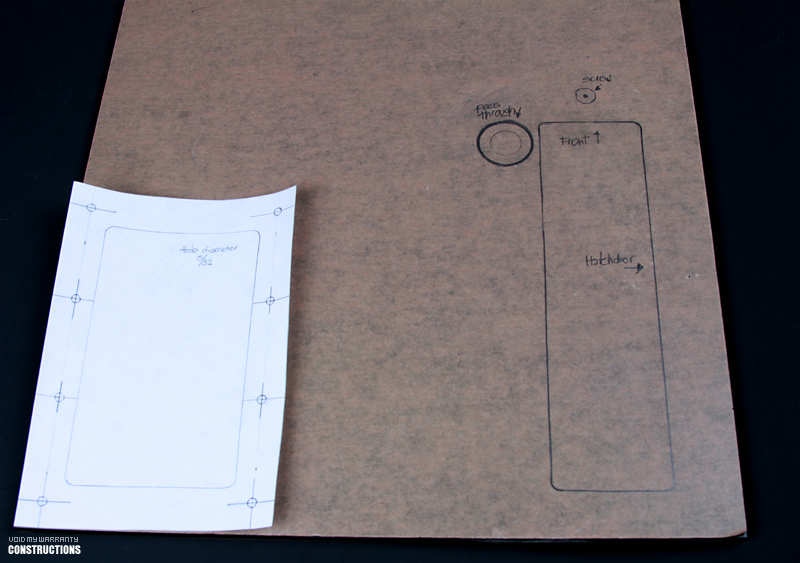

Made some really awesome pencil guides and notes to self. Pic may not do it justice, but those chicken scratches you see on the protective paper were actually the single most awesome thing in the world.
I just had really bad lighting :p: :
http://lh5.ggpht.com/_QLiEm5wyerY/S5...0/IMG_5046.jpg

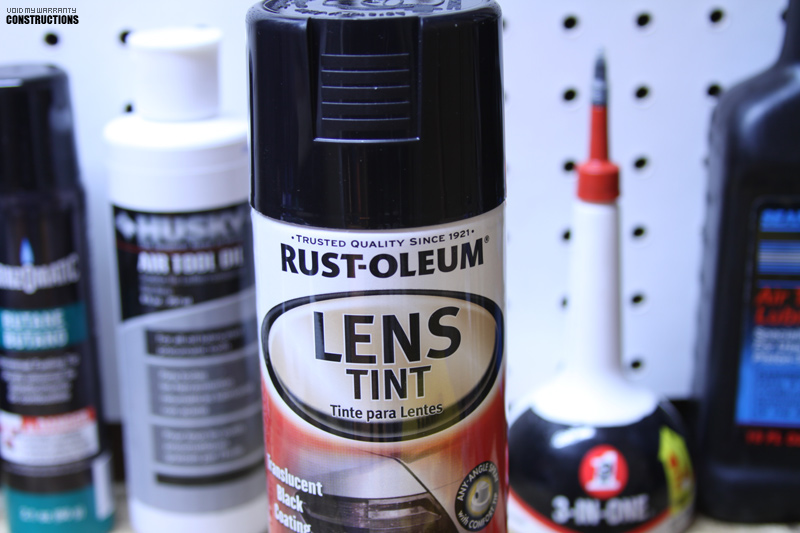

I may use this lens tint to darken her up a bit...
http://lh4.ggpht.com/_QLiEm5wyerY/S5...0/IMG_5063.jpg

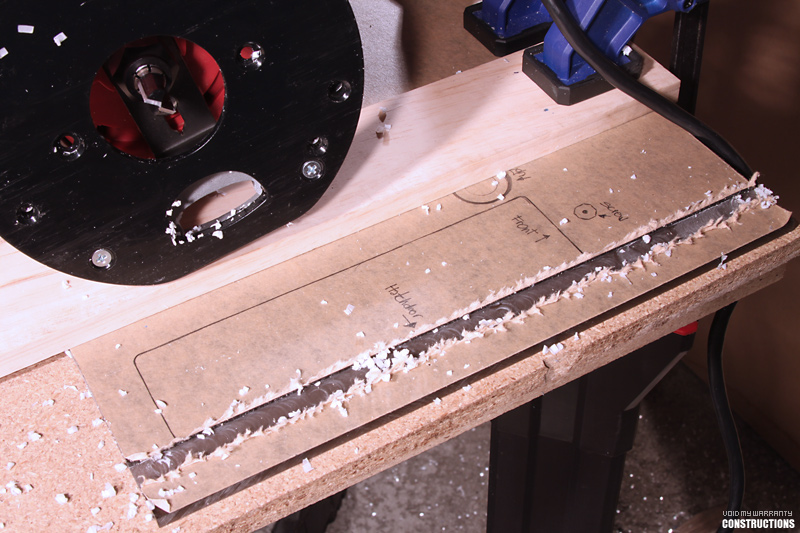

Routed 1.5mm off all around the sides.
http://lh4.ggpht.com/_QLiEm5wyerY/S5...0/IMG_5056.jpg

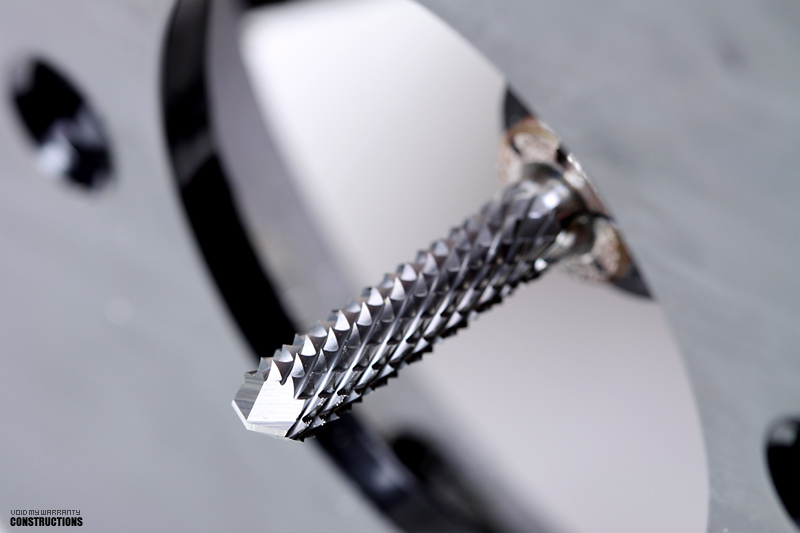

Meet Sonic the Acrylic cutting bit:
http://lh4.ggpht.com/_QLiEm5wyerY/S5...0/IMG_5068.jpg
After routing the perimeter of the rectangular acrylic piece, I used Sonic to cut out the rest of the excess.
This acrylic piece will fit over the rectangular midplate hole.
Holes will then be drilled into it to allow the tubing to pass between the pedestal and the hull.

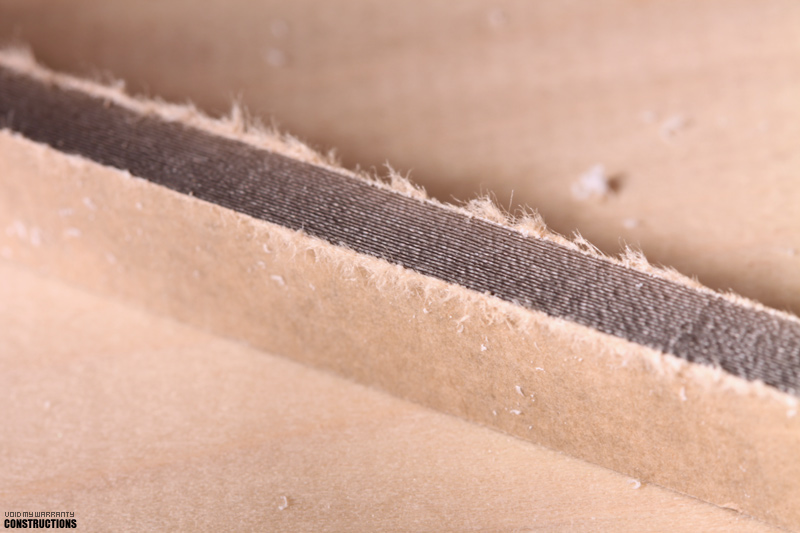

Sonic makes the edges of the acrylic look fashionable:
http://lh6.ggpht.com/_QLiEm5wyerY/S5...0/IMG_5070.jpg

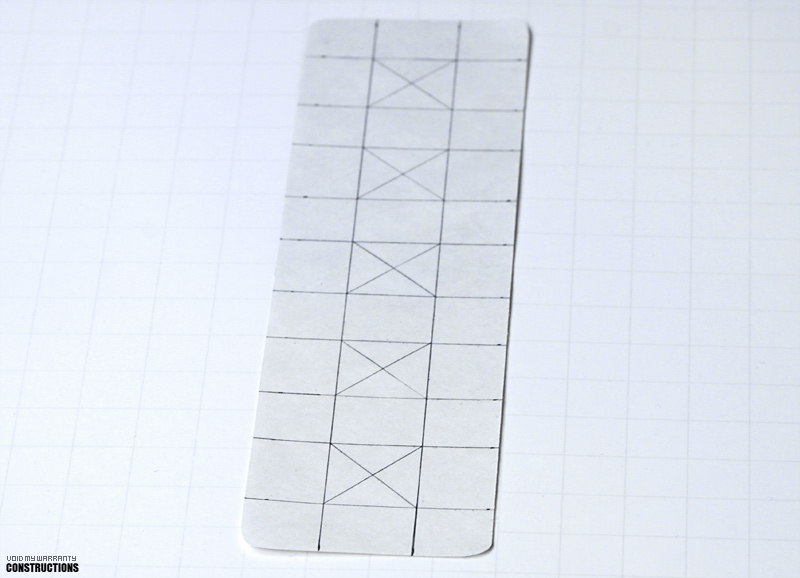

Created a template during the design phase showing measurements of the holes where the compression fittings will be situated.
http://lh3.ggpht.com/_QLiEm5wyerY/S5...0/IMG_5110.jpg

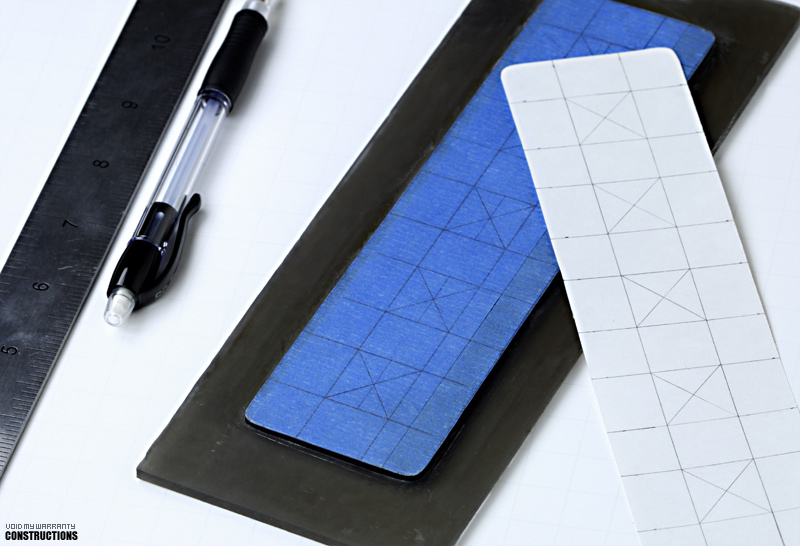

The template was transferred to the working piece:
http://lh5.ggpht.com/_QLiEm5wyerY/S5...0/IMG_5112.jpg

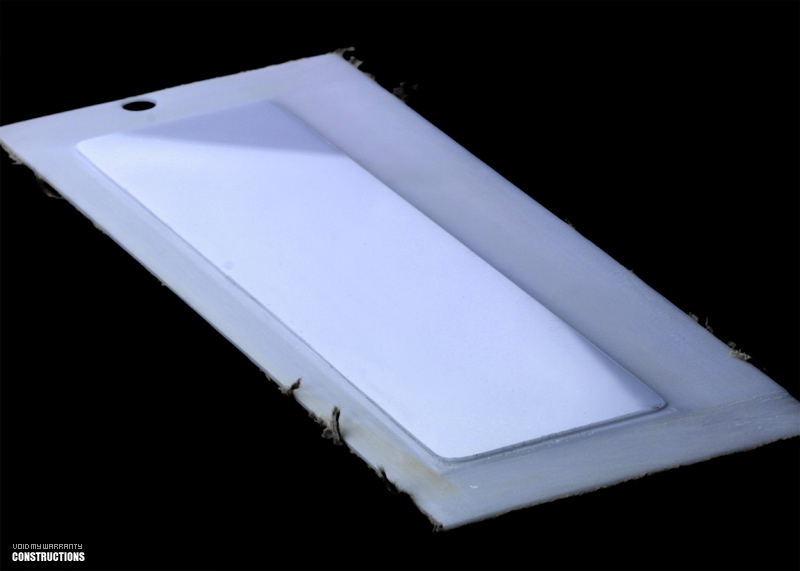

Followed this template for an opaque, white piece of acrylic situation, but it's looking like the gray acrylic situation will be the color I'll be using:
http://lh4.ggpht.com/_QLiEm5wyerY/S5...0/IMG_5087.jpg

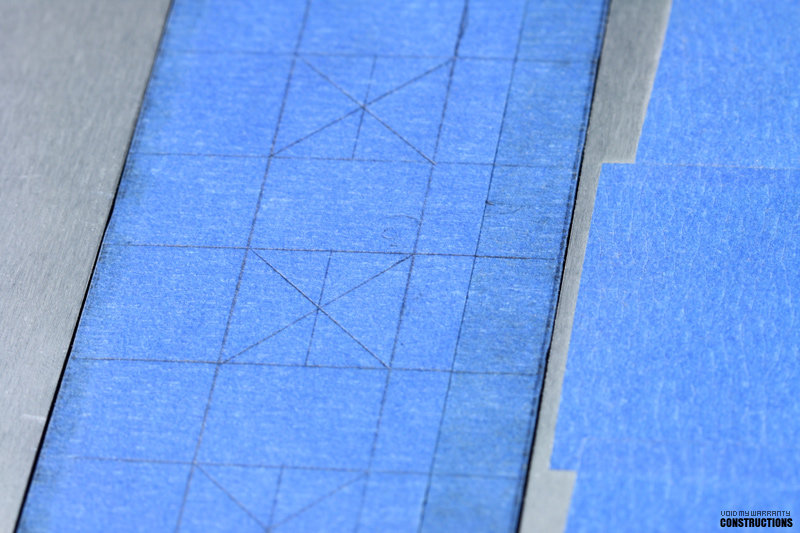

Held my breath to see if it fits flush:

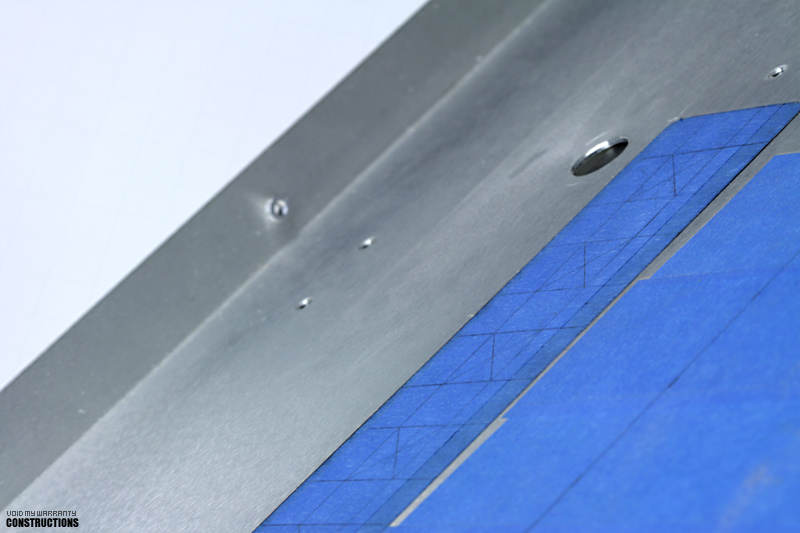

http://lh5.ggpht.com/_QLiEm5wyerY/S5...0/IMG_5113.jpg
Exhaled at seeing the results! Completely happy with how perfectly flush it fits:
http://lh4.ggpht.com/_QLiEm5wyerY/S5...0/IMG_5116.jpg

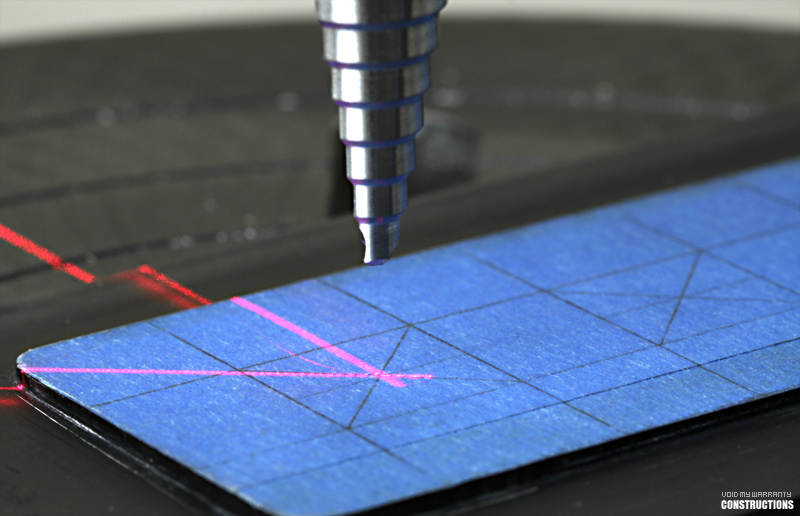

Chuck doing his thing:
http://lh3.ggpht.com/_QLiEm5wyerY/S5...0/IMG_5142.jpg
A side note here. It was at this moment, my iPod started playing Marilyn Manson's cover of "You Spin Me Round".
It was seriously freaky perfect. (It really was. )

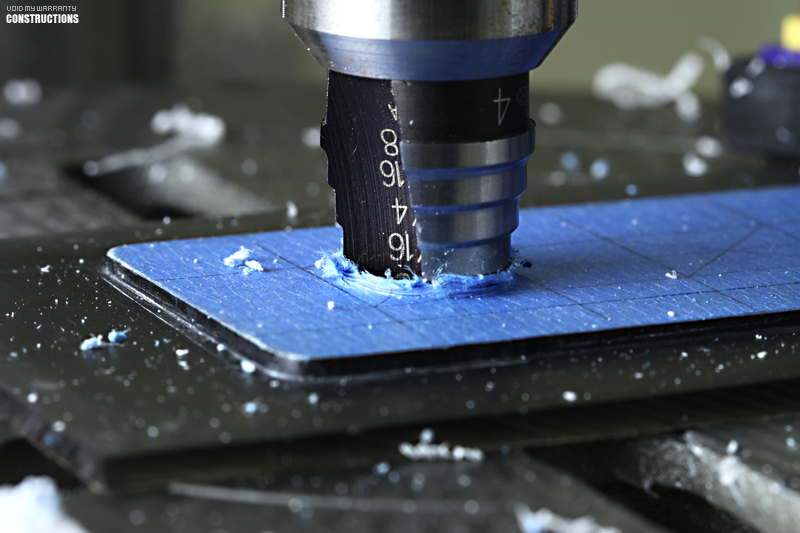

I took that as a sign that I'm doing good and that I should continue with my bad self:
http://lh4.ggpht.com/_QLiEm5wyerY/S5...0/IMG_5147.jpg
*
"You look like you're havin' fun
Open up your lovin' arms
Watch out, here I come
You spin me right round, baby
right round like a record, baby
Right round round round"
http://lh6.ggpht.com/_QLiEm5wyerY/S5...0/IMG_5148.jpg
Ok. The pic below shows the underside of the acrylic piece with marks showing where I'll be placing the pass through fittings.
This measurement had to be very precise since the compression threads had to line up perfectly with the pass-through threads. I needed a way to see if the actual holes that were drilled were aligned with my center marks on the masking tape.

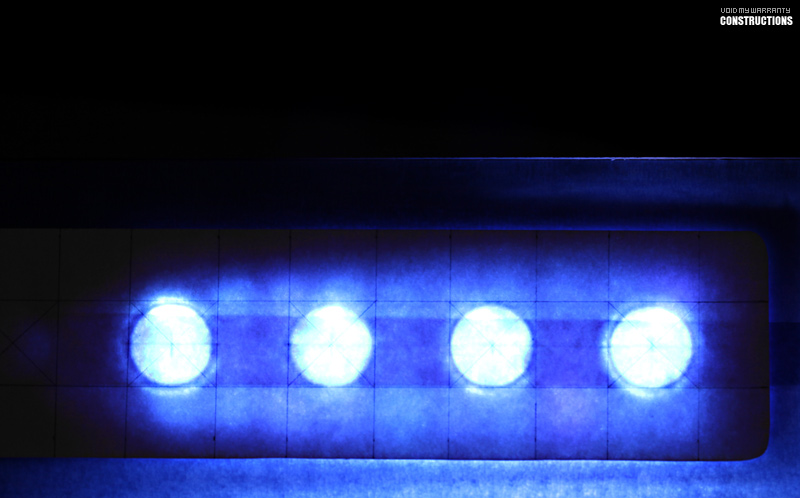

I eyeballed it by shining a light from the other side to see if me marks were gtg:
http://lh4.ggpht.com/_QLiEm5wyerY/S5...0/IMG_5152.jpg

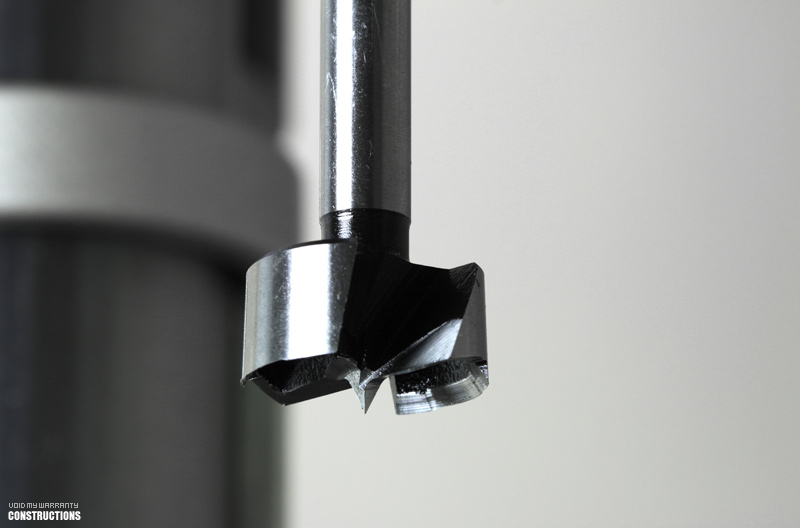

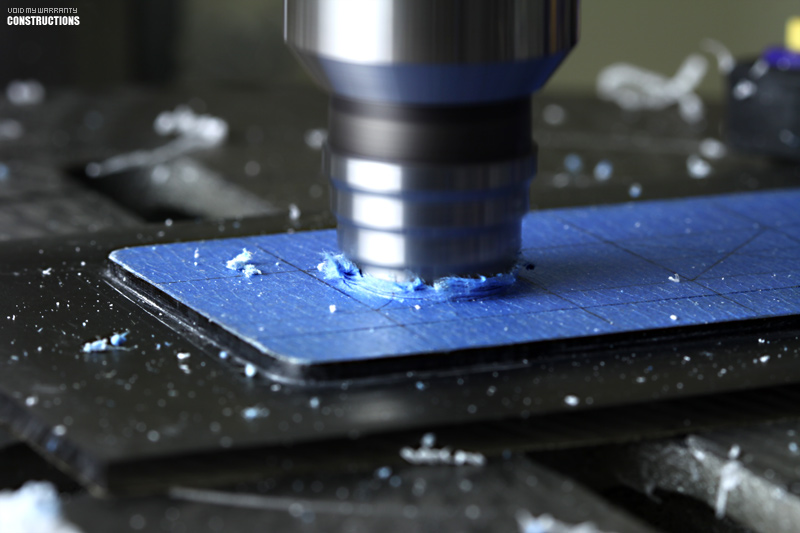

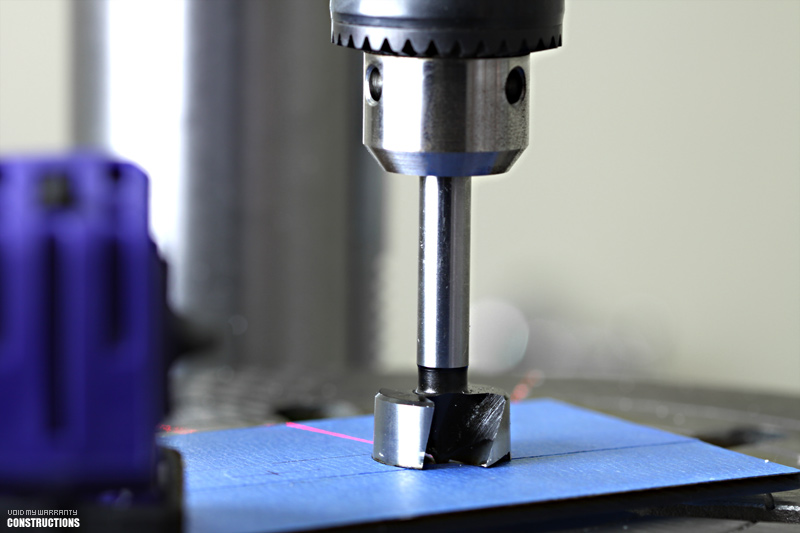

I used a Forstner Bit to make the flat bottom holes for the pass-throughs to sit and fit snug as a bug in a rug:
http://lh3.ggpht.com/_QLiEm5wyerY/S5...0/IMG_5127.jpg

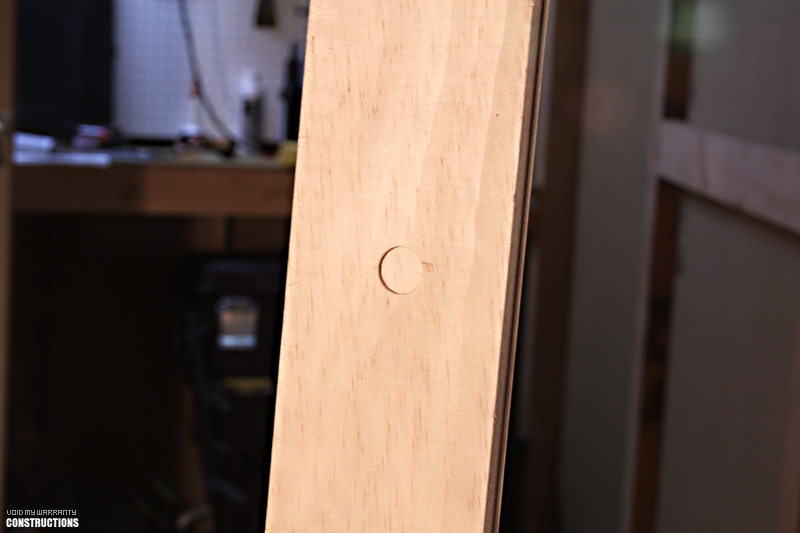

Flat bottom wood test:
http://lh5.ggpht.com/_QLiEm5wyerY/S5...0/IMG_5052.jpg
It makes a 25.40mm hole which is just right for the pass-throughs to fit tight and cushy. (25.40mm = 1inch, but speaking in millimeters makes me sound like I know what the hell, I'm talking about):
http://lh5.ggpht.com/_QLiEm5wyerY/S5...0/IMG_5156.jpg

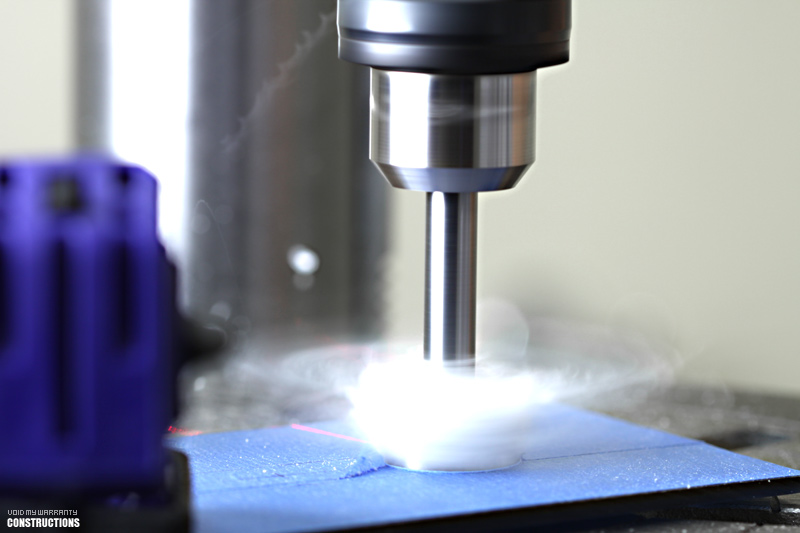

Drilled down to leave a thickness of 1.5mm so the threads of the compression fittings and pass-throughs could make enough catch:
http://lh3.ggpht.com/_QLiEm5wyerY/S5...0/IMG_5157.jpg
Flat bottom hole for the pass throughs:
http://lh6.ggpht.com/_QLiEm5wyerY/S5...0/IMG_5192.jpg

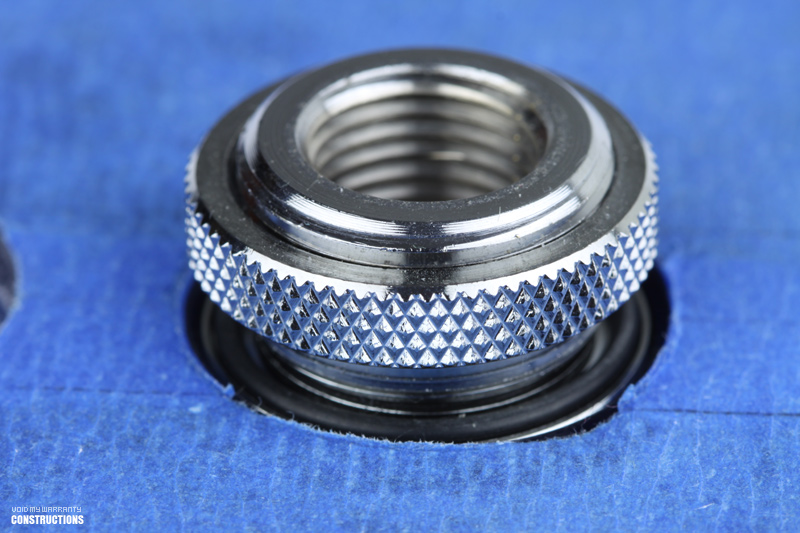

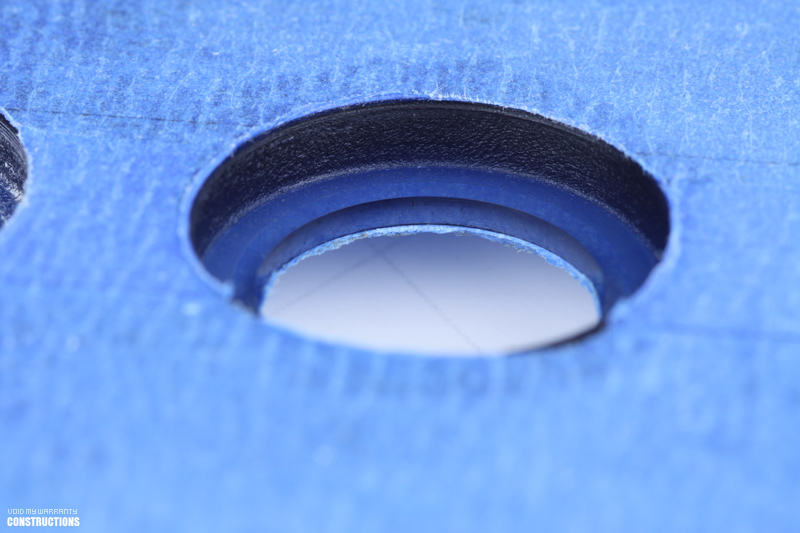

A pass through "sinking" into its new home:
http://lh4.ggpht.com/_QLiEm5wyerY/S5...0/IMG_5193.jpg

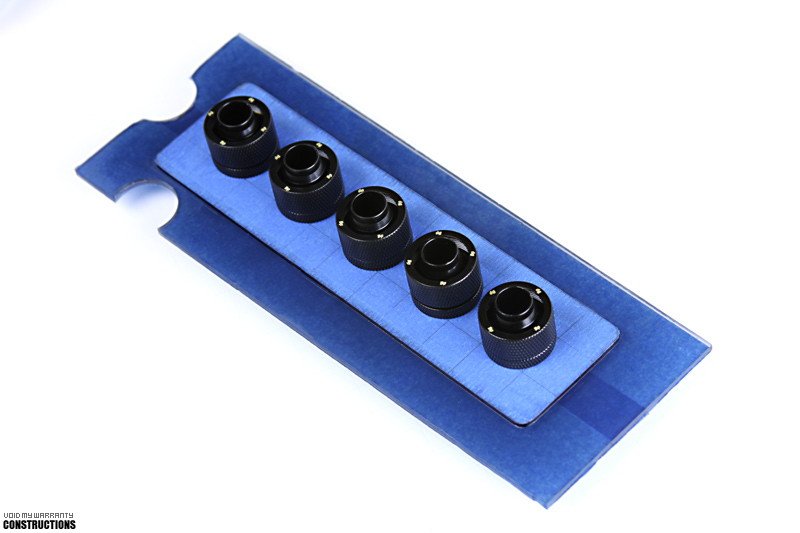

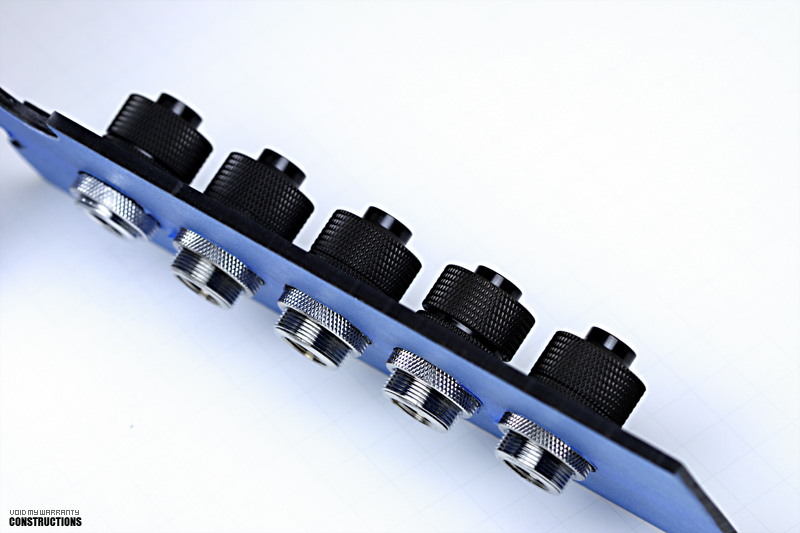

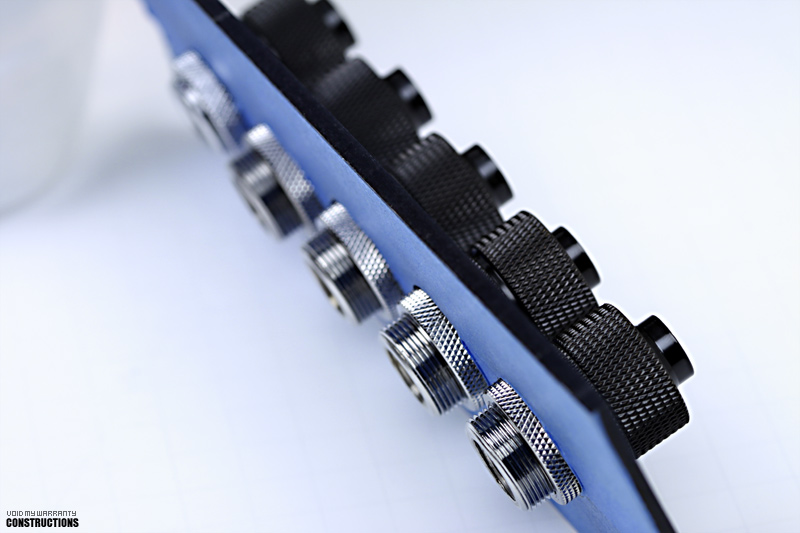

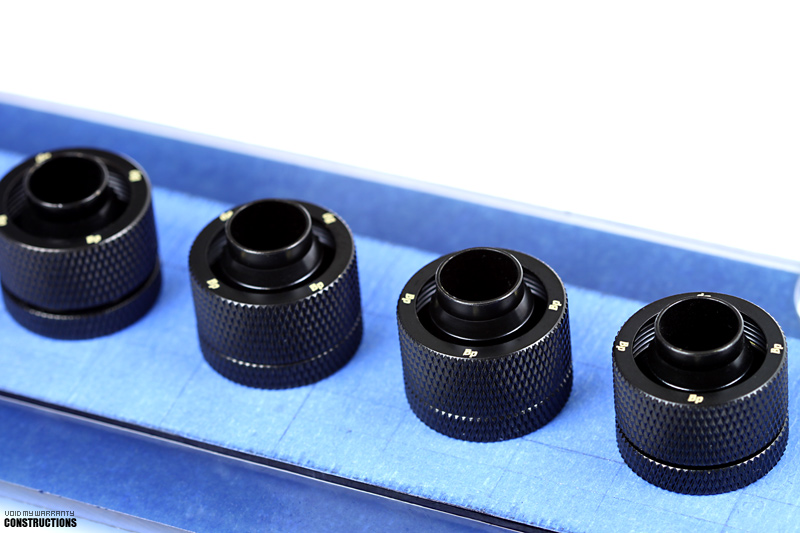

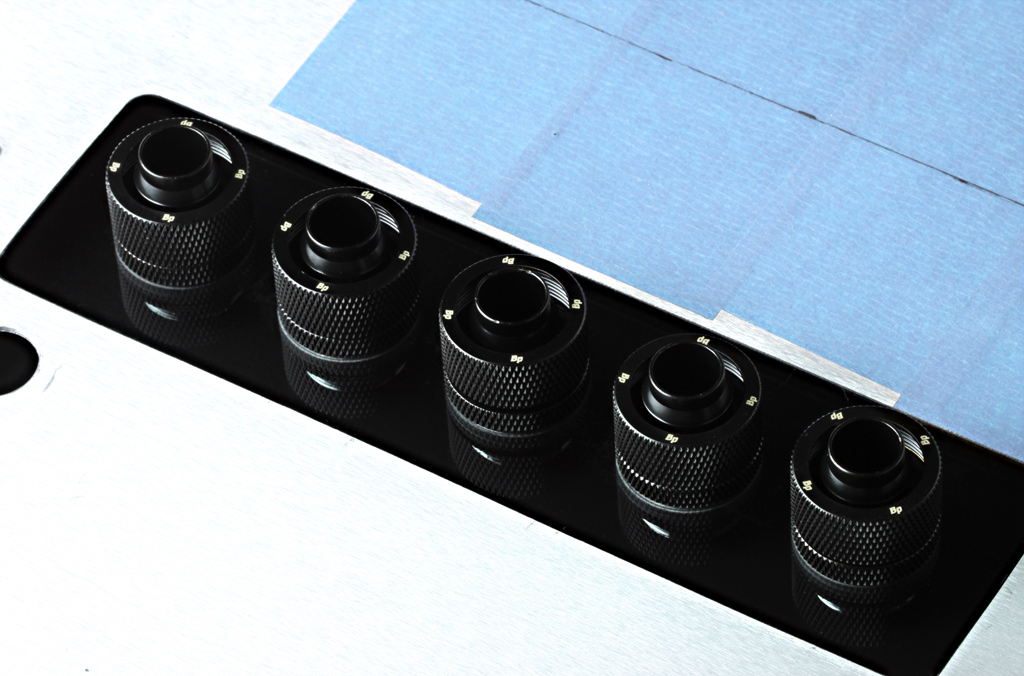

The exposed top part with fittings:
http://lh5.ggpht.com/_QLiEm5wyerY/S5...0/IMG_5174.jpg
http://lh4.ggpht.com/_QLiEm5wyerY/S5...0/IMG_5178.jpg
http://lh4.ggpht.com/_QLiEm5wyerY/S5...0/IMG_5168.jpg
http://lh4.ggpht.com/_QLiEm5wyerY/S5...0/IMG_5171.jpg

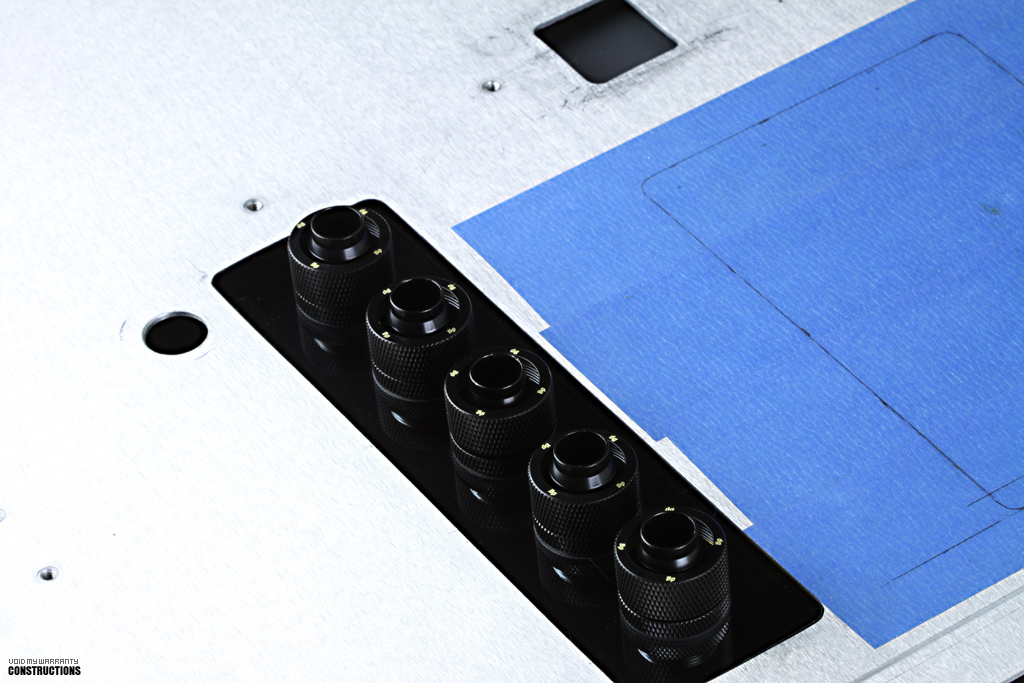

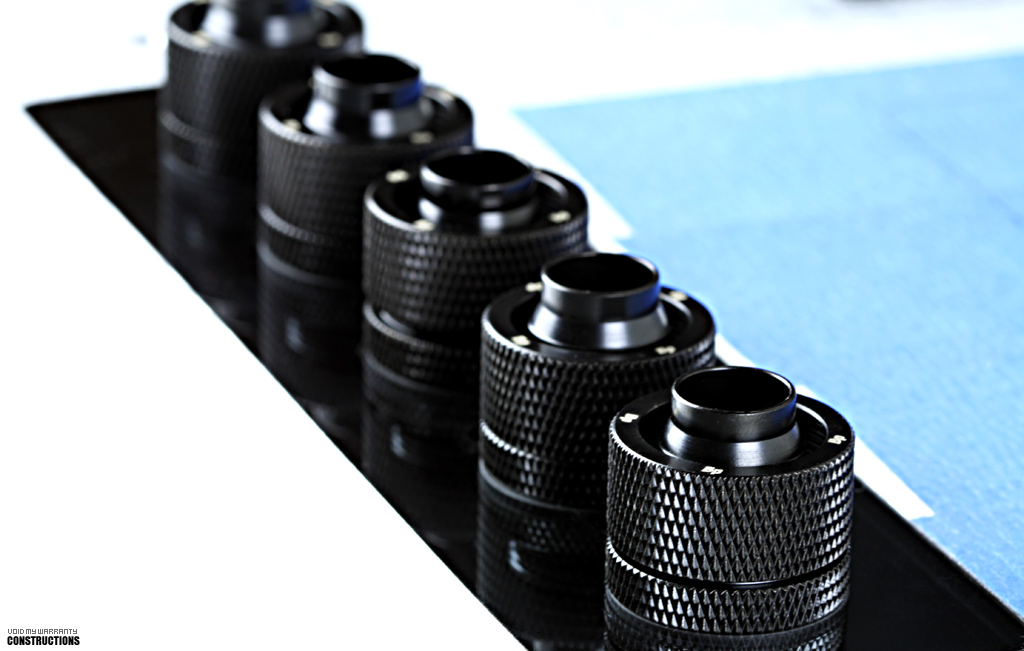

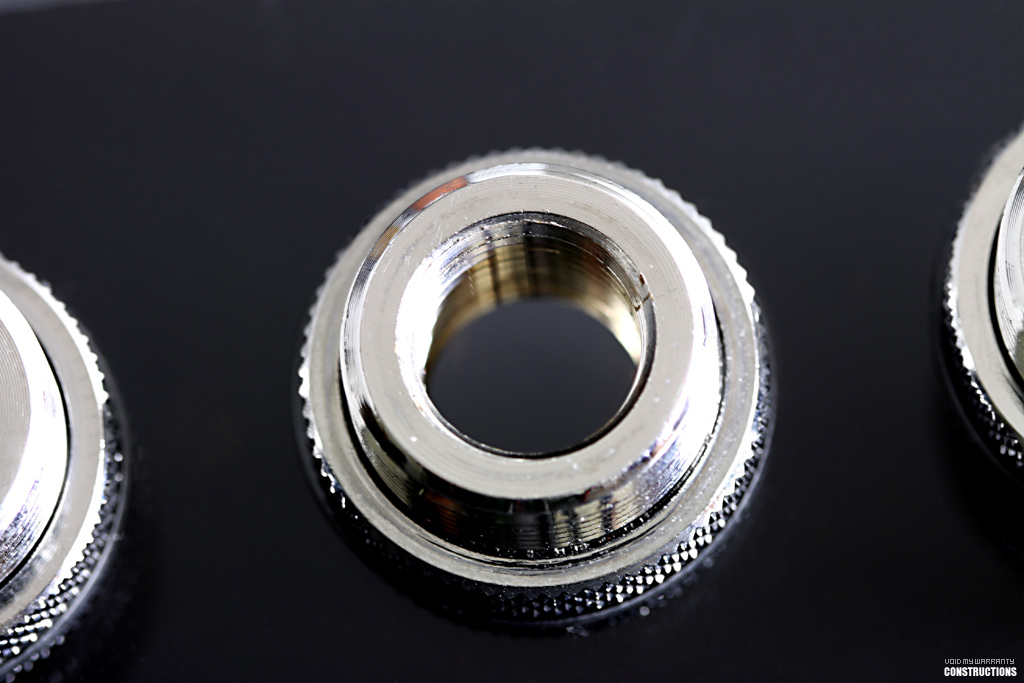

Removed the masking on both sides to see how it all looks fitted into the hole. I'm quite pleased in how in turned out:
http://lh4.ggpht.com/_QLiEm5wyerY/S5...4/IMG_5210.jpg
http://lh3.ggpht.com/_QLiEm5wyerY/S5...4/IMG_5205.jpg
http://lh3.ggpht.com/_QLiEm5wyerY/S5...4/IMG_5206.jpg
http://lh5.ggpht.com/_QLiEm5wyerY/S5...4/IMG_5203.jpg
It isn't quite mounted with epoxy just yet. I'll have to remove it as I continue putting the finishing touches on the hatchway I'm creating.
That update shall be posted soon!
'Til then, thanks for hanging out for a bit!
I had to run outside at one point to grab me face protection before returning to my dry sheltered area where I was working. I dropped it enroute.
I thought it was a pretty cool shot sitting there in the fresh rain covered pavement:
http://lh6.ggpht.com/_QLiEm5wyerY/S5...4/IMG_5150.jpg
