GG Dsjjang, nicely done. Could you post a 36/40GP spi1/32m screen please? (I f you have one) at any FSB you wish, just 4 or 3,6Ghz cpu.Quote:
Originally Posted by Nizzen
@Nizzen:
you must know this one certainly, I don't know if there is another. http://support.asus.com/download/dow...Language=en-us
I would really like to get a pre-penryn BIOS if that was possible on this mobo, just as for P5E3 WS Pro with the 0124 if I'm not wrong.
Does it at least exists for Asus Evolution ?

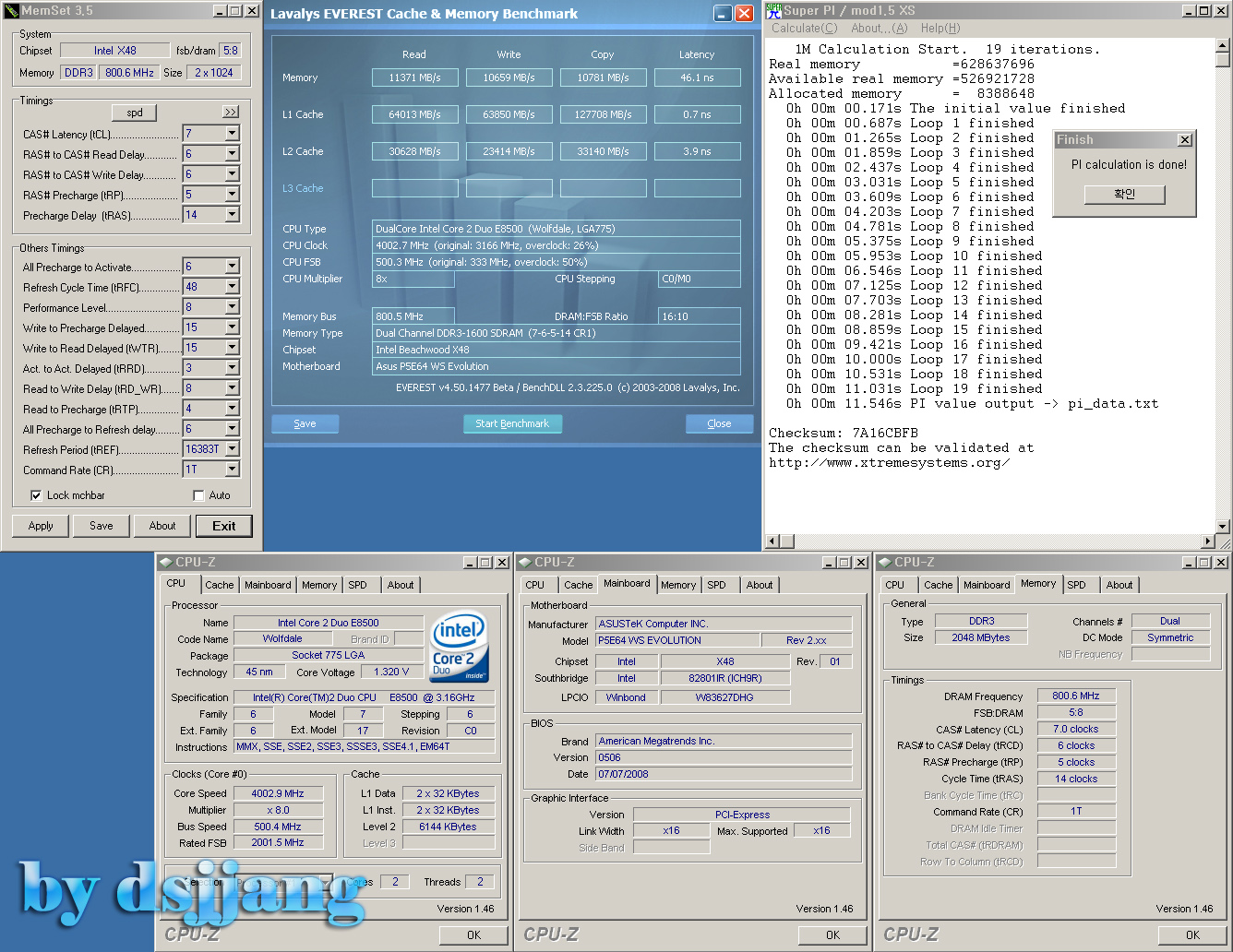

http://cfs13.blog.daum.net/original/...ame=40001M.jpgQuote:
Originally Posted by ToyTen
http://cfs13.blog.daum.net/original/...me=400032M.jpg
36/40GP what's mean?? :confused:
This is it, thanks for sharing. Here are mines:
40GP 1m:
http://images4.hiboox.com/images/330...d549d68d96.jpg
40GP 32m:
http://images4.hiboox.com/images/330...9ecd7d98e9.jpg
36GP 1m:
http://images4.hiboox.com/images/330...6c4ca2f29a.jpg
By doing these benches at a fixecpu frequence is good to know how a mobo behaves. Good to compare between all models.
Anyone has recent experience with Mushkin XP3 1600 memory? I pulled my eVGA 790i and bought WS EVO but still having problems with my X3360 and Q9450 both. I see G.Skill is pretty popular - I wonder if I'll have to try that next to see if I can finally come up with something stable. What series is more popular/recommended?
http://cfs8.blog.daum.net/original/2...me=6003D06.jpg
FSB600 3DMark06 so easy~ ;)
vnb 1.45v
vfsb 1.36v
You are an oc giant.Quote:
Originally Posted by Dsjjang
Thx, that's only good MB~Quote:
Originally Posted by Cooperdale
I'm not oc giant~ :D
Can anyone offer something workable to start with for a quad core Xeon X3360 and this board? I'm too frustrated... can't get anything to post/boot if I don't set everything to Auto.
Actually I had to set almost everything to non-auto, auto was not stable! That's because I have 1800 ddr3 and the bios automatically raised the fsb to 450. I can't seem to reach a stable configuration with fsb>400 though, so I had to choose a 400x10 to overclock the cpu and downclock the ram at 1600. I get 22300 points at 3dmark06 with an ati 4870x2.
http://cfs11.blog.daum.net/original/...7-6-6-181T.jpg
High fsb 5:8 divider test~
FSB 600 5:8 CL7-6-6-18 1T 32M avable easy~ :D
Bios set
vnb 1.45v
vfsb 1.36v
vdimm 2.1v
I couldn't used PL8~
PL9 was perhaps limit what MB run at high fsb~
Hi Dsjjang,
all this is bery nice once again ;)
If mine wasn't so much bugged, I would have kept it:shrug:
Now I do this on a good X48 too:)
http://images4.hiboox.com/images/350...19d1ebac54.jpg
http://images4.hiboox.com/images/350...b5beeed1e2.jpg
If you want to, could you do some 4Ghz Spi32m, as tight as possible ?
Yap, I aleady saw that~Quote:
Originally Posted by ToyTen
Good MB, congrats~ :up:

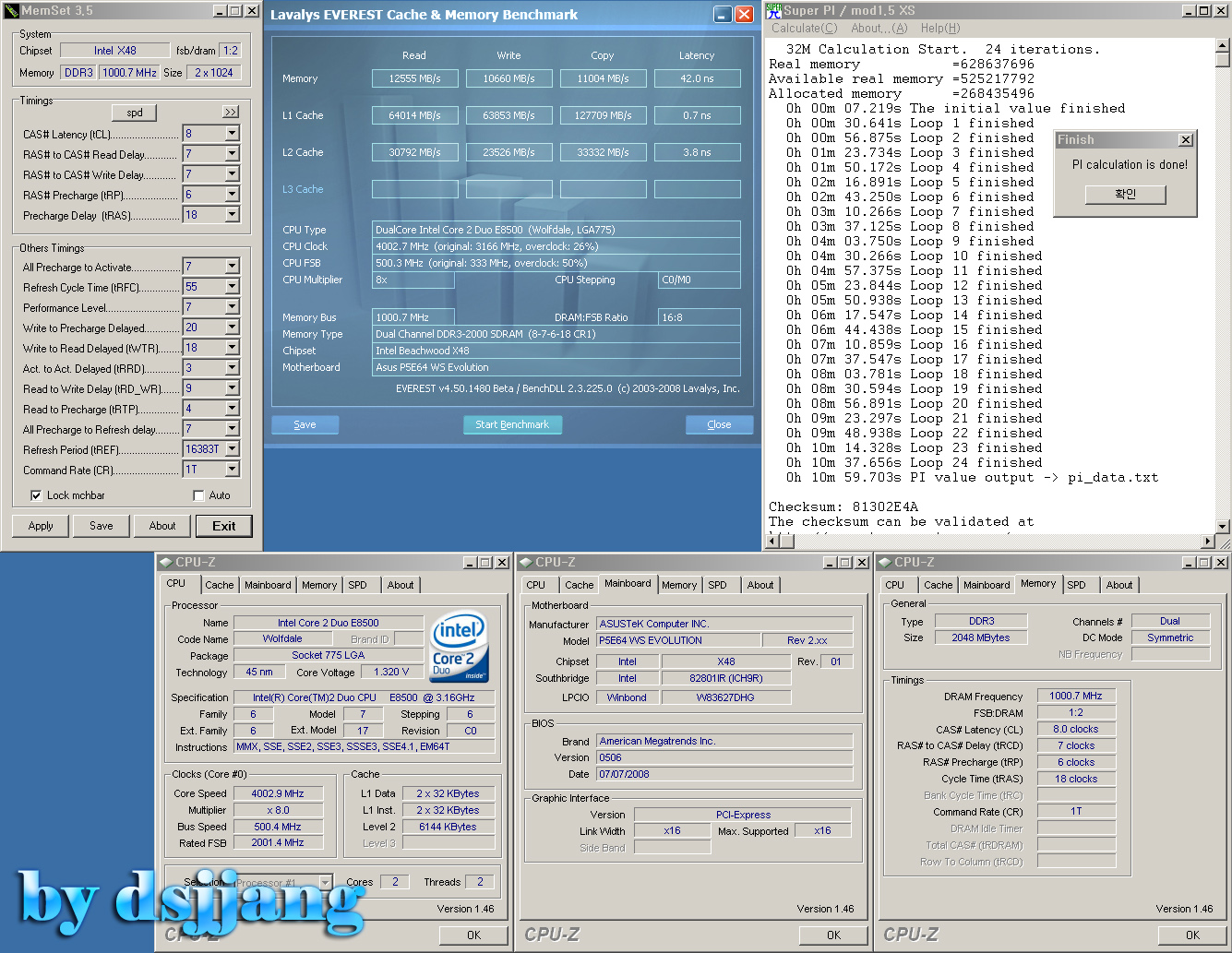

http://cfs13.blog.daum.net/original/...0CL8Sub11m.jpg
4g 32M DDR3 2000 8-7-6-18 1T result~ :D
but my best score was when used maximus extream~
This is that~ :)

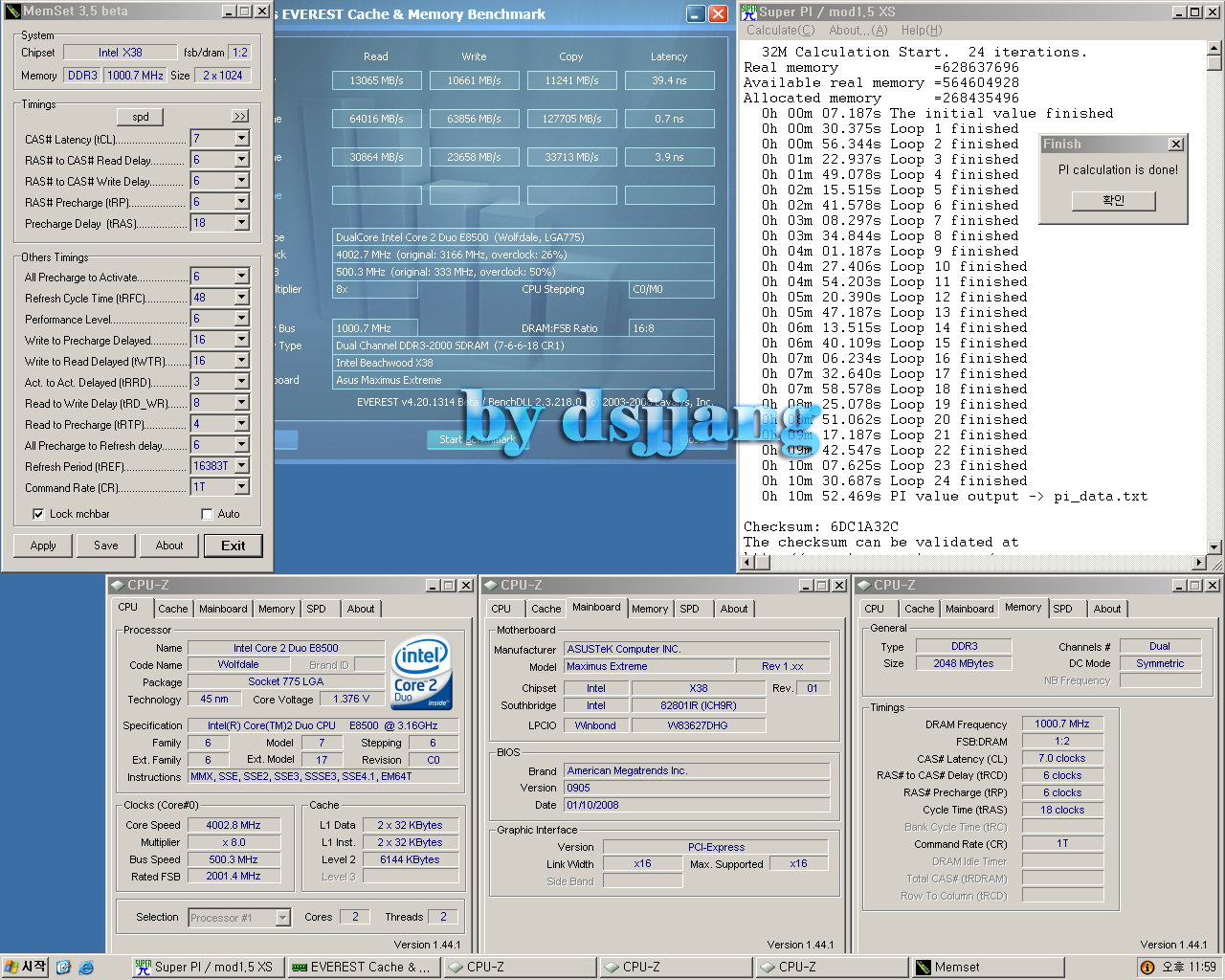

http://cfs12.blog.daum.net/original/...MNewRecord.jpg
oki :) and on Evo, your best 32m at 4ghz, do you have one to show ? Otherwise it is ok, I've seen enough with this one :(:D
Your last Spi-screen is really really good :p:
Keep pushing Dsjjang :up:
Btw, was your NB under AIR or better cooling ?
Thx~ :D
All MB cooling was air and stock cooling with 120mm fan~
Keep pushing, too~ :up:
Did anybody noticed a change in the behaviour of this board between 579 & 580 FSB with 333 strap ?
Regarding memory bandwidth ?
Wow, this thread kind of died out lately. There hasn't been a new bios out for awhile, either. Anything new happening with this board for anyone?
I don't know if there's a newer BIOS available.
I'll ask later on today.
I'm waiting for the Rampage Extreme.
where is the performance level setting on the 601 bios? whats the name?
I don't want to use memset all the time :\
It's the "Common Performance Level" setting.
change this menu~Quote:
Originally Posted by |Oc|REvO_HsArC
Ai Transaction Booster: manual
and choose PL what you want~
Common performance level:
A new official BIOS 0508 is available via Asus Download support site. Has anyone tried it yet?
Does this have better compatibility with DDR3 modules?
I am running 0601 and am wondering if I should "Downgrade" to this BIOS?
Thank you mlai ;)Quote:
Originally Posted by mlai
I will give it a try as soon asap ;) It is soooooo long that a newer BIOS didn't came out :p:
??? I just went to visit Asus's global DL site and I only saw 0506, which is already out for a while... Could you link the one you are refering to please ?
Ooops..... My bad... It was 0506.... Not 0508.... Gotta get myself another cup of coffee......Quote:
Originally Posted by ToyTen
Anyway, I am currently on the beta 0601. Should I downgrade to 0506?
All these tweaking to get DDR3-1333 8G working is really killing me.....:down:
Really? I am running 8gig of the G-Skill @ 1333, although I think at 9-9-9-21, but with a 1T command rate. 100% stable. Plus, running the QX9650 @ 3.3Ghz as well.Quote:
Originally Posted by mlai
Edit - running 0601 as well...
I've got my X3360 OCCT and Prime stable at 4.0G and then dropped down to 3.8 for 24/7 use. However, my games crash from time to time. Any advise will be appreciated.
