03-15-2010, 01:43 PM
Titan7171

Quote:

Originally Posted by gOtVoltage

Titan ,, you hit the head on the Nail..
My goal is to keep under 1.6v for what i want to do...

Prime and Mobos and Me dont get along ...I shure do give a shot though:D

Even @ 1.54v with Prime for 2hours the heat will eventually build across my Rads..Besides all that This chip Easily does 200mhz over my 550 @ same volts...They did something and i like it..

if you do have triple rads try 1.57v for 24/7 its what I run and the cpu will hover around 46-50c load depending on ambiant, idle will be 34-36c.

The thing with prime is a cpu at 4ghz that runs everything great at 1.47v will need close to 1.55v (and I mean pull that much voltage, youll see a jump in cpuz) If your voltage is set to low the mobo or cpu wont be able to compensate and thats where you get the bsod. What you need to do is set a happy medium.....low enough to not boil 24/7 ambiant but high enough so that when the cpu calls for the boost of voltage the mobo/cpu has access to it. Hopefully you will be able to use these same voltages but at higher clocks.......4.2ghz may be the new 4ghz with those cpu's prime stable, and 4.3-4.4ghz will be the extreme exception watercooled......but barely prime stable.

Its really tricky and it all depends on your cooling at the end of the day.:)
03-15-2010, 02:28 PM
wuttz

im using that cpu-block and its absolutely awesome for the price you pay (~$35)!
worksmanship/design is A+

http://www.enzotechnology.com/images...cpu_photo2.jpg
03-15-2010, 02:45 PM
Titan7171

Quote:

Originally Posted by wuttz

im using that cpu-block and its absolutely awesome for the price you pay (~$35)!
worksmanship/design is A+

http://www.enzotechnology.com/images...cpu_photo2.jpg

Yup for the price and performance its out of this world:up:
03-16-2010, 02:15 PM
gOtVoltage

Only took 1.64v:shocked:

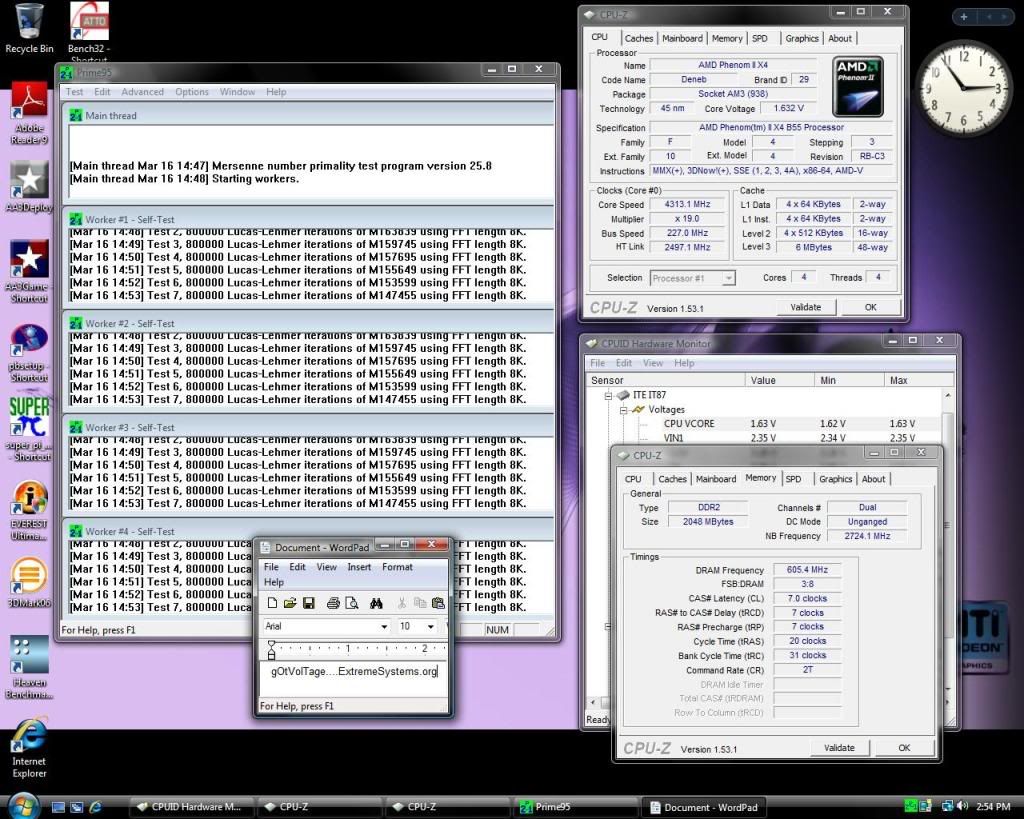

Little 555 just needed some love n stuff ....4300/2700+ with 1200 on da ram...

I guess im living up to my Name Again:rofl:

http://i168.photobucket.com/albums/u...555_X4core.jpg

It likes Volts as i got shocked picking up the 555Box:up:.....

Load Temp Is 43c ..Ambiant room temp is 19c. Im using a BixIII and Feser 360 ATM ...My Bro has my other Feser....

C3 is so fricken Amazzing...
03-16-2010, 02:22 PM
Zeus

4.3GHz prime is nothing but awesome, even though it's only small ftt's. :up:
03-16-2010, 02:27 PM
gOtVoltage

...I dont want to go to far overboard. Large Ftt's i think will push the Mobo too much..

The CPU can take it, just the Mobo dips too much in the volt department...Along with my 650watt pSU.

ATM Pc will play all my games @4300mhz which is what my main goal was...

Priming is just a Bonus on this Mobo...Especially with UNLOCKING The CHIP:up:
03-16-2010, 03:20 PM
EnJoY

That screen of prime small ftts was running for like 7mins...c'mon, you can do better than that. :rolleyes:

How bout some blend at 4.2? :D
03-16-2010, 04:34 PM
Titan7171

Quote:

Originally Posted by gOtVoltage

...I dont want to go to far overboard. Large Ftt's i think will push the Mobo too much..

The CPU can take it, just the Mobo dips too much in the volt department...Along with my 650watt pSU.

ATM Pc will play all my games @4300mhz which is what my main goal was...

Priming is just a Bonus on this Mobo...Especially with UNLOCKING The CHIP:up:

If thats with ambiant water then thats awsome.......I did 30 minutes prime at 4.3ghz but it took ice chilled water tha was ambiant around 10c and loaded at 25c. So this is definitely an improvement.
03-16-2010, 09:35 PM
gOtVoltage

Quote:

Originally Posted by EnJoY

That screen of prime small ftts was running for like 7mins...c'mon, you can do better than that. :rolleyes:

How bout some blend at 4.2? :D

Oh ill need some hefty Margaritas if i have to pull out the Blendor....Ill see what i can do...

As for small Ftt's i let it run more later..I have another PC running in the room so my Ambiant is around 26c..dont need another heater going yet .

Quote:

Originally Posted by Titan7171

If thats with ambiant water then thats awsome.......I did 30 minutes prime at 4.3ghz but it took ice chilled water tha was ambiant around 10c and loaded at 25c. So this is definitely an improvement.

Ambiant with Just this PC on in room is usually 19/20c...Water is the Same...

I really dont like messing with Prime Past 4100/4200mhz especially with 1.65v...

Thats so much stress on this Mobo....Notice how i worry about the Mobo not the CHip:rofl:.....C3 are fricken Nuclear Warfare on Wafer lol.
03-16-2010, 10:20 PM
crazydiamond

lol when i saw that i was wondering if the fets were screaming lol.. my gd-70 has done multiple >30 min. 1.6v + prime sessions - seems to handle it pretty well :D
03-16-2010, 11:39 PM
gOtVoltage

4200mhz/2700nb 1215ram...Prime Large Ftt's

I dont know how much this mobo can take ...1 hour @ 1.63v-1.64v is good enuff for me....

Enjoy .....Margaritas helped on the rocks...Blend runs same as Large:up:

http://i168.photobucket.com/albums/u...meLargeFtt.jpg

After a day of tweaking ,,

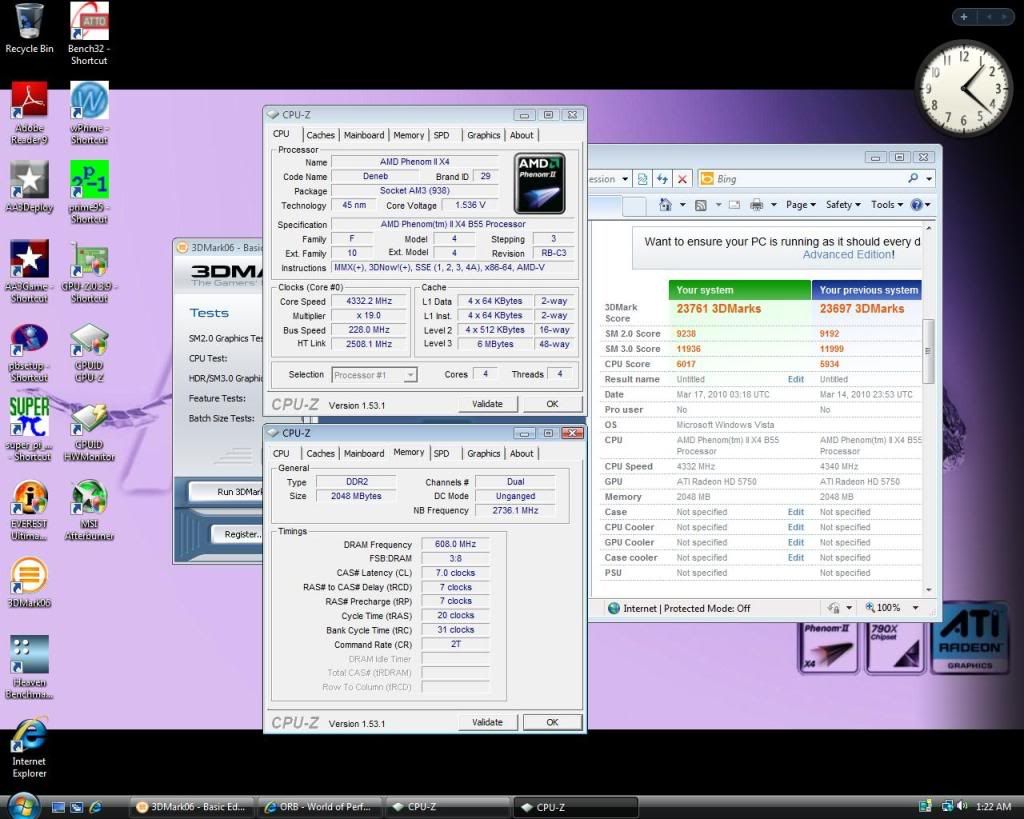

4300mhz @ 1.536v actually works fine for Games and 3d Benches and Such....
http://i168.photobucket.com/albums/u..._2700_1200.jpg

My biggest problem is the Mobo Bios...I have to add alot more than what is actually needed for Priming. I have a fan on PWM's (TMpin2)run only 1c or 2c hotter than my CPU does lol...These ones can actually take some punishment..

I kept the Volts up to see it squirm under preshure...

FULL LOAD@41c after an Hour of Prime is Priceless:D
03-16-2010, 11:41 PM
Serpentarius

Quote:

Originally Posted by wuttz

im using that cpu-block and its absolutely awesome for the price you pay (~$35)!
worksmanship/design is A+

http://www.enzotechnology.com/images...cpu_photo2.jpg

is that cold forged?
03-17-2010, 12:25 AM
wuttz

Quote:

Originally Posted by Serpentarius

is that cold forged?

they have information here: http://www.enzotechnology.com/forging.htm

it's likely that it is.
03-17-2010, 12:27 AM
crazydiamond

nice man, i wonder if its got anything left in it w/ am3 board, seems like a lot of people get better oc's out of same chip on am3 vs am2 board :p:

impressive as always man
03-17-2010, 01:00 AM
gOtVoltage

Funny,,
My Ram is Maxed @1215mhz ,, NB cant go no more because of it..

2900/3000mhz is my Max @4200...

So for 4300mhz - 4400mhz i have to use around 2800 or lower @1.3v.

Now i know why DDR3 came about:D
03-17-2010, 06:09 AM
EnJoY

Quote:

Originally Posted by gOtVoltage

4200mhz/2700nb 1215ram...Prime Large Ftt's

I dont know how much this mobo can take ...1 hour @ 1.63v-1.64v is good enuff for me....

Enjoy .....Margaritas helped on the rocks...Blend runs same as Large:up:

After a day of tweaking ,,
4300mhz @ 1.536v actually works fine for Games and 3d Benches and Such....

My biggest problem is the Mobo Bios...I have to add alot more than what is actually needed for Priming. I have a fan on PWM's (TMpin2)run only 1c or 2c hotter than my CPU does lol...These ones can actually take some punishment..

I kept the Volts up to see it squirm under preshure...

FULL LOAD@41c after an Hour of Prime is Priceless:D

Nice stuff man!

The deal is, when PHII's are 3D stable, they will certainly game. I found that my 965 could do 4.0GHz with only 1.4v at 52c load with my H50. And it would game and do prime small ftt's all day. However, every now and then throughout the course of my week I noticed one or two blue screens. I found that prime blend would crash after 2 1/2 hours. I then bumped vcore to 1.425v and it's truly rock stable through anything now.

So, there's a fine there between game/3d stable and full 24/7 rock stable with Phenom II's. :)
03-17-2010, 01:07 PM
richierich

Wow awesome. I'm contemplating "upgrading" to the 555....LOL
03-17-2010, 02:14 PM
richierich

Forget contemplating, I just ordered one.
03-17-2010, 02:21 PM
wuttz

Quote:

Originally Posted by richierich

Forget contemplating, I just ordered one.

:ROTF::ROTF::ROTF:
hope it unlocks!
03-17-2010, 06:05 PM
gOtVoltage

Quote:

Originally Posted by richierich

Forget contemplating, I just ordered one.

Cancel order LOL

Microcenter for $89.bucks ....go pick it up........SantaClara

:wasntme:

1004's CPMW at least all the ones i put my hands on.I touched every Box hahaaa...

Fun little Bugger....

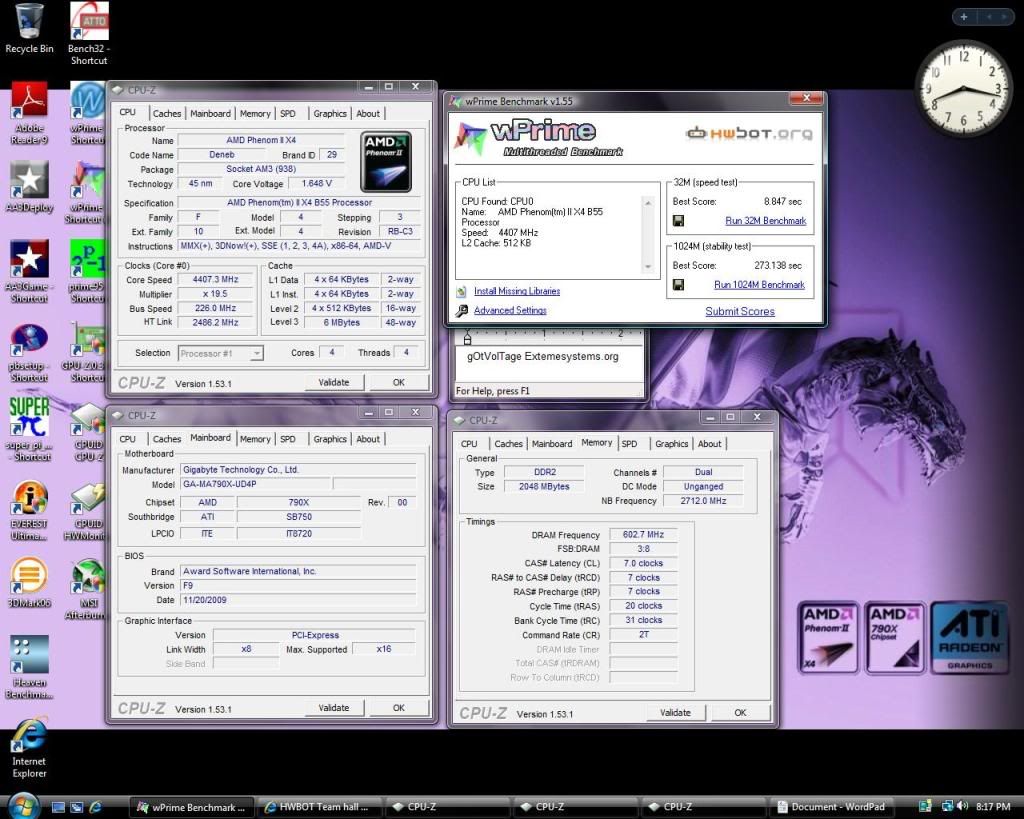

Wprime 32 and 1024 stable
http://i168.photobucket.com/albums/u...0nbX4cores.jpg

http://i168.photobucket.com/albums/u...dfourcores.jpg

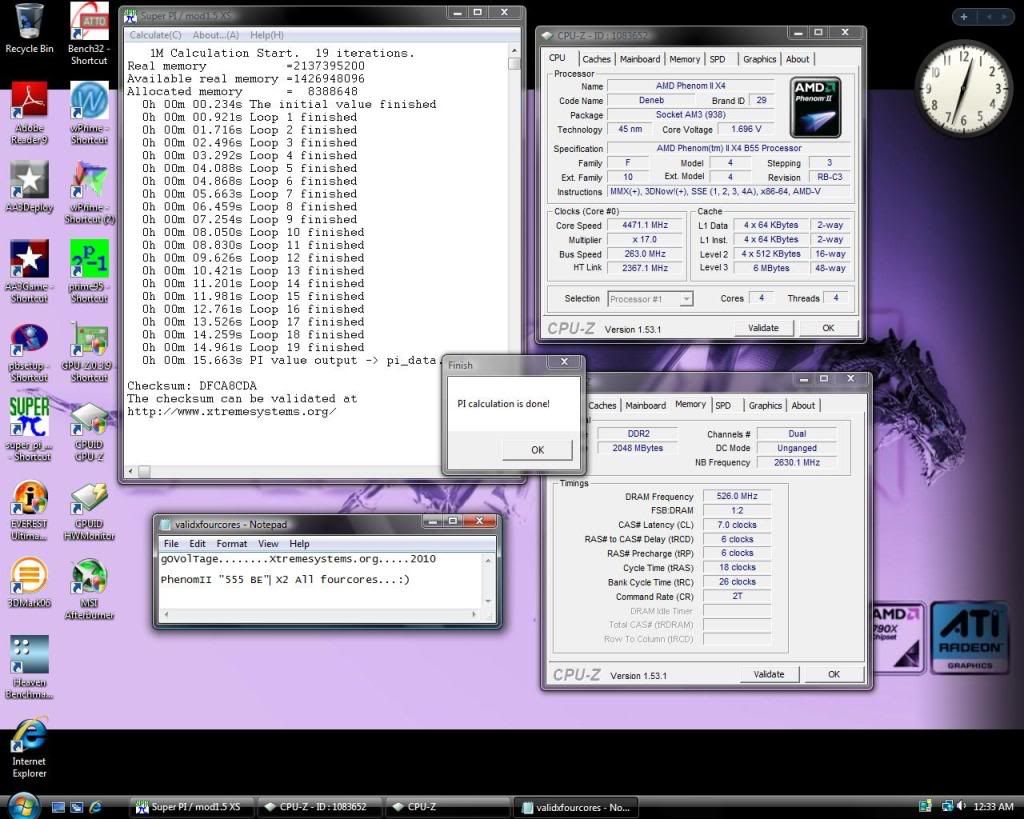

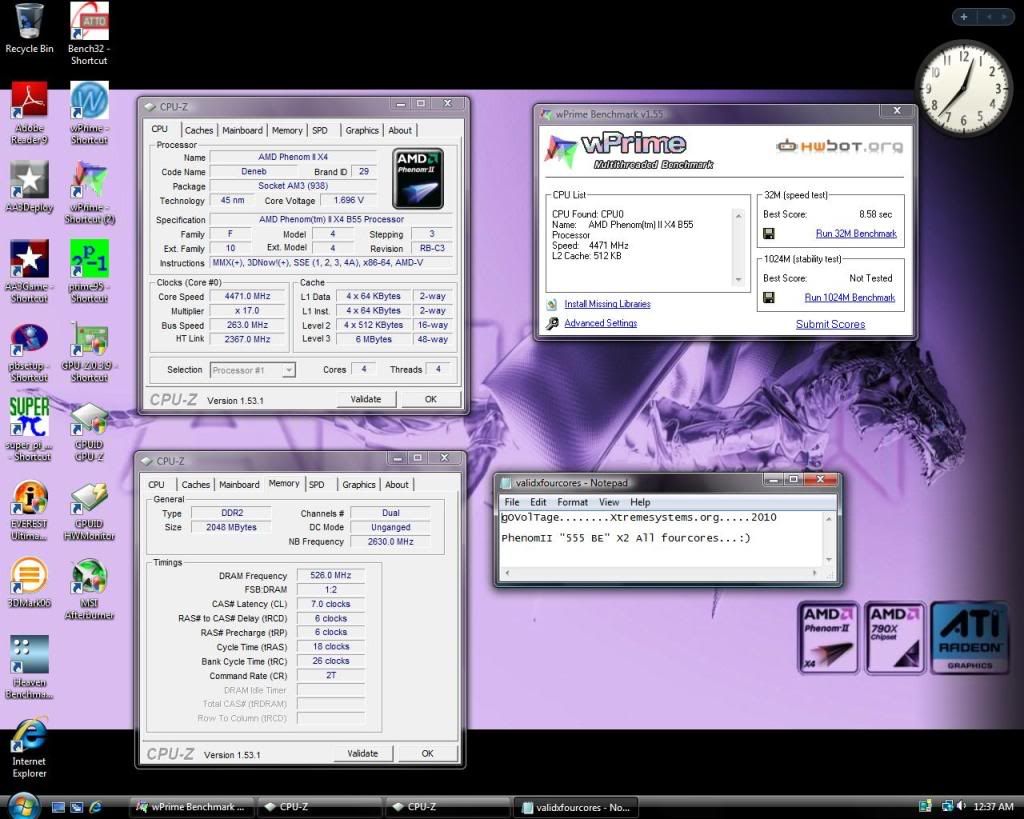

Wprime 32 only up to 4471mhz...ahh dang....

http://i168.photobucket.com/albums/u...ime32_4471.jpg

http://i168.photobucket.com/albums/u...lfourcores.jpg

I know She's not the Best 555 out there....
She packs a great punch.:D
03-18-2010, 01:07 PM
richierich

Quote:

Originally Posted by gOtVoltage

Cancel order LOL

Microcenter for $89.bucks ....go pick it up........SantaClara

:wasntme:

1004's CPMW at least all the ones i put my hands on.I touched every Box hahaaa...

Bastard! You didn't post earlier, and the crazy thing is I picked my lil sister at San Jose, I was contemplating going to MicroCenter instead of ordering from Newegg......:( And I double checked MC online, it says $99.99 instore (almost same as NE)
03-18-2010, 11:10 PM
gOtVoltage

Quote:

Originally Posted by richierich

Bastard! You didn't post earlier, and the crazy thing is I picked my lil sister at San Jose, I was contemplating going to MicroCenter instead of ordering from Newegg......:( And I double checked MC online, it says $99.99 instore (almost same as NE)

Dang im Bad... Even sent ya a PM that day too....It was a walk in Price for that Store..

Any way the Egg will probally have a higher Stepping and About the Same Price ..

Ok,,
Flanker ,,
One of your favorite benches:D
CINBENCH R11.5 32bit Vista...

http://i168.photobucket.com/albums/u...benchR11_5.jpg
03-18-2010, 11:46 PM
crazydiamond

you should try that again with same settings but drop down ht link under 2k, interested in cpu score

nice results btw, 4.4-4.5ghz bench stable on water is sick
03-20-2010, 08:47 AM
richierich

Quote:

Originally Posted by gOtVoltage

Dang im Bad... Even sent ya a PM that day too....It was a walk in Price for that Store..

Any way the Egg will probally have a higher Stepping and About the Same Price ..

Nope, got my 555 in yesterday night and it has 1004BPMW stepping. :mad:. I swear I keep getting BPMW steppings from Newegg. First was my 920 (February '09), 550 (June '09), and now 555. Both my 920 and 550 weren't very impressive at all. Hopefully the 555 can change that trend.
03-20-2010, 09:37 AM
funkflix

Nice clocks gOtVoltage! :up:

I have a 1004BPMW too! It isn't that bad as u think!

First test with 3600MHz and all Auto in Bios:
http://www.abload.de/img/clipboard02jv79.jpg

Now i'm running prime with 15x254 1,344V.
