Been putting in some of the fans, to get an idea of what cable management will be needed. I have an Aerocool 2000, which I want to hook the fans up to in groups of 3. It says max of 6 watts per channel, so we shall see ;)
I need to make up some 3 to 1 wiring harnesses, had planned to call in my store on the way back from shopping, but we ended up on the other side of town, so that will have to wait. Considered just splicing them all together, but decided against it for 2 reasons, firstly would be a pain if a fan broke and secondly wasn't too sure if it would affect the warranty.
I bought several different fan grills to see what I liked the look of. I really liked the silver powder coated tribal flames, made by Kikboxes. I saw they did a 3 x 120 in a similar and complimentary style. So, I thought I'd use 3 of the triples and have 2 singles. As you can see here on the back of the case
http://i230.photobucket.com/albums/e...ckwithfans.jpg
I love the effect it gives, like the glowing bottom of a fire with flames coming up:)
However, they have made it to fit a variety of case styles, so the extra 'border' round it makes it impossible to put one on top of the other on the front of my case :mad: I also don't like the look of those extra holes, trouble is if I cut the top & bottom off, I can see the powder coating chipping and at the very least having plain exposed metal.
I've decided to send back one of the triples and get 3 singles for the front, thereby giving the effect of rising flames.
Anyone got any ideas on how to get rid of the excess top and bottom?

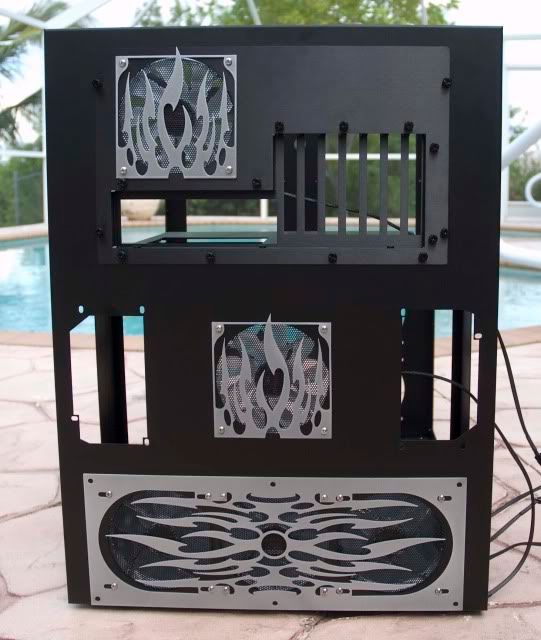

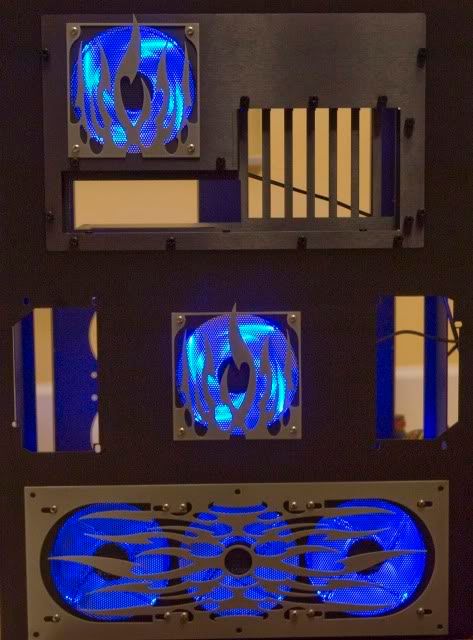

Here are some pics with the fans on
http://i230.photobucket.com/albums/e...cklightson.jpg

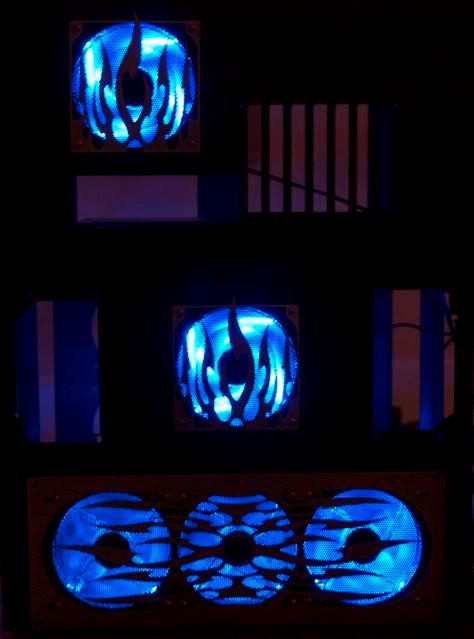

Camera doesn't have a remote, so nigh on impossible to get a sharp pic with no lighting, even on a tripod
http://i230.photobucket.com/albums/e...cknolights.jpg

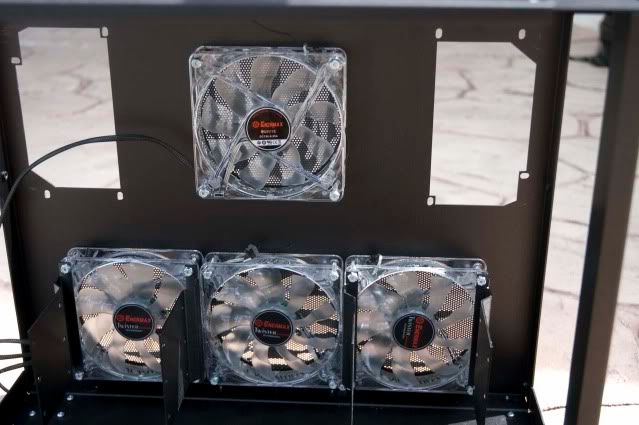

This is a view of the fans mounted along with the hard drive bays, from the front of the case
http://i230.photobucket.com/albums/e...frominside.jpg
These Enermax fans are great as they use clear wiring, so no need to sleeve right back to the motor :)
The GT's came pre-sleeved. Although of a better quality than the basic stuff, not a scratch on MDPC, but with ugly wires slowing from the motor, it all had to come off :p:
Hopefully will have time this week to make up some wiring harnesses, and see if the Aerocool has any guts ;)
Whoa - starting to take shape. Love the grills. Can't wait to see you put all that fun stuff into the box!
those grills really are nice man! keep up the good work!
Well, it's been a while since I've added to this log:( Although I have been working away at it!
With the MM cases having nowhere to hide anything, wire management has been my 1st priority, especially from the 2 radiators. I also want everything easy to take apart if something fails. So that instantly knocks out the idea of splicing the wires together.
I am using the Feser shrouds, and they come with LED's, in their native state they look like this
http://farm3.static.flickr.com/2593/...c350b2d552.jpg
6 clunky molex cables definately needed taming into something neater! After much head scratching, I came up with this plan.
Firstly strip the exisiting shrink off them
http://farm4.static.flickr.com/3511/...a3ef10bf_b.jpg
To get the LED's in the holes how I want them, they have to pretty much be at 90 degrees, already snapped one of them, and not much there to re-solder. So having to be ultra careful now :rolleyes:
Using a male/female molex in the middle I devised this set-up
http://farm3.static.flickr.com/2482/...183e4054_b.jpg
I am still working on the end one, but it will probably be on another joint molex. Was planning on having it like the end one, but it just didn't seem to lay right.
Here is one of the rads, in all it's naked glory
http://farm3.static.flickr.com/2607/...6aa11a0e4f.jpg
Here are it's clothes
http://farm3.static.flickr.com/2610/...7b6a45ca_b.jpg
I decided to put the rads in the case for a dummy run, so they are just propped in place, also I didn't want to risk damaging the LED's, so they aren't attached.
http://farm3.static.flickr.com/2695/...a8e5a626_b.jpg
It's amazing how photographs seem to show every tiny little flaw in sleeving :eek: But as these splitters will probably change before the end, they will serve a purpose for now! Hubby has already modded his clamps, as he noticed they were damaging the sleeve :(
http://farm4.static.flickr.com/3480/...e0aa1f4089.jpg
Also on the final revision of them, we will use the sata shrink ;)
Hubby has been cutting his teeth on sleeving :eek: Started doing some pretty nice work, like on the Scythe fan controller cables
http://farm3.static.flickr.com/2750/...bbe2fffaf6.jpg
Posted a close-up on the sleeving thread.....don't like to double post pictures!
For the fan controller on the rad fans, I'm planning on using an Aerocool 2000. I tried it with a 3 way splitter, so I would just use on channel for each rad, but it didn't like that, but it seems quite happy with 2 fans on each channel. I hope it works out, as I really like the front USB/audio/eSATA features it has.
Here is a front view with both the Aerocool and Scythe in, the latter will control the 4 rear fans, with the upper rear fan going on the MB.
http://farm3.static.flickr.com/2794/...46d0cba14f.jpg
Another thing which is holding me back is the ever shortning evenings, my camera is not good in low light, so have to wait for the weekends to take some pictures.
Once I put the finishing touches to the LED cables, it's time to start looking at case lighting, pump cabling, on/off switches etc.....the list goes on and on! As once again, it all involves cables that neet to be as tidy as possible!
