06-30-2009, 01:42 AM
eva2000
nice.. testing cas7 myself too :)

2x2GB Kingston HyperX DDR3-2000Mhz CAS8 (Elpida Hyper)
Dual Channel @7-7-7-21 1T
Seems 7-7-7-21 timings are easier to scale than 8-8-8-24 for this memory on Asus Rampage Extreme. DDR3-1952Mhz coincidentally is the highest memory frequency I've managed for Super Pi 32M on Asus Rampage Extreme so far. My Micron D9GTR/Samsung HCF0 seem to top out around 950-964mhz for 32M Pi.

Also 1T gives approximately 270MB/s more memtest86+ v2.11 memory bandwidth than 2T at same memory frequencies in dual channel mode.

Max CPUZ Validation @DDR3-2026Mhz 7-7-7-21 1T at 1.68331v bios

http://valid.canardpc.com/cache/banner/595524.png

http://fileshosts.com/intel/Asus/Ram...cpuz_valid.png

Max Super Pi v1.5 & v.16
@DDR3-1952Mhz 7-7-7-21 1T at 1.68331v bios

http://fileshosts.com/intel/Asus/Ram...0m47s359ms.png

http://fileshosts.com/intel/Asus/Ram...0m46s672ms.png

Everest Ultimate Bandwidth

http://fileshosts.com/intel/Asus/Ram...mv/everest.png

System:
- E3110 Q750A158
- OCZ Vendetta 2 Air
- Asus Rampage Extreme 1104 bios
- 128MB Gainward FX5200 PCI
- 3x 2GB Kingston HyperX T1 DDR3-2000Mhz CAS8 Triple Channel kit (KHX16000D3ULT1K3/6GX) - using 2x2GB of the kit
- 1TB Samsung SATAII
- Pioneer 216 DVD-RW
- 1KW PCP Cooling SLI
- WinXP Pro SP3 nLite fully updated
06-30-2009, 02:05 AM
Leeghoofd

Memtesting 950Mhz now C7 1.63Vdimm (had to loosen TRFC to 90 and up QPI to 1.39 to avoid it erroring ), I saw a 3GB review at hardwarelogic, they did 1866 with C6 but I don't see much proof, CPU-Z and co is nice, without a test screen it doesn't means much to me...

http://users.telenet.be/OAP2/Kingsto...burnin1900.jpg

Can't wait to get my Rampage Extreme going again... PL7 is so sexy

EDIT : errorred at 72%, will test 8-8-8-24 from now, one stick down :( ow boy
06-30-2009, 05:57 AM
Viss

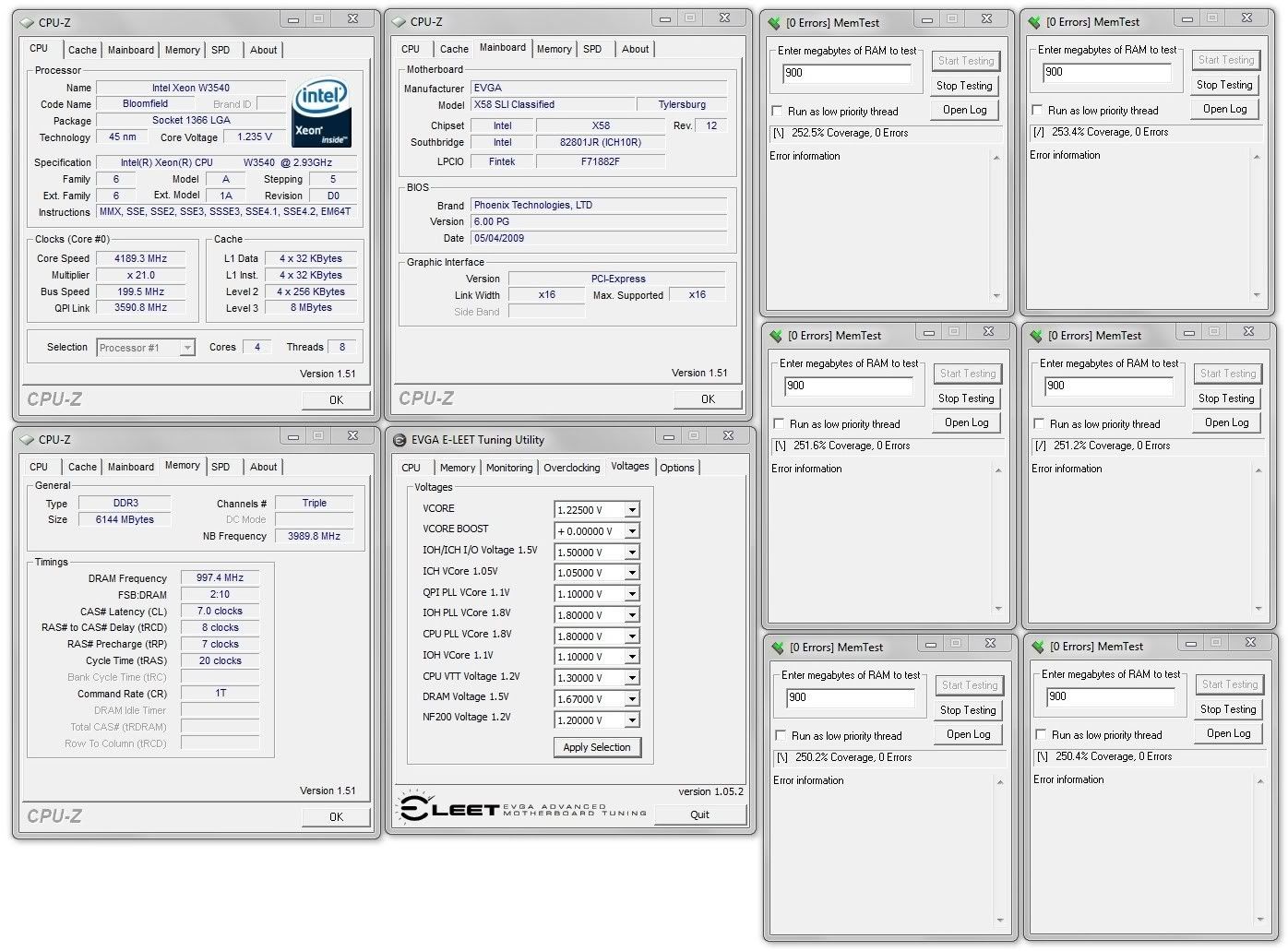

Mine did 7-8-7-20-1T 1000mhz when i just got them at 1,67v. One of the sticks needs 1,69v for the same clocks now..

click
06-30-2009, 06:07 AM
runmc

Yeah you really need to go easy on the juice with these chips. They may not last to long if you don't.
Way to go George :up:
06-30-2009, 09:05 PM
eva2000

Quote:

Originally Posted by loc.o

Mine did 7-8-7-20-1T 1000mhz when i just got them at 1,67v. One of the sticks needs 1,69v for the same clocks now..

click

hopefully it doesn't get any worse

Quote:

Originally Posted by runmc

Yeah you really need to go easy on the juice with these chips. They may not last to long if you don't.
Way to go George :up:

yeah such delicate things.. hope my replacements aren't so delicate... my GT 2000C7 are rock solid handle 1.93v vdimm no probs and still running heh
