10-03-2007, 03:13 AM
cowie

Quote:

Originally Posted by TouGe

If you own a P5K-D board you can mount the HR-03+ so that the HS/fan is above the NB and only have to sacrifice the stupid wireless card and there is no difference in temps doing so other than keeping the back of the card a little cooler.

Also, if you plan on OC'ing your GPU you'll run into problems with the VF1000. After installing mine I kept getting freezes in games until I backed down to stock clocks--I had zero problems w/ that OC (in sig) and the HR-03+. Why spend all that money on a HS if it won't allow you to overclock? Further, no offense here, the RAM sink is not worth the money. Get some copper sinks instead and bend the fins for clearance.

hmmmm i did not notice slower clocks with my a3 gts
stock volts 675 playing moh a for a few hrs.
with the zalman 699 24/7 np,but have not tried the hr-03.
if its the money yes its quite pricey
in sli i can slip a fan(2x90mm) under the bottom card now which i cuold not do with stock h/s.
i think it pays off with good temps at higher volts(1.48)load no where near 75c like stock fan,(66)and seems to have much better post load temp back down.
but heatsink reveiws are all about amb temps so....two or three c differance means alot to out come.

BTW it looks smoking hot on the black pbc...i know looks are not everything
10-03-2007, 04:27 AM
TouGe

Quote:

Originally Posted by Jodiuh

Do you have a fan riding on top of the HR-03 then? I'm just concerned the TRUE wouldn't fit w/ a fan. Also, I'd need another fan below to cool the ram.

Yes, a 92mm.
10-03-2007, 02:22 PM
PcCI2iminal

Quote:

Originally Posted by eva2000

nice stuff as usual :D

cowie also played with VF1000 but in SLI http://i4memory.com/showthread.php?t=4789 - you need flexible SLI connector as non-flexible ones won't fit due to heatpipe getting in the way.

thx George :)

cowie

nice review :)

Quote:

Quote:

Originally Posted by kite7

Looking good. I wonder how it will do in a case though, probably around 50C idle then

yep it's 2-4c more

HR-03 plus is here

http://img212.imageshack.us/img212/8076/024tl7.jpg

I'm a little busy at work but i will try to update asap :)
10-03-2007, 05:28 PM
cowie

that would niceto see
are you useing rhs88 on the card?
10-04-2007, 04:50 AM
PcCI2iminal

Quote:

Originally Posted by cowie

that would niceto see
are you useing rhs88 on the card?

No ,now I'm using the sinks from HR-03 Plus

http://img370.imageshack.us/img370/7140/rhs88rr8.jpg

Is this some kind of extension to carry the heat out from the IHS?any improvement?
10-04-2007, 05:36 AM
PcCI2iminal

http://img360.imageshack.us/img360/3765/009nr9.jpg

idle 44C
load 59C

http://img376.imageshack.us/img376/1...e44cee3.th.jpg http://img360.imageshack.us/img360/4...d59cta0.th.jpg

room temp->25C
fan->Globe Fan B07138812L 92x92x25mm 41CFM 25dBA

not bad for that 92mm fan :) but i have something better than Globe Fan

http://img376.imageshack.us/img376/6219/015np1.jpg

Sanyo Denki
F12-N->88CFM
F12-PWM->99CFM
F12-N/38->104CFM
F12-HHH->260CFM

it will be nice to see Zalman + San Ace vs HR-03 Plus + San Ace :)
10-04-2007, 07:57 AM
Jodiuh

Wow! Very nice.
10-04-2007, 11:44 AM
cowie

Quote:

Originally Posted by PcCI2iminal

No ,now I'm using the sinks from HR-03 Plus

Is this some kind of extension to carry the heat out from the IHS?any improvement?

the chipset guide(in pic) has to be removed to install rhs,so it acts as a few things.
cooler and rhs is nice fit,like a glove,witch may help spread the heat

i have not tried without rhs, had not good e-nuff heatsinks

http://aycu38.webshots.com/image/277...0637433_rs.jpg

yeah that would be nice hr-03 +fan vs zf 1000 +fan
10-04-2007, 02:10 PM
PcCI2iminal

Quote:

Originally Posted by cowie

the chipset guide(in pic) has to be removed to install rhs,so it acts as a few things.
cooler and rhs is nice fit,like a glove,witch may help spread the heat

i have not tried without rhs, had not good e-nuff heatsinks

yeah that would be nice hr-03 +fan vs zf 1000 +fan

thx for that information :)
10-04-2007, 07:21 PM
Start

1 Attachment(s)

Chart as promised. Boy the DuOrb was shocking...
10-05-2007, 01:14 AM
Jodiuh

Well, I don't think any of us are surprised. HR-03's a wonderful cooler...you just have to make room for it. :D
10-05-2007, 07:36 AM
naokaji

Quote:

Originally Posted by SP33DFR34K

Chart as promised. Boy the DuOrb was shocking...

like anyone would have needed any further proof that TT sucks:p: spend money to get worse temps than with stock cooling:rofl:
10-05-2007, 08:54 AM
kite7

Quote:

Originally Posted by naokaji

like anyone would have needed any further proof that TT sucks:p: spend money to get worse temps than with stock cooling:rofl:

But you would think that it should be better than a VF900 on a GTX, because it's essentially two vf900 together kinda
10-07-2007, 04:42 AM
MexxT

Quote:

Originally Posted by PcCI2iminal

idle 44C
load 59C

room temp->25C
fan->Globe Fan B07138812L 92x92x25mm 41CFM 25dBA

not bad for that 92mm fan :) but i have something better than Globe Fan

Sanyo Denki
F12-N->88CFM
F12-PWM->99CFM
F12-N/38->104CFM
F12-HHH->260CFM

it will be nice to see Zalman + San Ace vs HR-03 Plus + San Ace :)

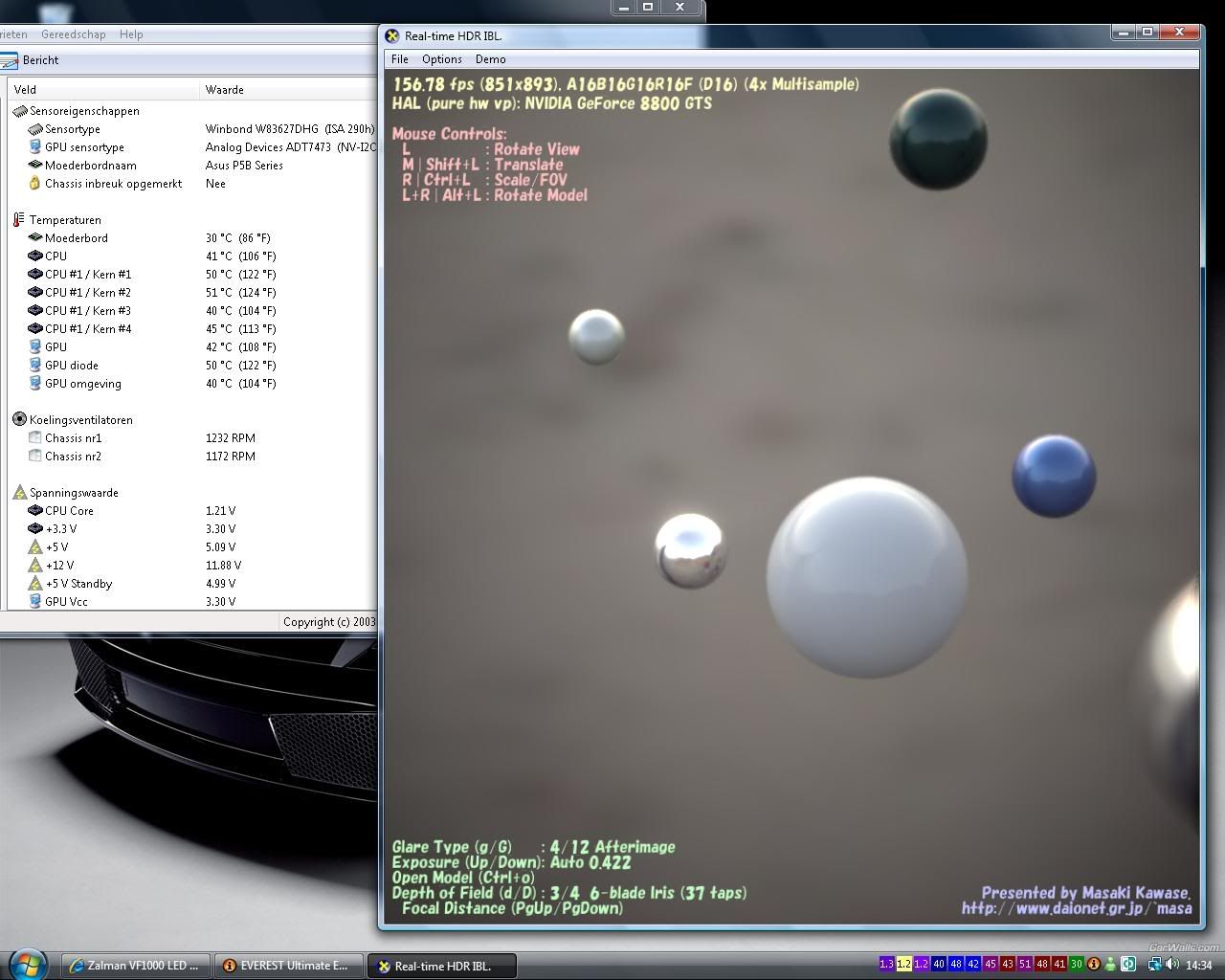

wow dude, WAY to hot!

http://i7.photobucket.com/albums/y27...nter/Tohot.jpg

50C @ full load, Clocks: C660/S1620/M975

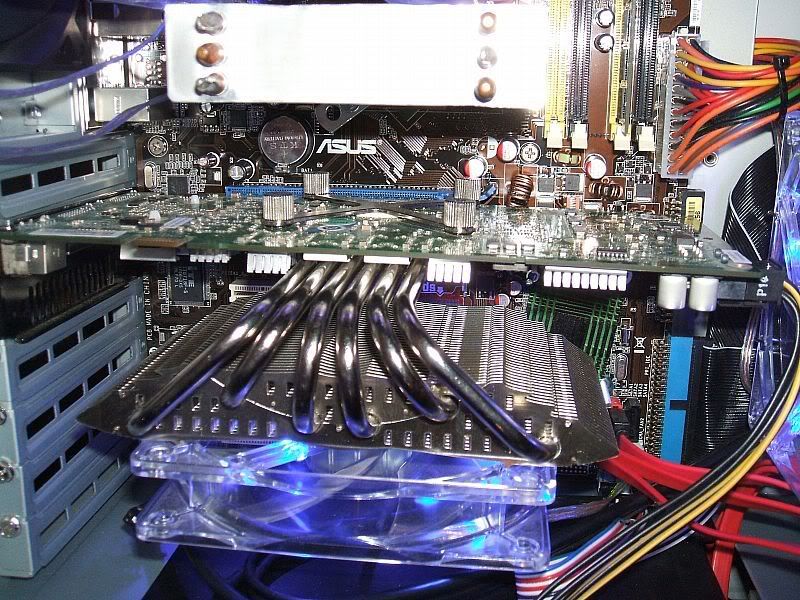

Thermalright HR-03 Plus With Coolermaster 120mm Silent LED (1200RPM)

http://i7.photobucket.com/albums/y27...w_DSCF1425.jpg
10-08-2007, 03:04 PM
PcCI2iminal

Quote:

Originally Posted by SP33DFR34K

Chart as promised. Boy the DuOrb was shocking...

thx again my friend :)

Quote:

Originally Posted by kite7

But you would think that it should be better than a VF900 on a GTX, because it's essentially two vf900 together kinda

I will put the VF900 on 88GTX :)

MexxT

http://img504.imageshack.us/img504/9205/imagemye8.jpg

HR-03 Plus + SanAce 120x120x25 88CFM
Room Temp->27c
:)
10-12-2007, 10:54 PM
k0rn_h0li0

to me the TT looks like two vf900's stuck together into one really long heatpipes coming from both sides. but the hr-03 are doing better than the TT and the vf1000. it doesn't look like the 1000's are doing so well. i could be using those pci slots for something rather than such a huge heatsink LOL
10-24-2007, 09:00 AM
gundersausage

Quote:

Originally Posted by SP33DFR34K

Chart as promised. Boy the DuOrb was shocking...

Dude check out this review, he cant have had the DuOrb mounted correctly, it took 19 degrees off the stock 8800GTX cooler under load

http://www.xtremecomputing.co.uk/rev...?id=380&page=6

Even the progression of the idle temps suggest it would be between the VF1000 and the HR-03 Plus
10-24-2007, 05:18 PM
PcCI2iminal

Quote:

Originally Posted by gundersausage

Dude check out this review, he cant have had the DuOrb mounted correctly, it took 19 degrees off the stock 8800GTX cooler under load

http://www.xtremecomputing.co.uk/rev...?id=380&page=6

Even the progression of the idle temps suggest it would be between the VF1000 and the HR-03 Plus

Its very easy to mount and the DuOrb is mouted correctly :)
I saw this review and then I decided to test again,the thermal paste used is not good as AS5 but it is not bad at all.

idle = 43c(room temp is 22c)
load = 92c+

the video

http://www.youtube.com/watch?v=CnDzV0pXoMI

the contact was good

http://img147.imageshack.us/img147/8382/036nt0.jpg

and now HR-03 Plus + 92mm 41CFM with the same thermal paste

http://img150.imageshack.us/img150/7...testingpz1.jpg
10-24-2007, 07:24 PM
gundersausage

Quote:

Originally Posted by PcCI2iminal

Its very easy to mount and the DuOrb is mouted correctly :)
I saw this review and then I decided to test again,the thermal paste used is not good as AS5 but it is not bad at all.

idle = 43c(room temp is 22c)
load = 92c+

the contact was good

Then you must have bought a fritzed one, cant have minus 20 degrees on one and another cant even beat stock, doesn't make sense
10-25-2007, 07:33 AM
PcCI2iminal

Quote:

Originally Posted by gundersausage

Then you must have bought a fritzed one, cant have minus 20 degrees on one and another cant even beat stock, doesn't make sense

yep, it doesn't make sense :( ,I don't think the heatpipes are working properly cz under heavy load the base heats very quickly and the heatpipes stays a little warm.
10-25-2007, 11:20 AM
Jodiuh

Now that's the same thing that happens w/ my Ultra 120 Extreme's pipes. They're barely warm @ full load. Now the HR-03 Plus' pipes go way past warm and almost hot.

I lapped the TRUE, so it probably won't be eligible for RMA either.
10-31-2007, 12:54 AM
gundersausage

Just installed the Thermaltake DuOrb on my Inno3D 8800GT and idle temps are 20C lower and 28C in Crysis.. Booyeah!!!
11-30-2007, 02:19 AM
rufilipino2003

i like the design of vf1000
