zOMG my nvidia contacts just crashed and burnt in hipro's hands hahahahaQuote:
Originally Posted by hipro5
now you gotta be a good boy and PM me the details :D
Printable View
zOMG my nvidia contacts just crashed and burnt in hipro's hands hahahahaQuote:
Originally Posted by hipro5
now you gotta be a good boy and PM me the details :D
Now what are the secs for those condensators :D
I NEED to attempt that mod man :D
If you mean: "the specs" then they are 47uF/10VDC (Class C) and -75*C - +150*C...Quote:
Originally Posted by Nosfer@tu
I just came upon this thread. Those mods are extremely impressive and clean looking. You ARE the master of the elecronics! :clap: :clap: BTW did I see a hint at mods for Nvidia's being found? :D
Wow I wish i could solder that well--that's so clean!
What a great board and now that it's been Hi-Pro-ed it's beyond great.
Looking forward to your results.
I had the good fortune to receive on the of BLitz Formula--but no chance to play with it...
Ok but I cant see vcore mod, so cen someone take better pic, please.
Thanks in advance.
vcore is the resistor I marked in red, I used a 50k ohm vr to ground from that point, worked greatQuote:
Originally Posted by Spacemaster
Thanks M8 for the help..... :)Quote:
Originally Posted by toddm27
Thanks mates. :)
Hipro5,nice done there
ihave mod this one month ago,seems working fine to me
with quadcores 1.95v stable

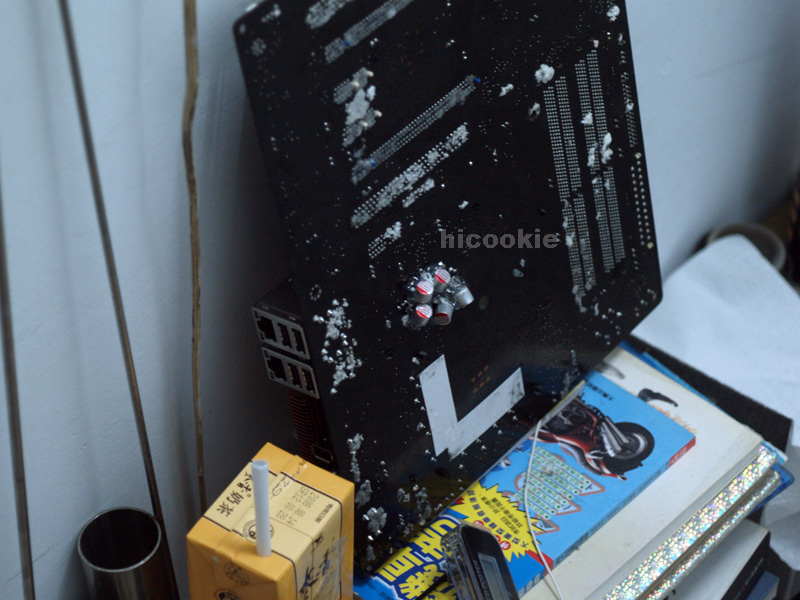

just add some caps on the backside,and it's won't bother to ur cpu insulation:)
http://pic.xfastest.com/hicookie/asu...a/PA022892.JPG
http://pic.xfastest.com/hicookie/asu...09.01/5160.gif

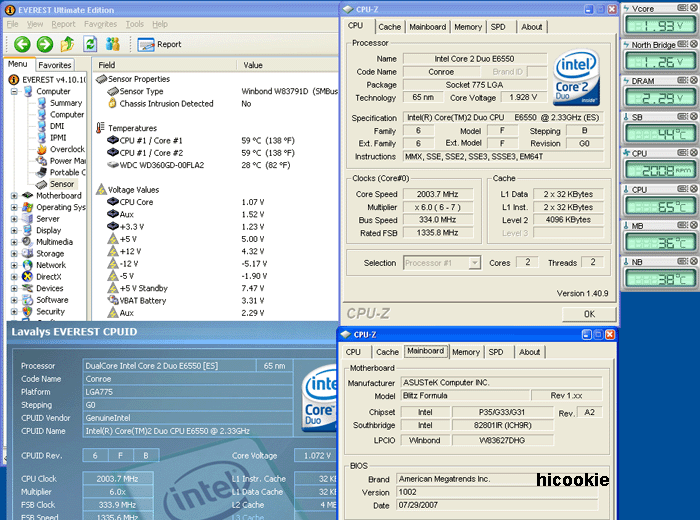

with intel stockfan 1.93v
http://pic.xfastest.com/hicookie/asu...WIthdamper.gif
wow that is ghetto modding at its finest :D
lol hicookie you're crazy dude
1.93v with intel stock cooler hahahah
anyone know where the vcore readpoint would be?
It would be on the base off a coil i belive, but with the mod in this topic it'll be on top nowQuote:
Originally Posted by toddm27
You... You... You put chokes on the bottom of the motherboard.
That is like, the smartest thing in the world.
Very detailed, good pictures.
Awesome job!
Hope to see some even more awesome results from it!
Where do you get the solid capacitors?Quote:
Originally Posted by GTX
Check mouser; digikey; etc... all the common suppliers should have them.
Could you tell me? What you're Ground point to set vcore mod please?
hipro, what size VR did you use for vCore?
When i measure the resistance to ground it continually changes.
50K for VCore and 100K for the Vdroop...... :)
That is some serious modding :up:
Very nice!
Did you cut the heatpipe so that it left you with the SB and Crosslinx ?
I was considering cutting the one on my Blitz so that i can use an aftermarket NB and Mosfet blocks ( Providing there are Mosfet blocks that fit )
Yes I have cuted the heatpipes.... :)
Thanks super dank... :)
Only one in doubt which of the vdroop?Quote:
Originally Posted by hipro5
Its been a while since anyone posted in this thread but I hope that I might get some help all the same! I was a bit late in getting this board but only because it took that long to find one, lol! I got my Blitz Extreme brand new about 2 weeks ago for a great deal (in my opinion). So far I very much like the board despite a few minor problems I'm having (like the onboard power/reset buttons not working).
In anycase I've been searching for many days now (multiple forums, google, and everywhere in between) trying to find the voltage read points for this board! I'd like to figure out what the actual voltages my components are "seeing". Most importantly I'm looking to find the VDIMM voltage read point! Thanks for any help you may have guys, it is greatly appreciated!
