Official Sales Thread!!!
http://www.xtremesystems.org/forums/...ad.php?t=89021
:woot: looking good!
Sorry, were did you find those spacers??:confused:
http://img306.imageshack.us/img306/6...radores2ry.jpg
Thanx!
McMaster... They have EVERYTHING :)
1st post revised with ordering info!
Visit www.fragtek.com for easy online ordering!
just a question but do the 5 fans justify the price jump from 25 to 100 dollars? ive suddenly re-thought about buying one.
Where'd you get $100 from? The fanned out model is $80. And even at $100 the price would be justified FYI. I take it you don't work 6 x 12 hour days each week and have enough spare time to sit around screwing fans on to these brackets. At $80 they are coming unassembled.Quote:
Originally Posted by einCe
you changed your price, i remember it being 100 when you posted it in the sale thread here
Yes and I decided I didn't want to take the time to assemble all of them so I knocked off $20 and will leave the assembly up the consumer. www.fragtek.comQuote:
Originally Posted by einCe
Ok I just discovered a wee bit of a problem that I completely missed when I designed this bracket. I used a 6800GT as the reference card for clearances at the back of the card and then completely forgot to test with G70's before moving on to the next step. So, the end result is that how it sits only 6 series cards can fit with this bracket AS IT SITS.
Now if it's not too late I'm having my laser cutting company call off this batch (more than likely too late, they probably shipped out today... bleh) and wait for my revised drawing. If it is too late I can hand modify the brackets with a dremel to allow the fitment of G70's (and as I look at it I don't think the 512mb GTX's will fit at all as the card extends past the bottom most mounting hole that the bracket uses *sigh*). Sorry guys, need to do a bit more tweaking but it will be quick to a get a new piece out from the shop. Can't believe I had this damn brain fart.
Attached is a pic of the clearance w/ a 6800GT, the added length on the G70 will run in to the bracket with the current design... Will keep you all updated!
UPDATE:
I'm in luck! I was able to swap out the v4 bugged version with the newly revised v5 version which should fit 7 series cards (512mb GTX's still may not fit, trying to confirm this right now). This will put back the brackets a few days but at least I didn't get stuck with flawed brackets, w00t!
www.fragtek.com for pricing and ordering, have also included some nice high quality pictures on the product info page.
what about a big aircooler does it fit?
99% of cpu aircooling solutions will not work with the Expert bracket.Quote:
Originally Posted by biohead
Do you have option such as this part? because i think cooling the Rams is more important. and beside if you only have this part for sale, people can use air cooling too.
Not currently but I could definately look in to making a RAM cooling bracket w/o the mosfets! Let me have a looksy and see what I can do, because that's a pretty good idea, people with large heatsinks could orient them over the mosfets and keep them cool with the cpu hsf's fan.Quote:
Originally Posted by Bail_w
*heads to the drawing board*
Quote:
Originally Posted by FragTek
Woahh. Can you make it for normal DFI mobo first? People will definitly looking forward to buy it.
If you want to allow people to use their air cooling heatsink such as TT big typhoon, Xp-120, 90 etc. Maybe you should move the fans back a bit. (not as much as the picture shown below, but enough for people to use their xp-120, tt big typhoon etc)
I could move it back, the only problem then is that it will only cool the RAM populated in the left most slots, and not the slots closest to the socket, I don't know how much I like that idea.
but if you dont move it back a bit, big air cooler such as Big Typhoon and Xp-120 wont fit :D
Besides most of the people use the yellow slots more than the orange :D
I'll definately try and make it as universal as possible!
Thanks, Let us know asap :banana: :banana:
Any info on when the SLI DR model will be avail?
I should be getting the prototype some time next week.Quote:
Originally Posted by Haltech
if 99% of the aircoolers don't fit it won't be a success period. I like the idea though, hope you find a way for the stuff not to interfere too much.
Rofl how do you figure? if you're aircooling you more than likely have a decent flow of air around your ram and / or mosfets already (and more than likely aren't aren't running your cpu at 1.7+vcore). If you're on air or phase you don't have that added benefit of a decent sized fan in that area and are more than likely running more volts through your hardware as well.Quote:
Originally Posted by biohead
P.S. I've already sold more than I can count on two hands :p
11? :p:Quote:
Originally Posted by FragTek
good job. looks really nice.
Thanks mate! The first batch arrives monday/tuesday :)
Quote:
Originally Posted by FragTek
so you already design the ram cooling bracket already?
No the first batch of the ram & fet cooling bracket. Haven't had time to work on the RAM bracket by itself.Quote:
Originally Posted by Bail_w
First batch of brackets arrives tomorrow morning at around 10am!!! :) All orders placed for brackets only will ship tomorrow sometime.
Orders for brackets w/ fans will ship friday or next monday (Gary @ Sidewinder said my order of fans should be showing up thursday or friday).
In other news, the prototype for the Ultra-D model arrives on thursday!
I'll update tomorrow with pix and status reports, etc.
Is the pricing for the Ultra-D model going to be the same as the current expert models?
I would like to see some pics on your product installed in a PC, preferably with watercooling and a couple of hdds...just to see how "tight" things get...?
The non fanned model will be the same price, and the fanned model will be a bit less as it has one less fan.Quote:
Originally Posted by Carlz0r
@phantom: When I get my Ultra-D prototype in I'll have some pix of it installed in my current computer... Those pix presumably will be posted thursday evening if I'm not completely knackered after work.
Here it is, the first batch of production Expert brackets! :D
http://www.fragtek.com/pix/expert_brackets.jpg
Ooooh. VERY nice. Can't wait to see what the Ultra-D brackets look like when they come in.Quote:
Originally Posted by FragTek
The prototype comes today! :)Quote:
Originally Posted by Carlz0r
Well, my paycheck comes in next Friday, let's see if I can get some money put aside for one of these brackets. Would go perfect with my single stage.Quote:
Originally Posted by FragTek
I have the prototype in hand and it looks good :). Gonna test the fit when I get home on my current rig. Might have to move the 50's up just a bit but we'll see.Quote:
Originally Posted by Carlz0r
Put me down for a sale on the Ultra-D/SLI-DR bracket. I'll definately buy one as soon as you are shipping. What were the number and size of fans required again?
Sounds good mate I'll have a thread started for it some time tonight once I get some pix :). The ultra-d uses 2x50mm and 2x40mm fans.Quote:
Originally Posted by freecableguy
I'll keep ya posted.
Pix are in on the Ultra-D style bracket :D Also shown is a picture of the bracket mounted on my SLI-DR in the case! Enjoy!
http://www.xtremesystems.org/forums/...1&d=1140733964
http://www.xtremesystems.org/forums/...1&d=1140733964
http://www.xtremesystems.org/forums/...1&d=1140733964
Hmm..looks great but I doubt I could fit that under my SI 120 :(
FragTek, add another 50mm above the top corner mosfet, as we all know it gets extremely hot, especially under 5v jumper.
Very nice!.. But I'm wondering, wouldn't it, theroretically at least, fit a MSI K8N Neo2 NF3 board??Quote:
Originally Posted by FragTek
It uses the same design for RAM placing :)
Best Regards :toast:
I'll have a look and see what I can do :)Quote:
Originally Posted by EnJoY
@nealh: You'd turn it around so that the pipes are at the top, then I reckon it would fit.
@xavier: I reckon that it might just fit!
Well, it's official. If I can get the money, I'm buying one. BTW, if I do end up getting one, I'll let you know whether or not it fits with a chilly1 evap setup (if you don't know already that is).
You're looking at the Ultra-D style bracket right? If so it should fit with the chilly1 evap just fine, it's the Expert bracket I'm a bit leary about.Quote:
Originally Posted by Carlz0r
Expert bracket looks like it would fit fine. Suction line insulation is only around 2.5" diameter so there should be enough room. Yes, I would be buying the Ultra-D style bracket.
Unfortunately I won't have my unit for testing with the Expert bracket for another 3-4 weeks after changing up the design to be a cascade instead of a SS.
Wow, those are HOT!!
Are the SLI-DR versions out yet?
Do you want me to get some dimensions of the evap mounting assembly and insulation for you? I have it all sitting on a table right now so it's no trouble at all.Quote:
Originally Posted by FragTek
Man if you could do that, that would be awesome. What's the length across one side of the top mounting plate, i think that's what I'm worried about the most.
The mouting plate is 4 1/4"x 3 1/2" and is the biggest part of the assembly. If you're worried about it not fitting, users of it could do what I did and not use the discombobulator part of the assembly (as fugger calls it) and make an MDF plate on the evap. It means that the mounting plate sits about 1-1.5cm above the motherboard.
Edit: It's the same width as the stock lotes bracket but a small bit taller.
Thx carlzor... Is the 4.25" side the side with the mounting holes or the blank side? If its the side with the mounting holes it's about .75" too long to fit between... If it's the 3.5" side with the mounting holes then it's the exact same width as the cutout. The MDF option might be what has to be implemented for it to work correctly.
Thx for the help!
Yes, the 4.25" side is the one with the mounting holes. I'll measure my MDF plate and give you the dimensions, then you could just have some made out of scrap plexi or something and offer them for a slight bit extra with your bracket.
MDF mount sizes are 1.5" hole diameter for evap, 3.5" wide by 2.75" long.
EDIT: Forgot to add, there are notches in each end of the wide part where the screws go for two reasons:
1. To help with alignment
2. So that the MDF plate actually fits.
I find doing it this way also lets me insulate it a bit better.
Any chance u can snap a few pix when its convenient for ya? Thx for the help.
If I can get a digital camera I can but neither I nor my family have one. I can draw up a diagram with sizes and everything though.Quote:
Originally Posted by FragTek

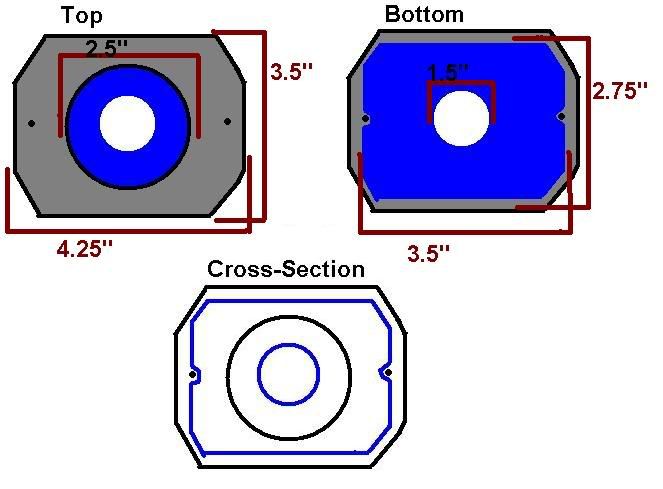

Edit: Here's a quick mspaint job:
http://img.photobucket.com/albums/v2.../evapmount.jpg
Thx carl... I was thinking backwards, it may just fit right in to place. I wish I had mine to test with.
Are the SLI-DR versions out yet?
Not quite yet, I got my first prototype in yesterday and I think I'm going to make a few slight changes to it. Soon though, so stay tuned!
Awesome frag, waiting for prototype V2.0, lol.
PRICE DROP ON LOADED KIT, GET IT WHILE IT'S HOT!!!!
Fan order had attempted delivery today but I wasnt home to receive, going to try and drop by the PO tomorrow morning before I get to work and see if I can snatch em up :) All orders for loaded kits should ship monday if I get them picked up tomorrow!
After some fiddling and dremel cutting to see what would work best I now have the bracket modded to fit with most aircooling solutions!!! I have it worked out to fit my XP-90 perfectly... The XP-120 still isn't going to fit, sorry but that's just a massive heatsink that barely fits w/o trying to go around obstacles like RAM/FET coolers, lol. I believe it will work just fine with the TT BT, and should definately be fine with the new stock AMD heatsink and the old style stock heatsink.
You'll have a choice of buying a bracket for the FETS or the RAM (with and w/o fans) @ www.fragtek.com some time tonight if I get a good chance to get it listed.
Here are the pix of the brackets w/ an XP-90 for RAM and FET cooling...
http://www.fragtek.com/pix/expert_ram1.jpg
http://www.fragtek.com/pix/expert_ram2.jpg
http://www.fragtek.com/pix/expert_mosfet1.jpg
http://www.fragtek.com/pix/expert_mosfet2.jpg
thanks and a good point..for got I could just reorient the SI 120...since the bracket would allow cooling of the ram
do you think I could place a larger fan on the bracket...I am concerned about the higher noise on the smaller fans but I owuld love to cool the PWMIC better
so the ram bracket only for DFI Expert right? Will it fit normal DFI ultra and SLi-Dr?
@neal: the bracket in any orientation won't be able to accomodate the SI-120 or XP-120 just due to it's shear size, sorry mate :(
@bail: The current production bracket is for the Expert only. I just got the prototype for the Ultra-D / SLI-D(R) model in yesterday and making a few tweaks to it before I order up a batch of those but they are coming soon :)
In the loaded kit, how loud is each fan?
Thanks,
Yan
The 40mm fans are 27db and move a hefty 9.1cfm, the 50mm fans are 34db and move 17cfm.Quote:
Originally Posted by YanBooth
Thx for ur interest!
^^ HOLY CRAP!! thats ALOT of air flow for just the ram and mosfets!!. I have one 40mmX10mm fan on my mosfet heatsinks (evga nf41) and @ 1.57 volts and 285 htt, they were always cool to the touch. This is with water, so no other air flow around it. Maybe you could mod them for 7v and im sure that would still be enough air flow.
A lot of airflow was the entire point :) Extreme aircooling, w00t w00t!!
I think you should focus on Normal DFI User :)
u can always buy the bracket and then put your choice of fans on it, rofl.
I mean you should have made the bracket for DFI Ultra/SLI D users first :D
Ohhh, gotcha :) I'll have that bracket in to production soon enough. :banana:Quote:
Originally Posted by Bail_w
FragTek, do you know if the Ultra-D bracket will fit with a Tuniq Tower 120? My friend is very interested in purchasing one and just wants me to confirm it with you.
After taking a look it definately looks like it will fit!
Alright, that's definitely good news. Thanks.Quote:
Originally Posted by FragTek
Maybe one for the MSI K8N Neo Diamond Plus and or Neo4 Plat? :D
Hehe.... the Neo4 Plat's CPU Socket is a bit lower than teh Diamond Plus' but the RAM is in the same location, side to side, but the Diamond Plus' RAM socket's are a few MM up further, than the Platinum.
If the Ultra-D/SLI-DR had the RAM slot's Vertical, I'd prolly get one and rig it on my Neo4 somehow but they arent. :(
The one you make for the Asus P5WD2 might fit my Neo4.
http://www.xtremesystems.org/forums/...1&d=1140911417http://www.xtremesystems.org/forums/...1&d=1140911417
Might work! :)
I wouldn't care if it was a few MM apart. Now, what about fitting my XP-90 on there, lmao. The RAM on the ASUS is a bit lower and the cpu socket is a bit to the right but....
I'll have a look and see what I can do Nick.
Edit: Almost forgot... fans came today!!! :D
http://www.fragtek.com/pix/fanpile.jpg
Very neat, I can't wait for the Ultra-D/SLI-DR bracket :)
*gets' creditcard out*
Patiently waiting :D
I know how you feel. :DQuote:
Originally Posted by en4cer
Very cool, no way it would work with an xp-120, it might fit with my xp-90, but it looks like it's cutting it very close.
Nope XP-120 is just too damn massive, hell it barely fits on most motherboard w/o trying to get it to fit around additional objects, hehe.
The XP-90 however it will work with!
I wanna buy just the DDR fan holder 2 fans and stand offs, is that possible? If it is you have a buyer :)
Quote:
Originally Posted by Nanometer
Yes it is possible. But patience buddy, he is making it :slapass:
For the Expert? If so I can ship one out whenever you're ready, I'm doing the single side mods in house for the Expert brackets. Drop me a PM and we'll talk about the price. :)Quote:
Originally Posted by Nanometer
:woot: :D :DQuote:
Originally Posted by FragTek
How about single side mod for the rdx200? Also, any plans in the future for colored acrylic? This is a really cool mod!Quote:
Originally Posted by FragTek
Yes sir! I can definately do the single side mod for the rdx200 mobo.
As far as the colored acrylic I don't know. Its a possibility in the way off future unless u want it so bad I can make a one-off for ya at 100 bux a bracket in any color u want :)
:banana: SINGLE SIDE BRACKETS NOW AVAILABLE FOR PURCHASE AT WWW.FRAGTEK.COM!:banana:
One thing that doesn't make sense to me...
For the one side brackets, does it make sense to include fans for both sides, when you order only a single side bracket? ..there should be more options, so one could chose RAM bracket + the 2 RAM fans or MOSFET bracket+3 MOSFET fans....?
Its actually a misprint on the page now that I think about it.. (I'm on my blackberry and don't have time to check) but I think I accidentally left on the age that all 5 fans were included. This is not the case, only the fans for the side you have chosen come with the kit.
Ill make the proper changes to the page when I get home. Thanks for keeping an eye out.
I used the original bracket page as the template and overlooked that part.
Do you know if the Big Typhoon will fit with the Ultra-D/SLI-DR bracket?
Yes sir I believe it should fit just fine! I'll do some more teting when the next prototype comes in.
No worries :) a very comon mistake that I have made many times myself... :)Quote:
Originally Posted by FragTek
Should be all good in the hood now :D
:slobber: That RAM only bracket looks so damn fine, that if I didn't need to pay +50% for shipping to DK, I'd order one right away!
Nice work there FragTek :clap: :woot:
Best Regards :toast:
Thanks Xavier! Unfortunately international shipping just isn't a cheap venue :(
Up jump the boogie, let's see those orders!
