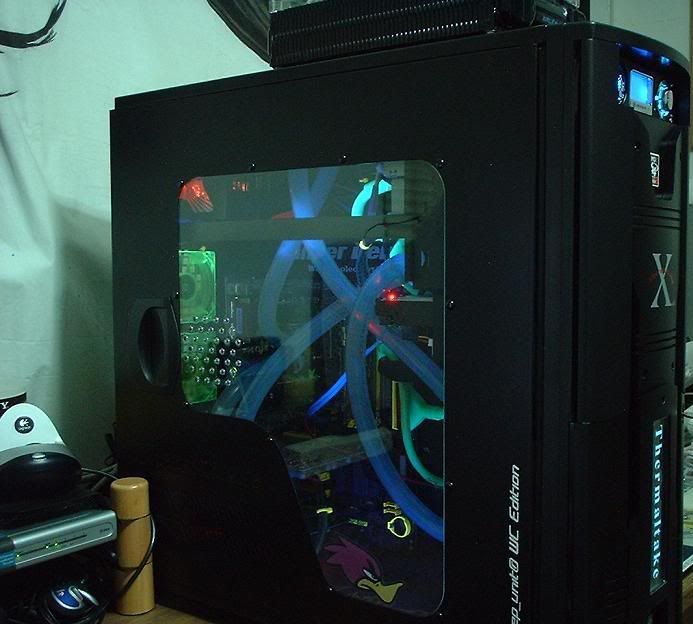

My rig:
http://img.photobucket.com/albums/v6...p/casefull.jpg
http://img.photobucket.com/albums/v6...aselateral.jpg
http://img.photobucket.com/albums/v6...p/radiador.jpg
http://img.photobucket.com/albums/v6...npartylogo.jpg
WC Parts:
-TDX A64 version, lucite, nozzle #5
-MAZE4 GPU Black
-Laing D4 12V
-DangerDen Reservoir
-10ft Clearflex 60
-Double heatercore (painted), with shroud+2 Evercool 120mm aluminum fans+2 Blade Grills 120mm :D
-Accesories (blue UV DYE, house clamps, etc)
Surprisingly, my CPU never goes past 48C and my GPU never goes past 45C anymore. The fan is still only running half speed, and both my CPU and GPU are overclocked. Goes to show, you don't need a perfect loop or large radiator to get satisfactory temperatures. So far my motherboard is limiting my overclock, until I get a new motherboard, i'll stick with this setup.Quote:
Originally Posted by sickness
People say I could be getting ~35C temps w/ better rad etc. but I don't see how that would help me in any way..
here is my first try:D
last pic is the b4 picture.
i plan to paint the outside black. (the inside is white really makes the colors stand out:D)
of course it still needs some work.
how are you getting temps like that with a koolance case?
So thats mine
Blacklight not in at the moment because of no space :) coming soon
with the rad out the window, here in NH it is very cold usually, without the extra rad I usually get 30C under full load
caLume: Nice setup :)..Any inside pics?
thx
thats a chilly pressy:D
yeah i like the temps just need to find the bottleneck in my sys for higher ocing
Thats my temporary cooling. CPU is waiting for home made phase change :D. On my gfx you can see my home made waterblock, I know it's not very impressing but I think it's cool :P The case is being repainted that's why everything is on the floor :) .
http://www.gorajec.net/Adasi/buda/IMG_1484.jpg
http://www.gorajec.net/Adasi/buda/IMG_1490.jpg
BTW: Merry Christmas
PS. I don't want to be boorish, but please resize/delete photo's by Pietach because it looks very poor comparing to others and I (with my friends) do not want people to think that we only have such poor setups in Poland.
Hi guys, I just thought I'd post the rig I built before I give it to my little brother for christmas, hehe :) This was my first ever attempt at modding/wc'ing. It's purple/pink/black in theme because I originally built it for my gf, The next system will be all out high end watercooling... ie g5+md20rz+weapon 302 core+ 120mm san ace fans.
http://pg.photos.yahoo.com/ph/neeb_v...3b.jpg&.src=ph
http://pg.photos.yahoo.com/ph/neeb_v...7b.jpg&.src=ph
http://pg.photos.yahoo.com/ph/neeb_v...6c.jpg&.src=ph
http://pg.photos.yahoo.com/ph/neeb_v...03.jpg&.src=ph
http://pg.photos.yahoo.com/ph/neeb_v...85.jpg&.src=ph
http://pg.photos.yahoo.com/ph/neeb_v...&.dnm=1ca1.jpg
http://pg.photos.yahoo.com/ph/neeb_v...&.dnm=ffec.jpg
http://pg.photos.yahoo.com/ph/neeb_v...5e.jpg&.src=ph
p.s these components were : BIXII+Dtek white water+mag 3+ 2x120x38 Y-S tech fans, I'm sure I don't have to say what kind of case it's in :p:
well from what ive heard poland overclockers are the worst in the world :stick:Quote:
Originally Posted by Adasi
no really that is a stupid statement :rolleyes: everything in that case is home made i give him props for budget W/C :toast:
Hmm, maybe you are right...
http://gallery.pimprig.com/data/504/...mprig3-med.JPG
http://gallery.pimprig.com/data/500/2938pimprig4.JPG
http://gallery.pimprig.com/data/500/...mprig1-med.JPG
The hardware specs of this machine are a 2500 mobile over clocked to 2.7ghz, Abit NF7-s motherboard 1 gig of HyperX with bh-5 chips, NVIDIA 6800 video card, Western Digital 36 gig raptor, Seagate 120 gig ATA hard drive, Plextor CD-RW, and a Samsung DVD. My best aquamark score is 56,800 and 3d mark 2001 is 20,081. The cooling setup is in my signature also.
Glad I could join the forums. :D
wow nice first post "specialblend218"
WELCOME
Quote:
Originally Posted by aCidbAbY
Thank you, I have been looking over the site for a few months now. I have been into designing waterblocks for quite some time. Also I have been looking into building a water chiller or phase change system of some sort, so I thought I would join because I know I could use some help from you guys. :D
my 1st pics of my new watercooling with my casemod... update soon like in my signature
Nice work specialblend :D
Here is mines But I have since then cleaned up the wiring :) but i'm going to disassemble it today for a new hardware change :)
Innovatek Dual Radiator 120mm X 2
Innovatek Dual Radiator Fan guard
Innovatek Tank-o-matic Rev 1.1
Danger Den D4 12v Pump
DTek Whitewater Block
All coverted to 1/2 fittings:) from 1/4 system.
http://img.photobucket.com/albums/v9...Picture014.jpg
http://img.photobucket.com/albums/v9...Picture015.jpg
http://img.photobucket.com/albums/v9...Picture010.jpg
http://img.photobucket.com/albums/v9...Picture013.jpg
what is running through your tubing? its all white.
I mixed with vavoline Zerex heheh.
Zerex is purple/pink.... not white. What did you mix it with, milk? ;)
Nope, I have the bottle right here, Zerex Water pump lubricant and Protector (prevents Rust & Corrosion) Although there was several different zerex for different functions this one was the one I picked LOL it's just color I'll just add a few drop of UV Dye I have right here and i'm ready to go.
idleuser, nice looking machine there. The coolant is a unique color. Try a few drops of dye-lite in there to make it glow really good.
Ah, that's why. The typical product referred to simply as "Zerex" is "Zerex Racing Super Coolant".Quote:
Originally Posted by idleuser
well with a little dye the white will make it really stand out.
hf :)Quote:
Originally Posted by notoriousformula
i should clean up that cable stuff.
but there is no need -> no window ;)
ive also added a lcd display. :)
these 1/2" fittings look so amazing,
but not available in austria :(
1/4" mainly used
1/4 wow thats small why cant you just mod it for a larger size?
too much work, also there are no 1/2" tubes available.
but its true, 1/4" stuff doesnt look as mighty as the 1/2" stuff :D
1/4" ->
http://www.xtremesystems.org/forums/...783#post657783
caLume, I'm very sorry to bother you, but I am very intrigued by your rad. What are your system specs and what kind of temps do you get. I am very interested in a passive setup. Any info is greatly appreciated and sorry to bother you (Isent you two IMs but that is because I have never been able to talk to someone about a passive setup). I am excited to hear about your experiences. :)
... click ...
I love those compression fittings!
u got pm ;)Quote:
Originally Posted by hkhawk
hi :)
first of all, that rad is called mora2 ;)
http://www.ktc-cooling.com/catalog/p...products_id=55
now my setup
cpu: zern delta x
gpu: zern universal gpu wak
nb: ac twinplex (intel)
pump: eheim 1048
about temps.
i got full load nearly 50°C at cpu at 26°C ambient.
its totally passive.
the mora 2 owns, has a lot of power.
Very Nice setup :toast:Quote:
Originally Posted by tH3_b4iT
STILL UPGRADING ON THIS ONE
none of those links work
http://home.houston.rr.com/nettwerk/Lanboy/
Msi Neo 2 Platinum
3500+ 939 week37 (crap week) @ 2.6ghz (260x10 1.6volts)
1 gig Gskill - 2.5-3-3-10-1T
OCZ 550w PSU
2 - 74 gig raptor raid 0
2 - 200 gig maxtor drives
EVGA nvidia 6800U (460/1250)
SuperLanboy Case
Switftech Waterkit with Dangerden 6800 cooler
you sure play alot of game nettwerk :) Very nice and clean case keep it up :)
wow i rikee...
http://img.photobucket.com/albums/v1.../06_resize.jpg
http://img.photobucket.com/albums/v1.../04_resize.jpg
http://img.photobucket.com/albums/v1.../10_resize.jpg
http://img.photobucket.com/albums/v1.../11_resize.jpg
http://img.photobucket.com/albums/v1.../12_resize.jpg
http://img.photobucket.com/albums/v1.../13_resize.jpg
nice rig megadet
indeed, very nice rig !

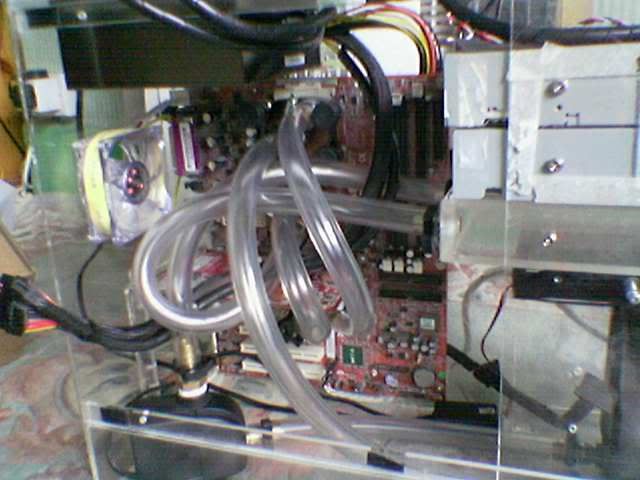

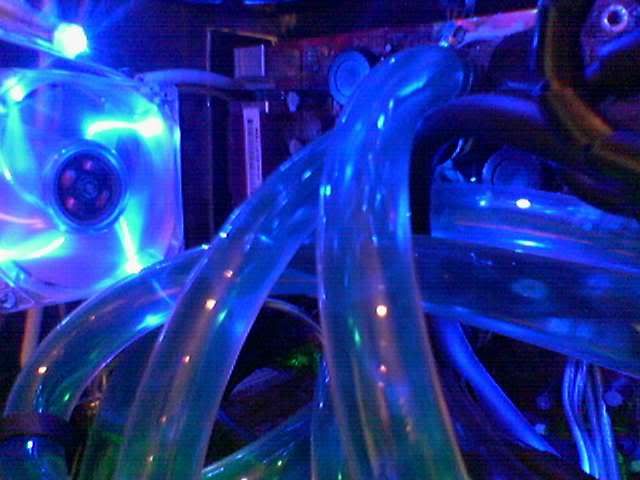

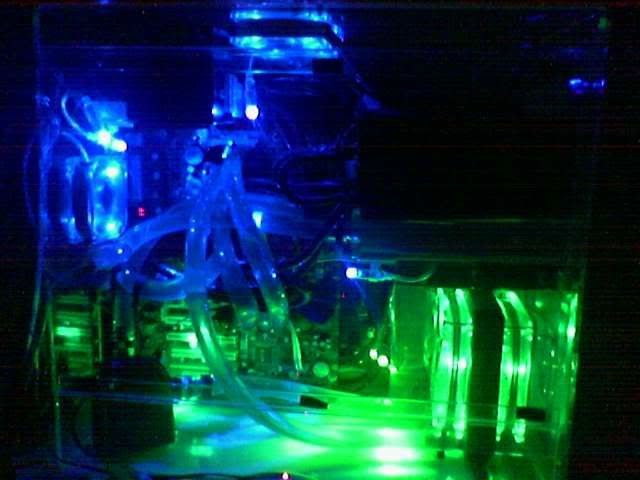

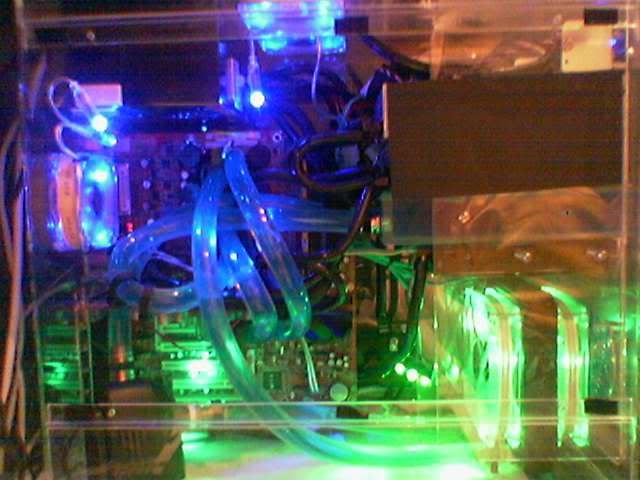

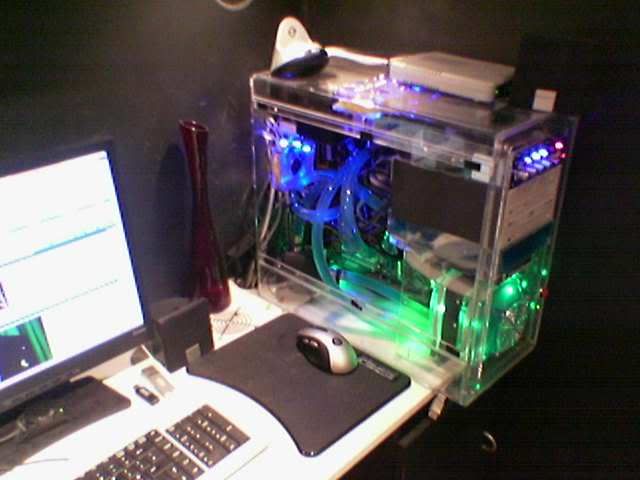

this is my very first attempt of watercooling, and i'm very happy with it, considering i was working in such a small case!
pics are a bit rusbish as they were taken with my phone!
http://img.photobucket.com/albums/v2...Picture521.jpg
http://img.photobucket.com/albums/v2...Picture385.jpg
http://img.photobucket.com/albums/v2...Picture434.jpg
http://img.photobucket.com/albums/v2...Picture398.jpg
http://img.photobucket.com/albums/v2...Picture360.jpg
http://img.photobucket.com/albums/v2...Picture357.jpg
very small rad, which temps have you got ?
max under load of 45 which isn't great, but couldn't fit anything more inside :( might invest in a slightly bigger case soon!
what kind of radiator are you running jopers?
it came with an astek kit, that i bought of a mate, with some bits changed such as the barbes for thicker tubes and a different res!
aparently as i've been told the rad is a black ice pro
wow that last pic is amazing. shouldnt you run the pump to the rad then cpu though?
Thnx, it is the only way that works for my setup since my rad is outside my case. I have another 12" UV tube coming soon.
A64 939 3.000+@2.7 full stable 1.44vcore msi k8n neo2 platinum 2X256 dual twinmos ,, radeon 9500@9700 360c317m
36c idle 40c full .
nice temps for such an overclock !
here is my mess
added some fans :D
looks quite nice but some kind of funny ;).. maybe take a pic at night from
PS:komm mal wieder ins icq ;>
You all have such nice cases...i on the other hand don't believe in cases
the resevoir
<img src="http://kittykun.cjb.net/computer/resevoir.jpg">
the computer
<img src="http://kittykun.cjb.net/computer/computer.jpg">
With the lights out
<img src="http://kittykun.cjb.net/computer/lightsout.jpg">
the resevoir was a leaking a bit so it moved into that big bucket but i haven't been able to mount the radiator properly so it just chills in the bucket it pushed the temps up to 32c ish before i had it running at 25c-27c i'll update when i move it back outside
You're looking at
P4 Prescott 3.0eghz HT @3.3ghz
768MB ram
Radeon 9800pro 256mb
on a MSI NEO 2 865PE platinum
200gb SATA and 80gb PATA harddrives
IDE CDdrive USB cd-rw USB DVD+-RW
lol nice! i never used to believe in cases, had my pc in desk for a while, then decided to have it on the wall! but it just looked rubish, was good in my head :rolleyes: he-he
good job
that might b sweet, i wanna try to mount my mobo on my wall!
Mad mikee's concoction :wierd:
From my xp2500-mobile days - also some humor in the beginning.
I am coming to the conclusion that the energy removal requirements need more than even just an xp120, & the fans are beginning to annoy me too. So looks like I may need to update my current box to WC again. (looks around @ stuff to mount, not so extreme as b4 but still....)
Looking to use cascade WB on bare 90nm, so should work well and I'm just cooling the CPU this time. Will mod a mcp350 for flow (may just mount a reservoir to the top of the pump :hehe: ) and use a small(er) rad.
Very nice rigs! :toast:
Still needs some cosmetic work, but it's up and running.
http://www.forsocal.com/skpc/forumpics/DFInF3-04.JPG
http://www.forsocal.com/skpc/forumpics/DFInF3-02.JPG
DFI UT nF3 250Gb, 10/5 beta bios, A64 3400+ NC, CBAXC-0432UPMW
2x512 BH-5, Corsair/Kingston, slots 1/3
10x263, 3x LDT, RAM 2-2-8-2, CPC enabled, 6:5
Sapphire 9800 Pro @ 450/360, Fortron 530W
(2) WD 74GB Raptors, RAID 0, SATA ports 3/4, Plextor CDRW 48/24/48, Pioneer DVDRW DVR-108, Kingwin IDE HD Rack
D-Tek Procore, Swiftech MCW6002, Eheim 1250, DD poly-res
Coolermaster Stacker
not bad man, i thought the res was supposed to be at a high point in the case though. (that is a res in the lower right of your case isnt it??) other than that it looks very clean and nicely done!
Im sure he sets the case on its side to fill. I like the purple coolant, what did ya use?Quote:
Originally Posted by Disposibleteen
Thanks for the feedback :) I pull the res back into the case and hold it above the pump to fill. Bleeds in about 3 - 4 minutes, really convenient. I had too much cable-clutter on top so opted for bottom location in case. I didn't mount the res. in a bay because this is a "version 1" polyres that doesn't have a vented fill port, so it's a PITA to top off without tilting it. I like to keep it as full as possible to avoid the sloshing noises with a 1/2 full res.Quote:
Originally Posted by Disposibleteen
Zerex, somewhere between 5 and 10 %.Quote:
Originally Posted by Nettwerk
My first goal was to have a quiet and "movable" pc. I succeeded, it justabout goes to trunk of my car ;) :D
http://images5.theimagehosting.com/Case1.1.JPG
Vertical panels are sealed for optimal airflow through the case. Any comments...fire away.
nice :)
nice scottk.
but i think the rad looks a bit ugly ^^
ahh, gotcha, it just struck me as odd that you would have your rad in the bottem, thanks for clearing that upQuote:
Originally Posted by scottk
Well, we all started somewhere. Congratulations on getting your feet wet, Nubius!
lol thankya!Quote:
Well, we all started somewhere. Congratulations on getting your feet wet, Nubius
I'm in the process of trying to get this thing sold. And thanks to many of the not only nice, but informative people here, I will make another setup using quality parts, bigger tubing, and I will do it right!
wow.. not sure if that is more ghetto that my rig or not.. lol
No, maxxx it's sc00p who have almost the same tubes as you, btw soon I will send you some pics of my setup
FallenAngel: what do you meant with word "ghetto" when related it to tubing of my rig? I'm just asking because i'm just a finnish guy, perhaps i didn't quite got it, it's cool anyways - non taken.
There is nothing outside case or so on...
...tube is plain silicon tube (15/12) which you could find from every "plastic-store" for few dollars/euros/1 m. The best IMO. Everything in my case is made just for it's purpose. As large turns with tube to avoid an extra resistance in flow of liquid (liquid in circulaion is called AG-Supercooler: some racecar corrosionsinhibitor - ready for use, the best again IMO. Have it going on in the coolersystem for few years). U-turn going from NB to CPU is what I made of acryl tube and bent it after applying some heat to it first (it is good to use some tightly fitting silicon tube inside acryl tube when benting it - that way you don't get any wrinkles to acryl tube).
I have tryed to have low resistance and high flow circulation. Tightest inner diameter is 12mm at those GPU/NB-block barbs, to which I fitted some brass barbs (after I drilled them to 12mm). CPU block was M-maze type which I dremeled to U-type block and welded new copperbarbs. In that block the canal diameter is about 13mm at tightest point: works well IMO.
Finally i would say: never use tight 90 degrees turns <-killers of the flow. And reservoirs are something like useless. And do not use pumps needed to dip into water.
Ah, uh: almost forgot to brag that this rig of mine is virtually silent...
...and now shoot me :) (to silence, I falled to babbling, I know)
Well the only reason I asked that was because I thought he didn't have a res at all or somethingQuote:
The T line is just for emptying the system out. All filling and air bleeding is done through the res up top.
You didn't saw the reservoir at top of the boxQuote:
Originally Posted by Nubius
:confused:
No at quick glance it just looked like a simple pump, not a pump/resQuote:
You didn't saw the reservoir at top of the box
Sorry, it was a joke meant to Maxxx and not to you, I'm sorry if my statement offended you, it was not intended, and for what is worth I like your rig. And it wasn' I who said "ghetto" anyway.Quote:
Originally Posted by sc00p
Like I assumed before: I didn't got your joke and said earlier non taken :) :cool:
hum, i like these acryl cases.
nice :)
Now with the DFI and the x850XT. :D
http://www.weber-steuerungstechnik.d.../pcmakros5.jpg
<img src="http://img.photobucket.com/albums/v701/elishajesudason/HPIM0679.jpg" alt="Image hosted by Photobucket.com">
<img src="http://img.photobucket.com/albums/v701/elishajesudason/HPIM0680.jpg" alt="Image hosted by Photobucket.com">
<img src="http://img.photobucket.com/albums/v701/elishajesudason/HPIM0677.jpg" alt="Image hosted by Photobucket.com">
<img src="http://img.photobucket.com/albums/v701/elishajesudason/HPIM0678.jpg" alt="Image hosted by Photobucket.com">
Nice setup flutie98 :toast:
What tubing and liquid-cooling use for the WC? looks great :eek:
tygon r3603 tubingQuote:
Originally Posted by geep®
swiffy 6002A cpu block
DD maze4 gpe block
auqa extreme 50Z pump
weapon heatercore and shroud
Very nice and clean setup there flutie.
thnx :DQuote:
Originally Posted by specialblend218
I know this is only a Waterchill Kit, but I have a very small case and wanted to give watercooling a try.
Ive only used air and Phase Change cooling in the past and now want something nice and quiet, without losing the temptation to overclock :)
Any way, here is my little snaps :)
Not bad at all Cashman, better than my bigwater was haha, think I got a buyer for that though and hopefully within a month I'll have a better setup.
One things that's always bugged me, those blocks with the 3 tubes perform a lot better than say a danger den TDX style? Are those also impingement blocks or no? I'm still learning :D
MY Lian LI PC-75B case with a Asetek Universal CPU block, Black ICE Pro 120mm, Hydor L20 and a Asetek RSV02 res.
Temps: 27c idle (winny 3000+ stock) 30c Load (Stock).
30c idle (2,2ghz 3000+) 34c Load (2,2ghz).
This is measured with Asus PC-Probe, so dont know if it is that correct.
Heres my new case :)
with a nice 120.3 in the bottom, and a total of 10 120mm fans :D yays
i had to add an extension to my desk as this case is HUGE!!!!!!
http://img.photobucket.com/albums/v2...Picture595.jpg
http://img.photobucket.com/albums/v2...Picture604.jpg
http://img.photobucket.com/albums/v2...Picture613.jpg
http://img.photobucket.com/albums/v2...Picture592.jpg
Nice case Jopers, what blocks and pump are you running?
i'll be posting a picture or 2 of my WC set-up soon, but dont laugh, because i havent cut teh tubes at all, because its cooling my old system, and not new yet...
the cpu block is a astec waterchill cpu rev 2.0 and a ehiem 1250
from inside the case
http://img.photobucket.com/albums/v2...Picture596.jpg
Font view through where the grills are:
http://img.photobucket.com/albums/v2...Picture597.jpg
heres mine, old pic with out current upgrades...
http://www.daredevil.nildram.co.uk/pics/compwc.jpg
Its a TDX, Maze 4, eheim 1250, thermochill 120.3 now on a Winnie and X800XT
Sweet watercooling system, RAndomaN! :toast:
what temps do ya get?
Awsome job.
Alec
never seen my winnie @ 2.65 over 40 degrees, my X800XT @ 540/560 (wont go any higher) doesnt go over 29 so all in all im happy :)
yo rik,
get some pics of ur current rig dude! impress us all :D
josh, im scared as to how you knew it was me :p lol. It wouldnt let me have my username as it was in use. Dude i would take pics of it but its really not as neat as that old pic :p its such a mess, tooo many wires and i could never understand why, i think its the OCZ DDR Booster! just imagine thats my current comp ;)
sweet temps :)
what rad is that? Looks quite a beast lol
Alec
triple procore:D
