Question for you guys already runnig this board. Can you run crossfire graphics (both at x8 I know) in slots 2 and 4? I have an Areca 1230 on the way which runs at x8 and I wanna use it and crossfire. The only way it will work is if I use the 8,8,4,8 config with the Areca in slot 1, the master x1900 in slot 2, the slave x1900 in slot 4 and my Xfi in the bottom PCI slot.
Or will I have to go to one graphics card? I which case is it best to go for a Nvidia 7950x2 ?
mine tooQuote:
Originally Posted by BarboneNet
there are two different configs for pcies, 16-0-4-0 or 8-8-4-8, so CF will work with 8x-8x in 1-2, 1-4, 2-4 combinatios, so your config will work.Quote:
Originally Posted by goreblast
What he said :)Quote:
Originally Posted by zbogorgon
Assuming you're using double-slot graphics cards then your choices are either:
Areca (8x), Master (8x), Empty (blocked), Slave (8x)
or
Master (8x), Empty (blocked), Areca (4x), Slave (8x)
Areca seem to think there would be negligible performance difference between using a 8x or a 4x slot - and it will work in the 4x speed slot. Using the Areca in slot 1 will leave very little room between your two graphics cards (assuming they're double slot), something to bear in mind.
How high can you go with 1:1 divider?Quote:
Originally Posted by zbogorgon
My board maxes out at 495FSB with 1:1 divider and 4-4-3-4-26 settings.
The MCH is watercooled and slightly overvolted, 1.86V.
http://www.armada.fi/Asus_P5W64/Asus..._SuperPI8M.jpg
Crappy 975X made in Costa Rica :( ;)
All of the previous 975X chips have been made in Malaysia.
How can you tell where its made?Quote:
Originally Posted by The Stilt
They have batch codes just like cpu´s.Quote:
Originally Posted by Durzel
Code starting with:
L = Malaysia
3 = Costa Rica
7 = Philippines
5 = China
Q = Malaysia
etc.
for spi 1m i was at 510, but I am quite sure that rams were the problem, at the moment i don't have rams that would be able to followQuote:
Originally Posted by The Stilt
but i put cpu on SS, help a lot with max fsb, and i was able to validate at 543
http://img158.imageshack.us/img158/9075/543fsbdm1.jpg
cpuz validation
respect,zbogorgon!that was with vmod or without?
543fsb on 975X, wow now this is freaking...
Here we go:)...The fun part with high Mhz and high FSB (with this board)..
Awesome run there Stilt and Zbogorgon:toast:
Do all the memory dividers work on this board ? Im thinking of replacing my DH with it.
I haven't even played with my P5WDG2 WS yet! It's still in the freakin' box.
More stuff to buy...
Is this board lookin _that_ much better than the rest of 'em? What am I saying. Let me rephrase, is this board lookin' to be the best of 'em?
EDIT: Plz excuse the noob for not reading the whole thread before he posts (me). Ordering board now, thanks all for posting results.
Yes, performance wise.
Except Vcore OVP @ >1.7V.
we need an ovp bypass mod :D
getting this board this week
My CPU feels rock solid on this board at 4GHz and air-cooled.
http://img170.imageshack.us/img170/96/32m400945bk8.jpg
Has to be really really good 6800 to run >4.8Ghz with 1.7V:)Quote:
Originally Posted by Supertim0r
Nice one there Sierra. What week?
Thanks.:) It's an L623. Still on air.
http://img180.imageshack.us/img180/3...m405245yz6.jpg
The main ratios (4:5 & 2:3) work, but not as well as on the P5B Dlx.Quote:
Originally Posted by Devious
May I ask what memory you are running there sierra?
I'm using Corsair 6400C3. Not many memory kits will do DDR2-1212 @ 4-4-3.;)
http://img170.imageshack.us/img170/8619/606443qt2.jpg
This was on the P5B Dlx
Hi Sierra. What voltage did you set in the bios to acheive this result? I've installed this board and am slowly working my way up to around 4ghz if possible, but I don't want to apply unnecessary voltage sine this board overvolts a good bit as it is. Thanks and excellent results as always.Quote:
Originally Posted by sierra_bound
dumo, have you done vcore mod, can you post a pics ?Quote:
Originally Posted by Dumo
sierra: any idea what's holding you back with the x6800?
365 isn't that great fsb?
You have to register at the following forum (OPB's) but it's worth it...Quote:
Originally Posted by zbogorgon
Pics for P5W64 vMods...
http://www.ocxtreme.org/forumenus/showthread.php?t=2730
:)
http://img101.imageshack.us/img101/7821/img0321fy4.jpg
:eek: check temps , onload
http://img176.imageshack.us/img176/7604/img0325ua4.jpg
Idle
Man I was biting my nails every second it went through prime , in the end it was stable . :)
How it all started ,Click link
http://www.day187.f2s.com/phpBB2/vie....php?p=120#120
It will slowly come together in the end
Thanks. I was using 1.575v.Quote:
Originally Posted by vmsein
I'm not interested in FSB. I'm interested in total speed. CPU will easily do 460FSB on this board. It will also do 530+ on the P5B Dlx.Quote:
Originally Posted by catscit
With an X6800 you don't necessarily need to do 400+ FSB. Running high FSB will not necessarily give you the fastest time. There are other factors like RAM speed and timings.
70C at idle? That doesn't look right.Quote:
Originally Posted by nooh
Not sure how that's stable when its hitting 94 degrees.
If you've turned off throttling then surely you're damaging the chip? If you have, then it will be clocking it down won't it?
where 0209 bios @ ?
It was pulled by Asus. I heard it had a small problem.Quote:
Originally Posted by NapalmV5
Quote:
Originally Posted by sierra_bound
tnx, wait for the next one..
Nooh, have you tried using another program to monitor the temps? If not, try CoreTemp...
http://www.thecoolest.zerobrains.com...opic.php?t=137
I would need the bios 0209 somebody could give it to me please
thx, but I wasn't asking for vmods :D and i am already registered for some time now :DQuote:
Originally Posted by [timko]
i don't know what dumo meant with 1.7 OVP, i also did the mod and trimmed up to 1.75v with no problem, i didn't go any higher, but i think that i shouldn't be a problem.
Thats a good news zbo:toast:Quote:
Originally Posted by zbogorgon
I haven't done any mods on my second board here (and OVP was with DG2, so I assumed its the same with 64) The first board won't post probly because of corrupted bios or other cause.
Heres testing with cold.....1 core disabled (around -35C) before go for really cold one:)
http://img240.imageshack.us/img240/1...shot023tr7.jpg
@ >1.65 Vcore bios..its starts to undervolted by .03V
Heres tried max bios 1.7Vcore..Both cores enabled..
http://img87.imageshack.us/img87/106...shot022ta9.jpg
where is 0022 bios?
im @ 456fsb on air, no mods, cpu cooling limiting fsb, ill be going on water shortly..
but i cannot run 1:1 @ 456 (435 max 1:1), 2:3/4:5 is fine, ram runs @ 500 4-4-4 @ 4:5.
guys, is it a bios setting/chipset/mobo/cpu thing? what can i do to get higher 1:1?
cpu/mobo/ram in sig
tnx!
I did not turn throttling off .Quote:
Originally Posted by Durzel
If you check my system was cold form the inside and the temps of CPU are high , that is wrong , you can expect the system temps to be much higher than that.
I have lapped my CPU and I have used coolaborotory liquid pro , also have a great HSF , it just doesnt add up right for it to be 94c.
When it was at default speed it showed 45c , its not possible , also usually in the past when I tried to max something pentium D and my temps were about 70c I could not go higher and it would not post there is definitely something wrong with the temp sensor.
If you run prime and you start to get errors then its not stable but you run four hours of it then it is stable enough to run 4hrs at 100% , also when does that happen normally in a CPU's lifetime.
Even when I am gaming it only goes to about 50%
:D I really love Your little kitten - looking so innocent and cute........ :)Quote:
Originally Posted by nooh
BTW what are these for crazy temps - is there a hidden hairdryer in Your cooling-monster ??? :eek:
A bad contact could mean your CPU temp is a lot higher than the system temp, it doesn't necessary follow that your system temp has to be high as well.Quote:
Originally Posted by nooh
If you haven't disabled throttling, and that 94°C temperature is being reported correctly, then the CPU will be throttling down to a lower speed. This will give the illusion of the overclock being stable because ORTHOS wont crash, it'll just run slower.
Even 70°C is too hot for 24/7 load imo.
EDIT: You have a lovely kitten! What breed is it?
I ordered a P5W64 WS Pro yesterday at eWiz, it's out for delivery today!
I'm very busy with school but as soon as i have it up i'll be posting results.
edit: arrived at 9:15 AM, didn't even use overnight shipping, very impressed
Nice results there Dumo. You always seem to get some of the best boards. Cant wait to see some LN2 runs on it.
Hey guys I have this motherboard with a 6600 paired with th eopb edition ram. But I cannot seem to overclock well. Anyone care to share some tips? Could it be due to the chip limitation? Its a week 24 chip. Or does using sata hdd affect the overclocking performance? I used 1.4 (Ai booster) to get my 6600 to 3gig but it is only stable for 15-20 min. vmch is 1.6, vfsb is auto, vdimm is 2.1 at 5 5 5 15. So I think that the ram would not be the limiting factor. Any help?
Vcore 1.7V+ has some problems. I will fix vcore in the few days.:)
Thanks Andre:toast:Quote:
Originally Posted by AndreYang
470X10 with just SS will be nice:)
Quote:
Originally Posted by Absolute_0
Yep, ordered mine from eWiz and it shows "out for delivery"...can't wait to get off work!
Untweaked OS and air cooling. Ambient temp around 23C.
M/B: P5W64-WS Pro
CPU: X6800 (L623)
RAM: Corsair 6400C3
HSF: Tuniq Tower 120
http://img208.imageshack.us/img208/7648/32m4060jt2.jpg
http://img153.imageshack.us/img153/5462/410745ab8.jpg
Was your Serial No.: 68 or 69MOAG?Quote:
Originally Posted by Absolute_0
Testing with all stock in bios (Vcore auto 1.35V) exept multi @ 14X...
Evap. temp won't move @ -44C load:)
Single 32m...
http://img178.imageshack.us/img178/3...shot026tg2.jpg
http://img214.imageshack.us/img214/8...shot027hd4.jpg
Dual 16M....
http://img234.imageshack.us/img234/7...shot030km4.jpg
http://img81.imageshack.us/img81/654...shot031au7.jpg
All P5W64...69MOAG.Quote:
Originally Posted by Icer
no mine is 68MOAG
I didn't know that:) My bad...How's perform Pinto?Quote:
Originally Posted by pinto
Mine is a 68M0AG as well. No idea if there are any differences between that and 69M0AG like the P5W-DH 1.65v-1.85v change (there better not be!)
Dumo: Just so I know in advance - I presume from your PC Probe temperatures that this board doesn't read negative temperatures properly? Wonder why the P5B-Deluxe seems to be able to do it, but not this board?
Yes, PC Probe read it as -255...ie. 215-255 is -40C.
I think bios can only read up to -35C.
i got -60° in bios normaly, dind't go any lowerQuote:
Originally Posted by Dumo
I received mine the other day, just waiting for a few last pieces of my water cooling set up before I use the board.
Mines 69M0QG as well.
Mine is 68M0AG, too.
It also perform well as you guys.
69M0AG awaiting memory
Any help?Quote:
Originally Posted by N15M0
Installed my board. Past 350 FSB doesn't boot. Clockgen past 350 FSB in windows and it locks up. Help?
Manual
350
ddr2-700
auto
100 tried 105
33.33
disabled
disabled
2.1v
1.38v (it overvolts to 1.42, plenty for 3.7 Ghz)
1.4v
1.7v
auto
ram 4-4-4-12
Which bios are you using? 0022 seems to give the highest FSB with normal cooling, especially if you run single-core.
Using default BIOS 0116.
I fixed the problem by setting ram timings to auto, which sets 5-6-6-18, even though the ram is underclocked and likes to run 4-4-4-12.
It would only boot past 350 FSB using auto. I'll have to play with the ram.
Currently 415x9 1:1... priming 1.38v in bios, overvolt rocks :D
Under the memory timings section, set Read Delay to 7. That should help.
Thanks Sierra, i'll see if that helps me set manual timings.
Right now i kept it on auto mem timings, so the memory sucks... BUT...

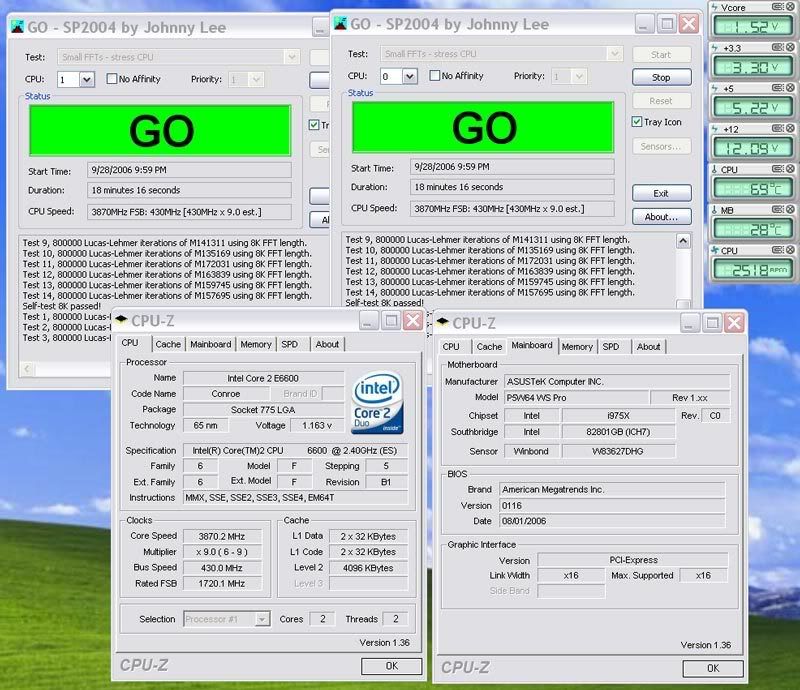

I'm priming at 9x430 = 3.87 Ghz with 1.5v set in the BIOS, 1.52v in windows, not bad :)
I'll push for more FSB in a sec, i need over 4 Ghz benchable
http://img.photobucket.com/albums/v7.../Intel/3-5.jpg
edit: unfortunately read delay 7 didn't help. I can't get this board to boot at anything other than AUTO mem timings.
Another 68 here...Quote:
Originally Posted by pinto
68m0ag1638xx
90-mbb520-goeay
Any ideia how it will perform? I'm gonna test it to see if it's good ;)
Absolut that is normally very good memory - so I'd hold out some hope for bios maturity to help you out some. Nice clocks though!
Nice board. Seems like its the one to look at
6700 stock cooler (waiting for the return of my mach2 from the mechanic :D )
p5w64 ws right out of "da" box
http://img83.imageshack.us/img83/8283/p5w64wsfv2.jpg
Can't wait to test it under ice ;)
My, that's alot of VGA slots...
:D This board is sometimes a bit tricky - but with some patience You can get success :slobber: :
http://img355.imageshack.us/img355/1...1m12562sv4.jpg
CPU on water, all other stock except Vdimm pencil mod. This is done with the insane CELLSHOCK PC8000 RAM at 2.71 Vdimm. :woot:
:toast:
does soft fsb work on this board?
ClockGen works for sure :)Quote:
Originally Posted by vanovich
:D Yes - but no need for. My 4,014Mhz is bootable..........;)Quote:
Originally Posted by [timko]
:toast:
If you drop your multi down to 8x, how much further can you push 1:1? :)
Howe much is Vdrop when in bios is set 1.7V ?
howe much is Vdrop when in bios is set at 1.7V?
I hear 1.7v is ~ 1.67v real. Not bad anyway.
I'm having problems, tried overnight prime at 411 FSB and my computer turned off. 1.8 Vmch, ram happy, CPU has excessive volts, what gives!?!?! Seems anything over 400 FSB gets a BSOD eventually...
I did 420 fsb with an e6300 out of the box but I seem stuck @ 430 fsb, doesn't want to boot past that with the stock cooler and ocz plats.
I got the board yesterday vmod it and its running 411fsb with 1.5V VMCH stable .Quote:
Originally Posted by Absolute_0
what FSB can you attain using your 6600 on the 64 board?Quote:
Originally Posted by Torphoto
Quote:
Originally Posted by Spacemaster
1.65V+ will have over voltage protection.
:rolleyes: Hm, i still wonder to get my hands on the pencil Vmch mod........, but huh - have to remove the board and the stock NB cooler. Sooooooo much work:(
:toast:
My new e6600 is still on a fedex truck in florida, don't ask what happened to the last one :-(Quote:
Originally Posted by Ace-a-Rue
:rolleyes: The question is at what voltage.............:flame: :caution:Quote:
Originally Posted by Torphoto
Newegg out of stock http://www.newegg.com/Product/Produc...82E16813131047
Price went up $20:(
Ewiz probly has old chipsets...
L611AXXX old...
http://img150.imageshack.us/img150/8...shot009ku0.jpg
3618AXXX new...same as BadAxe2....
http://img291.imageshack.us/img291/8...shot005ok1.jpg
Is there a significant difference between the two, or don't we know yet?
I hope this isn't another P5WDH-like hardware change :(
i need some help with clkgen and cpu-z . im booting 445 straight from biose .and as soon as i up fsb with clkgen the system freezez .no matter whatt fsb. another thing is that cpu-z is only letting me se cpu 1. on the p5w dh i could se the other cpu aswell .my cpu is a 6600 running with 9 multipler .and im using stock biose . any help appriciated .
Use ICS 954123 and disabled C1/EIST in bios.Quote:
Originally Posted by vanovich
Download cpuz/clockgen new versions...http://www.cpuid.com/clockgen.php
Maybe it has been said here but I have a question about this mobo.
Could it run with 4 x X1800XT without crossfire ? It's just for power supply testing purposes. Could I plug them to load the system and just use 1 monitor ? Would drivers let me use 4 monitors at same time (just 1 monitor by card, not usin dual DVI).
Many thanks.
i have ,so thats not it,maybe im not setting it up rightQuote:
Originally Posted by Dumo
It wasn't voltage something else :mad: :slapass:Quote:
Originally Posted by camouflage
now in stock for newegg...but...EWIZ is $50 cheaper with free ground shipping...pretty good deal.Quote:
Originally Posted by Dumo
Mine is in a fedex depot in NJ now... :) Im kinda bummed I won't get it til Monday most likely
I didn't know that there are 2 different version... =/
seems like p5w-dh is still the king see http://www.hardware.info/en-US/artic...S_Professional
SORRY!..i don't see it from that review which is really sub-par!Quote:
Originally Posted by Pjoeloe
Hi, I think Im doing something wrong, Ive tried this configuration, but I cant seem to get 4-4-4-12 timings on RAM, is it maybe that Im running 4x GB? (4x1gb G.Skill DDR2-800).Quote:
Originally Posted by Absolute_0
Also, I have gotten 72 ºC at 3500 Ghz maybe too high for 24/7 run, 50 ºC Iddle running 2 SP2004, what should be the highest temperature I should run my computer at 24/7?
Temperatures messured with Core Temp Beta 0.9.0.91
just bare in mind that one's settings on one puter will not necessarily work on another...to many variables...
loosen your memory timings and things will probably improve.
my view of temps:...if you do not game, don't sweat it..if you do game, just find what works best for your scenario.
:D You can buy mine when I own RD600............:lol:
