my idle temp are odd too
my cpu is 24º
mb is 44º
cpu has h2o cooling
i use the asus fan for mosfeds
Printable View
my idle temp are odd too
my cpu is 24º
mb is 44º
cpu has h2o cooling
i use the asus fan for mosfeds
the one below the PCI slot, with 0903 it works quite well, was able to flash new burner firmware and do successful 18x burns,Quote:
Originally Posted by GoldenTiger
http://club.cdfreaks.com/showthread.php?t=189057
Sticky - very helpfull and organized Problems & Fixes Thread
Please keep 1st post updated lawrywild :)
I've been experiencing low internet speeds. I have a second computer connected to the same modem. Download speeds on that second computer, which is really, really old, have been awesome and much, much higher then my new system.
Out of the two Ethernet ports available, I need to use only one to connect to my cable modem.... does it make any difference which one i should use? Is there anything that could be affecting my Internet Speeds?
Thanks.
My internet connection runs flawless with the ethernet port below
You mean the colored one? The one which is with the USB port that you have to connect the remote to? I have my ethernet cable connected to the port on top... the one closer to Audio Ports, not the one below... maybe i should switch.Quote:
Originally Posted by Mykou
Also... i'm using the drivers that came on the CD for the Ethernet Ports... are there any newer drivers i should be installing?
yes this one near the usb where asus say to plug the remote receiver
I used Cd drivers , haven't check if new ones released
I have an old Maxtor 41GB IDE, and 2 DVD Burners (Pioneer DVR-111D & Optorite). Should i connect the two DVD Burners to the JMicron Port and the Maxtor IDE to the Intel IDE Controller? My Pioneer DVR-111D is capable of burning 16X DVDs... will i be able to do that connected to the JMicron Controller? I know the Manual is wrong where it said that JMicron Controller doesn't support ATAPI... still i connected my IDE To JMicron and DVD Burners to Intel Controller for the fear that JMicron may not work properly with Burners.Quote:
Originally Posted by MacClipper
Thanks! I'll switch today and see if that makes a difference.
Quote:
Originally Posted by Mykou
Enabling the SATA/RAID bootrom for the JMicron controller from BIOS (801 & 901) fixed this for me. Just like your dvd drive my Hitachi PATA hd showed up in PIO mode under device manager.Quote:
Originally Posted by MacClipper
For me, AIBooster doesn't make any changes on the fly with either of the 90x bioses. 801 works fine though.
wich bios is recomended to my rig??
x6800
P5WDH DL
EXTREEM PC2-6400
X1900XTX soon to be CF
Silverstone Zeus 850W
TYVM Pedro, will do :)Quote:
Originally Posted by Pedro Rocha
Anyone sucessfully running crossfire with this board? I might pull the trigger this weekend but have not seen anyone saying they run crossfire.
If anyone is interested, there is a link to a modded bios for P5W DH in http://www.xtremesystems.org/forums/...d.php?t=106563
AFAIK, it increases vmch selections
Use at your own risk!
Boot ROM was always left enabled but no go for UDMA on PATA ATAPI devices. zevia of CDFreaks also reported he did not have any UDMA trouble with his SATA Plextor DVD burner (ie. a SATA ATAPI device) with earlier BIOS like 0701. Unlike harddisks as in your IBM IDE, ATAPI support seems a afterthought to many manufacturers of drive controllers eg. Promise.Quote:
Originally Posted by maukka
@mickey - leave your burners at the Intel controllers for best compatibility, I'm still testing how good the JMIcron is for ATAPI stuff since it is so new esp. to me. btw, if you are adventurous, go crossflash the 111D to 111L for a much better feature set, see CDFreaks for more info.
Any ideas on why SPD needs to be enabled over 360~ or so?
I had (2) problems:
1) Was not getting a restart after changing bios settings around 350~ FSB. It would sit at a black screen powered on. I still get this sometimes, but SPD seems to have "fixed" it so it actually reposts, just doesn't restart. But sometimes it does.
Even if I just change FSB, it sometimes does, sometimes not.
2) With manual timings at 1:1 354, 355, 356 (Wouldn't post past 356), Orthos/Sp/Prime would just freeze my pc. The strangest part is, no sounds, fans, or lights would change, but my mouse would turn off.
I tried using an old mouse and disabling USB legacy, etc, no change.
_______________________
All that said, I'm at 3.33, 1:1, (Stable), 1.4V Bios, Auto on all other voltages. Idle at 28-30, load at 44.
^^Not bad.
I really hope they can fix AIBooster, it's always showing as 163fsb (at 175 w/ PD805) and sometimes does the 255c temperature, as well as Asus Probe :( And I have to reset the computer if I wanna do on the fly voltage/fsb changes.
I'm running it with no problems. Even after the two cards are installed, I still have room for my sound card and there is still one PCI Express slot available.Quote:
Originally Posted by RickCain
The AI booster think is really annoying...anyone with Gskill PC6400 HZ D9 chips can run them any other divider than 1:1?...Cause mine is working only 1:1 any other dividier reboot or not even boot into bios...
Regards,
Primoz
Did you try the newest version of the AIBooster posted about half way down on this page?Quote:
Originally Posted by kidstechno
http://www.xtremesystems.org/forums/...=106563&page=9
Did you anyone tried MODDED BIOS? With 1.85V NB option? Is it working?
Mine actually run at 4:5 and rig stable at 3.43 ghzQuote:
Originally Posted by Primoz78
Now testing 3.6 ghz Superpi 32 stable , have to run prime
Can you give me the exact BIOS settings you are using?...you have an E6400 as I can see..? I will try to rise the VCORE today to get it stable at 400FSB so I can hold them on 800mhz....:cool:Quote:
Originally Posted by Mykou
Regards,
Primoz
Quote:
Originally Posted by Mykou
Dude can you post you bios settings? My gear is arriving tomorrow, same stuff only corsair mem instead of G.Skill :)
I would really appriciate it! Thanx
Yep I have E6400 and E6700 ( actually running it )
My bios settings if could help you E6700@3.43 ghz
-FSb 343 mhz
-Vcore 1.4375 ( in bios 701 )
-Vdimm 2.2v
-Vfsb, Vich and Vmch auto
-PCI-e 105 mhz
-Path 3 disabled
-Ram throttle auto
-only microcode enabled ( C2T,EIST,Virtualisation all OFF )
-PEg heavier
-Ram settings manual at 858 mhz ( so 4:5 ) if I well remember ( cas 4 /4/3/12
I can now boot at 3.6 ghz ( 360 x 10 )under xp but not prime stable just superpi 32 and good score under aquamark 03 ( 20272 cpu score , I did compare to PcCI2iminal when he benched @3.6 ghz but 1:1 ratio and score about 19000 so I may think that running 4:5 is sweet too :D , P5W is very mem divider sensitive IMO though I met issues at 1:1 lol and others can't run it at 4:5 :confused: )
Could run E6400 at 3.1 ghz ( 375 x 8 ) stable
Think I have to go for WC if I want more and stable :)
But 3.43 ghz is a good deal IMO since I 'm still with air cooling
Hope it helps you :)
Edit: have to update my sig ;)
One question from meeee :)
Am I the only one that cant get the board booted by pressing "power-on" on the remote??
Thing is.... I run the gear openair untill Im over with testing it - and thereby has no power-on button, but use a shrewdriver to boot..
if you experience post lock up during detecting IDE devices, reset and put some USB storage OR change SATA HD to other socket
You must enable "Power on after Power off" option in the dh remote control panel in windows ;)Quote:
Originally Posted by M.Beier
also the receiver must be in ports 3 or 4, the ones that came with a sticker over them.
"Power on after power loss" ?Quote:
Originally Posted by lawrywild
Oh another bad bad issue... - WHen not using CPU fan... That noisebutton, it'll cause system freeze.. :|
New 0903 'S3 resume' bug?
The BIOS fails to re-initialise the JMicron controller properly upon resume from S3 sleep causing the system to freeze periodically as it tries to reload the controller/devices attached to the JMicron.
Event viewer reports controller error or controller not ready error and "devices disappeared from the system without first being prepared for removal" error from Plug and Play Manager.
Yeh, that's the one..Quote:
Originally Posted by M.Beier
Hmm i don't use a cpu fan connected to the motherboard and the button doesnt freeze anything, it just doesn't do anything..
Hmm, might be due some disabled functions in bios then :) - Pretty much disabled most of HW-monitor section..Quote:
Originally Posted by lawrywild
But thx =)
I just have to try that power-up stuff :D
Also when not using CPU fan it always giving you a "CPU fan error" before booting...BIOS 1011
Regards,
Primoz
put cpu fan to ignore on hardware monitor in biosQuote:
Originally Posted by Primoz78
took the words straight out of my mouthQuote:
Originally Posted by Shrekogre
@primoz78 and zerocode
update with 375 fsb 1.56 vcore in bios and Vmch 1.65 v unmodded and still air cooling ( others settings the same I gave you ) but still 4:5 ;)
http://img96.imageshack.us/img96/1381/good2qr9.jpg
I 've not test prime but I guess I have errors
Already done it...still the same problem :cool:Quote:
Originally Posted by Shrekogre
Regards,
Primoz
I've just chosen "ignore" in bios, that killed the warning :)Quote:
Originally Posted by lawrywild
THen you must have one of the other fan-control functions enabled..Quote:
Originally Posted by Primoz78
Well, after all, it does state in the manual (page 2-31) that the JMicron IDE connector does not support ATAPI devices at all :)Quote:
Originally Posted by MacClipper
Just flashed now, but... The 1.65 is the max selectable v in bios for NB .. :/Quote:
Originally Posted by OBR
Did you..Quote:
Originally Posted by M3kk
Flash with afudos- afudos /i***.rom /pbnc /n
then clear cmos properly, i.e. take out battery, change jumper for 1 min, replace battery and power on?
Have checked it twice...:confused: Will check it again and hope it help cause is annoying...every boot up have to push F1 to go into windows...Quote:
Originally Posted by M.Beier
Regards,
Primoz
Tried, but nothing :) The max is 1.65v :PQuote:
Originally Posted by lawrywild
Thanks! Yeah, i was thinking about leaving the IDE at JMicron and my Burners with Intel Controller for now, untill things are more prominently stable and proven.Quote:
Originally Posted by MacClipper
I'm gonna look into the crossflash of 111D - 111L at CDFreaks. Adventurous, I Am. ;) :)
:toast:
Mickey
another problem if i oc then reboot alle is ok.
if i from windows power down or reboot it
restore to normal sppe and say oc fail LOL
nice i hope nvidia nforce 590 intel ver comes soon.
this problem:
Keyboard connected via a USB Hub. When system is shut down pressing the keyboard starts the PC. - No fix as of yet, Disabled PS2 Keyboard Startup does nothing to stop this.
i had something alike with my razor copperhead.
unplugging or striking a mousbutton started the pc.
Solved it by flashing from 0701 to 0903 bios.
Well, it would be nice (& polite) to read this whole thread regarding this issue. Pls read from post at no. 70 onwards before commenting more.Quote:
Originally Posted by maukka
Cheers.
ASUS will be realise sometimes a BUG FREE BIOS for this MB or I will F*** their ingineers...:slapass:
Is the 7-th bios in an month and STILL a lot of troubles.
I'm thinking to sell that jerk of MB and buy Biostar TForce 965P:woot:
I think 801 is still the best ATM, the others have too many bugs, GL :)Quote:
Originally Posted by chefnr1
Same here if I could even buy one in AUQuote:
Originally Posted by DjLeco
Look at my sig, why do you think I have an Anus board :eek: :rolleyes:
Quote:
Originally Posted by Mr.X
i took the small fan that went with the mobo and put it onto the SB...after taking that sticker off....it fits right in top of it...on 5v i cant hear it either...perhaps there is not rrom for it in cf/sli...
interesting
Hey, quick question; is there anyway to get a bios chip before I buy the board? The email contact us thing doesn't work because it requires S/N, etc. and I sure as hell arn't calling long distance from Toronto :/
Is there vdroop for that board?
Maybe easier to buy the cheapest, crappiest 775 Celeron there is then, for flashing.Quote:
Originally Posted by Shpoon
i called them up, and got a BIOS chip sent out to me and I dont have the mobo, I called the mobo department, asked for the BIOS division. told her that I bought the board recently, and heard i needed an updated bios revision for it to work for core 2 duo. Gave her my info and then that was all.
But a guy told me yesterday the dept is only open from like 8am-5pm EST.
Want to call for me and get them to ship to my address? :pQuote:
Originally Posted by ruler22
Hmm, at least for me if I set the USB Function field from 8 ports to 6 ports I stopped getting bugged to install the Wi-fi drivers when I get in to Windows. Can anyone else confirm?Quote:
Originally Posted by theoryzero
Just pull the card. Or, if you don't want to, disable it in the Device Manager. That way you retain 8 USB ports.. :para:Quote:
Originally Posted by theoryzero
Got my board today. Just 2 problems. Obviously slow POST but also the Intel PATA controller is behaving strangely.
I can't get the BIOS to recognise my harddisk and my optical drive at the same time.
So far i have tried all combinations of master, slave, cable select, one drive, both drives etc no luck. I have also started to look at the bios trying out the Enhanced PATA+SATA IDE mode. no luck
Things i still havn't tried are removing my other 2 sata drives. enabling ACHI mode and IDE combined mode. Will try these soon.
Any other ideas?
Edit: have now tried ACHI, and ide combined modes. Still no joy
Has anyone come up with anything regarding the SPD @ 360~+ FSB?
I worked this thing for HOURS trying to get manual timings @ 380, no luck whatsoever. Just blackscreen, no restart. :mad:
can someone help me with this board and my problem ? see pic:
http://imagestore.ugbox.net/thumb/er...e779fa2564.jpg
Click to view full-sized image!
whenever I try to remove and of the conflicting items, the PC freezes, this same thing comes up even when I disable it in BIOS.
Maybe you have a usb hub connected to the Firewire on the mobo by accident.
At 375fsb I can run manual ok except when I set memory to 1000 in bios.Quote:
Originally Posted by xpsentity
935 works fine and so does 1125 but 1000 causes no boot.
Might be related.
Have you updated to bios version 903 or 1101?Quote:
Originally Posted by Phatriff
POST is a lot faster on those two than on previous versions
I also found out that depending on the SATA sockets you connect your hard drives , you get different POST times . The problem got worse when i manually configured one of my drives to be for example Disk 1 , so i could boot into my windows , while bios had it configured as Disk 3
Swapping / changing the SATA connectors of my HDs solved the problem
ok thanks will try that bios :stick:Quote:
Originally Posted by alpha0ne
bios 1101 seems ok for me
Actually testing E6700@3.5 ghz
please be back and tell if it is more stable and if you can oc more, my cpu E6600 tray, wont do dual SP2004 Small FFT´s stable at 370FSB, but 370FSB is benchmark stable, all 3dmarks superpi32m and so on...
Quote:
Originally Posted by hot_fifty
could be cpu. my 6600 can do 389x9 benchable but when i put a 6300 in, i could do 420x7 and 460x7 with pencil mod on vmch
When I shut down my XP, it restarts my computer, is this that "coldbug" i'm reading about? How can this be by design?!
I tried various combinations of sata drives plugged in now and no difference. Tested with 0801 0901 0903. not tried 1101 yet.Quote:
Originally Posted by Captainmilo
Maybe i will have to fire up the jmicron :/
The slow boot doesn't bother me too much since i rarely turn my pc off or restart it. I have noticed the blue line on the windows startup screen cycles a dozen times before lauching tho
Ah, the problem I'm havind isn't called a "coldbug" ?Quote:
Originally Posted by brentpresley
Strange. I'm going to reinstall XP (because it's rather old .. it's the same install since my P5WD2, P5WD2-E and now P5W DH :p )

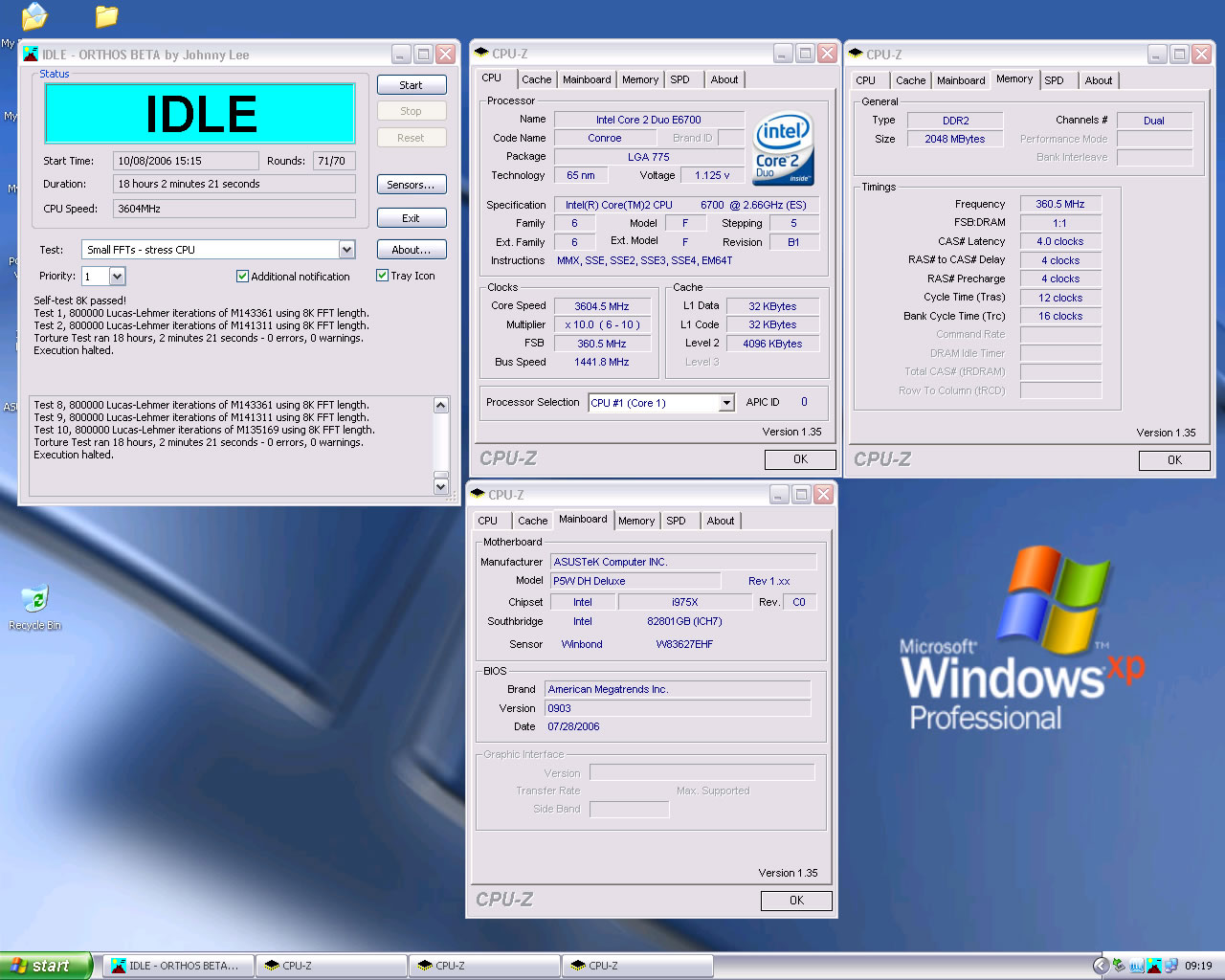

I'm currently dual Prime stable at 3.6Ghz (360x10) at 1.4250v (probably 1.38v actual according to PC Probe), specs in sig and stablity pic here
The only thing I've changed is disabling HyperPath 3, RAM throttling and EIST. All other frequencies or voltages besides the vCore. RAM timings are set as 4-4-4-12 which are the rated specs, the timings are NOT currently on SPD.
I tried moving up to 3.8Ghz by increasing the FSB to 380 and raising vCore, but even cranking it up to 1.520v ORTHOS crashes out after a few seconds.
Changing the RAM to SPD, vMCH to 1.6v, vDimm to 2.1v (max RAM is rated for I think) and vFSB to 1.4v made no difference at all. I haven't noticed any increase or decrease in stability from changing ANY other settings other than vCore. Memory is rated for at least 400 FSB so I don't think it's that which is causing the problem.
How can I know when I've hit an FSB wall on the motherboard, if none of the other settings (vMCH, vFSB, etc) seem to make any difference? Am I gonna have to stick this under my Vapo to know how much further it will go?
PC Probe warned me about the load temp when I started ORTHOS - which touched 62 degrees, so I'm reluctant to push the vCore much further on air cooling (Arctic Freezer 7 Pro, with the standard thermal pad attached).
Would appreciate any help anyone could give me....
run coretemp not asus probe, that'll scare you even more by showing you the REAL temperatureQuote:
Originally Posted by Durzel
Oh dear. :(Quote:
Originally Posted by lawrywild
ASUS P5WDH Dlx Overclock Settings
CPU : E6600 B-2 (OEM Wk 24)
DDR2 : 2G OCZ DDR2 800 Platinum
Bios : 903
OVERCLOCK (MHz) = 3.41 (prime stable)
BIOS SETTINGS
JumperFree Configuration
AI Overclocking set to MANUAL
CPU Frequency : 378
DRAMM Frequency : 756
PCI Express Frequency : 101
PCI Clock Sync Mode : 33
Memory Voltage : Auto
CPU Vcore Voltage : 1.5
FSB Termination V : Auto
MCH Chipset V : Auto
ICH Chipset V : Auto
All other BIOS setting are set to the common recommendations. (ie Hyperpath 3 disable, etc, etc)
I'm prime stable at these setting. However at 380 and 1.475 Vcore XP crashes. None of the other voltage settings seem to matter including MCH.
Even though I'm prime stable I think I'm pretty close to the upper limit and want a little more guardband. I'll probably back FSB down to 375.
Whats a good safe Vcore limit for everyday use? (aircooling w/Scythe Infinity). Do I have any room above 1.5 V as long as CPU temp remains <40?
Alright guys. I got a new problem here.
P5W with a E6600
Doesn't matter what the cpu is clocked at. Stock or overclocked, cpu usage on one of the cores is always 6-8%. Always. This is on a fresh windows install with no programs running at all.
In windows task manager under Processes it shows Idle process 99%
But cpu usage on the one core is 6-8%
Any cures for this or has anyone else noticed this.
Click on the orange speaker beside the clock and disable dobly digital live. I had the same problem and its back to zero. Now I only turn it on when needed.Quote:
Originally Posted by sparkie34
Anyone trying to use a SATA drive to boot and having a RAID 0 array for gaming?
I have a single 160gb plugged into the Intel (red) SATA port. I then use the Asus SATA ports and follow instructions to set this to RAID 0 (set jumper, enable DH features)
I can get the drive to work and show fine as 76gb, but when I run a HD tach this is showing as 80mbps - VERY slow. I also tried using the Intel RAID controller but couldn't for the life of me figure out how to have a single SATA for boot and a RAID drive as a gaming drive only.
Any advice would be appreciated :)
EDIT: BIOS 1101
For some reason the Asus P5W DH decides to turn itself on now without me touching the power on button. It spins all fans up to top speed then turns itself off!
After that I can hit the power button and it will come on as normal. Is this a bug or is my board going mental?
Im not happy at all about the motherboard temps (54c), and when I touch the NB/SB they are hot to touch. I havent even overclocked or gamed yet.
Quote:
Originally Posted by Fenixviper
You the man! Thanks a bunch. That was driving me insane.:toast:
WTF I just ran core temp and it says core 1 - 51c and core 2 - 50 c. This cant be right surely?Quote:
Originally Posted by lawrywild
It is, they are temps taken from within the die itselfQuote:
Originally Posted by Jimbo
So is it normal to be so high? why is it so mental? I cant belive the temps on this board and cpu.
Quote:
Originally Posted by Jimbo
I have seen in many threads stating that the P5W DH in comparison with the P5B Deluxe in heat, it won by a great advantage. P5B runs cooler for the other side P5W DH much hotter.
I have a problem with my brand new P5W-DH driving me crazy.
Seems like there is no way I can install the Firewire pilots correctly.
Have a look at my device manager it speaks for itself.
I tried with Firewire ENABLED and DISABLED in BIOS.
I tried uninstalling all of the devices in Device Manager and rebooting.. it just re-sets itself like that.
What can I do?
Holy crap. I just read through this whole thread. There are a LOT of friggin' unfixed, open issues with this board. Mine gets here Monday. I'm gonna be friggin' pissed if I made a mistake. I shoulda just kept the DS3 I think.
I'm VERY worried. Ugh. I cannot return this board either - NewEgg says exchange for replacement only.
Can always sell it, lots of people looking for them usually.Quote:
Originally Posted by Brahmzy
I ditched ds3 for asus p5w dh, gigabyte board seemed far worse than asus board. Though I am only running 805 while waiting for conroe.Quote:
Originally Posted by Brahmzy
When i go in to the bios and go to, Tools > Asus O.C. Profile > Start O.C. Profile, all i get is a blue screen if i have the JMicron boot rom is disabled, the only way to escape from this blue screen is to hit the reset button on the front of the tower, when the JMicron boot rom is enabled it all works as it should, this issue accurs with bios 0901, 0903 & 1101 and probably anything in between, has anyone else had this issue? if not could someone please test this to clarify.
Thanks!
Yes its a known issue and its because the profile is stored in part of the jmicron's rom.
99% of "Problems" posted here are not really bugs or somethings, BUT only total amateurism of users ... This thred is only chaotic bunch of stupidity ...not serious "Fixes thred"
I have no serious problem with this MoBo, my E6600 runs @430FSB, and i have RAID0, Firewire ... everything OK, only ONE problem i have - crappy memory dividers ...so far ...
for it is the same as for OBR.
I've bought a 6400 Step6 Rev. B2, now running @ 3000 MHz with 1,36 VCore, MDT 2GB kit PC6400, and everything seems good.
And i'm using the so called buggy BIOS version 0701 ( the board comes with it ).
Did you try last bios 1101 ?Quote:
Originally Posted by OBR
I can boot at 4:5 (4/4/3/12) ,1:1 and tested last night 2:3 ( DDR 800@1050 with 4-4-3-15 ) see
http://www.xtremesystems.org/forums/...8&postcount=60
and was very surprised as I couldn't do this last one before
4 boots w/o any pbs at the desktop
Guys i just took off the southbridge heatsink and it appears to not be making very good contact at ll with the chip. should i apply thicker amount of as5?
Keyboard connected via a USB Hub. When system is shut down pressing the keyboard starts the PC. - No fix as of yet, Disabled PS2 Keyboard Startup does nothing to stop this.
Upadate
Bios 1101 does not cure
Any USB device on the far right USB slots (looking at the back of the mobo components upwards) will start the computer if activated. I even tried my printer and turning that off started the PC.
Temporary Fix (thanks to lkraven for the idea)
Move all USB devices to the other pair of USB slots or use the motherboard headers. This has been tested and works.
Real pain due to the number of devices i have, but at least it is a fix.
The problem is the SB is concave. Only the tips of the corners will make contact with the HS. I ALWAYS lap my SB chips and will be doing it on my P5W DH Monday as soon as I get it. My DS3 SB kept very cool because of this.Quote:
Originally Posted by Jimbo
LAP IT!
The SB ICH is plastic encapsulated and not so flat. Also its not involved in the overclock so don't worry to much. The northbridge has foam padding to keep it square to the core, so that'll have to come off if you want to lap it.Quote:
Originally Posted by Brahmzy
can anybody help me with vdroop ?
what resistence of 50k VR is best?
