Currently burning in my new Q828A434 VID is 1.25, currently 1.19Vcore (1.250 set in bios LLC disabled) for 8 x 500FSB
http://users.telenet.be/OAP/E8500EO.JPG
will let her burn in some more and then wack her up to 4.5Ghz...
Printable View
Currently burning in my new Q828A434 VID is 1.25, currently 1.19Vcore (1.250 set in bios LLC disabled) for 8 x 500FSB
http://users.telenet.be/OAP/E8500EO.JPG
will let her burn in some more and then wack her up to 4.5Ghz...
very nice leeghoofd, do you mind posting up your settings for that clock?
Hoooly s**t I needed 1.34V for mine to reach 4Ghz stable!!!!
damnit u guys are lucky to get E0s from the store... NO ONE here in canada sells E0s... And tankguys don't ship to canada :(
:DQuote:
Originally Posted by misho
There is something wrong now... Even in here finland you can go and buy E0 :rolleyes:
Quote:
Originally Posted by kaskuli
kaskuli, I have the brother to your E8500.:)
Mine is E8500 SLB9K Q827A286 Pack Date: 08/07/08
Still testing mine.
thx but I'm still looking for better, thx to Nilos for having me swap this one... other one was 1.25Vcore required for the same ops...Quote:
Originally Posted by gurusan
CPU Voltage: 1.25
CPU GTL Voltage Reference (0/2): 0.645
CPU GTL Voltage Reference (1/3): 0.645
CPU PLL Voltage: 1.56
FSB Termination Voltage: 1.2
DRAM Voltage: 1.94 (4gb Mushkin redline pc8000)
NB Voltage: 1.22
NB GTL Reference: 0.63
SBridge Voltage: AUTO
PCIE SATA Voltage: AUTO
well just passed 20x intelburntest @ 422X9.5
at 1.35 is safe enough for a 24/7 bench test 1.362 is the max keep and eye on your temps as you bench it..a good thing is try to get your system dust free and build up in the fins of your heatsink and if you got alot of case fans keep the blades dusted off also as much as possible to keep good air flow:up:Quote:
Originally Posted by Dom7184
Im on water ;)Quote:
Originally Posted by bigwill68
heres my new e8500http://i37.tinypic.com/s41fnp.jpg
How did you stumble upon those GTL settings mate and why are you using them?Quote:
Originally Posted by Leeghoofd
Trial and error mate, I set for 45nm 0.630 for both and test Vcore, then I try to set one notch Vcore lower and mess with GTL 's up and down... in my case core 1 always capped out, so I tried a bit higher and settled on 0.645... runs linpack test flawlessly and survived OCCT 2 hor CPU test too... stable enough for me... I'm no mathematician but I've read that most 45nm CPU's tend to like to be around 0.8...
Sounds good fella, will have to give them a try on my rig when I get chance :up:Quote:
Originally Posted by Leeghoofd

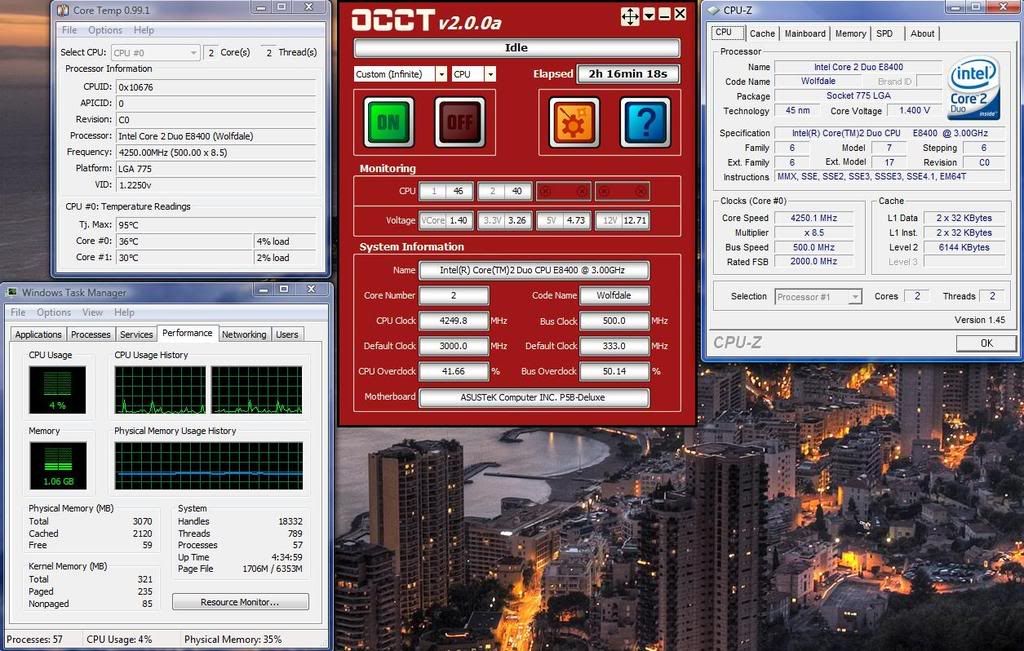

E8400 Q746A489 C0
P5B Deluxe Bios 1236
vCore 1.41
500 x 8.5
CPU WC peak @ 61c
2+ hours and pending :rolleyes:
http://i137.photobucket.com/albums/q...500x85141v.jpg
BooStFeD ;change your coretemps TJmax to 100c
Nice to see another P5B Dlx :DQuote:
Originally Posted by BooStFeD
wut fsb and NB volts are you using ? also heres links to Core Temp 0.99.3 and OCCT Perestroïka 2.0.1 there updated with the 100 tjmax
have you tryed lower Multi and higher fsb ? my max and stable is 580 and it helps the mem in read and write and i didnt have to up the volts that much on the fsb and NB but mines a E8500 E0 idk if the E0 would help the fsb more worth a try
@BooStFeD
Whats your oc speed on your and volts you got volts on 2.1v or 2.0v it's goota be running loose..
I can't tighten my memory up to 4-4-4-12 unless the memory alittle Oc'd about 413 a stick..right
now it's at 991 oc'd at 2.0v...
@Dom7184
Brother you got a monster there:yepp: looks great hey got a question. I'm planning another build in 09 a water build..I been seacrhing around to if there
is different type of water coolant colors available in different types really..I'm looking for a purple color so far all..i have seen is green,clear,blue and..i believe red just wondering have you seen different 1's any where else? bye the I got a clear case myself..but i only used it once it's back in the box where it was shipped it from newegg was'nt keeping things Cool for me:shakes:
http://www.newegg.com/Product/Produc...82E16811148001
http://img508.imageshack.us/img508/2...earcasetu8.jpg
+ shipping cost
E8400 E0Quote:
Originally Posted by BooStFeD
P5Q Deluxe Bios 1406
vCore 1.3360v (1.34375v on bios)
500x8.5
CPU on AIR peak @ 63ºC
5+ hours done :D
http://img46.imageshack.us/img46/289...vbiosstdj8.png
25x Linpack done :p:
http://img46.imageshack.us/img46/725...vbiosstgv7.png
That's my 24/7 now.
Dom Thank you for the links ;)Quote:
Originally Posted by Dom7184
I have not tried higher fsb stability testing. Did post at 600*7 though. Bios NB settings is 1.45 and FSB is 1.30. Going to see if i can lower these more.
Just passed IntelBurnTest x5 will do x20 after some FarCry2.
http://i137.photobucket.com/albums/q.../E8400TEST.jpg
bigwill68 Just updated sig. Not using 2x1gb XMS2 anymore. Running 2x2gb Mushkin Ascent
http://www.dangerden.com/store/produ...&cat=63&page=1Quote:
Originally Posted by bigwill68
Hi!
let me share some pics.
4ghz 1.152v prime 1 hour: http://images.netbag.hu/20081028/21400352011.jpg
4ghz 1.136v burntest 5 pass: http://images.netbag.hu/20081028/21385172924.jpg
4.4ghz 1.32v occt 30 min: http://images.netbag.hu/20081028/21422790662.jpg
I hate my C0 4.2ghz needs 1.41 v core :(
4.1ghz isn't bad tho :)
Quote:
Originally Posted by Dom7184
Thanks brother good looking out:up:..saved to my favorites..Now I can order some and have it ready for the build:yepp:
I feel 1.41vcore is not bad. I would not go higher with these cpu's. Pumping 1.41-1.43 to my C0 E8400 for almost 8 months. Still alive and kicking thats for sure :DQuote:
Originally Posted by Quad-Damage
Just got rid of my E8500 (C0) for an E8400 (E0) and the difference is already apparent. Waiting on a Biostar Tpower I45 to be able to test further than where I'm at. The IP35-E beta BIOS that works with E0 CPUs borked the MCH code, so you can't adjust the voltage; hence I can't go farther than this FSB.
3.8GHz, default Vcore (1.25v in BIOS, which is VID; 1.20v after Vdroop) ...this took +.04v from VID with my E8500.
http://www.myalbumbank.com/albums/us...priming3-8.jpg
CPU info:
http://www.myalbumbank.com/albums/us...0/boxlabel.jpg
Will update once I can clock it like it should be clocked. ;)
