Quote:
Originally Posted by Nooc
wait i was talking about the antec 900 pics above his post, there are a LOT of pics of the pump in that. and i wasn't being serious with the blind thing
Printable View
Quote:
Originally Posted by Nooc
wait i was talking about the antec 900 pics above his post, there are a LOT of pics of the pump in that. and i wasn't being serious with the blind thing
I've had this setup running for a few weeks now, decided it was finally time to get some pics of it up.
The radiator, a Koyo/Adrad Ford Falcon AU Copper rad, fin area measuring 67cmx45cmx32mm.
http://img522.imageshack.us/img522/7305/img0045kh5.jpg
The enclosure for the entire setup, which sits outside on a balcony. Amazing what $15 of pine and ply can get you.
http://img524.imageshack.us/img524/1186/img0039lo7.jpg
Shots of the pump and an old heater, serving as a fan. Pump is a Nightingale TCP130, Qmax 90L/min, Hmax 23m. From memory it's around 1/2HP; My pump is bigger than your pump! :D
http://img524.imageshack.us/img524/4442/img0040zp5.jpg
http://img524.imageshack.us/img524/4966/img0041mc9.jpg
The fill tube:
http://img522.imageshack.us/img522/957/img0042wr3.jpg
The air bleed tube:
http://img201.imageshack.us/img201/825/img0043vd9.jpg
A few minutes drilling yielded a couple of 1/2" holes, into which were inserted a pair of copper pipes, over which the tubes were forced. The smaller hole is for the line to the power board, which feeds the pump and fan.
http://img201.imageshack.us/img201/7848/img0044rv9.jpg
The tubes emerging from the other side of the wall. I am yet to clean this end up.
http://img201.imageshack.us/img201/3499/img0046wu4.jpg
The tubes final destination: A Swiftech Storm Rev2 on an E6600.
http://img522.imageshack.us/img522/3918/img0048fz4.jpg
^^ how is that NB fan spinning with the rubberband :ROTF: ??? wtf
you should invest in some zip ties man :yepp:
I'd say the rubberband doesn't touch the inner fan... only the frame.
rubber bands disintegrate under heat
btw, what are you temps??
Aye.Quote:
Originally Posted by Don_Won
The rubber band doesn't get hot at all; it's been set up like this for a few months now without any problems.Quote:
Originally Posted by perfection
Idle temperatures are ~5-10 degrees over ambient, load temperatures 2 or 3 degrees above that; after around six hours of Orthos load, temperatures increase another few degrees, to ~10-15 degrees over ambient.
I run the E6600 @ 3.6 on 1.45v.
you do all this work just to cool your cpu? why not also the gpu and nb/sbQuote:
Originally Posted by GrimReaperGuy
But i like how you think outside the box nice work :up:
there have been several posts since mine, but i wanted to answer the mounting question regarding the pump. I was very simple actually. Danger Den included industrial Velcro with the d5, so considering that it's lightweight and the tubing would naturally be pushing up on it I decided to just use the Velcro. Very simple and very effective.
omg, This is one of the most chanceless things I've ever seen in my whole entire life. I once cooled an x850xt(pe) amd 3000+ venice@2.7 and a northbridge on a a8n-sli premium with just one 120.1 black ice pro. And my temps were around 40C. And then you see one ubernerd who thinks all this work will make such a difference instead of buying a 120.2 :S ON A SINGLE 6600? I swear the E6600 @ 3.6 on 1.45v will run great on a 120.2. That's the same thing as flowrate BLEGH! i hate those theories, and I know higher flow can decrease your temps but it makes a 3C difference or maybe less?
Now I'm going to take a smoke...
Did he "stick" that pump with neo_prene pad with adhesive to top side of the case?????
Grimreaperguy, i really appreciate all the hard work, but im going to have to agree with dnb#. All that work,time,effort,and money you spend while you couldve just bought a waterchiller...
w00ps, my sig is HUGE. imma edit that.
My friend did that with his NB47J when his NF4 chip was reaching 80C, it worked just fine.Quote:
Originally Posted by Nooc
^^I love that color man :up:
Hey there!
My first post - been browsing the forums for a bit and finally registered!
Here's another Antec 900 as every1 else says...its cramped...also, I wanted to mount everything internally so opted for a Tt rad...bad choice.
I have a Lian-Li V1200 with a PA120.2 on the way soon (I hope!) so watch out for my new one ;)
Only the CPU atm, but hope to extend it to the N/S Bridges and GPU and RAM (eventually - with 2 loops!)
PICS!:
http://i122.photobucket.com/albums/o...DSC00064-1.jpg
With flash - I cut 2 messy holes to wire behind the mobo.
http://i122.photobucket.com/albums/o...DSC00063-1.jpg

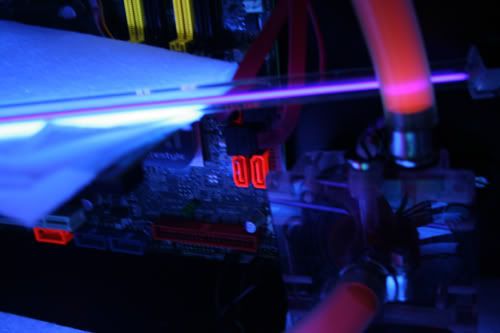

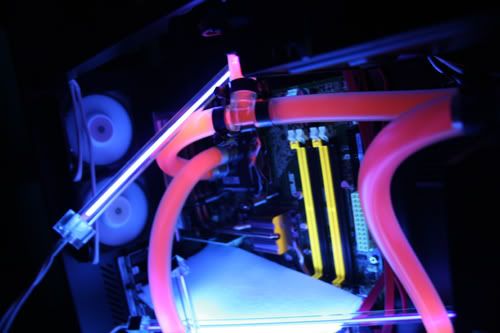

in the dark
http://i122.photobucket.com/albums/o...DSC00065-1.jpg
My first attempt. it's OK :)
eurgh! ugly curtains!
Rebuilded my system today, after the dryice-session this weekend. :)
http://www.abload.de/img/imgp2338n52.jpg
http://www.abload.de/img/zwischenablage019rj.jpg
nice case mike
Quote:
Originally Posted by GrimReaperGuy
Awesome man!!!!! :clap:
Well, the NB runs under 40 degrees with the HR-05 sitting on it, no matter how many volts I throw at the thing, and I'm yet to find a block(s) for my 7950GX2 that isn't as expensive as the card itself.Quote:
Originally Posted by ruff97
Last I checked, this is XS, and we're supposed to enjoy what we do. If tinkering around with water cooling is 'hard work' instead of 'good fun', I think you're in the wrong place. :yepp:Quote:
Originally Posted by HeephStan
As for cost, this project was largely begun because of the high cost of the loops that we normally use; the pump set me back AUD$80, and the radiator $100. A DDC and a Thermochill would cost almost twice that, and an Iwaki would cost as much as the entire loop! :ROTF:
Funkflix, that's alot of spare space in you case; why not bring the radiators inside? I really like that black tubing. :up:Quote:
Originally Posted by funkflix
Which painting black have you use ?Quote:
Originally Posted by funkflix
Point taken, Allthough for me the Xtreme in Xtreme systems stands for Xtreme perfomance, or Xtremely cold computer. Not Xtremely-difficult-way-to-make-something-that-couldve-been-done-much-more-easily.Quote:
Originally Posted by GrimReaperGuy
Dont misunderstand me, i love your setup. It's just that you could've reached the same result with a lot less trouble. And then if you went thru all the trouble you would have gotten even better result.
WOW - & i thought ladies underwear was the only thing best in black :DQuote:
Originally Posted by funkflix
:rofl: :rofl: :rofl: :rofl: :rofl:Quote:
Originally Posted by tiro_uspsss
AHAHAH I think you earn the funny-man award
Simply Priceless :ROTF:Quote:
Originally Posted by tiro_uspsss
+2 :rofl: :rofl:Quote:
Originally Posted by dnb#
Quote:
Originally Posted by funkflix
my :2cents:
your build would look better if the rads were internal....:up:
