I tried that... In that case highest I can get is 440x9 = 3960 while with a lower multi I can get 480x8.5 = 4080 so it is a little bit lower. If I use 8 multi than I can't get 500 FSB stable :/
I have no idea if it is a bad chip or bad mobo :(
Printable View
I tried that... In that case highest I can get is 440x9 = 3960 while with a lower multi I can get 480x8.5 = 4080 so it is a little bit lower. If I use 8 multi than I can't get 500 FSB stable :/
I have no idea if it is a bad chip or bad mobo :(
changing CPU Margin Enhancement to COMPATIBLE can be worth 10-20fsb.
Any point in updating from 1402 to 1406 if I'm not running a Yorkfield? Ie, are there any other fixes or enhancements it's worth updating for?
Is there a loss in performance?Quote:
Originally Posted by ThugsRook
not that ive seen.Quote:
Originally Posted by Melhisedek
Sadly it makes my rig even more unstable. If I have it at optimized I can get into Windows and surf and such but can't bench. But if I set it to Compatible I either BSOD (IRQL less then equal or something like that) right before desktop should show up or I get into windows but explorer doesn't even start, sometimes I freeze in BIOS as well :)Quote:
Originally Posted by ThugsRook
I also have bad experience with Compatible mode. Performance mode worked the best so far.
hehe I'll try that one when I get home :) What BIOSes are you guys using? Perhaps they have changed things
Running Compatible mode here on 1406 bios. Been pissing around with my OC a bit more and running in Compatible mode got me a coupla fsb extra so far, still testing higher tho. I'm at 8 x 484 1 hour OCCT Stable and testing higher now.Quote:
Originally Posted by Melhisedek
ThugsRook, thanks for the Heads Up as to the CME setting, really never messed with it much before.
Larry
1406 is a rock solid:Quote:
Originally Posted by Melhisedek
http://img201.imageshack.us/img201/2...5011fg0.th.jpg
http://img201.imageshack.us/img201/1...5012tj3.th.jpg

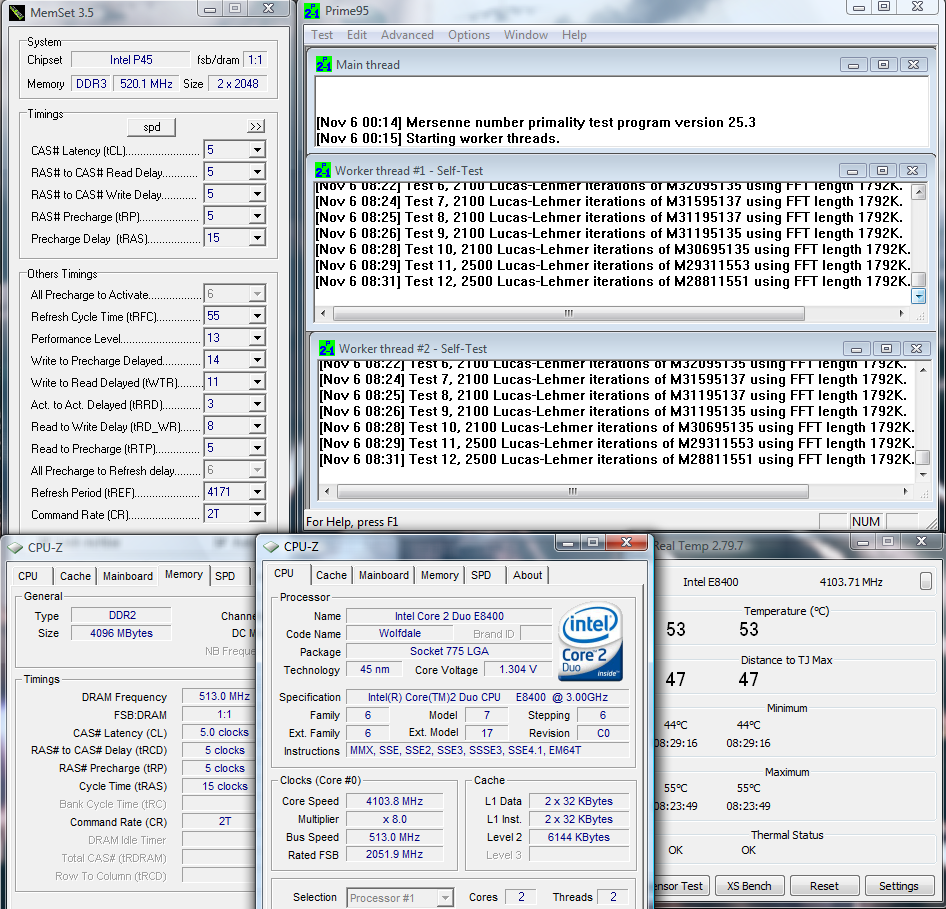

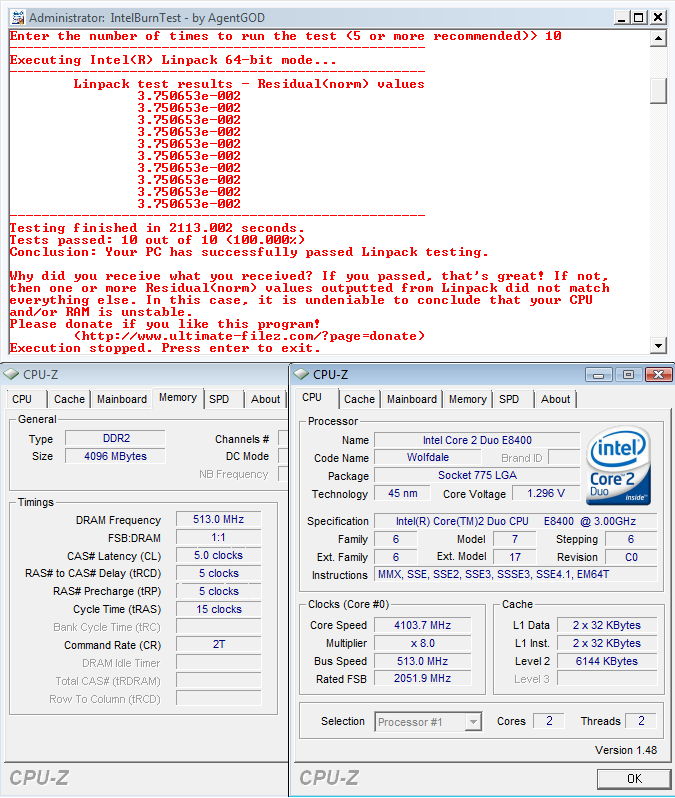

1406 here too. Also rock solid:
http://i59.photobucket.com/albums/g3...h_2e5ebbdc.png
http://i59.photobucket.com/albums/g3...h_15087886.png
Lucky yous :)
Gonna try higher later tonight but still going strong so far.
http://img233.imageshack.us/img233/2940/3888occtev0.jpg
Larry
Just got this board a few days ago, finally have some time to test!
X3350 SLAXW C1 L803A756 VID 1.1625
Prime95 Large FFT stable
CPU and NB Clock Skews made this OC stable.
http://individual.utoronto.ca/bzhou/...1_3800_air.png
Code:AI Overclock tuner : Manual
CPU Ratio Setting : Auto
FSB Frequency : 475
PCI-E Frequency : 100
FSB Strap to North Bridge : 333
DRAM Frequency : DDR2-951MHz
DRAM CLK Skew on Channel A1 : AUTO
DRAM CLK Skew on Channel A2 : AUTO
DRAM CLK Skew on Channel B1 : AUTO
DRAM CLK Skew on Channel B2 : AUTO
DRAM Timing Control : Auto
1st Information : (5-5-5-15-3-52-6-3)
2nd Information : (8-3-5-4-6-4-6)
3rd Information : (14-5-1-6-6)
DRAM Static Read Control : Auto
DRAM Read Training : Auto
MEM. OC Charger : Auto
AI Clock Twister : Auto
AI Transaction Booster : Manual
Common Performance Level : 10
Pull-In : All Disabled
CPU Voltage : 1.35000
CPU GTL Voltage Reference (0/2) : 0.63
CPU GTL Voltage Reference (1/3) : 0.675
CPU PLL Voltage : 1.50
FSB Termination Voltage : 1.30
DRAM Voltage : 2.00
NB Voltage : 1.40
NB GTL Reference : Auto
SBridge Voltage : 1.10
PCIE SATA Voltage : Auto
Load Line Calibration : Enabled
CPU Spread Spectrum : Disabled
PCIE Spread Spectrum : Disabled
CPU Clock Skew : Delay 400ps
NB Clock Skew : Delay 400ps
CPU Margin Enhancement : Optimized
core 0 and 1 shows pretty high temps for PrimeQuote:
Originally Posted by zoob
This 1.5 setting overvolts mate (around 1.75ish now): so try eg 1.6 and try go down then 1.52 is the lowest you can go as 1.5 and AUTO overvoltQuote:
Originally Posted by zoob
He got also 105 TJcasemax set... but might be a good idea to verify the mount, reapply the thermal paste , check IHS of cpu and verity the cooler flatness...Quote:
Originally Posted by carepolice
Hi Friends,
I just happen to assemble my new PC with P5Q Deluxe, Q9550, ATi4870 Sapphire, Corsair 8500C5D Dominator 2x2GB Kit with Cooler Fans, CoolerMaster Hyper 212 Cooler.
I logged into Windows Vista x64 Ultimate and checked with CPU-Z, the following is shown :
I have patched my BIOS to v1406.Quote:
Core Speed - 2003.6MHZ
Multiplier - X6.0
Bus Speed - 334 MHZ
Rated FSB - 1336 MHZ
Core Voltage - 1.080 v
I want to run my system @ 3GHZ Stable.
Kindly advice what settings do i need to change in BIOS so that my CPU runs at 3GHZ.
Here is what iam thinking to change the settings to in AI tweaker ..
Is this good enough ? Is there any setting mentioned above which is high r low ? Please Advice .. Awaiting your replyQuote:
AI overclock Tuner - Manual
CPU Ratio Setting - 8.5
FSB Strap to North Bridge - Auto
FSB Frequency - 370MHZ
PCI-E Frequency - 100
DRAM Frequency - 1066
.
.
.
.
CPU Voltage - 1.20 v (Not Too Sure)
CPU GTL Voltage Reference (0/2) - AUTO
CPU GTL Voltage Reference (1/3) - AUTO
CPU PLL Voltage - Not sure
FSB Terminitation Voltage - 1.30 v (May be, Not Sure)
DRAM Voltage - 2.1
NB Voltage - 1.28 v (Not Sure)
NB GTL Reference - AUTO
South Bridge Voltage - 1.15v (Not Sure)
PCIE SATA Voltage - 1.50v (Not Sure)
No, there is no mind use that kind of volts for +200mhz overclock.
9550 Should run that whit minium voltages.
I did not understand ... please elaborate :confused:Quote:
Originally Posted by carepolice
Okey!
Q9550 stock is 2800Mhz, That you saw 2000Mhz on ur monitoring programm is just power saving option wich changes your multiper from 8,5x to 6x when your cpu is idle.
Then about those voltages..
If understood right you want oc 2.8->3.0 wich is only 200mhz increase.
your system should run easily whit
cpu vcore: try use your orginal VID wich you can see: example realtemp after that reduce it and see does it work (just optional)
nb: 1.12
FSB voltage: 1.12
vPLL: 1.52
And set your ram to rated voltage.
one notch in each so default setting overvolting goes off.
but i have all fan 12v
what I can down to have the same speed but not too hot?:confused:
( 60° (core) cpu 22° dd 32° motherboard 40° 4850)
Ai overlock manual
Cpu ratio 8
Fsb strap auto
Fsb freq 475
Pci e fre 103
Dram fre 12:10 1141
Dram clk a1a2a3a4 auto
Dram timing manual
1 info 5 5 5 15 3 3 6 5 3
2 info 8 3 5 4 6 4 6
3 info 1 3 5 1 5 5
5 5 5 15 manual
ras to ras auto
row refresh auto
write recovery auto
read to precharge auto
dram static disabled
dram training disabled
mem oc enabled
aicclock twister moderate
ai transaction 10
pull in ( 10) disabled
cpu voltage 1.425 (1.34”load”)
cpu gtl (o/2) .63
cpu gtl 1/3 .675
cpu pll v 1.56
fsb terminai 1.30
dram 2.24
nb volt 1.38
sbridge 1.2
pcie sata auto
load line calibre enable
cpu spread disabled
pcie spread disabled
cpu clock skew 400ps
nb clock skew 400ps
pcu margin optimi
cpu ratio 8
c1e sup disabled
all disabled but cpu tm function enabled
Either you back off to 450FSB or you buy a decent cooler (that Zalman is so crap for OC's)... therer's no magical voltage setting to reduce coretemps big time, while keeping the same or better clockspeed... some CPU's just don't run as hot as others, some need less voltage while running hotter, some require more volts yet run cooler than the lower volt ones...Quote:
Originally Posted by genish
Upgrade ya cooler and you will be fine... but not with another Zalman plz...
I have put a noctua nh u12p whith one fan
but I don't put a second fan front my back 120 mm because for down mb t° I had put the little fan chipset ....
thanks:cool:
if truehighroller can give exactly the q9450 I have see on page 174 his 8400
but no the q9450
These are my 24/7 settings.Quote:
Originally Posted by genish
AI Overclock tuner: Manual
CPU Ratio Setting: 8
FSB Strap to North Bridge: 333
FSB Frequency: 480
PCI-E Frequency: 104
DRAM Frequency: 1152
DRAM CLK Skew on Channel A1: AUTO
DRAM CLK Skew on Channel A2: AUTO
DRAM CLK Skew on Channel B1: AUTO
DRAM CLK Skew on Channel B2: AUTO
DRAM Timing Control: Manual
1st Information:
CAS# Latency: 5
DRAM RAS# to CAS# Delay: 5
DRAM RAS# Precharge: 5
DRAM RAS# Activate to Precharge: 15
RAS# to RAS# Delay : AUTO
Row Refresh Cycle Time: Auto
Write Recovery Time: AUTO
Read to Precharge Time: AUTO
2nd Information :
READ to WRITE Delay (S/D): AUTO
Write to Read Delay (S): AUTO
WRITE to READ Delay (D): AUTO
READ to READ Delay (S): AUTO
READ to READ Delay (D): AUTO
WRITE to WRITE Delay (S): AUTO
WRITE to WRITE Delay (D): AUTO
3rd Information :
WRITE to PRE Delay: AUTO
READ to PRE Delay: AUTO
PRE to PRE Delay: AUTO
ALL PRE to ACT Delay: AUTO
ALL PRE to REF Delay: AUTO
DRAM Static Read Control: Disabled
DRAM Read Training: Disabled
MEM. OC Charger: Enabled
AI Clock Twister: Stronger
AI Transaction Booster: Manual
PL: 8
All pull ins enabled
CPU Voltage: 1.28 " I had to up this one on BIOS 1406 which I am on now"
CPU GTL Voltage Reference (0/2): .63
CPU GTL Voltage Reference (1/3): .63
CPU PLL Voltage: 1.56
FSB Termination Voltage: 1.22
DRAM Voltage: 2.02
NB Voltage: 1.3 "anything higher and my boards acts funny"
NB GTL Reference: AUTO
SBridge Voltage: 1.2
PCIE SATA Voltage: 1.6
Load Line Calibration: Enabled
CPU Spread Spectrum: Disabled
PCIE Spread Spectrum: Disabled
CPU Clock Skew : AUTO
NB Clock Skew : AUTO
Hope this help you. :up:
