08-07-2007, 12:28 PM
SaII

Quote:

Originally Posted by The Nemesis

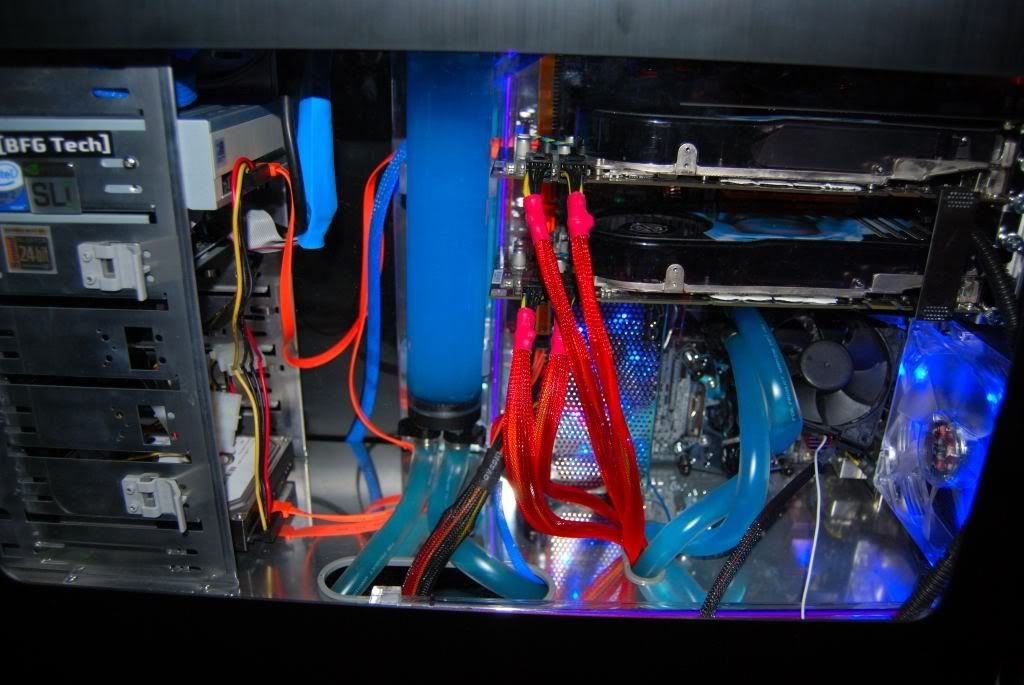

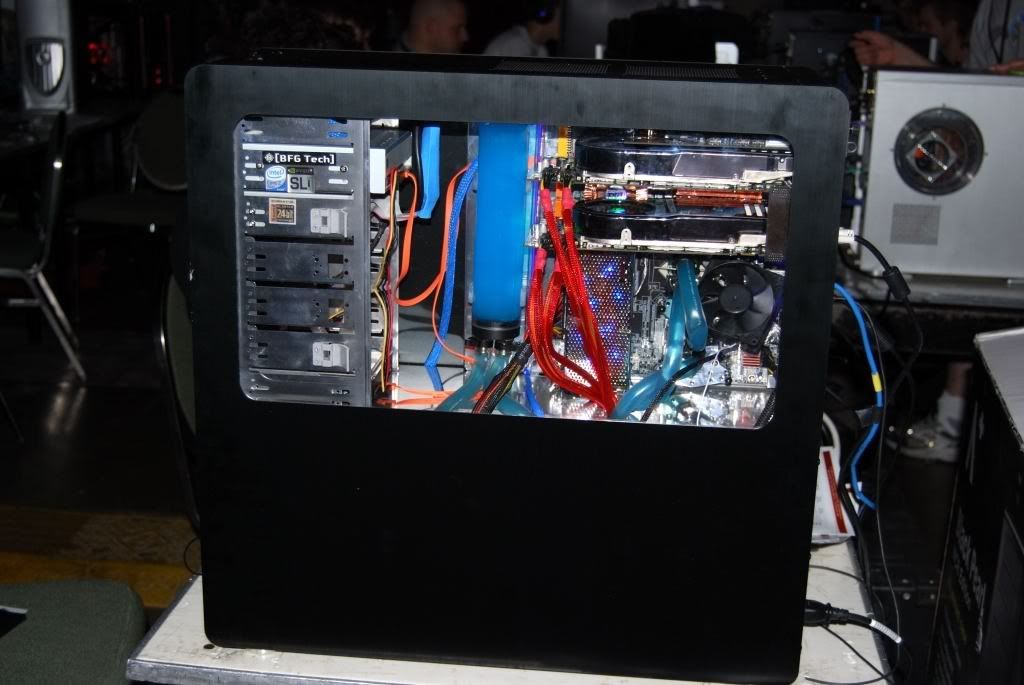

http://i203.photobucket.com/albums/a..._000300011.jpg

http://i203.photobucket.com/albums/a..._000500031.jpg

Q6600 G0
DFI 680iLT
2 X BFG 8800TX SLI
OCZ DDR2 PC2-8000 Titanium Alpha VX2
Creative Sound Blaster Live Platnium
OCZ ProXStream 1000w
Tagan /\ Plus Black Pearl
Apogee GT, MCW30, MCP355 w/Petra'sTech DDCT-01s Top,
Thermochill PA120.2

was the picture taken at quake con or something? :D
08-07-2007, 01:18 PM
Ad1tya

That tube next to the Fan, over the CPU, looks like its badly kinked :O.
08-07-2007, 01:53 PM
trouble2000

Quote:

Originally Posted by Waterlogged

The flow may look OK with the small round interior of the res but I wouldn't be the least bit surprised if it was under 200 LPH. I sure hope that's a 18W pump, otherwise, your probably under 150 LPH.

The AGB res has been shown to hurt flow as shown in this topic here. The BI GTS is also known to hurt flow, mixed with 2 other rads (which are basically 4 90° elbows with thin tubing between them) as well as the blocks and you have a low flow/low pressure system. I recommend you add another pump of the same wattage and remove the AGB and add a Swiftech micro res (<-preferred recommendation) or lose at least one of the rads (preferably the GTS) and shorten the loop a little.

IMO, the best setup would be a single rad using either a TC PA120.3 or a Swifty MCR320 up top, but I'm not suggesting either of those because I know LL's aren't cheap and I'd hate to see it cut up any further, as it may look fugly if you do.

Thanks for all the information!:up:
08-07-2007, 02:55 PM
Leadslinger

Quote:

Originally Posted by funkflix

Thx! :)

It is a Chieftec Mesh Big Tower, which i varnished with black paint.

Thx!

I like the free room in the case, because i work a lot on my system! And sometimes i get called Mr. External.. :p: It is my passion to make the radiators external.

Me too! :D

Thx for the warning, but as stormshadow already said, it is reflection.

http://www.gravedigga.de/gravedigga/PC1/5.jpg

Thx!

Tubing is close to perfect imho, tried a lot of variations. :)

Yes, they are from www.mips-computer.de.

Thx! :)

Northbridge --> MIPS Freezer

Southbridge --> MIPS Freezer

CPU --> Alphacool NexXxos XP

GFX --> D-Tek FuZion GFX

Mosfet --> Heattrap

:toast:

http://www.gravedigga.de/gravedigga/PC1/6.jpg

Hey funkflix, nice work man! what fittings are those and is that 10mm tubing?
08-07-2007, 04:19 PM
The Nemesis

Quote:

Originally Posted by SaII

was the picture taken at quake con or something? :D

Yes:) Pic was taken by Benson from Tagan.

@Ad1tya

That kink was temporary to hold the fan over the PWM area. They were heating pretty bad from overclocking. Cpu temp never went over 36'c even overclocked.
08-07-2007, 06:29 PM
1badhabit

Quote:

Originally Posted by Ad1tya

That tube next to the Fan, over the CPU, looks like its badly kinked :O.

I think so too, might want to take a closer look at that....:shrug:
08-07-2007, 07:57 PM
ikeenen

Quote:

Originally Posted by Steffen

New Case. Still there has to be done a lot. Waiting for an order from my modding dealer ;)

http://www.abload.de/img/neues_gehuseteil2ckb.jpg

http://www.abload.de/img/img_20654nx.jpg

where did you stash the h/d's with that monster taking up all that room in the bottom?
08-07-2007, 07:59 PM
after

oke
08-07-2007, 08:06 PM
funkflix

Quote:

Originally Posted by Leadslinger

Hey funkflix, nice work man! what fittings are those and is that 10mm tubing?

Thanks! Tubing is Tygon 11/8mm and fittings are 1/4" 11/8mm.
08-08-2007, 10:07 AM
Fr4nk

Here's my new loop, cooling my 3800 X2 @ 2.8ghz and 8800 GTS:

http://img167.imageshack.us/img167/8...7072031fo8.jpg

http://img254.imageshack.us/img254/3...7072030vr2.jpg

http://img361.imageshack.us/img361/1...7072027ep0.jpg

EK 8800 and a DTEK Fuzion and a D5 :D

-Fr4nk
08-08-2007, 02:02 PM
sick_g4m3r

wow frank thats sick!
08-08-2007, 02:26 PM
deepsilver

Quote:

Originally Posted by Fr4nk

Here's my new loop, cooling my 3800 X2 @ 2.8ghz and 8800 GTS:

http://img167.imageshack.us/img167/8...7072031fo8.jpg

http://img254.imageshack.us/img254/3...7072030vr2.jpg

http://img361.imageshack.us/img361/1...7072027ep0.jpg

EK 8800 and a DTEK Fuzion and a D5 :D

-Fr4nk

i love that watercolor and the big tubes, they are awesome. :up:
08-08-2007, 02:41 PM
Ssilencer

Awesome setup Fr4nk
What are you using for the red color?
08-08-2007, 04:24 PM
mjassbong

I guess it's time for me to hang up my rig in the gallery. Some of you may have already seen it here:

http://www.xtremesystems.org/forums/...d.php?t=151109

Here are 3 main pics for your viewing pleasure. You can see alot more of it at the above link.

http://i211.photobucket.com/albums/b...3_IMG_1462.jpg

http://i211.photobucket.com/albums/b...1_IMG_1418.jpg

http://i211.photobucket.com/albums/b...1_IMG_1493.jpg
08-08-2007, 08:02 PM
A101Sugar

some nice watercooled rigs in here :)
08-09-2007, 02:46 AM
Concept 5000-FX

three loops ? That's Awsome !
08-09-2007, 03:33 AM
kinghong1970

even my wife was in awe...
08-09-2007, 08:28 AM
DarthBeavis

Quote:

Originally Posted by mjassbong

I guess it's time for me to hang up my rig in the gallery. Some of you may have already seen it here:

http://www.xtremesystems.org/forums/...d.php?t=151109

Here are 3 main pics for your viewing pleasure. You can see alot more of it at the above link.

http://i211.photobucket.com/albums/b...3_IMG_1462.jpg

http://i211.photobucket.com/albums/b...1_IMG_1418.jpg

http://i211.photobucket.com/albums/b...1_IMG_1493.jpg

If only you had one of these bud: http://img461.imageshack.us/img461/7...2187ip3.th.jpg

Perfect to multiloop . . .it is a TribalEvolution res

But, lemme say, i LOVE ur rig. Love love love love love.
08-09-2007, 08:35 AM
Rob_B

2 Attachment(s)

Here is my first try at watercooling.
I wanted it to all fitt inside the case and started with a to small radiator.
Now I switched to a PA120.2 and had to lift the case a bit. Still need to make some feet or wheels for it.
The next project will be building my own case.
I like the MM cases I see here, but they are just to big to have on my desk.
08-09-2007, 10:23 AM
Grinch

Quote:

Originally Posted by Rob_B

Here is my first try at watercooling.
I wanted it to all fitt inside the case and started with a to small radiator.
Now I switched to a PA120.2 and had to lift the case a bit. Still need to make some feet or wheels for it.
The next project will be building my own case.
I like the MM cases I see here, but they are just to big to have on my desk.

excellent 1st try.....awesome!:clap: :up: :)
08-09-2007, 10:41 AM
Patriote

Very clean build Rob_B! I like it!
08-09-2007, 12:45 PM
The_Beast

looks really clean Rob_B
08-09-2007, 07:59 PM
rdmty

Old loop:
http://farm2.static.flickr.com/1025/...fb0e9b12_b.jpg
http://farm2.static.flickr.com/1205/...3dab42f5_b.jpg

New loop:
http://farm2.static.flickr.com/1169/...094b03cc_o.jpg
http://farm2.static.flickr.com/1392/...f3ed61e0_o.jpg

Anyone know why this camera is so f'ing grainy? It's supposed to be 7megapixel.

That fan extension shouldn't be there, but my fan power slot isn't working in the rear :/
08-09-2007, 08:52 PM
Sparky

For the dark shot it is cranking the ISO speed way up which allows more light in for a faster shutter (less blur) but makes it grainy. What camera is it? If you can set the camera on something steady so it won't shake and manually drop the ISO down to 100 or 200 it would be much cleaner looking.
08-09-2007, 09:07 PM
rdmty

Quote:

Originally Posted by SparkyJJO

For the dark shot it is cranking the ISO speed way up which allows more light in for a faster shutter (less blur) but makes it grainy. What camera is it? If you can set the camera on something steady so it won't shake and manually drop the ISO down to 100 or 200 it would be much cleaner looking.

it's a casio exilim
