Find out the Max Case Temperature and Max Power draw of your CPU

Printable View

Show 100 post(s) from this thread on one page

02-24-2006, 04:14 PM
soundx98

Opteron 146 CAB2E 0540FPMW

AMD64 TCaseMax - v1.18
----------------------

CPU Information (CPU #1):
Standard CPUID: Family: F, Model: 7, Stepping: 1
Extended CPUID: Family: F, Model: 27, Stepping: 1
CPUID String: 20F71
Processor APIC: 0
Processor: AMD Opteron 146 (San Diego)
CPU Speed: 3011.00 (301.10 x 10.0)
Revision: SH8-E4
Platform: Socket 939
Startup VCore: 1.400v
Maximum Case Temperature = 63C
TDP: 61.8 Watts

Written by: Arthur Liberman.
Idea by: Petr Koc.
More info at: http://www.thecoolest.zerobrains.com...topic.php?t=83
03-01-2006, 03:36 PM
destr0yer

New CPU:

AMD64 TCaseMax - v1.18
----------------------

CPU Information (CPU #1):
Standard CPUID: Family: F, Model: 3, Stepping: 2
Extended CPUID: Family: F, Model: 23, Stepping: 2
CPUID String: 20F32
Processor APIC: 0
Processor: Dual Core AMD Opteron 170 (Toledo)
CPU Speed: 2700.79 (270.08 x 10.0)
Revision: JH9-E6
Platform: Socket 939
Startup VCore: 1.350v
Maximum Case Temperature = 49C
TDP: 35.0 Watts

Low TDP :confused: :confused: Very Strange... AMD clains this CPU's a 110 watts TDP

Settings OC: 270 x 10 @ 1.45 @ XP 90c + noiseblocker 92 mm (38-40 full load) (24/7 settings)
03-02-2006, 04:00 AM
blick

3200+ Venice 2600@1.595v

http://img211.imageshack.us/img211/1039/v1185iy.jpg
03-02-2006, 05:25 AM
Veedo

AMD64 TCaseMax - v1.18
----------------------

CPU Information (CPU #1):
Standard CPUID: Family: F, Model: 7, Stepping: 1
Extended CPUID: Family: F, Model: 27, Stepping: 1
CPUID String: 20F71
Processor APIC: 0
Processor: AMD Opteron 144 (San Diego)
CPU Speed: 2700.00 (300.00 x 9.0)
Revision: SH8-E4
Platform: Socket 939
Startup VCore: 1.400v
Maximum Case Temperature = 57C
TDP: 44.1 Watts

Written by: Arthur Liberman.
Idea by: Petr Koc.
More info at: http://www.thecoolest.zerobrains.com...topic.php?t=83
03-02-2006, 06:25 AM
Ic3man

AMD64 TCaseMax - v1.18
----------------------

CPU Information (CPU #1):
Standard CPUID: Family: F, Model: 3, Stepping: 2
Extended CPUID: Family: F, Model: 23, Stepping: 2
CPUID String: 20F32
Processor APIC: 0
Processor: Dual Core AMD Opteron 170 (Toledo)
CPU Speed: 2700.04 (270.00 x 10.0)
Revision: JH9-E6
Platform: Socket 939
Startup VCore: 1.350v
Maximum Case Temperature = 53C
TDP: 55.0 Watts

This is an CCBWE 0550 UPMW 408l stepping.
03-02-2006, 10:41 AM
don_vercetti

AMD64 TCaseMax - v1.18
----------------------

CPU Information (CPU #1):
Standard CPUID: Family: F, Model: B, Stepping: 1
Extended CPUID: Family: F, Model: 2B, Stepping: 1
CPUID String: 20FB1
Processor APIC: 0
Processor: AMD Athlon 64 X2 3800+ (Manchester)
CPU Speed: 2009.32 (200.93 x 10.0)
Revision: BH9-E4
Platform: Socket 939
Startup VCore: 1.350v
Maximum Case Temperature = 69C
TDP: 84.4 Watts

My brand new X2 3800, stepping LDBHE 0601 UPMW. Haven't OC'ed it yet, just running a quick SP2004 to make sure all is ok at stock.

But (dare i say it) that looks good on paper, doesn't it?
03-02-2006, 02:11 PM
Richteralan

The new Opteron 144 (CAB2E 0548FPEW) I bought from eBay:

AMD64 TCaseMax - v1.18
----------------------

CPU Information (CPU #1):
Standard CPUID: Family: F, Model: 7, Stepping: 1
Extended CPUID: Family: F, Model: 27, Stepping: 1
CPUID String: 20F71
Processor APIC: 0
Processor: AMD Opteron 144 (San Diego)
CPU Speed: 2476.07 (275.12 x 9.0)
Revision: SH8-E4
Platform: Socket 939
Startup VCore: 1.400v
Maximum Case Temperature = 57C
TDP: 44.1 Watts

Written by: Arthur Liberman.
Idea by: Petr Koc.
More info at: http://www.thecoolest.zerobrains.com...topic.php?t=83
03-02-2006, 02:21 PM
tHe_jOkeR

1 Attachment(s)

Quote:

Originally Posted by don_vercetti

My brand new X2 3800, stepping LDBHE 0601 UPMW. Haven't OC'ed it yet, just running a quick SP2004 to make sure all is ok at stock.

But (dare i say it) that looks good on paper, doesn't it?

Will clock 2800@ 1,4V i think ;)

mine:

Attachment 44200

2800@ 1,36V
no screens yet, result from the guy i bought it from

greetz from germany
03-02-2006, 09:04 PM
alpha0ne

Quote:

Originally Posted by Ic3man

AMD64 TCaseMax - v1.18
----------------------

CPU Information (CPU #1):
Standard CPUID: Family: F, Model: 3, Stepping: 2
Extended CPUID: Family: F, Model: 23, Stepping: 2
CPUID String: 20F32
Processor APIC: 0
Processor: Dual Core AMD Opteron 170 (Toledo)
CPU Speed: 2700.04 (270.00 x 10.0)
Revision: JH9-E6
Platform: Socket 939
Startup VCore: 1.350v
Maximum Case Temperature = 53C
TDP: 55.0 Watts

This is an CCBWE 0550 UPMW 408l stepping.

Never seen a 170 with such high numbers, does it clock well ??, most are only Maximum Case Temperature = 49C
TDP: 35.0 Watts

Including my week 46 :)
03-02-2006, 09:42 PM
Dumo

X2 4800 0513 TPMW....

http://img103.imageshack.us/img103/2...shot0526qh.jpg
03-03-2006, 04:17 AM
Ic3man

Quote:

Originally Posted by alpha0ne

Never seen a 170 with such high numbers, does it clock well ??, most are only Maximum Case Temperature = 49C
TDP: 35.0 Watts

Including my week 46 :)

Yeah it clocks ok. 2.85 SP32 stable - or 2.8 sp2004 stable (12hr) - 2.7 p95 stable (12hr). Nothing amazing but still working on it. Temps seem a little on the high side though with a TTBT 50c load @1.42v. I too noticed that mine is a little different with the numbers presented...maybe thats good or maybe its bad...I dunno:confused:
03-03-2006, 04:44 AM
Phantasia

Mine is weird. HereÂ´s mine 3700+ San Diego.

AMD64 TCaseMax - v1.18
----------------------

CPU Information (CPU #1):
Standard CPUID: Family: F, Model: 7, Stepping: 2
Extended CPUID: Family: F, Model: 37, Stepping: 2
CPUID String: 30F72
Processor APIC: 0
Processor: AMD Athlon 64 3700+ (Toledo)
CPU Speed: 2530.50 (230.05 x 11.0)
Revision: JH9-E6
Platform: Socket 939
Startup VCore: 1.350v
Maximum Case Temperature = 61C
TDP: 55.9 Watts
03-03-2006, 06:57 AM
brechtvm

http://img456.imageshack.us/img456/4...asetemp3cg.jpg
03-03-2006, 07:37 AM
periquitos

Quote:

Originally Posted by Ic3man

Yeah it clocks ok. 2.85 SP32 stable - or 2.8 sp2004 stable (12hr) - 2.7 p95 stable (12hr). Nothing amazing but still working on it. Temps seem a little on the high side though with a TTBT 50c load @1.42v. I too noticed that mine is a little different with the numbers presented...maybe thats good or maybe its bad...I dunno:confused:

my 170 0530tpmw has the same tmaxcase/tdp
53c / 55w

didn't tested more , on air (stock amd) is stable at 2600 / 1,28v (DMM) , but very but very HOT! get close to 60c while rendering , but it's 30c over here... will WC the system in the next month , got the components , just need time to work with.
03-03-2006, 08:14 AM
alpha0ne

Quote:

Originally Posted by Ic3man

Yeah it clocks ok. 2.85 SP32 stable - or 2.8 sp2004 stable (12hr) - 2.7 p95 stable (12hr). Nothing amazing but still working on it. Temps seem a little on the high side though with a TTBT 50c load @1.42v. I too noticed that mine is a little different with the numbers presented...maybe thats good or maybe its bad...I dunno:confused:

Mine gets to 2.9GHz but then heat gets too high, even with WC though it only effects core 1 anything over 1.51Vcore :(
03-08-2006, 01:51 AM
kimandsally

Opteron 170 CCWBE 0550 UPMW

CPU Information (CPU #1):
Standard CPUID: Family: F, Model: 3, Stepping: 2
Extended CPUID: Family: F, Model: 23, Stepping: 2
CPUID String: 20F32
Processor APIC: 0
Processor: Dual Core AMD Opteron 170 (Toledo)
CPU Speed: 2850.61 (285.06 x 10.0)
Revision: JH9-E6
Platform: Socket 939
Startup VCore: 1.350v
Maximum Case Temperature = 51C
TDP: 45.0 Watts

Is this good or bad?
03-08-2006, 05:49 AM
neoman

http://img505.imageshack.us/img505/8416/cpu8kj.th.jpg
03-23-2006, 05:32 AM
Astennu

My Opteron 170 ( 0551 UPMW )

AMD64 TCaseMax - v1.18
----------------------

CPU Information (CPU #1):
Standard CPUID: Family: F, Model: 3, Stepping: 2
Extended CPUID: Family: F, Model: 23, Stepping: 2
CPUID String: 20F32
Processor APIC: 0
Processor: Dual Core AMD Opteron 170 (Toledo)
CPU Speed: 2700.08 (270.01 x 10.0)
Revision: JH9-E6
Platform: Socket 939
Startup VCore: 1.350v
Maximum Case Temperature = 49C
TDP: 35.0 Watts

Got it running @ 2700 MHz @ 1.55 volt now. Not a verry good one.
03-23-2006, 05:43 AM
K.I.T.T.

AMD64 TCaseMax - v1.18
----------------------

CPU Information (CPU #1):
Standard CPUID: Family: F, Model: 3, Stepping: 2
Extended CPUID: Family: F, Model: 23, Stepping: 2
CPUID String: 20F32
Processor APIC: 0
Processor: Dual Core AMD Opteron 165 (Toledo)
CPU Speed: 2906.29 (322.92 x 9.0)
Revision: JH9-E6
Platform: Socket 939
Startup VCore: 1.350v
Maximum Case Temperature = 49C
TDP: 35.0 Watts

Written by: Arthur Liberman.
Idea by: Petr Koc.
More info at: http://www.thecoolest.zerobrains.com...topic.php?t=83

49*C? :stick:
03-23-2006, 06:27 AM
NightCrawler™

Damn and I thought my 55Â°C was bad.....
03-23-2006, 06:50 AM
impression

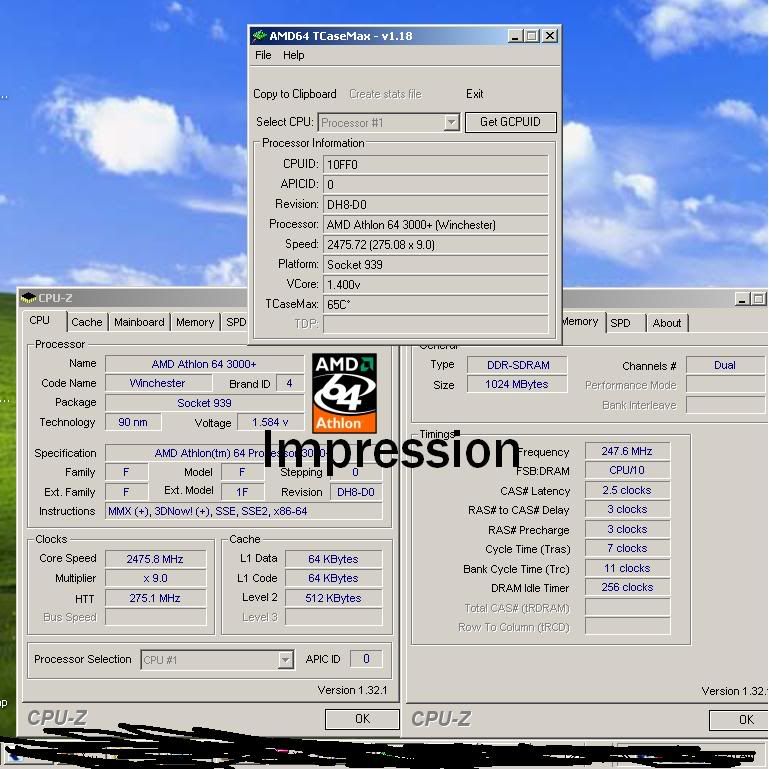

http://i51.photobucket.com/albums/f3...ssions/hmm.jpg

hmm, wonder if i can squeeze anymore out of this chip>?
03-25-2006, 10:01 AM
Okda

Opty 165 with temp 49C also :(

AMD64 TCaseMax - v1.18
----------------------

CPU Information (CPU #1):
Standard CPUID: Family: F, Model: 3, Stepping: 2
Extended CPUID: Family: F, Model: 23, Stepping: 2
CPUID String: 20F32
Processor APIC: 0
Processor: Dual Core AMD Opteron 165 (Toledo)
CPU Speed: 2601.38 (289.04 x 9.0)
Revision: JH9-E6
Platform: Socket 939
Startup VCore: 1.350v
Maximum Case Temperature = 49C
TDP: 35.0 Watts
03-25-2006, 04:48 PM
The Coolest

Quote:

Originally Posted by Dragoran

I am interessted in how this programm works...
I searched the amd tech docs for a way to read tcase max using the cpuid call (are you using it?) ut could'nt find anything
found it in the BIOS and kernel developer guide

CPUID instruction doesn't provide this info. The only way to get it is to access the registers you read about in the BIOS developer guide. This program uses a special driver that gives it direct access to the hardware for this exact reason.
03-30-2006, 02:28 PM
mikenam

http://home.earthlink.net/~unccvsa/s...tures/tmax.jpg

opty 170 0550 upmw
2.7ghz
03-30-2006, 02:46 PM
Slay0r

http://img226.imageshack.us/img226/5734/slay0r34pl.png
