10-03-2007, 02:16 AM
keenan

Quote:

Originally Posted by ziddey

nice. i take it fsb scaled better on that than dfi?

I dont understand...?
10-03-2007, 02:19 AM
keenan

333 x 9 @ stock Volts

Idle

http://i164.photobucket.com/albums/u...ar/3.0idle.jpg

Load

http://i164.photobucket.com/albums/u...ar/3.0load.jpg
10-03-2007, 02:31 AM
keenan

Some more....

355 x 9 still on stock Vcore

Idle

http://i164.photobucket.com/albums/u...ar/3.2idle.jpg

Load

http://i164.photobucket.com/albums/u...ar/3.2load.jpg
10-03-2007, 02:54 AM
keenan

Finally at 3.4Ghz

378 x 9 Vcore raised to 1.425V in bios, 1.392V in windows 1.376V load

http://i164.photobucket.com/albums/u...ar/3.4load.jpg
10-03-2007, 03:21 AM
Praz

LOL. Prime needs to run not just start.
10-03-2007, 04:45 AM
keenan

I know that....

I will first get my clock and then adjust voltages for stability
10-03-2007, 07:59 AM
Spawne32

Hey guys, i just got my DFI P965 Dark for my brothers new computer, however there are only 3 ram multi's available, putting a hamper on the overclocking as i only have OCZ platinum to work with atm. Highest OC i can get is 2.4ghz, i updated the bios to the latest version however it doesnt give me any extra multi's.
10-03-2007, 09:32 AM
The Nemesis

Amazing how user's will purchase another board to acheive better overclocking results without fully exploring the capabilities of their current board. Keenan's results are nice though unproven as far as stability goes, but I think it would have been at least possible to achieve Praz's results had more time been spent trying to acheive them.

Spawne32

I don't think this board has ever had dividers to reduce fsb. Only 533 = 1:1, 667 = 4:5 & 800 = 2:3.
10-03-2007, 10:46 AM
Dark79

I put a G0 quad (L728A) in my P965-S and can get it up to 9x390 (7 hours prime stable) but had to ramp up voltages all around.

Vcore: 1.472 idle / 1.440 load
VTT: 1.425
NB: 1.40

I've never been able to hit 400 FSB or over at any divider at any voltage without Windows rebooting as soon as I start Prime. Also, with the quad in, I have cold boot issues where it takes up to 4 or 5 restarts before the board will successfully post. Tried this with 2 different P965-S boards with the same results.
10-03-2007, 11:42 AM
keenan

[QUOTE=The Nemesis;2467931]I think it would have been at least possible to achieve Praz's results had more time been spent trying to acheive them.
QUOTE]

Believe me alot of time was spend...around 4 weeks to be exact
10-03-2007, 12:18 PM
Spawne32

Quote:

Originally Posted by The Nemesis

Amazing how user's will purchase another board to acheive better overclocking results without fully exploring the capabilities of their current board. Keenan's results are nice though unproven as far as stability goes, but I think it would have been at least possible to achieve Praz's results had more time been spent trying to acheive them.

Spawne32

I don't think this board has ever had dividers to reduce fsb. Only 533 = 1:1, 667 = 4:5 & 800 = 2:3.

no no, i bought it for my brothers new comp lol i just wanted a good board for him, ill just have to get some good ram in there. I know my Biostar P35 board started with only 3 options for dividers however they added more with the next bios update.
10-03-2007, 12:28 PM
ridikolous

keenan nice results juss need to see prime go on a lil longer than startup... im looking into another board... i havent gave up on this board yet either... it is nice to have another board laying around to see if your cpu works better in it. ive spent about 5 weeks on this board to end up at 330fsb..
10-03-2007, 12:59 PM
Praz

Is this board more difficult then it should be with quadcores?. Probably. The only way most will see good results is with a systematic approach. The settings and voltages I ended with are good only for that FSB. If I leave everything as is and drop down 20 or so FSB the system is no longer stable.

GTL+ Driving Strength is a good example. At 320 I had to set it to Mode 1. Around 370 it needs to go to Mode 2. For each bump in FSB that brings instability each setting/voltage needs to be tried one at a time.
10-03-2007, 01:36 PM
keenan

I do want to add that with my E2160 I easily got speeds of 3.6Ghz with 1.6V. Some of these boards just dont clock as good as others.
10-03-2007, 03:22 PM
GripS

My results with this board and a Q6600 'G0'

First the settings:

Code:

NB Strap Select: 266 Exit Setup Shutdown: Mode2 CPU Clock Ratio: 8X CPU Clock: 425 Boot Up Clock: 400 DRAM Speed: 533 PCI Clock: 100 Auto Detect PCI Clk: Enable Spread Spectrum: Disable CPU Feature Thermal Management Control: Disable Limit CPUID MaxVal: Disable PPM Function: Disable C1E Function: Disable Execute Disable Bit: Enable Virtualization Technology: Disable Frequency unlimit: Disable Voltage Setting CPU Voltage Setting: +.150mv DRAM Voltage Setting: 2.1V VTT Voltage Setting: 1.20V NB 1.25V Setting: 1.35V SB 1.5V Setting: 1.5V SB 1.05 Voltage Setting: 1.05V DRAM Timing DDR Configuration Mode: Auto GTL+ Driving Strength: Auto Enhance Data Transmitting: Fast Enhance Addressing: Fast DQ Calibration: Auto Channel 1 CLK fine delay: Auto Channel 2 CLK fine delay: Auto CAS Latency Time (tCL): 4 DRAM RAS# to CAS# Delay (tRCD): 4 DRAM RAS# Precharge (tRP): 4 Precharge dealy (tRAS): 10 All precharge to Act: 3 REF to ACT Delay (tRFC): 22 MCH ODT Latency: Auto Write to PRE Delay (tWR): 10 Rank Write to Read (tWTR): 10 ACT to ACT Delay (tRRD): 2 Read to Write delay (tRDWR): 8 Ranks Write to Write (tWRWR): 5 Ranks Read to Read (tRDRD): 5 Ranks Write to Read (tWRRD): 5 Read CAS# Precharge (tRTP): 4 All PRE to Refresh: 4

The screens:

http://img2.freeimagehosting.net/upl...5e944b8642.jpg

http://img2.freeimagehosting.net/upl...98d675e6e6.jpg
10-04-2007, 06:27 AM
Dark79

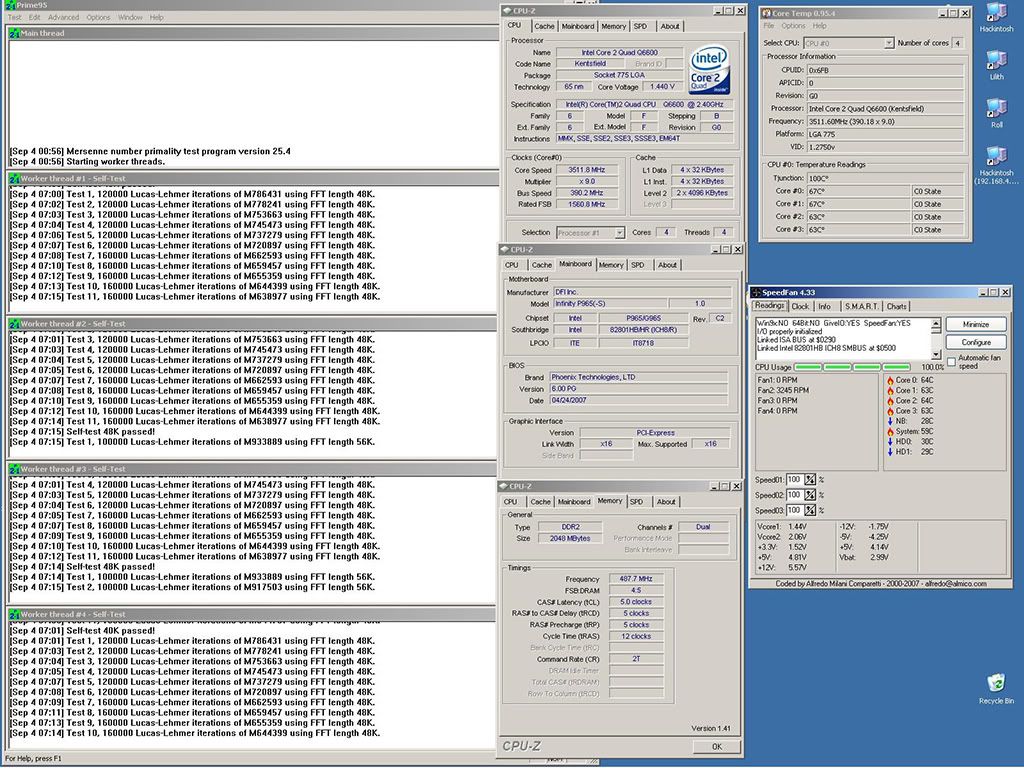

Here's a screen of my Q6600 at 3.5 after 6 hours of Prime. This is the best I can do so far.

http://i14.photobucket.com/albums/a3...965S-Q6600.jpg
10-04-2007, 08:30 AM
GripS

Hey Dark79 VERY NICE. @ 4:5 even.... that is truly amazing for this board. Can you post your bios settings?

Also are you using air?

What is the voltage reading from smartguardian when running prime? Approx .03 vdroop?
10-04-2007, 08:38 AM
yotomeczek

Quote:

Originally Posted by GripS

Hey Dark79 VERY NICE. @ 4:5 even.... that is truly amazing for this board. Can you post your bios settings?

well ... mine 4:5 wasn't eaven comment

Quote:

Originally Posted by yotomeczek

Some magic with 4:5 div (magic+clockgen+MemSet)
http://i189.photobucket.com/albums/z...omeczek/45.jpg
10-04-2007, 08:43 AM
keenan

ok guys, sorry I took so long, spend all day lapping the cpu and geminII

Started at the very bottom and working my way up...

Only running 10 minutes prime95 for now, just to check stability...

After lapping stock idle temps dropped by 3'C and load dropped by 9'C

Here are some results:

2.4Ghz

266 x 9 @1.185V, max load 36'C

http://i164.photobucket.com/albums/u...rimestable.jpg

3.0Ghz

333 x 9 @1.225V, Max load 38'C

http://i164.photobucket.com/albums/u...rimestable.jpg

3.2Ghz

356 x 9 @ 1.3V Max load 44'C

http://i164.photobucket.com/albums/u...rimestable.jpg

3.3Ghz

367 x 9 @1.375V, max load 48'C

http://i164.photobucket.com/albums/u...rimestable.jpg
10-04-2007, 09:33 AM
keenan

Still going good...

3.4Ghz

378 x 9 @ 1.4V, max load 52'C

http://i164.photobucket.com/albums/u...rimestable.jpg
10-04-2007, 09:44 AM
GripS

Quote:

Originally Posted by yotomeczek

well ... mine 4:5 wasn't eaven comment

That's very nice as well. However we are working with quads.;)
10-04-2007, 02:29 PM
Dark79

Here are my settings:

Code:

NB Strap Select: 266 Exit Setup Shutdown: Mode2 CPU Clock Ratio: 9X CPU Clock: 389 Boot Up Clock: 100 DRAM Speed: 667 PCI Clock: 100 Auto Detect PCI Clk: Enable Spread Spectrum: Disable CPU Feature Thermal Management Control: Disable Limit CPUID MaxVal: Disable PPM Function: Disable C1E Function: Disable Execute Disable Bit: Enable Virtualization Technology: Disable Frequency unlimit: Disable Voltage Setting CPU Voltage Setting: +225.0mv DRAM Voltage Setting: 2.075V VTT Voltage Setting: 1.425V NB 1.25V Setting: 1.40V SB 1.5V Setting: 1.50V SB 1.05 Voltage Setting: 1.05V DRAM Timing DDR Configuration Mode: Mode3 GTL+ Driving Strength: Mode2 Enhance Data Transmitting: Fast Enhance Addressing: Auto DQ Calibration: 6 Channel 1 CLK fine delay: Auto Channel 2 CLK fine delay: Auto CAS Latency Time (tCL): 5 DRAM RAS# to CAS# Delay (tRCD): 5 DRAM RAS# Precharge (tRP): 5 Precharge dealy (tRAS): 12 All precharge to Act: 3 REF to ACT Delay (tRFC): 30 MCH ODT Latency: Auto Write to PRE Delay (tWR): 10 Rank Write to Read (tWTR): 11 ACT to ACT Delay (tRRD): 3 Read to Write delay (tRDWR): 8 Ranks Write to Write (tWRWR): 5 Ranks Read to Read (tRDRD): 5 Ranks Write to Read (tWRRD): 5 Read CAS# Precharge (tRTP): 4 All PRE to Refresh: 4

Sorry for the late reply. I'm still at work :p: Full specs in sig. Cooling is Tuniq Tower with a 3-blade Delta Fan. Planning on trying a TR Ultra120 Extreme this weekend for (hopefully) better temps.

Also, I flashed back from 9/02 bios back to the 4/24 bios and no longer have cold boot issues.

Not sure these settings will help much as I've tried both Praz's and GripS's but neither of them are stable for me. I think it's all about experimentation and finding out what your board likes.
10-04-2007, 04:14 PM
GripS

Thanks very much Dark. I'm priming with your settings right now. I'm running the ram at slightly tighter timings. I'm actively cooling the ram so i gave it 2.2v. http://img2.freeimagehosting.net/upl...a7d28009ed.jpg

4 hours down
10-04-2007, 04:51 PM
ridikolous

i tried those settings still no go at 333 fsb... prime would run but will hard reboot after 15mins of prime... ill stick to what i have now until the dfi lp ut p35 comes down in price.
10-07-2007, 03:04 PM
ridikolous

okay lil bit of update... i was about to prime 333fsb for over 8hrs... i up the vnb 1.3 and change my mem subtiming... tras to 15 and trfc to 38... its not that big of a gain but i can finally prime 333fsb without system hard rebooting
