AMD "Thuban" Core (Phenom II X6) XS Overclocking Charts

new update
* CPU Model: AMD Phenom II X6 1090T BE
* CPU Stepping: unknow, did not check
* CPU Frequency: 4225.4mhz
* CPU vCore: 1.520
* CPU Multiplier: 20.5x
* CPU Turbo: Disabled
* CPU NB Speed: 2677.9MHz
* HT Ref Speed: 206 MHz
* RAM Speed: DDR3-1366.6
* RAM Timings: 7-7-7-18-1T
* RAM Configuration: 4 GB (2 x 2 GB)
* RAM vDIMM: 1.85V
* Motherboard: MSI 790fx gd-70
* Chipset/Socket: AM3, 790FX + SB750
* Cooling: liquid, pa120.2, mcw 355/ek g3/8 top, dtek v2, mcw60v2
* Temps: 28C Idle / 42C Load, dynamic fan profile
* Operating System: Windows 7
* 32/64-Bit: 64
* Stable/Suicide/Untested: Untested, seams stable but i cannot waste power with 8 hours of occt im the summer

SS in the HWbot
http://hwbot.org/community/submissio...in_38sec_604ms

it seams stable i did spi32, wprime 1024 and i havnt got it to crash

Quote:

---

Originally Posted by chew*

need cold temps from my phase to see gains i guess

---

The mach still keeps up:D

So from what i've been reading on other threads, the 1015 chips are pretty good at OC'ing?

BTW particle can you add mine in there. ATM still at stock once i sort out my ram.



* CPU Model: AMD Phenom II X6 1090T BE
* CPU Stepping: CCBBE CB 1015EPMW
* CPU Frequency: 4096.00
* CPU vCore: 1.39v in HWMonitor (1.35 in Phenommsrtweaker)
* CPU Multiplier: 17x
* CPU Turbo: Disabled
* CPU NB Speed: 2880
* HT Ref Speed: 240 MHz
* RAM Speed: DDR3-1600
* RAM Timings: 8-8-8-24-1T
* RAM Configuration: 4 GB (2 x 2 GB)
* RAM vDIMM: 1.65V
* Motherboard: MSI 890fxa gd-70
* Chipset/Socket: AM3, 890FX + SB850
* Cooling: liquid, XSPC-360, mcw 650/ek supreme HF/CU top 3x Scythe Slipstreams Ultrakaze
* Temps: 17C Idle / 29C Load (HWMonitor CPU Temperatures.)
* Operating System: Windows 7
* 32/64-Bit: 64
* Stable/Suicide/Untested: Semi stable. 15 mins OCCT on medium Data set works @ above settings. Will do a full blown 2 hour stable test when i have the chance, at the moment trying to find some low volts for lower day to day speeds.

* CPU Model: AMD Phenom II X6 1090T BE
* CPU Stepping: CCBBE CB 1020 FPWM ( i'm not sure that it some idiot deleted what I wrote down before I lapped it :()
* CPU Frequency: 3200mhz
* CPU vCore: 1.275 < I can't seem to change auto off :/
* CPU Multiplier: 16x
* CPU Turbo: Disabled.
* CPU NB Speed: 2000mhz
* HT Ref Speed: 200 MHz
* RAM Speed: DDR2 - 1066mhz
* RAM Timings: 5-5-5-15
* RAM Configuration: 2 GB (1 x 2 GB)
* RAM vDIMM: 1.90V
* Motherboard: ASUS M3A79-Td-Deluxe
* Chipset/Socket: AM2+ Sb750/790FX
* Cooling: Air Scythe Mugen 2 with TX3 paste Slip steam slim pull (my ram is the way for push.)
* Temps 17c idle/33C load
* Operating system vista 64 bit
*32/64 64
*stable up to 3.6ghz I've been using 1.40 in bios but looks like it's auto voltage still :/

*CPU Model: AMD Phenom II X6 1090T BE
*CPU Stepping: Unknown, did not check
*CPU Frequency: 4000 MHz
*CPU vCore: 1.380V
*CPU Multiplier: 20x
*CPU Turbo: Disabled
*CPU NB Speed: 2200 MHz
*HT Ref Speed: 2000 MHz
*RAM Speed: DDR3-1600
*RAM Timings: 9-9-9-24-2T-CR2
*RAM Configuration: 8 GB (4 x 4 GB)
*RAM vDIMM: 1.65V
*Motherboard: Asus Crosshair IV Formula - Bios 0505
*Chipset/Socket: AM3, 890FX
*Cooling: Watercooling
*Temps: 24C Idle / 42C Load (Core Temp 64)
*Operating System: Windows 7
*32/64-Bit: 64
*Stable/Suicide/Untested: 6 hour Prime 95

With the Koolance TMS-200 and expansion board up and running I was able to properly offset (+/-) my temperatures properly using HW Monitor and an actual temperature probe for verification.

http://img684.imageshack.us/img684/6...sexpansion.jpg

As you can see the temperatures are within pretty nominal ranges using water cooling and running Prime 95 for my stability burn in which was 6 hours.

Here are the benchmarks and some other stuff like CPU-Z info and Super Pi 1M calculation. (I'm unsure about the 3D Mark 06 as I left all the options default from installation).

http://img3.imageshack.us/img3/9008/cpuz1090t.jpg

http://img694.imageshack.us/img694/5...st550bench.jpg

http://img85.imageshack.us/img85/3568/cinebenchr115.jpg

http://img51.imageshack.us/img51/8397/superpiz.jpg

http://img441.imageshack.us/img441/1...eandmemory.jpg

http://img806.imageshack.us/img806/6900/3dmark06.jpg

* CPU Model: AMD Phenom II X6 1055T
* CPU Frequency: 3500 MHz
* CPU vCore: 1.38V
* CPU Multiplier: 14x
* CPU Turbo: Disabled
* CPU NB Speed: 2500 MHz
* HT Ref Speed: 250 MHz
* RAM Speed: DDR3-1333
* RAM Timings: 8-8-8-24-1T
* RAM Configuration: 8 GB (4 x 2 GB)
* RAM vDIMM: 1.65V
* Motherboard: ASUS Crosshair IV
* Chipset/Socket: AM3, 890FX + SB850
* Cooling: Water (dtek Fuzion 2)
* Temps: 34C Idle / 44C Load
* Operating System: Windows 7 / Ubuntu
* 32/64-Bit: 64
* Stable/Suicide/Untested: Stable

I haven't had a build this easy in so long. The board and processor are a joy to use...

I've been out of town for a couple of weeks, but I've updated the charts now.

Sorry Particle, forgot to update my post.

Currently am stable at posted settings did a 1 hour medium data set occt.

Not particularly keen to do any longer due to the msi 4+1 even though it's only sitting at 38c after 1 hour occt.

The culprit for instability was ram so have rma'd the sticks will hopefully be able to run some tight timings hopefully :)

You guys aren't budging on the 8 hour blend tests? Like I'd be happy to do a 2 hour blend test just not 8 hours.....

Sorry to bother you guys but what does Thuban score at 4.0 ghz on average in Everest Cpu queen???

a screenshot would be really nice
can't seem to find any:(:(

Thanks:up:

David

Quote:

---

Originally Posted by Gameman

Sorry to bother you guys but what does Thuban score at 4.0 ghz on average in Everest Cpu queen???

---

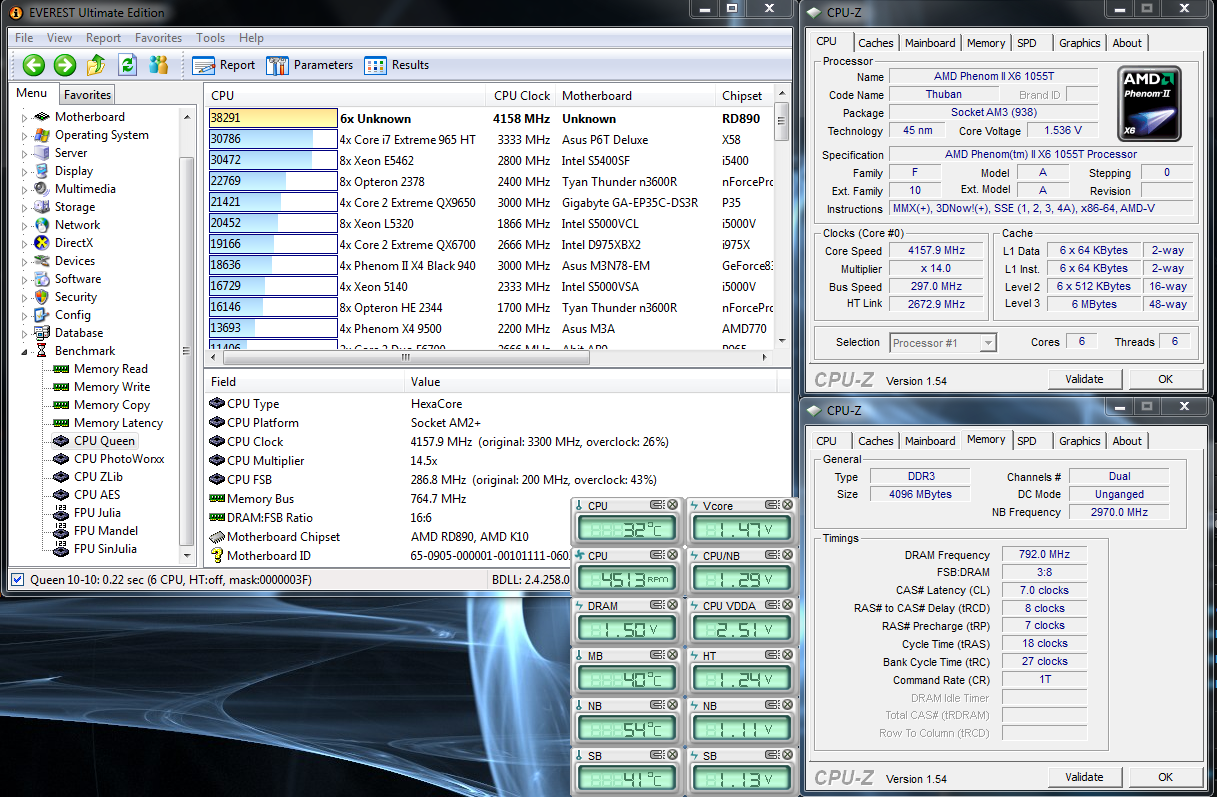

I know this is a little more clock than you asked for but I'm in the middle of tweaking and I thought I'd offer a SS... ;)

http://i30.photobucket.com/albums/c3...erestQueen.png

ok, i can post today later 4300-4400 or 4500 MHz AIR Everest man ,-)

Quote:

---

Originally Posted by Daveburt714

I know this is a little more clock than you asked for but I'm in the middle of tweaking and I thought I'd offer a SS... ;)

---

Nice work :)

Out of curiosity, what is a safe speed for the NB long term, aka, for heavy workstation usage...

Quote:

---

Originally Posted by xVeinx

Nice work :)

Out of curiosity, what is a safe speed for the NB long term, aka, for heavy workstation usage...

---

Probably 2600-2800MHz, depending on voltage, I assume.

Quote:

---

Originally Posted by Daveburt714

I know this is a little more clock than you asked for but I'm in the middle of tweaking and I thought I'd offer a SS... ;)

---

that's terrific thanks:up:

knowing this I'm definitely going for it now...:D

my Q9550 only scored 28000 and that was at 4.0 I'm afraid, so this is definitely a step up



eDIT: That's ok I found it... 890GPA Ud3H should be fine for now.... Thanks

Quote:

---

Originally Posted by xVeinx

Nice work :)

Out of curiosity, what is a safe speed for the NB long term, aka, for heavy workstation usage...

---

Like richierich said, I'd worry more about V's and temps than clocks. I just keep going up slowly until I see diminishing returns from the voltage.

Personally, I wouldn't go over 1.325 for 24/7. My chip has very minimal returns after 1.3 anyway.
Maybe with cold I could go higher but with my settup it just isn't worth the extra heat... ;)

* CPU Model: AMD Phenom II X6 1055T
* CPU Frequency: 4017 MHz
* CPU vCore: 1.43V
* CPU Multiplier: 14x
* CPU Turbo: Disabled
* CPU NB Speed: 2008 MHz
* HT Ref Speed: 200 MHz
* RAM Speed: DDR3-1530
* RAM Timings: 9-9-9-24-1T
* RAM Configuration: 4 GB (2 x 2 GB)
* RAM vDIMM: 1.7V
* Motherboard: ASUS Crosshair IV
* Chipset/Socket: AM3, 890FX + SB850
* Cooling: Water Koolance CPU-360 Rev1.1
* Temps: 25C Idle / 41C Load
* Operating System: Windows 7
* 32/64-Bit: 64
* Stable/Suicide/Untested: Stable

http://img97.imageshack.us/img97/5759/29145842.th.png

Uploaded with ImageShack.us

Wow, is MSI 890FXA-GD70 really that bad? I only seen one made on the chart.

Quote:

---

Originally Posted by sovereignty68

Wow, is MSI 890FXA-GD70 really that bad? I only seen one made on the chart.

---

its just not the most popular choice for the price, i think that most people are going crosshair or gigabyte. i would not get a another expensive msi board affter the gd70 790fx

also my 2677.9MHz NB clock is not on the list with my post

Quote:

---

Originally Posted by sovereignty68

Wow, is MSI 890FXA-GD70 really that bad? I only seen one made on the chart.

---

sovereignty68 as zanzabar said, most people are going the CF IV.

I've got the GD70, and i find it to be quite good.

Also chews has stated that it's a lil lax in performance per clock, but is able to push higher clocks due to the lack in PPC.

:)

I'm still yet to really push the motherboard but with 350+HT i think it's right up there with the CFIV though.... *shrugs*

just a quick question..if you had to choose between the Gigabyte 890GPA-UD3H or the 790XTA-UD4 which would be better for getting to 4.0???

I assuming the UD4 because of the 10 phases, but I've seen some of you get to 4.0 on the 890GPA....


just checking before I buy...

I'm gonna upgrade to a Crosshair/GD70 later, but for now my local store has these two Gigabyte models in stock...:D:D and I kind of am used to the Ultra-Durable 3 interface...

Thanks:):)

David

Just done some more testing.

Seems i can run 4.48ghz @ 1.52v vantage stable.

Going to try stability testing @ 4.08ghz!!!

Thanks :)

well, I'll go with the 790XTA-UD4... the other guy uses it and it seems to be good and I'd rather have better voltage control and finer increments than what the 890gpa may offer...

could use that onboard video..but that sucks I'm using a serious GPU with this and need to support a 40'' HDTV so..

I've used a Rampage Formula before and I seem to remember the more phases helping...so it'll be this one...

9 days to go and then the

big 6:devil::devil:

hope to join you folks at 4.0 big ones...

Thanks

David

* CPU Model: AMD Phenom II X6 1090T
* CPU Stepping: CCBBE CB 1013CPMW
* CPU Frequency: 4579.8 MHz
* CPU vCore: 1.55V
* CPU Multiplier: 21.5x
* CPU Turbo: Disabled
* CPU NB Speed: 2982 MHz
* HT Ref Speed: 213 MHz
* RAM Speed: DDR3-1704
* RAM Timings: 7-7-7-20-20-1T
* RAM Configuration: 2 x 2GB
* RAM vDIMM: 2.14V
* Motherboard: ASUS Crosshair III Formula
* Chipset/Socket: 790FX + SB750, AM3
* Cooling: Water (Fuzion V1)
* Temps: 20C Idle / 40C Load
* Operating System: Windows 7
* 32/64-Bit: 64
* Stable/Suicide/Untested: Untested

http://img.techpowerup.org/100619/15...%204582mhz.png

Quote:

---

Originally Posted by cdawall

* CPU Model: AMD Phenom II X6 1090T
* CPU Stepping: CCBBE CB 1013CPMW
* CPU Frequency: 4579.8 MHz
* CPU vCore: 1.55V
* CPU Multiplier: 21.5x
* CPU Turbo: Disabled
* CPU NB Speed: 2982 MHz
* HT Ref Speed: 213 MHz
* RAM Speed: DDR3-1704
* RAM Timings: 7-7-7-20-20-1T
* RAM Configuration: 2 x 2GB
* RAM vDIMM: 2.14V
* Motherboard: ASUS Crosshair III Formula
* Chipset/Socket: 790FX + SB750, AM3
* Cooling: Water (Fuzion V1)
* Temps: 20C Idle / 40C Load
* Operating System: Windows 7
* 32/64-Bit: 64
* Stable/Suicide/Untested: Untested

http://img.techpowerup.org/100619/15...%204582mhz.png

---

what memory are u using?

Quote:

---

Originally Posted by Barr3l Rid3r

what memory are u using?

---

D9JNM its pretty damaged though they used to do 1800 cas6 ~2.2v
