02-03-2010, 12:44 PM
Vanz

H2O & open window :D:D
http://www.shrani.si/f/z/Ce/47tIkLhT/8422.jpg
02-03-2010, 07:29 PM
Jor3lBR

Quote:

Originally Posted by loybond

For those of you using an EVGA P55 FTW, have you upgraded to the latest E657 BIOS and found that you're missing features? I can no longer seem to locate the turbo toggle in the CPU options screen. Also, how do you get the 750 to run with a 21x multi? Can't change it in the overclocking screen.

Take Shamino's word: A54 is still the best.
02-03-2010, 08:19 PM
LazyDogNet

1 Attachment(s)

Quote:

Originally Posted by SunTzu69

What do you guys make of this post by Sadbuttrue from the Hexus.net site:

"From the testing I've done, which contradicts almost every overclock you'll find on the web, the i5 750 needs high voltage on the vtt to be 100% stable. You can run it at 4ghz @ 1.35v vcore/1.2v vtt and have it pass all the usual stress testers (lynx 2 hours, prime95 blend 8 hours, prime95 small fft 8 hours, memtest86 10 hours), but it isn't "100% stable". The problems arise when you start loading the memory beyond 3gb during normal operation.

For example, with 2.8gb of memory in use (development machine) one may decide to have a quick game, pushing memory load close to 4gb. This produces the same result with a low vtt every time. Programs (starting with the game itself) will crash and windows will lock up. I've repeated these tests dozens of times. At 4ghz anything below 1.3v vtt crashes in this condition, with it happening once at 1.32v. For "100% stability" I settled on 1.36 vtt and 1.35v vcore, other components listed on left."

I am curious to hear some views on his VTT testing/results. Do you really need higher than intel ratings on VTT voltage to be truly stable?

I've had my machine for more than 2 months and I've never run across this problem yet, but I wonder if having 8GB of RAM makes a difference. I run vtt@1.2 and 21X191Mhz (4Ghz). I reguarly run a few apps, Virtual PC, and a game at the same time without a whisper of trouble, but never looked at the memory usage. Just for the fun of it, I loaded a few things up and played COD WAW for a couple of hours with no issues.
02-07-2010, 02:13 PM
AcEmAsTr

Thinking I have a good chip, 4ghz @ 1.292v idle, 1.248v Load.

My question is, my board won't post at 1600ram, I have XMS3 1600, i don't really want to run 1200mhz on the ram, timings are 9-9-9-22-64, 1.65v doesn't even help, any ideas?
02-08-2010, 04:40 AM
SunTzu69

It seems this is the best I can do with my cpu at 4Ghz:

Freq: 200x20 @ 4Ghz
Mem: 1.5v Gskill, DDR3-1600
Vcore: 1.4v (bios)
Vtt: 1.33v
PCH: 1.12v

Anything less on the vcore or vtt and she crashes inside of 10-12 minutes. At these settings I seem to be good for hundreds of Linx passes.

A special thanks to Miahallen, Gautam and Brutal-Force for their feedback. I am pretty happy with this setup for 24/7, it is fast and responsive.
02-08-2010, 09:07 AM
Blackoberst

1 Attachment(s)

EVGA P55 SLI (E655) + i5 750 same batch as in my previous post.

http://img211.imageshack.us/img211/650/213dy.th.jpg

Also some benching on cold air. :D
02-08-2010, 02:51 PM
vocch

No prime for me yet...only started today.

Not bard for a £71 board + £17.99 cooler lol....Don't think it comes any cheaper.:D

http://img710.imageshack.us/img710/5426/91689815.jpg

Not gone over 1.35v in bios

http://img705.imageshack.us/img705/6060/besti.jpg
02-08-2010, 05:16 PM
LazyDogNet

Quote:

Originally Posted by AcEmAsTr

Thinking I have a good chip, 4ghz @ 1.292v idle, 1.248v Load.

My question is, my board won't post at 1600ram, I have XMS3 1600, i don't really want to run 1200mhz on the ram, timings are 9-9-9-22-64, 1.65v doesn't even help, any ideas?

I run a combo of G.Skill and XMS3 1600Mhz chips in my setup. I run them at 1528Mhz (8x191Mhz) on 1.6v. Ram settings are at 8-8-8-21-66. For me, I actually found this combination to work well even though I'm underclocking a bit from 1600Mhz (my system was a little faster than using a higher Mhz setting and more stable to boot).

What are your settings for 4Ghz (20x200Mhz or 21x191Mhz)? Also, what is your RAM multiplier?

LDN
02-09-2010, 12:51 AM
AcEmAsTr

200x20 is what i'm currently at, with a ram multiplier of 6x giving 1200mhz.

The motherboard will reset the bios everytime i try to boot at 1600mhz, indicating that it's not stable.

I'm not sure if the motherboard can handle 1600mhz ram?
02-09-2010, 02:23 AM
Blackoberst

How much vtt for 200x20? You should try higher. What's the rated freq for your memory?
02-09-2010, 05:14 AM
AcEmAsTr

Ram is rated at 1600mhz, using 1.3vtt, purely because that's what people have stated it'll need to be at to achieve 200
02-09-2010, 07:01 AM
LazyDogNet

Quote:

Originally Posted by AcEmAsTr

200x20 is what i'm currently at, with a ram multiplier of 6x giving 1200mhz.

The motherboard will reset the bios everytime i try to boot at 1600mhz, indicating that it's not stable.

I'm not sure if the motherboard can handle 1600mhz ram?

I have a different Gigabyte P55 MB, but I would suspect the bios on each are close to being the same. Are you on the latest bios?

Also, I would start with these settings in your bios:

Perf Enhance: Std
Ext Mem Profile: Disable
C1E: Disable

You might want to also hard set your base RAM timings in bios (9-9-9-24)....if you're not already doing that.

Just to try and check your RAM, go back to default on the CPU 20x133 with a 10x multiplier on your RAM (that will set the RAM at 1333Mhz). If it works, than bump up your CPU multiplier by 10.....and than again (if it works). You'll quickly see if your RAM can run in the 1500Mhz-1600Mhz range.

LDN
02-09-2010, 12:47 PM
PolRoger

Quote:

Originally Posted by Jor3lBR

Take Shamino's word: A54 is still the best.

Jor3lBR-

Is the A54 a beta bios? I was just looking around at EVGA and I didn't see it. Link?
02-09-2010, 02:23 PM
Jor3lBR

eVga New Bioses a58

Quote:

Originally Posted by PolRoger

Jor3lBR-

Is the A54 a beta bios? I was just looking around at EVGA and I didn't see it. Link?

Hey Roger. Yes but now shamino just released a new revision of that same bios quoted as the best. Here you go:

E659:
http://www.filefactory.com/file/a20d...shtool_A58.rar

E658:
http://www.filefactory.com/file/a20d...shtool_A58.rar

E657:
http://www.filefactory.com/file/a20d...shtool_A58.rar
02-09-2010, 03:24 PM
PolRoger

^

Jor3lBR-

Thanks... I also was just searching some more and found the links for both a54 and a58 over at kingpin cooling... got them both and I'm testing a58 now.:up:
02-10-2010, 02:02 AM
Hi_Clocks

Well I just got around to overclocking my i5 750 after searching all over online and did not find another L935XXX batch to see what kind of results most guys were getting out of these. I do realize however, the i5 750 batches are not as reliant on certain batch #'s for a good O/C as the i7 920 is. Needless to say Im happy with this chip:up:

L935B381
3.8Ghz @ 1.168V....4Ghz @ 1.224V SuperPi 1MB stable, did not test Orthos or P95 yet...

http://img64.imageshack.us/img64/1927/4ghz.jpg
02-11-2010, 04:31 PM
Dee

Quote:

Originally Posted by Hi_Clocks

Well I just got around to overclocking my i5 750 after searching all over online and did not find another L935XXX batch to see what kind of results most guys were getting out of these. I do realize however, the i5 750 batches are not as reliant on certain batch #'s for a good O/C as the i7 920 is. Needless to say Im happy with this chip:up:

L935B381
3.8Ghz @ 1.168V....4Ghz @ 1.224V SuperPi 1MB stable, did not test Orthos or P95 yet...

http://img64.imageshack.us/img64/1927/4ghz.jpg

That's some nice results, although Pi 1M is useless. At least try Pi 32M or better yet try Hyper Pi, it uses all 4 cores.

I'm itching to get clocking mine, an L939XXX, but I'm still on the damn stock cooler until funds aren't so tight.

Anyone seen results from an L939 batch yet? I can't find any info anywhere.
02-12-2010, 06:31 PM
PaulC

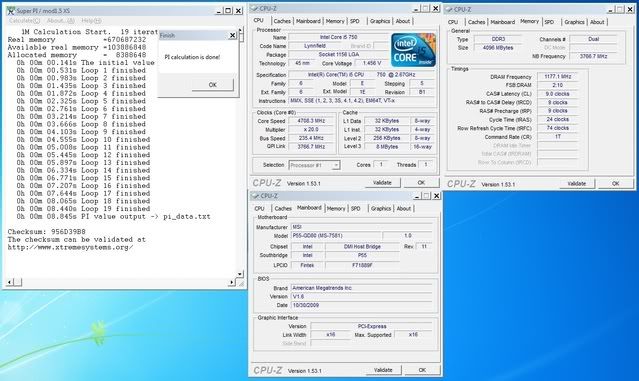

just a quick run

http://i243.photobucket.com/albums/f...ogy/i5/3rd.jpg
02-13-2010, 09:40 AM
vocch

Quote:

Originally Posted by Dee

That's some nice results, although Pi 1M is useless. At least try Pi 32M or better yet try Hyper Pi, it uses all 4 cores.

I'm itching to get clocking mine, an L939XXX, but I'm still on the damn stock cooler until funds aren't so tight.

Anyone seen results from an L939 batch yet? I can't find any info anywhere.

This was just a quick play My L939 never went above 1.35v... looking good so far...as waiting on a new board...not recognising 4gb only 2gb

http://img710.imageshack.us/img710/5426/91689815.jpg
02-13-2010, 10:33 PM
Dee

Quote:

Originally Posted by vocch

This was just a quick play My L939 never went above 1.35v... looking good so far...as waiting on a new board...not recognising 4gb only 2gb

http://img710.imageshack.us/img710/5426/91689815.jpg

Good stuff. Thanks man.
02-21-2010, 12:27 PM
Chri$ch

i5-750 L943B683 @ 3.2GHz
4*2GB DDR3-1600 8-8-8-24-1T

undervolt + overclock :)

http://www.abload.de/img/3.2ghz-linxy1e7.png
02-21-2010, 12:57 PM
Retro

Quote:

Originally Posted by Chri$ch

i5-750 L943B683 @ 3.2GHz
4*2GB DDR3-1600 8-8-8-24-1T

undervolt + overclock :)

Your load temps are about the same as my idle temps:up:
02-22-2010, 01:46 AM
PatRaceTin

hmmm i find the way to pass 223 benchable

224 - 226 may boot but not stable

i see my friend do 232 easy with gigabyte p55 series

http://img33.imageshack.us/img33/3432/pi32mx4c8.png
Max Bclk 223 Benchable

http://img638.imageshack.us/img638/8...me951hrr30.png
Prime stable room temp 30C
02-22-2010, 11:01 AM
Zeus...

Quote:

Originally Posted by PatRaceTin

hmmm i find the way to pass 223 benchable

224 - 226 may boot but not stable

i see my friend do 232 easy with gigabyte p55 series

Was thinking of getting the EVGA P55 FTW too ( esp to save getting a new water block! ) might have to think agian
02-23-2010, 08:07 PM
ban916

Not bad for a $60 motherboard eh.. Could go higher if I could figure out how to lock the 21 multiplier. I turn on the 21 multiplier in bios and at idle it is 21 but under 100% load it drops to 20.

http://img535.imageshack.us/img535/9360/overclocka.jpg
