Core i7 Overclocking by Batch #

Printable View

Show 100 post(s) from this thread on one page

12-07-2009, 01:19 PM
Erdei88

3849A846

http://img706.imageshack.us/img706/1881/erdei88.jpg
12-09-2009, 06:50 AM
imo

Update: : Xeon W3520

http://img22.imageshack.us/img22/9838/xeonj.jpg
12-17-2009, 06:43 PM
-Sweeper_

mine is 3941B077

pretty curious to see how far it goes
12-17-2009, 11:55 PM
S1N3

3941 B047, 21x200 4.2 stable at 1.4core 1.96 pll 1.35 qpi. Max temp 63c. In my opinion not an outstanding example.
All dimms occupied
max qpi link
HT enabled
12-18-2009, 06:46 AM
CedricFP

3924A

21x200 @ 1.31v
+150mv VTT
1.35 PLL
1.3 QPI
1.7 vDIMM

PCIE @ 101
12-18-2009, 08:56 PM
aamsel

Quote:

Originally Posted by S1N3

3941 B047, 21x200 4.2 stable at 1.4core 1.96 pll 1.35 qpi. Max temp 63c. In my opinion not an outstanding example.
All dimms occupied
max qpi link
HT enabled

Just picked up a 3941B047 as well.
The seller (EBAY) claimed the following performance for this batch:

Current batch number is 3941B047
My testing results
2.66ghz @ 0.93V
3GHZ @ 0.944V
4.0ghz @ 1.21V
4.488mhz @ 1.425V
4.640mhz @ 1.425V (not stable)
My motherboard is Asus P6T deluxe with beta bios 0006
Memory G-skill perfect storm 2000mhz

Perhaps a slight exaggeration?
12-18-2009, 09:53 PM
Salamndar

is it me or is itt really that increasing batch number makes CPUs less exiting, the first batches of D0 used to overclock better than current batches and uses less voltage!

I have a D0 3923A and I need 1.36v @ CPU, 1.22@ QPI/DRAM and 1.81@ PLL just to reach 4.2GHz, if I want to reach 4.4 which is the maximum I could achieve with my R2E then I have to ridiculously increasing voltage as following:
1.46@ CPU, 1.32 @ QPI/DRAM and 1.89@ PLL !!
That's with Blck 210, any thing higher than that and it is very instable at any voltage also any thing higher than 213Blck and the PC won't POST.
I have to add that IOH and ICH needs a bump in voltage also.
12-18-2009, 10:04 PM
aamsel

Quote:

Originally Posted by Salamndar

is it me or is itt really that increasing batch number makes CPUs less exiting, the first batches of D0 used to overclock better than current batches and uses less voltage!

I have a D0 3923A and I need 1.36v @ CPU, 1.22@ QPI/DRAM and 1.81@ PLL just to reach 4.2GHz, if I want to reach 4.4 which is the maximum I could achieve with my R2E then I have to ridiculously increasing voltage as following:
1.46@ CPU, 1.32 @ QPI/DRAM and 1.89@ PLL !!
That's with Blck 210, any thing higher than that and it is very instable at any voltage also any thing higher than 213Blck and the PC won't POST.
I have to add that IOH and ICH needs a bump in voltage also.

I think that INTEL could be binning better i7's as Xeons more now
than they did early in D0, and that is why the 3849B, 3845B, etc. are the better overclockers. Basically, INTEL is probably far enough along into D0 Bloomfield process that they are better setup to keep the absolutely known primo chips from being sold as 920's.

The odd part is that some people say report that oc Xeon Bloomfiled
is the best, and some apparently not. Still luck of draw, no doubt, as CPU's are definitely unique.

Other than that, when can we expect to find batch "C" 920's?
12-18-2009, 11:02 PM
Salamndar

Batch "C " !?!?!? :confused:

DO you mean XXXXCXXX ??
12-19-2009, 02:50 AM
ChaosAD

I got a 3941B092. Since i m on stock intel cooler atm , the best i could achieve is 21x182 @ 1.20v (3 passes of LinX, stopped after cause of 87C on core).
12-19-2009, 03:03 AM
Salamndar

Quote:

Originally Posted by ChaosAD

I got a 3941B092. Since i m on stock intel cooler atm , the best i could achieve is 21x182 @ 1.20v (3 passes of LinX, stopped after cause of 87C on core).

I wouldn't even consider overclock 100 MHz over stock speed with a stock fan.
You Mr. have some balls !!! :yepp:

Last month before I spent the money had on an HTC Hero mobile phone, I was tempted to buy either a 3932Bxxx 920 or a 393xA xeon 3520.

From your experience guys, which one is better, Please note that there is a price def. 100$ for the xeon.
12-19-2009, 09:52 AM
aamsel

Quote:

Originally Posted by Salamndar

Batch "C " !?!?!? :confused:

DO you mean XXXXCXXX ??

Yes, but no idea if it exists or will exist.
At this point, it is just talk.
12-20-2009, 04:11 PM
SpinCykle

Picked up one the other day for 200$ at a local MC. Cant find any info on the FPO/Batch#. Maybe you guys can help! I'm still waiting on MB, RAM and blocks before I get everything up and running.

Core i7 920 D0
SLBEJ
FPO/Batch# 3918A495
12-21-2009, 10:23 AM
Salamndar

OK guys, I'm in the market to buy me a new single slot Geforce to use it as a physX with my CrossFireX 4870X2 and I came across these :

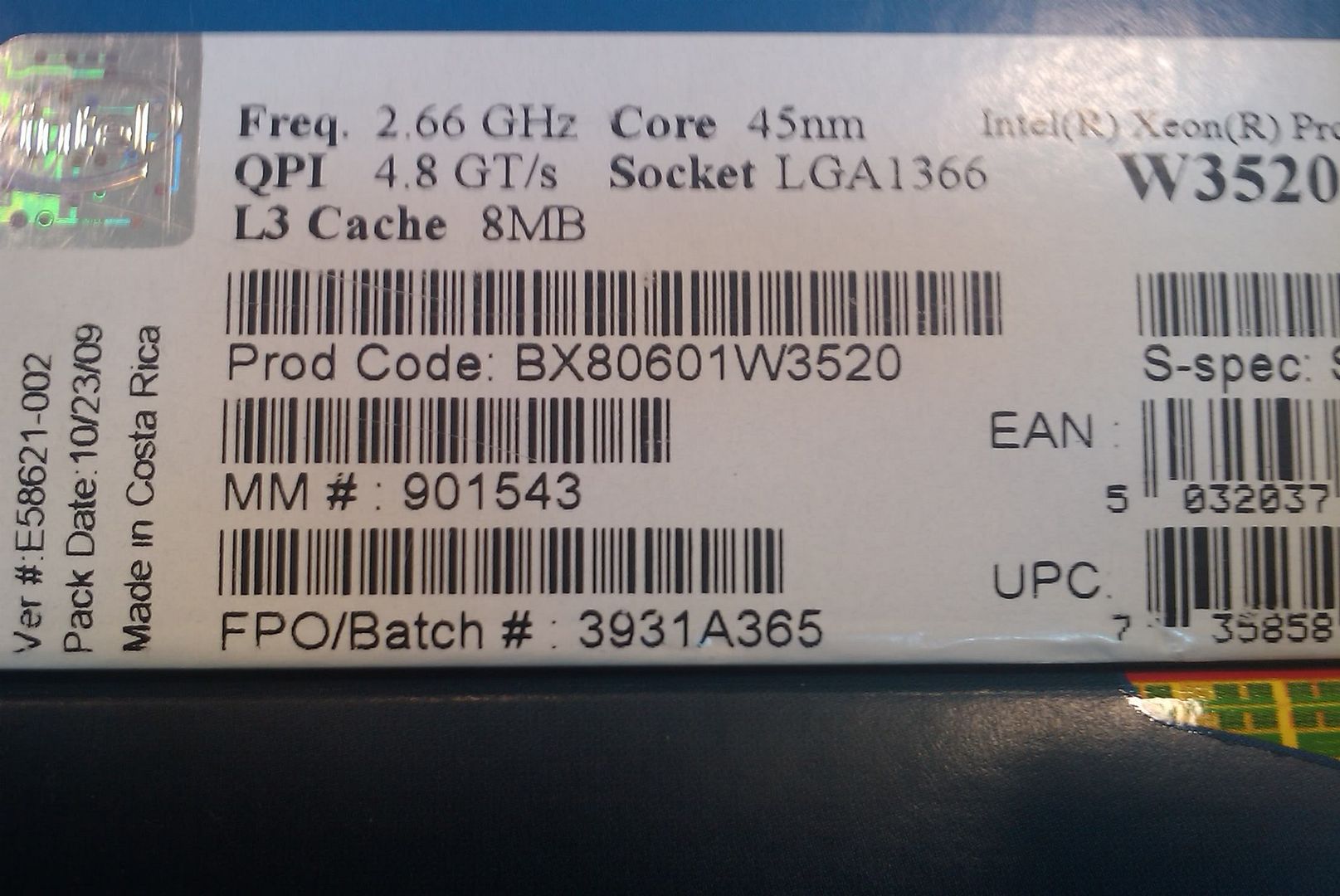

a Xeon for 440$ :

http://img.photobucket.com/albums/v6...3/IMAG0001.jpg

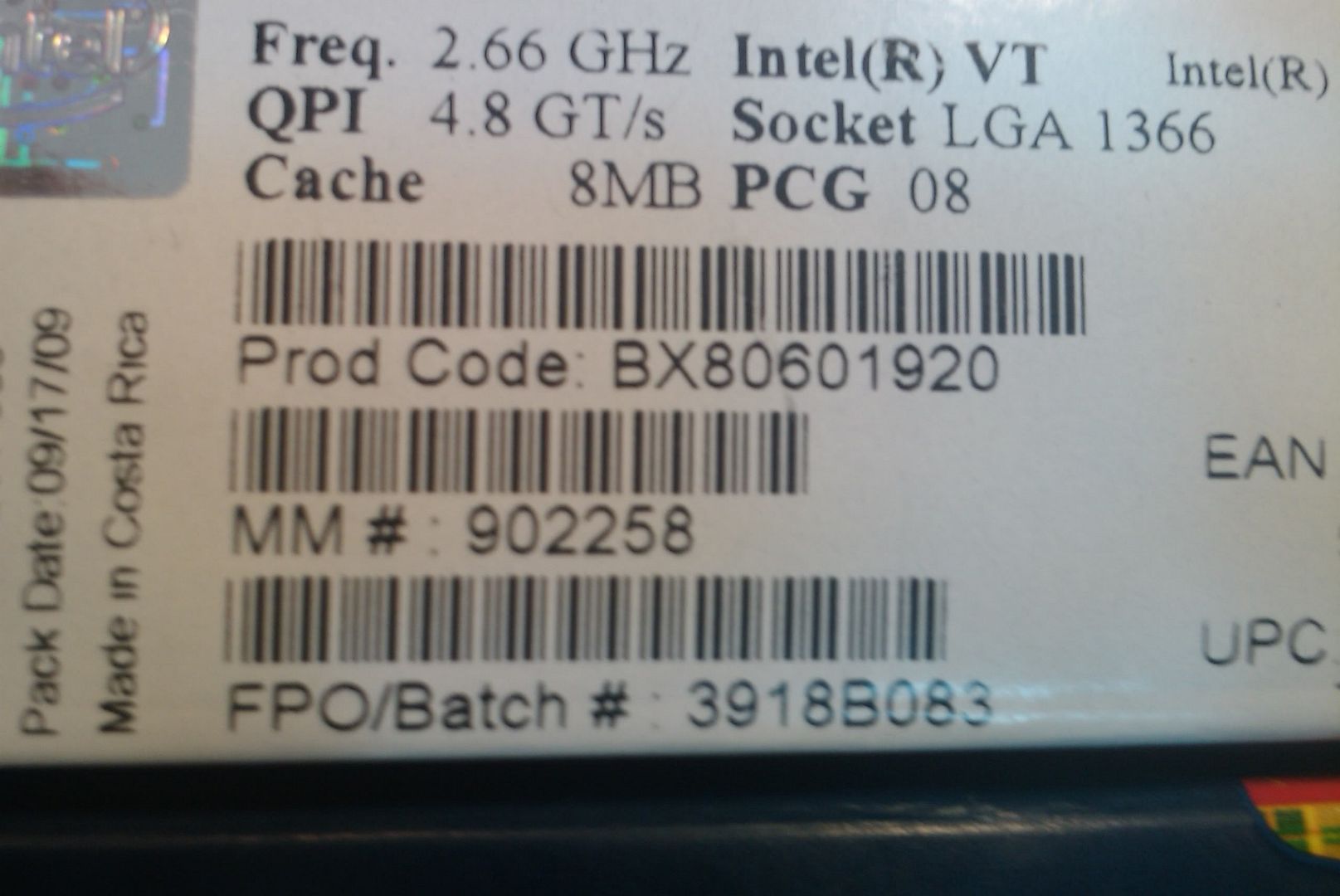

and a 920 for 320 $:

http://img.photobucket.com/albums/v6...3/IMAG0002.jpg

Is the 120$ worth it ? I'm not sure really.
Also any word over these batches ?
12-21-2009, 10:31 AM
kup

I'd go for the 3918B083 stepped chip.
12-21-2009, 10:52 AM
Salamndar

I have the 3923A batch and I'm not sure is my R2E limiting me to 210 Bclk or the CPU doesn't like any thing higher than 210, I don't want to burn 320$ just to find out it is a mobo issue !

But again there is no way to tell other than switching the CPU!
12-21-2009, 10:54 AM
uranium

3845B260 @ 4.881 :)

[IMG]http://img192.imageshack.us/img192/3...7spi1mb.th.png[/IMG]

Finding the next 19MZ to get 4.9Ghz a slight challenge.....
12-21-2009, 11:22 AM
Salamndar

Don't tell me that's on water !!?!?
12-21-2009, 12:12 PM
uranium

Quote:

Originally Posted by Salamndar

Don't tell me that's on water !!?!?

Water chilled to 10 deg C :) Won't do that with HT on though;)
12-21-2009, 12:47 PM
Salamndar

Nice indeed! :up:
12-21-2009, 01:30 PM
uranium

Quote:

Originally Posted by Salamndar

Nice indeed! :up:

Thank you:)
12-21-2009, 07:06 PM
Clint

3942A***** , does 4.0GHz on 1.2v Prime95 stable (2h) outside chassi and with a Scythe mini-ninja with two 1200rpm push/pull fans giving a max temp of 70c. Did take me a while to find out how to oc the i7 architechture, coming from core2. Once I got hang of qpi and pll importnace my voltage could be reduced from 1.35 to 1.2v. I'ts mounted on a MSI X598M board together with 6 Mushkin 1600MHz sticks. Board does 225 BCLK with mem slots fully occupied, very nice board for that price! Gonna drop a better cooler on it and se what we can do. Is there any need for lapping the i7 cpus? My old q9300 dropped 8c when giving it a overhaul with 1200 paper...
12-21-2009, 07:11 PM
rusty

Quote:

Originally Posted by Clint

3942A***** , does 4.0GHz on 1.2v Prime95 stable (2h) outside chassi and with a Scythe mini-ninja with two 1200rpm push/pull fans giving a max temp of 70c. Did take me a while to find out how to oc the i7 architechture, coming from core2. Once I got hang of qpi and pll importnace my voltage could be reduced from 1.35 to 1.2v. I'ts mounted on a MSI X598M board together with 6 Mushkin 1600MHz sticks. Board does 225 BCLK with mem slots fully occupied, very nice board for that price! Gonna drop a better cooler on it and se what we can do. Is there any need for lapping the i7 cpus? My old q9300 dropped 8c when giving it a overhaul with 1200 paper...

what's your qpi and pll volts now ?
12-21-2009, 11:56 PM
ChaosAD

Quote:

Originally Posted by Clint

3942A***** , does 4.0GHz on 1.2v Prime95 stable (2h) outside chassi and with a Scythe mini-ninja with two 1200rpm push/pull fans giving a max temp of 70c. Did take me a while to find out how to oc the i7 architechture, coming from core2. Once I got hang of qpi and pll importnace my voltage could be reduced from 1.35 to 1.2v. I'ts mounted on a MSI X598M board together with 6 Mushkin 1600MHz sticks. Board does 225 BCLK with mem slots fully occupied, very nice board for that price! Gonna drop a better cooler on it and se what we can do. Is there any need for lapping the i7 cpus? My old q9300 dropped 8c when giving it a overhaul with 1200 paper...

Plz post the changes that u made to drop vcore. I would also like to know.
12-22-2009, 12:47 AM
Clint

Quote:

Originally Posted by ChaosAD

Plz post the changes that u made to drop vcore. I would also like to know.

Well, I did use the auto option in MSI bios to help me get up to 4.0-4.2 on max auto volts which was 1.365v. Auto feature gave me a max 1.7v on pll and 1.39 on qpi. In a perfect world the auto function would know the specific character of my CPU, but I guess they rather trow in a bit too much on the qpi when going on high bclk and staying "safe" on the pll (wich are rumoured to kill CPU's). I did some quick research and lowered the qpi to be a bit closer to my intended vcore of 1.2v and landed on 1.35v. As for pll even Intel states that 1.8v is fine, so I changed that to 1.8v. Then I just throw a session of Prime95 and started to lower the vcore in windows with the MSI oc util. Landed on 1.2v, you can imagine my joy when I continued to lower the voltage and the primesession kept on going... :D

4GHz on 1.2v is not supergood, but it sure is a helova lot betta than 4GHz on 1.365v... Just bought a True Black and gonna lap that and while I'm at it lap the CPU as well. Just for fun...
12-22-2009, 01:21 AM
ChaosAD

Nice to know Clint. 4Ghz @ 1.2v is very good. Lap that True Black (not sure about the cpu though :P ) and push it some more :)
12-22-2009, 01:50 AM
Clint

Quote:

Originally Posted by ChaosAD

Nice to know Clint. 4Ghz @ 1.2v is very good. Lap that True Black (not sure about the cpu though :P ) and push it some more :)

Will do:up:

Gonna examine the CPU a bit more closely first, always a bit weary messing about with those...;)

Once done I will post screens and bios settings for any possible interest.
12-22-2009, 02:57 AM
Salamndar

Damn it ! Man get yourself some water cooling stuff and overclock your CPU to 4.5 NOW
12-22-2009, 04:08 AM
Homeless2

Batch 3931A

1.3vcore bios (1.264 cpuz)

21x191 20 linpack / 12 hr prime stable
12-22-2009, 06:00 AM
rusty

Quote:

Originally Posted by Clint

Will do:up:

Gonna examine the CPU a bit more closely first, always a bit weary messing about with those...;)

Once done I will post screens and bios settings for any possible interest.

do some linx :)
12-22-2009, 12:03 PM
Blackbird_CaD_

Quote:

Originally Posted by Clint

Well, I did use the auto option in MSI bios to help me get up to 4.0-4.2 on max auto volts which was 1.365v. Auto feature gave me a max 1.7v on pll and 1.39 on qpi. In a perfect world the auto function would know the specific character of my CPU, but I guess they rather trow in a bit too much on the qpi when going on high bclk and staying "safe" on the pll (wich are rumoured to kill CPU's). I did some quick research and lowered the qpi to be a bit closer to my intended vcore of 1.2v and landed on 1.35v. As for pll even Intel states that 1.8v is fine, so I changed that to 1.8v. Then I just throw a session of Prime95 and started to lower the vcore in windows with the MSI oc util. Landed on 1.2v, you can imagine my joy when I continued to lower the voltage and the primesession kept on going... :D

4GHz on 1.2v is not supergood, but it sure is a helova lot betta than 4GHz on 1.365v... Just bought a True Black and gonna lap that and while I'm at it lap the CPU as well. Just for fun...

You seem to have a pretty nice CPU :P
But did it crash after 2h in prime? or didn't you just run it longer..?
My 920 have the same batch as yours =) but i haven't build my PC with the CPU yet.
12-22-2009, 09:30 PM
Clint

Quote:

Originally Posted by Blackbird_CaD_

You seem to have a pretty nice CPU :P
But did it crash after 2h in prime? or didn't you just run it longer..?
My 920 have the same batch as yours =) but i haven't build my PC with the CPU yet.

I did stop there, no need to let it run longer before I'm done with lapping and such. I do the final stabilitytestings when it's mounted in chassis.
12-23-2009, 02:17 AM
Lome

920 3941B076 11/11/09
200x21 4.2GHz @1.3v

linpak64 stable
ucore realy doesnt like anything other than 2x ram
probly anus's regulation to blame for that though
12-23-2009, 04:26 AM
AlfaBoy

Later i will post da batch, now i have some screens:

Asus R2E
920 D0 BATCH #: 3849A765
OCZ Reaper 15000 3x2GB
EVGA 260 GTX SSC
PC Power & Coling 750W

http://img691.imageshack.us/img691/9...tasusprobe.png

http://img69.imageshack.us/img69/1668/linx30min.png

Some 3D results:

http://img32.imageshack.us/img32/582...k200622193.png

I have water cooling in the cpu and in the 260GTX.
12-23-2009, 06:04 AM
madmax999

Enable HT, you will get better score in 3DM06 ;)
12-23-2009, 06:49 AM
AlfaBoy

i think i dont have any advantage to have HT on for gaming, because of that i dont have it enable, but i will try, thanks for the tip.:up:
12-23-2009, 07:33 AM
AceBaran

Hi wanted to add mine too Batch 3836A288

http://img94.imageshack.us/img94/756...d440566620.jpg
12-23-2009, 08:39 AM
madmax999

Quote:

Originally Posted by AlfaBoy

i think i dont have any advantage to have HT on for gaming, because of that i dont have it enable, but i will try, thanks for the tip.:up:

Not in gaming, in 3DM06 you will get better CPU score with HT on and because of that overall 3DM06 score will be higher :)
12-23-2009, 09:25 AM
Blackbird_CaD_

Quote:

Originally Posted by madmax999

Not in gaming, in 3DM06 you will get better CPU score with HT on and because of that overall 3DM06 score will be higher :)

Who cares about 3DM06 score ^^
Or well maybe some people care of it because of e-penis.. :P
12-23-2009, 11:31 AM
NETio

HT gives performance gains but also makes your processor run much hotter. Unless your temps are very cool right now I would not recommend enabling HT. I have a 3942A, I'll post OC later.

Foxconn Bloodrage GTI
G.Skill DDR3 1600 8-8-8-24 1.5v

Stepping: D0
Batch: 3942A

Reseved (I'll have it done by end of week)
12-23-2009, 01:28 PM
AlfaBoy

post updated, my 920 batch is 3849A765.

I dont now why but when i pass 214 blck my 260gtx have some problems in 3D, 4500MHZ is very nice overclock :cool:
12-23-2009, 05:20 PM
NETio

Depending on your board, try setting your PCIe clock to 101 instead of 100.
12-23-2009, 09:18 PM
terrybogard

Quote:

Originally Posted by NETio

HT gives performance gains but also makes your processor run much hotter. Unless your temps are very cool right now I would not recommend enabling HT. I have a 3942A, I'll post OC later.

Foxconn Bloodrage GTI
G.Skill DDR3 1600 8-8-8-24 1.5v

Stepping: D0
Batch: 3942A

Reseved (I'll have it done by end of week)

I'll be looking forward to you're results. I have a 3943A D0. If you can, mind listing specific numbers, qpi/vtt & etc. I'm still waiting on my cpu cooler & probably won't be until late next week :(

Thanks in advance.

edit: I'm glad you guys are pushing more than 4GHz; once I hit that point of 4.0GHz I'm done. Maybe shoot for lower vcore, but 4.0GHz is what I want, nothing more.
12-23-2009, 10:23 PM
AceBaran

Sold my 965 EE, got a 920 3943A521.. are these good batches ?
12-24-2009, 01:11 AM
zalbard

Quote:

Originally Posted by AlfaBoy

I dont now why but when i pass 214 blck my 260gtx have some problems in 3D, 4500MHZ is very nice overclock :cool:

Try higher IOH VCore and QPI PLL, and keep these two values the same. :up:
12-25-2009, 11:56 AM
Phaseshift

whats the consensus on the 3941B045 Batches?
12-25-2009, 08:14 PM
NETio

3942a

CPU: i7 920
Stepping/Revision: D0
Batch: 3942A
MOBO: Foxconn Bloodrage GTI (BIOS: P09)

4.1 GHz (210x20) @ 1.36v LinX 100+ pass stable http://valid.canardpc.com/show_oc.php?id=906494

I think I could get by with 1.5v just fine or even 1.4 but I am working on getting up to 4.2 GHz right now so I went ahead and set the voltage up a bit.

Overall, this isn't the best chip out there but it will serve my needs just fine. Temps stay well under 70 running LinX, the hottest core stays around 60 running P95 Small FFT. Basically, :up:
12-26-2009, 03:37 AM
jonathankru

CPU: i7 920
Stepping/Revision: D0
Batch: 3942A497
MOBO: GA-X58-UD4P

http://i46.tinypic.com/14917p1.jpg

And will do 4.0Ghz at 1.3V
12-26-2009, 03:52 AM
Blackbird_CaD_

Quote:

Originally Posted by jonathankru

CPU: i7 920
Stepping/Revision: D0
Batch: 3942A497
MOBO: GA-X58-UD4P

I have since managed to run vcore at 1.344V will change screen shot later

(picture)

And will do 4.0Ghz at 1.3V

1h Prime95 doesn't say much..
The most interesting thing is if it's stable or not..
12-26-2009, 04:11 AM
jonathankru

Quote:

Originally Posted by Blackbird_CaD_

1h Prime95 doesn't say much..
The most interesting thing is if it's stable or not..

Alright. What would you like then?I see many posts of OCCT for an hour so i figured that 1 hour prime would be fine.I have also run 3dmark06 and Vantage runs without failure. And it hasn't frozen yet.
12-26-2009, 04:13 AM
Blackbird_CaD_

Quote:

Originally Posted by jonathankru

Alright. What would you like then?

Hm 10h prime95 maybe..? ^^ i dunno if it should be small ffts or blend..
12-26-2009, 06:00 AM
zalbard

20-25 LinX passes will do. :)
12-26-2009, 06:18 AM
jonathankru

Quote:

Originally Posted by zalbard

20-25 LinX passes. will do. :)

Have i run this correctly? I have never used LinX before

Edit: Wrong settings selected will retest now. ThanX Zalbard
12-26-2009, 06:23 AM
zalbard

Just click "All" button or pick the max amount of free memory your system has yourself for higher stress level. :)
12-26-2009, 06:37 AM
jonathankru

Quote:

Originally Posted by zalbard

Just click "All" button or pick the max amount of free memory your system has yourself for higher stress level. :)

CPU: i7 920
Stepping/Revision: D0
Batch: 3942A497
MOBO: GA-X58-UD4P

Temps and specs are in the screen shot and cooling is in my sig

http://i49.tinypic.com/243n9yg.jpg
12-26-2009, 11:32 AM
Salamndar

I sold my 920 batch 3923A and got a 950 batch 3931A packed in November.
The bad thing is, my crappy R2E died on me !!
It lost one of the pins ! I hate LGA !!!
12-26-2009, 01:09 PM
trn

I had a batch 3903a which sucked. That chip would not run 20 LinX passes @ 4.2ghz on anything less than 1.365 Vcore and wouldn't post at anything over 201 bclock.

That lemon has been exchanged for a 3937A which seems to suck less, looks like it does 4.2ghz at around 1.329 Vcore; a bit better, still tweaking this one.
12-26-2009, 01:19 PM
DomagojX

here is mine :) 4.5GHz, voltage 1.33
http://valid.canardpc.com/show_oc.php?id=905719
12-26-2009, 01:27 PM
Salamndar

Quote:

Originally Posted by DomagojX

here is mine :) 4.5GHz, voltage 1.33
http://valid.canardpc.com/show_oc.php?id=905719

What batch ?
12-26-2009, 03:29 PM
McDown

I have a 3922A415 batch and I need 1.34-1.35V for 4.2ghz HT off. I've found 3939Bxxx on eBay for ~$300 (inc international shipping). So what do you think guys should I gamble or just bite a bullet and stick with what I've got?
12-26-2009, 03:36 PM
zalbard

Quote:

Originally Posted by McDown

I have a 3922A415 batch and I need 1.34-1.35V for 4.2ghz HT off. I've found 3939Bxxx on eBay for ~$300 (inc international shipping). So what do you think guys should I gamble or just bite a bullet and stick with what I've got?

If you're on air then it is probably not worth bothering with.
12-26-2009, 03:43 PM
McDown

Quote:

Originally Posted by zalbard

If you're on air then it is probably not worth bothering with.

России привет :wave:
So you don't think I can get the same clock speed with lower Vcore on 3939B?
12-26-2009, 08:02 PM
DomagojX

Quote:

Originally Posted by Salamndar

What batch ?

3939B078 :)
12-26-2009, 10:16 PM
mattkosem

24/7 settings, HT on. 3849A895 on water w/HK3.0 LC.

http://img42.imageshack.us/img42/698...5uncore.th.jpg

--Matt
12-27-2009, 01:06 AM
pr@$r1g

^^^ update ur LinX 0.5.7 ..........
Major version now is 0.6.4
12-27-2009, 06:16 AM
KingLex

Quote:

Originally Posted by DomagojX

here is mine :) 4.5GHz, voltage 1.33
http://valid.canardpc.com/show_oc.php?id=905719

Is it stable at that speed ?

Found one with the same batch#.
12-27-2009, 06:17 AM
zalbard

Quote:

Originally Posted by McDown

России привет :wave:
So you don't think I can get the same clock speed with lower Vcore on 3939B?

You probably will.
It is just unlikely you will gain more than 100MHz higher overclock due to the swapping. So just see for yourself if it's worth the $$$.
12-27-2009, 08:07 AM
H2O

Quote:

Originally Posted by Salamndar

I sold my 920 batch 3923A and got a 950 batch 3931A packed in November.
The bad thing is, my crappy R2E died on me !!
It lost one of the pins ! I hate LGA !!!

3931A is an OK batch. It has a high VID (1.28) but there is someone on the OC forums that is running 4.0GHz on a 3931A318 with stock vcore, and 4.2 is somethere is the range of 1.36.

I'm waiting to see what mine can do (3931A318). Can't go past 3.2GHz at the moment, as my PSU starts sucking too much power which overloads my UPS.
12-27-2009, 08:48 AM
ChaosAD

3941B092, 21x184@1.2v, vtt auto, memx8 c7, 5 passes linx on stock cooler. My classified EK block is finally here. So mid week i will install water loop to see how far this cpu can go.
12-27-2009, 11:52 AM
OC Nub

I picked up a 920 batch# 3945A936 from micro center. I am still deciding on a board, I hope to be joining you guys soon. Any suggestion on a good over clocking board? Have been looking at the Giga UD7, the Asus P6TD Deluxe and the Classified, Classified is more than I would like to spend on any board, but if it is worth it I may try it.
12-27-2009, 12:13 PM
Salamndar

the P6TSE is a cheap yet good board.
12-27-2009, 01:18 PM
zalbard

Classified or UD7 imo, see if you want better looks and digital PWMs of Classified for a few $ more. :yepp:
12-27-2009, 01:43 PM
OC Nub

Thanks for the replies, the only thing holding me back from the ud7 are those ridiculously large heat sinks, I wont be water cooling the board, just the cpu. Will decide this week sometime and try to have it for the holiday weekend coming up.

Last question, I have 2 2x2gb kits of the DominatorGT-CMG4GX3M2A2000c8 from my 1156 rig ( got both kits for about the same price as a 3x2gb kit would have cost ), is there any reason I wont be able to use 3 of these stix with the 1366 platform?
12-27-2009, 04:35 PM
DomagojX

3939B078

4.74Ghz Ht on, Air
http://valid.canardpc.com/cache/banner/910384.png
12-27-2009, 06:20 PM
deachus

Here's mine on air, Thermalright Ultra Black 120 lapped. Temps are on air and high in my house but have ordered a new water cooling system to bring the temps down.

920 D0 #3911A330
vcore 1.318v Bios
vQPI 1.4125v Bios
vDimm 1.66v

21x200
Kingston HyperX
DDR3-1600Mhz 6-6-6-18-1T-60

LinX Maxmem 10 times

http://dl.dropbox.com/u/3532340/Scre...6-18-1T-60.jpg
12-27-2009, 10:57 PM
siyah

i have a W3570 ES with this of the cpu writing,because i have not the cpu installed.

Q1DV ES Costa Rica
AT80601 000918AB
3835A597

my question is its CO/C1 or DO stepping?
12-28-2009, 01:48 AM
madmax999

I think that Xeon's can't be C0/C1 revisions.
12-28-2009, 03:22 AM
Salamndar

Quote:

Originally Posted by siyah

i have a W3570 ES with this of the cpu writing,because i have not the cpu installed.

Q1DV ES Costa Rica
AT80601 000918AB
3835A597

my question is its CO/C1 or DO stepping?

Hmm that's an old batch# I thought the Xeons are D0, but that batch seems like a C0 !!!

Could be an early version of the xeons. The only way to check it out is to test it yourself.

Keep us updated :cool:
12-28-2009, 03:51 AM
raikkok

Hi guys

Merry christmas for all.

Recently I changed my pc for one higher. Gigabyte UD5-X58, I7 950, 6 GB rams Mushkin Extreme and watercooling.

I want some advices about a great OC, Can anyone help me?

thanks in advanced
12-28-2009, 04:01 AM
zalbard

Quote:

Originally Posted by OC Nub

Last question, I have 2 2x2gb kits of the DominatorGT-CMG4GX3M2A2000c8 from my 1156 rig ( got both kits for about the same price as a 3x2gb kit would have cost ), is there any reason I wont be able to use 3 of these stix with the 1366 platform?

Nope, they'll do fine.

Quote:

Originally Posted by siyah

i have a W3570 ES with this of the cpu writing,because i have not the cpu installed.

Q1DV ES Costa Rica
AT80601 000918AB
3835A597

my question is its CO/C1 or DO stepping?

Ask the seller for the sSpec Number, if it's SLBEW or not. Or for a CPU-Z screenshot. You can easily get B0 or C0 instead of D0 so I wouldn't take the risk.
12-28-2009, 05:01 AM
siyah

when its a BO/CO/C1 whats about the temps and v-core nearly @4,0-4,2ghz

its a big difference to a DO stepping?
12-28-2009, 05:02 AM
zalbard

vCore, yeah, definitely. I wouldn't buy anything but a D0 tbh.
12-28-2009, 06:35 AM
Helli

Ok, after two days of fine tune:

Xeon W3520 Batch: 3931A356

Maybe i'm able to hit 4.5GHz ;)
Temps 79-85 LinX running.

http://img13.imageshack.us/img13/983...20xlinx.th.jpg

Helli
12-28-2009, 06:41 AM
DomagojX

4ghz 1.152v ht off...
http://valid.canardpc.com/cache/banner/911495.png
12-28-2009, 09:52 AM
H2O

Quote:

Originally Posted by Helli

Ok, after two days of fine tune:

Xeon W3520 Batch: 3931A356

Maybe i'm able to hit 4.5GHz ;)
Temps 79-85 LinX running.

http://img13.imageshack.us/img13/983...20xlinx.th.jpg

Helli

Nice! Should mean good things for those with 3931A batches.
12-28-2009, 10:18 AM
tatts

Early results from my 3847B021

I need to turn the pump and fans up before i push too far :(

3.9ghz - 1.168V
http://img229.imageshack.us/img229/2020/39ghz1s.jpg

4.2ghz - 1.264V
http://img215.imageshack.us/img215/4685/42ghz.jpg
12-28-2009, 01:59 PM
Salamndar

Quote:

Originally Posted by Helli

Ok, after two days of fine tune:

Xeon W3520 Batch: 3931A356

Maybe i'm able to hit 4.5GHz ;)
Temps 79-85 LinX running.

http://img13.imageshack.us/img13/983...20xlinx.th.jpg

Helli

That's too much voltage for just 4.4 and on a Xeo....DAMN !
12-28-2009, 02:20 PM
OC Nub

Quote:

Originally Posted by zalbard

Nope, they'll do fine.

Thank you, the savings will allow me to get the Classified.
12-28-2009, 03:36 PM
imo

Update--killer chip i7 920 D0 Batch 3849B056

Amaizing killer chip i7 920 D0 Batch 3849B056 Its AWESOME....... :eek:

http://img710.imageshack.us/img710/3986/4200mhz117v.jpg
12-28-2009, 05:11 PM
DomagojX

omg..great chip :)
12-28-2009, 05:12 PM
zalbard

Yeah, sick, I need like 1.33 for 4.2 for mine on air... I think I have a crap BIOS, though, so I'll try to go lower when the new one is out.
But doubt it's going to be lower than 1.3 which is crap. :(
Max temps @ 77C under LinX load, though, so looks like vCore doesn't affect them so much. On the other hand, whenever I go for 4.4 I am pretty screwed.
12-28-2009, 05:28 PM
H2O

Wow amazing chip! Where did you find it?
12-29-2009, 03:16 AM
tatts

Quote:

Originally Posted by imo

Amaizing killer chip i7 920 D0 Batch 3849B056 Its AWESOME....... :eek:

http://img710.imageshack.us/img710/3986/4200mhz117v.jpg

I would like to see more than 4mins of prime, can you run linx or ibt?
I guess this will be on eBay with a stupid price tag very soon?
12-29-2009, 04:25 AM
McDown

Quote:

Originally Posted by tatts

I guess this will be on eBay with a stupid price tag very soon?

I wouldn't mind to pay "a stupid price" for that CPU :rolleyes:
12-29-2009, 05:55 AM
Dahaka

HI!!.

Today i bough a core i7 920 D0 batch #3943A507 and i don't find nothign about this batch or similar to get some references :S.
12-29-2009, 06:20 AM
tatts

Quote:

Originally Posted by McDown

I wouldn't mind to pay "a stupid price" for that CPU :rolleyes:

who would pay £450 for a £200 CPU that isn't even stable??
12-29-2009, 06:38 AM
madmax999

Quote:

Originally Posted by tatts

who would pay £450 for a £200 CPU that isn't even stable??

Good point :rofl:
12-29-2009, 07:21 AM
owikh84

Quote:

Originally Posted by imo

Amaizing killer chip i7 920 D0 Batch 3849B056 Its AWESOME....... :eek:

This is a good batch I got many units of the same batch doing 4.2ghz HT ON @ 1.225v core, 1.225v vtt primed
12-29-2009, 07:48 AM
McDown

Quote:

Originally Posted by tatts

who would pay £450 for a £200 CPU that isn't even stable??

:eek: that's way too "stupid price" for me...
12-29-2009, 08:07 AM
imo

Quote:

Originally Posted by tatts

I would like to see more than 4mins of prime, can you run linx or ibt?
I guess this will be on eBay with a stupid price tag very soon?

Quote:

Originally Posted by tatts

who would pay £450 for a £200 CPU that isn't even stable??

Hi mate u seem to have some selling skills but i didnt ask you to advertise my chip as ITS NOT FOR SALE!, i like to share my findings with people who are intrested, now if my benchmark / Test result is hurting your eyes i suggest you look away. and talking about stupid prices well, only clever people would have a good estimation!

Show 100 post(s) from this thread on one page

All times are GMT -8. The time now is 09:07 PM.

XtremeSystems
