03-17-2006, 10:09 PM
AndrewZorn

47*C and its just sitting here idling
but then again i have a broken fan
good to know though, the thing was SO light compared to my GTX i had to worry what was actually under that XFX sticker
03-17-2006, 10:43 PM
***Deimos***

Quote:

Originally Posted by AndrewZorn

I have a quick question for you guys
I currently have the XFX 550/1630 version
I'm thinking about 'downgrading' to the eVGA 500/1500 version because i need to RMA my XFX the fan is broken

do they all tend to clock to about the same levels?

where I live supplies of 7900GT have dried up. I can send you money for your 7900GT, put my NV5 on it, and you dont have to wait weeks for RMA. Everybody wins.

If you heard click when snapping the card into place, then its fine. Its actually quite difficult to install a video card only half-way in. Being super-talented, I managed to do it once, and was treated to a wonderful puffs of smoke.
Since your card is working fine in games etc... there's nothing to worry.
03-18-2006, 03:21 AM
DesertShooter

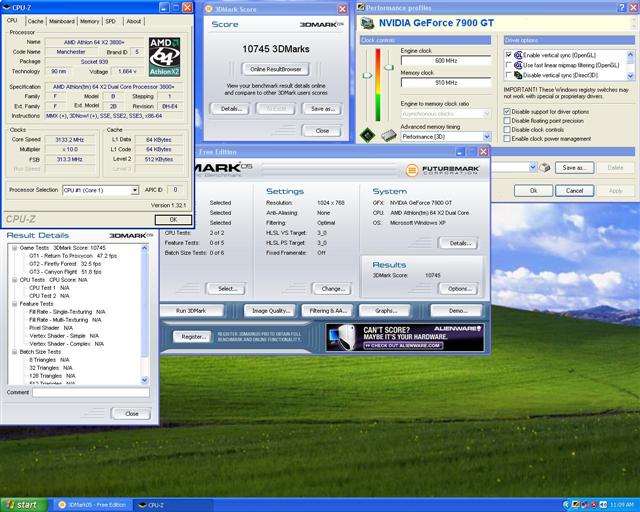

My XFX 7900GT Extreme (520/1500):

#1 @ ORB singlecard :)

600/1820, X2 3800+ @ 3,133GHz, no vmods, stock cooling, no ram cooling.

http://desertshooter.nl/10745klein.jpg
03-18-2006, 04:11 AM
Cooper

WOW.
Impressive
03-18-2006, 05:40 AM
cronic

Quote:

Originally Posted by DesertShooter

My XFX 7900GT Extreme (520/1500):

#1 @ ORB singlecard :)

600/1820, X2 3800+ @ 3,133GHz, no vmods, stock cooling, no ram cooling.

http://desertshooter.nl/10745klein.jpg

i guess i need to pull one of my cards and take that single card title away. lol
03-18-2006, 06:19 AM
dogsx2

Quote:

Originally Posted by cronic

i guess i need to pull one of my cards and take that single card title away. lol

Go for it!!:banana:

I wish I'd would have ordered two when I got mine. These are very good cards. Much better then the 7800GTX I had and they run cool with the tiny HSF they got. He's my no so great ss, need to optimize for a better score.

http://img82.imageshack.us/img82/204...20059sg.th.jpg

Edit: here's a better score. 10,496
http://img365.imageshack.us/img365/1...04969il.th.jpg
03-18-2006, 06:56 AM
illuminati-hwt

desertshooter, nice score.. no artifacting? did you test with atitool?

mavke is pretty quiet these days, hoping he'll get a bios-vmod running :-)
03-18-2006, 08:12 AM
mascaras

last bench i did i bench at 585/1860 , tonight i will to next step bnching 590/1860 and then if dont have artifacts ill try 600/1860 .
03-18-2006, 08:49 AM
t024484

I suppose that the fact that the 7900GT is hard to get above 580Mhz and that voltmodding does not bring the expected result, has not to do with an overvoltage protection but with an overcurrent protection.
I had this problem with my XFX7800 GT, changed it and all problems were gone. My 7800 GPU is doing 566Mhz.
I do not have a 7900GT yet, but if someone can give me the part nr of Q502 ( if I have read this correctly from pictures) , which is a 32pin voltage regulator for the GPU, I might be able to come with a solution.
03-18-2006, 08:53 AM
***Deimos***

Quote:

Originally Posted by mascaras

last bench i did i bench at 585/1860 , tonight i will to next step bnching 590/1860 and then if dont have artifacts ill try 600/1860 .

you only needed 565/1800 to get to 10K (10021). So easy and cheap to get 10k, I think we'll see a lot of people in the 10k club...might get crowded.

620=565+10% -> 11000. Anybody run 620 yet?
03-18-2006, 08:58 AM
AndrewZorn

Deimos, did you get my PM?
03-18-2006, 08:58 AM
cronic

Quote:

Originally Posted by t024484

I suppose that the fact that the 7900GT is hard to get above 580Mhz and that voltmodding does not bring the expected result, has not to do with an overvoltage protection but with an overcurrent protection.
I had this problem with my XFX7800 GT, changed it and all problems were gone. My 7800 GPU is doing 566Mhz.
I do not have a 7900GT yet, but if someone can give me the part nr of Q502 ( if I have read this correctly from pictures) , which is a 32pin voltage regulator for the GPU, I might be able to come with a solution.

so you need the part number of the q502? i will pull one of my cards now and take a look. brb
03-18-2006, 09:00 AM
mascaras

Quote:

Originally Posted by t024484

I suppose that the fact that the 7900GT is hard to get above 580Mhz .

--XFX 7900GT EXtreme (520/1500) Cloked to 585/1860@Stokcooler, Stok bios , NO vmods
--Opty 148@ 2990mhz-1.40v --Watercooled
--2x512Mb Patriot TCCD@ 299Mhz Cl2,5-4-3-7 1T-2.65v
--3Dmark 2005 --- 10253

http://img95.imageshack.us/img95/635...18603bg.th.jpg

guys i have watercooling in my PC and i will buy a Waterblok to my 7900GT you guys think its better a waterblok like Alphacool NVXP-3 and AquagraFX (core and memorys) or a waterblok only for the core and ramsinks in memorys??

In my old 7800GT i had a Alphacool NVXP and i like it , and in my old x800GTO o had a waterblok only in the core and ramsinks and i like too.

I read that waterbloks like NVXP-3 are good in the core but not so good for memorys cause they catch the heat of the core , what should i buy??
03-18-2006, 09:15 AM
GoldenTiger

Quote:

Originally Posted by GoldenTiger

Hmmmmm I will try a higher core with 1800 memory and see whether it works alright... I was just assuming it was the core there because of the type of artifact (the staticy white kind on textures). Thanks :) .

EDIT: Tried 580/1800 but no go... same staticy artifacting on textures (white dots). Think I'll stick with 570/1800ish for a 24/7 overclock, will fine-tune the speeds tomorrow, for the night I want to relax with some games :D ! Maybe I will get 575/1840 or so as a final with a bit of buffer room built-in.

I think the issue I am having is heat-related. My system is...

A SHUTTLE SN25P SMALL-FORMFACTOR CASE

I can put the core to about 590 and get the exact same artifacts as 580, just with higher temps and more quickly since the system heats up faster. My temps are going too high for comfort at 580/590, as I only have the fans on the medium setting in the BIOS (there are higher ones ;)), and I like the quietness of the system. I could crank the fans up higher, and I'm sure I'd get better clocks to match, but for a "cramped" and relatively hot-running small-form-factor case I'm happy with:

Athlon 64 X2 3800+ @ 2.6ghz/core
2x1GB (2GB total) RAM @ 216mhz
300GB Maxtor MaxLine III 7L300S0 HDD SATA-Native NCQ HDD
XFX 7900GT EXTREME 520/1500 Edition @ 570core/1800mem
DVD Burner/ReWriter
Floppy Drive
Card Readers
etc.

Not bad for a tiny little box like this :D ! I may try cranking the fan settings up just to confirm my theory, if I do I will report back with results ;).
03-18-2006, 09:20 AM
cronic

1 Attachment(s)

Quote:

Originally Posted by t024484

I suppose that the fact that the 7900GT is hard to get above 580Mhz and that voltmodding does not bring the expected result, has not to do with an overvoltage protection but with an overcurrent protection.
I had this problem with my XFX7800 GT, changed it and all problems were gone. My 7800 GPU is doing 566Mhz.
I do not have a 7900GT yet, but if someone can give me the part nr of Q502 ( if I have read this correctly from pictures) , which is a 32pin voltage regulator for the GPU, I might be able to come with a solution.

ok here is what i found if this is not what you need let me know. i have the 2nd laying outside of the case so i can prod around as needed. i could not find a 32 pin anything on the board. i am assuning that the q502 is the loacation on the PCB. correct?

ok there is a 8 pin and 14 pin near the q502 location.

8 pin
4420
BE6A15

14 pin
6549CB2
P548C3D

SORRY FOR THE CRUD PIC
03-18-2006, 10:10 AM
t024484

Cronic,
This is not the chip that I need.
The one that I need is a little bit farther away from the left side, and much more upwards.
Maybe it is called U502, it is hard to tell from the picture that I have.
Anyway, you can find the chip because it is square and has 8 pins on each side, so in total 32 pins and there is no other chip in this area that fits the description.
03-18-2006, 10:27 AM
cronic

Quote:

Originally Posted by t024484

Cronic,
This is not the chip that I need.
The one that I need is a little bit farther away from the left side, and much more upwards.
Maybe it is called U502, it is hard to tell from the picture that I have.
Anyway, you can find the chip because it is square and has 8 pins on each side, so in total 32 pins and there is no other chip in this area that fits the description.

gottcHa bud,

this is it

ISL6568
CRZ
N547BF
03-18-2006, 10:43 AM
DesertShooter

did the Vcore mod,

but it isn't working here, always 1,198v. What's wrong?
03-18-2006, 10:49 AM
cronic

Quote:

Originally Posted by DesertShooter

did the Vcore mod,

but it isn't working here, always 1,198v. What's wrong?

ITS A KNOW ISSUE THAT WE ARE TRING TO FIX.
03-18-2006, 10:56 AM
t024484

Quote:

Originally Posted by cronic

gottcHa bud,

this is it

ISL6568
CRZ
N547BF

That's the guy. I'll be back soon.
03-18-2006, 10:59 AM
cronic

Quote:

Originally Posted by t024484

That's the guy. I'll be back soon.

Awesome anything i can do let me know. thanks
03-18-2006, 12:43 PM
Gorod

Some 7900GTX testing & o/c results in SLI :

Opteron146 @ 2950MHz , 1.55V , 295x10.0 , HTT x3 |
Swiftech Storm + MCP655 |
DFI LP UT nF4 SLI-DR 623-3 |
2x512Mb , 268MHz @ 2.0-2-2-5-1T , 3.43V |
2x7900GTX SLI @ 696/989 (1 eVGA 650/1600 and 1 PNY 650/1600 models) , stockcooled with normal ambient temp .Something's holding GPU clocks , i'l have to test that eVGA individualy to see if it's a poor clocker , PNY in single mode benches fine @ 722MHz GPU , or may be it's my PSU maxed out (OCZ PowerStream 600W) :confused: ...

3DMark03 : 40057

http://service.futuremark.com/compare?2k3=4687464

http://img393.imageshack.us/img393/6647/400575vx.gif
03-18-2006, 01:10 PM
t024484

Quote:

Originally Posted by cronic

Awesome anything i can do let me know. thanks

A resistor between pin 10 and pin 11 is setting the current limit.
To increase the max current, this resistor has to be increased in value.
This implicates that the existing resistor has to be removed and replaced by a larger value.
Counting of the pins is counterclockwise starting at the dot in the chips housing.
Pin 10 and pin 11 are thus on the lower side of chip to the left.
Increasing the GPU voltage is done by connecting a variable resistor of 100K from pin 3 to ground.
03-18-2006, 02:00 PM
cronic

1 Attachment(s)

Quote:

Originally Posted by t024484

A resistor between pin 10 and pin 11 is setting the current limit.
To increase the max current, this resistor has to be increased in value.
This implicates that the existing resistor has to be removed and replaced by a larger value.
Counting of the pins is counterclockwise starting at the dot in the chips housing.
Pin 10 and pin 11 are thus on the lower side of chip to the left.
Increasing the GPU voltage is done by connecting a variable resistor of 100K from pin 3 to ground.

can you clarify that. i need to do this as well as the gpu vmod i have already done? and which pin do i connect the 100k vr to 10 or 11?
03-18-2006, 03:14 PM
Absolute_0

Put the waterblock on, hit 600 core easily

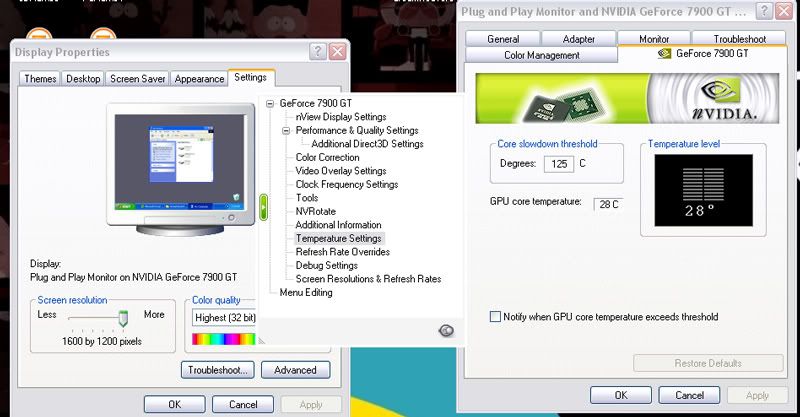

7900GT idles at 29c with watercooling. Under load maxes out around 31c. 31c is really all it shows when i alt tab out of heavy gaming, and it instantly drops back down to 29c.

http://img.photobucket.com/albums/v7...d/ed7b3feb.jpg
