08-29-2009, 05:44 AM
phsinc1

Quote:

Originally Posted by esdxx

RAMs are giving me stability issues too in new LinX (i think it is RAMs atleast). I'v got OCZ Platinum tripple channel - http://www.ocztechnology.com/product...triple_channel

I'v tried to lose the timings to 8-8-8-24 and bupmed the VTT to 1.35V and VDIMM to 1.64V, still cannot pass LinX (usually BSOD after 2 passes). My multiplier is set to 6.0 and uncore to x16. I am at 4GHz btw (190x21).

my experience with the new linx, the new version will need more vcore to pass compared to the old version, that's because the new version has improved linpack especially for 5500 series or i7
08-29-2009, 07:52 AM
Pyr0

Quote:

Originally Posted by BLunTSmoKeR

Thanks for posting your timings for these clocks mate, I will give this a go later on today and see if I can get my modules stable, I never used anything higher than 1.65v VDimm because of the Intel specification, but I have read a lot of posts on here where people are running 1.8 to 2v VDimm without any issues.

no probs m8, but remember i have a different version (3.2)

Quote:

Originally Posted by BLunTSmoKeR

Do you know why Intel have said that 1.65 is the limit?

the 1.65v mem limit corresponds to the 0.5v difference between qpi/vtt and dram at stock speeds

Quote:

Originally Posted by BLunTSmoKeR

What did you have the advanced timings set to when testing these clocks, did you just leave them on auto?

i left all sub timings on auto, but sometimes hard set the RTL values to stop them changing between reboots/trips into the bios
08-29-2009, 03:18 PM
DavyBoy

So how much VDimm is considered safe to use on these chips?
08-30-2009, 12:13 AM
nipper575

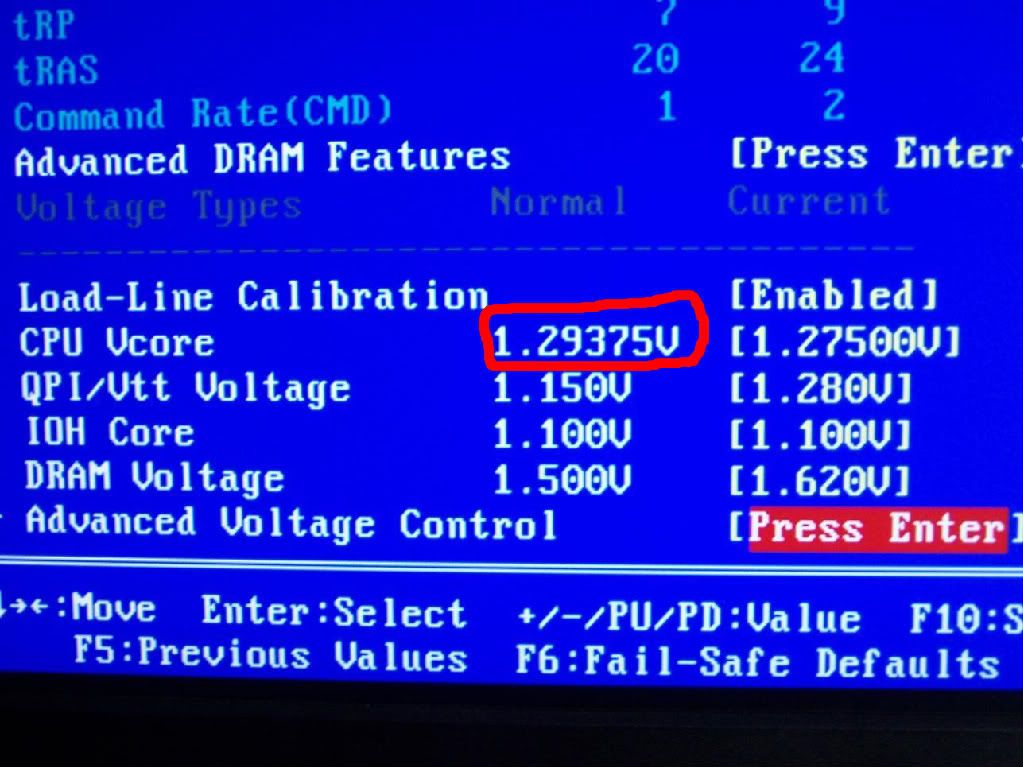

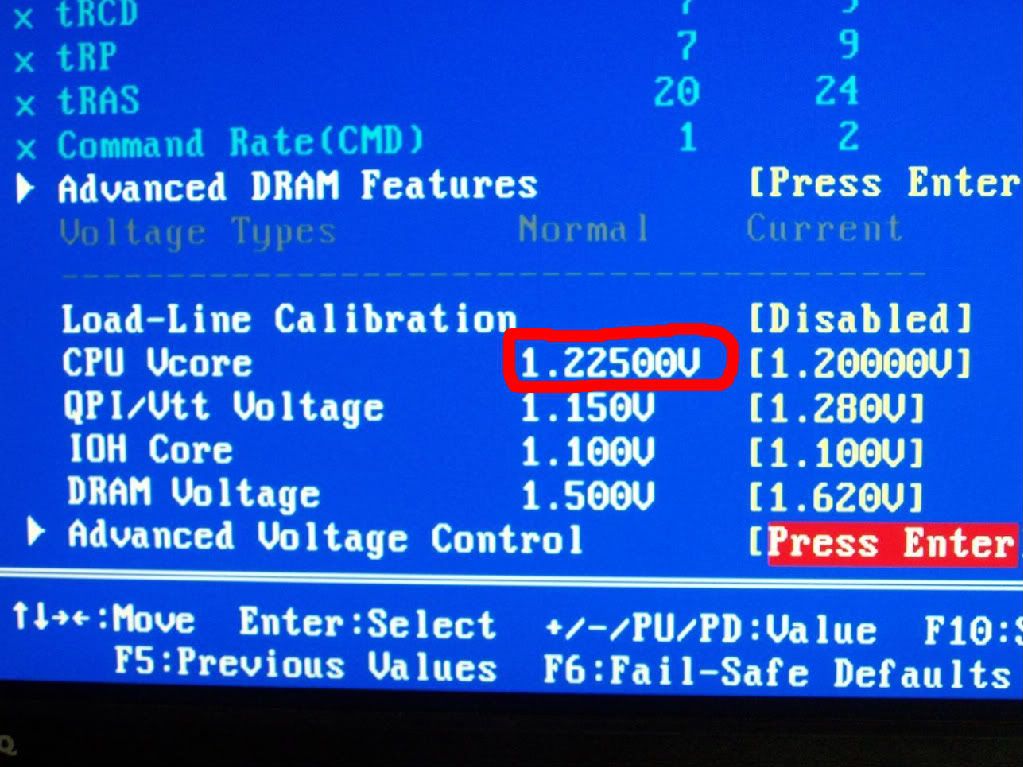

Can anyone tell me why what I had assumed is the default vcore for my 940 keeps changing it's value? I thought it was meant to be a reference to the stock voltage?

Only thing that has changed other than my manual voltage in each pic is HT and LLC. First I thought it was a result of turning those on/off, but it seems much more random than that.

http://i240.photobucket.com/albums/f...r575/002-3.jpg
http://i240.photobucket.com/albums/f...per575/003.jpg
08-30-2009, 04:30 AM
phsinc1

@nipper575, first picture is with Turbo Disabled, second is with Turbo Enabled, when you enable Turbo it will raise your vcore
08-30-2009, 04:33 AM
nipper575

Really, I didn't think I touched turbo mode, I'll try it now.

thanks.
08-30-2009, 06:10 AM
Pyr0

Quote:

Originally Posted by BLunTSmoKeR

So how much VDimm is considered safe to use on these chips?

personally i don't worry about it and just keep it below a 0.5v difference between qpi/vtt and dram
08-30-2009, 06:34 AM
zalbard

Quote:

Originally Posted by BLunTSmoKeR

So how much VDimm is considered safe to use on these chips?

I'd stick to 1.65 24/7. i7 ram seems so fragile...
08-30-2009, 09:22 AM
mudkip

I've used 1.80v for 1.65v rated mem, the whole ''don't go over 1.65v'' thing is just overrated imo.
08-30-2009, 12:55 PM
DavyBoy

So as long as I stick to the .5v rule I can push more than 1.65v VDimm without any worries?

I'm not planning on doing this for 24/7 use, just for benching.

@nipper, mine does the exact same when I disable turbo boost tech in the BIOS.
08-30-2009, 04:17 PM
123456iambelial

I got a question. How do you uninstall the old chipset driver?
08-30-2009, 06:30 PM
nipper575

Quote:

Originally Posted by phsinc1

@nipper575, first picture is with Turbo Disabled, second is with Turbo Enabled, when you enable Turbo it will raise your vcore

Quote:

Originally Posted by BLunTSmoKeR

@nipper, mine does the exact same when I disable turbo boost tech in the BIOS.

Thanks guys, after playing around with the settings, turning turbo on and off did indeed change my default vcore. I think there must be other contributing settings also as by turning turbo off only dropped my default vcore to ~1.265v, not the 1.225v it did in the picture, just a matter of seeing what I had turned on and off in the bios...

Thanks guys.

Quote:

Originally Posted by 123456iambelial

I got a question. How do you uninstall the old chipset driver?

Normally though add/remove programs, or programs and features if you are a vista user.
08-30-2009, 06:36 PM
123456iambelial

Quote:

Normally though add/remove programs, or programs and features if you are a vista user.

I have Vista Ultimate, but I don't see it in Programs and Features.
What is the name of the chipset driver in Programs and Features?
08-30-2009, 06:43 PM
nipper575

Quote:

Originally Posted by 123456iambelial

I have Vista Ultimate, but I don't see it in Programs and Features.
What is the name of the chipset driver in Programs and Features?

sorry, no you wouldn't find the actual intel INF driver there, silly me. I was thinking along the lines of the audio/lan/raid drivers that go along with it.

I think you will need to reformat and reinstall vista to change the chipset driver, or perhaps a repair install would also let you reinstall your chipset driver without losing any data.
08-30-2009, 07:06 PM
123456iambelial

Just for updating the chipset driver???
08-30-2009, 07:18 PM
SimpleTECH

Quote:

Originally Posted by 123456iambelial

Just for updating the chipset driver???

If you are mainly just updating your current chipset driver (overriding the files), try this:

Create a shortcut of the .exe
Right-click the shortcut and make sure it has -overall in the Target line.

example: "C:\INF_allOS_9.1.1.1015_PV.exe" -overall

Then run the shortcut thereafter. :)
08-30-2009, 07:26 PM
123456iambelial

Is there away to do this the right way? i don't want to screw up my system by updating my chipset driver.
08-30-2009, 07:40 PM
Lsdmeasap

Just update over the old driver, it will scan and install/update any necessary drivers and the others will be left alone
08-30-2009, 08:04 PM
nipper575

For updating I would just install over the old driver like the person above said, you asked how to remove the old driver in which case there is no quick way afaik.
08-31-2009, 01:39 AM
123456iambelial

Cool.
Thanks
08-31-2009, 07:23 AM
DavyBoy

Yeah mate, just install the newer one on top of the old one, I have done this several times and haven't had a single issue at all..
08-31-2009, 09:26 AM
Gunnz Akimbo

how come my heatpipe thingy doesn't help cool the chipset.

idles at 55*c sits at 61*c while gaming.
08-31-2009, 12:32 PM
SimpleTECH

Quoted from Stasio at TweakTown.

Quote:

New beta BIOS:

GA-EX58-Extreme - F9c
GA-EX58-UD5 - F9d
GA-EX58-UD4 - F7c
GA-EX58-UD4P - F10c
GA-EX58-UD3R - F8c
GA-EX58-DS4 - F8b

Update Intel microcode
D0 Stepping Temp control
08-31-2009, 01:59 PM
xtatdsm

Hello guys,

I am still on bios F4, currently my D0 is running at 4.2 with 1.375 vcore and 1.29 vvt, on water that is. my temps are good as far as D0s go (70c max on the highest core using linx) I just noticed that with bios F5 and above I get better support for D0. what does that mean, my 920 D0 works perfectly with the F4 bios. the only issue that I have is my vcore seems a bit high for D0 chips out there, should I update the bios and hope I will be able to run the same clocks with less vcore?? or bios update would not effect that? if yes the latest bios I see on gigabyte website is F7, however I see that there are F9s already out there, if you guys think that a bios update may improve my overclock (less vcore) which bios would you recommend keeping on mind that I am using USB wireless keyboard and mouse.

thanks

Ahmed
08-31-2009, 04:16 PM
DavyBoy

F7 BIOS seems to be the best for me, I will stick with it until F9 final gets released..

My first UD5 came with F4 BIOS, and I used to get BSOD's all over the place with my D0 chip, but as soon as I updated it to F6 all those BSOD's dissapeared..
