Mydog,Quote:
Originally Posted by Mydog
I just received a 980X...I upgraded my BIOS to 1802...I am having a real issue overclocking...Would you mind posting your BIOS settings?
-M
Printable View
Mydog,Quote:
Originally Posted by Mydog
I just received a 980X...I upgraded my BIOS to 1802...I am having a real issue overclocking...Would you mind posting your BIOS settings?
-M
What kind of issues?Quote:
Originally Posted by managerman
I'm at work now but I'll post them as soon as I get home.
Big problem getting over 190 BLCK....Maybe I should just not worry about it since the multi is unlocked...but would still like to see your settings...I am not sure about some of the settings for voltages other than VCORE...Quote:
Originally Posted by Mydog
Thanks a bunch!
-M
OKQuote:
Originally Posted by managerman
Here you go
CPU Config: everything disabled but HT on
CPU ratio: 21
Turbo: Off
BCLK: 200
PCIE Freq: 100
Dram freq: 1603
UCLK Freq: 3208
QPI Link: Auto
Load-Line Cal: Enabled
CPU Diff. Ampl.: Auto
Vcore: 1,34
PLL: 1,81
QPI/DRAM: 1,3
IOH V:1,11
IOH Pcie v: 1,51
IHC V: 1,11
IHC Pcie v: 1,51
DRAM V: 1,65
CPU Spread Spe: Disabled
PCIE Spread Spe: Disabled
The rest on AUTO
Hope this will help you.
Pushed ram & uncore a little harder for a SPI32M
3.43 GHz | 4049 MHz uncore | DDR3-2025 MHz | 7-8-7-20 1T | B2B = 4
http://i720.photobucket.com/albums/w...ncoreddr3-.jpg
You could trade/buy a NB/SB Bitspower block. The X-Fi will definitely fit then.
Mydog,
It helped a bunch!!! Thanks!!!...I am well on my way to a nice overclock...will be testing more stability tomorrow...The idle and load temps are insanely low with this chip...100% load on LinX never went above 55C on any core! Gotta love those Cinebench scores!
Here are my settings:
CPU Config: everything disabled but HT on
CPU ratio: 22
Turbo: Off
BCLK: 200
PCIE Freq: 101
Dram freq: 1600
UCLK Freq: 3208
QPI Link: Auto
Load-Line Cal: Enabled
CPU Diff. Ampl.: Auto
Vcore: 1.41
PLL: 1,81
QPI/DRAM: 1.38
IOH V:1,11
IOH Pcie v: 1,51
IHC V: 1,11
IHC Pcie v: 1,51
DRAM V: 1,65
CPU Spread Spe: Disabled
PCIE Spread Spe: Disabled
The rest on AUTO
-M
Nice results, thats 32nm for you cool and fast.Quote:
Originally Posted by managerman
Glad I could help:up:
aaaah ;) rampage2 is under water :) but I dont have a slight of an idea where to start ... want about 4,4+ ghz ... i960 ... where would you start? blck 200 with 23x ... just give me some biossettings .... PLEAZ :;) toyz
Very nice, managerman.
Is that just for benching or 24/7? Not sure if 1.4v is a good idea on a 32nm chip...
That's high even for 45nm i7...
anyone know if i can run crossfire in first blue and third white slots
will it be 16x16?
i'm too lazy to take out the psu
these acceleros takin lots of space:(
That slot can only run at 8x or 1x, iircQuote:
Originally Posted by zsamz_
thanksQuote:
Originally Posted by artemm
:hitself::hitself:
i dont think a 4870 will need more than 8:shrug:
or mabe time to sell the i7 and game on rex
Yeah 3rd slot is 8x max electrical. You could always just sell both 4870's and pick up a 5870 heh.
Not sure yet...I have not seen the "official" voltage recommendations for 32nm...but I have seen a lot of posts benchmarking these chips over 1.5v..Quote:
Originally Posted by artemm
I think for now 1.4 would be as high as I go 24/7...but I am sure I will go for some suicide runs to see how far I can take the chip for benchmarking....Why not :D
-M
i almost bought the 5850 stupid meQuote:
Originally Posted by CryptiK
and i passed 1 up for 240$ :rofl:
i passed up a 5870 for 350:mad:
i traded 4gb of ddr3for another 4870 yesterday :rofl:
you think its gonna take a big hit 16x8
and i wonder if i can even find a long crossfire cable
i think i wil sell this cherry rig n just game on rex spacing is perfect
Hey zsamz . Put your two cards in the pcie x16 slots to get the full bandwidth . I look at it like this , when there is free performance at hand grab it and run with it . Why choose the slower route when a faster way is there for the taken and free !!!
Quote:
Originally Posted by seba84_2005
At first sight it seemed a futuristic car engine.
Many compliments! :)
Rather low LinX speed with 12 threads...:confused:Quote:
Originally Posted by managerman
I get 54.4 with 8 threads, 5000 Mb used, x64 core, cpu (i7-975ee) at 4200 MHz, memory at 1877 MHz 7-7-6-18-88, B2B 4.
Can you push a little more your overclock? :)
seba84_2005 Rig > http://i470.photobucket.com/albums/rr63/pcnazz/rig.jpg
Super clean ! Love it :up: .
That is a damn fine looking PC seba84_2005, excellent work.

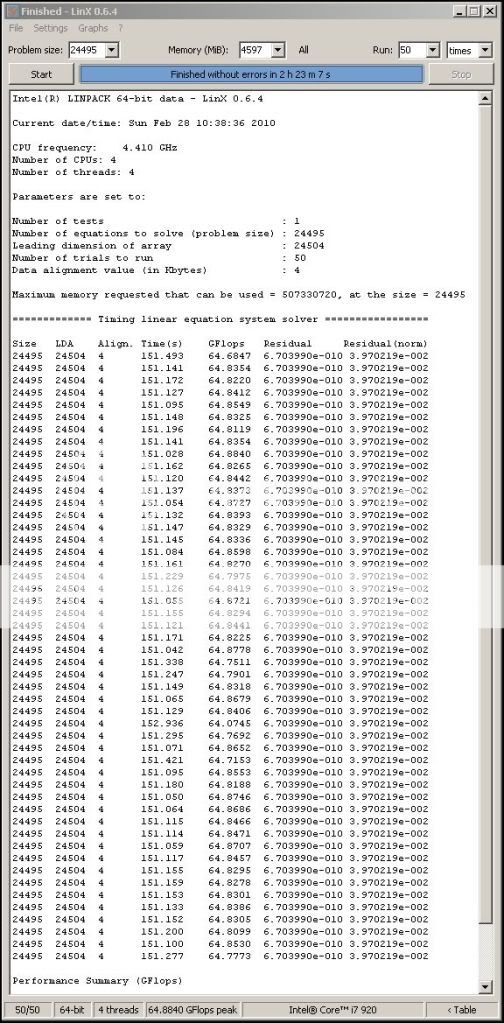

http://i470.photobucket.com/albums/r...summarypg1.jpghttp://i470.photobucket.com/albums/r...summarypg2.jpghttp://i470.photobucket.com/albums/r...inX50times.jpghttp://i470.photobucket.com/albums/r...GhzBios011.jpghttp://i470.photobucket.com/albums/r...GhzBios007.jpghttp://i470.photobucket.com/albums/r.../441ghz001.jpghttp://i470.photobucket.com/albums/r...GhzBios016.jpghttp://i470.photobucket.com/albums/r...GhzBios014.jpghttp://i470.photobucket.com/albums/r...GhzBios015.jpghttp://i470.photobucket.com/albums/r...GhzBios018.jpg My Bios for Rampage II Extreme v1704 & i7 920 & Corsair Dominator 2000GT CL8 Signature Clocks . LinX 50 times passed . Also stable 100% with HT enabled adjusting just IOH to 1.7966v and Dram Round Trip latency CHA CHB CHC to auto with all other bios settings the exact same . Do your own over clocking and stability testing but you can see here what is working for me 24/7 100% stable . Keep in mind with HT enabled you will see about a good 10c higher temps per core .
Dibs on your proc!!! :DQuote:
Originally Posted by zsamz_
when i sell you on the top of the listQuote:
Originally Posted by turtletrax
kinda hard to let go of the perfect day to day rig
nice job seba84_2005, amazing.
