Well the CPU seems to need high vCore but it runs quite cool anyway.
Did a Vantage run at 4768MHz, you can see the screens here: http://www.diskusjon.no/index.php?se...ost&p=15208990
Printable View
Well the CPU seems to need high vCore but it runs quite cool anyway.
Did a Vantage run at 4768MHz, you can see the screens here: http://www.diskusjon.no/index.php?se...ost&p=15208990

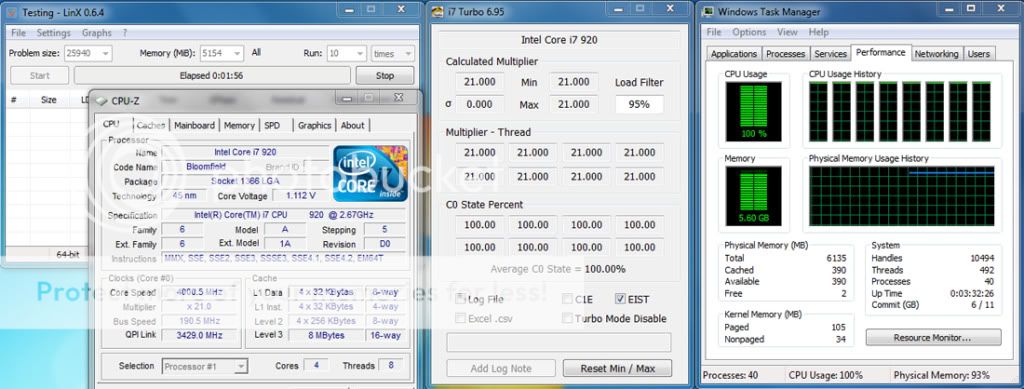

Not correct AFAIK. With 21x multi set, I have 21.00x on all 4(8) cores even when under full load. Might want to check with the Turbo Tool and see if it's the same for yours.Quote:
Originally Posted by pcnazz
http://i720.photobucket.com/albums/w...testing21x.jpg
I have problems with BIOS 1704/1802 , windows 7 starts and then BSOD-s on this 2 bioses, on 1504 no problems .What can be the problem ?
^^
With so little info it's hard to help... :)
This could be any number of things but the most common is probably the IDE settings. Make sure you have the drive controller settings properly configured before trying to boot into Windows. Memory timings, voltage, etc. is another possibility that quickly comes to mind.Quote:
Originally Posted by Nasko
Im using 1504s setings ,when try with Optimised Default settings there is no problem with 1802.I thing that problem is in memory settings or some controller because Prime gives error in Blend test in the beggining of the test.I dissabled J Micron in bios to prevent this test in the beggining ,im using RAID 0 ,maybe this is the problem with IDE ?
Doing a little testing at 4GHz CPU, 4GHz uncore, DDR3-1900 7-8-7-20 1T, single GTX285

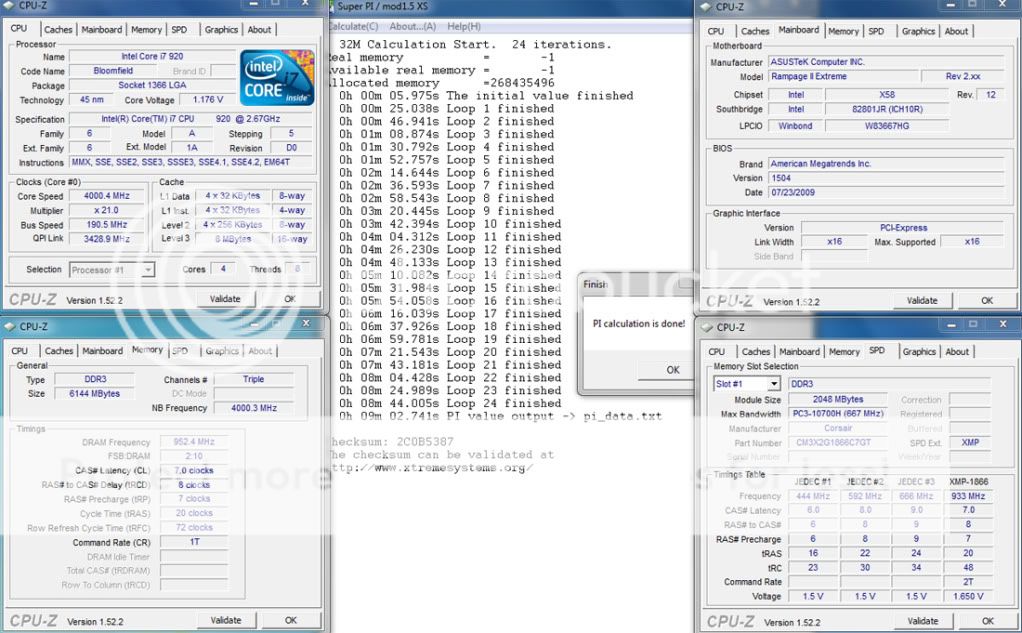

SPI32M (time slower than it should be due to W7 and HT on)
http://i720.photobucket.com/albums/w...ddr3-19007.jpg
3DM03
http://i720.photobucket.com/albums/w...dr3-19007-.jpg
3DM05
http://i720.photobucket.com/albums/w...dr3-19007-.jpg
3DM06
http://i720.photobucket.com/albums/w...dr3-19007-.jpg
Nice Run CryptiK
What's Your Cooling?
Can somebody show his bios settings for 1802 or 1704 (all settings voltages -cpu,qpi... and others) my problems are only with my settings with default there is no problem.
Thanks. CPU cooling is a lapped TRUE with 1600rpm push/1200rpm pull.Quote:
Originally Posted by ViViD
GTX285 is on stock cooler fan auto.
I have a BUG, I 3x2Gb detected with 6Gb, but actually the slot 2 does not work (or slot 1 and 2 do not work)
So going with dual-channel with 4088mb
http://www.pctunerup.com/up/results/...024_BUG6Gb.jpg
http://www.pctunerup.com/up/results/...4.3ghz3k06.jpg
I have seen comments that can be devis to a pin socket, anyone knows that has this pin location?
I have one and it works perfectly R2E
http://www.pctunerup.com/up/results/...1mXevi5.01.jpg
Thk
It's either your overclocking settings or the CPU not making a good contact with the pins that is causing the issue.
Bingo, you need a pin!
http://img8.imageshack.us/img8/2283/73794042.th.jpghttp://img85.imageshack.us/img85/3765/68166757.th.jpg
http://img190.imageshack.us/img190/716/64437792.th.jpghttp://img691.imageshack.us/img691/8357/33024503.th.jpg
http://img38.imageshack.us/img38/7928/57791710.th.jpg
http://img20.imageshack.us/img20/3654/65375494.th.jpghttp://img199.imageshack.us/img199/2668/50894018.th.jpg
Oh my, can you fix that? I,ve got the same problem, Bendt pin, with my P6T7 Supercomputer and wonder if it can be fixed.
Really small tweezers or pliers and a steady hand should get you out of trouble. Just be careful and don't break it!
I had something like this with a Gigabyte UD5. I used a needle to bend the pin back. After it worked but only @ default speeds. Very annoying............. Ultimately i got a R2E.Quote:
Originally Posted by CryptiK
:mad:I hate LGAs !! :mad:
Check pinQuote:
Originally Posted by Mydog
http://img171.imageshack.us/img171/1887/2zpin.jpg

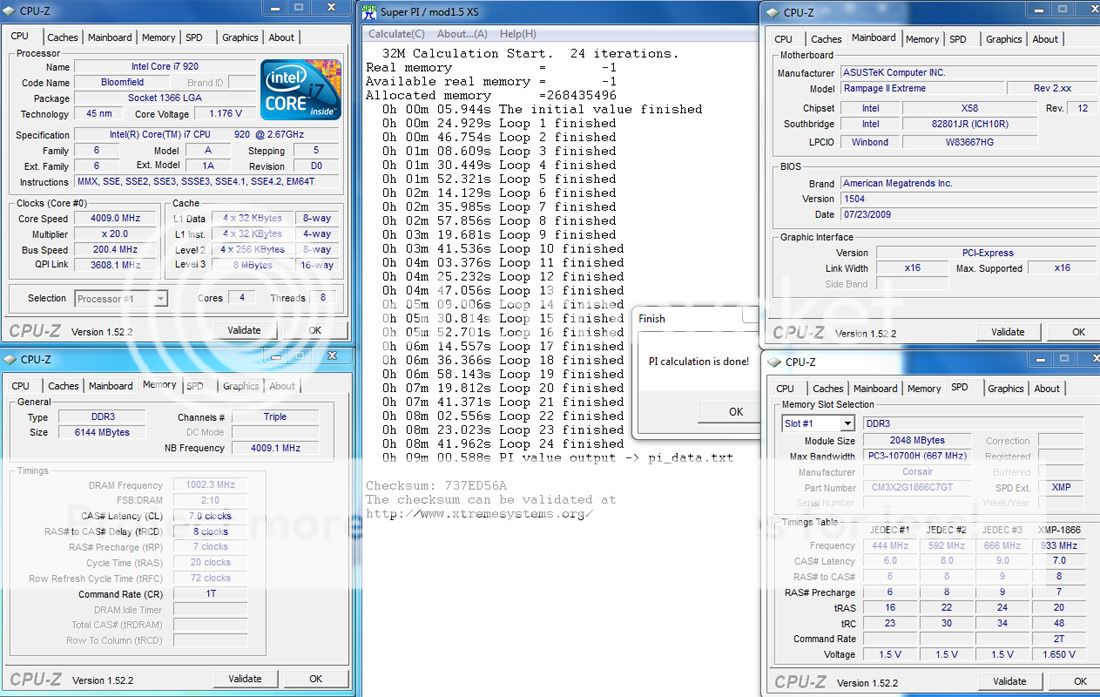

Pushed ram a little harder trying to get best time from SPI32M with CPU @ 4GHz HT on using W7. No OS tweaks, so close to sub 9 mins
4GHz | 4GHz uncore | DDR3-2004 MHz | 7-8-7-20 1T | B2B = 4
http://i720.photobucket.com/albums/w...ddr3-20007.jpg
Good! :)Quote:
Originally Posted by CryptiK
How much Vqpi is needed for above configuration?
Passed initial run with 1.3875v BIOS set (~1.33v real) but failed on re-run, bumped it up to 1.40v BIOS set (~1.35v real) passed a few runs with no problems.Quote:
Originally Posted by Brama
Hey guys, haven't posted in this thread in forever!! I want to put a third vid card in the bottom slot for Physx, but I cannot fit my titanium sound card in the top slot with my koolance NB/SB/QPI-Dram waterblock. I was thinking of just selling my koolance block and get the bitspower R2E block since I have heard it will allow my sound card in that top 1x pci-e slot. Do you think it's worth it this late in this boards life to buy another WB? Or should I just wait for the new asus board? If it would be good to get the new block, who wants to buy my koolance one? LOL :P
I'd just wait for the R3E to come out, then assess the options.
so look me PC.Quote:
Originally Posted by BringerOdeath
pci-e #1: GTX 280
pci-e #2: GTX 280
cpi : Xonar D2
pci-e #3: 9800GT for physx
all cooled with BP set ;)
http://img31.imageshack.us/img31/4821/s5001232l.jpg
With 2 x GTX295's I wouldn't bother with a PhysX card, save your money.Quote:
Originally Posted by BringerOdeath
