The Official Core 2 Duo Overclocking Thread

this will probably be my 24/7 speed while i'm using air cooling :shrug:
http://img170.imageshack.us/img170/6070/8hfu4.png

E6700ES @ 3.6GHz with 1.425V
Intel D975XBX 'Bad Axe' Rev 304 (1351 BIOS)
1GB Kingston PC8500

Dual Spi32m 3700mhz@1.55V (1.5V DMM)

http://img183.imageshack.us/img183/7...lspi32myf3.jpg



Orthos 3600mhz 1.55V(1.5DMM)

http://img183.imageshack.us/img183/8...mhz155vdl8.jpg

Quote:

---

Originally Posted by famich

On the AMD forum we used to have strict rules- at least 3H Prime stable OC was rendered stable - I don t think that a single SPI run is something
very particular - or let us start a new thread - "Prime stable overlocks " or something like that .

Let Eva 2000 or Absolute0 or other well known chaps / at least to me :) /
say their word about that.

---

This is the Core 2 Duo Overclocking thread, any overclocking results can be posted. Needless to say, benchmarks count.

If you want a stability testing thread you can make one, but you won't get as many posts in it because some people (myself included) think that running hours and hours of prime is a waste of time. I usually stop it after 30 minutes.

We had a discussion about that before, but how do you test your stability then ? Do you test it in games / e.g. Oblivion , which is IMHO very CPU demanding / or how ?

I agree that 8-12 H is a lot, but let us say 2-3 H seems OK to me , if you dont want to be afraid of locking up in the middle of ...

my e6400 is stable at 3.44 with 1.5vcore. Is that a little too high? idles at 45C and dual prime brings it to 53C even after 10 hrs. (core temps) Its a week 26. I thought the newer weeks OC better with less vcore?

Can anyone tell me how I can change the multi in the BIOS? I think it's in CPU configuration but it is locked.

On P5W DH u cant change multi in bios (yet), however it can be done with a program CrystalCPUID (function/intel inhanced speedstep control).

The magic 4ghz, here I come :D :banana:

http://img179.imageshack.us/img179/4955/39ghzsb4.jpg

Quote:

---

Originally Posted by Shark-357

On P5W DH u cant change multi in bios (yet), however it can be done with a program CrystalCPUID (function/intel inhanced speedstep control).

---

Thanks!

Have been torturing my E6300 and P5WDH somewhat,this is what i have achieved so far.:D

http://img132.imageshack.us/img132/6099/9ka4.jpg

Just took some nasties off my E6400...

http://img.photobucket.com/albums/v2...0/IMG_1138.jpg
http://img.photobucket.com/albums/v2...0/IMG_1142.jpg

Looks like 4C better idle, and 7C load. Def worth the time. As a side note, I lapped dry instead of wet this time. Results were a bit less satisfactory, but it took A LOT less time. Did the Zalman too since it had machining grooves I could feel.

1M @ 3.4GHz and BSOD'ed soon after.

3.2GHz dual primed for 10 mins till I got bored and aborted...
On Intel stock HSF.

CPU: E6400 @ 3.51 Ghz
Batch: L624A780
Motherboard: Gigabyte GA-965P-DS3 Bios F3
Memory: 2 x 512MB Corsair PC6400C5
Cooling: Boxed
FSB: 439
Memory Mult: 1:1
vcore: 1.4v
vdimm: 2.2v

http://img169.imageshack.us/img169/2526/439dt1.th.jpg

With Boxed :)

I'am gonna try now 3.6Ghz with my new Artic freezer 7 pro :toast:

CPU: E6300ES week17 @3.6GHz
514MHz FSB Asus P5B Deluxe (0607BETA Bios)
1.45V BIOS ~ 1.38V Load Windows
30 minutes Orthos Prime
514MHz G.Skill HZ sticks 4-4-4-12 2.3vdimm

http://img178.imageshack.us/img178/6...minutesbp8.jpg

Quote:

---

Originally Posted by The_Hardstylez

CPU: E6400 @ 3.51 Ghz
Batch: L624A780
Motherboard: Gigabyte GA-965P-DS3 Bios F3
Memory: 2 x 512MB Corsair PC6400C5
Cooling: Boxed
FSB: 439
Memory Mult: 1:1
vcore: 1.4v
vdimm: 2.2v

http://img169.imageshack.us/img169/2526/439dt1.th.jpg

With Boxed :)

I'am gonna try now 3.6Ghz with my new Artic freezer 7 pro :toast:

---

just looking the super pi speed 17s? My e6600 at 3.1ghz does it in 16. So does this mean the 2mb extra cache comes into play?

specv yeah the extra 2MB cache has a big impact on SuperPI scores

Yeah, the 2 MB extra on the conroe make's a big different in superpi.

3700@410x9 VC 1.525V

SPD mem timings MCH1.6V :)

Tallman - 3754 Mhz Dual 32m stable (1.6v) | Air_Sythe Mine 3 | P5W DH 1101 bios | OCZ 2*1Gig PC2 8000 EL Platinum Extreme Edition 4-5-4-15
Boot right into windows

http://img168.imageshack.us/img168/1...32mcpuzsd8.jpg



Boots to windows @ 3844_1M

Both these runs with 1.6Vcore set in bios and bits as per sig :D

1M @ 4072MHz

http://i16.photobucket.com/albums/b2...0ne/1M4072.jpg

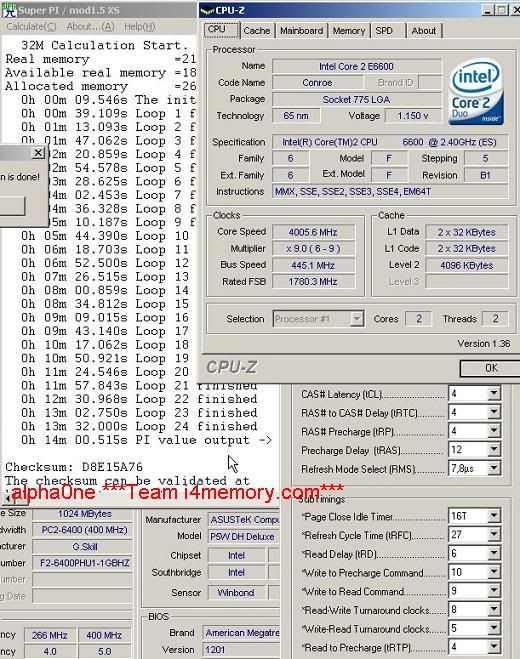

32M @ 4005MHz

http://i16.photobucket.com/albums/b2...ne/32M4GHz.jpg

P5B-DELUXE(no mod)
E6600 L627A
air cooler:HR-01


http://i111.photobucket.com/albums/n126/ruei0888/A6.jpg

Quote:

---

Originally Posted by alpha0ne

32M @ 4005MHz

http://i16.photobucket.com/albums/b2...ne/32M4GHz.jpg

---

hmm...

only ~19sec faster as my E6300 @ 3.6Ghz :stick:

zevia - 3200 Mhz Dual Prime Stable (1.35v) | Air - Big Typhoon | Asus P5W DH Deluxe BIOS 1301 | Corsair 2x1GB PC6400 (1.9v)

E6400 Retail @3.2Ghz [1.3500v]
ASUS P5W DH Deluxe BIOS 1301
Corsair XMS2 2x1GB DDR2-800 5-5-5-12 [1.9v]
Thermaltake Big Typhoon CL-P0114

Idle 35-36C, Load 46-48C

8 hours Orthos (complete settings in this post).
http://upload.cdfreaks.com/zevia/C2D...alprime_04.PNG

E6400 @ 3.6Ghz (1.42v)
P5B Dlx (vCore, vDroop, vMCH, vDimm Mod)
2GB GSkill HZ @ 2.1v
Watercooled

http://people.freenet.de/chris070719...-1/Prime-1.jpg

max. 1M Pi @ 1.46v

http://people.freenet.de/chris070719.../SuperPi-1.jpg

Guess not all chips are good.

Best I can do with my e6400 and P5b Deluxe is 2600mhz with voltage on auto.

I tried for awhile to get it above 330 using 1.5vcore. I also bumped up the Northbridge voltage, and ran my Corsair 6400 at 2v instead of 1.9. No dice.

I also went straight to 400x8 since some say 350-400FSB is not good on this mobo. At least it booted to Windows...

Temps were only 55c full load.

If anyone has any ideas please let me know...
