id say 1.55.Quote:
Originally Posted by adpr_02
on aother note. i think im getting close but core 3 just wont pass prime
http://img126.imageshack.us/img126/5432/fialnp5.jpg
Printable View
id say 1.55.Quote:
Originally Posted by adpr_02
on aother note. i think im getting close but core 3 just wont pass prime
http://img126.imageshack.us/img126/5432/fialnp5.jpg
heres what my q6600 has been running at so far.
http://img527.imageshack.us/img527/8288/34newss9.jpg
I have a xigmatek s1283 on it, but my ambient temps have been high lately, about 78-80f in my room. How are my temps looking?
I was also wondering if there is a way to lower my core volts and still be stable at 3.4 because at 1.35, one of the cores fails in prime. Is there any other way to gain stability for that?
Your temps look good. And I don't think you can get anything lower than 1.35 to get it stable since yours has a VID of 1.300. I would say try 1.4 and see if it works out for you.Quote:
Originally Posted by basso4735
try 1.4 for what? I'm stable at 3.4 with 1.375 volts. To get up to 3.6 it takes 1.45, i wish it didnt take that much.
I need 1.5V with LLC enabled on my Maximus (Rampage'd) Formula to get 3.6GHz stable with my Q6600, VID 1.3125.
Here is my Q6600 @ 3.6ghz Air Cooled finally as of yesterday evening and this morning Orthos Primed 11hrs 5min 4 secs before i stopped it and with these settings in bios, in my template below.
Bios 1103 and 1201:
**** System Performance Settings ****
*******************************
AI Overclock tuner: Manual
CPU Ratio Setting: 8.0
FSB Frequency: 450
PCI-E Frequency: 101
FSB Strap to North Bridge: Auto
DRAM Frequency: DDR2-901 MHz
DRAM CLK Skew on Channel A1: AUTO
DRAM CLK Skew on Channel A2: AUTO
DRAM CLK Skew on Channel B1: AUTO
DRAM CLK Skew on Channel B2: AUTO
DRAM Timing Control: Manual
1st Information: 5-5-5-15-3-52-6-3
CAS# Latency: 5
DRAM RAS# to CAS# Delay: 5
DRAM RAS# Precharge: 5
DRAM RAS# Activate to Precharge: 15
RAS# to RAS# Delay : AUTO
Row Refresh Cycle Time: AUTO
Write Recovery Time: AUTO
Read to Precharge Time: AUTO
2nd Information : 8-3-5-4-6-4-6
READ to WRITE Delay (S/D): AUTO
Write to Read Delay (S): AUTO
WRITE to READ Delay (D): AUTO
READ to READ Delay (S): AUTO
READ to READ Delay (D): AUTO
WRITE to WRITE Delay (S): AUTO
WRITE to WRITE Delay (D): AUTO
3rd Information : 14-5-1-6-6
WRITE to PRE Delay: AUTO
READ to PRE Delay: AUTO
PRE to PRE Delay: AUTO
ALL PRE to ACT Delay: AUTO
ALL PRE to REF Delay: AUTO
DRAM Static Read Control: Disabled
DRAM Read Training: Auto
MEM. OC Charger: Auto
AI Clock Twister: Auto
AI Transaction Booster: Auto
All Pull-In's: Disabled
CPU Voltage: 1.425 ( 1.416v idle | 1.43 full )
CPU GTL Voltage Reference (0/2): 0.630
CPU GTL Voltage Reference (1/3): 0.670
CPU PLL Voltage: 1.56
FSB Termination Voltage: 1.28
NB Voltage: 1.26
DRAM Voltage: 1.96
NB GTL Reference: 0.630
SBridge Voltage: 1.10
PCIE SATA Voltage: 1.50
Load Line Calibration: Enabled
CPU Spread Spectrum: Disabled
PCIE Spread Spectrum: Disabled
CPU Clock Skew: Auto
NB Clock Skew: Auto
CPU Margin Enhancement: Optimized
**** Advance CPU Settings ****
**************************
CPU Ratio Setting : 8x
C1E Support: Disabled
Max CPUID Value Limit: Disabled
Intel Virtualization Tech: Disabled
CPU TM Function: Disabled
Execute Disable Bit: Disabled
Here is screen shot just before stopping Orthos which i just took this morning at 6:44am.
Also not sure why, but Orthos states it is at 4050mhz.. lol
http://i69.photobucket.com/albums/i5.../11hrs5min.jpg
I stopped Orthos .. as i say she is good enough. I usually do 8-10 hours of orthos (when ever i OC) and i have never had any issues afterwards, but one never knows as you can prime for 24hrs and still have issues later on, but 8-10hrs is ideal for daily usage and or 24/7 usage.
Temps were decent, but i must inspect The Thermal Paste and heatsink mounting .. as it appears at times ... 2 cores are 8-10C higher then the other 2 ... cores 0-1 is 8-10C higher when OCing then cores 2-3, but at idle they are only 1-2C difference.
Idle right now is 33-32-28-30
Well i figured i run this program now to see if i am actually 100% stable as i just ran Orthos for 11 hrs last night/this morning... post is above and it never errored out, but if you read in this theard ppl who primed 10 hours or so .. ran linkpack and was not stable.
IntelBurnTest
http://www.xtremesystems.org/forums/...d.php?t=197835
Ok this program gets Cores HOTTER then Orthos Prime.
I need to figure out why 2 of my cores always read 10C higher then the other 2.
Linpack 0-1 Cores 84C and 2-3 Cores 74C Max.
Orthos = 0-1 Cores 74C and 2-3 Cores 64C Max. (Were talking like 2-3 instances of 3 secs of a Max of 74C)
Here is my test results just done 15 min ago and all is OK Residual result numbers 5 passes all same.
Also ppl read the read me text ... only use what free memory is available to use.
http://i69.photobucket.com/albums/i5...nkpackTest.jpg
YAY this morning I managed to get passed a 455FSB, I only tryed 456, lol. I would have gone higher but i'm to scared to rasie of volts up anymore. The funny thing is that today when I got pass 455 i used lower volts and stuff then I was trying before, WTF :confused:.
http://i292.photobucket.com/albums/m...ore4104GHz.jpg
Here's some results from my 680i with p32 Bios.
This are my everyday gaming/folding settings:
9x333 3GHz @ 1.2/1.176v 10minutes LOAD. 22degC. Ambient - 25hrs Prime Stable
http://img339.imageshack.us/img339/8...2vcorelqt4.png
9x333 3GHz @ 1.2/1.176v IDLE.
http://img339.imageshack.us/img339/7...2vcoreizw3.png
This is just for fun.
9x425 3.8GHz @ 1.5/1.472v 10min LOAD. 25degC. Ambient - 24hrs Prime Stable
http://img301.imageshack.us/img301/8...bient25xp3.png
9x425 3.8GHz @ 1.5/1.472v IDLE.
http://img386.imageshack.us/img386/4...bient25aw9.png
9x445 4.0GHz @ 1.68/1.657v IDLE. 26 DegC. Ambient - Not Prime Stable - Ran 3dmark06 though.
http://img178.imageshack.us/img178/8...5mhz3dmnx3.png
My poor 680i was weezing and whistling like crazy.

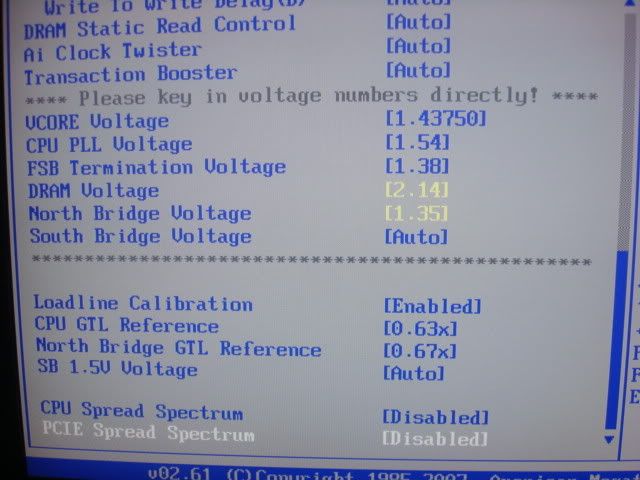

yo here, are some screenies of my bios, Could I get some suggestions on what I should change/use and stuff..... I kind of guess and checked these settings up to this point, they are OCCT 7 HOURS stable, but sometimes it won't POST the first time, lol! I have a feeling it's my RAM...
Anyways, my goal is to have mostly my OWN settings, without AUTO... because I already reached 3.9ghz stable with mostly auto settings and I want to fine tune my system with my own settings to get some better performance and perhaps more stability. Suggestions please!
http://img.photobucket.com/albums/v5...o/DSC03066.jpg
http://img.photobucket.com/albums/v5...o/DSC03067.jpg
http://img.photobucket.com/albums/v5...o/DSC03068.jpg
p.s. my vid is 1.225. And is this jsut for results or can suggestions be given also? I'll remove it if so.
You have the same VID as mine. This is mine @3.6Ghz stable and I use it 24/7 so you might wanna take a look at it to compare:
Asus Maximus Formula
Q6600@3.6 Stable
Extreme Tweaker
Ai Overclock Tuner : Manual
OC From CPU Level Up : AUTO
CPU Ratio Control : Manual
- Ratio CMOS Setting : 9
FSB Frequency : 400
FSB Strap to North Bridge : Auto
PCI-E Frequency: 110
DRAM Frequency: DDR2-800
DRAM Command Rate : 2T
DRAM Timing Control: Manual
CAS# Latency : 5
RAS# to CAS# Delay : 5
RAS# Precharge : 5
RAS# ActivateTime : 15
RAS# to RAS# Delay : AUTO
Row Refresh Cycle Time : AUTO
Write Recovery Time : AUTO
Read to Precharge Time : AUTO
Read to Write Delay (S/D) : AUTO
Write to Read Delay (S) : AUTO
Write to Read Delay (D) : AUTO
Read to Read Delay (S) : AUTO
Read to Read Delay (D) : AUTO
Write to Write Delay (S) : AUTO
Write to Write Delay (D) : AUTO
DRAM Static Read Control: Disable
Ai Clock Twister : Strong
Transaction Booster :Auto
CPU Voltage : 1.447 (close to 1.5)
CPU PLL Voltage : 1.6
North Bridge Voltage : 1.47
DRAM Voltage : 2.00
FSB Termination Voltage : 1.40
South Bridge Voltage : 1.050
Loadline Calibration : Enabled
CPU GTL Reference : Auto
North Bridge GTL Reference : Auto
DDR2 Channel A REF Voltage : AUTO
DDR2 Channel B REF Voltage : AUTO
DDR2 Controller REF Voltage : AUTO
SB 1.5V Voltage : 1.5
CPU Spread Spectrum: Disabled
PCIE Spread Spectrum: Disabled
Well with my settings I got about 8 hours stable on occt, or however long I slept last night... And that voltage was just a guess voltage, cause I'm going higher then 3.6 for sure.
Lol @ all you guys with great chips, I can't even get 3.7GHz stable.
Be glad you don't have to set the voltage at 1.575 in the BIOS to get 400x9 stable (1.52V idle, 1.48V load LLC disabled).Quote:
Originally Posted by Loser777
I never tried anything higher then 3.6ghz on my Q6600.... i may do so one day soon, but from 3.6-4.0 is not a heck of a lot of difference in performance.Quote:
Originally Posted by Loser777
Although it would be faster per say and load things a little faster and benchmarks a little better, but again overall it is not that much better.
Its just numbers after 3.6ghz.
Now if i can get 5.0-6.0ghz out of my Q6600 prime STABLE and Linoack too .... i'd be a millionare as many would buy it.... lol
Conclusion = 3.6ghz is good enough
Anything over 3.0ghz is being wasted anyways as not much utilizes any ghz over 3.0
Wowzer ...... i am 1.43v full load and 1.41v idle for my 3.6ghz.Quote:
Originally Posted by Shiranui Gen-An
My first Q6600 that I got rid of needed 1.51v for 3.6GHz.
My second that I also got rid of needed 1.384v for 3.6GHz.
This bad boy needs 1.368v for 3.6GHz, but scaling goes downhill very quickly after that.
Sure i can run and load windows as benchmark 3dmark programs at 1.38-1.39..... but it not stable.. prime and linpack ... so if it ain't stable it not a OC for me.Quote:
Originally Posted by Loser777
By "need" I mean 20 hours Prime 95 Stable and Linpack Stable... -_-'
I could do 3.8GHz @ 1.464v no problem on my old chip no problem for everyday usage.
Yeah i probably could or hope to do 3.8ghz at 1.45-1.46 with this one, but in time i may as 3.6ghz is good enough for me right now.
By the way if anyone likes to see what settings i used for my setup. I just updated my signature to reflect my template i used for Bios 1103 and now same for 1201.
Good luck with 3.8GHz stable, most chips start to scale horrifically when you go past 3.4GHz.
Yeah thats what i have been noticing about Quad-Cores no matter what ones they are, but there is plenty of ppl at 3.8ghz on them and stable ... so its the luck of the draw is all.
I wish my temps werent 70c at 3.6 with 1.45v. I would run that 24/7 but im at 3.4 with 1.375 for daily use :(
70C load is perfectly fine...
Is that 70C idle?
If it is full load ... i not like 70C either, but i max out now to only 63C-65C on core 0 is all and the rest of the cores are lower by about 2-3 degrees.
With my 3Fan Push 1Fan Pull I get 65C LOAD... I have crazy high ambients though. (1.36v)
Low VID chips are real hotties.
My 1.3125v VID chip only hit 68C on 1.44v with worse cooling.
