11-22-2005, 05:43 PM
alpha0ne

Quote:

Originally Posted by Dani

:toast:
Finnish OC Power :D

I love the low Vcore :toast: :clap:
11-22-2005, 06:42 PM
joe2004

1 Attachment(s)

146 CABYE 0540 FPMW (I hope I remember this well), on air.
11-22-2005, 08:22 PM
ncsa

Quote:

Originally Posted by Martin Cracauer

My 146 CABYE 0540 FPAW @ 1.6 V, 2x 512 MB Geil One BH @ 3.6 V.

Martin, you may have mentioned this before but what batch is you FPAW, plus BIOS running in the DR?

Thanks

Quote:

Originally Posted by Martin Cracauer

50492 and 623-3.

Thanks for the reply there Martin. Cheers
11-22-2005, 08:32 PM
uOpt

Quote:

Originally Posted by ncsa

Martin, you may have mentioned this before but what batch is you FPAW, plus BIOS running in the DR?

50492 and 623-3.
11-22-2005, 10:31 PM
Rufus7

Any Results of an CABYE 0542FPMW kown in the whole world?
11-22-2005, 10:56 PM
alpha0ne

Hehe let me know if you find any, I just recieved an 146 CABYE 0543FPMW :) :woot:
11-22-2005, 11:10 PM
Rufus7

A friend has an CABYE 0542FPMW bought yesterday he asks for known Results.
11-23-2005, 12:42 AM
before

Quote:

Originally Posted by Rufus7

A friend has an CABYE 0542FPMW bought yesterday he asks for known Results.

Check here. Only one reported so far: 14h of prime @ 2847, 1.55V

Another one here. ;)
11-23-2005, 03:02 AM
tatts

Quote:

Originally Posted by Rufus7

A friend has an CABYE 0542FPMW bought yesterday he asks for known Results.

yes i got one yesterday, didnt test mine properly as it struggles getting 3ghz stable, think there more 2.8-2.9ghz :(
11-23-2005, 03:38 AM
KenRico

Quote:

Originally Posted by BadlyDrawnBoy

Be sure to let us know. I want to get nearly that exact same configuration in the future.

with CABGE 0536 am only up to FX55 speed. The only thing making a difference with speed is vCORE, period..ended up putting mem timings back to SPD raised HT back up to 5, ect.

at 265 cpu setting cannot get sPI32M stable...270 and above is windows corrupt.

System as stands is BIOSTAR Tforce6100-939, 146, pair of 512MB SuperTalent CS2, WD2500KS, XFX 6800GS, Aspire X-Qpack...budget oc all the way.
Went with Thermaltake Big Water SE instead of Zalman...it did 36-38c with prime 95 a few hours.

So should I keep it as is? This forum reports CABGE 0536 is 2700/2800ish and mainboard is reported as max 272 cpu setting stable from review site. I think to go on is to RAISE Voltage even more...1.65v bios setting shows 1.54 in CPU-z after boot - next jump is 1.75, 1.85v ect. - Have room on temps but is big voltage jumps.

Any ideas??

http://members.cox.net/x64pc/x64dEFIANTFX55.JPG
11-23-2005, 06:26 AM
RafaDel

Quote:

Originally Posted by D4nnyOcean

I just removed one on my 146 CABYE 0536GPMW. Load temps of 53C on Water with a Swiftech Storm had me pissed so off it came.

Load temps dropped 14C to 39C with 1.55v @ 2800MHz.

Be very carefull using the razor blade. I found it much easier to slide the razor blade under the IHS at a corner, more like just pushing it under the IHS. But take care not to slide blade in to far. There are some circuits in there that can be damaged. Just take a look at one some has posted with the IHS off and you will see what I mean.

I'm sure someone else has posted this in this thread before but here it is again. A short movie on the removal. This fella used a razor and a screw driver to pry the IHS off. I didn't like the idea of twisting a blade under the IHS so I just used the razor to cut the sealing material but either will work.

IHS Removal

Good luck!

Yesterday I removed my 148's IHS and reduced temps in about 10C! I was refusing to do that but reading your post I said, enough to that stupid heat. Now at 1.5V my temps are around 55C full load with an XP-120 and low RPMs :D
11-23-2005, 06:51 AM
Rufus7

Thx before and tatts. And my 1700536MPMW struggled tonight with one Core at 2600Mhz and 1,36Vc after 3h42min by Prime 24.24 Custom. The Second core did it the whole night through. Thats not good news for me.
11-23-2005, 09:45 AM
tatts

rufus, i tried again with my 0542fpmw today & does 2.9ghz occt stable with 1.55V but doesnt like 3ghz, even with 1.65V which is abit high imo, never tested anything between 2.9 & 3ghz though so dont know the max.
but im not to bothered as my cab2e 146 is looking very good :D
11-23-2005, 09:46 AM
xgman

Today I recieved from newegg a 180 marked CCBWE 0543UPMW
11-23-2005, 10:31 AM
xgman

1 Attachment(s)

In case anyone hasn't already seen a topless dual Opty. :D
11-23-2005, 10:41 AM
gundamit

Quote:

Originally Posted by xgman

In case anyone hasn't already seen a topless dual Opty. :D

Thanks. Looks like it came off so clean. The black stuff still looks pristine. What's your techinique?
11-23-2005, 12:12 PM
xgman

Quote:

Originally Posted by gundamit

Thanks. Looks like it came off so clean. The black stuff still looks pristine. What's your techinique?

tis one came off easier than any one I have ever done. i juse use a ultra thin double sided rasor blade and start at a corner and slice evenly all the way around and then once more all the way around to be sure it's free. then use the tip of an exacto blade to gently pry one corner up. took about 2 minutes. the key is using a new sharp blade on each side if necessary.
11-23-2005, 12:28 PM
sponge bob

Quote:

Originally Posted by xgman

tis one came off easier than any one I have ever done. i juse use a ultra thin double sided rasor blade and start at a corner and slice evenly all the way around and then once more all the way around to be sure it's free. then use the tip of an exacto blade to gently pry one corner up. took about 2 minutes. the key is using a new sharp blade on each side if necessary.

you are pro, 2 min, my opteron is 1st cpu what i taked topless :P i took like 20 min , used razor blade, and f***d up 3 pins :P but i was lucky :nono: :D 10*c dropped in temps
11-23-2005, 01:09 PM
NYCTeeN82

Can anyone point out which memory works best with DFI LP SLI-D/DR and does 250HTT+ @ 2.2.2.5?
11-23-2005, 01:22 PM
Jack

Quote:

Originally Posted by NYCTeeN82

Can anyone point out which memory works best with DFI LP SLI-D/DR and does 250HTT+ @ 2.2.2.5?

i'm doing 270 2-2-2-5 with my redlines :)
11-23-2005, 01:53 PM
uOpt

Quote:

Originally Posted by NYCTeeN82

Can anyone point out which memory works best with DFI LP SLI-D/DR and does 250HTT+ @ 2.2.2.5?

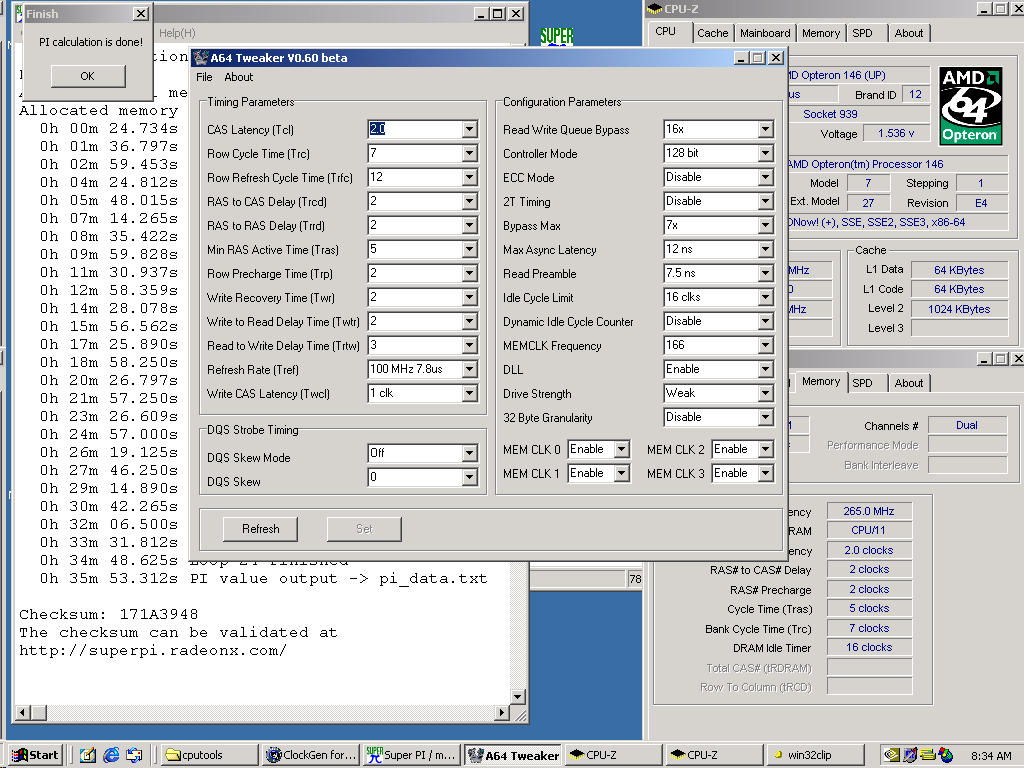

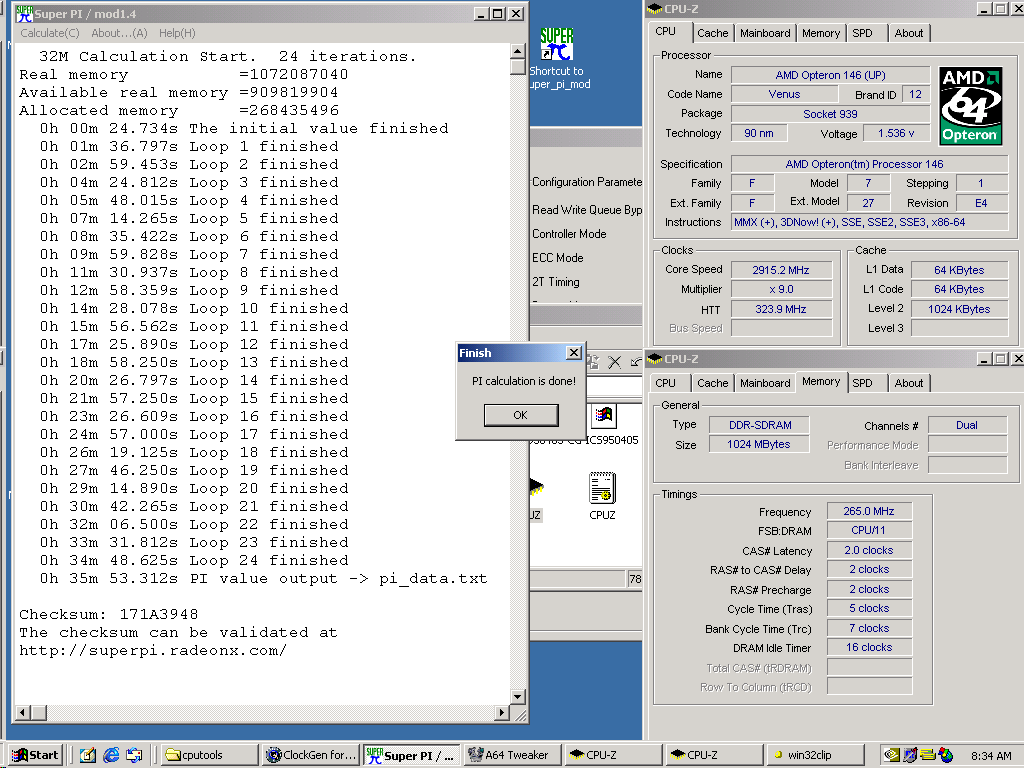

2x Geil One BH-5 in SLI-DR:

http://www.cons.org/cracauer/oc-scre...perpi32m_1.png
http://www.cons.org/cracauer/oc-scre...erpi32m_1b.png
11-23-2005, 01:56 PM
eBoy0

Bleh! Just got another 541RPMW... not even ganna open it, going to sell it or somfin.
11-23-2005, 03:04 PM
187(V)URD@

Quote:

Originally Posted by eBoy0

Bleh! Just got another 541RPMW... not even ganna open it, going to sell it or somfin.

how much did the last ?
11-23-2005, 03:12 PM
Viss

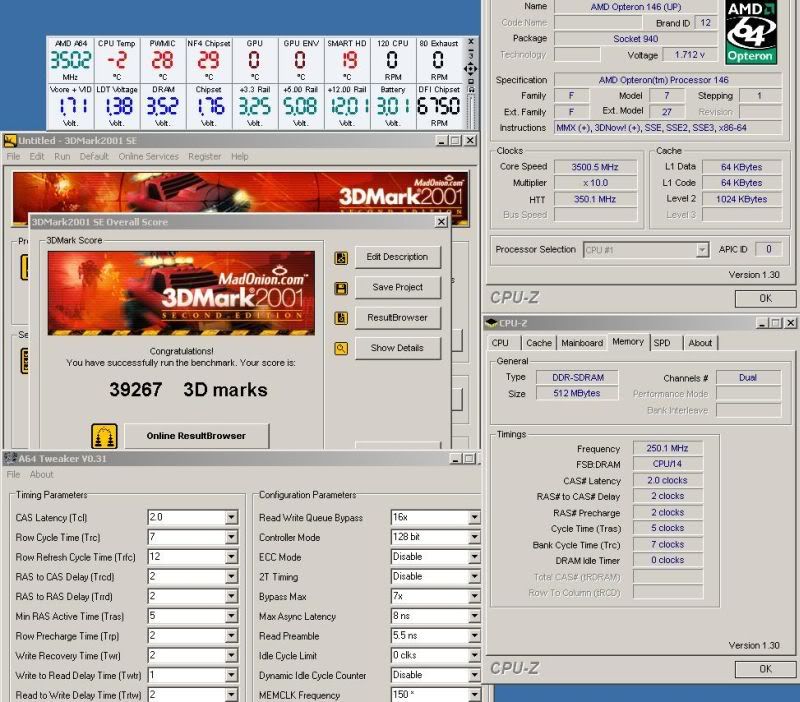

3500Mhz 3Dmark on me 146 opteron. Have to use ricky tweak otherwise coldbug wil max it out at about 335 HTT (stock mach II)

http://img.photobucket.com/albums/v6...39267small.jpg

http://service.futuremark.com/compare?2k1=8801379
11-23-2005, 03:14 PM
NYCTeeN82

Yea I've been looking at the Mushkin Redline XP4000. I can't seem to find many places online that carry them. Can you show me some places that have them and are fairly a good price?
