cpu-z also locks up my system randomly im on bios that shipped with mobo.
Printable View
cpu-z also locks up my system randomly im on bios that shipped with mobo.
In the cpuz config file set sensor to OFF. It won't read the vcore correctly anymore but wont lock your system up.;)
Their working on fixing the problem.
http://forum.x86-secret.com/showthre...285#post108285
when i open the older version cpuz in idle conditions, i would get random lockups...when i upgraded to cpuz 1.41, i was ok opening it in idle conditions...the only problem was when i was P95 and then trying to open it while P95...in that particular condition, it froze on me...the way around for me was to leave it open and minimize it to the taskbar...then, i would open and run P95...doing that didn't freeze my puter.
I have CPU-Z 1.41 and it will lockup my system if I have it open for too long. (1min - 5min)Quote:
Originally Posted by SHAIDO7
I have the BETA 16 BIOS.
Me too...:shrug: :shrug: :shrug:Quote:
Originally Posted by Ace-a-Rue
look how Memset is not working any longer on this board...with the Uguru chipset and software, it is different in how the Pro board operates with 3rd party software like cpuz and memset.
so.....I am looking into buying this board , cause I like the layout and overall it seems like a nice board, but im lacking confidence, i am looking for a 24/7 great overclock not just once in a day for benchmark, im thinking maybe 3.5 to 4 Ghz maybe?? btw my cpu is a C2D E6600 so is this mobo gonna perform well for me???
If your e6600 is fine on other boards at those speeds 24/7 than this board will handle it.Quote:
Originally Posted by Atal
Luck of the draw when it comes to CPU and RAM, so hope for the best. I am happy with my q6600 at 3.6 24/7. :)
The IP35 Pro is an excellent 24/7 rock solid board I am 100% sure you will love it.Quote:
Originally Posted by Atal
Here is my E6600 with the pedal to the metal :D
CN.
====================
ABIT IP35 PRO (BIOS M629B11)
INTEL CORE 2 DUO E6600 CONROE 2.4GHZ 4M L2 CACHE
OCZ PC2-8500 SLI 2GB (2 x 1GB) PN:OCZN1066SR2GK
INNO3D 8800GTS 320MB (162.18 DRIVERS) (OVERCLOCK 617 X 955)
2 X MAXTOR MAXLINE 3 250GB HD'S RAID 0 (7V250F0)
SONY DUAL LAYER DVD RW (DRU-820A)
OCZ GAMEXTREAM 700W PSU
WINDOWS XP PRO SP2
CPU COOLING: THERMALRIGHT ULTRA-120 EXTREME
ORTHOS (SP2004) + 3DMARK2001SE + 3x CPU-ZCode:OC GURU:
CPU OPERATING SPEED................ - USER DEFINE
EXTERNAL CLOCK..................... - 470MHz
MULTIPLIER FACTOR.................. - x 8
# ESTIMATED NEW CPU CLOCK.......... - 3760MHz
DRAM SPEED (CPU:DRAM) 1:1.20....... - DDR2-1128
PCI EXPRESS CLOCK.................. - 100MHz
VOLTAGE CONTROL:
CPU CORE VOLTAGE................... - 1.5800V
DDR2 VOLTAGE....................... - 2.150V
CPU VTT 1.2V VOLTAGE............... - 1.20V
MCH 1.25V VOLTAGE.................. - 1.37V
ICH 1.05V VOLTAGE.................. - 1.12V
ICHIO 1.5V VOLTAGE................. - 1.50V
DDR2 REFERENCE VOLTAGE............. - 0%
CPU GTLREF 0+2..................... - 67%
CPU GTLREF 1+4..................... - 67%
ADVANCED CHIPSET FEATURES:
DRAM TIMING SELECTABLE............. - MANUAL
CAS LATENCY TIME (TCL)............. - 5
RAS# TO CAS# DELAY (TRCD).......... - 5
RAS# PRECHARGE (TRP)............... - 5
PRECHARGE DELAY (TRAS)............. - 15
REFRESH CYCLE TIME (TRFC).......... - 30
WRITE RECOVERY TIME (TWR).......... - 3
WRITE TO READ DELAY (TWTR)......... - 3
ACT TO ACT TIME (TRRD)............. - 3
READ TO PRECHARGE (TRTP)........... - 3
COMMAND RATE....................... - 2T
PCIE COMPLIANCE MODE............... - V1.0A
PEG FORCE X1....................... - DISABLED
INIT DISPLAY FIRST................. - PCIEX
ADVANCED BIOS FEATURES / CPU FEATURES:
THERMAL CONTROL.................... - DISABLED
LIMIT CPUID MAXVAL................. - DISABLED
C1E FUNCTION....................... - DISABLED
EXECUTE DISABLE BIT................ - ENABLED
VIRTUALISATION TECHNOLOGY.......... - ENABLED
EIST FUNCTION...................... - DISABLED
http://i106.photobucket.com/albums/m...x83DMARK01.jpg
3DMARK2003:
http://i106.photobucket.com/albums/m...x83DMARK03.jpg
3DMARK2005:
http://i106.photobucket.com/albums/m...x83DMARK05.jpg
3DMARK2006:
http://i106.photobucket.com/albums/m...x83DMARK06.jpg
AQUAMARK 3:
http://i106.photobucket.com/albums/m...z/Aquamark.jpg
SHORT DESCRIPTION:
470 x 8 = 3.760MHZ @ 1.5800v
5-5-5-15 2T @ 2.15V DDR 1128
My last board was a DFI Lanparty 939. It was one of the best boards I've owned. This board easily fill its spot. This board pwns at a good price. This is definitely an over clockers board. Look at how many pages there are for one motherboard.
Combo deal at Fry's B&M, thru Oct. 30:
Intel Q6600 CPU & ECS 671T-M motherboard for $268.99
Unknown stepping version on the CPU.
SiS 671 chipset motherboard is designed only for DDR2 667/533/400; includes onboard video and PCIe video slot.
Ace,
about the bolt mod it has worked great for me but my pwn temp is still a little higher than id like so i took off the heatpipes to take alook and im making contact on alll the mosfets. i am wondering if i would be better off applying some as5 on the bottom of the heatpipe WITHOUT the little rubber pad that comes on the heatpipe? is this a bad idea removing the rubber pieces on the heatpipe?
i removed the 2 rubber pads under the NB and PWM heatsink and applied Ceramique...that paste has only a 2C difference between AS5...AND...Ceramique is totally non-conductive not unlike AS5 which under extreme pressure can be conductive.Quote:
Originally Posted by SHAIDO7
Its not conductive... its capacitive :p:Quote:
Originally Posted by Ace-a-Rue
No!!! Use MX-2 I'm their new fan boy. It is neither capacitive or conductive. Don't ask me how, but it is. Trust me non issue if its on the contacts mine is and I used it on my cpu and my temps are lower than as5. I used artic silver for years. There are products out now that beat it. That relates to a question I have. after applying the MX-2 and some 10Lbs springs on the heat pipes my NB only gets warm with two high powered 40mm fans on it. Should I bump my ichio up to 1.65 to attempt getting my memory stable at ddr2 1200.
Well 4 cores are harder to mantain stable so im guessing my E6600 will be ok! and what do u mean by the cpu and ram, im used to only nvidia boards since my first build so i dont know exactly the relation between cpu and ram on intel i know its dif but not exactly how :S:PQuote:
Originally Posted by Knight
I will definetively buy this mobo!, newegg has some open box mobo's for 134.99 its a great deal :D!Quote:
Originally Posted by C-N
I've had this board for about 1 month and have found a stable OC of 3.4ghz with a Q6600.
I'm now having some problems with my WD Raptor 150gb hard drive. I would say that 50% of the time when booting up the computer, this hard drive is not detected. Also, while in Vista 64-bit and doing my usual work for a few hours, the hard drive will just disappear. Sometimes it causes Vista to crash. When the hard drive is not detected on boot-up, everything operates extremely slow. I'd say it takes almost 5x longer for Vista to boot up. This hard drive only has some games and other program files. My other hard drive has Vista on it. I still have the same problems with NO OC and with add voltage to both CPU and RAM. I use Optomized Defaults.
Is there anyway to check if the hard drive itself is faulty? I'm not sure if it's the hard drive or the motherboard.
I'm using the 11 BIOS which brings me to my next problem. I have the Razer Tarantula USB keyboard and I cannot type anything while booting up. I can use it while within the BIOS but say when I want to type "runme.bat" in order to upgrade the BIOS from a bootable USB drive, I get nothing. This has essentially stopped me from flashing a new BIOS. I'm afraid to try and flash the BIOS while within Vista.
The hard drive was working fine for about 3 weeks (the entire time from initial new purchase) but has just recently given me troubles.
Thanks guys!
thank you for the connection.:D ;)Quote:
Originally Posted by derektm
try MCH first with ICHIO 1.5 as a 2nd choice.Quote:
Originally Posted by yasoumalaka
What exactly does ICH and ICHIO control? What are some recommended voltage choices for both of these?
ICH is the core voltage to the SB.Quote:
Originally Posted by Danger30Q
ICHIO is I/O voltage of the SB.
MCH and ICHIO are the two most important voltages along with Vcore and Vdimm to overclock...CPU VTT is a secondary adjustment
Yep I upped the MCH to 1.41 and now I have passed 31 passes of test 5 from memtest. I'll prime one blend three small ffts and see where I get.Quote:
Originally Posted by Ace-a-Rue
So why don't I need any ICHIO? Even 500x8 I didn't need any although that was only 32M tested. Needed more cpu vvt though. Maybe it's a quad thing???:shrug:Quote:
Originally Posted by Ace-a-Rue

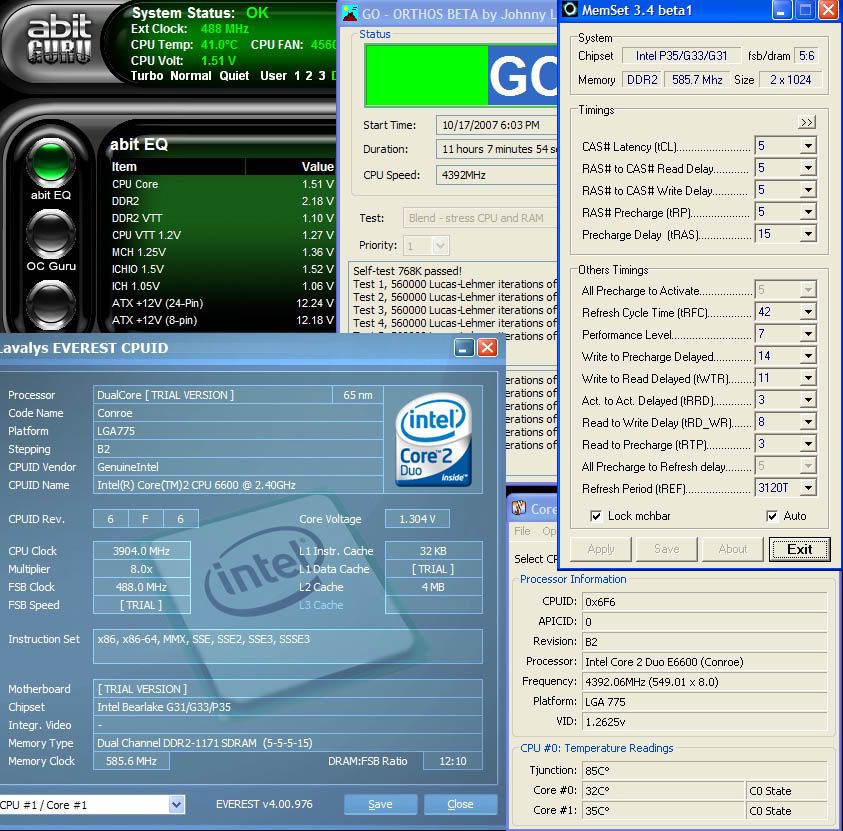

http://i76.photobucket.com/albums/j7...0Pro/39Ghz.jpg
probably...that is why i am hesitant to give anyone my voltage settings.
What DDR2 REFERENCE VOLTAGE does? Does it help at high fsb benches?
