[Team.AU] Gigabyte GA-EP45T Extreme - P45 DDR3 Monster

Quote:

---

Originally Posted by dinos22

look at that bandwidth

how the hell did you pull off Trd7 is beyond me

is that NB watercooled :D....1.7v nice

---

yes, but it was a one time thing...see below

Quote:

---

Originally Posted by T_M

i used to be able to do that speed but somehow lost the ability.

---

my experience with this board wrapped up in one sentence.

Ha ha, i cant understand this board. Yesterday i can do 32m with Quad af 480FSB. And today cant load Windows at 470 :shrug:

lol i hope my 600MHz setup doesn't worsen

i never seem to have issues doing previously stable settings i usually save in bios (F11) but now that you guys mention it i do have to say that my last EP45-Extreme(DDR2) board kinda started losing stability from 6.2GHz to about 6 ghz during one session but hard to say if it wasn't just moisture or something

Precedent Everest test with F4b
Same settings with F3 Bios
The F4b is better for up the memory frequency and bandwith :)

F4f is out ;)
Thx antoine.

Quote:

---

Originally Posted by redratamd

F4f is out ;)
Thx antoine.

---

;)

1160 mhz 8-7-6-18 with bios F4f :
http://valid.x86-secret.com/show_oc.php?id=422147

1164 mhz 8-8-8-24 :
http://valid.x86-secret.com/show_oc.php?id=422146

same result in cas 9 and single channel ;)

Gskill D9GTS @ 2.18v
TRFC 74

nice performance on cas8, i reached 1100mhz on cas8 2.20v with F4b bios, but max valid is only at 1073mhz good :/
CSX D9GTR @ 2.20v
antoine ygpm!

Bios F4f :
http://www.jzelectronic.de/jz2/Bios/ep45texf4f.exe

Changes?

Quote:

---

Originally Posted by antoine76

Bios F4f :
http://www.jzelectronic.de/jz2/Bios/ep45texf4f.exe

---

I'd like to update to this version however I can't read German(it's German right?) . Is there an English version?

Quote:

---

Originally Posted by x2s3w4

I'd like to update to this version however I can't read German(it's German right?) . Is there an English version?

---

english version ;)

what? BIOS is always in english.
I cant stand those localized bioses on brand PC´s.

Hi guys,

I can only get the 2.00D multiplier to work, is their any other multi's that seem to work? because if i change it to any other, windows wont boot.

I have my q9550@3.8 (450*8.5).

Is there any main settings i should tweak?
I only have the OCZ 1333 reapers, but running them at 900 is a bit of a joke:down:

This is my RAM and this is my motherboard.

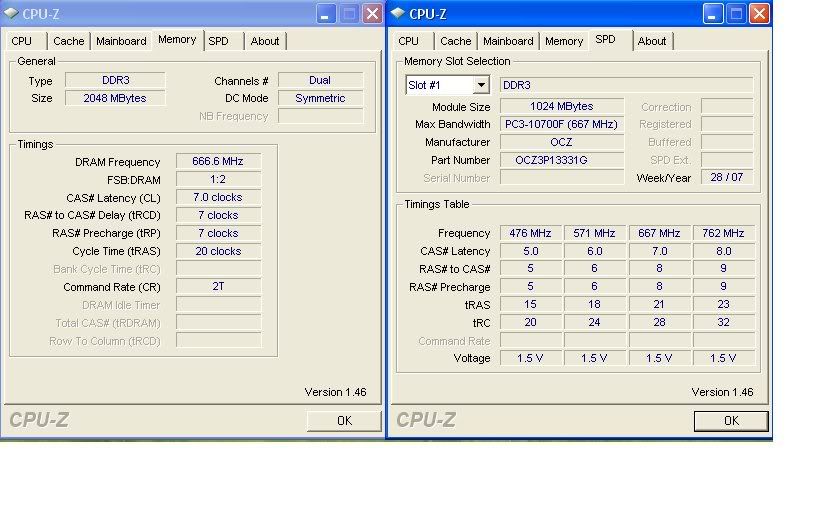

I was running into some strange things with both of them and I started trying different things. Here's everything at stock settings.


http://i244.photobucket.com/albums/g...rgepol/ni4.jpg


Doesn't it seem strange that there is no SPD column for stock settings?

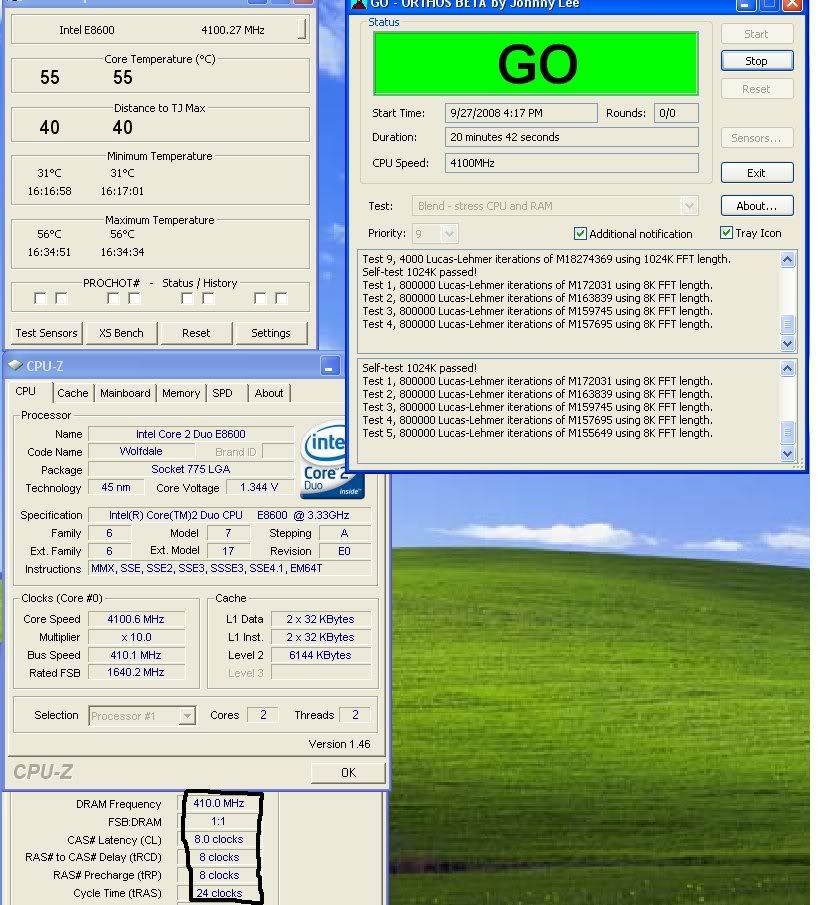

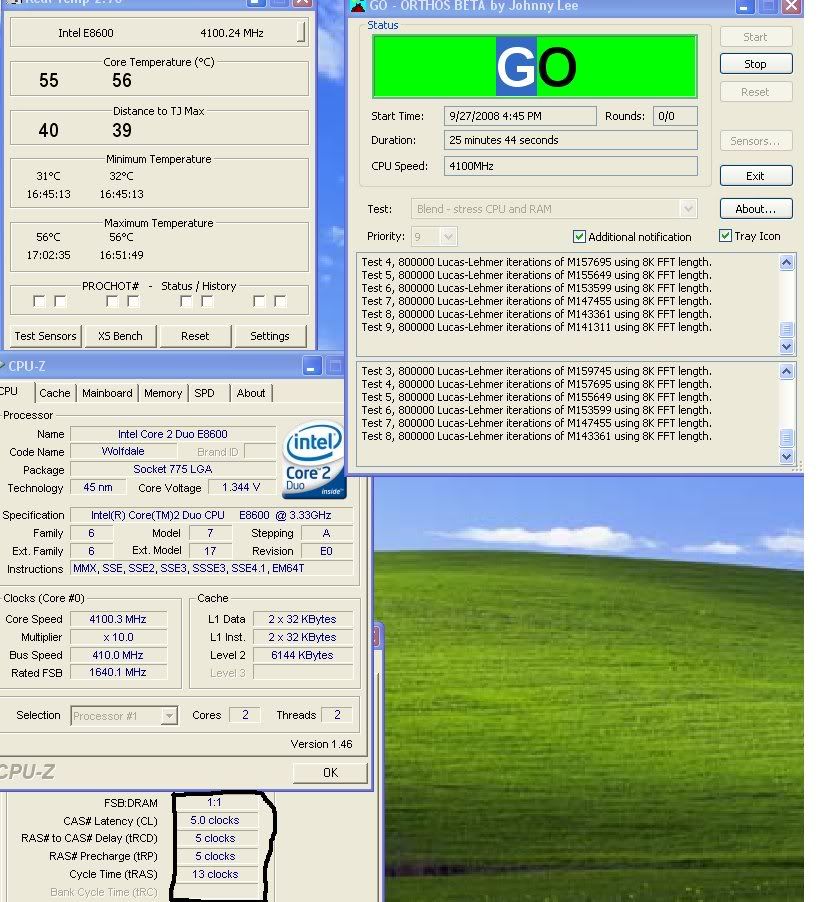

Second I can run at 4.1Ghz with my RAM timings at 5-5-5-13 and 8-8-8-24, but I can't even POST at 7-7-7-20. My RAM voltage is 1.8.

http://i244.photobucket.com/albums/g...rgepol/ni1.jpg
http://i244.photobucket.com/albums/g...rgepol/ni2.jpg


I've also had some other issues with this board and I'm wondering if all of my issues are RAM related issues.
Is there something strange here or is it totally normal and it's the first time I've seen anything like this?
Please ignore the voltage for now, I was also trying out something else when I found this.

Or could this be a bug like the CPUz and the E8600?

whats the max vtt @ bios ?

Quote:

---

Originally Posted by hicookie

ISL6336, from this layout, FB is #16, Vdiff is #17
give a resistor between this 2 pin, you can fix loadline calibration

prepare a 5kohm vr, connect to Pin#16 & Pin#17
using meter to measure it , oringinal should be 45.5k
turn it to 1.5~1.8k, depend on what loading.

Hicookie

---

hicookie you got cpu vtt and vnb vmods?

thanks

Quote:

---

Originally Posted by x2s3w4

I'd like to update to this version however I can't read German(it's German right?) . Is there an English version?

---

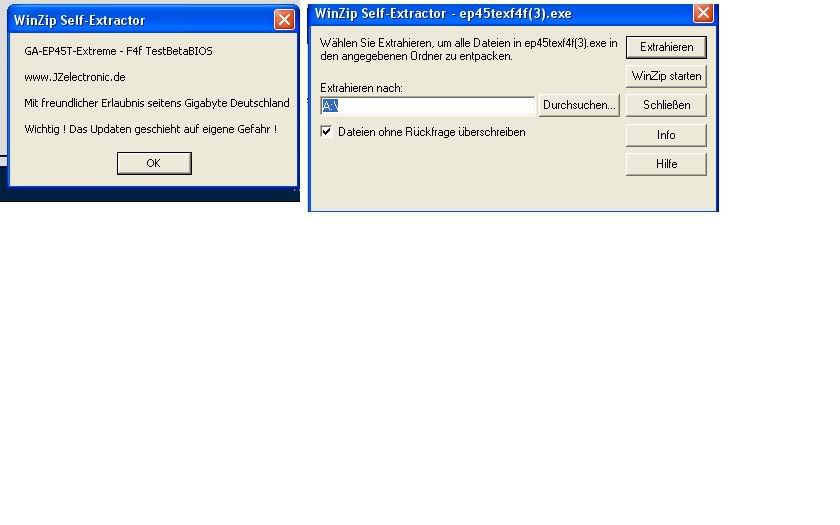

This is what I was talking about.
http://i244.photobucket.com/albums/g...rgepol/f4f.jpg

@ x2s3w4

It's an archive extractor executable, exactly like you'll find in english ver's.
Just select your destination (Durchsuchen..)
and hit the extract button top right.
You'll get the f4b bios file ...in english

or just use winRAR and do a direct extraction

F4 final is out :)

Quote:

---

Originally Posted by redratamd

F4 final is out :)

---

Yes but it suxx, can't pass 600fsb...

But with bios F4f :

http://valid.x86-secret.com/ccpuz.ph...7429&nocache=1

http://valid.x86-secret.com/show_oc.php?id=427429



E8600 Q822A408 under SS rota -51°C during test
Vpll : 1.4v
Vtt : 1.6v
vmch : 1.72v on stock cooling
GTL etc tweaké

Thats some crazy FSB, antoine76!
Well, I did some RAM overclocking since I have given up on the FSB with my board.
DDR3-2100 CL-8
vNB: 1.5v
VDIMM: 2.08V
I have tested Pi 2M at that speed. Havent tried anything more :p:

thanks!

700mhz done with WC on chipset! (20°C in bios) MCW30 + eheim 1250 :

http://valid.x86-secret.com/cache/screenshot/428100.png

http://valid.x86-secret.com/show_oc.php?id=428100


But the MB don't boot now :(

Awesome work Antoine :clap:
Tomorrow the MB will be ok ;)

F5b is out :)

Where?
