BlueAqua's SuperProject: MurderMod TJ-07, MM UFO, V2000

Damn this is looking sweet BA... Amazing work.

I like the pump placement, gonna be hidden nicely and the padding on the bottom will definately help with the bad vibes :) It is also a huge plus to have the pump mounted to that much Alu on the main chassis. Of the two pumps in my TJ the only one I can hear at all is the one mounted to the optical assembly, and that is because there isnt a boatload of Alu to keep it solid therefore vibration city.

Sick, sick sick, sick build buddy.

Lucky bastage LOL

Also, Heya Skinnee\Dangals\Charles:wave:

Quote:

---

Originally Posted by dingdong555

Nice work,

Going to be VERY tight down there :) (Sounds wrong at the same time lmao)

---

It's fun to say, I know. ;)

Quote:

---

Originally Posted by Utnorris

Man BlueAqua, this sweet. I love the paint jobs and the pump idea was clever. I wish I had some of your skills. That murdermod logo looks awesome. I could go on forever at how awesome this build is looking. Great job on the pics also.

---

That is a really nice compliment. Thanks so much Utnorris.

Quote:

---

Originally Posted by mcoffey

Another great build coming along. Can't wait to see how it all comes together. Very smart looking.

Keep it coming and have a blast,

andyc

---

Thanks mcoffey! I'll try to throw in some surprises to make it interesting and exciting for you. :)

Quote:

---

Originally Posted by turtletrax

Damn this is looking sweet BA... Amazing work.

I like the pump placement, gonna be hidden nicely and the padding on the bottom will definately help with the bad vibes :) It is also a huge plus to have the pump mounted to that much Alu on the main chassis. Of the two pumps in my TJ the only one I can hear at all is the one mounted to the optical assembly, and that is because there isnt a boatload of Alu to keep it solid therefore vibration city.

Sick, sick sick, sick build buddy.

Lucky bastage LOL

Also, Heya Skinnee\Dangals\Charles:wave:

---

TT, we miss you. You need to get your internet back. Don't make me go to Canada and get that beer and steak you promised me. :)

I'm really happy with the pump base. It's heavy enough and with a wide base so that it won't wobble or shift around. I'm still going to attach it to the case but it's going to be solid. I just need to ensure that it doesn't touch the psu or radiator. I'll still have room down there to install a double radiator if ever needed, so that will be a good option.

I also cleaned out my Feser radiator. To my surprise the water came out clean every time.

I need to go and make some progress. :) Thanks for all the support guys.

Today I mounted the fans to the radiator and attached the Hammond boxes to the frame. That was a lot more time consuming that I would have thought, but the results were great.

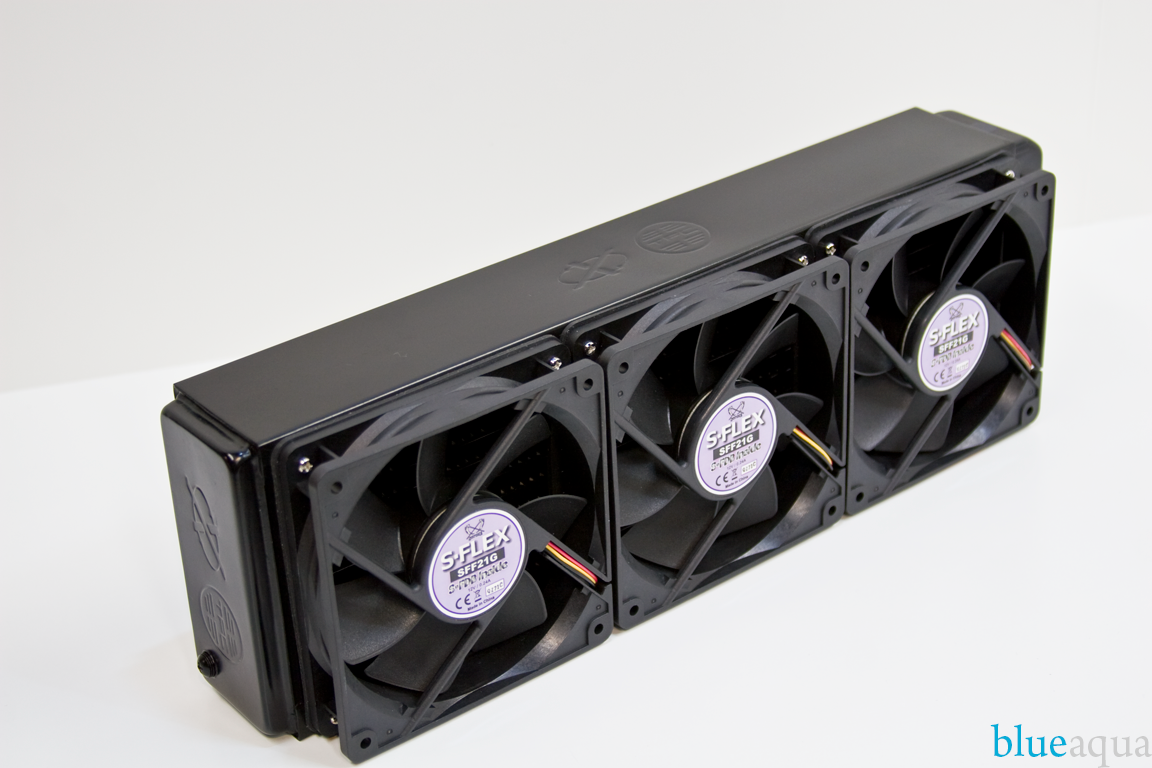

Feser 120.3 with Scythe S-flex G's. :) I also really liked the included gaskets, very nice and easy to work with.

http://img.photobucket.com/albums/v2...a/IMG_2441.png

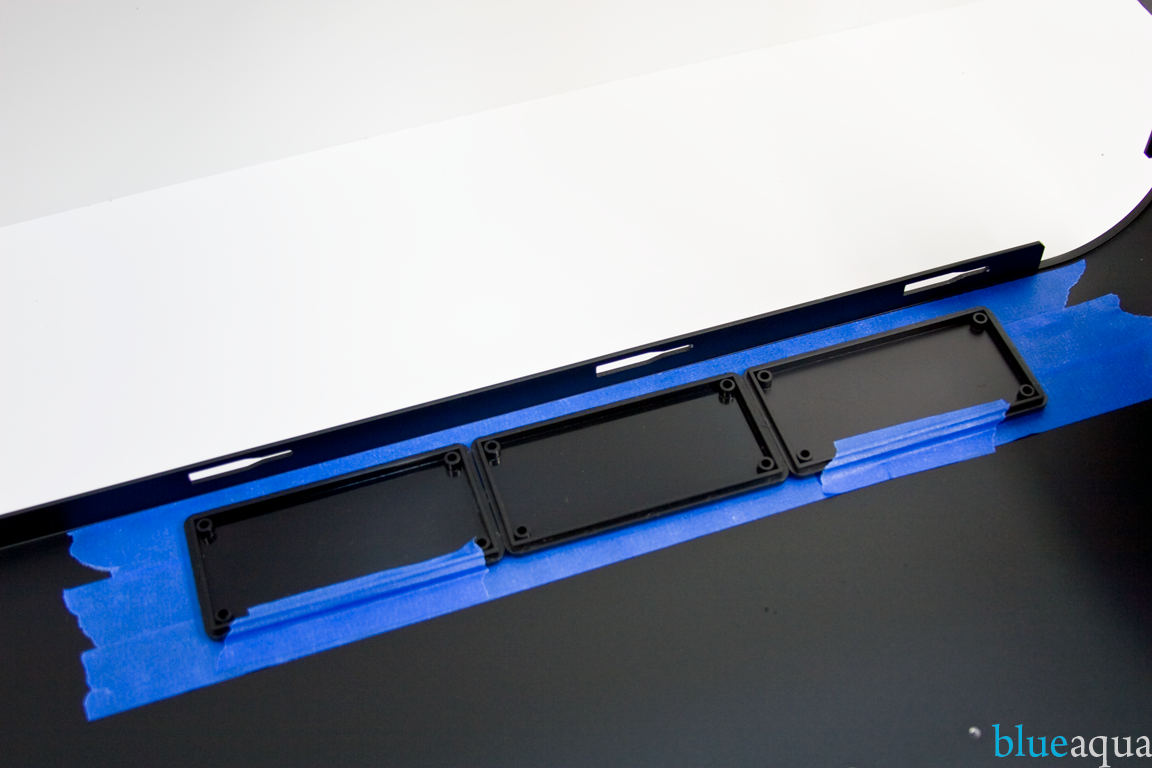

Base taped and ready for drilling:

http://img.photobucket.com/albums/v2...a/IMG_2446.png

View of the holes from the bottom:

http://img.photobucket.com/albums/v2...a/IMG_2453.png

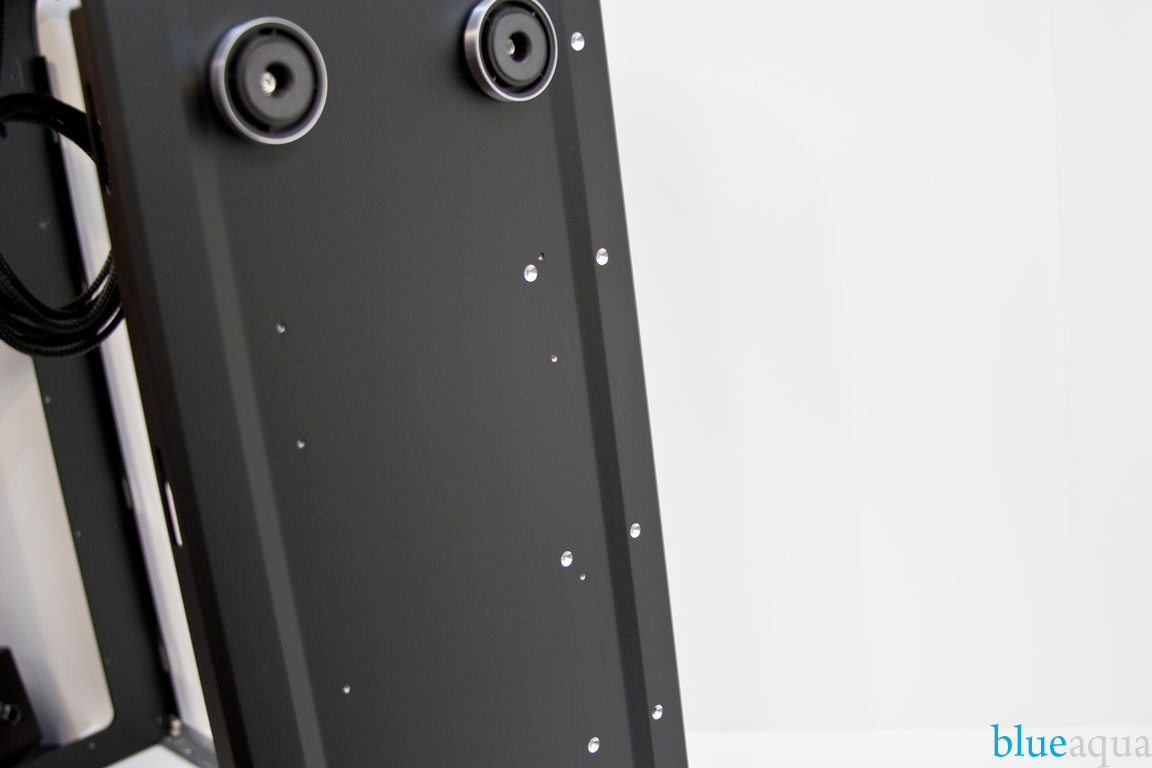

View of the countersunk screw holes:

http://img.photobucket.com/albums/v2...a/IMG_2456.png

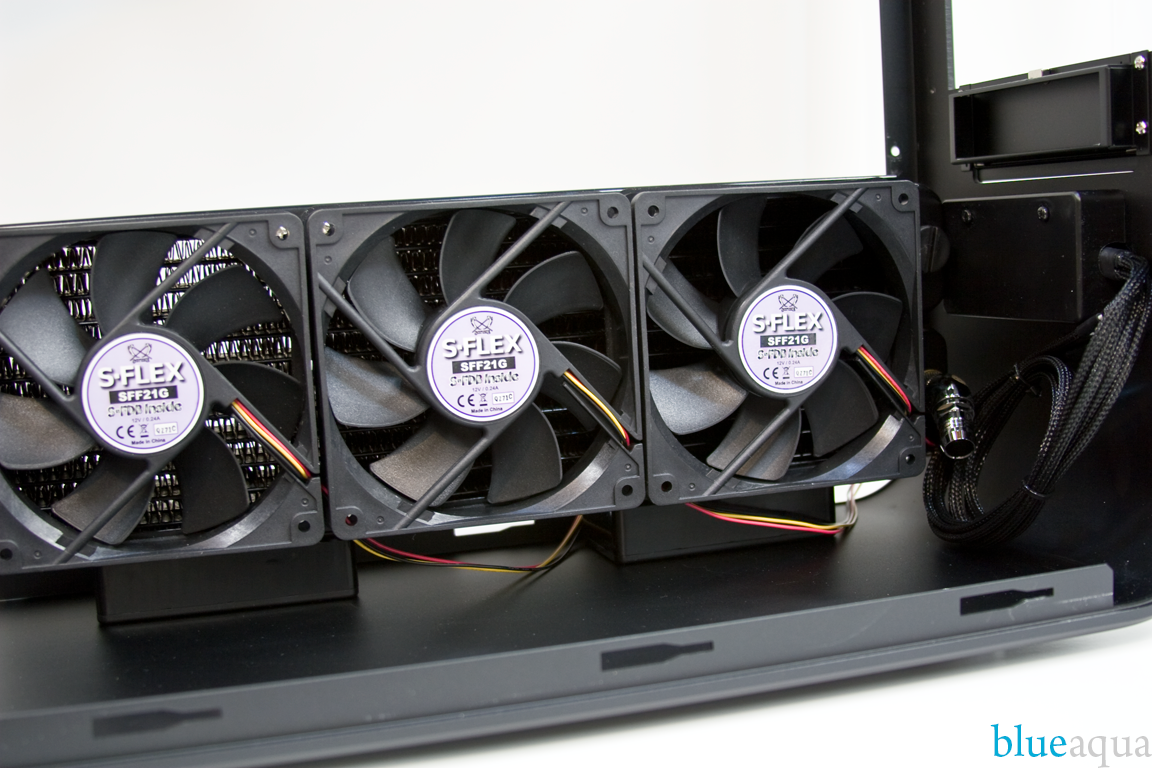

Mock setup of the radiator on the mounts:

http://img.photobucket.com/albums/v2...a/IMG_2457.png

http://img.photobucket.com/albums/v2...a/IMG_2458.png

I need to get a fitting in the mail before I install the midplate. Once I can install that I'll mark and drill the midplate, ensure it lines up, and attach the radiator and pump to the base. I think I should probably have that fitting tomorrow as Sidewinders ships amazing fast for me. Gary, if you read this. Thank you!

I think it's about time to get sleeving. I have 100 feet to go through, I might as well enjoy it. ;)

100 feet. Holy cow. You better have some iron thumbs mate :P:.

Nice work and great pics :up:

Now get to work on that sleeving as you have only managed to satisfy my pic fetish for the next 10 - 15 mins or so :rofl:

More nice shots BA!

The S-Flex "G" model aye? Nice and quiet i bet ;)
And good luck with the sleeving, i pity your fingers! :p:

Thanks guys! I will work my butt off on that sleeving.

Quote:

---

Originally Posted by twwen2

More nice shots BA!

The S-Flex "G" model aye? Nice and quiet i bet ;)
And good luck with the sleeving, i pity your fingers! :p:

---

I chose the model G for high cfm if needed, however they'll all be on the Aquaero and speed dependent on water temperature. Uh oh, I think I've said too much.

Loving the build log BA :D

Keep it up, although I must say I'm extremely jealous of your skill :)

I finally found a place in ireland that sell those Hammond project boxes, only problem is they don't take order unless it is over 35 euro, excluding vat :(

Oh well, atleast your current log is keeping me on track with mine :) Must say I feel kind of scared that I'm going to have to drill some holes in my chassis :p:

Looking great, keep the updates coming !!

Quote:

---

Originally Posted by BlueAqua

I chose the model G for high cfm if needed, however they'll all be on the Aquaero and speed dependent on water temperature. Uh oh, I think I've said too much.

---

Umm i thought the "G" model was the slowest?

Edit: Oops! "E" is the slowest, i went in the wrong direction.:D

BlueAqua:
You make a celebration of the build as if there is no tomorrow. It's such a joy to see a perfectionist at work. :woot:

N19h7m4r3: If your first name starts with an A, then you should have no problem ;)

Quote:

---

Originally Posted by N19h7m4r3

Loving the build log BA :D

Keep it up, although I must say I'm extremely jealous of your skill :)

I finally found a place in ireland that sell those Hammond project boxes, only problem is they don't take order unless it is over 35 euro, excluding vat :(

Oh well, atleast your current log is keeping me on track with mine :) Must say I feel kind of scared that I'm going to have to drill some holes in my chassis :p:

---

If you have any MurderMod coming your way you are sure in for a treat! Believe me, this stuff makes me smile from ear to ear. I'm really having a blast with it all.

Quote:

---

Originally Posted by cian1500ww

Looking great, keep the updates coming !!

---

You got it, update incoming!

Quote:

---

Originally Posted by twwen2

Umm i thought the "G" model was the slowest?

Edit: Oops! "E" is the slowest, i went in the wrong direction.:D

---

G is the beast of the S-Flex's. It'll be interesting to see how well they perform.

Quote:

---

Originally Posted by dualbrain

BlueAqua:
You make a celebration of the build as if there is no tomorrow. It's such a joy to see a perfectionist at work. :woot:

N19h7m4r3: If your first name starts with an A, then you should have no problem ;)

---

Thanks so much Dualbrain. I'm just a noob yet when it comes to building nice machines. I don't consider myself a perfectionist, just an enthusiast. But, if that's what you want to call me, I'll take it! :rofl:

I think you'll like what you'll see.

Dangals, this update is for you! You damn addict. :rofl:

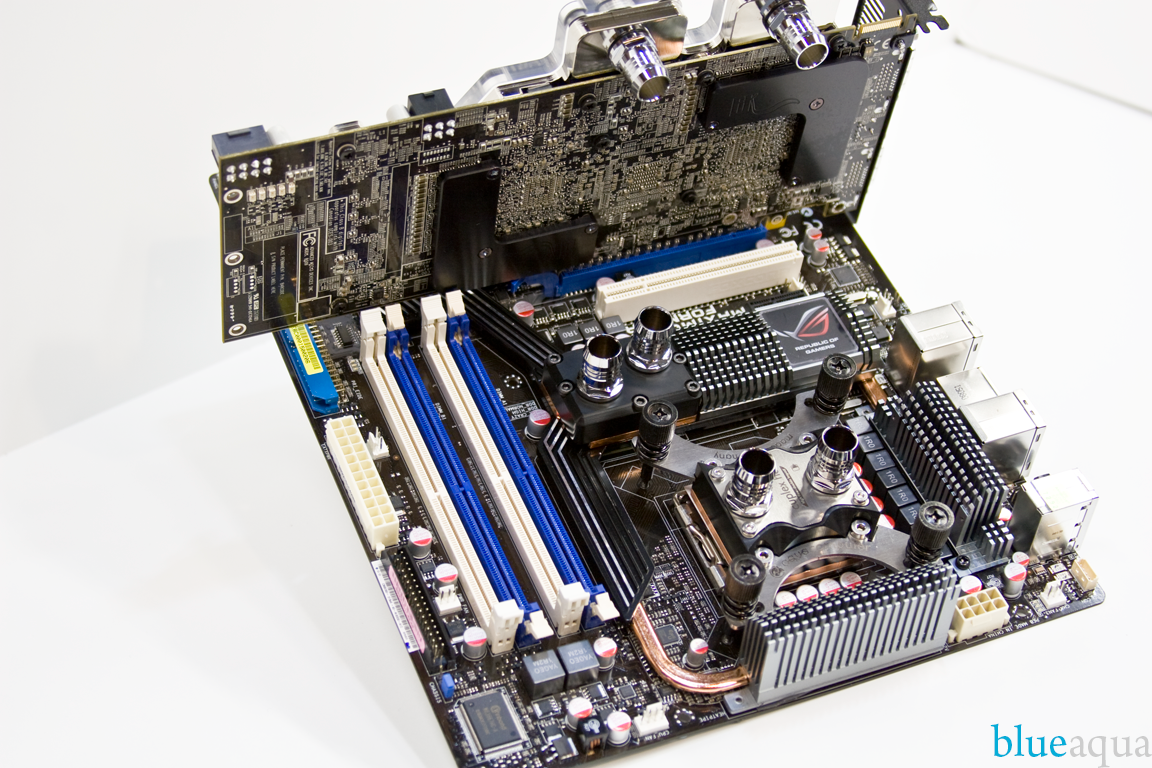

I sleeved some SATA cables and doing a final check on component placement. I'll let the pictures do the talking.

First off, I had a finger blowout on one of my gloves. I had to stop all work for a few minutes, oh well, a good time to use the restroom. :)

http://img.photobucket.com/albums/v2...a/IMG_2460.png

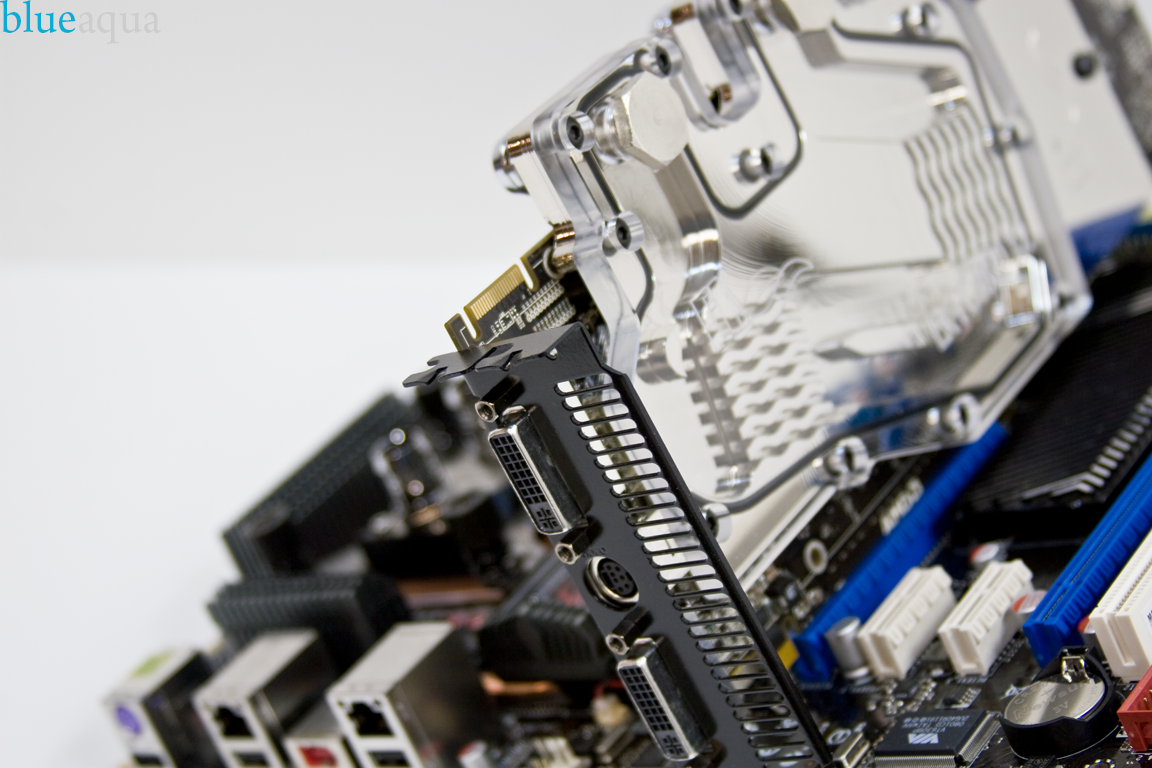

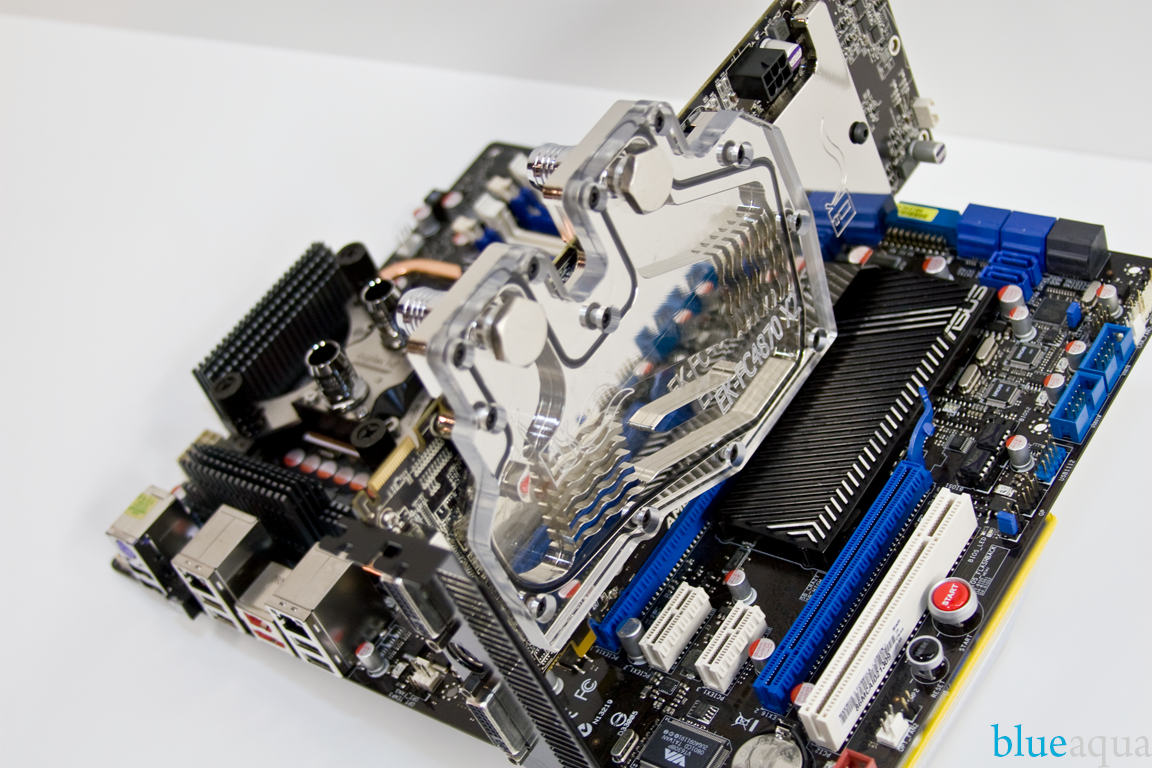

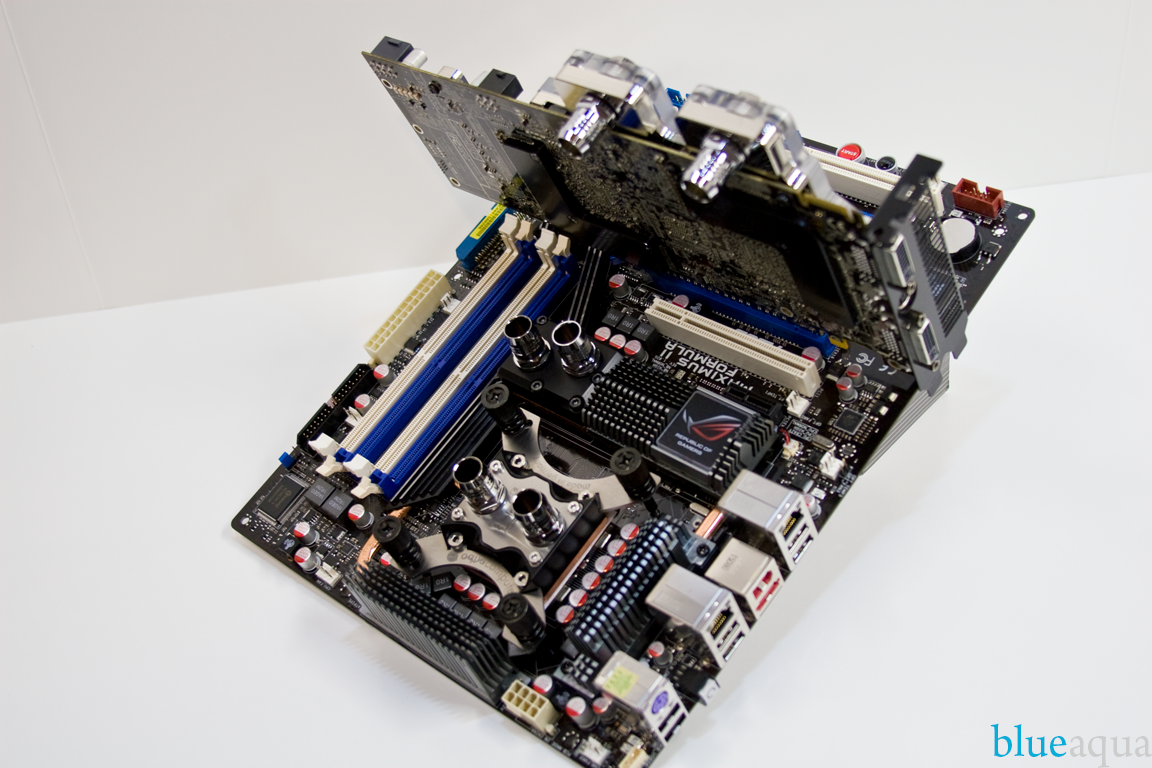

The real pictures:

http://img.photobucket.com/albums/v2...a/IMG_2464.png

http://img.photobucket.com/albums/v2...a/IMG_2466.png

http://img.photobucket.com/albums/v2...a/IMG_2468.png

http://img.photobucket.com/albums/v2...a/IMG_2470.png

http://img.photobucket.com/albums/v2...a/IMG_2471.png

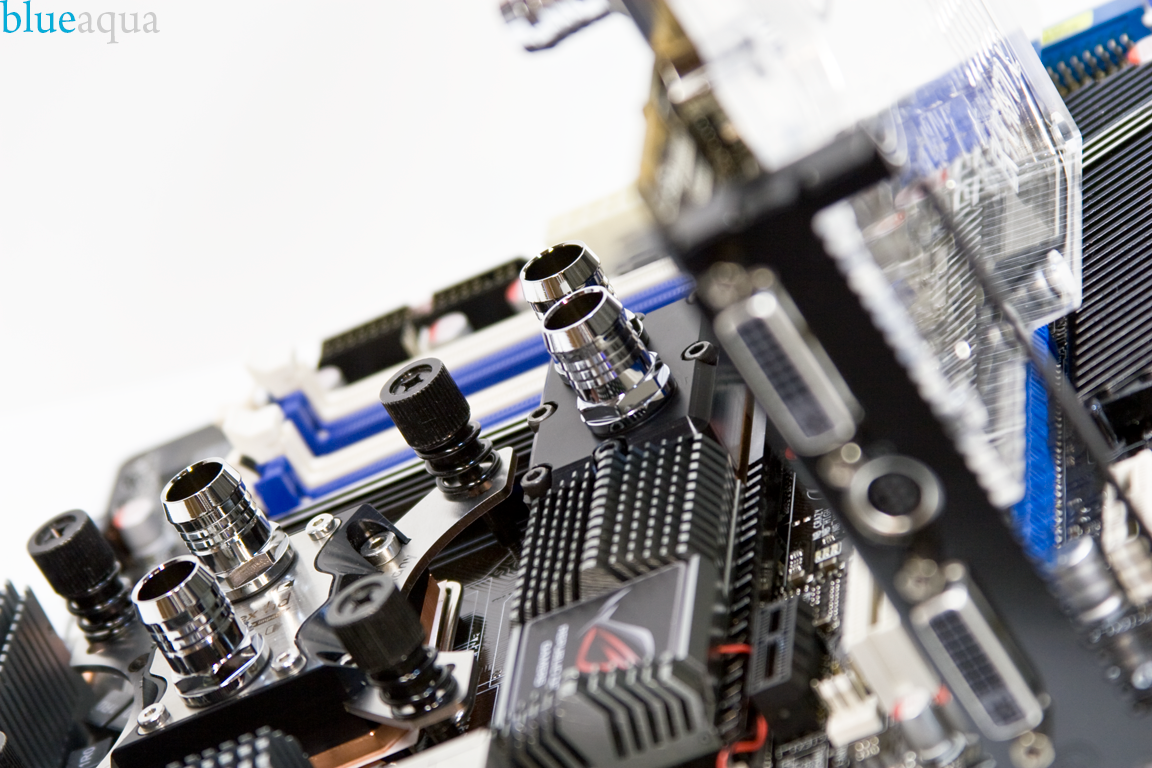

And I must say, I LOVE this picture:

http://img.photobucket.com/albums/v2...a/IMG_2473.png

Oohhh,

I'm going weak at the knees. :ROTF:

You're cruel BA, that looks so good it hurts :p:.

Edit: Hang on, you've used the mounting springs and nuts from the GTZ haven't you!?

good snaps BA!!! :up:

Can't wait to see the tubing on that board!

Very nice, BlueAqua! I like your photography.

Absolutely amazing photos! I'm speechless!

GREAT job!

I like it...I really like it! The Swifty block looks cleaner less the logo. As they say in West Hollywood "Fab-U-Luss". :up:

I noticed you mounted the HD differently than you did the DI. Was that for tube routing purposes?

Man it feels as though my head is going to explode!

Very nice :up:

Quote:

---

Originally Posted by dingdong555

Um....

This makes me want to sell my computer and get a murdermod!

If only I want lotto! :clap:

---

If only you were old enough to win the lotto :lol:

Simply amazing mate... I love Murdermods TJ-07.... specially in black... I want to see one in full white now...

Thanks a lot guys. Twwen, yes that is the GTZ mounting equipment on the AC DI HD. I liked the backplate and how solid the mounting equipment is so I thought I'd try something new. The fact that it's black is a huge plus too.

ShoNuff, I mounted it like that for tube routing, plus there is just a dual core in this one, I doubt it would make any difference in orientation.

I can't wait to see the tubing on it either Skinnee, but I have a good feeling that I'm going to like it. I hope it doesn't look too busy with the chipset block in the loop.

Thanks Ashraf for the compliment. It's great coming from someone who has such great photography.

I'm also glad to see some new faces here. XS welcomes new people. Don't be bashful, post away.

splendid shots BA.

Absolutely brilliant blue !!!

Pppplplplplll.....

Speachless :) That's looking fokkin nice :clap:

PS: FB's are the only way :P
