02-01-2008, 06:49 AM
oohms

Gigabyte 8400GS voltmods:

Vgpu:
http://i30.photobucket.com/albums/c3.../PICT5241b.jpg

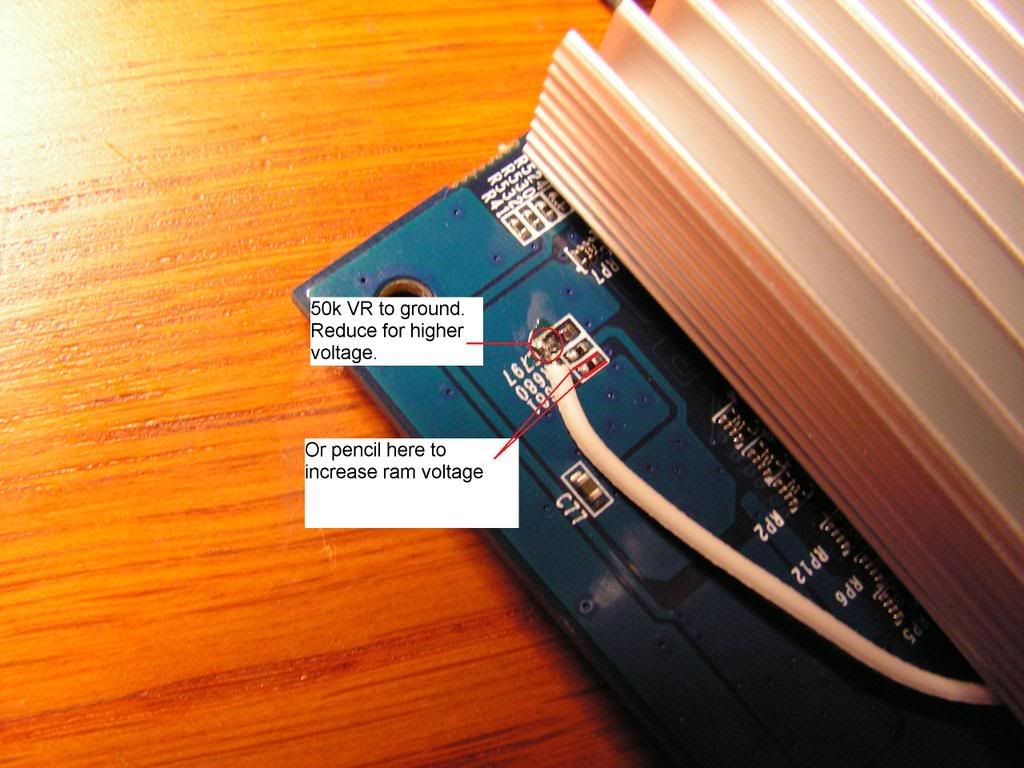

Vmem:
http://i30.photobucket.com/albums/c3.../PICT5243b.jpg

More Vmem:
http://i30.photobucket.com/albums/c3.../PICT5242b.jpg

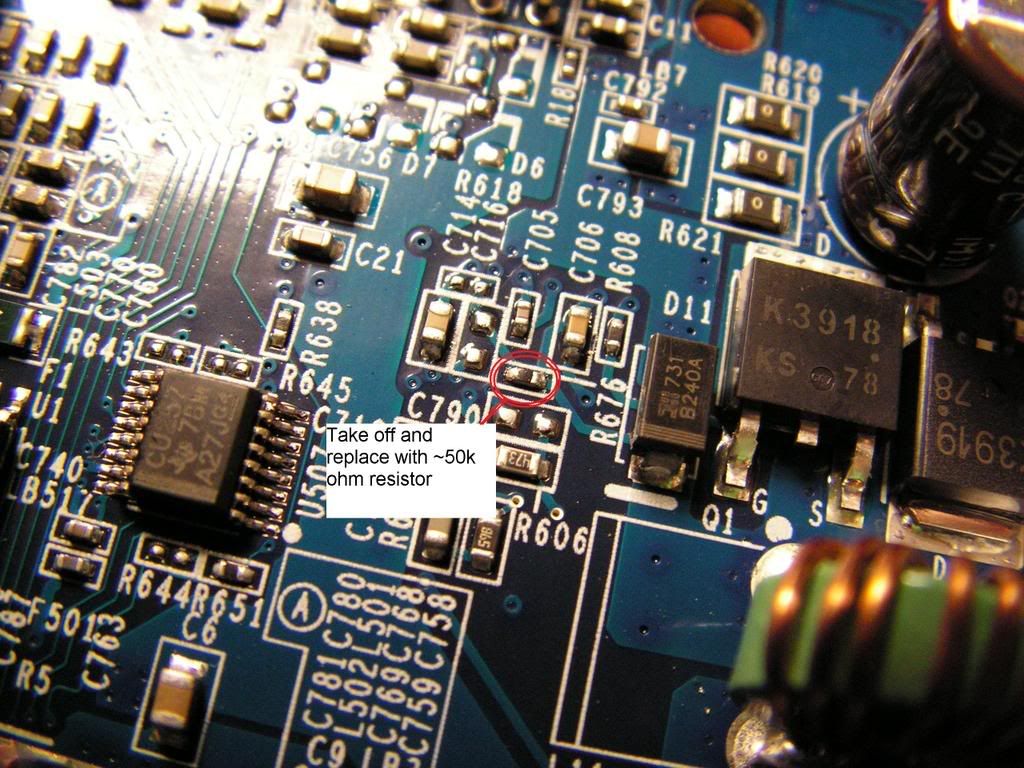

OCP mod: (Good for 2.3v+, but mosfets get HOT)
http://i30.photobucket.com/albums/c3...s/PICT5248.jpg
02-01-2008, 07:53 AM
Achill3uS

I've got today my second 8400GS, it's a Zotac non-low profile edition :eek:

http://www.noticiastech.com/wordpres...otac_graka.jpg

can't wait to get home and try it :D the pwm area looks powerful, and has 256mb of hynix 2.5ns memory, i only need to figure out the vmods :rolleyes:
02-01-2008, 05:51 PM
zakelwe

Stock runs done tonight

2001

http://service.futuremark.com/compare?2k1=9328295

details

http://www.zen141854.zen.co.uk/stock2001.jpg

03

http://service.futuremark.com/compare?2k3=5714866

details

http://www.zen141854.zen.co.uk/stock03.jpg

Regards

Andy
02-01-2008, 05:59 PM
dinos22

hey oohms good on ya for posting those mods :up: :up: :up: :up: :up: :up:
02-02-2008, 12:10 AM
G.Foyle

Andy judging by the pic in your sig youre having lots of fun with this card :D

My D9s are dying, lots of error left and right so unfortunately I cant bench until I get new sticks.
02-02-2008, 01:32 AM
zakelwe

Quote:

Originally Posted by xoqolatl

Andy judging by the pic in your sig youre having lots of fun with this card :D

My D9s are dying, lots of error left and right so unfortunately I cant bench until I get new sticks.

Yeah, I'm luvin it. Du du du du doo.... hehe.

Bad luck on the RAM, hope you get it fixed at little money and hope to see you back in the comp later, it runs for a long period so if finances allow etc you will still be in with a shout.

Regards

Andy
02-02-2008, 01:59 AM
oohms

More mods done:
http://i30.photobucket.com/albums/c3...s/PICT5246.jpg

I also found a voltage source of ~2v that goes to the GPU core, ill do some more testing to see if increasing it will help my overclock :confused:
02-02-2008, 05:10 AM
zakelwe

Nice work ! Is that brown cylinder a very small tank of LN2? N20? :D

Good luck!

Regards

Andy
02-02-2008, 05:26 AM
G.Foyle

Oohms, what are the stock voltages on your card?
02-02-2008, 05:47 AM
oohms

Quote:

Originally Posted by xoqolatl

Oohms, what are the stock voltages on your card?

1.3v gpu / 2.08v ram
02-02-2008, 06:51 AM
Achill3uS

if anybody could help me with the vmods please don't be low-key :D
for the vgpu i've some ideas, and i've find the measure point too...

http://img208.imageshack.us/img208/575/01ob3.jpg

http://img186.imageshack.us/img186/2866/02le0.jpg

http://img169.imageshack.us/img169/3414/03du0.jpg

and here is a stock (aircooled) run :up:

http://img412.imageshack.us/img412/6351/8851cj2.jpg

Andy: sorry i didn't used orb before, so its a noob question, but at my testXP lan is disabled, i could only make orb at online?? :rolleyes:

oohms: very powerful mods, thanks for share, if i kill this baby, i will do this on the Gigabyte :lol:
02-02-2008, 07:22 AM
oohms

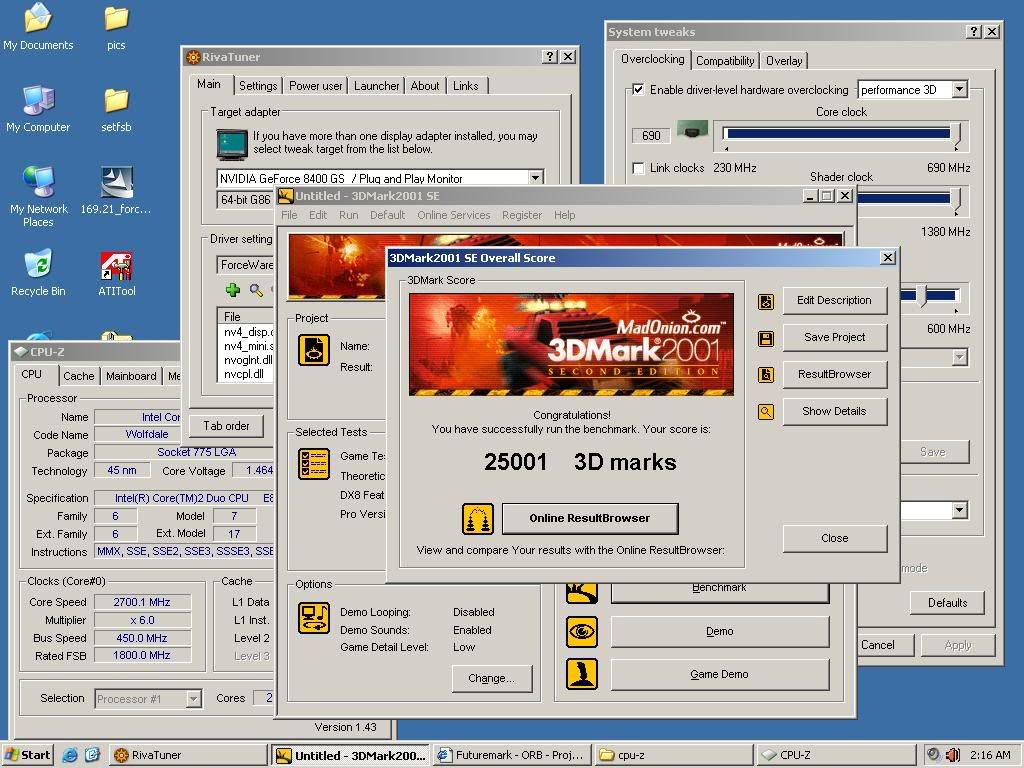

Score update before i go to bed:

25001 -> http://service.futuremark.com/compare?2k1=9328593

woot :D

air cooled, 1.5v gpu, 2.2v ram, 690/1380/540 gpu/shad/ram

http://i30.photobucket.com/albums/c3...wbot/25001.jpg
02-02-2008, 08:18 AM
[XC] gomeler

Does anyone know if it's possible to loosen ram timings on the cards within the BIOS? My ram is limited to sub 880MHz which is really cramping my style.
02-02-2008, 08:47 AM
RAW-Raptor22

Quote:

Originally Posted by [XC] gomeler

Does anyone know if it's possible to loosen ram timings on the cards within the BIOS? My ram is limited to sub 880MHz which is really cramping my style.

couldnt you use Nibitor and tweak the timings? :up:
02-02-2008, 09:01 AM
G.Foyle

Quote:

Originally Posted by Achill3uS

http://img169.imageshack.us/img169/3414/03du0.jpg

What are the markings on that chip right next to the D-Sub out? and a better pic of that area would be nice.
02-02-2008, 09:11 AM
MuffinFlavored

Quote:

Originally Posted by Achill3uS

http://img412.imageshack.us/img412/6351/8851cj2.jpg

What cooling is this under?
02-02-2008, 09:37 AM
Achill3uS

Quote:

Originally Posted by xoqolatl

What are the markings on that chip right next to the D-Sub out? and a better pic of that area would be nice.

here are the marking:

ST 3
HI D70N0
21
6K292719

and a better pic (actually not the best:rolleyes: if it's till no good i try to make more better, but thanks for help!)

Quote:

Originally Posted by MuffinFlavored

What cooling is this under?

the GS has still the stock heatsink with a 9cm fan, and cpu is custom D-Tek watercooled ;)
02-02-2008, 10:27 AM
ownage

Quote:

Originally Posted by systemviper

Hi, I'm getting my XFX early this comming week, i have been looking for the voltmod on XFX and found this link. Does anyone have the XFX now and is this it...

Warning: Not sure if this is correct but if it is, here we gooooooo.
Hopefully XFX vmod...

http://www.xtremesystems.org/forums/...1&d=1201972549

WRONG!
02-02-2008, 11:15 AM
G.Foyle

Quote:

Originally Posted by Achill3uS

here are the marking:

ST 3
HI D70N0
21
6K292719

and a better pic (actually not the best:rolleyes: if it's till no good i try to make more better, but thanks for help!)

EDIT: these are markings on the MOSFET not on the chip. What interests us is that chip:
http://omgwtfbbq.ovh.org/files/achilleus.jpg
02-02-2008, 11:27 AM
Achill3uS

Quote:

Originally Posted by xoqolatl

EDIT: these are markings on the MOSFET not on the chip. What interests us is that chip:

:rolleyes: sorry, you're right, mosfet not chip :D but that is next to the s-vga out :lol:
02-02-2008, 11:29 AM
[XC] gomeler

Quote:

Originally Posted by Raptor22

couldnt you use Nibitor and tweak the timings? :up:

Never done anything serious with GPUs, I was strictly a CPU bencher in the past. Thanks for that app, downloaded and maybe later today I'll try to loosen some timings. Hope I don't brick my card :D
02-02-2008, 12:52 PM
dinos22

Quote:

Originally Posted by Achill3uS

Andy[/B]: sorry i didn't used orb before, so its a noob question, but at my testXP lan is disabled, i could only make orb at online?? :rolleyes:

save the run
and then upload when you have internet on it by starting futuremark bench and right click on it and upload ;)
02-02-2008, 01:37 PM
Achill3uS

Quote:

Originally Posted by dinos22

save the run
and then upload when you have internet on it by starting futuremark bench and right click on it and upload ;)

ohh that's so easy :ROTF: thank you dinos :D

xoqolatl: here are 2 pics, i've just made them, i think that's the maximum resolution what i could :rolleyes:

http://img149.imageshack.us/img149/7515/dsc4691bd7.jpg
http://img517.imageshack.us/img517/7756/dsc4692fh1.jpg
02-02-2008, 01:56 PM
G.Foyle

Pics are good but I cant read the letters on the chip :(
02-02-2008, 02:10 PM
dinos22

Quote:

Originally Posted by Achill3uS

ohh that's so easy :ROTF: thank you dinos :D

lol i only found out recently myself from eva2000 :up:
