11-29-2009, 07:11 AM
grishenko45

Quote:

Originally Posted by Hoss331

I would trying raising the NB some first, but you may need some more vcore also. Are those gtls listed cpu and nb or just cpu, at those speeds I ran mine at 0.635 for both cpu gtls and auto for nb gtl.

i changed my cpu gtl refs to 0.660 for both the 1/3 and 2/4 values - nb gtl is on auto - im not sure what to do with that. i found with these cpu gtl refs i got more Gflops after running Linx:)

my nb is at 1.24 - and seems to be stable - i didnt want to raise it that much as its cooled with stock p5q deluxe heatsink and a fan at the side.

u recon then for an fsb of 460mhz - raise cpu from 1.275(BIOS) to about 1.285v? and nb to 1.26 - 1.28? the cpu pll is at 1.54 - i know that a high pll will kill a cpu so its ok at 1.54v - how high will it be ok to go? cpu is liquid cooled BTW.
11-29-2009, 12:34 PM
Hoss331

For those speeds mine worked best at 0.635 for both cpu gtls, as I went higher (480s) the higher gtls worked better up to 0.655 for both. Auto on the NB gtl worked fine for me up to about ~470fsb than I set it to 0.665. 1.24NB is not alot especially with a fan on the heatsink and 1.54 pll is also fine. What vid is this chip?
11-30-2009, 01:29 AM
grishenko45

Quote:

Originally Posted by Hoss331

For those speeds mine worked best at 0.635 for both cpu gtls, as I went higher (480s) the higher gtls worked better up to 0.655 for both. Auto on the NB gtl worked fine for me up to about ~470fsb than I set it to 0.665. 1.24NB is not alot especially with a fan on the heatsink and 1.54 pll is also fine. What vid is this chip?

i think my VID is 1.1725v.

i thought the cpu gtl was 2/3 of the vFSB/VTT?? so 2/3 of 1.26 is 0.840 = 0.660*1.26 = 0.8316.

is this completely wrong???? or do you just have to mess around with the gtl refs???

or do you set lower gtl refs for lower fsb (start on 0.635) then go higher to like 0.670 with a higher fsb?

help on this please!!
11-30-2009, 08:56 AM
1nvisible

Ok here's mine at 7+ hours stable, doesn't seem to like voltage, any advice on where to go from here would be appreciated.
http://img215.imageshack.us/img215/8939/spec2o.png

Edit: just re did 1280k with PLL 1.55v and pass, take it from there.
11-30-2009, 06:43 PM
Hoss331

Quote:

Originally Posted by grishenko45

i think my VID is 1.1725v.

i thought the cpu gtl was 2/3 of the vFSB/VTT?? so 2/3 of 1.26 is 0.840 = 0.660*1.26 = 0.8316.

is this completely wrong???? or do you just have to mess around with the gtl refs???

or do you set lower gtl refs for lower fsb (start on 0.635) then go higher to like 0.670 with a higher fsb?

help on this please!!

0.635 is usually a good starting point with these chips at low to moderate fsb and may need a little more as fsb goes up. Every setup is a little different so you need to find out what yours likes best. Try this 456fsb with 1.2625vc, 1.54pll, 1.26vtt, 1.28nb, both cpu gtls at 0.635 and nb gtl on auto. Also do you know for sure if your ram will run stably up to 1100+? Have you tried dropping down to 1:1?
11-30-2009, 07:32 PM
Gaul

q9550, with VID 1.265..........:p:

MAX on TRUX

4.48 GH :)

http://valid.canardpc.com/show_oc.php?id=856772
12-02-2009, 03:53 AM
E-mil

Quote:

Originally Posted by E-mil

Small update :)

wPrime @ 4662 MHz (validation)

http://www.imagesforme.com/thumb/thumb_eb8328ba.jpg

Quote:

Originally Posted by 1nvisible

^memory time sucks.

I know it's sucks, but time (8,219 s) is good :yepp::yepp:

Quote:

Originally Posted by Gaul

q9550, with VID 1.265..........:p:

MAX on TRUX

4.48 GH :)

http://valid.canardpc.com/show_oc.php?id=856772

nice core speed Gaul :clap:
12-02-2009, 08:10 AM
Gaul

Quote:

Originally Posted by E-mil

nice core speed Gaul :clap:

THANX, anyway u still better :up:
12-02-2009, 08:17 AM
grishenko45

Quote:

Originally Posted by Hoss331

0.635 is usually a good starting point with these chips at low to moderate fsb and may need a little more as fsb goes up. Every setup is a little different so you need to find out what yours likes best. Try this 456fsb with 1.2625vc, 1.54pll, 1.26vtt, 1.28nb, both cpu gtls at 0.635 and nb gtl on auto. Also do you know for sure if your ram will run stably up to 1100+? Have you tried dropping down to 1:1?

i'll try my ram at 1:1 - but i wanted that OC'd too. I've read a couple of reviews - this ram need volts to OC even 20Mhz over stock - i was aiming for 1100Mhz @ 2.2v (stock 1066@2.1v)

I'll try 1:1 and those BIOS setting this weekend when I get time!!

Cheers Hoss
12-06-2009, 07:10 AM
Hoss331

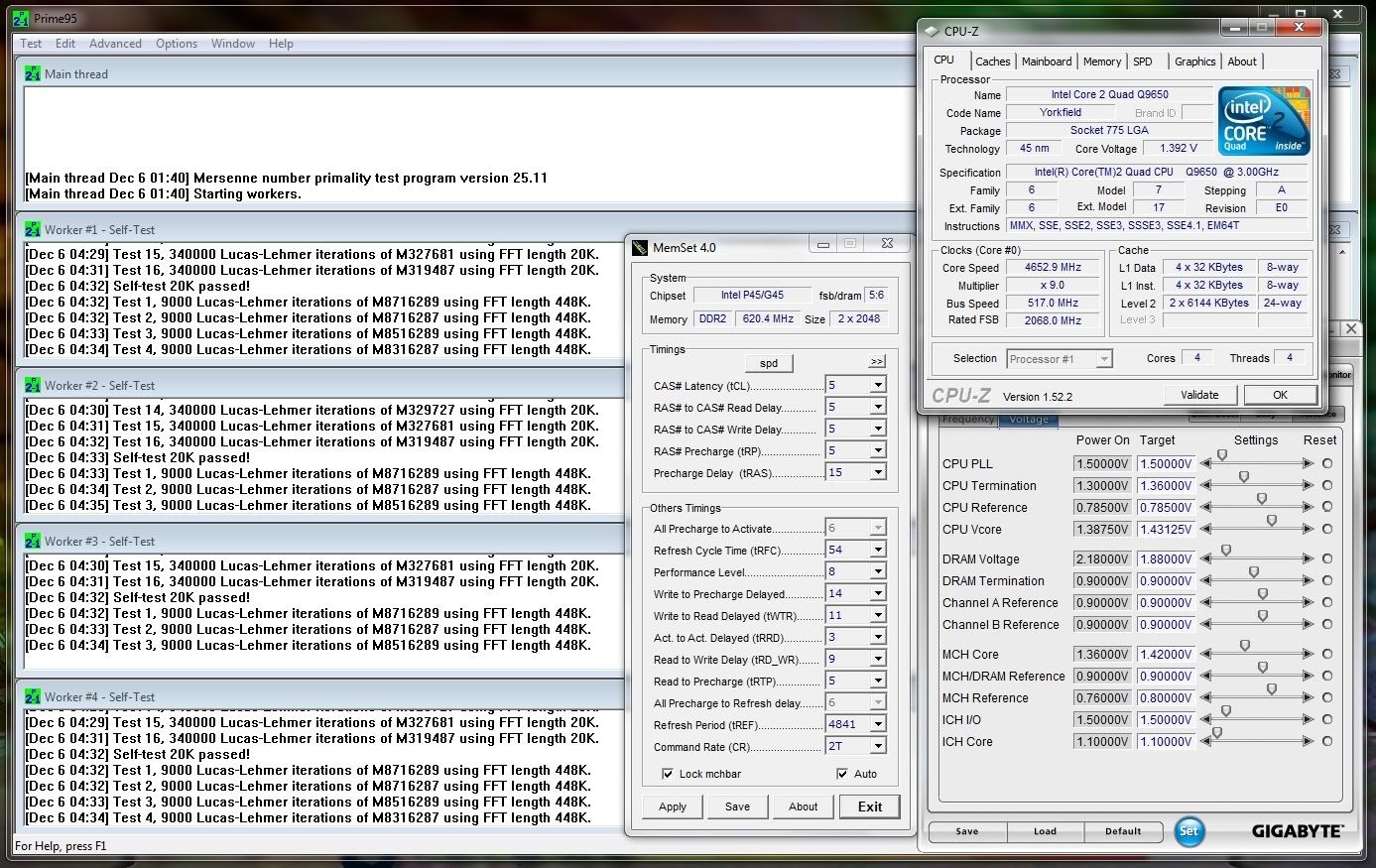

Was able to squeeze a little more out of it last night.
http://i131.photobucket.com/albums/p...ss281/4652.jpg
12-06-2009, 09:21 AM
Jor3lBR

Quote:

Originally Posted by Hoss331

Was able to squeeze a little more out of it last night.

Very nice Hoss :clap: To stabilize the Quad's above 4600Mhz takes a LOT of patience and skills. Welcome to Q9650@4650+Mhz stable club.
12-06-2009, 06:16 PM
Hoss331

Thanks and good luck with your ln2 benching. :up:
12-08-2009, 03:25 AM
grishenko45

Hoss331 - i tried my ram on the divider below - so they ran at 931mhz or something with fsb at 458 - cpu@ 4.124ghz - this was fine - only thing was - my linx Gflops output was far less because my ram was like nearly 130mhz slower per stick.!! so i recon i'll loosen some timings to get them running at 1100mhz.
12-08-2009, 03:51 AM
bt_medic04

Good to see the Q9650 thread still going strong! Makes me miss my old chip.... sure did run a whole hell of a lot cooler than this 860.....>.<
12-08-2009, 08:51 AM
Hoss331

Quote:

Originally Posted by grishenko45

Hoss331 - i tried my ram on the divider below - so they ran at 931mhz or something with fsb at 458 - cpu@ 4.124ghz - this was fine - only thing was - my linx Gflops output was far less because my ram was like nearly 130mhz slower per stick.!! so i recon i'll loosen some timings to get them running at 1100mhz.

Far less being what?
12-08-2009, 01:39 PM
andressergio

Quote:

Originally Posted by bt_medic04

Good to see the Q9650 thread still going strong! Makes me miss my old chip.... sure did run a whole hell of a lot cooler than this 860.....>.<

and it will be on and on mate you'll see :up:
i love this platform sooo much so stable
12-08-2009, 02:49 PM
E-mil

Quote:

Originally Posted by andressergio

and it will be on and on mate you'll see :up:
i love this platform sooo much so stable

at least one more year, if you ask me :yepp::yepp:

I just started
12-09-2009, 05:47 AM
andressergio

Quote:

Originally Posted by E-mil

at least one more year, if you ask me :yepp::yepp:

I just started

yeah ! i will restart soon on another batch :up:
12-09-2009, 06:49 AM
radaja

andressergio,which batch did you get?
did you get an even lower vid chip?
12-09-2009, 07:06 AM
E-mil

Quote:

Originally Posted by andressergio

yeah ! i will restart soon on another batch :up:

if you do not know where tu put the old one, send it to me :D:D
12-09-2009, 07:08 AM
andressergio

Quote:

Originally Posted by radaja

andressergio,which batch did you get?
did you get an even lower vid chip?

Not yet let's see mate...i love this platform and wont leave it as it feels rock solid

Cheers :up:
Sergio
12-09-2009, 07:13 AM
andressergio

Quote:

Originally Posted by E-mil

if you do not know where tu put the old one, send it to me :D:D

:rofl: let's see mate, all things takes its time maybe i give myself a nice xmas present :up:
12-09-2009, 12:57 PM
Jor3lBR

HWbot.org Q9650 HOF

Just got back the 1st. place on SuperPi again. Man that was hard to beat because after the Country Cup Competition crazy Ociers all over the world submitted their Q9650_Spi1m run's, the WR was lowered by 0.200ms.

So here's my latest run:

http://i46.tinypic.com/4slaoo.jpg

Also lowered my wPrime32m:

http://i45.tinypic.com/2960h1v.jpg

Need only 500points on PCMark05 to get this thing wrapped :up:
12-09-2009, 01:32 PM
andressergio

Quote:

Originally Posted by Jor3lBR

Just got back the 1st. place on SuperPi again. Man that was hard to beat because after the Country Cup Competition crazy Ociers all over the world submitted their Q9650_Spi1m run's, the WR was lowered by 0.200ms.

So here's my latest run:

http://i46.tinypic.com/4slaoo.jpg

Also lowered my wPrime32m:

http://i45.tinypic.com/2960h1v.jpg

Need only 500points on PCMark05 to get this thing wrapped :up:

:clap::clap::clap::clap::clap::clap:

Congrats my friend thats an awesome SPI run :up:

Cheeeeezzz
Sergio
12-09-2009, 02:15 PM
OC Nub

Congrats Jor, excellent job!!
