DDR Maximizer on it's way......More Volts on our Rams....

I've seen someone who modded up a ribbon lead with a female connector that allows you to plug the ribbon lead into the ram slot used for the booster, and mount the booster away from the ram slot itself...

Makes it so you can use larger ramsinks and easier to adjust AND if there are issues with certain slots(like this mobo) the you can still get your booster in and use slots that you normally wouldn't...

I don't know how low profile this booster is going to be, and if it's wafer-thin, then it wouldn't be necessary, but even for the remote mounting and ease of use, I'd pay more for an extension lead...

Gray

Sorry but I still don't understand your point....... :confused:

The DDR Maximizer is a 3.5" unit and you put it into a 3.5" bay.......Some cables with connectors are pluged in the back of the Maximizer and on their other end are also pluged via a connector to the DDR PCB that plugs into a DDR slot........This DDR PCB is TOO thin......

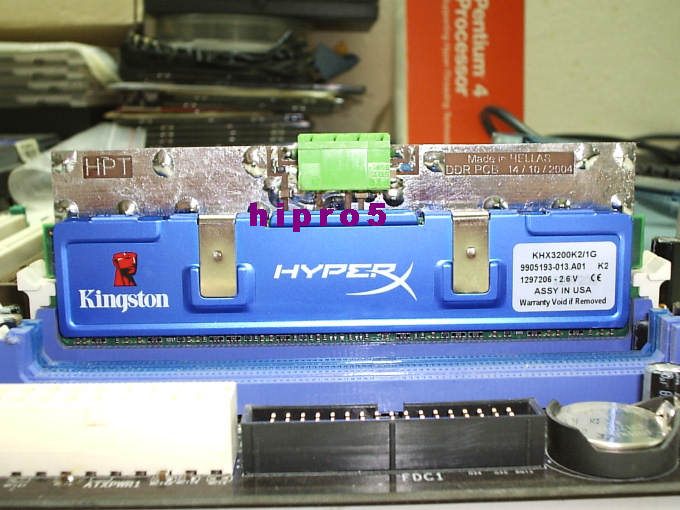

ex. DDR PCB view 1

http://www.thelab.gr/images/Hipro5/M..._PCB_1_jpg.jpg

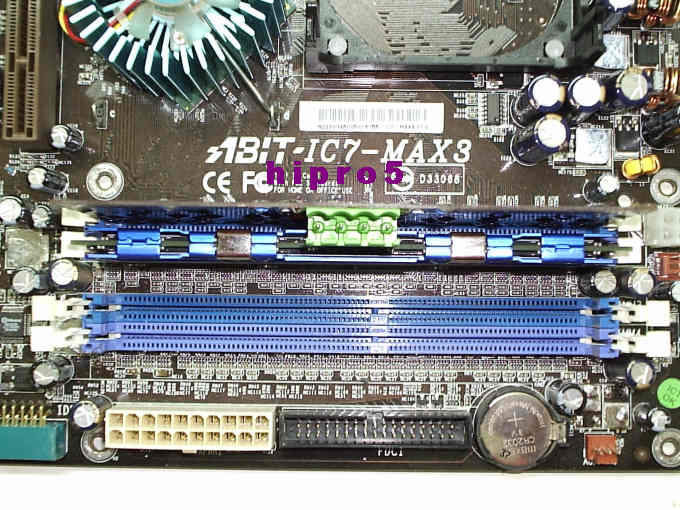

ex. DDR PCB view 2

http://www.thelab.gr/images/Hipro5/M..._PCB_2_jpg.jpg

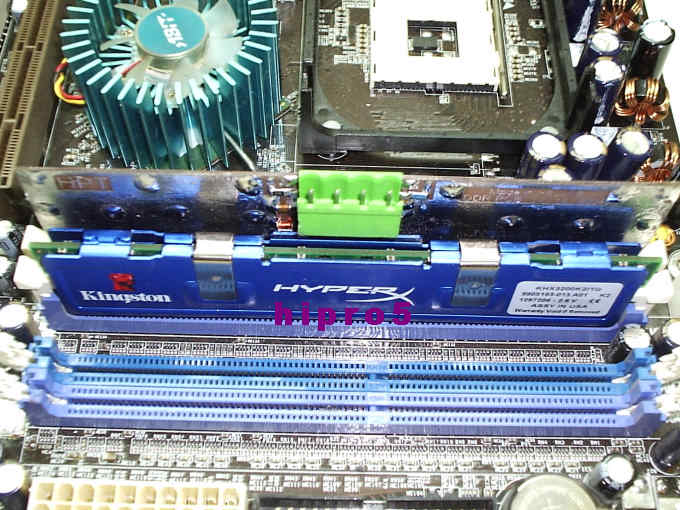

ex. DDR PCB view 3

http://www.thelab.gr/images/Hipro5/M..._PCB_3_jpg.jpg

ex. DDR PCB view 4

http://www.thelab.gr/images/Hipro5/M..._PCB_4_jpg.jpg

ex. DDR PCB view 5

http://www.thelab.gr/images/Hipro5/M..._PCB_5_jpg.jpg

ex. DDR PCB view 6

http://www.thelab.gr/images/Hipro5/M..._PCB_6_jpg.jpg

ex. DDR PCB view 7

http://www.thelab.gr/images/Hipro5/M..._PCB_7_jpg.jpg

*cough cough*

:am:

Sorry mate I didn't realize that what you were doing is exactly what I was wanting...

:owned:

So...you taking orders yet :D


Gray

Quote:

---

Originally Posted by Gray Mole

*cough cough*

:am:

Sorry mate I didn't realize that what you were doing is exactly what I was wanting...

:owned:

So...you taking orders yet :D


Gray

---

It's OK.........I was confused for a while....... :D :toast:

For pre-orders PM me...... ;)

Hey Hirpo, is it a "rule" that anything that work or doesn't work on the OCZ booster won't work on the maximizer?

because apparently me A78N8X-X doesn't work with the OCZ product because of the overvoltage however OCZ says 2.8 is teh limit but I'm pushing my RAM 2.9 in the Uberbios at the moment.

so will it work or not or could I "fix" the vcore monitoring/ protection with a bios flahs/mod?

[QUOTE=hipro5][B]It's OK.........I was confused for a while.......[QUOTE]

I'm confused most of the while :nuts:

Should have read the WHOLE thread maybe :fact:

ygpm

Gray

Quote:

---

Originally Posted by Entity_Razer

Hey Hirpo, is it a "rule" that anything that work or doesn't work on the OCZ booster won't work on the maximizer?

because apparently me A78N8X-X doesn't work with the OCZ product because of the overvoltage however OCZ says 2.8 is teh limit but I'm pushing my RAM 2.9 in the Uberbios at the moment.

so will it work or not or could I "fix" the vcore monitoring/ protection with a bios flahs/mod?

---

Mobos with Vdimm overvoltage protection is possible to work with the DDR Maximizer IF they ONLY "read" this Vdimm during post and "cut" the mobo from booting......IF afterwords just don't "pay attention" to the Vdimm, then they will work.....User can boot - lets say with the 2.8Vdimm - and then he can play within Windows......SECOND : DDR Maximizer is providing the Vdimm in a different way than the OCZ's booster so yes it's possible to work with mobos that are incopatible with the booster......Time and tests will show as.... ;)

Can someone please test the AN8? Good board, but Vdimm voltages are crappy and I think it has overvoltage protecti0n on it too :(

Quote:

---

Originally Posted by hipro5

Look.......MOST of the times when someone wants to boot into Windows with OVER 3.7Vdimm into DFI bios which ACTUALLY IS 3.82Vdimm, is difficult.......Blue screens, even corrupted files......Now with the DDR Maximizer you can boot into windows at 3.8Vdimm and then play with it as much as you want "onthefly"...... ;)

SECOND reason is that the mobo works MUCH more stable and colder coz it doesn't need to feed the Rams with power so as to get really hot........ ;)

......and THIRD, almost everyone who has bought a Zippy 700W PSU and try the Mobo's jumper to 4Volts, it doesn't work....Now comes the Maxi to solve this.......ALSO in Mobos that takes the power for its Ram Mos-Fets from the 5Volts line, the Maxi work just fine with it
....... ;) :)

---

So does this mean if we use the 5V line, and maximizer, Mosfets wont get hot?

lol my kingston BH5 became famous ! (first pic) :p:

Quote:

---

Originally Posted by Magnj

So does this mean if we use the 5V line, and maximizer, Mosfets wont get hot?

---

no reason to use the 5V on the DFI, leave it to the 3.3V jumper setting.(less things to worry while flashing BIOSes too). Maximizer works just fine with the 3.3V
That's how we used it to test hipro5s BH6 with 3.9++ Vdimm
http://www.xtremesystems.org/forums/...t=59322&page=4

Even though the 5v jumper wasnt used, it still gave u guys problems right?

^no, the cpu was the limit in all of thier tests.

Quote:

---

Originally Posted by situman

Even though the 5v jumper wasnt used, it still gave u guys problems right?

---

lol, yeah ... problem
we couldn't pass 294MHz @ 2-2-5-2 with bh6 :rolleyes:

(CPU was running flat out, as soon as we have a san diego, or an FX57 we'll bench again)

Quote:

---

Originally Posted by esdee

lol, yeah ... problem
we couldn't pass 294MHz @ 2-2-5-2 with bh6 :rolleyes:

(CPU was running flat out, as soon as we have a san diego, or an FX57 we'll bench again)

---

:eek2:


No need to sell me on it, I'm already on the PO list ;)

Thinkin' about sellin' that troublesome ram? :D

Gray

Quote:

---

Originally Posted by Gray Mole

:eek2:


No need to sell me on it, I'm already on the PO list ;)

Thinkin' about sellin' that troublesome ram? :D

Gray

---

lol, it's hipro5's infamous Kingston BH6.
Selling them... hmmm let me see... he even gets anxious whenever someone touches them... :D

Quote:

---

Originally Posted by Magnj

So does this mean if we use the 5V line, and maximizer, Mosfets wont get hot?

---

Q = What Mos-Fets?......Mobo's or Maximizer's?.......

A = None of them.......You have to pick through bios the minimum Vdimm even with the 5V jumper and then play the Vdimm through the Maxi...... :)

Quote:

---

Originally Posted by esdee

lol, it's hipro5's infamous Kingston BH6.
Selling them... hmmm let me see... he even gets anxious whenever someone touches them... :D

---

:D Time for my BH-6 to come home I think........... :D

Quote:

---

Originally Posted by hipro5

:D Time for my BH-6 to come home I think........... :D

---

Some things just ain't for sale :bows:

Hipro5 anychance of putting your rather large brain :kissbutt: to work on finding a way to bypass OVP on a DFI NF3. Theres a Maximizer sale or to in for ya ;)

What are you talking about? There's no OVP.

Quote:

---

Originally Posted by iddqd

What are you talking about? There's no OVP.

---

er, there is on mine, seems to be about 3.5ish

http://www.xtremesystems.org/forums/...ad.php?t=57825

Quote:

---

Originally Posted by iddqd

What are you talking about? There's no OVP.

---

As a matter of interest what voltages have you managed, not heard of anyone getting over 3.6 and it booting everytime

Quote:

---

Originally Posted by jiff

Hipro5 anychance of putting your rather large brain :kissbutt: to work on finding a way to bypass OVP on a DFI NF3. Theres a Maximizer sale or to in for ya ;)

---

well you wouldnt need to bypass the ovp as you could just boot at 3.5 and then use the maximizer to raise your voltage in windows...

Quote:

---

Originally Posted by Revv23

well you wouldnt need to bypass the ovp as you could just boot at 3.5 and then use the maximizer to raise your voltage in windows...

---

Yes I could do that, but hell that's messy if you forget, you have to wait half hour with cmos battery out before it will reboot.
In my case it would be 3.3volts cos the OVP seems to change
