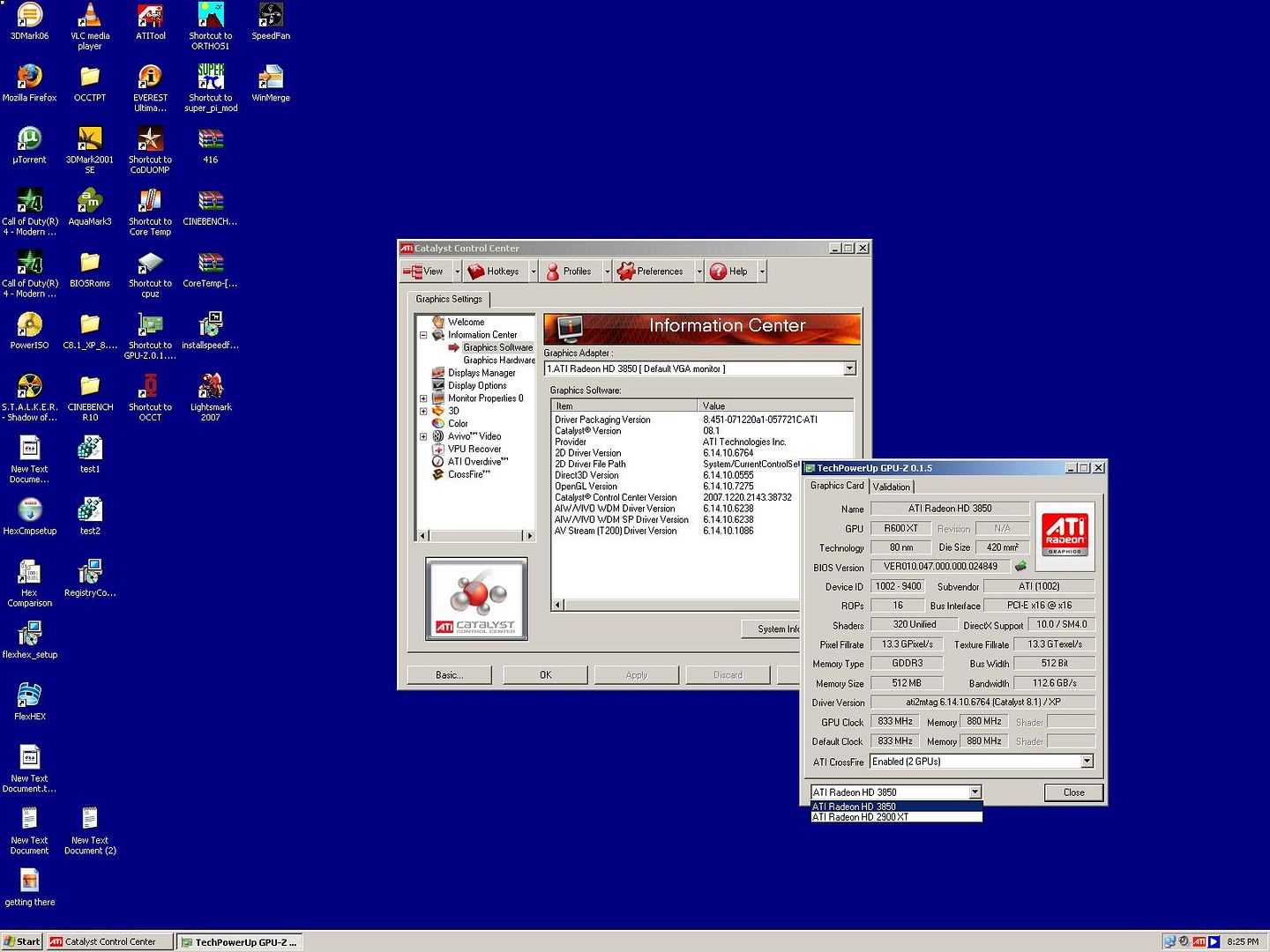

http://i48.photobucket.com/albums/f2...976/hahaaa.jpg
getting there :up:
Printable View
http://i48.photobucket.com/albums/f2...976/hahaaa.jpg
getting there :up:
forcing 3850 or 3870 doesnt work :down:
nice going again zeneffect so as long as the modded bios has a memory clock below 900 , the overdrive panel will work on 8.1 driver without having to mod the inf file as before
yes that is correct, i think its also because the overdrive panel only allows memory clocks up to 900. ive yet to find where i can change this :mad:Quote:
Originally Posted by GLENBOY
if its there zen you'll find it , can you overclock the 2 cards in crossfire on the overdrive with the later ccc
i just would hate to have to reverse engineer their driver set to figure this out.Quote:
Originally Posted by GLENBOY
so if I use 7.11 drivers i can use a bios with higher than 900 memory and everything will work? or of I use the INF in 8.1 it will work?
I have tried flashing so many different bios versions and tried omega and 8.1 driver and rivatuner and atitool. the only time I can do anything stable is when i just use display driver and rivatuner and i am good for 850/1000...
Only other thing I can do is max out 8.1 overdrive at 858/900 and thats fine also. The minute I try and go over 900 with any means It eventually screws up somehow. This $170 512bit card is more trouble than its worth lol.
I guess I will try 7.11 and rivatuner and see if that works.
using a 6pin and a 6pin pcie power cable disables ccc overdrive and thus the bios' will run above 900mem no inf mod or anything :up:Quote:
Originally Posted by Rattle
tested catalyst 8.2
i'm on the 8.2 drivers. i made sure all old stuff was deleted and i just noticed that the 8.2 drivers have the "HKR,, PP_ForceReportOverdrive4" line in there already. i checked it against the link you put up for the 8.1 for vista and in that, they are the same...i noticed that the line isn't in the same place as in xp (after all the fleshtone stuff). so i'm guessing with 8.2 the inf is already fixed?Quote:
Originally Posted by Truckchase!
Take a look under what section the "HKR,, PP_ForceReportOverdrive4" is noted. You'll notice it isn't in the right section to work properly and it doens't include the full string.Quote:
Originally Posted by madmanmarz
Just add the full string (HKR,, PP_ForceReportOverdrive4, %REG_DWORD%, 1) between:
HKR, "UMD", AAF_Mapping_SET, %REG_SZ%, "0(Box:2,Narrow-tent:4,Wide-tent:6) 2(Box:2,Narrow-tent:4,Wide-tent:6) 4(Box:4,Narrow-tent:6,Wide-tent:8,Edge-detect:12) 8(Box:8,Narrow-tent:12,Wide-tent:16,Edge-detect:24)"
and
HKR,, DALNonStandardModesBCD1, %REG_BINARY%,07,20,04,80,00,00,00,60,07,20,04,80,0 0,00,00,75,07,20,04,80,00,00,00,85,08,48,04,80,00, 00,00,60,08,48,04,80,00,00,00,75,08,48,04,80,00,00 ,00,85,12,80,07,20,00,00,00,60,12,80,07,20,00,00,0 0,75
I don't know if it matters if its placed somewhere else, aslong as its added in the section:
[ati2mtag_R600_SoftwareDeviceSettings]
When you now set the memory clock above 900 in e.g. RivaTuner, CCC overdrive will report the setting you applied in RivaTuner.
Don't know if it works with XP :shrug: , It works fine here with Vista X64 ;)
Thanks Zen:up: :up: :up:Quote:
Originally Posted by ZenEffect
I've been killing myself with this since 8.1 came out. I never thought to compare 7.11 to 8.1 and check for differences. I was able to use your fix to run 8.2 on x64 w/o issue. Ahhhhhh, I can finally relax. Freaking ATi:mad:
I have a wierd problem when installing those 8.2 drivers.. my 3d clockspeed switches to 2mhz.. but my ram wil run on 1100mhz :S..
Wil this extra line in the inf file help me get rid of that problem? So that my clock speed wil be back to 900 like in the catalyst 7.12 release?
And is there any fix yet for the hd2900xt to get 3d speeds in windowed games?
in fix will probably work.Quote:
Originally Posted by ZeRo4u
Little cryptic but I tried it, and guess what its working now :D thQ m8Quote:
Originally Posted by ZenEffect
here a pic of what my ccc now looke like.. damn shame I cant change my 3d clocks but then again ccc only goes to 858mhz something so its all good :P
And the windowed mode problem still isnt fixed by ati.. And im not fund of setting 3d speeds in 2dmode all the freaking time.. But from what ive heard new version of Rabit is nearly completion 80%.. still no beta but its getting there
http://www.acidcool.nl/catalyst82works.jpg
http://www.people.freenet.de/BAGZZlash/RBE.exe
try this one bios editor. it even corrects the checksum :p:
nice find again zeneffect i wonder if this lets you set a higher voltage than 1.35 on gpu core, does winflash work with these cards i have always used atiflash through a floppy on dos
p.s i see you've upped the clocks to over 900 on your pros now ,nice going, i can run my xts at 900 core on 3dmarks except 06 which i have to turn down to 874, thats with 1.35 volt on h20
I haven't had these problems; I guess you have bad luck or something. Anyway, you seem very driven by something, and I hope you can get this all worked out, and I hope to see more of this kind of work. I must admit, this is entertaining :) :up:
@ glenboy
the bios editor was posted in the 2900 PRO owners thread by road-runner
i suggest you guys check that thread out if you have not already since the xt and pro are the same card.
also
it seems bios does not support above 1.35 *ive set it to 1.4 bios but rivatuner always reads it back as 1.35*
and ive been using winflash primarily because i dont have to make a disk, reboot with a boot cd and all that other garbage
@ superdank
thanks! the need for more 3dmarks is what is driving me to push my cards further and further. i do not experience the 900+ memory bug with the new drivers as im using a 6 pin and 6 pin instead of a 8 and 6 like i used to. im assuming you are using the same thing having not experienced any of the problems we have been running into here... anyways, see what you started? thanks for all your work to kick this all off!
btw i will have to run the 2900's on a isolated loop it seems as my idle temps went from 33 to 38... after playing cod4 for a few hours idle goes to 48 but cools down to 38-39 after 10 min or so... not something i am comfortable with.
my plan is
thermochill 240mm rad for cpu *dont know exact model off hand, will have to research*
use existing 240mm bix for gpu's
use 120mm bix for my girlfriend's computer *to upgrade a nautilus 500 external*
let you all know in 2 weeks when i can afford the parts!
Anyone try'd the 8.3 drivers yet?..
Im too scared to install :shocked:
yes with zeneffects inf fix work ok no performance improvement i've noticed
im actually considering dropping the water cooling portion to my cpu and having it exclusively for the gpu's. phase change seems to be what i want on cpu :p: :cool:
http://rapidshare.com/files/99718706/old.bin.html
Can somebody mod my bios for 1.3v and 850/950 and repair checksum,thanks...
use the bios editor from techpowerup... does all the work for youQuote:
Originally Posted by quake6
yes the bios editor works ok and i used ati winflash (for first time i usually flash from a floppy) and all ok
