10-21-2007, 07:55 PM
Monk0101

Quote:

Originally Posted by iadstudio

say in stock for me.

If you add it to your cart, is says "The D-Tek FuZion Accelerator Nozzle Kit is not currently available. Please contact us for availability of this item. "
10-21-2007, 08:40 PM
situman

No improvement for me.
10-21-2007, 08:41 PM
IanY

Quote:

Originally Posted by situman

No improvement for me.

No.. as in absolutely none at all ? That's strange.. you have a Q6600 G0 right ? Maybe because you are already pushing it that hard with San Aces on full blast.
10-22-2007, 05:48 AM
Talonman

Quote:

Originally Posted by situman

No improvement for me.

Were you already running with an O-ring before installing the kit?
10-22-2007, 06:32 AM
Aldy402

none for me either using quad nozzle and mx2
10-22-2007, 06:33 AM
IanY

Quote:

Originally Posted by Aldy402

none for me either using quad nozzle and mx2

You are getting no improvement as well ?

Maybe you MX2 users should allow some time to cure as well, contrary to what the specs say.
10-22-2007, 06:55 AM
Aldy402

Quote:

Originally Posted by IanY

You are getting no improvement as well ?

Maybe you MX2 users should allow some time to cure as well, contrary to what the specs say.

it's been about 48 hours and the temps are pretty much within 1-2c of each other between 4 mounts
10-22-2007, 07:05 AM
IanY

Quote:

Originally Posted by Aldy402

it's been about 48 hours and the temps are pretty much within 1-2c of each other between 4 mounts

Well, that's all you are going to see. There's got to be at least 1 C improvement.
10-22-2007, 07:06 AM
disruptfam

hmmm seeing no improvement at all seem's strange...hopefully i see some improvement....
10-22-2007, 08:59 AM
situman

Quote:

Originally Posted by IanY

No.. as in absolutely none at all ? That's strange.. you have a Q6600 G0 right ? Maybe because you are already pushing it that hard with San Aces on full blast.

No noticeable temp changes. My cpu is pushed to the absolute limit that I doubt its even prime stable. Idles are 44,44,36,37. Multiple mounts still the same. I guess two cores are being worked harder than the other two. Those were pretty much the same temps as before. Load is around 70 for all 4 cores fans on full blast. Temp improvements within 2 degrees or so can be so easily swayed by ambient temps. Save ur money and get better fans.
10-22-2007, 09:59 AM
nikhsub1

Well I just installed the 3.5mm nozzle. All I can say is WOW! Holy flowkiller Batman! MUCH more restrictive than the 4.5mm... I can honestly say there is really no reason to use the 3.5mm at this point. I haven't officially run it on the test bed but judging by the flow killage with 2 DDC-2's in series I say best to stay away. Cathar funny enough mentioned that ~4.7mm is optimal. This is all on a dual core FWIW.
10-22-2007, 02:56 PM
iadstudio

Quote:

Originally Posted by nikhsub1

Well I just installed the 3.5mm nozzle. All I can say is WOW! Holy flowkiller Batman! MUCH more restrictive than the 4.5mm... I can honestly say there is really no reason to use the 3.5mm at this point. I haven't officially run it on the test bed but judging by the flow killage with 2 DDC-2's in series I say best to stay away. Cathar funny enough mentioned that ~4.7mm is optimal. This is all on a dual core FWIW.

I noticed that as well. I had a hard time telling if the water was even flowing at all. I'm wondering about the nozzle diamater all together. The nozzles I have measure just over 4mm and just over 5mm diamater. Definately not 4.5 and 5.5

Do you know where the measurement is taken from? If cather says 4.7 is optimal, I'd love to try and open up the 3.5 to measure 4.7 since I won't be using the 3.5.
10-22-2007, 03:09 PM
nikhsub1

There is a 3.5mm nozzle which is the smallest, the next size up is 4.5mm.
10-22-2007, 04:21 PM
pH(x)

I will take a 4.7mm nozzle for my 1/2" FuZION low-flow DDC-01 setup and document the test bed for you.

Once I fix the Liang MCW350 that leaks in two places :(

http://www.aww-kittah-aww.com/up/files/199/005.jpg
http://www.aww-kittah-aww.com/up/files/199/002.JPG
10-22-2007, 06:04 PM
Jedda

Is the o-ring in there?
Looks like a PTS head that's not tight enough or has it's o-ring left in the stock top.
10-22-2007, 06:38 PM
SiGfever

Quote:

Originally Posted by IanY

You are getting no improvement as well ?

Maybe you MX2 users should allow some time to cure as well, contrary to what the specs say.

For me MX-1 and 2 seems to give the best temps after one week of running.
10-22-2007, 06:48 PM
Wingz

before I had the nozzles load temps were 53C on core 0 and 2 and cores 1 and 4 would fluctuate between 53 and 54C and I did 4 mounts and were getting roughly the same temps each time. but after I installed the Quad Nozzle I'm getting 51C on all cores so a improvement for me.

btw i'm using Arctic Ceramique
10-22-2007, 06:54 PM
Jedda

Quote:

Originally Posted by Wingz

before I had the nozzles load temps were 53C on core 0 and 2 and cores 1 and 4 would fluctuate between 53 and 54C and I did around 4 mounts and were getting roughly the same temps. but after I installed the Quad Nozzle I am getting 51C on all cores so a improvement for me.

btw i'm using Arctic Ceramique

That's what I've seen so far, with Shin-E
10-22-2007, 07:18 PM
iadstudio

Quote:

Originally Posted by nikhsub1

There is a 3.5mm nozzle which is the smallest, the next size up is 4.5mm.

I did some more acurate measuring and you're right. No matter, I installed the 5.5 just to see the difference and the temps are actually worse than the 3.5 with all its resriction. Could be a bad mount, but either way I'm going to take the block apart one last time, put the 4.5 in and call it a day.
10-22-2007, 07:21 PM
nikhsub1

Quote:

Originally Posted by iadstudio

I did some more acurate measuring and you're right. No matter, I installed the 5.5 just to see the difference and the temps are actually worse than the 3.5 with all its resriction. Could be a bad mount, but either way I'm going to take the block apart one last time, put the 4.5 in and call it a day.

Yeah 4.5 is the sweet spot no doubt about it. I put the 4.5mm back in and I'm liking it much better.
10-22-2007, 07:24 PM
pH(x)

Quote:

Originally Posted by Jedda

Is the o-ring in there?
Looks like a PTS head that's not tight enough or has it's o-ring left in the stock top.

There was no O-ring on the stock top that I saw, and the top didn't come with an O-ring or fittings everything was separate. The second place it was leaking is at the bottom in a hole marked/denoted number 1
10-22-2007, 07:43 PM
Jedda

Quote:

Originally Posted by pH(x)

There was no O-ring on the stock top that I saw, and the top didn't come with an O-ring or fittings everything was separate. The second place it was leaking is at the bottom in a hole marked/denoted number 1

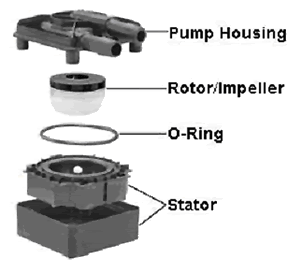

This shows the o-ring I mentioned.

http://img.photobucket.com/albums/v4...pinternals.gif

It sits between stator and top. Can stick to the top and be missed during re-assembly with a new top.
10-22-2007, 07:55 PM
iadstudio

Quote:

Originally Posted by nikhsub1

Yeah 4.5 is the sweet spot no doubt about it. I put the 4.5mm back in and I'm liking it much better.

Hope so. I've been lucky with mounts on this block so far. Good thing too, I don't have the patience for 5-6 mounts to get it right.
10-22-2007, 08:18 PM
pH(x)

Quote:

Originally Posted by Jedda

This shows the o-ring I mentioned.

[IMG]http://img.photobucket.com/albums/v408/sulk/pumpinternals.gif[/IM G]

It sits between stator and top. Can stick to the top and be missed during re-assembly with a new top.

Indeed it was there, thanks a million -- disassembling now.

http://www.aww-kittah-aww.com/up/files/199/003c.jpg

and I will let the stator dry out for about 6 hours (even though the pump is submersible) before I run it again in my test loop.
10-22-2007, 08:31 PM
disruptfam

Quote:

before I had the nozzles load temps were 53C on core 0 and 2 and cores 1 and 4 would fluctuate between 53 and 54C and I did 4 mounts and were getting roughly the same temps each time. but after I installed the Quad Nozzle I am getting 51C on all cores so a improvement for me.

btw i'm using Arctic Ceramique

2c is pretty good imo...
