how do you guys think my setup will do? before i had to RMA my motherboard and RAM i got to 3.4ghz stable. You think that is the highest I should go for 24/7 or 3.2? I guess it depends on temperature but what would be a realistic limit for 24/7.
Printable View
how do you guys think my setup will do? before i had to RMA my motherboard and RAM i got to 3.4ghz stable. You think that is the highest I should go for 24/7 or 3.2? I guess it depends on temperature but what would be a realistic limit for 24/7.
Intel e6400 2.13ghz @ 3504mhz 1.475v (438x8/1:1)
TT BigTyphoon // Orthos/Prime/Memtest Passed
Gigabyte 965p-DS3 BIOS F7
X1900gt @ 620/670
2x1gb OCZ DDR2-800 PC6400 PLATINUM (2.0x 5-5-5-15)
2x400gb seagate barracuda 7200.9 (RAID 0)
my max__
[L=http://valid.x86-secret.com/show_oc?id=129840]http://valid.x86-secret.com/show_oc?id=129840[/L]
here's my max before the system wont boot __\/

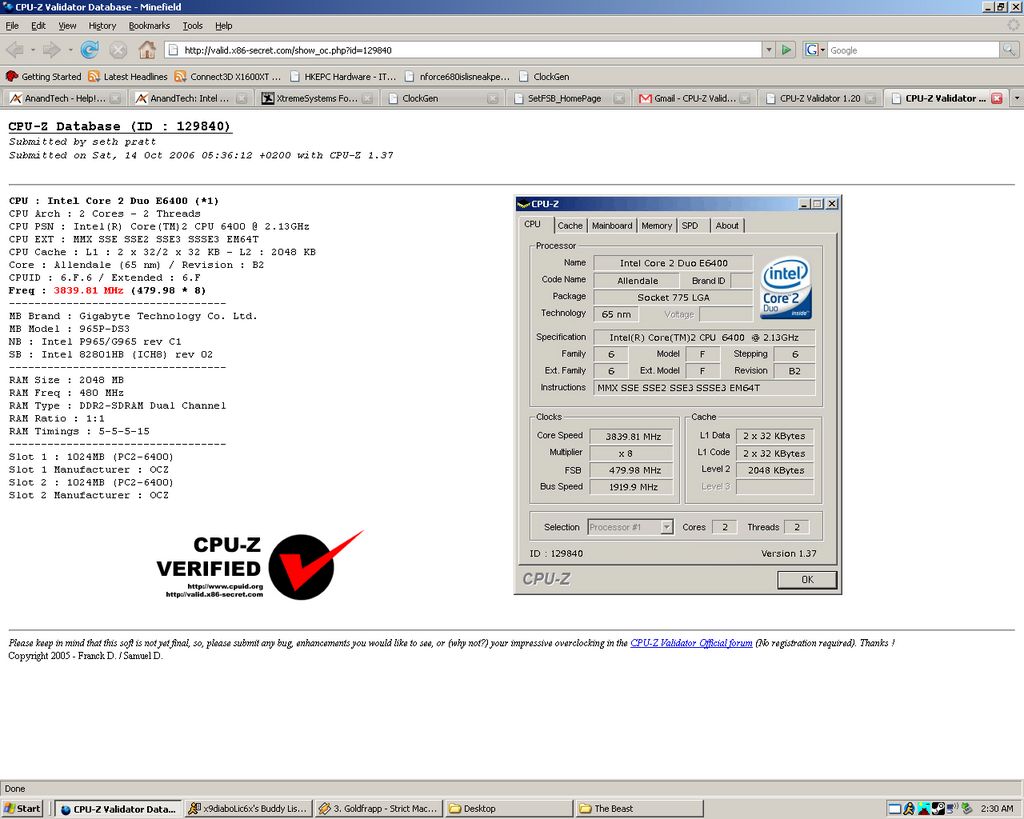

http://img.photobucket.com/albums/v3...oLix/cpu-z.jpg

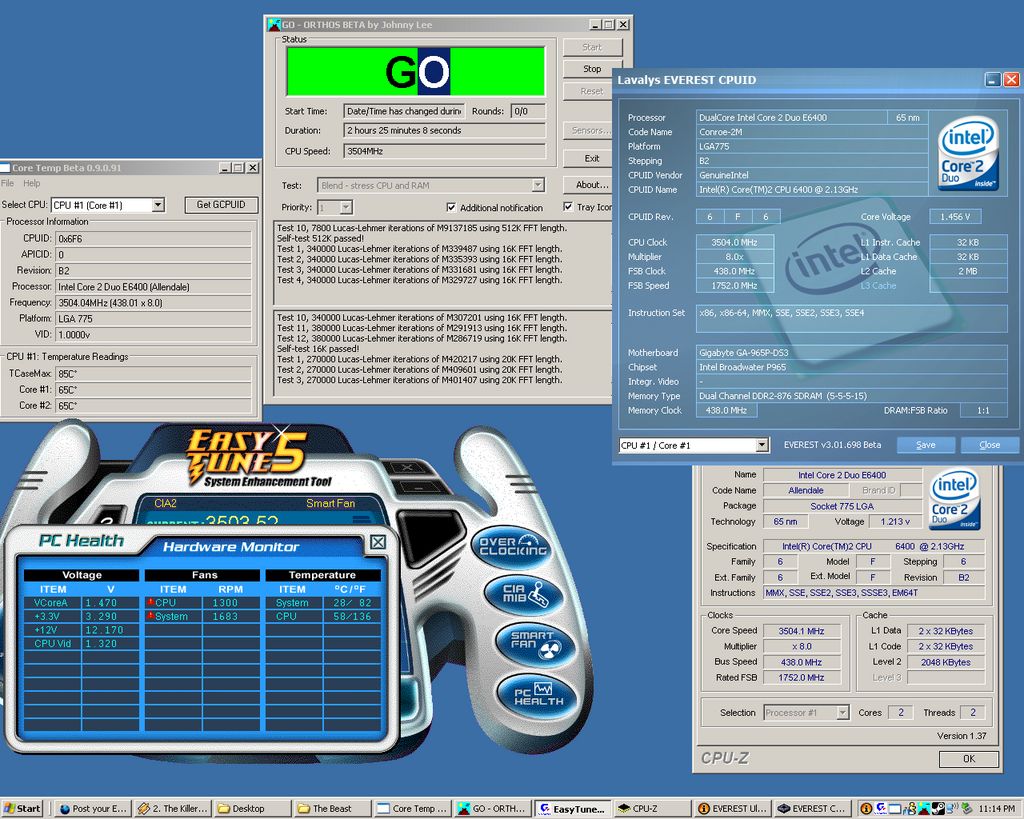

http://img.photobucket.com/albums/v3...rthostemps.jpg
I'm debating on lapping to lower temperatures, I'm 2.5 hours into orthos and my temps are varying from 63-69, my idles are about 53-55... I have speedstep and all that enabled though. I have an electric bill to worry about :P.
p.s. how do you add volts to an ATI card? I've always used NVIDIA cards and my OC needs were met without needing it. But this card is seriously low end, I got it for 100$ from a friend... I just need something till dx10 comes around... but this thing doesnt even artifact it just turns off my computer when I over overclock it.. so I'm thinkin it needs voltage or something.. lol sorry if this is off topic.
Quote:
Originally Posted by mascaras
damn that little of volts and orthos stable... mines at 1.525 I believe to be orthos friendly :[
E6400 @ 3600Mhz L626A301
vcore=1.45v bios = 1.4v CPU-Z/AsusProbe
Watercool: Apogee. BIX
mine loads at 60C ambient 28C, kinda hot IMO but is rock stable..... do you guys think the temp is incorrect? I touch the waterblock and it felt at most 40C to me......
for the voltage 0.0125v below 1.45v makes it only orthos stable for 20 mins......
http://img213.imageshack.us/img213/6043/captureii8.png
Dude, mine is L627A709. I think that atleast makes us cousins or something.Quote:
Originally Posted by mascaras
For what it's worth I'm running at 8x400. Only had the system about 5 days and accidentally ordered PC5300 RAM. Waiting for DDR800 to arrive, will push further with that.
well i HIT the Max with this RAM :(
with 4:5 they can run DDr1090 but 1:1 they dont run + than 467mnhz , dont know why :
E6400 @ 3735mhz@1.52v 1:1 & ASUS P5B Deluxe
http://img131.imageshack.us/img131/6593/3735pi8.jpg
and my MAx with vcore Default :
E6400 @ 3352mhz @ Vcore default
http://img171.imageshack.us/img171/3...defaultop5.jpg
thats all for now
regards
Cooling ?? air or water ??... Awesome OCs tho..
im with 100$ watercooling :D
CPU ---- NexXxos XP silver
VGA---- Twinplex Pro
Radiator --- Airplex Evo 240
Pump---- Eheim s1000 station
regards
yo mascaras...how about helping a brotha out with some WC tips?! :fact: :toast:Quote:
Originally Posted by mascaras
think I'm gonna go WC and pump this baby up to 3.5ghz ...gimme a BOM of your stuff and DIY tip
WC wont help u much.. u need is a higher Multi cpu.. Just dump the WC, n get a E6600 or E6400 atleast.
I just ran Orthos for an hour and 40 minutes; stayed rock solid. I only stopped because I wanted to play some games :) .
http://img.photobucket.com/albums/v1...thosstable.jpg
Load temps stayed around 48-55C; the fan would turn up when it hit 55C, which would cool it down to 48C, then it would slow down and the temp would rise again. Just kept doing that over and over. If I run the test again, I'm gonna just run the fan at 100%. But yeah, I'm very happy with my OC. I bet I can go further too, since my vcore isn't high (I havent even found minimum required vcore yet...).
Here goes mine !
E6400 - L624A727
Max I can get for now with 1,66v BIOS air'ed with Scythe Ninja Rev.B :O
http://xs215.xs.to/xs215/07211/E6400...eal.PNG.xs.jpg
http://valid.x86-secret.com/show_oc?id=199989
http://img179.imageshack.us/img179/6015/3300iz5.jpg default voltage with C1E ane EIST Enabled, 1000% stable. Idle temps 26C. Full 2 core load 53.
3400Mhz with 1.350Vcore also stable.
http://valid.x86-secret.com/show_oc.php?id=238723 maximum o/c for now, memory is holding this chip back. can do only 920Mhz'ish.
Must wait for my new case,mobo, wc, and memory ;]
What are you cooling that w/? I've very similar temps on a TRUE w/ Scythe 1200RPM...

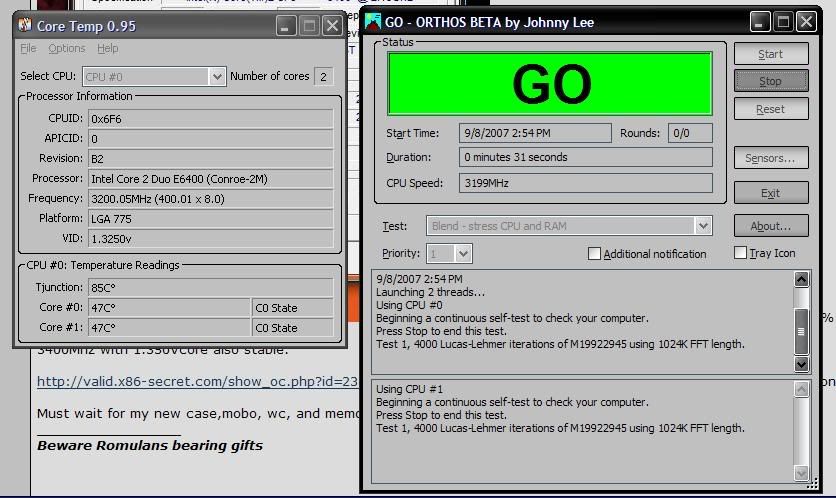

http://img.photobucket.com/albums/v212/jodiuh/c.jpg
ambient 24C
3200Mhz @ default voltage
abit ip35 pro @ 400Mhz
@ Jodiuh , Scythe Ninja Rev.B, with 120mm @ 900rpm, in the rear of the case are 2x1 stacked 120mm @ 5V to pullout as a turbine , all on ABIT AB9
Kick :D !
Got a new 1M pi score
http://img172.imagevenue.com/loc1008...123_1008lo.JPG
Finally sub 15 :yepp:
E6400 @ 3.2ghz
micron d9gmh 2gb @ 800mhz
gigabyte ds3 rev 1.0
vcore: 1.28v
temps: idle 43, load 55 with tuniqtower badly installed. Had 33c idle and 51 load with my e6300 3.3ghz higher vcore before, so i think i can get the temps a bit better.
this is stable on orthos 8 hours at 118 f: air cooled

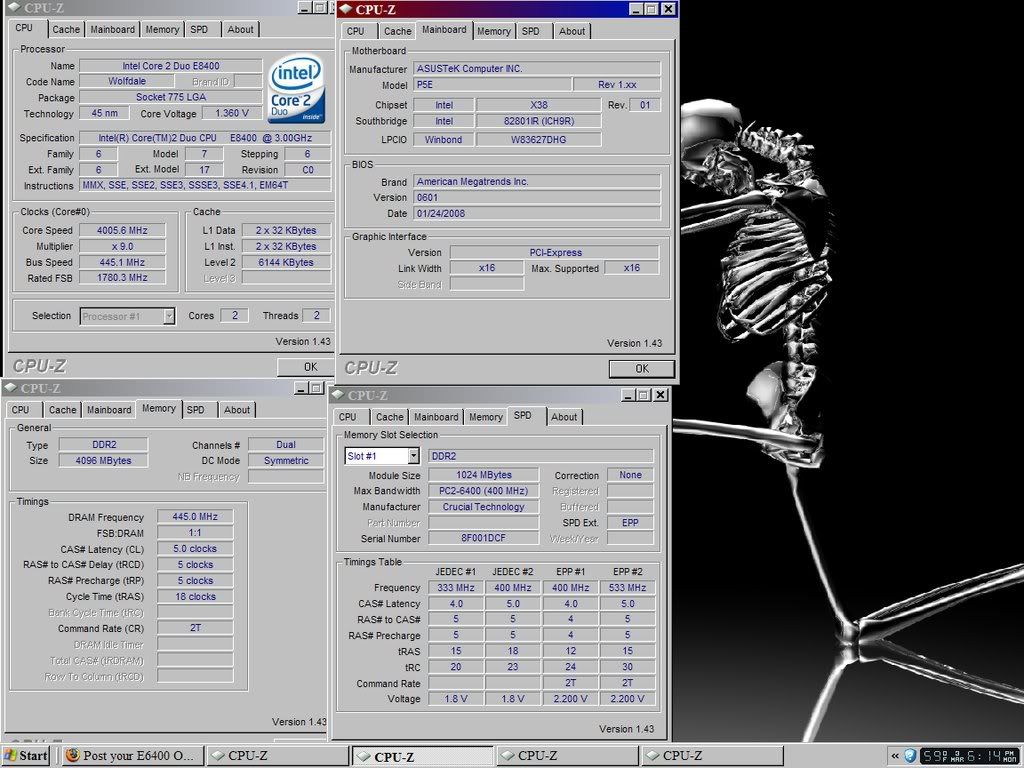

http://i177.photobucket.com/albums/w...zpix/mycpu.jpg
This thread is for E6400
Nice OC though, they all seem to reach 4Ghz with ease
Dude! Come into our thread and wag that 4G around...
:D
I Was running 4.25 g for a few days and the asus atomic sounding alarm went off in the middle of the night with orthos a little over 6 hrs . it got a little hot but all my fans wasnt running at full and it only stayed hot for a min after i cranked them all up, 5 case fans all 40mm 2 in front 1 in back and 1 on side and 1 on top, still kinda quiet but the speed is worth it, i can encode a dvd 9 to dvd5 avi to dvd in 5min 30 sec
i had to build this buying 1 part every paycheck,get paid fri then wait for mon for newegg to process my order lol
Asus p5e mobo
4*1gb crucial balistix ddr2 1066 (pc2 8500)
E 8400 wolfdale 45nm
windows xp pro 32bit
extreme fxII sound card
logitech z5500 surround sound
2 wd 750 gb hdd sata with raid 10
Thermaltake CL-P0378 90mm CPU Cooler /arctic silver compound
Radeon HD 3850 55nm 256MB video card
man i cant find your threadQuote:
Originally Posted by Jodiuh
http://i.data.bg/08/03/14/853925_t.jpg
Cooled by Scythe Ninja Rev B. + 2x120mm Spire 107CFM :D
