hallo mate can you explane me this?..
.i used same everest..shows 11C...
core temp 0.96.1 showing core 0 12C core 2 16 ....
when i running 3dmark06 core 0 shows... 17C and core 2... 16C
look
http://img85.imageshack.us/my.php?image=ddddui7.jpg
Quote:
Originally Posted by Nuckin_Futs
Can some one tell me what is the safe temp for the maximus northbridge , my show at 54C , Voltage is at 1.55,thanks
And my overclock on this mobo:
http://shrani.si/?46/d8/2GRgwoEA/4ghz.png
(i have inserted picture, but it doesn't work)
Quote:
Originally Posted by M-XXXX
it doesnt work cuz your picture is too large. if you read the little warning that comes up it clearly states the file your trying to upload is too large.
its a png file @ 500kb.
pictures can only be 200kb
save it as a jpg and resize it since the picture doesnt need to be your entire desktop nor 1280x1024
I will remember this! (I thought it just make link to picture from the internet- I'm used this from other forums)
Its still in png, but is under 200kb:cool:
http://shrani.si/f/2J/jd/2eNphoKf/1/...itna-slika.png
anyone try flashing to the rampage formula bios? i see that the beta is up on the asus website but im a too skirred to try myself... im wondering if anyone else has had success with this
Hi have just got this board and i wanted to know whats the different between a rev 1.02g and a 1.03g! Have got the 1.03g and my friends got the 1.02g!
The problem apparently is starting to getting recognition. Remember, you are not the only one with this problem. Do a google search using the words "E8400 temperature problem" and see what comes upQuote:
Originally Posted by UnSeenSVK
1.02g = motherboard with waterblock on north bridge chipsetQuote:
Originally Posted by bro20000
1.03g = motherboard with regular copper heat sink on north bridge chipset
from what I know.
With a non-removable bios chip it will take a brave person to try this.Quote:
Originally Posted by ZenEffect
Ok I couldn't wait so I purchased myself a G0 and put it in my Formula..
I'm using the following settings in the bios for 3.6GHz
BIOS 907
Extreme Tweaker
Ai Overclock Tuner : Manual
OC From CPU Level Up : AUTO
CPU Ratio Control : Manual
- Ratio CMOS Setting : 9
FSB Frequency : 400
FSB Strap to North Bridge : 333
PCI-E Frequency: 120
DRAM Frequency: DDR2-961
DRAM Command Rate : 2T
DRAM Timing Control: Manual
CAS# Latency : 4
RAS# to CAS# Delay : 4
RAS# Precharge : 4
RAS# ActivateTime : 12
RAS# to RAS# Delay : 6
Row Refresh Cycle Time : 42
Write Recovery Time : 7
Read to Precharge Time : 7
Read to Write Delay (S/D) : Auto
Write to Read Delay (S) : Auto
Write to Read Delay (D) : Auto
Read to Read Delay (S) : Auto
Read to Read Delay (D) : Auto
Write to Write Delay (S) :Auto
Write to Write Delay (D) : Auto
DRAM Static Read Control: Disabled
Ai Clock Twister : light
Transaction Booster : disabled
Relax level: 0
CPU Voltage : 1.4000
CPU PLL Voltage : 1.70
North Bridge Voltage : 1.71
DRAM Voltage : 2.20
FSB Termination Voltage : 1.50
South Bridge Voltage : 1.200
Loadline Calibration : Enabled
CPU GTL Reference : 0.63x
North Bridge GTL Reference : 0.67x
DDR2 Channel A REF Voltage auto
DDR2 Channel B REF Voltage : auto
DDR2 Controller REF Voltage : DDR2-Ref
SB 1.5V Voltage : Auto
NB LED Selection : NB Volt
SB LED Selection : SB Volt
CPU LED Selection : CPU Volt
Voltiminder LED : Enabled
CPU Spread Spectrum : Disabled
PCIE Spread Spectrum : Disabled
I ran SPI 32M and 2 hrs prime and it seemed to be stable. Then tonight I noticed my temps at core 0/1 were bigger than core 2/3 and after a SPI32m it produced an error.. Especially core 0 can reach 10-12Celcius higher than core 2/3. Core 1 is 5-6Celcious higher than core 2/3.. The fact is that cpu0 which depicts by far the higher idle/load temp is the only one that causes the instability even at 1.4vcore.. It reaches at 75C-78C sometimes and of course causes instability, while the other cores don't have problems whatsoever. Cpu1 reaches max 70-71 cpu2/3 max 68-69..
I tried to up the vcore to 1.425 and 1.45 but it only made cpu0 reach 75-78C quicker.. So the problem seems not to be the vcore but the hight temp that only this core depicts under load..
So what do you think is the case here? Do I need to test something else in the settings? Or are we talking about a uneven cpu surface? It could also be my Ultra 120 extreme that has the problem..
What do you suggest me to do in order to reach a stable 3.6GHz O/C?
I bought an open box Maximus Formula from a local retailer.
The BIOS it had on it was the 907... I could not change any settings in the GURU without getting a NO POST.
SO...I thought maybe a bad bios flash, so I downgraded to the 903....NOW, I can OC all I want, everything worked great to OC manually.
So.... I upgraded to the 907 again, flashed it the same way as the 903 that worked, .....NOW, I can't get it to post if I change anyting in the OC section of the BIOS.
Any ideas why the 907 will not let me even raise the FSB to 375 without a no post, yet the 903 will allow me to OC to 3.6..??
What are your components? I used 0903 and 0907 and didn't see any differences in performance, temps, etcQuote:
Originally Posted by v3rax
I have an e8400, HIS HD3870, Ballistix PC6400 (2gb), PC P&C 750w silencer
Im guess if there is no difference It wont really matter if the 907 works, but I am just curious why the 903 will aloow me to do whatever I want in the BIOS and it boots fine, but when I put the 907 on, I can't post if I change anything at all..... the 907 will bott up and run fine as long as I keep it set to "load defaults" but as soon as I try to change anything in it, "NO POST"
I flashed the 907 the exact same way I flashed the 903, so I don't think it would be a bad flash...and I have tried the 907 I downloaded from the ASUS site and the one that is listed at the beginning of this forum, both did the same thing.
907 BIOS

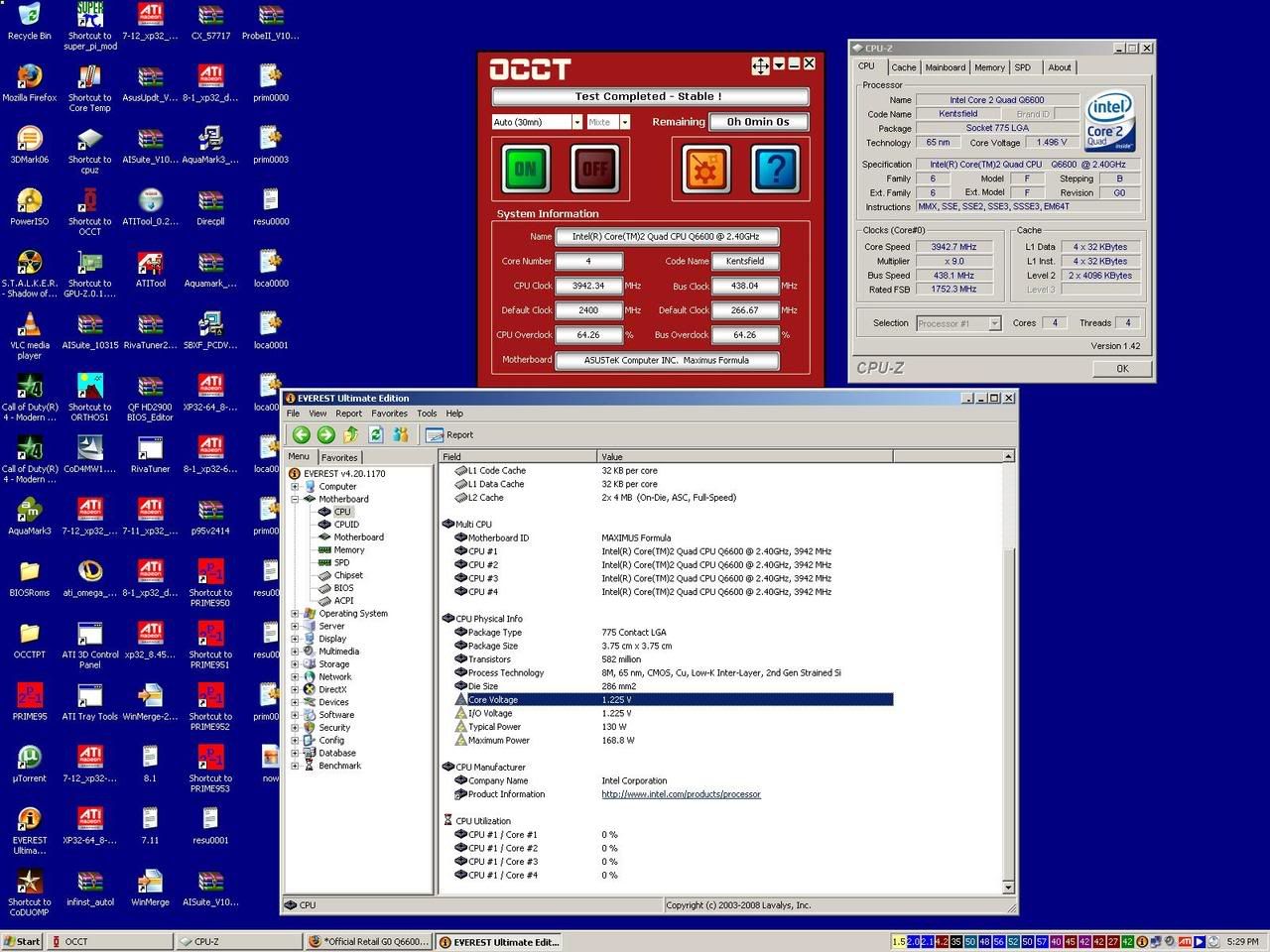

12 hours prime (64 bit version) stable on blend and small fft tests
http://img135.imageshack.us/img135/1180/36uh1.th.jpg http://img221.imageshack.us/img221/1...lendzs8.th.jpg
Here's a 10 hour run on blend. When I first got this chip it primed 12 hours but I didn't take any shots of it. I'll update with a pic of small fft for 10-12 hours when I prime again.
Extreme Tweaker
Ai Overclock Tuner : Manual
OC From CPU Level Up : AUTO
CPU Ratio Control : 9
- Ratio CMOS Setting :
FSB Frequency : 400
FSB Strap to North Bridge : 400
PCI-E Frequency: 100
DRAM Frequency: DDR2- 1066
DRAM Command Rate : 2T
DRAM Timing Control: AUTO
5-5-5-15
DRAM Static Read Control: Auto
Ai Clock Twister : Auto
Transaction Booster : Disabled. Relax 1.
Since my board overvolts/undervolts a lot of settings I will list the actual voltage the board gives rather than the setting I put it on:
CPU Voltage : 1.352
CPU PLL Voltage : 1.610
North Bridge Voltage : 1.5
DRAM Voltage : 2.35
FSB Termination Voltage : 1.46
South Bridge Voltage : 1.1
Loadline Calibration : Enabled. without this on I was getting .3 vdroop drops!
CPU GTL Reference : .63
North Bridge GTL Reference : .67
DDR2 Channel A REF Voltage : Auto
DDR2 Channel B REF Voltage : Auto
DDR2 Controller REF Voltage : Auto
SB 1.5V Voltage : 1.55
NB LED Selection : NB Volt
SB LED Selection : SB Volt
CPU LED Selection : CPU VOlt
Voltiminder LED : Disabled
CPU Spread Spectrum : Disabled
PCIE Spread Spectrum : Disabled
Advanced CPU Configuration
CPU Ratio Control : Manual
- Ratio CMOS Setting : 9
C1E Suppport : Disabled
CPU TM Function : Disabled
Vanderpool Technology : Disabled (enabling this makes prime 95 fail all cores in under 60 seconds!!!)
Execute Disable Bit : Disabled
Max CPUID Value Limit : Disabled
Your northbridge voltage is looking REALLY high to me and might be adding to the heat around the CPU. I have 1.5v running through my NB and it runs 400mhz just fine. I'm also assuming you're using DDR2-800 ram, you might want to try running it at 800mhz for a while and see if you still fail the stress tests. Prime95 the system for at least 8 hours and if it passes then you know the RAM was being pushed too far.Quote:
Originally Posted by Orbitech
HALLO MATES ..CAN Somebody help me?..
i can t change in bios mhz of ram..there is only 800mhz..1000MHZ...934mhz...and 1111MHZ...but i wanna change to 1200MHZ...where can i find it?..
Change the FSB strap to northbridge. Each strap has different settings for RAM speed. If you can't find what you're looking for you'll need to lower or raise your FSB.Quote:
Originally Posted by UnSeenSVK
What's the usual threashold for northbridge temperature on this board?
I tested C1 and EIST last days and I can say, that EIST does nothing, when VCore is set manually. And C1 does clockrates down by using smallest multiplicator in Idle.
But lowering VCore does not work with VCore set manually.
All in all you can say, that EIST is useless when OCing. C1 lowering multiplicator does even work with 500x7 for me and I`m using it while OCing, no problems.
Here are my settings for 417 X 9. So far it's 48 hours folding stable. I tried 423 X 9 and it would boot to Windows but failed prime95 immediately. I would have had to use over 1.5 vcore for stability. That was more than I wanted to put through it for 24/7 use. Core temps, 44,45,44 & 42. NB 30C. Ambient 70F.
Extreme Tweaker
Ai Overclock Tuner : Manual
OC From CPU Level Up : AUTO
CPU Ratio Control : Manual
- Ratio CMOS Setting : 9
FSB Frequency : 417
FSB Strap to North Bridge : 333
PCI-E Frequency: 103
DRAM Frequency: DDR2- 1002
DRAM Command Rate : 2T
DRAM Timing Control: Manual
CAS# Latency : 5
RAS# to CAS# Delay : 5
RAS# Precharge : 5
RAS# ActivateTime : 15
RAS# to RAS# Delay : Auto
Row Refresh Cycle Time : Auto
Write Recovery Time : Auto
Read to Precharge Time : Auto
Secondary Info 8-3-5-4-6-4-6
Read to Write Delay (S/D) : Auto
Write to Read Delay (S) : Auto
Write to Read Delay (D) : Auto
Read to Read Delay (S) : Auto
Read to Read Delay (D) : Auto
Write to Write Delay (S) : Auto
Write to Write Delay (D) : Auto
DRAM Static Read Control: Disabled relax level 0
Ai Clock Twister : Auto
Transaction Booster : Disabled
CPU Voltage : 1.475 Bios 1.456 Windows
CPU PLL Voltage : 1.50 Bios 1.61 due to overvolting
North Bridge Voltage : 1.43
DRAM Voltage : 1.96
FSB Termination Voltage : 1.40
South Bridge Voltage : 1.100
Loadline Calibration : Enabled
CPU GTL Reference :
North Bridge GTL Reference : Auto
DDR2 Channel A REF Voltage : Auto
DDR2 Channel B REF Voltage : Auto
DDR2 Controller REF Voltage : Auto
SB 1.5V Voltage : Auto
NB LED Selection : NB Volt
SB LED Selection : SB Volt
CPU LED Selection : CPU VOlt
Voltiminder LED : Enabled
CPU Spread Spectrum : Disabled
PCIE Spread Spectrum : Disabled
Advanced CPU Configuration
CPU Ratio Control : Manual
- Ratio CMOS Setting : 9
C1E Suppport : Disabled
CPU TM Function : Enabled
Vanderpool Technology : Enabled
Execute Disable Bit : Enabled
Max CPUID Value Limit : Disabled
USB Configuration
USB Functions: Enabled
Legacy USB Support : Auto
It's around 96 C. I posted in this threat a link to original Intel thermal design spec sheet, whre you can find this value. I habe 69 C unloaded and around 76 loaded. This are values from 100% stable overcloced. So your NB temps are pretty good and u needn't care.Quote:
Originally Posted by icecpu
Your NB idles at 69c???Quote:
Originally Posted by Robin77
personaly I would care ALOT unless your looking to replace that mobo in June
I would rather hear what Asus has to say on the NB temps not Intel
Agreed. If you read this thread (item 3) http://www.xtremesystems.org/forums/...d.php?t=162085 , you would know that Anantech (raju) found that over 47C on the NB caused instabilities. Having read Raju's posts on many boards, I would not question his conclusions. :up:Quote:
Originally Posted by Grnfinger
So far I'm frustrated to board since it wont go over 536fsb no matter what i do, that isnt the cpu that blocks me there since I've tried my e6850 with ss and dryice and 8400 pros and 536fsb is the max to get. :(
Otherwise nice mobo
I found Maximus 1.03G mix with Crucial 8500 my board doesn't work 1200mhz mem speed, i try vdimm 2.45v 1200 5-5-5-15 system freeze
any advice? what BIOS maximus good for OC ?
my maximus runs with tracers pc8500 1200mhz 5-5-5-12 @ 2.00v actual ( 1.94v bioset, board overvolts lol) np.. I tried 0802/ 0903/ 0907 all works, ofc each kit differs... u might have a bad stick
i have sthe same problem,i ve got Kingston HyperX 1200Mhz..and a cant run at 5.5.5 15 2T 1200mhz.. with bios 0907...
i don t understand..my voltage is 2,35...i m unhappy ...:mad:
Quote:
Originally Posted by nut311
in Biostar TP35 my Ballistix can run 1200++ 4-4-4-4 2.5v:D http://valid.x86-secret.com/show_oc.php?id=283533Quote:
Originally Posted by mc2k
bad maximus (unlucky got), memory issues or memory setting not match? but in maximus my ballistix "only" stable run 1100 5-5-4-9 1.9v(bios) when up to 1200 .....my system freeze
now i will try with Team Xtreem 8500 but same condition.....
I can run my 4GB of Ballistix Tracers at 1200Mhz 5,5,5,15 using the 907 Bios!
i don t know if somebody understand what i mean,but i have on MB 2x4pins connectors...do i have to use both?...i ve got asus maximus formula...i m using just one 4pin...
Woldfale 8400 + Crucial Value 800 MHz
24/7 orthos stable
Extreme Tweaker
Ai Overclock Tuner : Manual
OC From CPU Level Up : AUTO
CPU Ratio Control : Manual
- Ratio CMOS Setting : 9
FSB Frequency : 450
FSB Strap to North Bridge : 400
PCI-E Frequency: 100
DRAM Frequency: DDR2- 1200
DRAM Command Rate : 2T
DRAM Timing Control: Manual
CAS# Latency : 5
RAS# to CAS# Delay : 5
RAS# Precharge : 5
RAS# ActivateTime : 4
RAS# to RAS# Delay : 2
Row Refresh Cycle Time : 25
Write Recovery Time : 2
Read to Precharge Time : 3
Read to Write Delay (S/D) : Auto
Write to Read Delay (S) : Auto
Write to Read Delay (D) : Auto
Read to Read Delay (S) : Auto
Read to Read Delay (D) : Auto
Write to Write Delay (S) : Auto
Write to Write Delay (D) : Auto
DRAM Static Read Control: Enabled
Ai Clock Twister : Moderate
Transaction Booster : Enabled
Boost Level :0
CPU Voltage : 1.32500
CPU PLL Voltage : 1.50
North Bridge Voltage : 1.55
DRAM Voltage : 2.12
FSB Termination Voltage : 1.2
South Bridge Voltage : 1.05
Loadline Calibration : Enabled
CPU GTL Reference : 0.63x
North Bridge GTL Reference : 0.67x
DDR2 Channel A REF Voltage : Auto
DDR2 Channel B REF Voltage : Auto
DDR2 Controller REF Voltage : DDR2_REF
SB 1.5V Voltage : 1.5
NB LED Selection : NB Volt
SB LED Selection : SB Volt
CPU LED Selection : CPU Volt
Voltiminder LED : Enabled
CPU Spread Spectrum : Disabled
PCIE Spread Spectrum : Disabled
Advanced CPU Configuration
CPU Ratio Control : Manual
- Ratio CMOS Setting : 9
C1E Suppport : Disabled
CPU TM Function : Disabled
Vanderpool Technology : Enabled
Execute Disable Bit : Enabled
Max CPUID Value Limit : Disabled
nice chip you gotQuote:
Originally Posted by Spyrus
Hypermax PC2-9600 works fine with this board. Bump up the MCH voltage.Quote:
Originally Posted by UnSeenSVK
what s the mch voltage?
Quote:
Originally Posted by GFORCE100
The northbridge, X38.Quote:
Originally Posted by UnSeenSVK
Set it to 1.55V or so and try again. I have 4x 1GB sticks in mine and works fine at 1200 but you must disable Transaction Booster/AI Booster unless you're doing 8x450. Using 9x400 it won't work if you have them enabled to Strong/Enabled = 0.
i m using 9,5 x 450
Quote:
Originally Posted by GFORCE100
yes you do need 2x4 if you are using a quad core pg 2-34 and 2-35 of the maximus motherboard user guide, if your psu is 400w or less it only has 4 pin you will need to get proper power suplly. I recomend thermaltake 1000w it is ATI sertified alsoQuote:
Originally Posted by UnSeenSVK
CELLSHOCK 9200 works fine with this board. :D
There is only one problem...... i cant boot at 1200 cl4. i tried 2.7V and it doesn't help. i don't know what is the reason that caused this problem.
Maybe the next bios will be better.
2.38V - bios :bounce:
550, cl4 full stable.
i ve got OCZ 1099W :)
Quote:
Originally Posted by jorgito05
In that case the BIOS will report DRAM as 1199MHz and you can have strong AI booster and transaction booster enabled = 0 configured.Quote:
Originally Posted by UnSeenSVK
It works here with the only difference that I have tested it at 9x450 and 8x450.
Do what I said with the MCH voltage and set the timings manually, i.e. 5-5-5-12.
On mine 1200MHz will work at down to 2.06V set in the BIOS though I run it at 2.10V at 1133MHz due to my Q66090 overclock.
thanks mate...i m gonna try...i ll let zou know tommorow
Can anyone get your PC8500 ram to either:
- 4-4-4-12
-higher then 1066MHz without having to OC to get it?
If so what do you need to do exactly? I cannot get 4-4-4-12 at 2.10V in bios at 400 FSB (E8400). I haven't tried a higher frequency because it's a pain to have to take out the ram, use PC6400 to boot back up then reinstall the pC8500 ram when something goes wrong. This bios 907 is the pits when it comes to ram adjustments with my PC8500!
Have you tried slots 2 & 4?Quote:
Originally Posted by Eastcoasthandle
Seemed to fix the bug when Overclocks fail and default values are loaded, which lowers the vdimm to 1.9v which is too low for 1066 rated sticks. 667/800 1.9v for me 1066 2.35v:eek: .
Try:
-Slots 2 & 4
-DDR2 Controller REF Voltage : DDR2
-What is your FSB Term in Bios Set to? I noticed mine went from overvolt to undervolt from e6750 to e8400???
Here we go, stable for over 4 hours in Everest stability.
http://aycu06.webshots.com/image/443...4585016_rs.jpg
-slots 1/2Quote:
Originally Posted by .OCX
-FSB Term 1.20V
DDR2 Controller REF Voltage: Auto <-any link to explain what this does?
how can help me please...?..i can t get from my ram maximum...:mad:
i ve got that kingston hyperX 1200mhz..and is runnig at 920mhz and it is not stale...:(
http://img85.imageshack.us/my.php?image=suckbt7.jpg
DDR2 Controller REF Voltage
This is the dram vtt. Should be half of the vdimm in most cases.
It helps stabilizing the vdimm. Leave it at DDR2_REF and use also
the white slots. These seems well so as not to have ripple on vdimm when
stressing memory
Code:Extreme Tweaker
Ai Overclock Tuner : Manual
OC From CPU Level Up : AUTO
CPU Ratio Control : Manual
- Ratio CMOS Setting : 9
FSB Frequency : 450
FSB Strap to North Bridge : 333
PCI-E Frequency: 100
DRAM Frequency: DDR2- 1080 (5:6)
DRAM Command Rate : 2T
DRAM Timing Control: Manual
CAS# Latency : 5
RAS# to CAS# Delay : 5
RAS# Precharge : 5
RAS# ActivateTime : 15
DRAM Static Read Control: DISABLED
Ai Clock Twister : STRONG
Transaction Booster : DISABLED
BOOST: 0
CPU Voltage : 1.28125 ~ 1.264v
CPU PLL Voltage : Auto ~ 1.648v
North Bridge Voltage : 1.61~1.65v
DRAM Voltage : 2.24~2.352v
FSB Termination Voltage : 1.4~1.344v
South Bridge Voltage : 1.1~1.136v
Loadline Calibration : ENABLED
CPU GTL Reference : AUTO
North Bridge GTL Reference : .67
DDR2 Channel A REF Voltage : AUTO ~ 1.184v
DDR2 Channel B REF Voltage : AUTO ~ 1.184v
DDR2 Controller REF Voltage : DDR2
SB 1.5V Voltage : 1.6V ~ 1.664v
NB LED Selection : NB Volt
SB LED Selection : SB Volt
CPU LED Selection : CPU Volt
Voltiminder LED :
CPU Spread Spectrum : Disabled
PCIE Spread Spectrum : Disabled
USB Configuration
USB Functions: Enabled
USB 2.0 = DISABLED
Legacy USB Support : Disabled
BUGCODE_USB_DRIVER
Caused by: Nostromo N52 Speed pad
-Happens after windows has loaded to desktop and loads drivers
-Does not happen if device is not plugged in, will happen after boot if you plug in regardless.
-Will happen in the absence of PS/2 Keyboard.
-Installed Latest Intel inf Drivers and Nostromo Drivers
This occurred in the past, but usually could be solved by a 3rd or 4th restart. However, as I clock higher it becomes more prevalent around 440-450
-Tried SBv 1.2
-Tried SB 1.5v = 1.6~
-SBv 1.1 & SB1.5v= 1.6 Success. Restarts are Good, Bug Gone...right?
This occurred in the past, but usually could be solved by a 3rd or 4th restart. 333 is the latest strap I'm trying since it only pushes to DDR2-1080 on 5:6. Restarts were great, it was like it was solved by 1.6v SB.
-Lowered SB 1.6v to 1.55v and it was back
-Switched back to my saved profile for 400 Strap 435*9 known stable.
-Restart it happens again. SB was at 1.5 in that saved 400 Strap Profile.
-Restarted again, only this time start opening folders and just kind of going psycho to try to "fool" it into missing my little bug. Imagine a burglar hiding from the police...
And its gone... Anyone have a Nostromo N52 they can verify this with?
***UPDATE***
-Tried 333 Strap Profile and Restarted - Didn't Touch any Keys on Nostromo or on Mx518 Mouse.
-Got Bugcode BSOD again.
-Restarted
-Tried Mashing Buttons upon XP desktop bootup
-Open files with Mouse, pressed keys on Nostromo (More like Mashing)
-It Works!
one question...
does our boards require more voltage to OC the cpu than others?
it seems like others are reaching 3.5 on around 1.3volts while we need 1.3volts to reach 3.0...or is that just my board....
help please!
Brisk, it depends. On my QX6700, I need less vCore than on a P5N32-E. But on my E8400, I need a lot more than most people are reporting (1.45v @ 4.23).
Do you have a B3 or a G0 Q6600?
I ordered a new E8400 to see if I can rule-out the chip.
ok so I own this board and the evga 780i and my options are to keep this and use a 3870x2 or use the 780i board and 2 8800gtx's.... Thoughts??
I already read this, but again, if you read my postings you would know that my MB works rock stable (testet 48 hours running prime on both cores of my CPU and 3DMark 06 simultaniously).Quote:
Originally Posted by WFO
And what has more weight? Whatever Asus may claim (if they'd even do so) or what Intel the builder of the NB officially testet out and made public in their tech specs....
The answer is of caurse that Intel is right and my rockstable low idle temp of ~69 C prove this.
I can't tell you why anansdtech has problems with temps that are on the very low side of the allowed temps. Maybe they should RMA their board.
Also when you read all posts from http://www.xtremesystems.org/forums/...60945&page=156
you'll notice that there are indeed more users without problems running NB temps of 50 C.
What I just want to point here clearely out is that noone needs to care about totally good NB temps below 90 C. This is what was testet from Intel and this is what many examples prove.
One question: are u guys with that low NB temps using the little fan that is in the package that anandtec recommends for cooling the NB? That would (maybe) explain your ultralow temps of 45 C or even less.
..i m really nervous..couse that ram doesn t work.. i tied everithink,,if i change somethink in bios system freez....
look... i have to have everythink on auto...CPU clocking is ok but a want get more from ram
http://img229.imageshack.us/my.php?image=beznzvumk0.jpg
i just got my maximus formula. the problem is i can't get to bios setup with my keyboard. it's razer tarantula with USB connection. is there a fix?
I see on a lot of setups that the PCI-E frequency is set above 100Mhz. Usually 110Mhz. I thought I'd give that a shot myself but during a 3dmark session I got a BSOD. So what's the increase in PCI-E freq. for?
Other boards required that you increase PCIe frequency when you OC'd or else you run into component stability problems (HD, etc). However, from what I've seen so far Asus boards don't require you to increase the PCIe frequency when you OC.Quote:
Originally Posted by Wolf2000me
thanks!Quote:
Originally Posted by Spyrus
I'd have ran into trouble with my raid array if the board did require an increased PCI-E freq then.Quote:
Originally Posted by Eastcoasthandle
Thanks for the info :)
What is the rated voltage of your ram and what do you have dram voltage set to?Quote:
Originally Posted by UnSeenSVK
PCI-E Frequency: 100
Ai Clock Twister : Light
Transaction Booster : Enabled (FSB Strap to North Bridge = 400)
BOOST: 0
OR
Transaction Booster : Disabled (FSB Strap to North Bridge = 333)
BOOST: 0
DDR2 Controller REF Voltage : DDR2
CPU Spread Spectrum : Disabled
PCIE Spread Spectrum : Disabled
This tid bit of information may or may not help you.

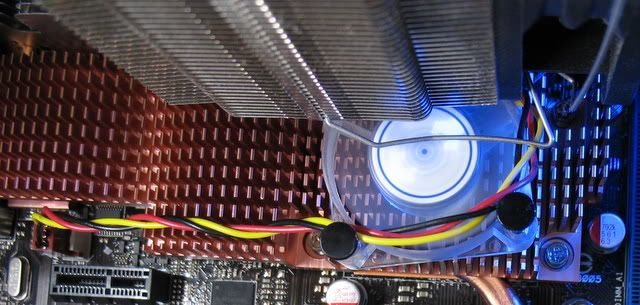

I'm using a quiet 5CFM 40mm from the Jing Ting NB Cooler. Dropped temps 7C.Quote:
Originally Posted by Robin77
http://img.photobucket.com/albums/v2...h_IMG_2271.jpg http://img.photobucket.com/albums/v2...h_IMG_2270.jpg
No problem, one of the main reason why PCI-E Frequency 100 was used instead of auto was to prevent it from going over or under 100. However, that was a long time ago. As you can see motherboards have improved since then. On my P5W I had mine set to Auto with the CPU set to 3.6GHz with 2 HDs and never had any problems. However, I didn't have a raid either :p:Quote:
Originally Posted by Wolf2000me
I used to run a raid array on my nforce2 board with high FSB. Short term problems were never really there but I did kill more disks than originally anticipated. And that's with a bus frequency lock enabled.
On my old via board my disks didn't die that easily and these bus frequencies weren't locked. The PCI frequency was way out of spec but my brother is still running that board with original raid0 disk setup. I bought those back in 2002. I guess it's all relative :)
I didnt buy the SE to cool it with a fan:rofl:Quote:
Originally Posted by Robin77
my NB hits 45 at full load not idle
Guys, what for settings should i use for 475 x 9 ?
This is for an Q6600 G0...
Goodluck overclocking that sucker! :up:Quote:
Originally Posted by Prodigys
Q6600 G0 L737B242 VID 1.169 ;) .Quote:
Originally Posted by Zucker2k
4Ghz on 1.42VCore; 24 hour prime stable. That's why i ask for settings of 475 x 9 :up: .
very nice rare cpu u got there:), mine got exact same PFO, but it has a VID of 1.2125 :up:
I did try that method as well. yes it did drop some on mine. but i didnt thought that was not good enough so i added a 80mm fan, standing on the vga. with a 80mm fan to blow 1/2 at the NB 1/2 on the memory was getting about 42C idle room temp 24cQuote:
Originally Posted by Jodiuh
The case is Stacker 832 with side panel 4 fans and running a QX6700 @ 3.6Ghz with NBvolt 1,65V (1,71V in everest) was getting about 47C full load (crysis for several hours for example)
With out fan idle i wrote down the following temps, idle, at the time
Cpu 31C,MB 48C, NB 45-48C, SB 43C
on load was getting mb,nb,sb aprox 55C
now runnign watercooling and getting top 42C on load
NB core is reported 1.70v by everest
Bios 0907
Ps i regret i did not remove and re apply thermal paste to it before the WC was installed.
I'm at 3.5Ghz stable with vcore at 1.46V (too high?) and I have trouble at 3.6Ghz, it keeps failing OCCT after couple mins or so. And whenever I set Transaction Booster to Disable or Enable, system won't boot. This is my settings for 3.5 OCCT stable so maybe you guys can make some suggestions for 3.6?
BIOS 0907
Extreme Tweaker
Ai Overclock Tuner : Manual
OC From CPU Level Up : AUTO
CPU Ratio Control : Manual
- Ratio CMOS Setting : 9
FSB Frequency :389
FSB Strap to North Bridge :400
PCI-E Frequency: 110
DRAM Frequency: DDR2-778
DRAM Command Rate : 2T
DRAM Timing Control: Manual
CAS# Latency : 5
RAS# to CAS# Delay : 5
RAS# Precharge : 5
RAS# ActivateTime : 15
RAS# to RAS# Delay : Auto
Row Refresh Cycle Time : Auto
Write Recovery Time : Auto
Read to Precharge Time : Auto
Read to Write Delay (S/D) : AUTO
Write to Read Delay (S) : AUTO
Write to Read Delay (D) : AUTO
Read to Read Delay (S) : AUTO
Read to Read Delay (D) : AUTO
Write to Write Delay (S) : AUTO
Write to Write Delay (D) : AUTO
DRAM Static Read Control: Enabled
Ai Clock Twister : Strong
Transaction Booster : AUTO
CPU Voltage : 1.46v
CPU PLL Voltage : Auto
North Bridge Voltage : 1.51v
DRAM Voltage : 2.10v
FSB Termination Voltage : 1.5v
South Bridge Voltage : 1.05v
Loadline Calibration : ENABLED
CPU GTL Reference : AUTO
North Bridge GTL Reference : AUTO
DDR2 Channel A REF Voltage : AUTO
DDR2 Channel B REF Voltage : AUTO
DDR2 Controller REF Voltage : AUTO
SB 1.5V Voltage : 1.5v
NB LED Selection : NB Volt
SB LED Selection : SB Volt
CPU LED Selection : CPU VOlt
Voltiminder LED : ENABLED
CPU Spread Spectrum : Disabled
PCIE Spread Spectrum : Disabled
I too am looking for advice. :)
Currently running at 3.7GHz, was wondering if I could get 3.8GHz or even the coveted 4.0GHz? :D
My Maximus is on water, and kept in a cold 61F(Today) Ohio basement.

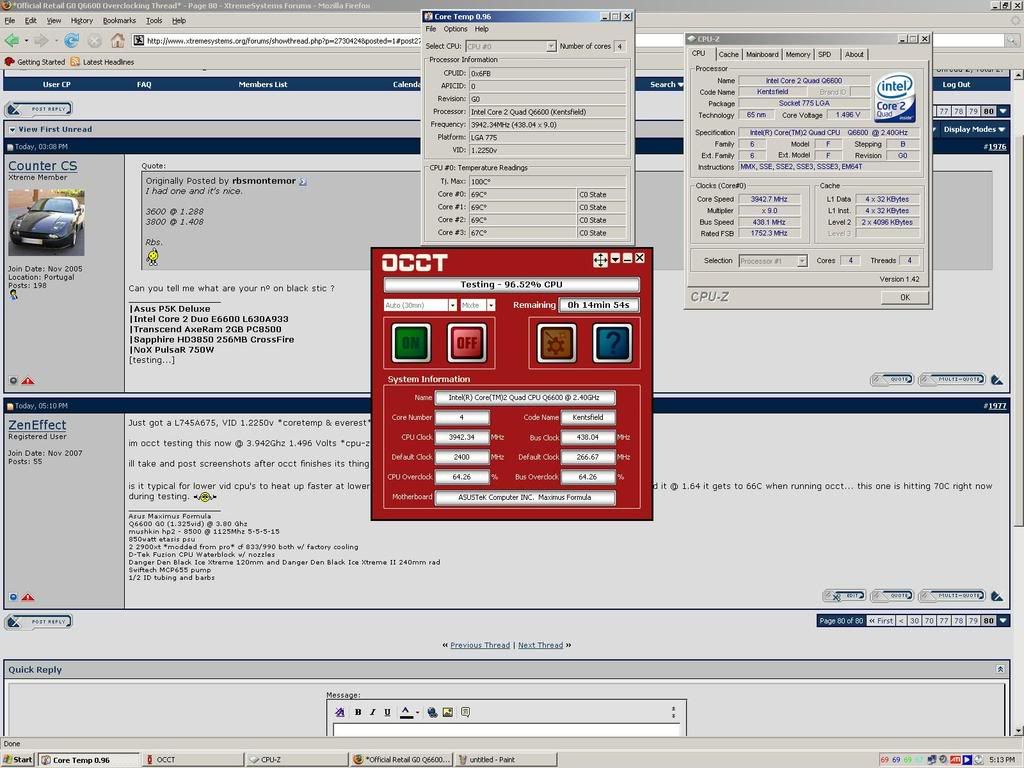

This is a screen shot I just took minutes ago, using the BIOS settings listed below.
My temps are currently reflecting just over 1 hour of hard labor running Prime95: :up:
http://img142.imageshack.us/img142/4693/run7wz7.jpg
These are my current best BIOS 907 settings: Always looking for advice. ;)
Under Extreme Tweaker
Ai Overclock Tuner : Manual
OC From CPU Level Up : Auto
CPU Ratio Setting : 9
FSB Frequency : 414
FSB Strap to North Bridge : 400
PCI-E Frequency: 110
DRAM Frequency: DDR2-828MHz
DRAM Command Rate : 2T
DRAM Timing Control: Manual
CAS# Latency : 5
RAS# to CAS# Delay : 5
RAS# Precharge : 5
RAS# ActivateTime : 18
RAS# to RAS# Delay : Auto
Row Refresh Cycle Time : Auto
Write Recovery Time : Auto
Read to Precharge Time : Auto
Read to Write Delay (S/D) : Auto
Write to Read Delay (S) : Auto
Write to Read Delay (D) : Auto
Read to Read Delay (S) : Auto
Read to Read Delay (D) : Auto
Write to Write Delay (S) : Auto
Write to Write Delay (D) : Auto
DRAM Static Read Control: Disabled
Ai Clock Twister : Light
Transaction Booster : Auto
CPU Voltage : 1.46250v (BIOS)
CPU PLL Voltage : 1.50v (BIOS)
North Bridge Voltage : 1.51v (BIOS)
DRAM Voltage : 1.80v (BIOS)
FSB Termination Voltage : 1.44v (BIOS)
South Bridge Voltage : 1.05v (BIOS)
Loadline Calibration : Enabled
CPU GTL Reference : 0.63x
North Bridge GTL Reference : 0.67x
DDR2 Channel A REF Voltage : Auto
DDR2 Channel B REF Voltage : Auto
DDR2 Controller REF Voltage : DDR2_REF
SB 1.5V Voltage : 1.50v (BIOS)
NB LED Selection : NB Volt
SB LED Selection : SB Volt
CPU LED Selection : CPU Volt
Voltiminder LED : Enabled
CPU Spread Spectrum : Disabled
PCIE Spread Spectrum : Disabled
Under Advanced
And CPU Configuration:
CPU Ratio Setting : 9
C1E Suppport : Disabled
CPU TM Function : Disabled
Vanderpool Technology : Disabled
Execute Disable Bit : Disabled
Max CPUID Value Limit : Disabled
Under Advanced
And USB Configuration :
USB Functions: Enabled
USB 2.0 Controller : Enabled
BIOS EHCI Hand-off : Enabled
Legacy USB Support : Disabled
Port 64/60 Emulation : Disabled
Things that seem to be currently true on my system:
If I enable Transaction Booster with all other BIOS setting the same as listed above, the system will err out on the LCD Poster during the RAM check.
It dosen't seem to matter if I use the 333 or the 400 NB FSB Strap, If I set my FSB Frequency above 414, Prime95 will register an error within 45 minutes. The higher you set it above 414, the quicker you receive the error. OCCT is not as pickey. Prime95 was the first to complain using a 415 FSB Frequency.
Doing some fine tuning...
I walked the NB voltage down to 1.49v before starting to get Prime95 errors. I then moved the voltage back up to 1.51v and successfully primed for 1.5 hours. 1.51v Is what I am currently using, and is listed above.
I started to see how much CPU voltage it takes for me to successfully run @ 3.7GHz. A BIOS setting of 1.46250v has already passed a 1.5 hour Prime95 test error free for me. I still continued the process down to a BIOS setting of 1.45v's. Prime95 began to register errors at this point. I set my CPU voltage back up to 1.46250v and am currently using it for my keeper setting.
Note: I am currently running on 1 2GB stick of ram in the White slot closest to the CPU. The other stick would not allow my system to boot no matter what slot I tried it in. LCD Poster would fail the RAM check.
My RAM is rated at 1.8v's and 5-5-5-18 by Corsair.
^^^to this guy... here is my settings for just below 4ghz... and imma run this every day, by the time this cpu burns up *been overclocking for years and years and years... even oc'd a amd 80486dx4 to 112mhz and ive NEVER EVER seen a processor go bad from general everyday use with these volts* it will be long past overdue for an upgrade.
Extreme Tweaker
Ai Overclock Tuner : Manual
OC From CPU Level Up : AUTO
CPU Ratio Control : Manual
- Ratio CMOS Setting : 9
FSB Frequency : 438
FSB Strap to North Bridge : 400
PCI-E Frequency: 101
DRAM Frequency: DDR2- 1167
DRAM Command Rate : AUTO
DRAM Timing Control: AUTO
DRAM Static Read Control: Enabled
Ai Clock Twister : Strong
Transaction Booster : Enabled
Boost level 0
CPU Voltage : 1.506
CPU PLL Voltage : 1.56
North Bridge Voltage : 1.51
DRAM Voltage : 2.20
FSB Termination Voltage : 1.46
South Bridge Voltage : 1.075
Loadline Calibration : Enabled
CPU GTL Reference : .63
North Bridge GTL Reference : .67
DDR2 Channel A REF Voltage : AUTO
DDR2 Channel B REF Voltage : AUTO
DDR2 Controller REF Voltage : DDR2_REF
SB 1.5V Voltage : AUTO
NB LED Selection : NB Volt
SB LED Selection : SB Volt
CPU LED Selection : CPU VOlt
Voltiminder LED : DISABLED
CPU Spread Spectrum : Disabled
PCIE Spread Spectrum : Disabled
Advanced CPU Configuration
CPU Ratio Control : Manual
- Ratio CMOS Setting : 9
C1E Suppport : Disabled
CPU TM Function : Enabled
Vanderpool Technology : Enabled
Execute Disable Bit : Disabled
Max CPUID Value Limit : Disabled
USB Configuration
USB Functions: Enabled
Legacy USB Support : Enabled
http://i48.photobucket.com/albums/f2...n22976/now.jpg
http://i48.photobucket.com/albums/f2...rimestable.jpg
:up:
sorry pics are a few days old before i lapped cpu
going for 4 prime stable this weekend... gonna lap my waterblock as i see its got a few good scratches from bad shipping and bring my cpu up to 2000 grit *1200 right now lapped it yesterday*
temps were mid to high 60's full load depending on amb temps:( now low 60's :)
the epu/loadline calibration on this thing must be working because my idle volts are less than load 1.488 idle 1.496 load... i thought i was supposed to get less volts under load *vdroop* :shrug:
1 last thing... HOW POINTLESS IS THAT SILLY LITTLE FAN THEY INCLUDED TO COOL DOWN THE PWM? LMAO!! A HAMSTER ON A WHEEL COULD GENERATE MORE AIR
why do i have a creative sound icon and a soundmax icon on the bottom right? BECAUSE MY X-FI TOOK A BIG FAT DUMP. thank god for rma

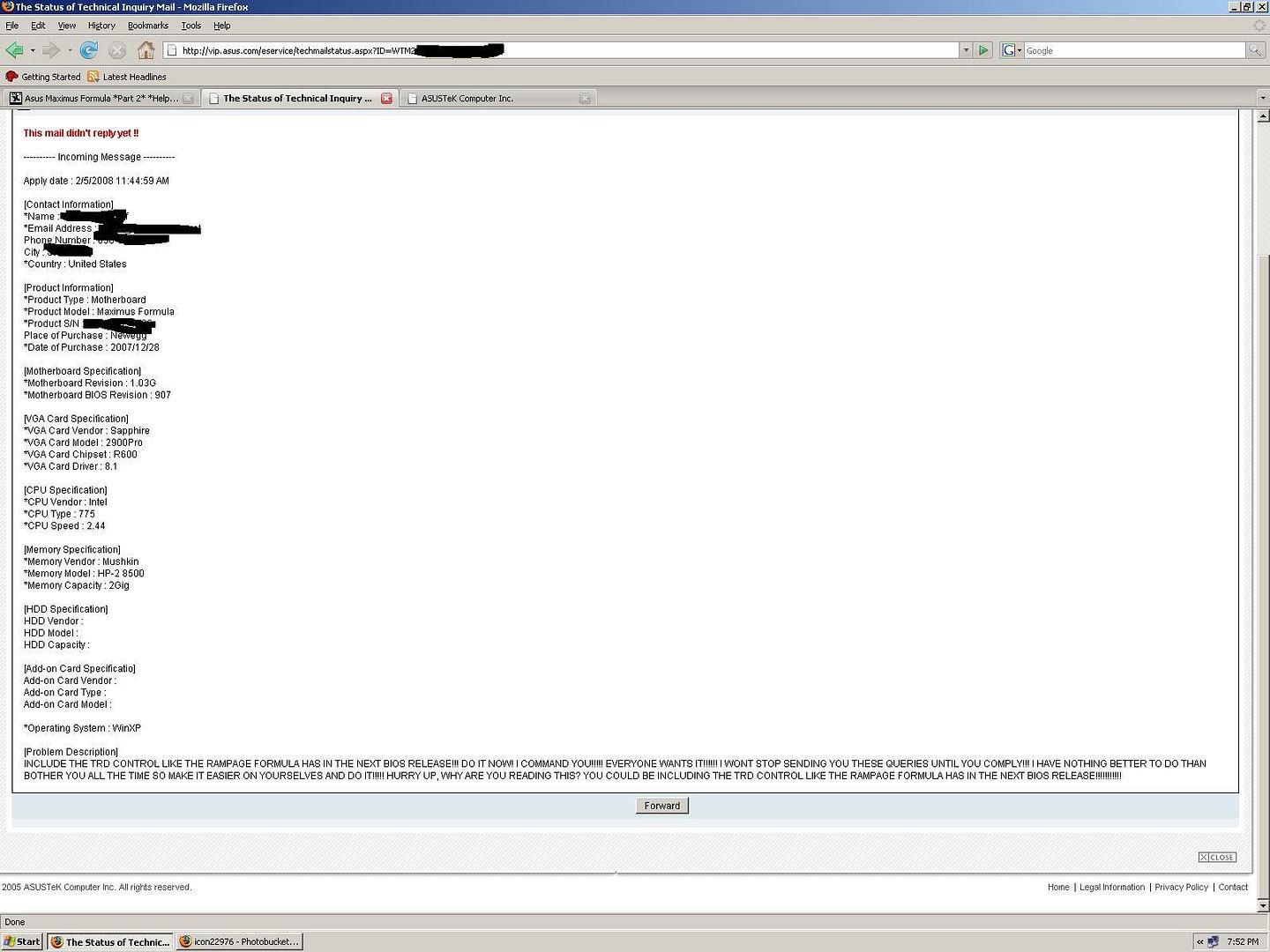

Time to start applying some pressure on those bios engineers through tech support:
ASUSTeK COMPUTER INC. (Taiwan)
Technical Support
Hotline: +886-2-2894-3447 (0800-093-456)
Email: http://vip.asus.com/eservice/techserv.aspx
Knock yourselves out.
http://i48.photobucket.com/albums/f2...22976/done.jpgQuote:
Originally Posted by Zucker2k
I got a very good nb then as it runs 33-36C full load on air at 545fsb and 1.71Vnb with a 120mm 80cfm fan set at 5V.Quote:
Originally Posted by Grnfinger
:rofl:Quote:
Originally Posted by ZenEffect
Thanks for the post...Quote:
Originally Posted by ZenEffect
Looking at your settings I Changed:
DRAM Static Read Control: From Disabled to Enabled.
Ai Clock Twister : From Light to Strong.
CPU TM Function : From Disabled to Enabled.
Vanderpool Technology : From Disabled to Enabled.
Legacy USB Support : From Disabled to Enabled.
Primed for 1 hour error free. Keeping all setting changes.
That was the easy part... :)
Test - FSB FREQ From 414 to 416 using Prime95 - Result: Core 2 Hardware Failure in 4 minutes.
(Verified current setting still cause errors above a 414 FSB Freq.)
Test - Kept 416 FSB FREQ, but increased FSB Term volts from 1.44 to 1.46 - Result: Core 3 Hardware Failure in 4 minutes.
Test - Kept 416 FSB and FSB Term 1.46v, but also changed:
CPU Voltage : From 1.46250v to 1.506.
CPU PLL Voltage : From 1.50v to 1.56.
Result: Prime95 ran error free for 10 minutes.
Test - Restored FSB Term volts to 1.44
Kept - CPU Voltage of 1.506, and CPU PLL Voltage of 1.56, but also increased FSB FREQ to 418.
Result: Prime95 ran error free for 10 minutes.
(I do not believe upping the Term volts was helping me with my FSB wall. I returned them to what the were and still ran clean with the upped CPU voltages.)
Test - Kept CPU Voltage of 1.506, and CPU PLL Voltage of 1.56, but also increased FSB FREQ to 420.
Result: Prime95 ran error free for 10 minutes.
(Short test but looking good)
Test - Kept CPU Voltage of 1.506, and CPU PLL Voltage of 1.56, but also increased FSB FREQ to 430.
Result: System booted into Vista fine, and had the CPU clocked to 3.87GHz, but Core 3 had a Hardware Failure in 3 minutes.
Test - Kept CPU Voltage of 1.506, and CPU PLL Voltage of 1.56, but also lowered FSB FREQ to 425.
Result: Prime95 ran error free for 10 minutes!
I wanted to see if I could successfully run a 430 FSB, but only up the CPU PLL Voltage, not the CPU voltage:
Test - Kept CPU Voltage of 1.506, but upped CPU PLL Voltage from 1.56 to 1.62, and returned the FSB FREQ to 430.
Result: Hardware Failure in 3 minutes.
Tried again by upping the CPU PLL Voltage more!
Test - Kept CPU Voltage of 1.506, but upped CPU PLL Voltage from 1.62 to 1.64, and kept the FSB FREQ to 430.
Result: Hardware Failure in 3 minutes.
Action Taken: Returned the CPU PLL Voltage to 1.56v
Conclusion: My FSB Frequency wall of 414 was being directly caused by the voltage supplied to the CPU's core. My CPU Voltage setting of 1.46250v (BIOS), only will get me my 3.7GHz on my Q6600.
My new CPU Voltage setting of 1.46250v (BIOS), looks to be good for about 3.8GHz. Everest does read lower than the BIOS'es setting, but how high can I feel good about setting my voltage to in the BIOS for my Q6600?
I think I could have 4.0GHz if I am willing to overvolt my CPU a bit more?
These are my current best BIOS 907 settings: Always looking for advice. ;)
Under Extreme Tweaker
Ai Overclock Tuner : Manual
OC From CPU Level Up : Auto
CPU Ratio Setting : 9
FSB Frequency : 425
FSB Strap to North Bridge : 400
PCI-E Frequency: 110
DRAM Frequency: DDR2-850MHz
DRAM Command Rate : 2T
DRAM Timing Control: Manual
CAS# Latency : 5
RAS# to CAS# Delay : 5
RAS# Precharge : 5
RAS# ActivateTime : 18
RAS# to RAS# Delay : Auto
Row Refresh Cycle Time : Auto
Write Recovery Time : Auto
Read to Precharge Time : Auto
Read to Write Delay (S/D) : Auto
Write to Read Delay (S) : Auto
Write to Read Delay (D) : Auto
Read to Read Delay (S) : Auto
Read to Read Delay (D) : Auto
Write to Write Delay (S) : Auto
Write to Write Delay (D) : Auto
DRAM Static Read Control: Enabled
Ai Clock Twister : Strong
Transaction Booster : Auto
CPU Voltage : 1.506v (BIOS)
CPU PLL Voltage : 1.56v (BIOS)
North Bridge Voltage : 1.51v (BIOS)
DRAM Voltage : 1.80v (BIOS)
FSB Termination Voltage : 1.44v (BIOS)
South Bridge Voltage : 1.05v (BIOS)
Loadline Calibration : Enabled
CPU GTL Reference : 0.63x
North Bridge GTL Reference : 0.67x
DDR2 Channel A REF Voltage : Auto
DDR2 Channel B REF Voltage : Auto
DDR2 Controller REF Voltage : DDR2_REF
SB 1.5V Voltage : 1.50v (BIOS)
NB LED Selection : NB Volt
SB LED Selection : SB Volt
CPU LED Selection : CPU Volt
Voltiminder LED : Enabled
CPU Spread Spectrum : Disabled
PCIE Spread Spectrum : Disabled
Under Advanced
And CPU Configuration:
CPU Ratio Setting : 9
C1E Suppport : Disabled
CPU TM Function : Enabled
Vanderpool Technology : Enabled
Execute Disable Bit : Disabled
Max CPUID Value Limit : Disabled
Under Advanced
And USB Configuration :
USB Functions: Enabled
USB 2.0 Controller : Enabled
BIOS EHCI Hand-off : Enabled
Legacy USB Support : Enabled
Port 64/60 Emulation : Disabled
When testing fsb it should be good to reduce performance level.
This can help you a lot since nb voltage can be reduced.
For example i can go to 490@5:6 strap333 with 1.5nb voltage and disabled/0=>PL=7.
But after changing disabled/1=>PL=8 at 490 i needed only 1.31nb voltage
and could run past 500+ fsb with ease. After that you can test cpu fsb and try
again for PL=7 but you will need more nb volt juice there.
has anyone tried to run the Maximus Formula with Crucial Ballistix Tracer DDR1000?I must find out if it works ok before I buy.Can anyone help me?
I have 4x1GB DDR1000 of these
Just got my Maximus Formula today. Is Vdroop/undervolting still an issue with the latest BIOS (0907) and LLC enabled? Also can PCProbe be trusted for voltages as I cant find Vcore/ Vdimm read points anywhere!
I just don't know if I shoud buy this mobo or a Giga X38 DQ6.
I'm now with my friend's GA-X38-DQ6 and its stable at 475x8, but not 500Mhz FSB. Prime at 4000Mhz 445x9 for 2 hours (it's good to me). My old P5K reboots at first second of Prime95 @ 4000Mhz, but can do 475Mhz FSB stable too. I tried everything.
Another friend has one P5E3 and I can prime this Q6600 @ 510Mhz FSB...but cannot prime @ 4000Mhz for nothing in this world.
I just don't know what do to about. Someone can run your Q6600 at 475Mhz FSB stable on performance level 7? Coz' thats what I have with my friend's GA-X38-DQ6.
Someone help my brain is colapsed heheh, don't know what to choose. I just went from a DFI P35 TR2 that cannot even boot into windows @ 475Mhz FSB..and believe me, I know how to tweak that thing.
Well, sorry for the long post, but I'm really confused hehe :wth:
Rbs.
:wave:
Thanks for the good advice...Quote:
Originally Posted by Spyrus
I will try to up my NB a tad to see it that let's me Prime error free using a higher FSB value. :)
When you say performance level, you mean CPU Ratio Setting : 9 correct?
I'm a Newbie!! :)
Note: My CPU core voltage is set to 1.506v in the BIOS, but Everest is only reporting 1.49volts, so I may not be actually over-volting my CPU as much as I may think...
Keeping my new CPU voltage settings, I tried to run Prime95 using a FSB Frequency of:
428 - Result: Prime error in 4 minutes.
427 - Result: Prime error in 4 minutes.
426 - Result: Prime error in 10 minutes.
425 - Result: Prime error in 23 minutes!
424 - Result: Prime stable for 1 Glorious hour!! (Keeping 424 for now)
This makes my memory run at 848MHz, and gives me a Core speed of 3816.3MHz.
Not by much, but still enouigh to officially get me into the 3.8GHz club! :woot:
Prime doing it's thing crossing the hour mark error free. Still looking :cool: too.
http://img112.imageshack.us/img112/5362/run8ql4.jpg
These are my current best BIOS 907 settings for 3.81GHz: Always looking for advice. ;)
Under Extreme Tweaker
Ai Overclock Tuner : Manual
OC From CPU Level Up : Auto
CPU Ratio Setting : 9
FSB Frequency : 424
FSB Strap to North Bridge : 400
PCI-E Frequency: 110
DRAM Frequency: DDR2-848MHz
DRAM Command Rate : 2T
DRAM Timing Control: Manual
CAS# Latency : 5
RAS# to CAS# Delay : 5
RAS# Precharge : 5
RAS# ActivateTime : 18
RAS# to RAS# Delay : Auto
Row Refresh Cycle Time : Auto
Write Recovery Time : Auto
Read to Precharge Time : Auto
Read to Write Delay (S/D) : Auto
Write to Read Delay (S) : Auto
Write to Read Delay (D) : Auto
Read to Read Delay (S) : Auto
Read to Read Delay (D) : Auto
Write to Write Delay (S) : Auto
Write to Write Delay (D) : Auto
DRAM Static Read Control: Enabled
Ai Clock Twister : Strong
Transaction Booster : Auto
CPU Voltage : 1.506v (BIOS)
CPU PLL Voltage : 1.56v (BIOS)
North Bridge Voltage : 1.51v (BIOS)
DRAM Voltage : 1.80v (BIOS)
FSB Termination Voltage : 1.44v (BIOS)
South Bridge Voltage : 1.05v (BIOS)
Loadline Calibration : Enabled
CPU GTL Reference : 0.63x
North Bridge GTL Reference : 0.67x
DDR2 Channel A REF Voltage : Auto
DDR2 Channel B REF Voltage : Auto
DDR2 Controller REF Voltage : DDR2_REF
SB 1.5V Voltage : 1.50v (BIOS)
NB LED Selection : NB Volt
SB LED Selection : SB Volt
CPU LED Selection : CPU Volt
Voltiminder LED : Enabled
CPU Spread Spectrum : Disabled
PCIE Spread Spectrum : Disabled
Under Advanced
And CPU Configuration:
CPU Ratio Setting : 9
C1E Suppport : Disabled
CPU TM Function : Enabled
Vanderpool Technology : Disabled
Execute Disable Bit : Disabled
Max CPUID Value Limit : Disabled
Under Advanced
And USB Configuration :
USB Functions: Enabled
USB 2.0 Controller : Enabled
BIOS EHCI Hand-off : Enabled
Legacy USB Support : Enabled
Port 64/60 Emulation : Disabled
you will probably will need more core volts to get stable higher. so long as your cpu is staying cool you should be fine. :up:
go for 4!
Hi im new with overclocking ( first day today :p ) so i would like to get a little help to get my system stable at 4 ghz. I have a e8400 , maximus formula and crucial ballistix 8500.
current settings are
_________________________________
Extreme Tweaker
Ai Overclock Tuner : Manual
OC From CPU Level Up : AUTO
CPU Ratio Control : Manual
- Ratio CMOS Setting : 9
FSB Frequency : 435
FSB Strap to North Bridge : 333
PCI-E Frequency: 100
DRAM Frequency: DDR2-870
DRAM Command Rate : 2T
DRAM Timing Control: Manual
CAS# Latency : 5
RAS# to CAS# Delay : 5
RAS# Precharge : 5
RAS# ActivateTime : 15
RAS# to RAS# Delay : AUTO
Row Refresh Cycle Time : AUTO
Write Recovery Time : AUTO
Read to Precharge Time : AUTO
Read to Write Delay (S/D) : AUTO
Write to Read Delay (S) : AUTO
Write to Read Delay (D) : AUTO
Read to Read Delay (S) : AUTO
Read to Read Delay (D) : AUTO
Write to Write Delay (S) : AUTO
Write to Write Delay (D) : AUTO
DRAM Static Read Control: Auto
Ai Clock Twister : Strong
Transaction Booster : disabled
Relax level: 0
CPU Voltage : 1.31
CPU PLL Voltage : AUTO
North Bridge Voltage : 1.47
DRAM Voltage : 2.10
FSB Termination Voltage : 1.40
South Bridge Voltage : 1.050
Loadline Calibration : Enabled
CPU GTL Reference : 0.63X
North Bridge GTL Reference : 0.67X
DDR2 Channel A REF Voltage : AUTO
DDR2 Channel B REF Voltage : AUTO
DDR2 Controller REF Voltage : AUTO
SB 1.5V Voltage : 1.5
________________________________________
I ran it 30 min in orthos without any problems and tried 3d mark and got 14325 score, but tested cod4 later and had a bit of fps drops.
Any settings i can change to get it more stable? will try get fsb to 445 later.
It would be nice to have a number in my head that I should not cross in the BIOS settings.... :)
Anybody have a BIOS Warning voltage that using the Maximus and a Q6600 could get you into trouble fast? :shrug:
It's probably more about heat, but still some voltage 'upper limit' numbers would be nice... ;)
So far With the Maximus and my Q6600 GO:
My CPU Voltage setting of 1.46250v (BIOS), will allow error free Priming with a FSB Frequency 414 giving me 3.7GHz with my 400 NB Strap.
My CPU Voltage setting of 1.506v (BIOS), will allow error free Priming with a FSB Frequency 424 giving me 3.8GHz with my 400 NB Strap.
:ROTF: :rofl:Quote:
Originally Posted by ZenEffect
You made my day :D
Performance Level = tRD timing of chipset not the CPU Ratio Setting.Quote:
Originally Posted by Talonman
You can see that with memset program.
I don't currently know where to adjust that number. :)
And what would be a good value to put in while testing when I find it?
Going to try upping the NB voltage a tad first, and re try a FSB of 228 again to see if Prime likes it any better...
Then might live in the edge and UP the CPU voltage a tad more, and try 428 again.
Be back soon with my report. ;)
Hi, Talonman. Take a look at THIS article to see what tRD is all about.
@ JaeKae, what video card you use
I have exactly set up as yours , here is my 24/7 usage bios setting for 4.1GHz prime stable 9+ Hrs
Extreme Tweaker
Ai Overclock Tuner : Manual
OC From CPU Level Up : AUTO
CPU Ratio Control : Manual
- Ratio CMOS Setting : 9
FSB Frequency : 455
FSB Strap to North Bridge : 333
PCI-E Frequency: 105
DRAM Frequency: DDR2-1093
DRAM Command Rate : 2T
DRAM Timing Control: Manual
CAS# Latency : 5
RAS# to CAS# Delay : 5
RAS# Precharge : 5
RAS# ActivateTime : 15
RAS# to RAS# Delay : AUTO
Row Refresh Cycle Time : AUTO
Write Recovery Time : AUTO
Read to Precharge Time : AUTO
Read to Write Delay (S/D) : AUTO
Write to Read Delay (S) : AUTO
Write to Read Delay (D) : AUTO
Read to Read Delay (S) : AUTO
Read to Read Delay (D) : AUTO
Write to Write Delay (S) : AUTO
Write to Write Delay (D) : AUTO
DRAM Static Read Control: Disable
Ai Clock Twister : Auto
Transaction Booster : disabled
Relax level: 1
CPU Voltage : 1.393
CPU PLL Voltage : AUTO
North Bridge Voltage : 1.61
DRAM Voltage : 2.20
FSB Termination Voltage : 1.54
South Bridge Voltage : 1.050
Loadline Calibration : Enabled
CPU GTL Reference : 0.63X
North Bridge GTL Reference : 0.67X
DDR2 Channel A REF Voltage : AUTO
DDR2 Channel B REF Voltage : AUTO
DDR2 Controller REF Voltage : DDR2-REFF
SB 1.5V Voltage : 1.5
Thanks for the link... Will do!Quote:
Originally Posted by Dostoyevsky77
Update: I upped the NB voltage from 1.51 to 1.61, and re-ran Prime using a 428 FSB Frequency.
Result: Prime received an error in the first 3 minutes.
I returned my NB back to 1.51v.
I then moved the CPU's core from 1.50625v to 1.51875v, and re-ren Prime using a 428 FSB Frequency.
Result: Prime ran error free for 10 minutes... :)
Recap:
So far With the Maximus and my Q6600 GO:
My CPU Voltage setting of 1.46250v (BIOS), will allow error free Priming with a FSB Frequency 414 giving me 3.7GHz with my 400 NB Strap.
My CPU Voltage setting of 1.506v (BIOS), will allow error free Priming with a FSB Frequency 424 giving me 3.81GHz with my 400 NB Strap.
My CPU Voltage setting of 1.51875v (BIOS), will allow error free Priming with a FSB Frequency 428 giving me 3.85GHz with my 400 NB Strap. (And still testing!)
My CPU Voltage setting of 1.51875v (BIOS) starting taking errors 4 minutes into prime with a FSB Frequency 432 giving me 3.8888GHz with my 400 NB Strap.
I took my CPU Core all the way up to 1.53125 in the BIOS, but couldn't get 433 FSB to run Prime error free. (3.897GHz)
It that point I chickened out and went back to my 3.8GHz settings listed above.
Until I get more conformation, that some of the 4.0GHz boy's are running their q6600 Cores above 1.53125v's in the BIOS, I better stop.
I don't want to fry my chip just yet! ;)
Looks like my chasing 4.0GHz, is going to still be about the Core voltage setting, and how far I am willing to bump it up... :)
To change the TRD on this board set your transaction booster to either disabled or enabled and then change the relax settings. When pushing high FSB you will want to set it to Disabled with a Relax of 0. As you go faster you may have to change Relax to 1 or 2.Quote:
Originally Posted by Talonman
Just booted with my 3.81GHz settings, but set the Transaction booster Disabled, and relax set to 0.
I am going to see if I can get a highr FSB frequency withought upping the CPU Core voltage any.
Thanks for using the key words 'Transaction booster'!!
I can find that! ;)
Update: It worked... It worked!!
Setting the transaction booster to Disabled, and relax to 0 successfully let me Prime at a FSB Frequency of 426 for some 3.83GHz error free operation...
That is withought adding to my CPU's core voltage...
Going back for more! :)
you have PC8500 ram, why are you running it so slow?Quote:
Originally Posted by Jaekae
@ icecpu
i have the same video card as you also ,
will try your settings out now and see if it works better :)
@ grnfinger
because i have never clocked before, just started learning today :) and when i try putting ram on 1066 the computer crashes 2 min after windows has started, even when i have no overclock on..
Your signature says "Intel Q6600 g0 VID 1.2875" ?Quote:
Originally Posted by mc2k
My proof :
http://i27.tinypic.com/dvhwl5.png
4Ghz on 1.40000Vcore is SuperPi stable, 1.42Vcore is everything stable :) .
How much ram are you running and how many sticks?Quote:
Originally Posted by Jaekae
two sticks 2 gb , in the two white slots ?Quote:
Originally Posted by Grnfinger
quick question...
is it just my board or is it the maximus boards that require more voltage than other boards to get to the speed you want on the q6600 G0
people are saying they can reach 3.0-3.2 on stock volts but in order for me to reach 3.0 i need 1.35volts...does that sound normal?
and also, what is the vDroop mod? i couldn't find anything on that other than the picture on page 1...
My signature is outdated...Quote:
Originally Posted by Prodigys
Hello All,
I have created a new post with an issue I'm having.
http://www.xtremesystems.org/forums/....php?p=2751236
Your help is much appreciated.
KaM
