!UPDATE! abit AW9D-Max (retail) arrived

My 24/7 setup is 3.2GHz (400 x 8) with E6600. I have 2GB Corsair PC6400C5 at 4-4-4-12 and a Scythe Ninja Rev B. It is stable as a rock. Just for the sake of standard testing I did a 12hr orthos and it passed. 42C idle (C1E and EIST off) and 62C in Orthos.

Vcore: default (1.35V in uguru)
Vmem: 1.9V
Vmch: 1.65V

orthos beta's blend test give me a "Hardware Detect Failure" after 3 secods....all other modality of orthos works well....someone has suggestions? :confused:


thanks

all right. i've measured the vfsb and found it to be at 1.20-1.21.

i've done the vfsb mod and is now at 1.37.

i'm gonna see if this gains me stability at 411 fsb.

Greetings all,
Thanks for all the great info in here! After some significant time away from the oc obsession, I'm jumping back in with both feet. Will be building my new rig this week:
E6600
AW9D-Max
2 x 1GB Corsair 6400R
eVGA 7950GX2
2 x 150gb WD Raptors Raid 0
Plextor PX755-SA SATA DVD Burner
Mitsumi FDD and USB 2.0 card reader
Vigor Gaming Monsoon II cpu cooler

Crossing my fingers I'll still know how to do this, with a good bit of help from all you fine folks! Wish me luck...

Quote:

---

Originally Posted by shark2

orthos beta's blend test give me a "Hardware Detect Failure" after 3 secods....all other modality of orthos works well....someone has suggestions? :confused:


thanks

---

Wait till someone actually releases a 975 board that can run 400+ fsb othos stable as the norm not the exception. if you read some of the threads here you will see that most people cant run 400+ fsb othos stable on any 975 board!

well 411-412 is a no go on orthos blend :(

it keeps erroring out at 3 minutes 53-57 seconds. tried about 10 times with different vcore, vdimm, vmch, vfsb.

oh well.

so i'm trying 10 x 370 now.

vcore 1.525
vdimm 2.20
vmch 1.75
vfsb 1.30

and it's running orthos blend for 30 minutes. so far so good. :)

vmch booster mod + vfsb mod seem to help out. i couldn't do 3.7 yesterday w/o blue screening.

i tried the blend test to 400*8, 400*6, 389*9, 378*9 and 356*9 with E6600...with all vmch, vcore and vdimm...nothing

....the error says "Hardware Detct Failure" and immediately, after 3 seconds and not that the system doesn't resist :confused:


with system default all on auto also in uguru section the blend test works normally :slapass: :confused:


...some other valid software to test the general stability on conroe? :)

Sorry to cut in right now, but would you say that Abit has an equal performing bios with the P5W-dx; even though ASUS has released more updates? Please correct me if I am wrong.

I've been following this thread since I am very interested in this board. I own a MSI 975 which is probably the worst of all conroe boards. I've ran orthos stable at 3.6ghz for about 9 hours and at 1.5vcore, but if I go up to 3.7ghz, and max out every vcore possible I also get an error after about 3 seconds of blend. Every other test is supposedly stable, and after a good 4 hours of a battlefield2142 on my offday binge, it never froze or locked up etc. Weird indeed

I did some testings on air ..... I wonder why you guys can't reach high in Orthos blend test......:(

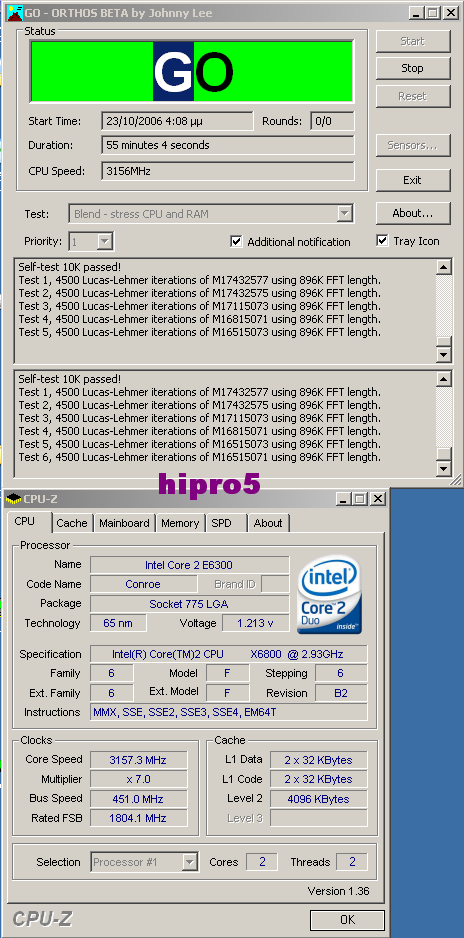

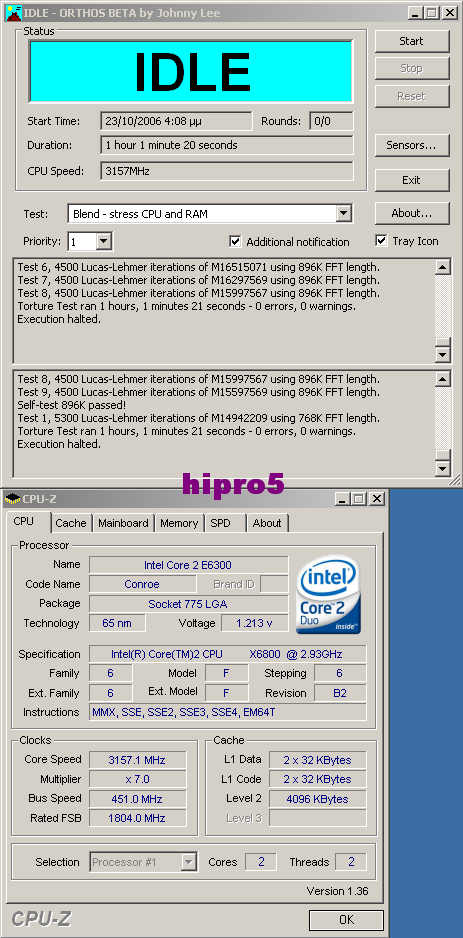

I bumped up to 441MHz and after an hour, I gave some more.....451MHz fsb seems to be OK....One hour running.......when I find some time I'll test for more......
Maybe you must check your Ram timings or something like that.....:confused:

http://www.thelab.gr/images/Hipro5/C...Hz_fsb_png.png

http://www.thelab.gr/images/Hipro5/C...z_fsb2_png.png


.

Vfsb = 1.35V, Vmch = 2.0V, fan over MCH

http://www.crazypc.ro/forum/attachme...7&d=1161596915

No tweaks for SPi, testing only stability.

Already somebody obtained 400FSB@1000DDR (4:5)?

this is what imho still needs to be improved. or do we have some *stable* shots here?

*update* :)

Quote:

---

Originally Posted by hornet

Already somebody obtained 400FSB@1000DDR (4:5)?

---

YES... but with the 4\5 mi ddr 2 are not stable....

Is there any program that can measure subzero temps?μGURU shows 0C and CoreTemp shows Core0:7C
Core1:8C as long I work my cpu at subzero temps.

Quote:

---

Originally Posted by ztop

YES... but with the 4\5 mi ddr 2 are not stable....

---

Therefore, great problem, I find that I go to move for one p5b Dlx.

End Bios 1.3 never more appears, start to lose the hope...

hipro

what are your mem settings (memset screenshot?)

and all your voltages such as vfsb, vmch, vdimm

thanks!

Nothing special.......Just wanted to see the fsb and I had put them at Cas 4-4-4-12......VMCH = 1.87V real, Vfsb moded at 1.55Volts(for everyday use/light benches) and Vdimm as low as 2.66Vdimm for everyday use....I think that the Northbridge with all these "high" voltages, does quite well......and CPU at 70*C+ due to luck of a heatsink.....Container was just "placed" on it, without even screw it so as to make a good contact with pressure on the CPU......;)

Quote:

---

Originally Posted by hipro5

Nothing special.......Just wanted to see the fsb and I had put them at Cas 4-4-4-12......VMCH = 1.87V real, Vfsb moded at 1.55Volts(for everyday use/light benches) and Vdimm as low as 2.66Vdimm for everyday use....I think that the Northbridge with all these "high" voltages, does quite well......and CPU at 70*C+ due to luck of a heatsink.....Container was just "placed" on it, without even screw it so as to make a good contact with pressure on the CPU......;)

---

interesting.

but aren't those voltages a bit high?

i tried vmch 1.8, vfsb 1.45, vdimm 2.3 with 4-4-4-12 timings.

when i get home, i'll try 1.87 (i've done the vmch booster mod), vfsb i'll try 1.55 and vdimm 2.5.

thanks!

Quote:

---

Originally Posted by shimmishim

interesting.

but aren't those voltages a bit high?

i tried vmch 1.8, vfsb 1.45, vdimm 2.3 with 4-4-4-12 timings.

when i get home, i'll try 1.87 (i've done the vmch booster mod), vfsb i'll try 1.55 and vdimm 2.5.

thanks!

---

High?......I play under cascade > VCore=2Volts (I have OVP at 2.04Volts), VMCH=2.05 to 2.1Volts, Vfsb 1.7Volts to 1.85Volts and Vdimm=2.66Voltsto 2.85Volts.....
I think that those volts are OK for aircooling....I think so though......:)

Quote:

---

Originally Posted by hipro5

High?......I play under cascade > VCore=2Volts (I have OVP at 2.04Volts), VMCH=2.05 to 2.1Volts, Vfsb 1.7Volts to 1.85Volts and Vdimm=2.66Voltsto 2.85Volts.....
I think that those volts are OK for aircooling....I think so though......:)

---

i should have said... aren't they high for aircooling! :P

thanks hipro.

i'll keep vfsb under 1.55, vdimm under 2.45, and vcore under 1.65 :)

(all for air cooling).

also,

anyone know if a thermalright hr-05 sli or normal OR the jing ting will fit on the NB with a tuniq tower?

it's the 9x multi that's tricky to get Orthos blend stable anwhere over 400-410fsb.

Who here runs their E6600 on the 7X or 8X multi for 24/7 use?
I don't that's for sure.


regards
Raja

Quote:

---

Originally Posted by raju

it's the 9x multi that's tricky to get Orthos blend stable anwhere over 400-410fsb.

Who here runs their E6600 on the 7X or 8X multi for 24/7 use?
I don't that's for sure.


regards
Raja

---

Yes but we're talking about max stable fsb here and not max stable frequency........Maybe the CPU isn't stable and produces errors at higher frequencies, so the user thinks that the mobo's fsb can't do it......One of the guys with an 6600 should run a Prime-Orthos Blend with lower multi so as to see IF it's his CPU that cuts him down or the fsb itshelf.......In the other hand we HAVE to consider that NOT all of the CPUs can reach high fsbs nor all of the Northbridge chipsets......Each one does it's own.....;)

Thanks George,

In my case the cpu is capable of more than this motherboard allows. Even with cas 5 no go. Still I can game at 420fsb, but Orthos bogs out early. Same cpu with all same hardware 425fsb Orthos blend stable on another motherboard without mods..

regards
Raja

Here some screens from my tests:

http://www.feddern.org/florian/Intel/3,12GHzC2D.JPG

http://www.feddern.org/florian/Intel/lol.JPG

http://www.feddern.org/florian/Intel/3,61GHzC2D.JPG

Here you can see, that not my CPU is blocking the FSB:

http://www.feddern.org/florian/Intel/3,82GHzC2D.JPG

It's crap that the mobo won't run with FSB 400+ in blend stable. I should mod the board.

I using following setup:

E6600
Abit AW9D
2x 1GB Cellshock DDR2 800
2x 7900 GTO

At the moment only the CPU is watercooled. I tested with different RAM settings and voltages, no way! I need some tips from Hipro5 ;) !

Is there any way to rise the fsb on windows with this mobo ? Clockgen doesn't detect it.

Quote:

---

Originally Posted by krampak

Is there any way to rise the fsb on windows with this mobo ? Clockgen doesn't detect it.

---

Sure! The uGuru software

Yes, of course... i mean a "light and simple" program to do it.. uGuru is "troublesome" :p:

Quote:

---

Originally Posted by krampak

Yes, of course... i mean a "light and simple" program to do it.. uGuru is "troublesome" :p:

---

I have requested that aswell...

Where's the 1333 strap? My patience is running thin.

Is there someone running a CrossFire without problems ? Should I change any option in bios if I make a CrossFire setup ? (like most sli mobos do).

Mine is freezen at startup and I don't want to think it's a PSU problem...

new review of the abit aw9d-max : http://pro-clockers.com/reviews.php?id=166

@raju,

I have been trying to get >400 Orthos Blend stable like you and finally making progress.
What I did:
-Cut off the stock NB HS only and add Swiftech MCX159-CU using 7200RPM 40x20mm fan.
-1.8VMCH and 2.2Vdimm (Failed at this setttings before)
-Ram @ SPD which is 4-4-4-12
Currently Blend stable for >2hrs now at 4.01ghz (401fsb). I will try to go higher and post screenshots later.
http://img247.imageshack.us/img247/3264/snap1mk6.jpg

well done, the next 2 months should see some interesting new mobo's, let's see how they fare.. ATM the Pro is still my favourite for e6600's and above.

regards
Raja

I was able to get orthos 8 hrs stable @439FSB but I used a E6400 L628B. I failed to back screenshot before I reformated and set up for P5B. I'll move the chip back to it this weekend. Looks as though the 400FSB + issue is with conroe's.:(

Good work dragon ;)

Anyone has gotten the bass management working with dolby live digital out? LFE works with 5.1 material and if i click sub in audio io page bass makes sound but the bass management "send all bass to subwoofer" does nothing. I have tried many realtek drivers and driver cleaners with no luck.

Quote:

---

Originally Posted by krampak

Is there someone running a CrossFire without problems ? Should I change any option in bios if I make a CrossFire setup ? (like most sli mobos do).

Mine is freezen at startup and I don't want to think it's a PSU problem...

---

IF you bench Super-Pi, go into registry and make the LargeSystemCache=0 instead of 1 which must be right now......Or go to "my computer" and change it from there so as to be "for programs" and not "for system cache".....:)

any word on a final 1.3 Bios?

Nops. :(

Quote:

---

Originally Posted by Ultrazauberer

It's crap that the mobo won't run with FSB 400+ in blend stable. I should mod the board.

I using following setup:

E6600
Abit AW9D
2x 1GB Cellshock DDR2 800
2x 7900 GTO

At the moment only the CPU is watercooled. I tested with different RAM settings and voltages, no way! I need some tips from Hipro5 ;) !

---

I suggest that you can try to have a fan to blow the northbridge.. since the cooler of your cpu is water cooling. :)

Quote:

---

Originally Posted by kiner

I suggest that you can try to have a fan to blow the northbridge.. since the cooler of your cpu is water cooling. :)

---

Sorry, but I already have a 120mm fan blowing on the NB! :p: No way, NB is cool but still problems in ortho. Also I can't boot over 425 MHz FSB, just blackscreen. If I overclock in Windows, I can got up to 445 MHz! Very strange!

Quote:

---

Originally Posted by Ultrazauberer

Sorry, but I already have a 120mm fan blowing on the NB! :p: No way, NB is cool but still problems in ortho. Also I can't boot over 425 MHz FSB, just blackscreen. If I overclock in Windows, I can got up to 445 MHz! Very strange!

---

Just out of couriosity, all of you that have problems over 400MHz fsb, work with 7900x2......Could you try to test with another VGA or even PCI VGA to see what will happen....:confused:

Hmm, I use 2 7900GTO cards, but I will test with an old PCI VGA card. Hope this will help me to find the problem. But it's also bad if my new cards won't work.

Stupid question, but does it helps when I pinmod the E6600 to FSB333 to get a higher FSB on the Mobo?

Quote:

---

Originally Posted by hipro5

Just out of couriosity, all of you that have problems over 400MHz fsb, work with 7900x2......Could you try to test with another VGA or even PCI VGA to see what will happen....:confused:

---

Hi George.I tried with only one of the two 7800 I have and nothing changed.Unfortunately I don't have another VGA to test it.

Quote:

---

Originally Posted by Phil The Greek

Hi George.I tried with only one of the two 7800 I have and nothing changed.Unfortunately I don't have another VGA to test it.

---

Hmmm.....is it possible to bring it over here one of these days?.....:)

I have noticed a little problem with 3 hd and the raid on ich7...i have 2x36GB WD Raptor 8MB and 1x250GB Maxtor SATA 16MB...i have connected the 2 raptor to sata ports 1-3, in the bios "Integrated Peripherals"-->On-Chip IDE Device" i set "On-Chip SATA Mode" = RAID and "SATA Raid ROM" = Enabled...

....all ok, i reboot and creat array in intel matrix bios with the 2 raptor

after created raid array, i connected the 250GB Maxtor to sata port 2 but the boot firm to detecting ide device and not continue :slapass: ....only after reset cmos the boot is completed but just to next reboot oh the system, the problem is repeted.....

if i disconnected from ports 2-4 of the ich7 or connected the 250GB on silicon controller, all works fine....have i wrong something? :confused:


sorry for my English :p:

i just got this board up and running yesterday and my first impression is all positive. i am getting better results on my 6700 than on the p5w-dh i poreviously had, currently at 3.6g and rising so all is good.

only one problem i had is i was looking to run 4 x Raptors in RAID 0, but one of them that i bought is DOA, gutted, still being swapped out Tuesday so should be all good.

Shark 2 - i have also noticed the 3 HDD problem you are getting i found if i swapped the 3rd drive to the other header it was fine, cant remember the number of the headers but it works

Quote:

---

Originally Posted by zicl

i just got this board up and running yesterday and my first impression is all positive. i am getting better results on my 6700 than on the p5w-dh i poreviously had, currently at 3.6g and rising so all is good.

only one problem i had is i was looking to run 4 x Raptors in RAID 0, but one of them that i bought is DOA, gutted, still being swapped out Tuesday so should be all good.

Shark 2 - i have also noticed the 3 HDD problem you are getting i found if i swapped the 3rd drive to the other header it was fine, cant remember the number of the headers but it works

---

well, if nothing cannot be made, will want to say that i'll use the 250gb maxtor on silicon controller....hoping even with a new bios something can be resolved :stick:

thanks for the answer :)

After testing under H2O some days, this is my best result:

http://img120.imageshack.us/img120/4...16m5tb7.th.png

Do another try with my 6700 B1 Air Cooled :)

http://pedrorocha.planetaclix.pt/Abi...00_4150_Ar.jpg


With no mods on the board, 450FSB seems more or less the limit with 1.3b bios

http://pedrorocha.planetaclix.pt/AbitAW9_450FSB.jpg

Anyway really better results compared with the P5W-DH with not mods:)

Quote:

---

Originally Posted by hipro5

Hmmm.....is it possible to bring it over here one of these days?.....:)

---

Ok I'll pm you in thelab.gr;)

so is 400x9 doable for 24/7 without mods and no special cooling on northbridge?

Quote:

---

Originally Posted by krampak

Is there someone running a CrossFire without problems ? Should I change any option in bios if I make a CrossFire setup ? (like most sli mobos do).

Mine is freezen at startup and I don't want to think it's a PSU problem...

---

No problems with mine. 1900 crossfire.

Quote:

---

Originally Posted by BlaqMale

so is 400x9 doable for 24/7 without mods and no special cooling on northbridge?

---

yes

i run 24/7

401x9
3609 mhz
1.6 v cpu
2.3 v ram
1.7 v mch/pci

all on air cooling

cpu temps abit high.. 45c.. but ill get tuniq tower soon with ac5 paste..and ill get under 40 for sure..

Quote:

---

Originally Posted by Hilfiger

yes

i run 24/7

401x9
3609 mhz
1.6 v cpu
2.3 v ram
1.7 v mch/pci

all on air cooling

cpu temps abit high.. 45c.. but ill get tuniq tower soon with ac5 paste..and ill get under 40 for sure..

---

geez!!! 1.6 and it runs 45C's??

what's your ambient?

i run mine on water and get way higher temps.

is that 45 on load or idle?

Quote:

---

Originally Posted by shimmishim

geez!!! 1.6 and it runs 45C's??

what's your ambient?

i run mine on water and get way higher temps.

is that 45 on load or idle?

---

i have 39c iddle and about 55-60c full load
room temp is from 24-27 .. depence if i turn on the heating

i have 2 fans blowing in and 2 out and have 1 fan blowing air inside under the graphic card..

however the x1950xtx is very noisy at full load,

ill run orthos now.. did pass the 5 min tests.. didnt bother to do it longer


the temps are uguru temps, as TAT dosnt work for some reason on my system, and i would like to know if any managed to run TAT and if o how ?



by the way.. does the Tuniq tower fit in the awgd-max?

TAT does not work for me either, I use Core Temp... But, I believe it displays 4-5C higher temps than TAT @ 100% load.

Quote:

---

Originally Posted by Hilfiger

i have 39c iddle and about 55-60c full load
room temp is from 24-27 .. depence if i turn on the heating

i have 2 fans blowing in and 2 out and have 1 fan blowing air inside under the graphic card..

however the x1950xtx is very noisy at full load,

ill run orthos now.. did pass the 5 min tests.. didnt bother to do it longer


the temps are uguru temps, as TAT dosnt work for some reason on my system, and i would like to know if any managed to run TAT and if o how ?




by the way.. does the Tuniq tower fit in the awgd-max?

---

yes it fits fine.

Hey guys.. my first post on xs.. :p: and with a problem.. :(

aw9d-max
e6600 week31
2gb ddr2 800 cellshock 4-4-4-12 kit
x1900xt 256
enermax liberty 500w

my system run for a week stable with 334x9 on normal vcpu/2.2 vram and 1,55 vmch. well.. for 30 min i start my pc and it load fail settings.. i dont think anything bad about this.. laod my bios settings, restart and black screen..
so i turn power off / on and now it wont start :(

the mb becomes power, can see it on leds..
for some weeks i read a topic with a guy who has the same prob.. he removed the bios module or something.. cant find the thread.

if anyone knows it, plz help :(

edit: clear cmos wont work..
and excuse my english. :P

Quote:

---

Originally Posted by Virtual

Hey guys.. my first post on xs.. :p: and with a problem.. :(

aw9d-max
e6600 week31
2gb ddr2 800 cellshock 4-4-4-12 kit
x1900xt 256
enermax liberty 500w

my system run for a week stable with 334x9 on normal vcpu/2.2 vram and 1,55 vmch. well.. for 30 min i start my pc and it load fail settings.. i dont think anything bad about this.. laod my bios settings, restart and black screen..
so i turn power off / on and now it wont start :(

the mb becomes power, can see it on leds..
for some weeks i read a topic with a guy who has the same prob.. he removed the bios module or something.. cant find the thread.

if anyone knows it, plz help :(

edit: clear cmos wont work..
and excuse my english. :P

---

This happened to me once, remove the battery and put the cmos jumper to the clear position and wait for 2-3 mins and put it all back the way it was and it will boot up.

yeah it works!! :D
thank you so much! :)

but how could this happen? did i something wrong? :confused:

new review of the aw9d-max

http://www.driverheaven.net/reviews/...AW9D/index.php

Quote:

---

Originally Posted by Virtual

yeah it works!! :D
thank you so much! :)

but how could this happen? did i something wrong? :confused:

---

In my case I forgot to change my ram divider down and it tried to post at ddr1000 at 3-3-3- at 1.8v and the board would power on then turn itself off with a wierd mobo code like C1 or something.

Quote:

---

Originally Posted by BlaqMale

so is 400x9 doable for 24/7 without mods and no special cooling on northbridge?

---

Yep I do 401 x 9 24/7 myself np, no mods. For low stress I'd advise using power management so your rig will idle @ 2.4GHz and kick up to 3.6GHz under load.

Seems like a good mobo. May have to get one.

ok I am pretty sure I want this....cant find it anywhere and I am worried that by restocking time, the RD600 DFI may be just around the corner...
Should I wait?

There was suppose to be a shippment of them today... im still waiting to get one

both in stock at ZZF:cool:

Quote:

---

Originally Posted by Lu523

Seems like a good mobo. May have to get one.

---

Highly Recommend. :toast:

another new review @ http://www.motherboards.org/reviews/...ds/1668_1.html

Quote:

---

Originally Posted by Mr.Bones

both in stock at ZZF:cool:

---

LOL I think they may have added $100 by mistake (239 is more like it)

"


ZipZoomfly Part#: 240505
In Stock: In Stock
Manufacturer: ABIT
Manufacturer SKU: AW9D-MAX
Our Price: $339.99
Quantity Limit 20 Per customer

"

**edit, that better be a mistake otherwise im never ordering from ZZF again because thats scandalous

Holy crap!!....wasnt that high yesterday,:slapass: :nono:

I dont believe it is. B.c i tried ordering one this morning from them and it was at 260.00 then it went up to 280.00 a little bit later. so i doubt its a typo, its ridiculous is what it is .BTW ewiz has it for 214.00 plus shipping.

Quote:

---

Originally Posted by Senater_Cache

LOL I think they may have added $100 by mistake (239 is more like it)

"


ZipZoomfly Part#: 240505
In Stock: In Stock
Manufacturer: ABIT
Manufacturer SKU: AW9D-MAX
Our Price: $339.99
Quantity Limit 20 Per customer

"

**edit, that better be a mistake otherwise im never ordering from ZZF again because thats scandalous

---

I don't think it's a typo. They went from $260 (or so) up to $290 earlier today. It went out of stock and now it's miraculously back in stock at $339. They've lost me as a customer! Ewiz.com operates within a few miles of ZZF and they're asking $214 for the same mobo. Supply and demand is one thing, but this is a stupid, greedy move on their part and they've lost at least one customer for life.

Quote:

---

Originally Posted by Bryants97240sx

I dont believe it is. B.c i tried ordering one this morning from them and it was at 260.00 then it went up to 280.00 a little bit later. so i doubt its a typo, its ridiculous is what it is .BTW ewiz has it for 214.00 plus shipping.

---

Added to my cart and it says 339:nono: They must be on crack!
BTW got mine from ewiz also good price fast service:fact:

Thats BS, i called them this afternoon trying to order one and the guy told me that they were sold out.Now there instock at that price.

You guys might want to look at this:

http://www.xtremesystems.org/forums/...d.php?t=119767

hmm ok...ZZF can go to hell.
I used to have no problem but this is quite the insult, it is obvious that the customer does no longer come first with them.

Is eWIZ trustworthy? also, should I go with the AW9D-MAX or P5W-DH ?

i have a little problem with the ram....

400x8
strap 1066
ram 533 (1/1)
bios 1.3beta
manual timings 5-5-5-12 40 (like from detail)

the ram are normal Corsair TwinX2 2x512Mb PC6400 cas5...the default would to be 400mhz but to 400x8 ram 1/1 i succeed to install win, but crashes immediately under orthos blend test or occt...i try the orthos small FFTs and OCCT only on cpu with same settings and is ok but with the test only on the ram crashes immediately....i try raise the vdimm from 1.9 to 2.3V but doesn't change nothing :stick: .....some suggestions? :confused:


sorry for English

Quote:

---

Originally Posted by shark2

i have a little problem with the ram....

400x8
strap 1066
ram 533 (1/1)
bios 1.3beta
manual timings 5-5-5-12 40 (like from detail)

the ram are normal Corsair TwinX2 2x512Mb PC6400 cas5...the default would to be 400mhz but to 400x8 ram 1/1 i succeed to install win, but crashes immediately under orthos blend test or occt...i try the orthos small FFTs and OCCT only on cpu with same settings and is ok but with the test only on the ram crashes immediately....i try raise the vdimm from 1.9 to 2.3V but doesn't change nothing :stick: .....some suggestions? :confused:


sorry for English

---

try vdimm 2.2v and 1.7mvch 8x401 if fail try 7x401

Quote:

---

Originally Posted by Nettwerk

try vdimm 2.2v and 1.7mvch 8x401 if fail try 7x401

---

i also tried vdimm 2.3V and vmch 1.75V....400x6, 400x7, 400x8 with ram 1/1 doesn't work....now i set bus 321x9 and ram 4/5 to 400mhz and works fine under orthos blend and OCCT :confused: ....the problem is the synchronous with ram 1/1...i tried with 1.2 official bios and 1.3 beta but is the same :confused:

therefore....
- 4/5 divisor bus 321*9 and ram 400mhz 5-5-5-12 works fine
- 1/1 divisor bus 400*6,7,8 ram 400mhz 5-5-5-12 doesn't work

some possible solution?

thanks:)

He told you 401, not 400 ;)

Quote:

---

Originally Posted by shark2

i also tried vdimm 2.3V and vmch 1.75V....400x6, 400x7, 400x8 with ram 1/1 doesn't work....now i set bus 321x9 and ram 4/5 to 400mhz and works fine under orthos blend and OCCT :confused: ....the problem is the synchronous with ram 1/1...i tried with 1.2 official bios and 1.3 beta but is the same :confused:

therefore....
- 4/5 divisor bus 321*9 and ram 400mhz 5-5-5-12 works fine
- 1/1 divisor bus 400*6,7,8 ram 400mhz 5-5-5-12 doesn't work

some possible solution?

thanks:)

---

Join the cant run 400fsb orthos blend club

heres mine at 401fsb but fails orthos blend only in 3 secs:

high vcore, 2v mch dont change squat

http://img225.imageshack.us/img225/775/sys2cu0.th.jpg

Quote:

---

Originally Posted by Chosen.

He told you 401, not 400 ;)

---

yes, i haven't said nothing because i tried also 401, 399, 396 and 390 and is the same in 1/1 :)

Quote:

---

Originally Posted by Nettwerk

Join the cant run 400fsb orthos blend club

heres mine at 401fsb but fails orthos blend only in 3 secs:

high vcore, 2v mch dont change squat

http://img225.imageshack.us/img225/775/sys2cu0.th.jpg

---

yeah all in 3 seconds....but the problem is this damn synchronous, possible can't be resolved? :stick:

Waiting on better bios is getting old :)


im using the beta .13 bios and my e6600 does some crazy stuff:

set 8x400 and reboot this is what I get:

http://img177.imageshack.us/img177/7...whatdn7.th.jpg

set 7x400 and get this:

http://img246.imageshack.us/img246/9...whatzy0.th.jpg

Quote:

---

Originally Posted by Nettwerk

Waiting on better bios is getting old :)

---

Agreed. I have some nice muskin redlines that I can't run 1:1 over 419 because my board wont boot with anything higher. I just hope it's worth the wait or I will undercut ZZF and sell mine for only $335.00:)

Quote:

---

Originally Posted by Nettwerk

Waiting on better bios is getting old :)


im using the beta .13 bios and my e6600 does some crazy stuff:

set 8x400 and reboot this is what I get:

http://img177.imageshack.us/img177/7...whatdn7.th.jpg

set 7x400 and get this:

http://img246.imageshack.us/img246/9...whatzy0.th.jpg

---

idem...after bus 360 shows that :)

Quote:

---

Originally Posted by shark2

i also tried vdimm 2.3V and vmch 1.75V....400x6, 400x7, 400x8 with ram 1/1 doesn't work....now i set bus 321x9 and ram 4/5 to 400mhz and works fine under orthos blend and OCCT :confused: ....the problem is the synchronous with ram 1/1...i tried with 1.2 official bios and 1.3 beta but is the same :confused:

therefore....
- 4/5 divisor bus 321*9 and ram 400mhz 5-5-5-12 works fine
- 1/1 divisor bus 400*6,7,8 ram 400mhz 5-5-5-12 doesn't work

some possible solution?

thanks:)

---

try to rum memtest for windows

I'm having the same problem with may mobo, i tryed everything and as long i only can have my system stable with only 360 FSB, everything higher i have errors in memtest for windows, but i can run my memory FSB 267 and memory @ 400 3-3-3-8 2,25v and dont have any problems. When i raise de FSB with the memory 1:1 i cant pass 360 and i allredy give 2.0v to chipset.

I hope with a new bios the problem can be resolved :confused:

I only post to say that you aren't teh only one with problems :(

Quote:

---

Originally Posted by AlfaBoy

try to rum memtest for windows

I'm having the same problem with may mobo, i tryed everything and as long i only can have my system stable with only 360 FSB, everything higher i have errors in memtest for windows, but i can run my memory FSB 267 and memory @ 400 3-3-3-8 2,25v and dont have any problems. When i raise de FSB with the memory 1:1 i cant pass 360 and i allredy give 2.0v to chipset.

I hope with a new bios the problem can be resolved :confused:

I only post to say that you aren't teh only one with problems :(

---

2.0vmch might be too much with the stock cooling, and especially for sub 400FSB. That might be the reason why you get errors... too hot NB.

What FSB are you booting at?
Have you tried to go higher with uGuru?

any news or did someone find a fix for the power loss/uguru settings reset?

Quote:

---

Originally Posted by Nettwerk

any news or did someone find a fix for the power loss/uguru settings reset?

---

yeah, over uguru happen that reset the entire bios when turn off the psu...the problem is the battery, from multimeter signs only 3.06/3.07V is discharge....change the battery and would have to resolve :D


-------------------------------------------------------------

to my ram settings i do same tests like the table:
http://img212.imageshack.us/img212/2944/tabrw0.jpg

the windows installation and memtest test5 are ok in both cases....therefore I can be quiet? :)

Already changed the battery :(

Guys,

Got a brandnew version of µGuru here, 3036. Feel free to test it if you like. Not sure if it'll fix the BIOS settings loss after powering down as I don't know the changelog yet.

Here's the download.

As always, use on your own risk!

Edit: Edited links to µGuru and the latest beta BIOS in post #1.

Thanks Sicness will try it out tonight

Quote:

---

Originally Posted by crotale

2.0vmch might be too much with the stock cooling, and especially for sub 400FSB. That might be the reason why you get errors... too hot NB.

What FSB are you booting at?
Have you tried to go higher with uGuru?

---

I increase the vmch from 1,5 up to 2.0 and have errors in memtest with FSB=370,380,381,400,401 i cried some combination of FSB, and vmch to.

I can boot at 400 of FSB but windows is not stable i can't run SPI 2x32M.
I tried to OC using the uguru from bios and disable uguru in windows and only use uguru in windows and nothing cant pass 360 and run memtest or 2x32MSPI for example.

I don't no what to try, i think this is a problem with the abit or the bios.

I have WC in the cpu and in the VGA with 2x360 radiators and put one fan directly to NB and my temperature in IDLE are 33 and the computer have been up all day and night.

I have had this board and the x6800 for about a month 1/2 now...

Specs:
CPU: Intel Core 2 Xtreme x6800 - B2
BIOS: 1.3 BETA
RAM: (2x 1GB kit) Team Xtreem DDR2 800 3-3-3-8 @ 504MHz 4-4-3-4 2.35V

OC:
http://rodzilla.xtremesystems-dc.com...uo/cpuzcpu.JPGhttp://rodzilla.xtremesystems-dc.com...o/cpuzbios.JPG
http://rodzilla.xtremesystems-dc.com...uo/cpuzmem.JPGhttp://rodzilla.xtremesystems-dc.com...uo/cpuzspd.JPG
http://rodzilla.xtremesystems-dc.com.../duo/uguru.JPGhttp://rodzilla.xtremesystems-dc.com...duo/uguru2.JPG

This OC is 10000% stable and can run blended orthos indefinitely<-!

The issues that I’ve been having are when I try and change the multi to ANYTHING other than 11 (default). When I set the multi lower or higher the OC goes down hill FAST! I have to loosen the OC quite a bit to even get the PC to POST. When I set things in BIOS on a diff multi to setting that I know should post it just won't! (Like x10 - 360 FSB - 2:3) It either won't post at all or it will fail Orthos. On x11 the cpu will be stable at 3.8GHz and the RAM at 500MHz plus!

Similar things happen when I try and run the ram at anything other than 2:3...

But I'm very lucky in that x11 and 2:3 give me a very good 24/7/365 OC. Plus I am running very good timings on the RAM.

It just bugs me knowing that something is wrong. I think it's a problem with the Core 2 Xtream on the AW9D-MAX boards. (I have tried all of the BIOS that have been made so far)

Here is my CPU and RAM... if it helps.
http://rodzilla.xtremesystems-dc.com...duo/DUOCPU.jpghttp://rodzilla.xtremesystems-dc.com.../XtreemRAM.jpg

So far I LOVE this board! And I know the problems I'm having will be fixed in a new BIOS. So far 1.3 BETA offers no love for my x6800...
