Depending on the batch between 3 and 3.4Ghz max on the Zalman, I've had several now (9500, 9700 and 8700) and they are average coolers... better than the boxed ones for sure but to push to 3.6ghz and more I would recommend looking for another brand...Quote:
Originally Posted by deadalvs
thanks, Leeghoofd !
by the way... since you have more experience. i'm thinking of future investments in q6600 rendernodes since they give the best price/performance ratio... especially when overclocked of course. now. i'd need also cheap cases and i thought about 1u or 2u rack cases.
is it okay to overclock to 3.4 with a better fan (i'm not sure if a zalman would fit in there) in such a small case or do you see significant problems with that ?
what mobo and what ram is best / cheapest / most reliable for such a task ? there are so many possible rigs around - i'm a little lost ...
Best, cheap and most reliable to overclock a Q6600 is definately a P35 board. They should all easily OC up to 3.4GHz as it is only 377MHz. If you have a good batch running low vcore, no problem. But, if you need high vcore, let's say above 1.4v, better go with a some high end models as the quality of the PWM is vital to OC a Q6600 on high vcore. For RAM, get any PC2-6400 kit as it will afford the 755MHz on RAM at 1:1Quote:
Originally Posted by deadalvs
About the case, I don't know
Yeah My Q6600 L747B274 vid is 1.32v. Damn what luck!
Would my new DFI LT P-35 be able to get it to 3.4 without too much trouble?
I have 2 kits of Gskill pc6400 HZ and Xigmatek HDt S1283 HSF.Corsair HX 620 (11.90 on +12v rail ,seems a little weak)
Can anyone confirm if this Q6600 FPO L640B814 is any good?
I had one. It wasn't a great clocker with a 1.30VID. 3.3Ghz with 1.43v and would not make 3.4 with 1.5v so I put it in an HTPC and sold it. Bought a L738B024 that makes an easy 3.6Ghz. Both were installed in a P5K-E and a P5K-Premium for testing.Quote:
Originally Posted by Grnfinger
http://i259.photobucket.com/albums/h...GhzStopped.jpg
Now that doesn't mean that your one is going to be the same as the one I had.
Here´s my contribution...regarding batches :)
Part I - Rig
CPU - Q6600 (L719B, L726A, L727A, L728A)
Board- ASUS P5K dlx/ Blitz Formula
Mems - OCZ Reaper 8500
VGA - HD2900XT
PSU- Corsair HX620W
Cooling - water cooling (CPU, NB, VGA)
Part II - o standard
In general they all did this:
http://img514.imageshack.us/img514/2...rimelj5.th.jpg
+/- 0.02 vcore
Part III - VID
L719B
VID -1.3000
L726A
VID -1.3000
L727A
VID -1.2750
L728A
VID -1.2875
hard to co-relate VID vs better/worse overclocker...
Part IV - the reachable
3 out 4 CPUs tested run spi @4100 however, Only one went further..
http://img514.imageshack.us/img514/2...spi1mw0.th.jpg
Part V - FSB wall
Among the FSB walls I found one CPU max out @445 and the best was around 500
http://img81.imageshack.us/img81/755...fsbaky5.th.jpg
Part VI - the BEST
http://img149.imageshack.us/img149/3...2seczr4.th.jpg
http://img138.imageshack.us/img138/8...8208iu1.th.jpg
Note that not all settings were optimized (mems/voltages) but you already can see nice differences ;)
Could my G0 be one of the bad ones? i can get a solid 335FBS @stock volts, but if i go for a 400FBS i have to bump the Vcore to 1.43 and while i can boot into Vista x64 once i run Prime i get a BOSD.
Side note:
i just bought my system while i cant return the CPU now i could replace it...should i replace it w/ E8400?
http://www.xtremesystems.org/forums/...19#post3040519
Is that 1.43 in the bios or when its loaded up? I'd up the vcore but it looks like you might be at the limit of your cooler according to your other thread.Quote:
Originally Posted by on1yalad
My abit ip35 pro is set to 1.505 in the bios but it dips to 1.43 under load. These guys respond very good with the addition of more voltage.
here is a Screenshot (note ram is at 2.0v not 1.925)Quote:
Originally Posted by fluke420
http://onlyalad.net/stuff/380fsb_crash.jpg
http://img215.imageshack.us/img215/186/40ghzwm8.th.gif
Enermax Infiniti 720W
Q6600 step g0
Nirvana NV120
XFX 790i Ultra BIOS P05
2GB OCZ DDR3 PC3-1440 1800MHz 8-8-8-24 1.90V
XFX 9800GX2 Black Edition
4.0GHz air cooled :)
No trouble at all. The only issue might be your cooling. I don't know what the weather is like in you house and what the rest of you system is like (such as case and other fans).Quote:
Originally Posted by Sword

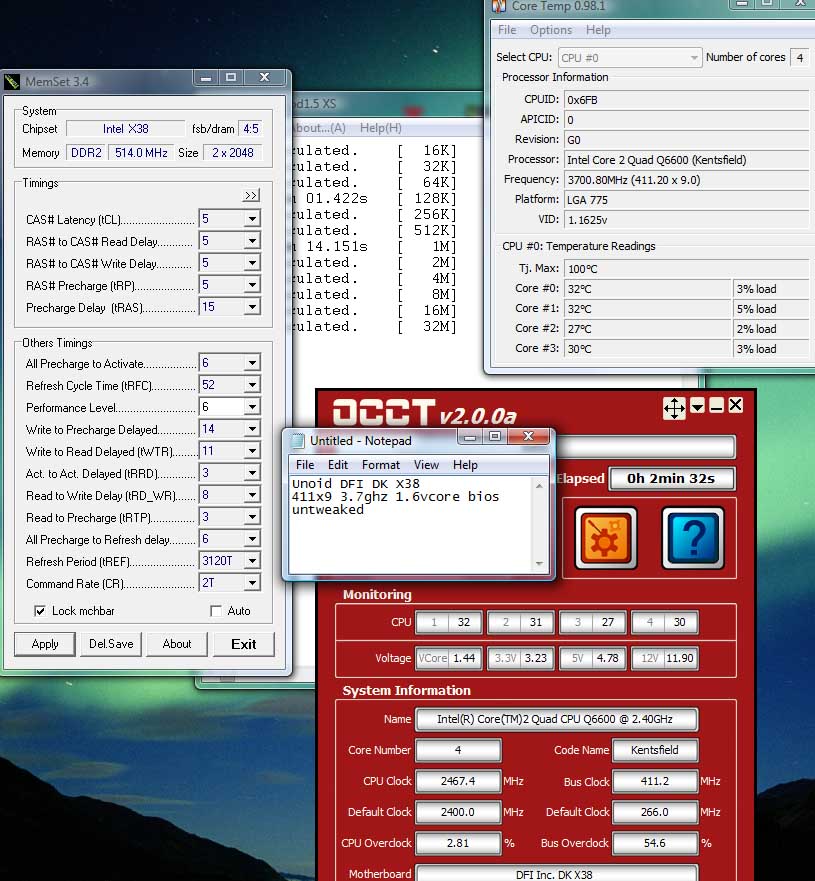

heres is all my L804 1.325 vid can muster:
1.6vcore in bios (1.55 under load) Vdroop disable. speedstep on.
http://unoid.net/pics/unoid-maxstable.jpg
hey dezio... what are you using to cool that ?Quote:
Originally Posted by Dezio
ah the nirvana is actually a fan... hehe... sorry !
Exactly Nirvana NV120 + 4x120mm fan around a case :D
Thanks, Saint -Francis,I love my DFI! It's pretty hot around here Ormond Beach FL.(94.F,outside,77 F,inside) I have a CM 830 evo case.(build in progress) just got my Zotac 8800gtx yesterday!Thinking about using Scythe S flex 1900 rpm( for the side fan cage) I got cold feet about watercooling in the past ,but am a little more comfortable with doing it now.still have unused 77 Bonneville heatercore,old Swiftech mcp 6000? water block (skt478) want to go with exterior rad (tool box ghetto mod) stiil need pump,fans,masterclear tubing and either D-tek fusion or Swiftech Apogee GTX(?) cpu block.
If you look at my signature you will see what I have done with my Q6600 and mY DFI LanParty p35. I am running the Q6600 @ 3.6 (which is a nice smooth 50% overclock) and my max temps with an ambient temperature of about 80 F. (no air conditioning in my house) are and have never been higher than 50 C. The CPU is under load quite often and it is usually in the mid to low 40's during the day. I''m using the same heater core you have; well I have two of them. But when I only had one it was still quite efficient. Even if you have a high vid, if you water cool it you will be able to OC much higher with much more safety and peace of mind.:DQuote:
Originally Posted by Sword
nice francis, I need 1.50 to hold 3.6ghz, C1E speedstep and vdroop enabled.
I had a Q6600 with vid of 1.325v which needed 1.52v for 3700mhz stable.
I sold it and got one with vid of 1.235v which passes Pi 1M upto 4016mhz with 1.488v loaded (1.500v bios) on air.
I need to fit my waterloop to see if I can go any higher with it.
4x32M Hyper Pi @ 3807MHz http://i43.photobucket.com/albums/e3...32Mhyperpi.jpg
http://i43.photobucket.com/albums/e3...32Mhyperpi.jpg
My new toy on air (thermalright ultra 120 extreme) ...:up:
FPO L733B458 - Pack Date 11/05/2007
http://www.imageshack.gr/files/uok630wkf1dzqidjvarq.jpg
http://www.imageshack.gr/files/zbawbwaqcmtaluiawzvf.jpg
http://valid.x86-secret.com/show_oc.php?id=371230
http://www.imageshack.gr/files/6gs3w23gz8bc2igt801i.jpg
http://service.futuremark.com/compare?2k3=5857724
More will come... ;)
damn I want a 1.2vid :(
Nice chip. Results are on par with my L737B, but your temps are about 10c lower. What's your ambient temp?Quote:
Originally Posted by Dagalidis
I'm seriously considering selling my Q9550 and going back to the Q6600.
Hi!
Just bought:
http://shrani.si/t/A/aS/f1NUWlO/procr.jpg
http://shrani.si/t/6/1h/xjbv3h9/boxr.jpg
It's a L808A892 with a 1,225 VID
On WC it OCs to 3,6 with 1,33V (loadline cal. on). What is the max safe VTT for these chips?
Are you serious?Quote:
Originally Posted by strumf666
An L8XX that does 3.6GHz with 1.33v... amazing. :up:
Check the Core 2 OC thread for max safe VTT.
