01-07-2008, 09:53 PM
CyberDruid

Quote:

Originally Posted by Brother Esau

Warren you know as well as I do for that kind of continuous 24/7 Load get a Server set up thats designed to do such. Anybody that brings a overclocking board to do that in place of a server board might as well be bringing a knife to a gun fight!

I expect my toys to do work!
01-07-2008, 10:28 PM
Brother Esau

I hear you bro send it in and get a replacement I am suprised you did not do that months ago when you had the Raid or sata issue with the raptors.
01-08-2008, 12:30 AM
kitfit1

Quote:

Originally Posted by CyberDruid

Are you guys with the "24/7" stable boards keeping them under 100% load 24 hours a day week after week?

I have owned a lot of boards M8s...the DFI is a blast to tweak and clock: just not capable of handling a sustained load...

It resets every day or two...

I got my present mobo just before Christmas. Apart from testing for the best strap, ram speed and of course clock, it has been running Orthos 24/7. Since getting an 8800 Ultra it has been benching, Orthosing and generally hammered 24/7. No Bsods, unprovoked restarts, nothing, it just runs. That is at 4.24ghz and under phase. My NF4 Ultra-D ran in the same way as well. Once you master a DFI and understand the relationship between all the ram settings, there just is'nt a faster or more stable mobo out there.
01-08-2008, 01:23 AM
C-N

Quote:

Originally Posted by MikeMK
Yep, no probs with mine either... rock stable. Best board Ive had in a long while... and ive been through a few!

Quote:

Originally Posted by mad_skills

I agree totaly with this! :up:

Me too, the DFI LP UT P35-T2R is a killer, solid, fast, super tweakable board & easily the best board I have had since my DFI NF4 Expert.

Everything I have put in contact with my P35-T2R is & has been maxed out with zero trade offs I simply cant ask for more!!!

The funny thing is my Asus P5K DLX was all be it screaming fast the worst board I have had in a long time & as it happened it wouldn't run for more than 2-3 days 24-7 before rebooting.

CN :)
01-08-2008, 02:58 AM
DJSUB

has anyone tried the beta bios 12/27?
new settings? performance increase?

tnx :)
01-08-2008, 03:34 AM
cowie

Quote:

Originally Posted by pumbertot

cheers mate. well it has some strange behaviour for sure. as M3kk has said when you save an overclock in BIOS it often just powers on and off for less than a second repeatedly. if you hold the power button until its off then leave for 5 mins or so before turning back on it starts no probs with the new overclocked settings. very strange.

didnt have much time to play as on nightshift(bah) but it was BSOD right before entering windows on same settings that were fine with the QX6850. I also tried lowering FSB and raising Vtt to max values due to the huge droop with Yorkie and Vtt on this board but still the same. in the end I only had 5 minutes so just made sure it was stable on stock settings and the mrs informs me Prime is still running fine(6 hours or so) so at least that gives hope that can tweak it a little at a time and get a stable overclock going when i get some time, hopefully tomorrow.

it seems i have not any oc boot issues:)
but getting high front side bus is tough
on my go q66 480fsb np, now with 9650 (had it 3-4 hrs mind you) 380 x10 max fsb thank to unlock multi 4.4 np for bench
but as i said no funny boot oc issues for me,
01-08-2008, 05:46 AM
cantankerous

Quote:

Originally Posted by DJSUB

has anyone tried the beta bios 12/27?
new settings? performance increase?

tnx :)

Thanks for the heads up on this. Downloading now and will flash later today after this prime session is complete. This bios has totally replaced the 12/24 as that is no longer even listed as a download where as all previous beta bios are still listed for download. The reason of change may help those who are having issues clocking the new 45nm CPU's on this board??

Major Reasons of Change:
Added 45nm CPU VTT Voltage control table.
01-08-2008, 06:05 AM
M3kk

I will try the new bios, i hope i can start my qx9650 with this.
01-08-2008, 06:34 AM
Praz

Quote:

Originally Posted by cantankerous

Major Reasons of Change:
Added 45nm CPU VTT Voltage control table.

There is a nominal VTT difference of 0.010 volts between 65nm and 45nm processors. This difference also has a direct effect on GTL reference values.
01-08-2008, 06:55 AM
M3kk

Tried the 12/27 beta bios, but its buggy and dont resolve my issues with qx9650 . From yesterday i cant manage to run qx9650 with this board :(:down: .

http://mekk.homeip.net/imagesharing/...5ff44a21a7.jpg

http://mekk.homeip.net/imagesharing/...6a17d540d4.jpg
01-08-2008, 07:15 AM
jimmyz

I also am on a qx 9650, on the first official with penryn support. 11-07 and so far all seems well, I do get the 88 code (but it does recover )if I try to set 11 multi though but 10 seems fine for now, just happy to have it running.
my x-38 didn't recover from 88 codes without a cpu swap .(and i use phase cooling, so that is a pain). after catching up in this thread I tried my p-35 and so far so good.
01-08-2008, 08:28 AM
Aivas47a

12/05 beta bios gave me highest stable FSB I've had on yorkfield so far (480), no error codes:

http://i90.photobucket.com/albums/k2...s47a/8x480.jpg
01-08-2008, 09:03 AM
C-N

Quote:

Originally Posted by cantankerous

Thanks for the heads up on this. Downloading now and will flash later today after this prime session is complete. This bios has totally replaced the 12/24 as that is no longer even listed as a download where as all previous beta bios are still listed for download. The reason of change may help those who are having issues clocking the new 45nm CPU's on this board??

Major Reasons of Change:
Added 45nm CPU VTT Voltage control table.

12/24 is here http://us.dfi.com.tw/Upload/BIOS/LP35DC24.ZIP it was upgraded to final/retail rather than staying BETA.

I put my spare chip in last night & swapped back from my E6850 to my Q6600 & it run prime blend all night @ 3.8GHz DDR 1190 its a good BIOS IMO.

CN :)
01-08-2008, 11:48 AM
cantankerous

Quote:

Originally Posted by C-N

12/24 is here http://us.dfi.com.tw/Upload/BIOS/LP35DC24.ZIP it was upgraded to final/retail rather than staying BETA.

I put my spare chip in last night & swapped back from my E6850 to my Q6600 & it run prime blend all night @ 3.8GHz DDR 1190 its a good BIOS IMO.

CN :)

Yea I went back and noticed it was now made official as well.

C-N that is one sweet overclock you got there. My gosh, 3.8ghz on a Quad core and 1190 on the ram. That system is something to be proud of. Here I am excited that I hit 3.4ghz on my Q6600 and then you come along...
01-08-2008, 03:20 PM
mad_skills

I believe you can do better if that's a slacr Q6600, 3.4GHz on TRUE is somewhat average..
01-08-2008, 11:51 PM
pumbertot

Quote:

Originally Posted by jimmyz

I also am on a qx 9650, on the first official with penryn support. 11-07 and so far all seems well, I do get the 88 code (but it does recover )if I try to set 11 multi though but 10 seems fine for now, just happy to have it running.
my x-38 didn't recover from 88 codes without a cpu swap .(and i use phase cooling, so that is a pain). after catching up in this thread I tried my p-35 and so far so good.

using the 12/27 BIOS im no longer having boot issues except the odd 88 error code but after powering off and back it its all good. however the quad is underperforming for sure so might give 1107 a go.
01-09-2008, 01:30 AM
C-N

1 Attachment(s)

1224 BIOS Works good

I finally got round to having a proper play with the 1224 BIOS & for me its a good one.

I find 1224 to be a tad slower clock for clock compared to my old favourite 1019 BETA BIOS which IMO is down to the memory being backed off a touch but apart from that its killer & its an official non BETA BIOS.

The BIOS template is attached if anyone can make use of it be my guest.

Here's my specs & settings for anyone thats interested.

================================================== =======

DFI LANPARTY UT P35-T2R (BIOS 1224)

INTEL CORE 2 DUO QUAD Q6600 KENTSFIELD 2.4GHZ 4M L2 CACHE (L19B)

OCZ PC2-8500 SLI 2 x 1GB PN:OCZN1066SR2GK

INNO3D 8800GTS 320MB (163.75 DRIVERS OVERCLOCK 617 X 955)

4 X HITACHI DJ 80GB HD'S (RAID 0 / 64K STRIPE)

SONY DUAL LAYER DVD RW (DRU-820A)

OCZ GAMEXTREAM 1010W PSU

WINDOWS XP PRO SP2

CPU COOLING: D-TEK FUSION + PA130.3 + D5 VARIO

Code:

>CPU Feature: Thermal Management Control.......... - Enabled PPM(EIST) Mode...................... - Disabled Limit CPUID MaxVal.................. - Disabled CIE Function........................ - Disabled Execute Disable Bit................. - Enabled Virtualization Technology........... - Enabled Core Multi-Processing............... - Enabled >DRAM Timing: Enhance Data transmitting........... - Fast Enhance Addressing.................. - Fast T2 Dispatch......................... - Auto >Clock Setting Fine Delay Press Enter: Ch1 Clock Crossing Setting......... - More Aggressive DIMM1 Clock Fine Delay............. - Current[1486ps] DIMM2 Clock Fine Delay............. - Current[612ps] Ch1 ControlFine Delay.............. - Current[1012ps] Ch1 ControlFine Delay.............. - Current[562ps] Ch2 Clock Crossing Setting......... - More Aggressive DIMM3 Clock Fine Delay............. - Current[1337ps] DIMM4 Clock Fine Delay............. - Current[524ps] Ch2 ControlFine Delay.............. - Current[1086ps] Ch2 ControlFine Delay.............. - Current[449ps] Ch1 Ch2 Common Clock Setting....... - More Aggressive Ch1 RDCAS GNT-Chip Delay........... - Auto Ch1 WRCAS GNT-Chip Delay........... - Auto Ch1 Command To CS Delay............ - Auto Ch2 RDCAS GNT-Chip Delay........... - Auto Ch2 WRCAS GNT-Chip Delay........... - Auto Ch2 Command To CS Delay............ - Auto CAS Latency Time (tCL).............. - 5 RAS# to CAS# Delay (tRCD)........... - 5 RAS# Precharge (tRP)................ - 5 Precharge Delay (tRAS).............. - 10 All Precharge to Act................ - 5 REF to ACT Delay (tRFC)............. - 26 Performance Level................... - 6 >Read delay phase adjust Press Enter: Channel 1 Phase 0 Pull-In.......... - Auto Channel 1 Phase 1 Pull-In.......... - Auto Channel 1 Phase 2 Pull-In.......... - Auto Channel 1 Phase 3 Pull-In.......... - Auto Channel 1 Phase 4 Pull-In.......... - Auto Channel 2 Phase 0 Pull-In.......... - Auto Channel 2 Phase 1 Pull-In.......... - Auto Channel 2 Phase 2 Pull-In.......... - Auto Channel 2 Phase 3 Pull-In.......... - Auto Channel 2 Phase 4 Pull-In.......... - Auto MCH ODT Latency..................... - Auto Write to PRE Delay (tWR)............ - 11 Rank Write to Read (tWTR)........... - 10 ACT to ACT Delay (tRRD)............. - 3 Read to Write Delay (tRDWR)......... - 8 Ranks Write to Write (tWRWR)........ - Auto Ranks Read to Read (tRDRD).......... - Auto Ranks Write to Read (tWRRD)......... - Auto Read CAS# Precharge (tRTP).......... - 3 ALL PRE to Refresh.................. - 4 >Voltage Settings: CPU VID Control..................... - 1.55000v CPU VID Special Add................. - Auto DRAM Voltage Control................ - 2.27v SB 1.05V Voltage.................... - 1.150v SB Core/CPU PLL Voltage............. - 1.55v NB Core Voltage..................... - 1.65v CPU VTT Voltage..................... - 1.60v Vcore Droop Control................. - Disabled Clockgen Voltage Control............ - 3.60v GTL+ Buffers Strength............... - Weak Host Slew Rate...................... - Weak GTL REF Voltage Control............. - Disable CPU GTL1/3 REF Volt................. - 115 CPU GTL 0/2 REF Volt................ - 115 North Bridge GTL REF Volt........... - 115 Genie BIOS Settings: Exist Setup Shutdown................ - Mode 2 Exist Shutdown After AC loss........ - Disabled O.C Clock Fail Retry Counter........ - 0 CLOCK VC0 divider................... - Auto CPU Clock Ratio Unlock.............. - Enabled CPU Clock Ratio..................... - 8 Target CPU Clock.................... - 3840MHz CPU Clock........................... - 480 Boot Up Clock....................... - 350 DRAM Speed.......................... - 266/667 Target DRAM Speed................... - 1203MHz PCIE Clock.......................... - 100mhz PCIE Slot Config.................... - 1X 1X CPU Spread Spectrum................. - Disabled PCIE Spread Spectrum................ - Disabled SATA Spread Spectrum................ - Disabled

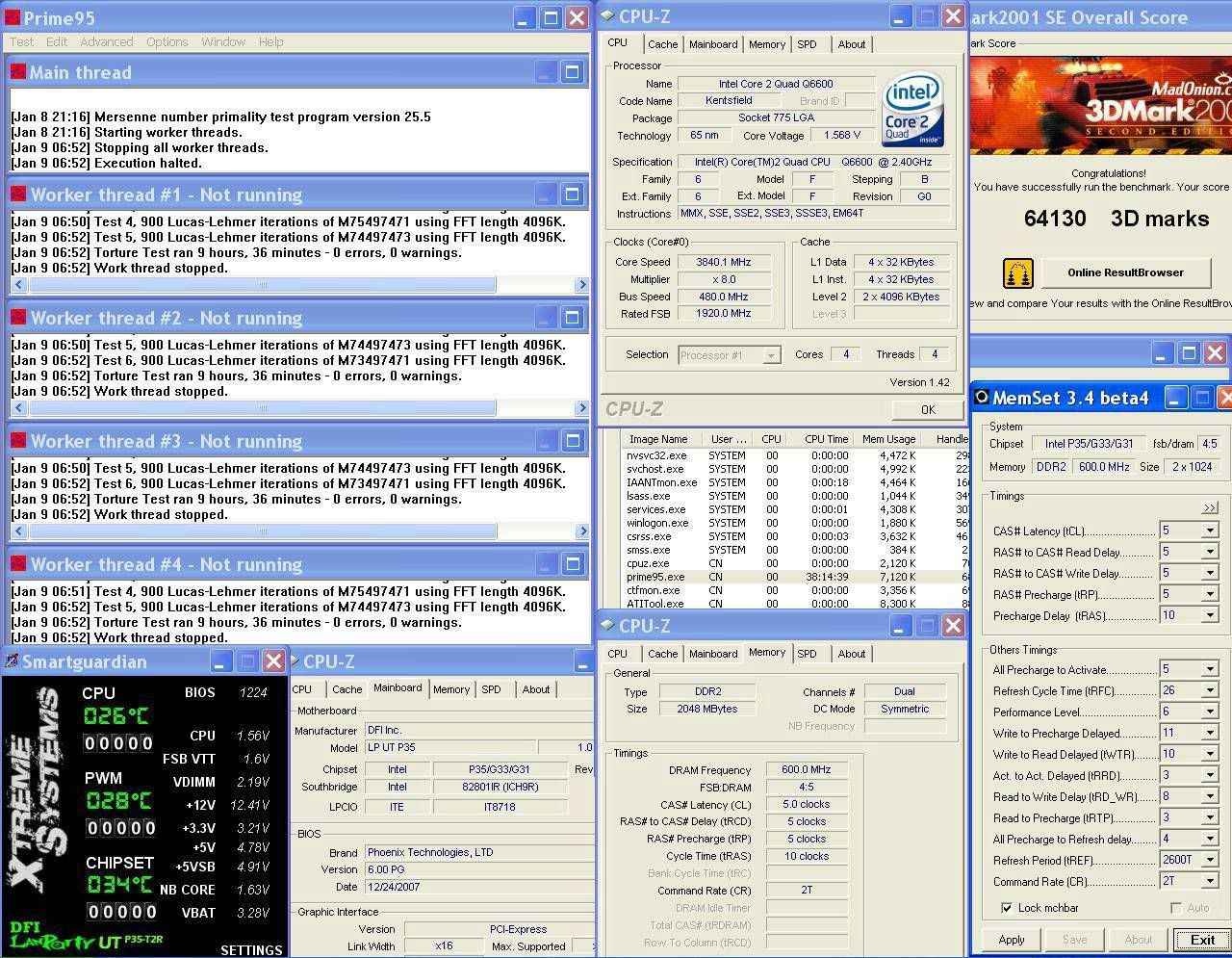

PRIME95 + 3DMARK2001SE + 3x CPU-Z:(SCORE 64130)

http://i106.photobucket.com/albums/m...8/3DMARK01.jpg

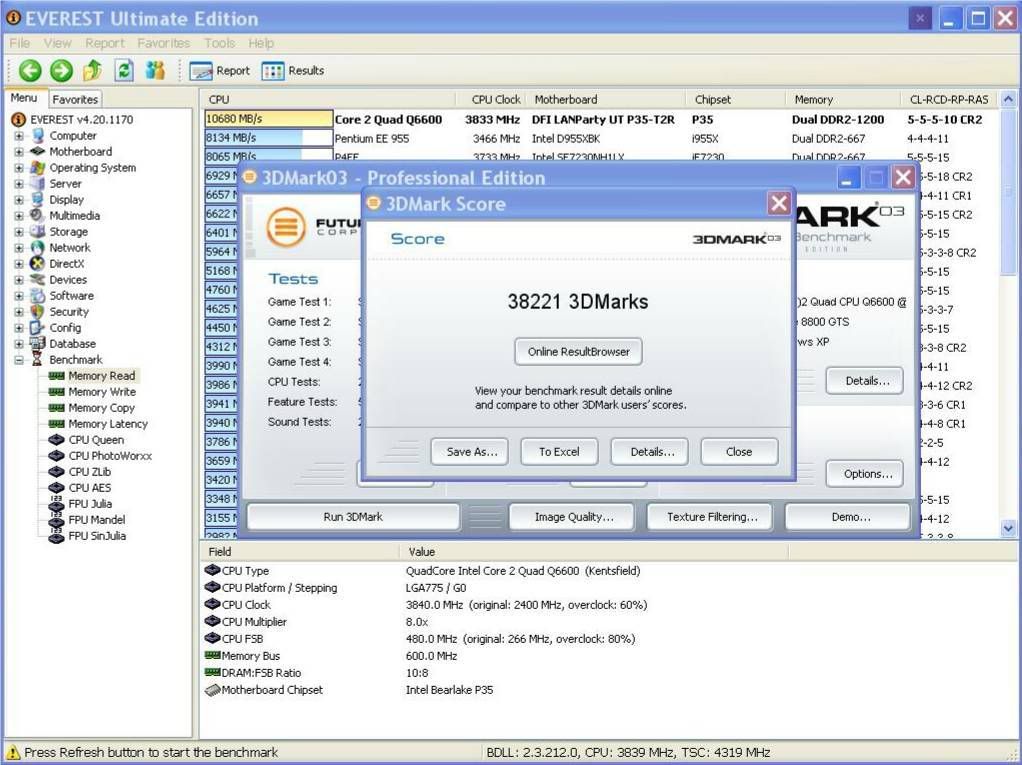

3DMARK2003:(SCORE 38221)

http://i106.photobucket.com/albums/m...8/3DMARK03.jpg

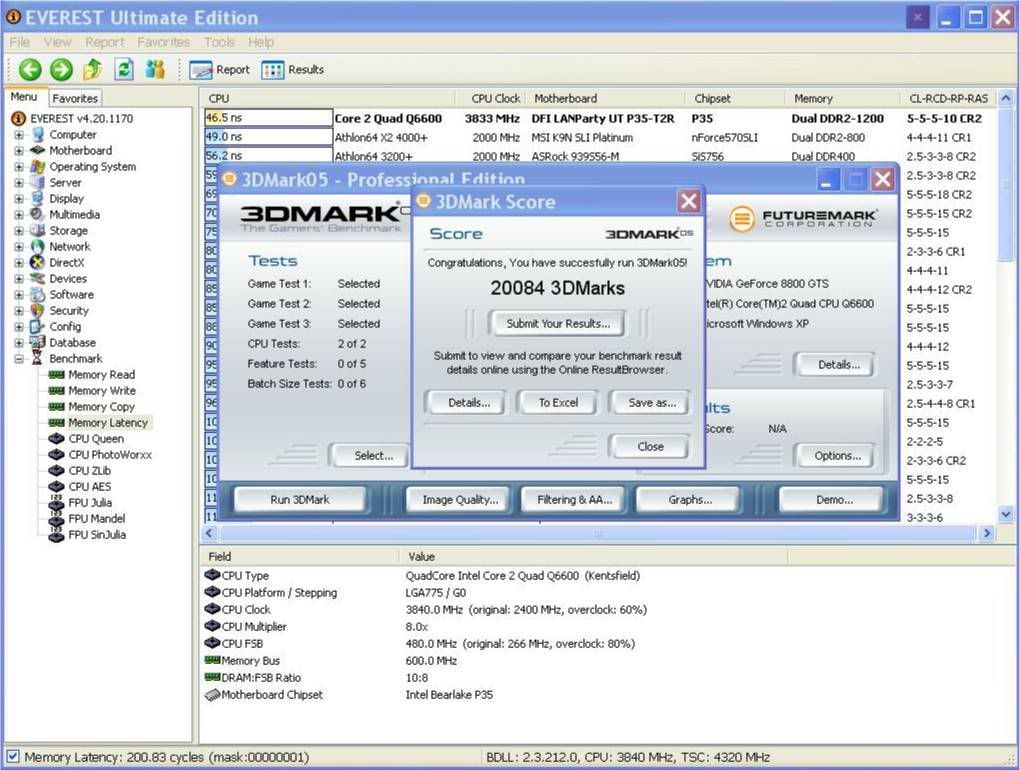

3DMARK2005:(SCORE 20084)

http://i106.photobucket.com/albums/m...8/3DMARK05.jpg

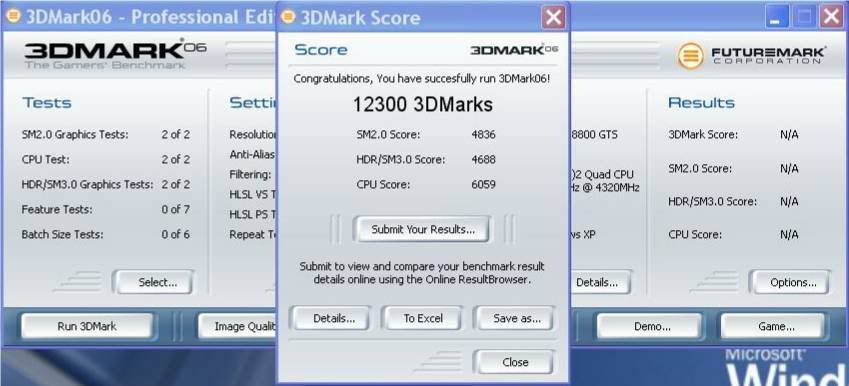

3DMARK2006:(SCORE 12300)

http://i106.photobucket.com/albums/m...8/3DMARK06.jpg

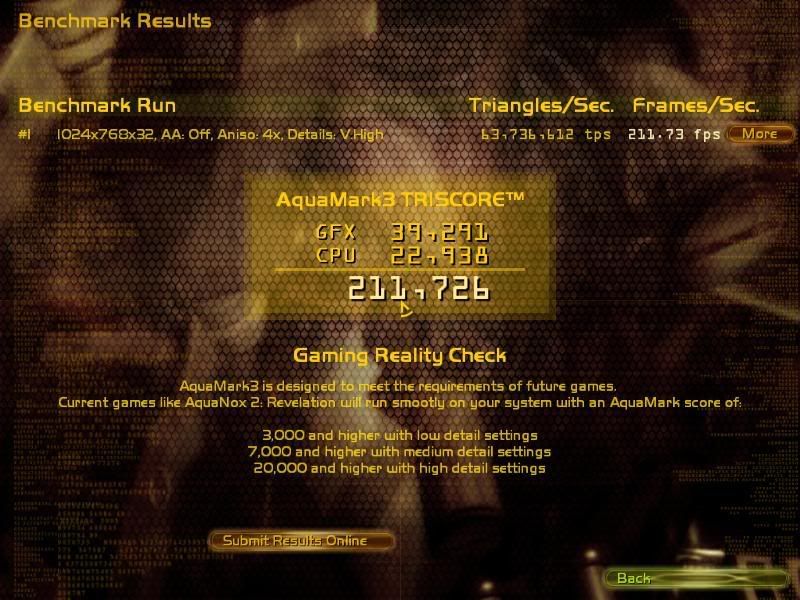

AQUAMARK 3:(SCORE 211,726)

http://i106.photobucket.com/albums/m...8/Aquamark.jpg

SHORT DESCRIPTION:
480 x 8 = 3840MHz @ 1.550v
5-5-5-10 2T @ 2.270V DDR 1203
01-09-2008, 03:03 AM
nzbleach

Hey, anyone know if the 45nm wolfdales clock well on this board?
01-09-2008, 04:33 AM
emoners

@C-N: Nice one C-N..thanks for the info! :up: i'm playing around with the 12/24 too. though you'd be strapping on the E6850. by the way, is it safe to keep than vDIMM @2.27v, NB Core @1.65v
CPU VTT @1.60v?
01-09-2008, 05:19 AM
C-N

Quote:

Originally Posted by emoners

@C-N: Nice one C-N..thanks for the info! :up: i'm playing around with the 12/24 too. though you'd be strapping on the E6850

Thanks & your welcome.

TBH I sold off all my spare CPU's ready to get a 9650 but the money burnt a whole in my pocket, I figured I would get the E6850 to go with my P35-T2R so I could replace my old 875P-T file server when I got hold of an X38 board.

I am not so sure I will bother with x38 now as all I see is problems rather than advantages maybe I will wait for X48 :shrug: maybe x48 will be better :shrug:

I have had a quick play with the E6850 & I am real impressed with it, she runs nice @ 4GHz 1.475v DDR1250 2.31v on the 266 strap & it can bench some real nice numbers too.

CN :)
01-09-2008, 05:25 AM
emoners

Quote:

Originally Posted by C-N

Thanks & your welcome.

TBH I sold off all my spare CPU's ready to get a 9650 but the money burnt a whole in my pocket, I figured I would get the E6850 to go with my P35-T2R so I could replace my old 875P-T file server when I got hold of an X38 board.

I am not so sure I will bother with x38 now as all I see is problems rather than advantages maybe I will wait for X48 :shrug: maybe x48 will be better :shrug:

I have had a quick play with the E6850 & I am real impressed with it, she runs nice @ 4GHz 1.475v DDR1250 2.31v on the 266 strap & it can bench some real nice numbers too.

CN :)

What's your bios settings on that 4Ghz? is that your 24/7 clock?
Same here...i might skip the x38 & move on directly to the x48. & kinda uncertain between the 8500 or the 9650.:confused:
01-09-2008, 05:53 AM
C-N

Quote:

Originally Posted by emoners

What's your bios settings on that 4Ghz? is that your 24/7 clock?
Same here...i might skip the x38 & move on directly to the x48. & kinda uncertain between the 8500 or the 9650.:confused:

I only ran the E6850 overclocked for a couple of days so I don't really have any proper long term tested 24/7 settings. I did run it for 2 days @ 4GHz DDR 1200 after getting it 9 hours Orthos stable, my settings & screen shot are below same hardware just swapped Q6600 to E6850.

I didn't make any screen shots @ DDR 1250 but it was basically just the next strap/divider up tcl:5, trcd:5, trp:5, tras:10, all precharge to act: 5, trfc:26, read delay 6 vdimm:2.31v, vnb 1.65v & everything else the same as DDR 1200.

I will probably sell the E6850 fairly soon & get a 8400/8500 & a 9*50 I just cant help myself :D

Code:

>CPU Feature: Thermal Management Control.......... - Disabled PPM(EIST) Mode...................... - Disabled Limit CPUID MaxVal.................. - Disabled CIE Function........................ - Disabled Execute Disable Bit................. - Enabled Virtualization Technology........... - Enabled Core Multi-Processing............... - Enabled >DRAM Timing: Enhance Data transmitting........... - Fast Enhance Addressing.................. - Fast T2 Dispatch......................... - Auto >Clock Setting Fine Delay Press Enter: Ch1 Clock Crossing Setting......... - More Aggressive DIMM1 Clock Fine Delay............. - Current[0] DIMM2 Clock Fine Delay............. - Current[5] Ch1 ControlFine Delay.............. - Current[8] Ch1 ControlFine Delay.............. - Current[6] Ch2 Clock Crossing Setting......... - More Aggressive DIMM3 Clock Fine Delay............. - Current[0] DIMM4 Clock Fine Delay............. - Current[6] Ch2 ControlFine Delay.............. - Current[8] Ch2 ControlFine Delay.............. - Current[5] Ch1 Ch2 Common Clock Setting....... - More Aggressive Ch1 RDCAS GNT-Chip Delay........... - Auto Ch1 WRCAS GNT-Chip Delay........... - Auto Ch1 Command To CS Delay............ - Auto Ch2 RDCAS GNT-Chip Delay........... - Auto Ch2 WRCAS GNT-Chip Delay........... - Auto Ch2 Command To CS Delay............ - Auto CAS Latency Time (tCL).............. - 5 RAS# to CAS# Delay (tRCD)........... - 5 RAS# Precharge (tRP)................ - 4 Precharge Delay (tRAS).............. - 10 All Precharge to Act................ - 4 REF to ACT Delay (tRFC)............. - 30 Performance Level................... - 7 >Read delay phase adjust Press Enter: Channel 1 Phase 0 Pull-In.......... - Auto Channel 1 Phase 1 Pull-In.......... - Auto Channel 1 Phase 2 Pull-In.......... - Auto Channel 1 Phase 3 Pull-In.......... - Auto Channel 1 Phase 4 Pull-In.......... - Auto Channel 2 Phase 0 Pull-In.......... - Auto Channel 2 Phase 1 Pull-In.......... - Auto Channel 2 Phase 2 Pull-In.......... - Auto Channel 2 Phase 3 Pull-In.......... - Auto Channel 2 Phase 4 Pull-In.......... - Auto MCH ODT Latency..................... - Auto Write to PRE Delay (tWR)............ - 11 Rank Write to Read (tWTR)........... - 10 ACT to ACT Delay (tRRD)............. - 3 Read to Write Delay (tRDWR)......... - 8 Ranks Write to Write (tWRWR)........ - Auto Ranks Read to Read (tRDRD).......... - Auto Ranks Write to Read (tWRRD)......... - Auto Read CAS# Precharge (tRTP).......... - 3 ALL PRE to Refresh.................. - 4 >Voltage Settings: CPU VID Control..................... - 1.47500v CPU VID Special Add................. - Auto DRAM Voltage Control................ - 2.27v SB 1.05V Voltage.................... - 1.150v SB Core/CPU PLL Voltage............. - 1.75v NB Core Voltage..................... - 1.45v CPU VTT Voltage..................... - 1.35v Vcore Droop Control................. - Disabled Clockgen Voltage Control............ - 3.60v GTL+ Buffers Strength............... - Strong Host Slew Rate...................... - Weak GTL REF Voltage Control............. - Disable CPU GTL1/3 REF Volt................. - 93 CPU GTL 0/2 REF Volt................ - 93 North Bridge GTL REF Volt........... - 93 Genie BIOS Settings: Exist Setup Shutdown................ - Mode 2 CLOCK VC0 divider................... - Auto CPU Clock Ratio Unlock.............. - Enabled CPU Clock Ratio..................... - 8 Target CPU Clock.................... - 4000MHz CPU Clock........................... - 500 Boot Up Clock....................... - 350 DRAM Speed.......................... - 333/800 Target DRAM Speed................... - 1201MHz PCIE Clock.......................... - 100mhz PCIE Slot Config.................... - 1X 1X CPU Spread Spectrum................. - Disabled PCIE Spread Spectrum................ - Disabled SATA Spread Spectrum................ - Disabled

http://i106.photobucket.com/albums/m...0/3DMARK01.jpg
01-09-2008, 06:48 AM
emoners

Thanks so much C-N! Really really appreciate the effort. :)
01-09-2008, 12:39 PM
Budwise

are the only differences between the UT and LT version the heatpipes?
01-09-2008, 12:58 PM
cantankerous

Quote:

Originally Posted by Budwise

are the only differences between the UT and LT version the heatpipes?

Pretty much, yes.
