There hasn't come any new bios after 1705 yet?
Printable View
There hasn't come any new bios after 1705 yet?
What did you change?Quote:
Originally Posted by sidenine
Can you list applied voltages?
sparx
None that I know of. I would suggest that you first take that tin foil off the NB HS and put a 40mm fan on that NB HS. It works wonders when you OC. Most people still don't know that yet. There is a thread that discusses it.Quote:
Originally Posted by DoNoT.O.C
You said a mouthful- EastCoast.Quote:
Originally Posted by Eastcoasthandle
The heat of the MCH has been discussed over and over here. :confused:
Sparx,
All voltages are set at auto with the exception of vCore at 1.4V and RAM at 2.2V. I've tried maxing my RAM to 2.4V and increasing speed to 1067MHz, but got some BSOD's when booting into XP.
I've tried suggestions on increasing FSB, MCH, and ICH voltages up as shown on this thread, but have not found a winning combo yet.
you especially want to do this if you install the board in a BTX (up-side-down) config..Quote:
Originally Posted by Eastcoasthandle
I forgot to mention that when you go 1.55V, 1.60V or 1.65V on your MCH you need a fan for your NB HS. Or else it won't make much different at all to a stable OC. Over heated NB will cause freezing and reboots.
I have p5w dh deluxe, corsair 8500C5D , E6600
Currently running at 3.6 gb 400x9
In bios setting under DRAM Frequency I set ddr2-800, so my memory is 1:1 ratio 400 Mhz
What I want is to run the memory at 500 Mhz without changing the cpu frequency. What I have to set under DRAM Frequency in the bios that make my memory running at 500Mhz.Thanks
I have a p5wdh and I am not able to reach more than 320FSB whenever I set mem timings manually on bios. I mean, the same stable configuration with automatic timings means NO BOOT on manual timings on bios even if they are the same.
I see people here runnin' 425FSB with ram timings set manually and I can't pass 320.
Somebody help?!
The no-boot if RAM = manual timings seems to be a board to RAM configuration problem.
For example my friend's P5WDH would not boot with manual timings over 330MHz FSB with his OCZ 6400 Gold, but will boot fine 'til 399MHz with a pair of OCZ PC6400SOE.
You can try re-writing your SPD with the desired timings ( assuming that you've tested your ram modules )
Nice..how do I do that?Quote:
Originally Posted by BenchZowner
I'll do some exaustive testing on the ram tonight to see what they are made of. I've been able to hit DDR2 950 with 2.2v. Not bad for value ram, but i'll REAL test 'em tonight. How much voltage you thing I should aim for?
You can edit & flash your modules SPD with Thaiphoon Burner or the SPDtool by Wizard ( techpowerup.com for download links )
Remember not to keep a low freq & "trash" timings just to allow the motherboards to boot with 'em.
You can find some information on SPD editing & flashing [ and usage of SPDtool & Thaiphoon Burner here ] { search.php keywoard = taiphoon }
I have been able to boot with manual timings since the 160X series bios with this ram BL2KIT12864AA663. It is PC5300 rated at 3-3-3-12 at 667 and 2.2 voltage.
I have no trouble running it set as manual in BIOS at 4-4-4-12, 2.2V and 800 (PC6400). It will go higher but it will not make 1000 speeds no matter how much voltage I give it. Truthfully, I haven't tried every single thing I can to get it stable at 1000, cause I like it 1:1 and I am running 800/1600 or 400x9, depending on how you view it.
These are D9's and if needed, I have a link to the actual IC's, but they are the most popular OC'ing D9s. I purchased 4 sticks about a year ago, so I can't say what they are now as far as IC's go.
It's the board setting some really random values @ tRD & tRFC that prevent you from running your RAM @ high freqs
Been discussed in Gskill Tech Support forum here.
My mobo temp is sometimes like 53c. I've been told by a friend of mine that thats to be expected with higher end mobo's for oc'ing and its ok. Should i put AS5 on the n/sb? I tried reformatting in case windows wasnt stable (i had a run in with Ntune that went kinda sour) and tried Dark Messiah it played last night for a couple hours fine but then froze today.Quote:
Originally Posted by Eastcoasthandle
My voltages are currently
cpu 1.5
ram-2.1
MCH-1.65
53C on the NB is Red HOT at idle. I am at 29C with the heater on. I suggest reading that link that will help you clean that crap they call TC and reapply AS5 and put a 40mm fan on that NB HS, pronto!Quote:
Originally Posted by 1stMIchris
... one reason why i cant get past fsb of 393 perhaps? my mch set at 1.85v.. then again i have a crappy weak cpu :(Quote:
Originally Posted by Eastcoasthandle
Erm... tin foil? You mean that plastic sheet which is hard to notice first time?
http://i11.photobucket.com/albums/a1...g?t=1166126702
E6700 with P5W DH, Corsair PC 8500...does this look fishy to you?
link
EDIT: I just tried and couldn't get the PC to post.
Hi Eastcoasthandle,
In his post, 1stMIchris talk about mobo temp, not NB temp.
How we can measure NB temp?
Quote:
Originally Posted by Eastcoasthandle
I see, well the only temp that I know of is on the NB. I am not sure where another temp probe is located on the MB itself.Quote:
Originally Posted by psy4fun

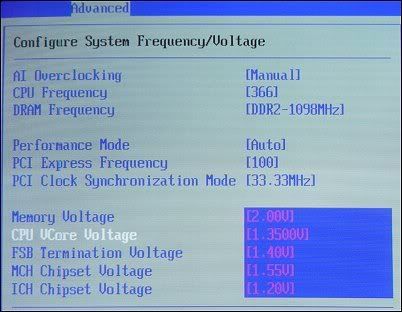

http://i11.photobucket.com/albums/a1...6FSB_Bios1.jpg
Here is my setup using PC 8500
http://i11.photobucket.com/albums/a1...Bootup_306.jpg
Here it is booting up.
Thanks, now I can confirm if the AS5 I have put on the NB and SB have contributed to more cool temps.
Quote:
Originally Posted by Eastcoasthandle
The HS on the North/South Bridge HS is covered with a thin layer metal. It's glued on so taking it off is fairly easy. You will need to buy a 40mm fan for the NB HS. I used 2 screws to hold mine on.Quote:
Originally Posted by Timmaah
Won't work, don't even try it. I've tried several SPDs of ram which booted manual timings on other boards and also tried editing my own, made no difference whatsoever..Quote:
Originally Posted by Malk4vi4n
Ok so...what should I do?Quote:
Originally Posted by lawrywild
Another thing: Is the MB reader on asus probe the NB temperature? Mine keeps at 40º LOAD. Is that good for an nice overclock
