loc.o how you've set enhance? And fsb vref?
Thx
Both Enhance auto
roedzzz and others: are you changing the TIM on the NB or running high fsb right out of the box?
Mine gets delivered today. Hope I do as well as you guys.
I did but before first boot so no before/after results. Way too much white paste on and all around NB stock...
Where do i find smartguardian (or skin) as the one by Select in post #50 ??
I'm not changing anything..
Out of the box 'n running test..
http://img143.imageshack.us/img143/2496/76310827ms0.jpg
This mobo doesnt like my good set of crucials. I have 2sets, one did bench SPI 1m @687mhz 5-5-5-18 the other set doesnt bench as high.
It wont boot at all with the ''good'' set of ram in dual channel but boots in single channel.That set did 600mhz 4-4-4-4 on my other board
With the other set boots fine but every time oc fails i get C1 code, have to reset CMOS allthe time:p:
Seems i cant go past 657fsb so could be the ram i guess .
Could someone be kind enough to upload abs utility and latest smartguardian here? i've lost my CD :confused:
Its still passed for PI 32M 7.5 x 615 with my Adata X 800 2GB..
http://img158.imageshack.us/img158/6263/nuniewu1.jpg
645 FSB done with E8400 Q805 /all air. :D Awesome board.:up:
I have an offer to buy the non-PLUS board for $135. Kinda cheap, but is this version still FSB-limited at 500 or so? I have a DFI X48 LT T2R already, no use getting the P45 DK non-PLUS if it can't go higher (the X48 did 540 on air, the previous owner told me).
hi guys, what's the difference between PLUS version and NON PLUS version on T2rs mb ? thank you
Not even sure what the actual difference is but for that $5 extra id get Plus just in case.
Regarding the DFI LANPARTY DK P45-T2RS PLUS
Any chance of some quadcore clocking results? i.e. Q9550/Q9650 or QX9650.
Thanks.
Engineers from DFI: guide to overclock for P45 :D
gah. Having serious issues on this board. Cant hit over 449 fsb without extreme voltage. Running an E0 E8500 which I cant stabilize even at 4Ghz. >_< Wheres the magic bios setting to correct this problem
I know it's a screamer for 1m, but can anyone get an efficient 32m score on this board? Say approx 12min @ 6x600?
Just curious cuz it's real tempting.
Hello, a question whi is completely out about the board....

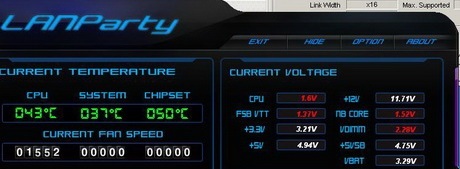

does someone already see this skin for smart guardian :
http://i31.servimg.com/u/f31/11/51/44/49/525e1210.jpg
or, someone knows a website to find skin for smart guardian.
thanks, and sorry for the out of subject....and for my bad english (french guy).
Is it possible to boot from a USB stick with this board? There seems to be some options to do it but I can't get them to work.
Edit: Figured it out. Switch USB Drive boot from Auto to HDD. Then switch Drive boot priority. :)
I"m hitting a strange fsb wall on q9550. 476 post and boot windows fine but 477 = totally no post. anyone have any idea why?
Having issues 500FSB +. Have tried all the settings other people have used. My crucial ballistix D9 have gone flaky so im using some promos. I have 3 sets of ram I have tried and at times I cant even get them to run stock frequency. Picky board?
Using :
E8500 E0
D9GMh/promos/powerchip ram.
PS. whats a Safe FSB termination voltage to use?
http://i14.photobucket.com/albums/a3...9276Medium.jpg
This was very unstable :
http://i14.photobucket.com/albums/a3...rpi1m-1cut.jpg
Perhaps you've found the FSB hole that exits on intel boards. I can be different for every mobo + proc combo. This is a known 'problem' since the introduction of the CD2 architecture
You should see if you can do 478, 480 , 485, 490, etc. It's trial and error , good luck :)
