Quote:
Originally Posted by Lu(ky
Max CPUZ validation = 4374Mhz at 1.712v
Max 1M = 4338Mhz at 1.712v
Max 32M = 4266Mhz at 1.712v
;)
Printable View
Quote:
Originally Posted by Lu(ky
Max CPUZ validation = 4374Mhz at 1.712v
Max 1M = 4338Mhz at 1.712v
Max 32M = 4266Mhz at 1.712v
;)
Has anyone had any experience with the L727A898 stepping e6850? I just picked one up and I can't seem to find any information on it at all...
What are you using for the rest of your system? Mobo, Memory Etc..Quote:
Originally Posted by cletus_cassidy
Abit IP 35 Pro with 4GB Crucial Ballistix Tracer PC-1000 RAM. I haven't actually started to overclock the chip yet, but I haven't seen a single post from anyone with a similar stepping.
I am at 3.6 at stock voltages easy OC just trying to break it in here. I will try 3.8 today, then I hope 4.0 etc..
You have the same stepping then?
Highest 1hr Orthos stable FSB with no mods Giga DQ6. & ES E6850 for my setup.
http://i194.photobucket.com/albums/z...d_8x492Mhz.jpg
New SuperPi 1M high for me...
My 2x E6850 L723A347 cpus on Asus Blitz Formula 1101 with Corsair Nautilus 500 water cooling:
E6850 L723A347 #1
VID: 1.325v
Max boot into memtest86+ v1.70 at 1.296v default vcore = 3933Mhz
Max FSB = 485-487FSB
Max CPUZ Validation = 4374Mhz - 9x486FSB at 1.712v
3006Mhz = 1.192v Prime95 v25.3
3600Mhz = 1.336v Prime95 v25.3
4000Mhz = 1.472v 32M
Max 1M = 4338Mhz at 1.712v single core, 4323Mhz at 1.632v dual core
Max 32M = 4266Mhz at 1.712v single core, 4158Mhz at 1.632v dual core
vs
E6850 L723A347 #2
VID: 1.3375v
Max boot into memtest86+ v1.70 at 1.296v set vcore = 3897Mhz
Max FSB = 530-535FSB
Max CPUZ Validation = not yet tested
3006Mhz = 1.168v Prime95 v25.3
3600Mhz = 1.304v Prime95 v25.3
4000Mhz = 1.472v 32M
Max 1M = not yet tested
Max 32M = 4104Mhz at 1.632v dual core (even 1.68v-1.712v vcore didn't help 32M pass at 4158Mhz single core or dual core enabled)
this is mine e6850 L723 :D
cooled to liquid Tamb 25°
all from bios
super pi 1 mega a 4355 mhz 544x8
http://www.pctuner.info/up/results/_...4350Medium.JPG
max fsb 580x6
http://www.pctuner.info/up/results/_..._580Medium.JPG
Max Validation 4.4GHZ - http://valid.x86-secret.com/show_oc.php?id=234398
Super Pi: 11.922s (Checksum 9B1A8C97) @ 4.275GHZ.
http://hem.bredband.net/infan/spi4275.jpg
L721A
Not so good in comparison to other 6850
3.8 1.5V stable
4Ghz 32M stable 1.65V (crashes prime instantly)
4.1 1M
FSB wall @ 490 :down:
See attach.
My E6850 arrived today
FPO batch L723B222 Pack Date 08/08/07
Vid reported by Coretemp 1.3125
Orthossing now at stock speeds will edit this post later on with some OC's... nice thing is I can run 3ghz already with way lower chipset voltages than with my E6600
Striker Extreme :
E6600 -- E6850
Vcore 1.35 -- 1.32
1.2HTT 1.35 -- 1.2
NB voltage 1.35 -- 1.2
SB Voltage 1.55-- 1.5
CPU VTT 1.4 -- 1.25
Catch ya laterzz
Edit :
Orthosses 8 hours (blend test) at 3.6 at stock voltage, no errors, went fine, bought a new Seagate 500GB S-ATA2 hooked it up started transferring large files and after 2 mins the pc rebooted lol :rofl: several times lol voltages for the Striker were :
Vcore 1.35
1.2HT : 1.3
NB Voltage 1.4
SB Voltage : 1.5
CPU VTT : 1.4
Could I be experiencing the weird HD/680I issue here ? Will adapt my voltages on the chipsets to dig further into the matter...
At 3.6 the max laod was 50-52°C same as my E6600 but idle temps are 6-8°C lower...
Yeah, want to see what the B model will do, hear they are a tad better?
I JUST GOT MINE IN - at 1.325vcore in bios (BFG 680i rev. A2 w/P30 BIOS) I am at 3.825 at first boot just fine - temps at 100% LOAD ARE FREAKIN LOW! <-45ish
I will have water cooling tomorrow!
Quote:
Originally Posted by eva2000
My L722A232 on 32M pi
same as yours!
1M pi on 4.2G
congrats :)Quote:
Originally Posted by stephen23
System
- Intel Core 2 Duo E6850 retail L723A347 G0
- Scythe Infinity with modded mount + 120x25mm Spire 96cfm fan
- Transpiper heatsink NOT installed
- DFI LP UT P35-T2R 8/23 bios flashed from 8/10
- 128MB Gainward FX5200 PCI
- 2GB Crucial Ballistix Tracer PC2-8500 naked modules Green dimm slots
- 80GB Hitachi 7K80 SATA
- LiteON CD-RW
- 700W OCZ GameXStream
- WinXP Pro SP2
E6850 @3000Mhz - 9x333FSB at 1.184v
Load
http://fileshosts.com/intel/DFI/DFI_...ime95_load.png
E6850 @3600Mhz - 9x400FSB at 1.328v
Now at 3600Mhz at 1.33125v bios (1.344v idle and 1.328v load)
Load
http://fileshosts.com/intel/DFI/DFI_...ime95_load.png
E6850 @4005Mhz - 9x445FSB 1:1
Bloody awesome E6850 @4005Mhz at 1.552v Prime95 load Scythe Infinity air cooled in 25.5C room ambient temps :D
http://fileshosts.com/intel/DFI/DFI_...ime95_load.png

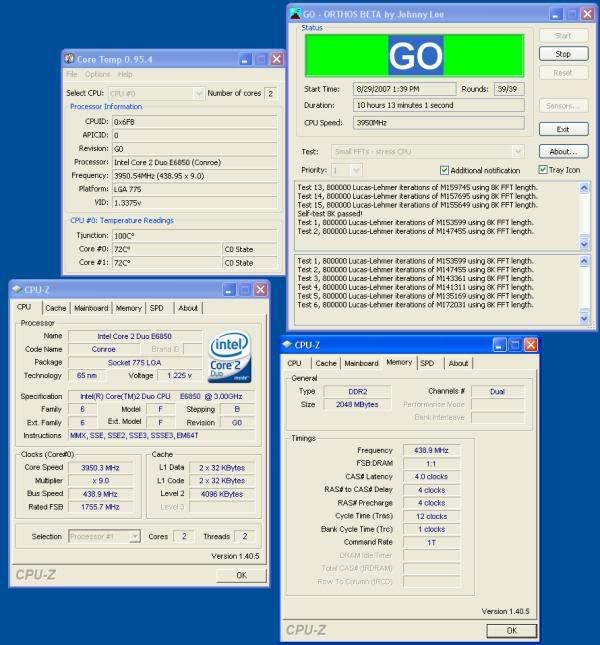

A little higher, 50 more mhz to go on air
http://i65.photobucket.com/albums/h2...hoscropped.jpg
70c load temps. ouch!..
debating on water cooling or Phase Change cooling setup. I can only fit a single rad on my case without having to cut all over it but that then a single rad will not do the trick. The waterkeg is $400.00, in my budget is a bit much for the possible gains in clocks speeds, 72c is not bad as the tjunction is 100c. this orthos run was on small ftts and that generates the most heat. In my real world usage no application will replicate those temps.
hlo
L720A under watercooling (20° water)
http://www.pt1t.net/E6850/E6850_P5KE...5mhz_1_45v.PNG
http://www.pt1t.net/E6850/E6850_P5KE....PNG-VCore.png
Mines a L719B018 with a VID of 1.35v. Here's a few screenies..
Just can't hit the 4gig mark, think the motherboard might be holding me back!
I've got mine semi stable at 4202MHz - click my HWBOT sig for a lot of tests - now I am working on finding the sweet spot w/ volts and speed
What batch?Quote:
Originally Posted by TheGoat Eater
