I had the same problem with my NB heatsink( getting 54-60c), I had to flip it around 180 degrees but now my Enzotech xUltra120 wont fit that way so i'm not sure what i'm gonna do.. Pwm get scary hot also use caution:devil: ! Prepare to spend some more $$$ on this already expensive hot board.
Honestly rather replace my DFI 680lt then my Enzotech but thats just cause i havent been having much luck with this board.:shrug:
i think this makes sense cause the NB HS only has two heatpipes and with it the way sammich has it the pipes are closest to where the 680i chip sits on the board...Quote:
Originally Posted by vincey2kr1
with it reversed they are a good bit further away... if the thing had 4 heatpipes with 2 on each end it wouldn't be an issue...
:D The fans don't add much weight, the HS itself is fairly heavy though, Im not worried at all. for some reason when it was mouted vertical and both fans blowing inward it was 3-4c hotter, mouted horizontal, desided to try it again, its running 3-4c cooler over the last 30min this way, I don't really know why, but the ram gets some good airflow now....Quote:
Originally Posted by Jobeo
are you concerned about weight with the two 120mm on the ultra ?
no clip on the top fan, doesnt need it as I don't intend on dragging it with me places, I'll probably wire tie it on when I decide it's good.. looking for some slimmer fans (less than 25mm) for clearance, or a different NB cooler.Quote:
Originally Posted by Jobeo
is the top fan on the ultra clipped or is it just laying on it.
Ran out of fans :mad:Quote:
Originally Posted by Jobeo
you aren't using a back case exhaust fan?? is that to do with negative airflow issues or just cause you ran out of fans.
hehe... i will probably not run into this issue... note this is with my 8 best fans already in my rig ::Quote:
Originally Posted by xTr33m sammich!

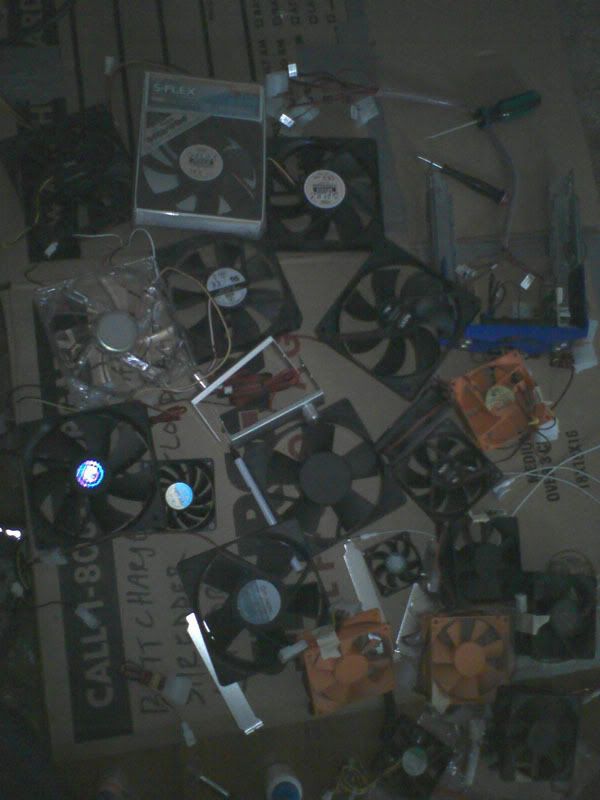

http://i168.photobucket.com/albums/u...1/fanjumbo.jpg
thanks for your insights ... i'm not sure why the temps would be higher when its mounted vertically... thats the way i wanted to do it... will have to think now HRmmmm.
Put me in the throttling category, having the same problem. I'm running on air though and have a cooling fan over the VRM. If you look at page 88 of your manual you'll see the options in that screenshot for thermal management but seems like with this bios we dont have that option now?Quote:
Originally Posted by Spazilton
Quote:
Originally Posted by Jobeo
It was 88 (your screwed code)
I got it working. Found a reference over on DFI Club, that sometimes this board doesn't like to initial boot with a QuadCore.
I put in my E6600, booted it, than swapped to the Quad and it worked fine.
@Vincey, Exact same problem, and I am on water.
TM1 and 2 processor throttling when core temps aren't going over 65c.
Seems to be related to PWM Temps, however once it trips, even cooling down the PWM it wont reset from throttling under any loads..
I can disable it with RM clock, but it shouldn't be doing it in the first place. However I am at 367*9 stable on my quad now running unlinked.
I wish they had a US distributor.Quote:
Originally Posted by EvilMoe
What are the symptoms of throttling? How can you tell it's throttling?Quote:
Originally Posted by vincey2kr1
My 3d mark 06 scored do not change much when overclocked (like 500marks) when it should be alot more. Also using Sisoft Sandra CPU benchmarking utility and the scores are changing based on its performance you can tell were its throttling down to. in my situation its throttling from 3.5ghz down around 2.8-3ghz compared to the other cpus
Ya'll got EIST or C1E enabled? Not familiar with this bios but make sure you disable all of the cpu features that will throttle down when idle...just throwin ya some food for thought in case you haven't disabled these lil boogers...
Also, if you are running Vista, you also need to set your power profile to High Performance to avoid speed-stepping.Quote:
Originally Posted by OldGuy
EIST isn't an option in the BIOS. DFI board always seems to be running at full multi. C1E is disabled.Quote:
Originally Posted by OldGuy
I can tell its throttling multiple ways. The temps will drop 5-7c really quick than go back up in constant cycles.Quote:
Originally Posted by virtualrain
CPU-Z shows the reduced multi kicking in. Than going back. RM Clock monitoring shows both the clock bumping down to a 6x multi and the VID getting bumped down. Its typical TM2 throttling.
With Coretemp 94 temps never going over 65c ~61-63 on on all 4 cores (@ 1.4 Bios, Strong drive, around 1.32 DMM measured actual load), if I remove my fan from the VRM heatsink for more than 10 seconds it will go into a constant throttle cycle (6x multi for a second 9x for a second etc..)
Even putting the fan back, it will constantly throttle under full load.
Very odd problem, I'm assuming that the PWM temps are being read somewhere and are tied into processor throttling.
I can stop it from happening with RM clock by disabling TM1 and 2 throttling.
My testing is on XP. Btw.
wow ... hrmm... thats not good.Quote:
Originally Posted by Spazilton
wonder if we can get an official answer from DFI on this ... problem is it doesn't seem like this board has caught on very much. sorta what VR was talking about the other day... without the consumer base backing it i'm afraid they'll just move onto other things.
i guess i'll have to look into cooling this pwm better... so far i've had no luck. =/ not good
Have you tried taking off the pwm and getting rid of the Thermal Clay(yes clay lol), its a tedious job prepare to use a toothpic and qtips though. I added some AS5 and I believe it helped, at least i can touch the heatsink for longer then a 2seconds now:DQuote:
Originally Posted by Jobeo
I think ceramique is the best to use in this situation,it's non capacitive, make sure your board is not bowed to the extent that some of the devices are not making contact with the sink, or over compensate with some ceramique to ensure contact with the heatsink in all situations.. Be midful of the smt capacitors that also sit under the recessed area of the heatsink, they should not make any form of contact at all..
The circuit handles dual cores great, quads need real sturdy cooling of the pwm area to hold them steady at any meaningful overclock..
regards
Raja
I could be wrong here but if your heatsink is now cooler to the touch (since you can now touch it for longer than 2 seconds) than the AS5 is most likely not conducting heat as well as the factory installed stuff (if the heatsink was hotter before than it would be safe to assume it was getting more heat transfered to it before)? I went through this same thing on my eVGA after replacing the same clay stuff with AS5. It ended up being that my factory installed heatsink just wasn't making contact with all heat producing chips after the reinstall? Anyway just something to think about...Quote:
Originally Posted by vincey2kr1
That brings a rueful smile to my face... ;) I have a tatored Abit IN9 32X-MAX with a splattered PWM from shorting out. Melted that little puppy all over my board. Be mindful of what Raja is telling you...I have first hand experience and he speaks the truth :)
Quote:
Originally Posted by raju
based on sammich's pic, do you guys think it would be better to have that rear case fan intaking or exhausting? he doesn't have one installed but you can see from the holes to the left where it would be::
http://a423.ac-images.myspacecdn.com...a79c9a4386.jpg
i guess my concern is with it exhausting it would be fighting the two cpu HSF's
Best suggestion is to try it...only way to know fo sho...
Quote:
Originally Posted by Jobeo
Something doesn't seem right here... This is the first this has been mentioned (you and vincey) and lots of people have been overclocking. If this was a design/feature, I'm sure many more people would have been running into this by now. I've personally never witnessed this issue with my board and I was running some high clocks and Vcore before I decided to put a fan on the PWM area. My initial throttling was Vista's power management at work. If you're certain you've disabled all software speed-step type of stuff, you should consider logging this over on the DFI Club Forums to ensure this is expected behavior.Quote:
Originally Posted by Spazilton
Ideally, you would have an exhaust hole (no need for a fan) on the top of the case!... However, if the PSU is above this setup, then that's not an option.Quote:
Originally Posted by Jobeo
Generally, most people have air intake on the lower front of their case and exhaust on the upper rear. The HSF's should generally blow front to back and/or bottom to top if possible so that air flows in that general direction. If you have intake on the front, exhaust out the back.
i dunno... not sure i agree with ya on that one. i just started disassembling my rig for the third and hopefully final time... before turning it off i hadn't been doing anything torturous to it, just general websurfing. upon opening it up let me tell you things were quite warm inside.Quote:
Originally Posted by virtualrain
this is using a stacker 832 case running 2 high powered exhaust fans and 5 intake fans. you have a stacker case so you know the whole top and sides are vented with holes...
it was surprising the amount of warm air inside... i didn't expect it. its probably due to my setup with 2 GTX and 4 harddrives... but the thought of not running those exhaust fans would be insanity. if anything i need to stepup my exhaust =/
Yeah, I should avoid commenting on stuff I'm not intimately familiar with... I'm not aircooling my components as you know... but I have my stacker 830 configured such that the four fans on the door/rads are all blowing into the case as well as a fan on the lower front.... no exhaust fans at all and there is a considerable breeze of warm air emanating out of the blow-hole.
I'm sure you are right in that you are better off with more fans than less when air cooling.
virtualrain do you have any screen shots of your bios options, just to make sure there isnt something i missed concerning this cpu throttle issue? Maybe its mislabled.
So far I've only taken pics of the voltage screen... I'll post a full set of bios pics on my blog this evening and post back.Quote:
Originally Posted by vincey2kr1
just ordered 5 mins ago
Quote:
Originally Posted by virtualrain
just ordered from them...:clap:
will be in the DFI club again....soon!
what temps are people getting watercooling their dfi...(cpu)
Q6600 @ 3.3 1.4v Strong Drive (1.34 Actual Load) 61-62c all 4 cores. Thats through CoreTemp. Smart Guardian reports around 9-11c high depending. Make sure to take this into account when setting shutdown temp. Took 15 damn mounts of my Apogee GT to get the lowest even load temps.Quote:
Originally Posted by Grinch
BI GT 240 4x Yate Loons in Push Pull, Laing D5, EK Multi-Res, Apogee GT, EK 8800GTX WB.
thx spazilton..*-)
what are people getting with dual cores idle/load?
Well, i've got it all wrong, but I like it :P, I have one of those cases with alot of holes in the side panel, free air flow right over the top of the vid and cpu..
Air intake in front and rear, top fan on cpu blows down, chipset blows down, exahusts out the side panel..
Sort of non-conventional.
E6400@3500
1.55vBIOS
1.5vIDLE@22c-CoreTemp
1.48vLOAD@50c-CoreTemp
SmartGaurd is approx 10-12c Higher
http://a402.ac-images.myspacecdn.com...042b58edb9.jpghttp://a152.ac-images.myspacecdn.com...2916ee7e1f.jpg
LOL... ya.Quote:
Originally Posted by xTr33m sammich!
i've had my ultra extreme here since yesterday and have run into the various things you've mentioned. although i'm not giving up on mounting it vertically. having the rear exhaust fan right there sets up too perfect of a push/pull situation.
also i think i can work something out with the PWM. the obvious issue becomes the NB and let me tell you i was about throwing a conniption fit over it. losing my mind over here. GD NB GD NB... but i think i might have something now who knows
i will prob start a thread over on dficlub with pics =) assuming all goes well which i know it never does
Any idea why Raid5 doesnt work on this board? I purposefully degraded a R5 array to see if it would rebuild without error, didn't work, second attempt, no go.
is it possible to carry over my raid-0 from my evga 680i to this mobo without breaking the raid array?
I would be willing to bet the DFI controller will recognize it just fine if you keep the drives on the same logical connectors when you do the swap, the problem will be any mismatch in drivers for peripherals... which is only an issue if the array is a system partition. If it's just data, no problem. If it is a system partition, you should uninstall all drivers for devices not present in your new system before shutting down the old system for the last time.Quote:
Originally Posted by Grinch
At any rate, it's obviously safest to backup any key data just in case.
10-4...thank you
Heres my settings 24/7 Air cooled q6600 for the moment till some of the bios issues get worked out: Can do 3.5ghz but just too hot :( for 24/7 use
Air cooled Enzotech ultra120
heres my volt settings in bios im at idle 40-45c and load 61c (prime95v252)
363fsbx9 3262ghz
Cpu vid 1.34375
cpu add 104%
Strong
STrong
2.3ov (ddram)
Nb 1.54v
sb 1.56v
sbdual 1.62v
LDTv 1.37v
Cpu vtt 1.34
GTL enable
140
75
75
Tried to keep my volts low as possible.
You hould be very pleased with that! 3.2GHz on air is excellent. Very reasonable voltages!
Here are my latest overclock settings after tweaking memory for low-latency.
I've also experimented with running memory at 1100MHz 5-5-5 2T but it was slower than 800 4-3-3-8 at 1T!
Full set of BIOS screen shots and more commentary on my blog.
http://members.shaw.ca/virtualrain/m...rimestable.png
Voltages:
http://members.shaw.ca/virtualrain/stablebios12.jpg
FSB:
http://members.shaw.ca/virtualrain/stablebios13.jpg
Memory:
http://members.shaw.ca/virtualrain/stablebios15.jpg
EvilMoe,
Where can we get that PWM water-block? Any link to it?
Thanks,
Cas
How much FSB are people getting with quads on this board?
Looking good. Are those parts made out of brass or what is that?Quote:
Originally Posted by EvilMoe
When will they be available? Where can we get them in NA?
400x9... see my post above.Quote:
Originally Posted by Isaac MM
I believe they are copper with nickle flash...they were supposed to make a pwm for the IN9 32X-MAX. Dunno if they ever did...Quote:
Originally Posted by virtualrain
the IN9/Quad GT block is up on the Mips site,however the block shown above is not. Will probably require some kind of adaptor to use 1/2 ID tubing too..
regards
Raja
Over the last few days, I've done some memory testing on this board with my Mushkin 2x2GB PC2-8500 kit...
http://members.shaw.ca/virtualrain/rainmaker021.jpg
With my current stable OC at 400x9, my first priority was to tweak for low-latency at sync'd 1:1 speed (DDR2-800)... No problem with this ram at max rated VDimm of 2.3V...
http://members.shaw.ca/virtualrain/mem-lowlatency.png
SuperPi 32M...
http://members.shaw.ca/virtualrain/m...latency32m.png
I also tried seeing how high I could run 1T and got up to 900MHz but found the performance worse because it was running out of sync. I really need a BIOS that will let me set the x8 multi so I can try to run 450x8 and run the memory synced at 900MHz 1T!
I also tried to see how high the memory would run at 2T. I was able to get it running stable at 1120MHz at relaxed timings. Not bad given it's rated for 1066. It might do more with more juice, but it was clear that 2T even at 1100+MHz could not match the performance of 1T at 800MHz...
http://members.shaw.ca/virtualrain/mem-highclock.png
SuperPi 32M:
http://members.shaw.ca/virtualrain/mem-highclock32m.png
More info including a detailed review of my timings on my blog.
hey virtualrain, it looks like you're having lots of luck running 1T with this board. From your testing, is 800Mhz CAS 3-3-3-9 1T 1:1 link+sync faster than 1200Mhz CAS 4-4-4-12 2T 2:3?
I can't say for sure. All I know is that 800MHz CAS4 1T is faster than 1100MHz CAS5 2T so I would expect this would hold true for your scenario as well.Quote:
Originally Posted by signalpst
I know 4-4-4-12 1t @ 900MHz is pretty fast, makes me happy everytime I go back to my 3800+ dual core rig.
Nice work... 1T performance is fantastic. And that mushkin memory looks seriously tastey. I would jump on some if there were any in the UK right now. Talking of which, no one has even listed the DFI up for preorder yet over in this part of the world :(
Can you get one from the US shipped for reasonable $? Maybe the guys at www.motherboardpro.com can hook you up?Quote:
Originally Posted by MikeMK
best option would be a european etailer, try Hpm Computer from Germany, I ordered mine from there, good service fairly quick turn around. Certainly cheaper than getting one in from non EU nations, due to customs/overall shipping charges and shipping time frames etc..
regards
Raja
Thanks for the tips guys - Agree with Raju, have shipped from the US before, and been stung on shipping and customs charge's. Europe is a definate option though. Unfortunately HPM seem to be out of stock. I'll keep an eye on their site and hopefully some will come back in. At least is listed, and theyve had some before... definately ahead of the UK! LOL!
well good to hear its selling out places... should help with the longevity of support for the board. its back at newegg though and is in stock =/
people need to start buying this board or we'll never get the bios upgrades we need ! !
why don't you buy one for me (and others) when you buy one!:DQuote:
Originally Posted by Jobeo
how is this configuration working out for you sammich ?? with everything blowing downward?Quote:
Originally Posted by xTr33m sammich!
my most recent build with the NB rotated 180 degrees confirmed what you guys already found... it doesn't work.
so i'm gonna have to go with the horiztal mount and am wondering which way i should get my fans going... is your setup going good?
Here's another German etailer with them currently in stock. I've ordered from them several times and can recommend them. Shipping to UK is based on weight and starts at EUR 14.52 for up to 5kg.Quote:
Originally Posted by MikeMK
http://www.trend4pc.de/product_info....oducts_id=1121
Sry, I've no information about a release date or anything else.Quote:
Originally Posted by virtualrain
But I think they will be avaible very soon, about two weeks. I think that they'll cost about ~40$ per freezer.
Where did you get the pic or see the freezers? I thought it may have been a picture of your system? any more info would be appreciated???Quote:
Originally Posted by EvilMoe
I got my DFI 680i the other day and have so far run into the following issues that maybe someone else has worked around:
1. The board gets very unhappy when I mount my Areca ARC-1220 in the 2nd PCIe x16 slot (8800GTX in the first) and seems to simply power cycle repeatedly when turned on. I had to move the controller down to the 3rd PCIe x16 slot, but there is virtually no airflow down there so it gets very hot even with an active cooler - not good.
2. My hopes and dreams to re-use my Lian-Li V2100B Plus for this project evaporated after I realized that the Enzotech Ultra-X cooler extends past the edge of the board and therefore collides with the hd/psu separator in the V2100. I was confined to using my old P180 which is insanely cramped.
VirtualRain - I know you've used your ARC-1210 on this board, but I couldn't see any photos on your blog of which slot you had it in. Was it the 3rd slot also?
Any thoughts on the Areca reboot cycle would be much appreciated guys - thanks! :)
Unfortunately, I still need my old rig to be operational for work which is where my Areca card is... so I haven't had a chance to test it on the DFI board. Once all my cooling stuff arrives, I'll make the cut-over with the Areca.Quote:
Originally Posted by volve
You should post this issue over on DFI Club Forums to see what they say. I know that the middle PEG slot is intended for SLI graphics so perhaps the Southbridge gets unhappy whenever there is something other than a graphics card in that slot. The third slot near the edge of the board is the proper slot and the one I will be using.
Probably dead on. It's doubtful the second slot was ever intended for anything other then graphics acceleration.Quote:
Originally Posted by virtualrain
afaik that slot mentioned is a bootable storage device slot, on most DFI boards this is the case..
I just visited that site and it works out delivered is £171 , sound about right to you guysQuote:
Originally Posted by century child
Quote:
Originally Posted by volve
are you powering the FDD connectors on the board? there are two of them i'd try powering one if that doesnt work try powering both... only thing i can think of....
It just came out here in Canada at 335$ (cdn) :eek:
With P35 coming around the corner, why 680 mobo's are still not dropping in price :confused:
I want a drop in prices like DDR2 :D
You got a PM from me... :up:Quote:
Originally Posted by owcraftsman
no uk based sellers as of yet?
1 thing I have damn sure noticed about running this board is that the "pwm" area runs about 65C....
Hey guys, there's a new Beta BIOS (521) on the DFI site. It's dated from last week but I think it was posted yesterday. It looks like the 4C is now for extreme processors (unlocked multi) and non-extreme processors use the 2C (not sure but that's how it seems).
I won't have a chance to try it until this evening.
Link to Beta Page
If you try it, post any differences you find here and I'll keep a comprehensive change log on my blog.
BETA bios has CPU core Temp adjustment now.
I wish we had a more detailed release note for these...
BTW, I show a 18c difference between coretemp and BIOS.
wow.
mine was about 10C difference
what exactly does that mean ?Quote:
1.Fixed Core Multi-Processing function fail issue on Intel Core 2 Extreme QX6700 /X6800 CPUs.
I suspect it's a bad translation and should have read... "Fixed: multi can't be set above x10 on extreme processors"
Just a guess since this was reported as an issue in the previous BIOS (Link). It would really be helpful if DFI could be more explicit in the change log... surely this isn't the only change.
well winflash went fine... although it did stop at 12% and just sat there. thank god i let it finish cause it finally came up and said it was a success.
so far i can see a couple changes. the cpu shutdown temp defaults to disabled. and strangely it is underclocking my CPU by defaulting to an 8 multi.... with the last bios it correctly defaulted to a 10 multi but now it starts with an 8.
GTL values still seem mislabeled. i will clock around with it a bit and see if its any easier.
ahh... they finally fixed the temp labeling in the BIOS... NB and SB are now properly labeled... no more PWM stuff
Max multiplier still only 10?
After playing with my DFI NF680i for only a short period of time it ran my QX6700 at 3400Mhz prime stable for 8 hours @ 1.45vcore
At 3500Mhz overnight I woke up to see the PC was off, so either it reached its max temp of 90degrees (which I doubt... it's sits around 80 degrees all other times while priming at this voltage) or it crashed and didn't boot up.
CoreTemp log tells me it didnt' reach sky-high temps either, taking into account the 15degree difference between CoreTemp and SmartGuardian (BIOS). I think it crashed at about the 2.5hour mark which is a lot longer than I thought it would last tbh!
I'll push for 3550Mhz tonight and see if I can get it to crash sooner, so I can narrow down where I need to focus the tweaks.
I also need to lap my QX6700.
Cooling specs:
DtEk Fuzion,
PA 120.2
DDC+ /w Petras top
What powersupply are you using? I get the same type of crash when I try at 3.5ghz but I'm only aircooling, still playing around at 3.4ghz 1.45v on q6600 Enzotech ultra120
Enermax Galaxy 1000w
Eek last person who was running a Galaxy with this motherboard was having the same problems at Stock speeds.. I get the shutoff as well with my Thermaltake 1000w havent really tried stock speeds though.
Hmm I've just sold my Silverstone Zeus 750w
I wouldn't have thought the shutdown was related to PSU but?
Search back in this thread for Nugzo's experience with the Enermax Galaxy... His problem was more severe so it might not be the same issue... your problem might not even be PSU related but if you find it's the same it would be the second such issue with this PSU and board combo.Quote:
Originally Posted by Borgod
what kinda cooling do you have on the PWMQuote:
Originally Posted by Borgod
I showed you at DFI Club, I'm Terebro :)
virtualrain: Cheers for that. Indeed my symptoms aren't anywhere near as bad as his. It did run prime Stable for 8+hours at 3400Mhz and it's ran flawlessly otherwise including hours worth of gaming.
However I'll continue to have a look around.
I've still got a long way to go, I've only set the GTL's once and want to rotate my NB 180 degrees aswell. Not to mention install XP for more serious benchmarking.
On a happier note, in hwbot my comparable 1024 and 32M SuperPi speeds are the fastest at whatever frequency I set my QX6700 to :) It's even faster than several that run a higher frequency :)
Jobeo: Did you see if flashing BIOS retains the 4 'saved' user-defined BIOS settings? Or do we lose them?
it keeps them...Quote:
Originally Posted by Borgod
I get a similar thing with my E6400.Quote:
Originally Posted by Borgod
I can run 450 x 8 3.6GHz @ 1.55v Orthos stable 8 hours + but if I try 462.5 x 8 3.7GHz it will fail Orthos blend quite quickly. Orthos takes longer to fail the more voltage I add until I get to about 1.6 + 1.55% = 1.625v then it will run for 30-45minutes & then just shutdown. It always fails on the CPU test 8-10 or 12fft.
The funny thing is I can run small fft's for hours @ 1.625v but it wont make an hour on blend.
Core temp never goes above 71oC which is strange as you would expect the CPU to make more heat the more voltage you add which leads me to believe Core temp is not reading correctly & maybe the CPU is hitting its shutdown temp.
I also notice my Smartguardian temps steadily rising just a few degrees off Coretemp until you get over about 1.5v then Smartguardian keeps going making about 10-15oC difference up at 1.6v.
What I am trying to say is Smartguardian apears to increase steadily just a few degrees 3-6oC above Core temp until a certain voltage then Coretemp stops going up & Smartguardian keeps going eventually giving you the 15oC difference under load.
I am not suggesting my CPU can do more than 3.6GHz but on all my other boards the CPU would either fail Orthos or reboot the system rather than just shutdown which leads me to believe this thing/problem is a temp or reported temp shutdown issue.
The shutdown still happens on the latest BETA BIOS (521) & the shutdown temp is disabled in BIOS even though none of the temp reporting programs get to the max shutdown temp.
It would be interesting to see what you make of it when you have a play tonight.
Regards
Craig.
its a known issue that if the PWM overheats the rig will shutdown unexpectedly so my guess is the PWM getting too hot. unfortunately we don't seem to have a temp sensor for the PWM so there's no way to know when this will occur.Quote:
Originally Posted by C-N
to test it i'd put a 120mm high-speed (~2000 RPM) fan blowing as best you can on the PWM and run your tests to see if the shutdown still occurs. at least then you'll know if this is whats causing it.... although mounting such a fan for long-term use would seem impossible with the layout of the board =/
I have measured the load temp of the PWM with an infrared/laser thermometer & it measured mid 50's under load. I have also put a 70mm fan over the PWM heatsink & got the temps down to low 30' & it still shuts down.Quote:
Originally Posted by Jobeo
Regards
Craig
This to me means it's NB or RAM causing you problems. Small FFT's fit in the CPU cache. If you can run small FFT's for hours then your CPU is stable. If it fails blend then your NB or RAM are causing errors. Jack your Volts on those two and see what happens or loosen your timings.Quote:
Originally Posted by C-N
As for the shutdown, it could be a few things as mentioned 1) PWM overheating, 2) Thermal shutdown, 3) Hard-core failure. If you are already cooling the PWM area, then my only suggestions are: rather than disable the thermal shutdown, try setting the thermal shutdown to the highest threshold setting. Perhaps there is a bug with disabling it. Perhaps try the new beta bios. Finally, try backing off your overclock somewhat and making sure you can get something stable that doesn't cause a shutdown.
:yepp:Thats what I thought & I did gradually push my NB up from 1.51 to 1.64v & it made no difference.Quote:
Originally Posted by virtualrain
I also unlinked my RAM & left it at DDR900 where it had run Orthos 8 hours + & later I gradually bumped the vdimm up from 2.18 to 2.38 in BIOS & it made no difference either.
I will have another play later & see how long it will run small fft's.
It will run 450 x 8 3.6GHz fine & I am happy at that its just when I was messing around the other day I noticed this shutdown thing & thought I would post my findings.Quote:
As for the shutdown, it could be a few things as mentioned 1) PWM overheating, 2) Thermal shutdown, 3) Hard-core failure. If you are already cooling the PWM area, then my only suggestions are: rather than disable the thermal shutdown, try setting the thermal shutdown to the highest threshold setting. Perhaps there is a bug with disabling it. Perhaps try the new beta bios. Finally, try backing off your overclock somewhat and making sure you can get something stable that doesn't cause a shutdown.
My thermal shutdown is normally set to 85oC I only disabled it to try to rule the thermal shutdown out which it didn't. I am currently on the new BIOS & its just the same.
Regards
Craig.
Hey Craig, it sounds like you were several steps ahead of me then... I wish we could get to the bottom of this shutdown issue.
In other news, there is a new thread in the reviews section on this board...
http://www.xtremesystems.org/forums/...d.php?t=146067
There's also a BIOS mod community playing with this board called "Rebel's Haven" (never heard of it)... The seem to think we all have cherry picked parts over here! (Couldn't it just be we are good overclockers?! :D)
http://www.rebelshavenforum.com/sisu...ubb=forum;f=54
If the board bows slightly there is a chance that the central mosfets fail to make decent contact with the PWM sink.
One thing you can try is to use some extra Ceramique under the PWM sink to ensure some form of contact at all times, make sure you use non conductive/non capacitive thermal paste. Ths may help the shutdown somewhat, juction temp at the mosfet will be substantially higher than the 50 degrees you see on the heatsink.
Make sure you are careful if you decide to remove the PWM sink, do not skew the heatsink with excessive pressure..
regards
Raja
Raja I will get some Ceramique & give that a go on the weekend along with ensuring the heatsink is flat.
The rig is running Orthos small fft's at the moment (2 1/2 hours so far) at 462.5 x 8 3.7GHz with a 70mm fan on the PWM heatsink & a 120mm blowing down between the CPU & NB toward the long chips in front of the PWM heatsink. The heatsink temp is mid 20's & the long chips are low 30's.
One thing I now notice is Smartguardian is running very close to Coretemp (high 60's low 70's) maybe its the fans maybe its the later 521 BIOS I will investigate later & post my findings.
Regards
Craig.
I have always heard and read explanations that were way above my head that the 1/2 (.5) multipliers should not be used. Try a slight step up.
Best of luck
Quote:
Originally Posted by owcraftsman
I have heard that as well....:)
I don't think anyone is using a half multipler here. That's not even an option with Intel.
