i can boot 400fsb with 4:5 no prob......
Give me some screens then on your biossettings, and maybe i can have a succes also :DQuote:
Originally Posted by Rubiconx3
I know the benefits of a 600+fsb clock(I hardly get past 440),what I want to know is how it is gona help.If I am not wrong,BAD AXE has the 1333 strap but haven't heard of any insane fsb clocks.Sorry but I am new to Intel hardware.Quote:
Originally Posted by FUGGER
Ill do it when i get home from work. I can boot with 1.8mch and 1.6 vcore. My ram wont pass orthos though. I havent tried 5-5-5-15 yet. but @ ddr1000 i cant get 4-4-4-10 stable thats why im usuing 1:1Quote:
Originally Posted by Turbodream
Hey George,I tried raising PCI-E frequency from uGURU in windows and I got a restart.Any tips:confused:Quote:
Originally Posted by hipro5
Have you got the new SPD from OCZ?Quote:
Originally Posted by Zucker2k
A 1333 strap should relax the chipset timings and allow higher FSB clocks. Imagine RAM running maybe 300 3-4-4-8 or 250 2-2-2-5.Quote:
Originally Posted by Phil The Greek
someone can tell me if is possible to delete all profile that i have made in bios with f6 ?? how i can do it?i want to delete all the profiles.......
Nope, but I've pm'ed Tony. Still waiting.Quote:
Originally Posted by Heidfirst
Try to pick the 127MHz one.....;)Quote:
Originally Posted by Phil The Greek
Like most I've been having some difficulties getting this board to be orthos blend stable but things have changed for the better. 13hrs stable with the following settings.Quote:
Originally Posted by raju
1. 6400 Allendale@3255mhz (1.425 in bios, Guru has the voltage at 1.483) beta bios 13
2. MCH/PCI @ 1.90v
3. Corsair 2X1 gig CM2X 1024-6400C4@2.00v timings CAS-5, RAS to CAS-4, RAS precharge-5, tras-15, trc-20
4. Core temp averages between 50c and 60c
CPU cooler Thermaltake mini Typhoon Coolermaster case modded 3-120mm fans.
too bad....I lost the uGuru after installing Windows Vista.....what the....

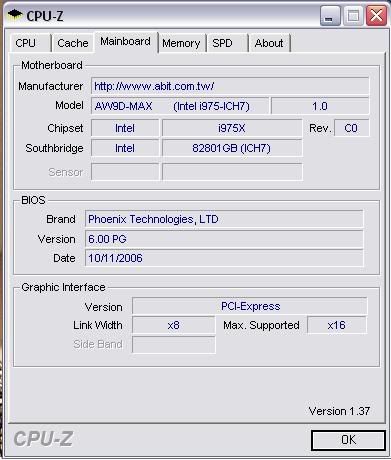

anybody using this bios version?
http://i65.photobucket.com/albums/h2...9/cpu-zref.jpg
I noticed on a the motherboard screen shots the link width is 8x, should it be 16x?
well what i have heard is that when u use 7950gx2 it's 8x...Quote:
Originally Posted by FUGGER
atm i'm testing this "new" beta bios stability with 360x10 and 1:1 ratio to check it's at least stable with same settings that was with 1.2 bios and i left ram timings to spd in bios at now i got 4-4-4-10-14 but i think it's ok cause it's only at 360mhz speed as these rams should do 4-4-3-14-20 @ 454mhz :)
Noticed 8x on screens of ppl using a 7950GX2. It's 16x for me and my 7900GX2 tho.Quote:
Originally Posted by FUGGER
is it worth removing the heatpipes and adding some A5 ?
Yes, if you fell like doing it...if it's easy to remov the heatpipe assembly etc., your temps should drop a few Celcius.
Quote:
Originally Posted by ztop
:( someone can help me?
and can somebody tell me which temp monitoring program should i trust more, uguru or core temp? when running orthos (with vcore 1.52v) uguru tells me 60-67c depends what test orthos is running and core temp shows 75c and won't change much...when idling uguru shows me 35-39c and core temp 40-44c.
i have same problem, i was told to put +10c at uguru for the real core tempQuote:
Originally Posted by Keiki
BIOS 1.2 fixed that for me,
As a 7950GX2 ex-owner, I can confirm it shows 8x will all mobos, not only Abit.Quote:
Originally Posted by FUGGER
In my case, I verified this on the P5B, DQ6 and DS4. The other 8x half is used inside the card, to link the 2 GPUs.
I tryed the 12,13A,13B and I got curious results.
At FSB 448 with BIOS 12 I got better SuperPI 1M performance (12.451), than the 13A at 458, with same memory timings.
Max FSB with 12: 448Mhz, 13A: 458Mhz, 13B: 451Mhz
Every voltage in bios on max.
This is my highest FSB result:
http://img241.imageshack.us/img241/6144/4100wg2.jpg
CPU-Z:http://valid.x86-secret.com/show_oc?id=129559
Memory performance with BIOS 13A:
3-3-3-4 FSB 425:
http://img386.imageshack.us/img386/6...3334425ul8.png
3-3-3-4 FSB 440:
http://img174.imageshack.us/img174/6...3334440wt6.png
3-4-3-9 FSB 446:
http://img145.imageshack.us/img145/6...3439446yi8.png
3-4-3-9 FSB 451:
http://img111.imageshack.us/img111/2...3439451vx8.png
@ Lalaboy
The one that vcore?
The vcore is the max in the bios!:)Quote:
Originally Posted by hornet
Thanks I'll try it soon:up:Quote:
Originally Posted by hipro5
That they say in placing BIOS screens for maximum overclocking success in aw9d-max? :)
Damn......I can't hit 500MHz fsb.....I stack at 496MHz.......:( :mad:
I wish my board had this limit :fact:
can't install uGuru in Vista , so sad.....
hey,my hero, we'r expecting ur ultimated mods:banana: congrates 496fsb, that's awesome, im stock at 450 :(Quote:
Originally Posted by hipro5
it seems my cpu comes very volt hungry after 350x10 to get maxium stability, 3.6ghz@1.45v is no problem but to get it 5h orthos stable it required 1.52v and 3.7ghz is running orthos@1.54v atm. btw it's not a very good idea to turn the comp on without wc system running i got 79c idle temps :D and that was only with uguru O_O
Just want to thank everyone in this thread. I put a e6600 together Fri night based on the infomation here. No problems at all, very stable.
E6600@3.2g, 1.4v, 52c load, 356fsb
AW9D-Max, MCH@1.55v
SuperTalent DDR800@2.2v 4-4-3-8
This thing is putting out Seti WU's twice as fast as my Opty165@2.42g..
Waiting on my UFO-U2 to get here. Should get it higher with water...
PA120.3
Apogee
MCW30
DD Tyee
MCP355/Alphacooltop.
I've submitted an email to Abit asking for uGuru Vista Beta......
Run installation in windows xp sp2 compatibility mode. worked for me.Quote:
Originally Posted by kenofstephen
let me try, thanks !:toast:Quote:
Originally Posted by Zucker2k
something wrong here.....Quote:
Originally Posted by Zucker2k
http://i82.photobucket.com/albums/j2...tephen/bug.jpg
Did you reboot? Also, what version of Vista are you running? Actually, it seems ur version of UGuru is different from mine. I just run the installation straight from the CD and mine has no LED Effect Control.Quote:
Originally Posted by kenofstephen
I got this from Abit's site, apart from this problem,Quote:
Originally Posted by Zucker2k
whenever I press "OK", "Cancel", "Apply" , the whole system freezes and I need to cold boot.....
Do you have voltage monitoring and all the other settings enabled in the bios? Dunno, but if you haven't you may wanna try that first.Quote:
Originally Posted by kenofstephen
same bios settings as I ran Win. XP, no problem, I'll install XP SP2 on another hard drive...Quote:
Originally Posted by Zucker2k
well with crystal i can change the multiplier and it doesn't bug so badly(orthos and core temp still show something else than it really is).from bios max fsb with 6-9x multi is 320 after that it goes all wrong and even if i set 320x9 from bios and then clock from windows it doesn't work, but with crystal it works pretty good.
And i can use 4:5 ram ratio with ram speed 438 or lower after that it's fail fail fail, 1:1 works luckily and i can use tighter timings :) did a quick try with 8x400 and result was: FREEZE but i was using 4:5...now started little bit lower and atm orthos is running 9x385 and ram is 1:1. i'm pretty sure i can't hit 4ghz with this cpu without much higher vcore so now my goal is to at least get my ram speed where it should be and that is 450mhz and that's only stock speed these sticks should do 500mhz with no problem.(wow long post..)
oh yeah what was the speed range where ppl had problems, 395-410 or something?
I have exactly the same situation. Easy until 3.4GHz, hungry after 3.5GHz. Orthos stability comes with VCore way up while Vmch increase doesn't help so much.Quote:
Originally Posted by Keiki
yep but luckily to get it stable at games and so on it works fine with lower volts but of course maximum stability is the best.Quote:
Originally Posted by Madellga
and another question: anybody know which temp is what in uguru? i mean those pwm1-4 and system?
EDIIIT: 395x9 going now 40min orthos.
I tried that too but nothing seamed to happen for some seconds and then I had a restart again.Has anyone else the same problem?I have 2X7800GTXs if it has something to do.I also find strange that even with watercooled chipset I can run pi @441fsb with 1.8(real)vmch but not with 1.83/1.85....Quote:
Originally Posted by hipro5
Anyway,I think I 'll just relax and wait for the new chipsets from ATI and NVIDIA.
This is something that goes unexplained, its not the SLI causing the problem its the board, On the Asus P5W DH it was in bios and could be adjusted with out lock up.Quote:
Originally Posted by Phil The Greek
Try also PCI Latency = 128 OR 255.....Quote:
Originally Posted by Phil The Greek
As for the VMCH, try to see IF the chipset has good contact with the heatsink...
Damn Hipro :eek:Quote:
Originally Posted by hipro5
What's your secret? Water Cooled NB???
Can you post some information on the key settings to get high FSB on the AW9D-MAX?
Quote:
Originally Posted by hipro5
Yess Master !! what your secret ??:toast: :toast: :toast: :toast: :toast: :toast:
well i hit a wall and i'm sad :( anything after 395 is fail...
Does anyone know when will the .13 bios become final ?
;)
Thanks George,wil try that too,as for the chipset,I have already checked it.AS5 had perfect contact.Also tried Ceramique,same resaults.I beleave its just a mater of my chipset.Quote:
Originally Posted by hipro5
Just to inform you that I also had problem with the bios battery.When I was cutting the power,everything in mGURU menu was reseted at stock.The weard is that it had only to do with mGURU menu.Everything else(time/date/raid/boot sequence ect)was ok.When mesured the battery,the reading was 3.07v and the new battery that solved the problem was at 3.29v.The last ABIT that I had(AN7 :p: )had also problem with its battery:slapass:
Quote:
Originally Posted by Hazzan
There's no secret......Only the mod for the Northbridge - a wire soldered on the back of the mobo - , some capacitors here and there, AND a heatsink on the Northbridge chipset - Swiftech with a Delta fan 4 x 4 cm 10000 rpms.......:)Quote:
Originally Posted by SLi_dog
http://www.thelab.gr/images/Hipro5/A...r_benching.jpg
The question is... where the hell are those pots going too ? :D
Nice job as always hipro...
cheers m8 ;)
Any subzero screens ;) ?
:DQuote:
Originally Posted by VoRtAn_MaDgE
If you mean with LN2, not yet....soon....;)
I cant find this board anywhere!!! :(
Got my cpu to 3.9ghz,but not stable.
http://valid.x86-secret.com/show_oc.php?id=130748
Love this motherboard :)
Quote:
Originally Posted by clone38
Keep trying this board will do 3.9 stable:) , I am working on 4ghz stable now. Nice memory BTW.
Is there a way to flash the bios using a flash drive? or do i have to use a floppy?
hehe i was not meaning...so cold, but what the hell, this is xtremesystems :DQuote:
Originally Posted by hipro5
I am waiting for my mach2 modded, new gas, new evap and others mods and i wanna see some oc on the aw9d cuzz i have a p5w64ws (already modded) in my 6700.
Just wanna know the best of the best to put my little boy under ice...
That's why i need to know where the pot's are going to connect on the mobo pcb... ;)
Maybe i'll get one to myself and then test both to see wich one to keep :)
cheers m8 :toast:
Abit flashmenu, should be on your motherboard cd.Quote:
Originally Posted by sedka
i see some tricks there, there and there:DQuote:
Originally Posted by hipro5
Guys using beta 13: As we know, TRFC RAM setting came with version 13. Given that you haven't already tried it, please try if a TRFC value >40 improves your FSB OC.
Can anyone help me? My CPU does 3,82 GHz stable but with orthos blend the test failed after 39 seconds.
I increased Vmch and Vdimm and weaked the ram timings, nothing happened.
http://www.feddern.org/florian/Intel/3,82GHzC2D.JPG
Bios is 1.3 beta. Can anyone tell me how your guys get the mobo working with orthos blend?
can someone post a link to the beta 1.3 bios please?
i know it's somewhere in this thread...
Here you go.Quote:
Originally Posted by Sicness
thanks. do i need to rename the m6606c_12.b03 file to have a .bin extension? or will it flash as is?
it will flash as is
Oh is that why my oveclock wasnt the same. With 1.2 my TRFC was 28 and stable @ 400fsb. If i do 40 and above i can get more of an overclock?Quote:
Originally Posted by Sicness
Good bios got my x6800 up to 3.9ghz :)
Last time ago, I try with Bios Beta 13 no mod all with stock Fan
http://img.techpowerup.org/061018/ok1.jpg
Which the difference enters Thermal Monitor 1 and Thermal Monitor 2? This in the menu CPU Feauture.
Which to use?
Hazzan vmch for that fsb was...?
i will have a aw9d for the weekend to compare with my p5w64 ws...
Quote:
Originally Posted by VoRtAn_MaDgE
Vmch 1,95volt set in bios with fan 3000rpm in chipset, vdim 2.2volt Vcore 1.575. next time I wil try with some mod Vmch. I hope get higher FSB 460 :) :) :) :) :)
Mine wont boot over 420..... tried everything, three different bios, all the volt options everything.....
Didn't make any diference:confused:Quote:
Originally Posted by hipro5
Maybe ... that's why I'd love to see you try it :)Quote:
Originally Posted by Rubiconx3
Hazzan: Good job mate :toast:
I tried it at 45 and at 40 nothing different. My board wont boot over 420 no matter what i doQuote:
Originally Posted by Sicness
Hi everyone. Here are my results with the AW9D-MAX w/ bios 1.2 with a TT big Typhoon
24/7 stable settings 410x8
http://img136.imageshack.us/img136/1...ble2na5.th.jpg
Highest FSB without going over the top with volts and temps 434x8
http://img246.imageshack.us/img246/5101/434bv9.th.png
I got this with 1.88v vMCH and and some 12cm fan doing about 4000rpm pointing straight at the NB. I took off the little max plate off the heatsinks, no doubt this improves airflow.
I gotta say this board rocks, I have had zero problems with it so far. Having said that, My 6400 can go higher, but I will wait for a RD600 board :D
Quote:
Originally Posted by hipro5
Haha thats the same SB sink you used on your IC7-G isnt it? That thing will never die.
Cmon hipro if you can get 400FSB on i875 then 500FSB on 975 should be no problem for you!!!~
Wohoo got my 4GHz.
http://valid.x86-secret.com/show_oc.php?id=131284
Cant get it prime stable :slapass:
Cpu core volt 1.6v
Ram volt 2.35
MCH 1.5V
Getting there as a couple of days ago i cound`nt get 4ghz to boot:banana:
Quote:
Originally Posted by Revv23
:D
Yes the same....Also on Dothan too.....:D
To be honest, I didn't try "hard" for the 500MHz fsb......I'll do one of these days....;) :D
Tell us the add-ons and i will try the 500mhz on the weekend :DQuote:
Originally Posted by hipro5
cheers m8
Go grab those last mhz :banana:
Argh, time for time this board began to suck. It won't boot over 425 MHz FSB and just 400 MHz FSB I can't get orthos blend stable. Really crap. No mods done on this board, but I tried all BIOS and all necessary voltage and speed options.
No way, can't get it stable. Additional fans are on the NB, won't helpt to reach higher FSB. I can test if it is useful to put water on the NB. But I don't think so. Sorry, but I'm fed up with this board. I bought it because I thought it is the best board for my E6600, but now I have to look for an Asus (cold boot issue :( and no mounting holes on the NB, but I hope, I can use the stock fan).
Does anyone has an idea to boost up my Abit AW9D Max before I sell it? :toast:
I say wait till next bios release.Quote:
Originally Posted by Ultrazauberer
I would not be suprized if it is just your cpu walling.Quote:
Originally Posted by Ultrazauberer
heh my super E6600 L628B121 cpu walls a 375fsb on my board.Quote:
Originally Posted by fhpchris
New board next month
First to 5Ghz on the AW9D-MAX?
http://slidog.bigblog.com.au/data/2/...1020003149.png
The time is slow as bat:banana::banana::banana::banana: I know but I'm just proud I managed to complete the 32M run.
I'm running an Asus 7950GX2 on this board with BIOS 1.2. The problem is, CPU-Z is reporting the PCIe link width as X8 instead of X16. Anyone have an idea how to get this thing into X16 mode?
i think this is going to happen with this card.Quote:
Originally Posted by Deke
i can't remember what page it's on but there's a discussion about this.
well.... 24 hours later and i'm still fighting with this board...
so far i've been able to do 7 hours orthos blend at 10 x 365 with the 4:5 ratio
1.45 vcore
2.20 vdimm
1.70 vmch
i was also able to do small fft 9 x 412 1:1 or ~3708 for 7 hours as well
1.50 vcore
2.20 vdimm
1.75 vmch
i tried doing blend with these settings and i errored out w/in 5 minutes.
i've determined orthos/dual prime to fail at either 3 minutes, 5 minutes or 10 minutes.
anyone else notice that instance of prime/orthos does about 3 iterations before the other instance does the 2nd one?
maybe it's just my board.
i've also played with moving the mem around the slots.
i was using the blue - blue configuration but whenever orthos/prime would fail, i'd get a blue screen
then i tried blue-black configuration and it'd get an error instead of blue screening.
tried black-black and got the same thing (error rather than blue screen).
so after 24 hours, 10 x 365 4:5 is as stable as this board will get.
All 79050GX2 cards will give you the same. The other 8x is used "inside" the card to link the 2 GPUs. The "thing" connecting the 2 cards is a PCIex bridge (8x).Quote:
Originally Posted by Deke
This is why a 7950GX2 SLI setup requires just 1 SLI bridge. On the 7900GX both GPUs had access to the PCIex, that's why it shows 16x - on the other hand, it required 2 SLI bridges.
Why do you think my CPU is walling? It's running great: 3,8 GHz @ 1,55V-1,57V tested for 3 hours orthos small ftt. So I don't think my CPU is walling, it's the board. Also 3,6 GHz @ 1,5V are 6,5 h orthos small ftt stable. How can I find out if my cpu is blocking?Quote:
Originally Posted by fhpchris
Sorry, but this board is annoying me! :nono:
shimmishim, try running regular prime95 instead of orthos.
i'm using stressprime. i'll switch it up and try regular prime when i get home this afternoon from work.Quote:
Originally Posted by Nettwerk
thanks.
Not first (http://valid.x86-secret.com/show_oc?id=119338), but very nice to see some high benching numbers on the AW9. What week is that CPU?Quote:
Originally Posted by SLi_dog
You should try running the 11x or 12x, and maybe 4:5 aswell :)
ID ERROR on the linkQuote:
Originally Posted by crotale
D'oh, that was more than a month ago too :eek:. Nice one crotale :clap:. First in southern hemisphere maybe??? ha ha.Quote:
Originally Posted by crotale
CPU is week 26.
Delete the bracket at the end of the web address.Quote:
Originally Posted by dinos22
what coolin' were you using SLI_dog?My x68 is also a week 26,so I'm hoping for simmilar results when my mobo arrives:) Please,could you share the whole CPU batch number with us?
