I'm using my 3841A627 ... Still keep hanging on 3,8g 1.23, but think its the heat, on stock cooling! im seeing 77c before it goes stuck..
seems like a decent cpu, 3,2 doin 1.024 ... new to 1366, :) this is fun.
Yeah, it was the heat, this stock cooler isnt much to the world, did shut HT off, and 3,8 was a go with 81c load..
seems like a good cpu :) soon my waterblock will come :) hell yea! :D
EVGA X58 My System
Cooling water to the

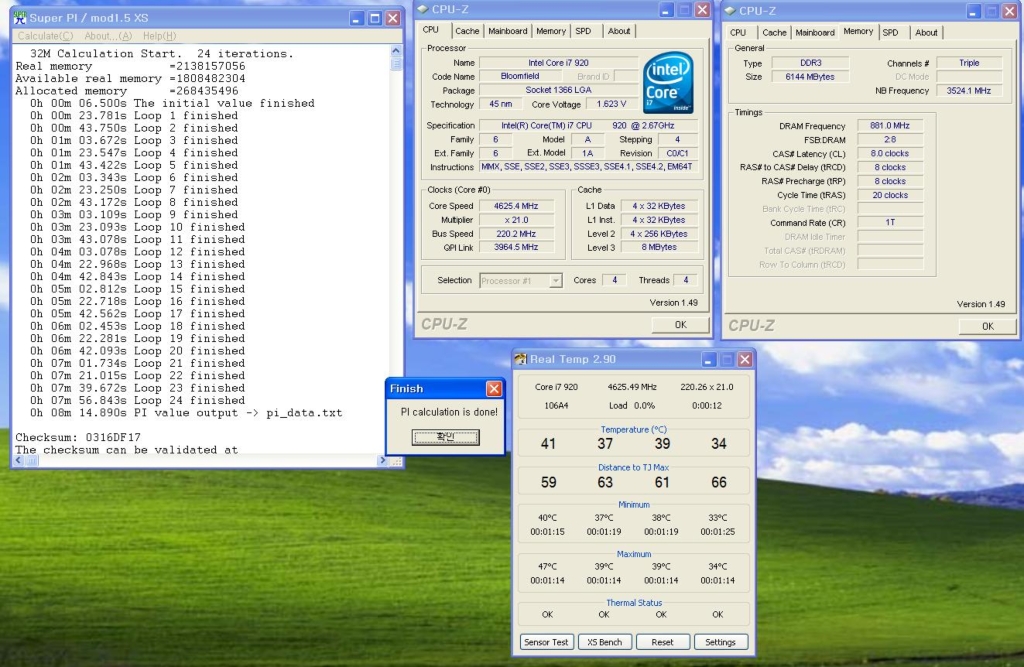

Run 32M PI
Memory bad T ^ T
cpu : 1.6v
rma : 1.8v
qpi : 1.4v
pll : 1.8v
ioh : 1.4v
VTT : 1.55v
http://cfs14.tistory.com/image/11/ti.../49a89553799f1
http://cfs14.tistory.com/image/5/tis.../49a89553e8ec2
^^^wow!!!
Quote:
Originally Posted by Chicken Patty
:) Thank you.
what temps are you getting under load? I see its only on water :)Quote:
Originally Posted by namegt
http://namegt.tistory.com/category/s...gallery?page=5
Water System
Use the window ...^^
nice clocks gt :)
Thank you ^ ^ :)Quote:
Originally Posted by ReverendMaynard
My i7 920
Beach Code: 3838A557
BCLK 222 in the blue screen ...
How can we resolve? Dry ice cooling?
New 4.2GHz overclock that I stabilized yesterday, 21x200MHz at just 1.360V in CPUZ (1.376V actual). Here is a screen of a run I did with it this morning. Decided to open the balcony and let some fresh air in. Ambient temps around 17C.
64C on the hottest core using LinX (Linpack) 20-pass run with my new cooling setup running a customized CoolIt FZE with a Swiftech MCR220-QP rad and micro res in the loop.
name gt
that setup is great bro :up:
@ 4.2G 1.376v nice:up:Quote:
Originally Posted by dejanh
Good chip
what two 4870's can do with an i7 pushing them, cards were at 760/900 only 10mhz overclock on each core :D
http://img.techpowerup.org/090228/Capture090.jpg
not sure if this is the place for that Patty lol. If you want 06 screens....bring more than that lol ;)
IE you're scoring lower than my single 285 ;)
wow dejanh!Quote:
Originally Posted by dejanh
nice work!
the lowest coolant temp I have had on my boreas so far is just under 18, you got down to 10!
I will try to run 4.2 as you have, not sure I can get 4.2 at 1.376 but I will try - again excellent work!
Tell us some more about your cooling loop - order of components going to/from block, just the cpu? no vc's right?
what pump are you using - low or high flow, is your rad 2x120?, running all 1/4 inch or using reducers? ...
If you are staying subambient with your water you might want to lose the rad.
Based on reading in the tec thread - if your water is subambient the rad will heat it up to room temp.
I think I may have learned something new (at least new for me anyway) and maybe rather important for folks using chillers like you and I.Quote:
Originally Posted by dejanh
I was running a big floor fan (in the back of the closet) driving air out of the closet AND I was running a pair of 120 fans 3 in. away from the cpu block thinking that this was good for cooling.
Wow what a dolt I am, I turned off these fans and my coolant and cpu idle temps dropped 6C!!!
Prior to this my lowest coolant temps where just under 18, now I am under 12!!
Makes sense when you think about it, if a radiator can heat up subambient water - so can ambient air blowing on the cpu block or the tecs themselves!
Thats the sweet spot for a i7 965 is running with a 35 multi. 35 x 128 works great. And then with the ram at 2037 with 8-7-6-20 Timings, things run Quick.
wow - with qpi at 2x memory for 4074 - that has to be on the hairy edge!Quote:
Originally Posted by Kensek
what qpi and mem v's do you need for that?
You can see my build log here http://www.coolitsystems.com/index.p...atid=4&id=3414Quote:
Originally Posted by SteveRo
There is a diagram there which shows the flow, but basically it is FZE > Block > Rad > Res > Pump > FZE
Using CoolIt's original 1/4in ID tubing and low-flow pump. No reducers or anything like it. Stock CoolIt block (soon to be replaced with a GTZ I think). My goal was not to get really low idles or sub ambient coolant temps, but to shave off and stabilize load temps. FZE alone could not handle the i7 past 4GHz adequately because of two reasons.
1) The coolant volume was too small.
2) Two blocks of TECs cannot cool the coolant adequately to remove all the heat generated by the i7.
Again, the point is only what happens at load. It's a funny game this TEC business lol :p
Oh and by the way...that's 10.7C while loading the chip. On idle I could go lower (probably 5C) but I have the TECs set to run at 100% only to 10C. As soon as I hit lower they go down to 40% power.
:D
Yes this is very true. If you TECs can cool the coolant sufficiently on their own, you do not want to have ambient air trying to cool the coolant. There is a delta between the coolant temp and ambient that you need to observe and then adjust your system accordingly. With the FZE alone my coolant would climb to 37C-38C at 4.2GHz and core temps would hit 95C+ so I knew I needed something to keep the coolant temps in check and allow the TECs to cool the coolant easier. Shaving off 30C+ from peak temps using the FZE alone is no small feat.Quote:
Originally Posted by SteveRo
I was considering to do some tests without the rad to see what happens in the system then...maybe I'll try this in the next few days...
Dejanh - wow - "Oh and by the way...that's 10.7C while loading the chip. On idle I could go lower (probably 5C) but I have the TECs set to run at 100% only to 10C. As soon as I hit lower they go down to 40% power".
Maybe I should put my feser quad in the loop - haven't tried it with the boreas yet.
Seems like adding the radiator would just increase my temps not lower them - yet your getting lower temps than I am, I have more active cooling and probably a better cpu block.
In any case you've got an amazing set up!
Which block are you using? What do you think about a GTZ? Should I maybe get it to replace the CoolIt block?Quote:
Originally Posted by SteveRo
One other thing to note is that because of the funky TEC setup that goes on with the CoolIt products, fresh cool air makes a lot of difference for me when going for low temps. With recycled warm air I cannot get such nice temps. Fresh cool air is necessary to better cool the aluminum block (TECs are dumping all the heat to the block). If you can't cool the aluminum block the system will just progressively heat up more regardless of how hard your TECs are working on keeping the heat off.
I find that it is a fine balancing act between the ambient temps, coolant volume, fan power, and TEC power. It's not easy to tweak this and in retrospect pure water probably would have been easier though not quite as fun :p:. I also think that the Boreas is still a better solution than my setup but because of its size and noise it is inconvenient. You have double the TECs compared to me, and a much larger aluminum block which surely must make a difference.
well its not only the 3dmark run, but this is a i7/x58 overclocking thread, CPU is overclocked, so its some feedbackon how the CPU does with these cards. Its a bit of both worlds.Quote:
Originally Posted by ReverendMaynard
What did you expect a world record run beeating that one of Team Finlands with the PHenom II? hahaha, not happeneing :p:
Just bustin' your balls Patty lol, no offense ;)Quote:
Originally Posted by Chicken Patty
Here's a little SLi scaling action :)
trust me no offense was taken buddyQuote:
Originally Posted by ReverendMaynard
Anyhow, the GTX 285 is an awesome card bro. You got a nice overclock out of them too! I think once I overclock the cards more and run my CPU at my bench settings, im doing the runs @ 4GHz which is my daily settings, I think I can get a bit closer to your score, how def. will not beat it. Lets see, i'll keep posting some runs as they get better. :up:
that's the spirit mate :) My bottom card is riding the bottom of my case...literally; and has absolutely no exhaust. Single top card hits 771/1600/1406 with ease.Quote:
Originally Posted by Chicken Patty
Here's a single 285 score, just to show the scaling.
yep, I'm using the gtz - larglely because they had the first 1366 bracket.Quote:
Originally Posted by dejanh
That said - when I replaced the coolit block and pump with the gtz and the ST mcp 355 temps went - -5C down - see -
http://www.xtremesystems.org/forums/...8&postcount=35
