Seems like you raised the B2B? what did you put it on? if not... maybe you can lower it..
personally see no point in goin ddr2000 with 15gb in read... i get almost 19 read and about 42ns with ddr1640 and CL7.
B2B drastically reduced bandwith.
Printable View
Seems like you raised the B2B? what did you put it on? if not... maybe you can lower it..
personally see no point in goin ddr2000 with 15gb in read... i get almost 19 read and about 42ns with ddr1640 and CL7.
B2B drastically reduced bandwith.
The point is I can go reverse and match your settings easily. This ram is versatile to go both ways. I can do 1600 6-7-6-20 1N or 1700 DDR3 7-7-7-20 1N 12 gigs(B2B & TREF on Auto) and paid almost half the price you paid. Very nice. :D - O N A I R =
http://i572.photobucket.com/albums/s...g/Killer_K.jpg
Whats the general consensus, leave HT on or off? Also how did you get the x21 multi on a i920
Rampage II Extreme! You can choose 21x.:D -> HT On 20x200 HT Off 21 x 200. It's great to have choices.
http://i572.photobucket.com/albums/s...OCZwaiting.jpg
you can use 21x multi with ht on to
same here run mine @ 4ghrz wih HT on @ 21x. But i like the 20x a bit better though.
so after making sure im stable at 4ghz...i enabled C1E & speedstep in bios...
now my multiplier keeps switching to 12 and stuff & clock freq keeps changing...this is done to reduce temps & power consumption am i ryt?
also...when i game or benchmark and stuff...will the clock speed increase to 4ghz?
Hi all,
I finally got my new D O 920 and I have started the adventure all over again. I also flashed the latest BIOS.

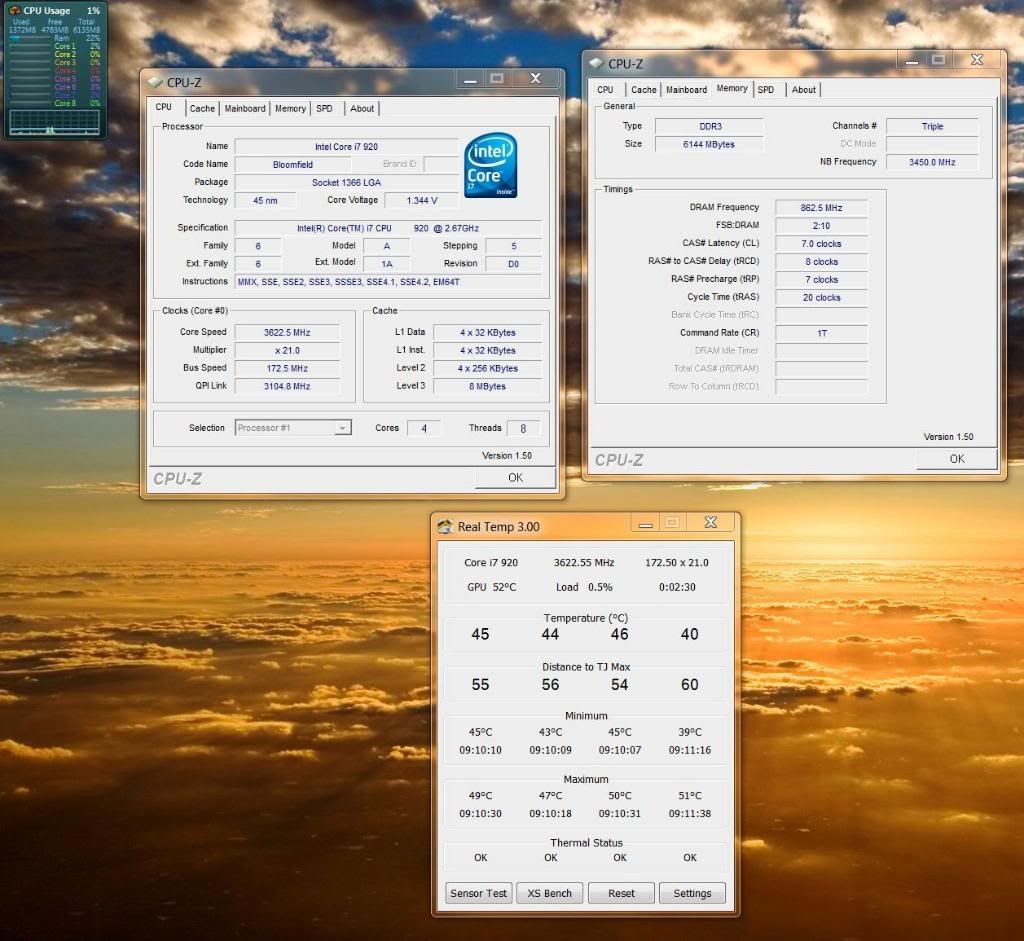

The first thing is my Temps are higher than with my C O, Here is the shot of my first OC results. Temps with no load are average 5 degrees higher and under 100% load they get to over 80 degrees C. Here is what I have so far with no load. I am going to remove my CNPS 9900 and reseat it to see if that helps. I will send the BIOS pics in the next post. Let me know if you have any comments or suggestions.
Thanks, as always.
http://i236.photobucket.com/albums/f...U/newDOOC1.jpg

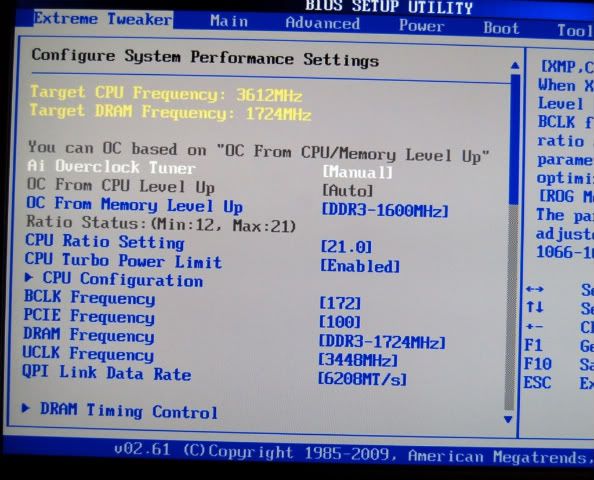

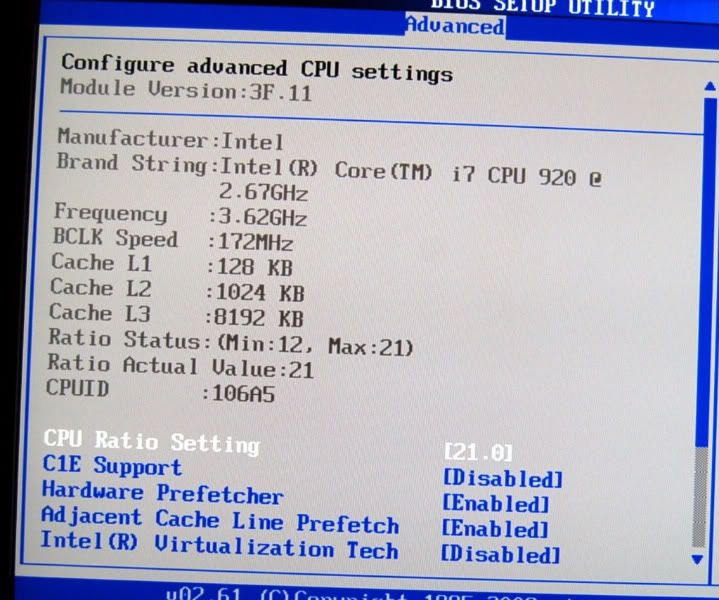

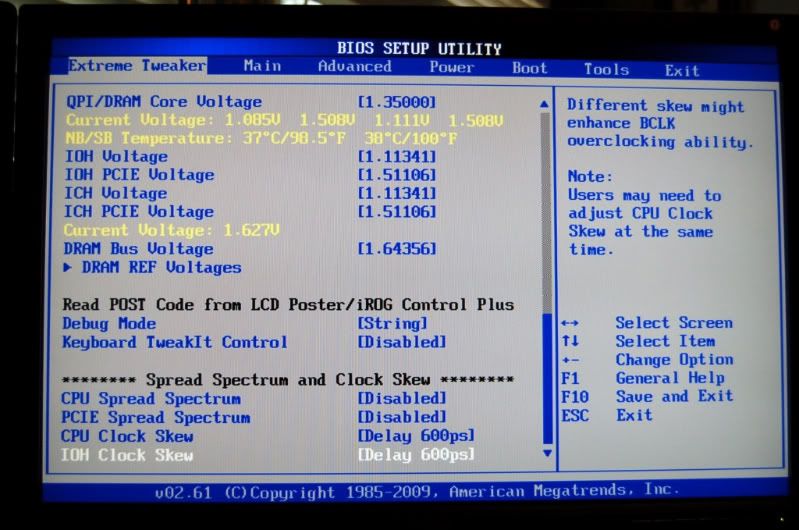

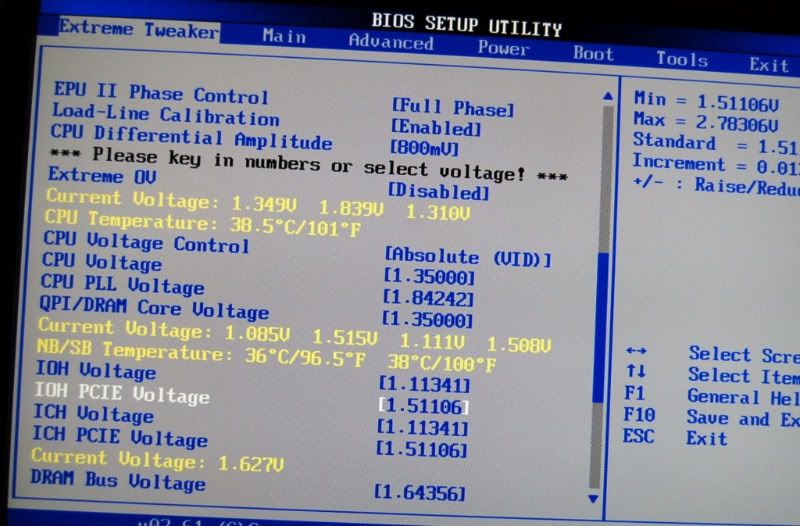

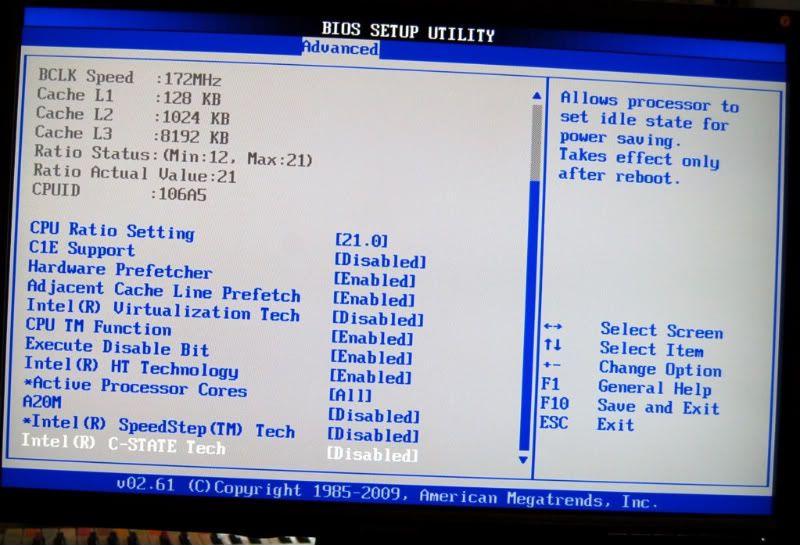

Here are the pertinant BIOS screens. I have not fine tuned yet but the temps with these settings and at 100% load are way too high. It is either something in my settings that is way off or I need better cooling, or both.
Any suggestions will be greatly apreiceated.
http://i236.photobucket.com/albums/f...CPU/DOOC14.jpg
http://i236.photobucket.com/albums/f...CPU/DOOC13.jpg
http://i236.photobucket.com/albums/f...CPU/DOOC12.jpg
http://i236.photobucket.com/albums/f...CPU/DOOC16.jpg
http://i236.photobucket.com/albums/f...CPU/DOOC15.jpg
http://i236.photobucket.com/albums/f...0CPU/DOOC1.jpg
Bear, is there any reason going 21x instead of 20x? I have a C0 and I use 200 x 20 to get 4.0ghz, just like the rest of the crowd, and the mobo have no problem handling that baseclock. And do the 4 ICH/IOH voltage do? I leave mine on auto.
Thanks, no real reason excepty that with the C O I was able to get better results using these settings. I will try the 20 X. Do you think that it will help my Temps however? I know I am far from optimized but the high temps kind of stoped me trying to push things further.
I would rather stay with air even if I can not get as high an OC but....
do u really need 1.35v of cpu voltage? i managed 4ghz on 1.21v on my D0...
try starting off from 1.25v and backing down...
Here is my bios setup for my 975 EE baby.... stable as a rock:)
http://img5.imageshack.us/img5/2420/fotografia0236.jpg
http://img9.imageshack.us/img9/4738/fotografia0238q.jpg
http://img31.imageshack.us/img31/167...grafia0239.jpg
So im going to start to test my system while waiting for my new case to put it in.
Is the 1504 bios the one that you can recommend and what bios settings shall i start with just to setup and install the raid,OS etc.?
I have 1054, so far so good. I don't have raid though. But planning one from SSDs as soon as W7 is released.Quote:
Originally Posted by AnjinSan1966
1504 seems good,Quote:
Originally Posted by AnjinSan1966
I would just set your RAM timings and vdimm, (qpi if needed, lower latencies seem to want plenty of this is some cases) and make sure its all stable, then setup the RAID array.
Are you RAIDing your SSDs or the 1TB drives?
Was going to try to put the ssd's in raid,is there any problems doing this?Quote:
Originally Posted by affiliate13
Have been reading over at the OCZ forum their install faq and was going to try that.
No it should be fine, if you have been reading on OCZ forums then you will prolly know about the new firmware for the vertex.Quote:
Originally Posted by AnjinSan1966
I would update the drives now and they should run great.
I have one in my laptop and i have had no issues with it on ICH8M and when i was testing it on the R2E (ICH10R) it was nice and snappy.
If you have Win7 then that might make another good choice with them.
I have found mine to be a very stable and reliable board, even when stressed.
Yea im updating them tomorrow with the newest stable firmware.Quote:
Originally Posted by affiliate13
Thanx for the info :)
I did on my last chip so I just started out using what worked before. I think you have a good point. When I get home later I will drop the voltage and see if that helps.Quote:
Originally Posted by akeedthe
Thanks for the catch.
ur last chip may have been a C0 stepping of the 920...Quote:
Originally Posted by Baer
You are correct. Now i need to sell my board , ram and chip........Quote:
Originally Posted by akeedthe
It was a CO. So the CO requires higher voltage?Quote:
Originally Posted by akeedthe
I droped the voltage to 1.3 and the temps came down a few degrees. I am now going to drop it further and play with the multi Etc.
Hello
for the sound card of the R2E is better to use the driver Analog Devices v6.10.x.6480 or v6.10.x.6520?
thank you ;)
OK, the voltage reduction did help, Thanks for the suggestion. Here are my results so far:Quote:
Originally Posted by Baer
No new cooler yet but I have made some progress by lowering the CPU voltage. Aparently my DO step does not need as much voltage to remain stable as my CO and it runs hotter with equal voltage. Let me give you some numbers. These are with no load but OCed to 3.6
Volts Core 1 Temp Core 2 Temp Core 3 Temp Core 4 Temp
1.35 ........ 51 ........ 48 ........ 48 ........ 49
1.28 ........ 48 ........ 46 ........ 48 ........ 43
1.25 ........ 45 ........ 44 ........ 46........ 40
1.23 ........ 45 ........ 43 ........ 45 ........ 39
1.21 ........ 43 ........ 41 ........ 44 ........ 38
I ran a quick 10 min of Prime 95 with each of them and the temps droped there also. At 1.21 however my OC failed so I then want back to 1.22.
At 100% load my temps at 1.22V were 66 64 68 60
So, all in all progress on the temp front. This DO does act differently than my CO. I am going to get a tower cooler over the weekend and see if that drops the temps a few more degrees. In the meantime it is my goal to get to 3.8 to 4.0 stable on air. I have a lot more to learn and more tweaking to do.
