my board is prime stable @ 554fsb with e6850 so its not the limit of the boardQuote:
Originally Posted by eva2000
n now with e8600 not stable over 515fsb
edit:best so far is 602 +603 bios and 63% gtl settings but cant get 510fsb+ stable with e8600
i can clock gskills 9600 1300mhz+ with e6300 e6850 but not e8600
Hey guys, I was wondering when u make use of the power savings options: CPU vid control:auto and using VID special add. I want to make use of CE1, when I enbaled it, with a DIMM measured it fluctates every 1secs from 1.240 up to 1.256 ( kept my DIMM pointed for like 30secs), and during load it goes to 1.338.
However when u dont make use of CE1, volts are pretty much stable, fluctates at max 0.001, is those flucations bad for the cpu when using CE1?
Hey Guys,
Wasup with the new bios A02 hidden the mem advance options?
The 1st time you get in you see all the options and after you save and quit they are gone :shrug:
Any pointers in how to get that menu back or just flashing to an older bios?
:down: for DFI trying to make user friendly BIOS one of the reasons one buy DFi is because their BIOS takes ages to master.
dont bother with the bios anyways is crapQuote:
Originally Posted by Jor3lBR
in the last few releases all i see is less performance and less overclockability
they should scrap all bioses n start with 602 or 603
i can goto 550 fsb with e6400 and 4 gigs set but i cant go past 510 with e8600:mad:
602 / 603 ?????????Quote:
Originally Posted by zsamz_
All I see is 307 / 320 / 725 / 829 / and A02.
http://www.dfi.com.tw/Support/Downlo...FLAG=A&SITE=US
Unfortunatly for users who want to use 2 x 4870 X2's in crossfire then they dont have much choice but to flash to A02, Ive flashed to it myself and not noticed any difference between A02 and 829.
How much VCORE, VTT and VMCH did you need for that?Quote:
Originally Posted by zsamz_
1.42v core 1.4v vtt1.5v vcmh lowest settingQuote:
Originally Posted by Shiranui Gen-An
i'm sure it will go higher with more juice lol
1.63v nb
beta bios;)Quote:
Originally Posted by Seanie's Show
http://www.dfi.com.tw/Support/Downlo...FLAG=B&SITE=US
but with them 4870 X2's you cant use em
and the worst of it is all bioses after 602 are so damn slow
Thanks Sam I'll try those too.Quote:
Originally Posted by zsamz_
I just miss does mem expert settings.
Quote:
Originally Posted by Jor3lBR
I still don't see those BIOS I think is because I'm browsing thru X48 category. 602 is for X38?Quote:
Originally Posted by zsamz_
603 is x38, I would imagine 602 is X48Quote:
Originally Posted by Jor3lBR
Gah, I guess my E6300 just isn't up for 500FSB+ :mad:Quote:
Originally Posted by zsamz_
try ut beta bios;)Quote:
Originally Posted by Jor3lBR
they skipped it for the lt x48
:slapass: try harderQuote:
Originally Posted by Shiranui Gen-An
use 68-71% gtl setting;)
set pl to 8 nb to 1.63v n use only 333/800 divider
well i aint gonna but my e8600 in my x38 till dfi bios engineers gets their foot outa their asses
i strongly suspect the board was missengineered somewhere cause a cheap p5e gettin e8600 to 550fsb++ easy
Quote:
Originally Posted by Jor3lBR
It's actually the 530 version for the X48 LT.Quote:
Originally Posted by zsamz_
If you look at the changes, they are exactly the same:
Quote:
Date Code: 2008/05/30
File: X48AD530.exe
Size: 850,897 bytes
Description
DiamondFlash Image for BIOS.
Please Click Here if you are not familiar with the procedure of Diamond Flash Image!!
Major Reasons of Change:
Added New Micro Code for 45nm family CPUs.
Anyways, I'm going to go try going back to an earlier BIOS because it seems my E8400 is having a tough time getting to 4GHz stable with the 10/02 set.Quote:
Date Code: 2008/06/03
File: X38AD603.exe
Size: 837,020 bytes
Description
DiamondFlash Image for BIOS.
Please Click Here if you are not familiar with the procedure of Diamond Flash Image!!
Major Reasons of Change:
Added New Micro Code for 45nm family CPUs.
finally got it stable . i had to lower vtt to 1.1v and i kept gtls on auto this time.
vcore had to go way up to 1.41v !! i think i know why , it was used a fair bit for benching and comps so prolly at end of life.
well, unless its what zsamz is saying about new bios. later i might try older bios see if it makes a difference.
temps are ok at 1.41v though so ill keep it for 24/7 for now :shrug:

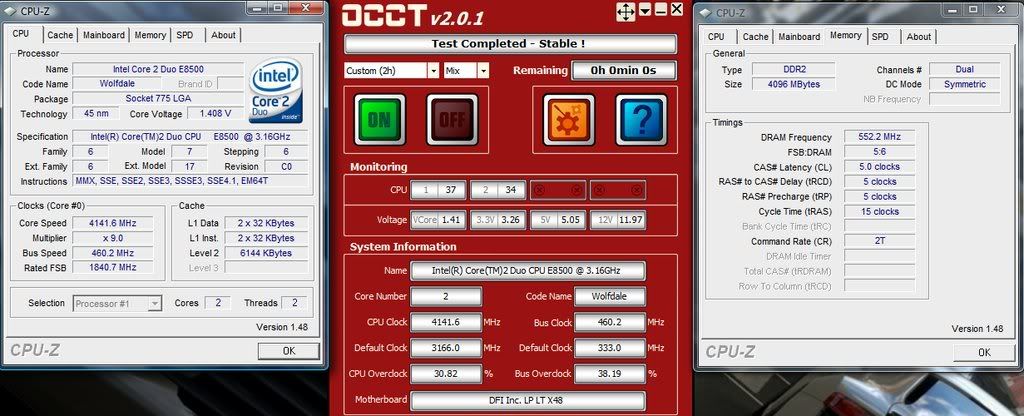

http://i295.photobucket.com/albums/m...nShot002-1.jpg
@adya: what FPO batch?
FPO -q808A419Quote:
Originally Posted by emoners
i know its done some mega volts ,and almost 6ghz @-100c
i knew this before i bought it. but high volts do eventually kill em anyway.
ive tried everything , my ram is rock stable its vcore it seems to want unfortunatly.
the more vtt the more unstable it gets as well. really doesnt like vtt.
PS- with tref , was higher better? cant remember now lol 8704T is that too high for 4gb?
anyone? tried latest official bios? :)
Yup im on it and dont see any difference what-so-ever in this one to the previous two.Quote:
Originally Posted by asap
most of the last ones are the sameQuote:
Originally Posted by asap
in fact they are slower than older ones
they just good for ati X2 cards
hmmmm, what does it mean by new micro code for 45nm's ??? maybe better for 45nm quads like mine?
Its just so the board can support newer 45nm CPU's like the E0 stepping etc, CPU's that without an updated bios wont work properly, or maybe not at all.Quote:
Originally Posted by SNiiPE_DoGG
... I use E0 stepping now on 603, that cant be it.Quote:
Originally Posted by Seanie's Show
Quote:
Originally Posted by zsamz_
I really liked the 602 the problem with it is the bad 400/1066 strap. :down:Quote:
Originally Posted by SNiiPE_DoGG
I have to look witch BIOS works best with that mem strap without insane volts or locking windows.
I know there is one out there a guy running 1300@DDR2 with 400/1066 strap on G.Skill Pi thread has it.
