Hey Bianco,
Haven't heard from you in a while, is the new baby boy taking all your free time? :D
Well I'm writing to ask where did you buy these Microcool Core Protetors, I need them for my new board but it's been 1 month that I lurk around USA for them and can't seam to find them back in stock.
I emailed Microcool couple of weeks ago but looks like they are dead, no response.
Thanks a bunch!
Quote:
Originally Posted by bianco
hi Jor3lBR. yeah, haven't been able to do much... just planning and dreaming of the system revision. :PQuote:
Originally Posted by Jor3lBR
i haven't seen them stocked in sidewinders too. i did some search other online shops and couldn't find any or similar chip protector.
sorry, i can't be of further help.
I was also thinking the other day... "what happened to bianco's build???" hope to see some sort of update at some point!
haha. thanks for the interest man.Quote:
Originally Posted by sniperbob
don't worry, i've to finish the revision before end january next year before i move to a new home. will definitely post updates once i start on the real work. right now, i'm just waiting for some parts.

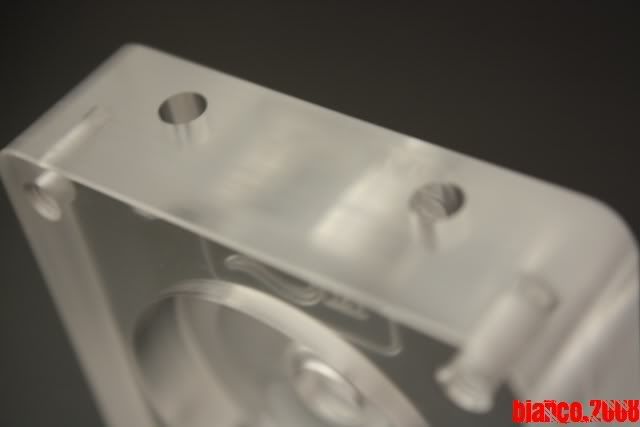

and for you my friend, some previews:
http://i253.photobucket.com/albums/h...11_21_0737.jpg
http://i253.photobucket.com/albums/h...11_15_0668.jpg
http://i253.photobucket.com/albums/h...12_03_0989.jpg
OOOO, AAAAAH! Shiny parts! :rofl:
a few more things for the revision...
http://i253.photobucket.com/albums/h...2_16_00309.jpg
http://i253.photobucket.com/albums/h...2_16_00384.jpg
http://i253.photobucket.com/albums/h...esIMG_0943.jpg
http://i253.photobucket.com/albums/h...2_17_00392.jpg
coming soon...
cant wait to see your next project :)
Asus + I7 + Silverstone i love it :D Waiting for more fotos.
that is quite the revision! MOAR PICS PLEAZE!
here you go bro... :DQuote:
Originally Posted by sniperbob
stock condition
http://i253.photobucket.com/albums/h...esIMG_0933.jpg
looks good...
http://i253.photobucket.com/albums/h...esIMG_0941.jpg

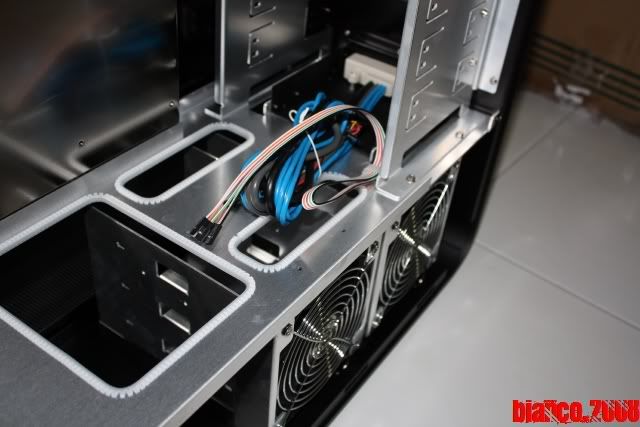

...and more spacious than my previous case
http://i253.photobucket.com/albums/h...esIMG_0959.jpg
cutting cable management hole on midplate
http://i253.photobucket.com/albums/h...12_29_0079.jpg

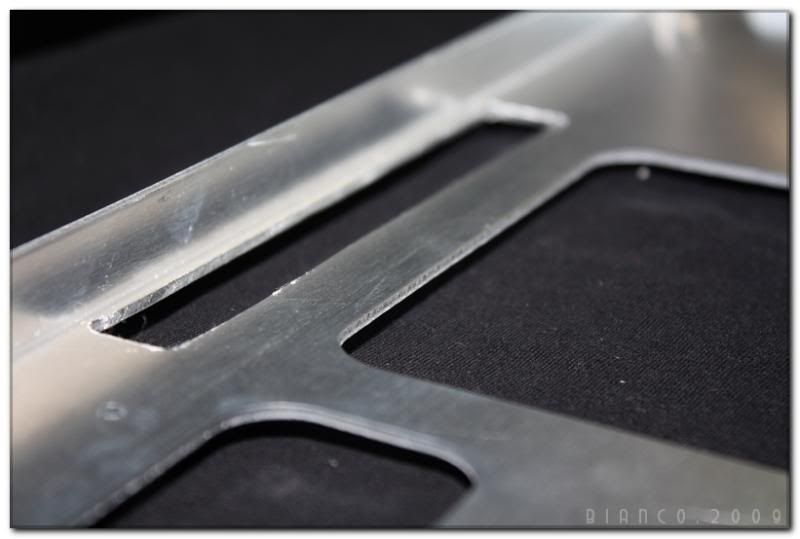

closeup after some filing and cleaning
http://i253.photobucket.com/albums/h...12_29_0084.jpg

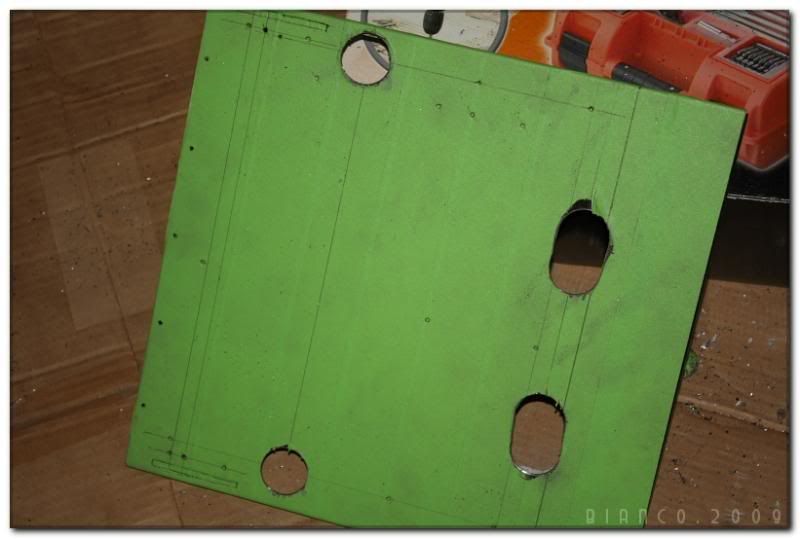

mobo tray cuttings
http://i253.photobucket.com/albums/h...12_29_0104.jpg

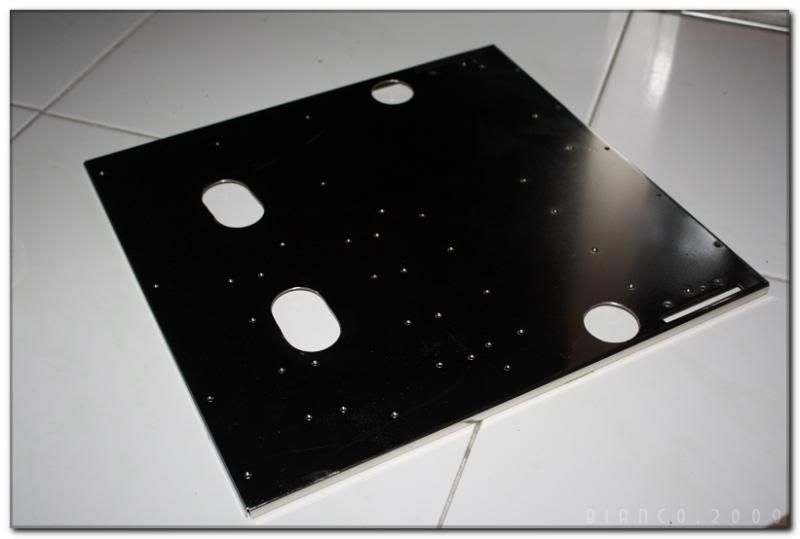

masking tape removed
http://i253.photobucket.com/albums/h...12_29_0119.jpg
reverse atx backplate
http://i253.photobucket.com/albums/h...12_29_0090.jpg
drilled some extra holes on the backplate bracket
http://i253.photobucket.com/albums/h...12_29_0103.jpg

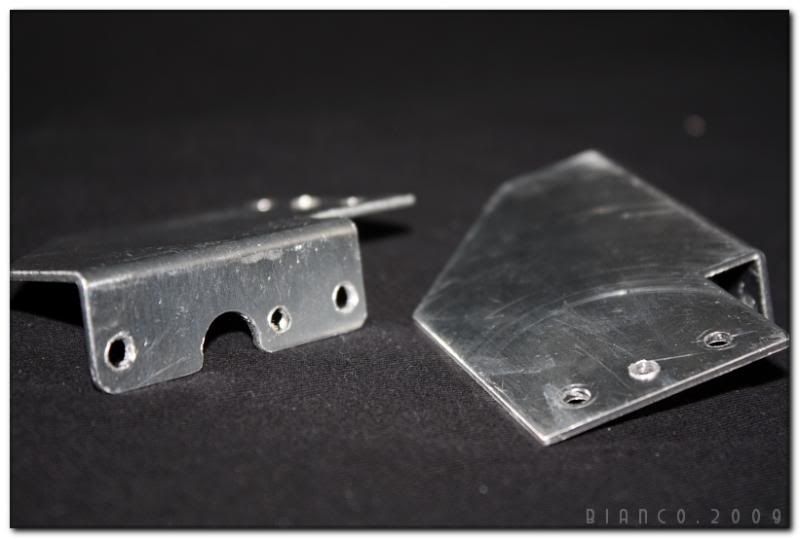

and also on the mobo tray and backplate connectors
http://i253.photobucket.com/albums/h...12_29_0093.jpg

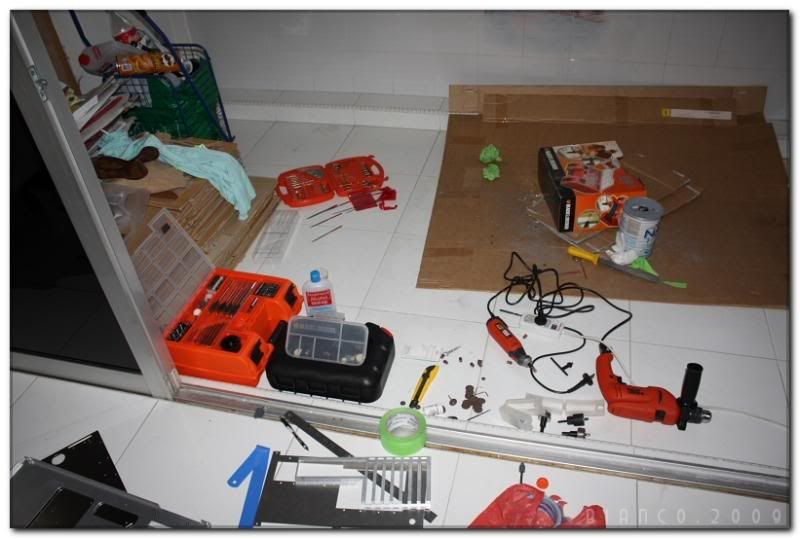

scene of the crime
http://i253.photobucket.com/albums/h...12_29_0124.jpg
and yes, i do not have a proper worktable :o, but i do love the smell of milk
http://i253.photobucket.com/albums/h...12_29_0132.jpg
nice looking cuts there
thanks sniperbob for the kind comments.
:)
anyways, after cutting and drilling the necessary holes, i've sent the chassis internals for powdercoating.

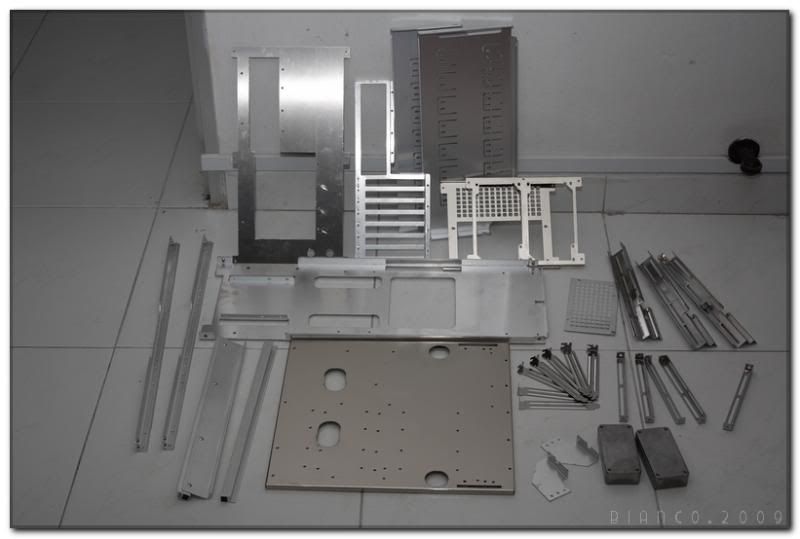

groupshot before being sent off
http://i253.photobucket.com/albums/h...01_02_0492.jpg

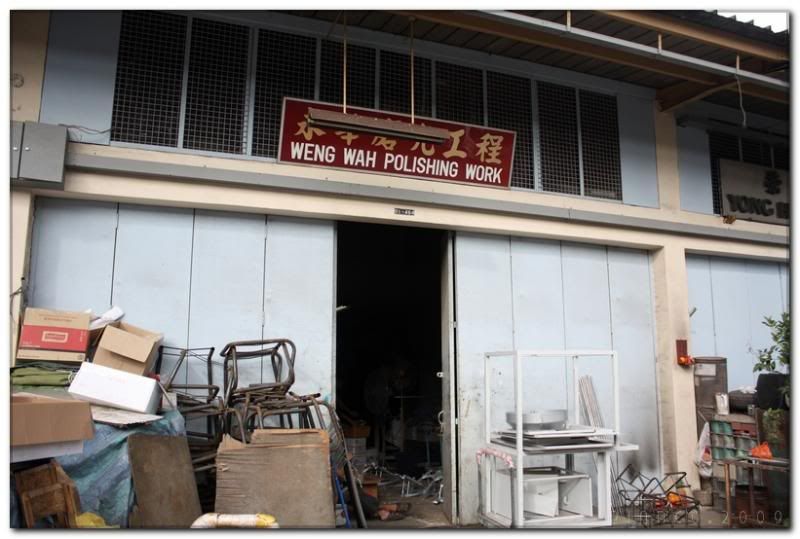

to the local powdercoaters
http://i253.photobucket.com/albums/h...01_02_0496.jpg

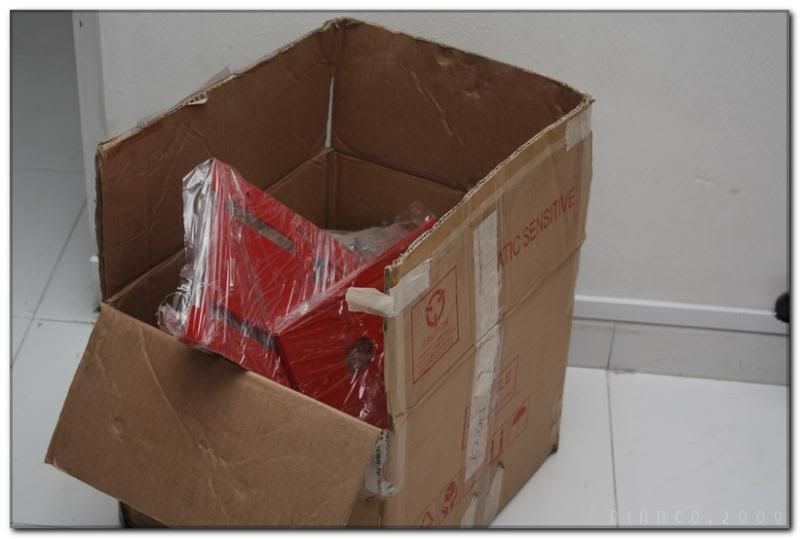

after 4 days, got the box of goodies back
http://i253.photobucket.com/albums/h...01_08_0779.jpg
the pieces were individually cling wrapped
http://i253.photobucket.com/albums/h...01_08_0782.jpg
assorted bits and pieces
http://i253.photobucket.com/albums/h...01_08_0799.jpg

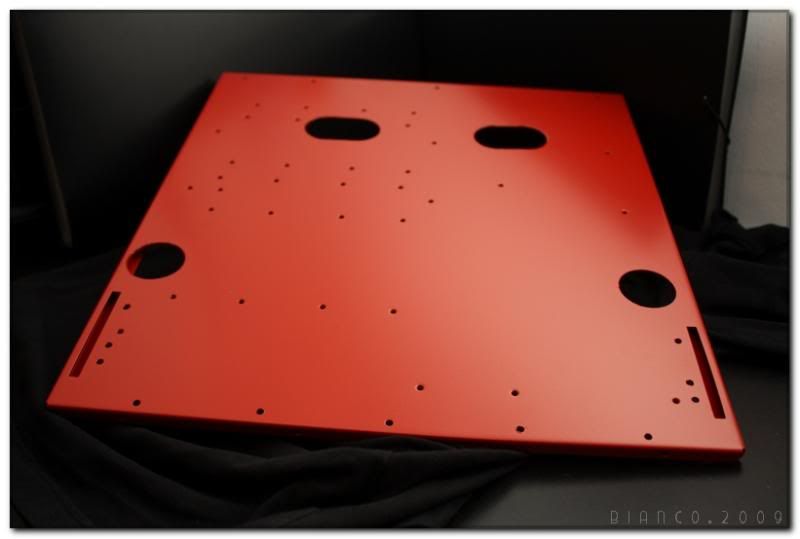

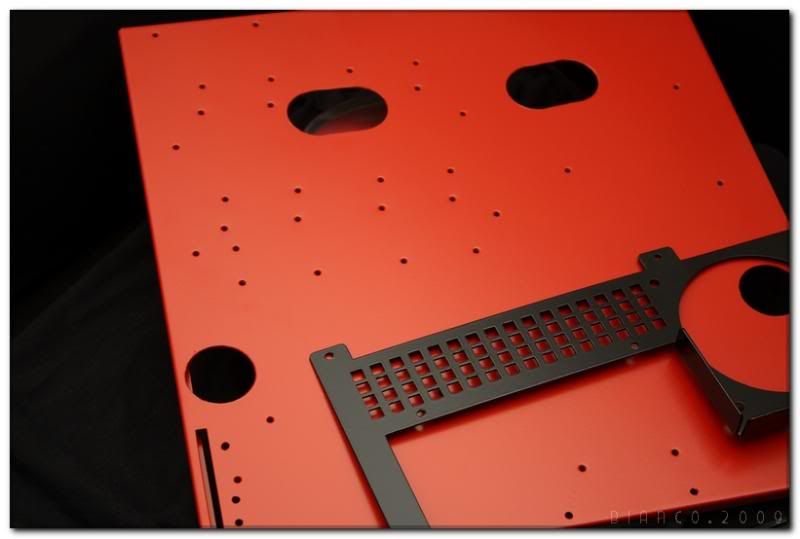

the mobo tray
http://i253.photobucket.com/albums/h...01_08_0809.jpg
http://i253.photobucket.com/albums/h...01_08_0811.jpg
the midplate
http://i253.photobucket.com/albums/h...01_08_0814.jpg

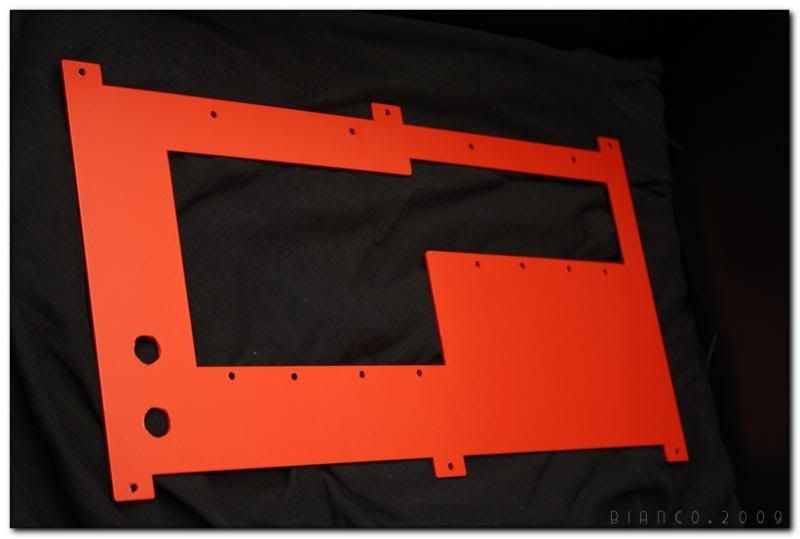

the backplate
http://i253.photobucket.com/albums/h...01_08_0817.jpg
backplate expansion bracket
http://i253.photobucket.com/albums/h...01_08_0812.jpg
front bay support panels
http://i253.photobucket.com/albums/h...01_08_0823.jpg

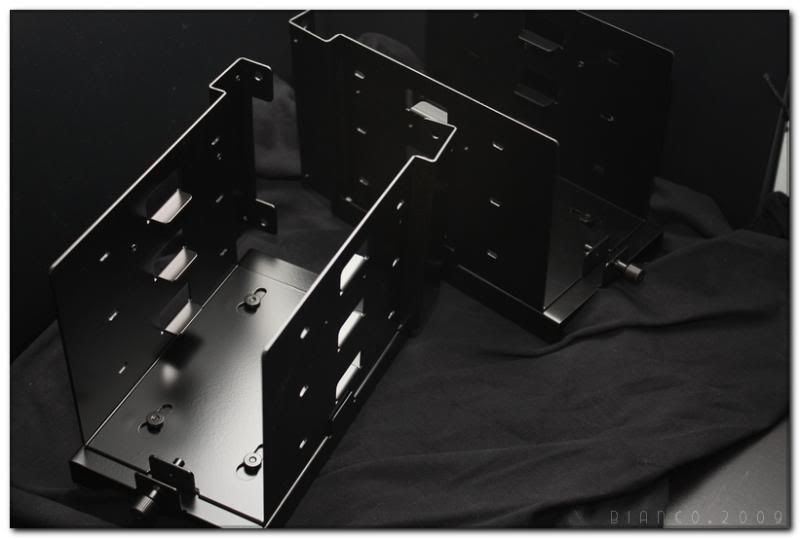

i've asked him to powdercoat black the original pieces as well
http://i253.photobucket.com/albums/h...01_08_0803.jpg
http://i253.photobucket.com/albums/h...01_08_0804.jpg
how did you find the thickness of the powdercoat? And how did you stop it from going in the screw threads?
I just got my case powdercoated while I was getting my rims done. Its a metallic color with clear. The parts all fit really tightly because of the thickness of the paint. Did you have this issue?
Nice powdercoating man, looks like they did a good job.
good to see some progress on your Tj07 Bianco!
Looking forward to some more pics :up:
no issue with mine vinister. the coat was of manageable thickness. the screw threads were still fine and easy to screw stuff together. i didn't do any preventive measure though... but i read somewhere that you can put in screws (that you can spare) on the holes when you send for powdercoating so that the paint won't go in the threads.Quote:
Originally Posted by vinister
thanks bro! if you need to powdercoat anything, i can share with you the contact info, it's at defu lane though. irrc, you're on the west side.Quote:
Originally Posted by Kibbler
thanks dangals! nice to see familiar forumers in this thread again! :DQuote:
Originally Posted by Dangals

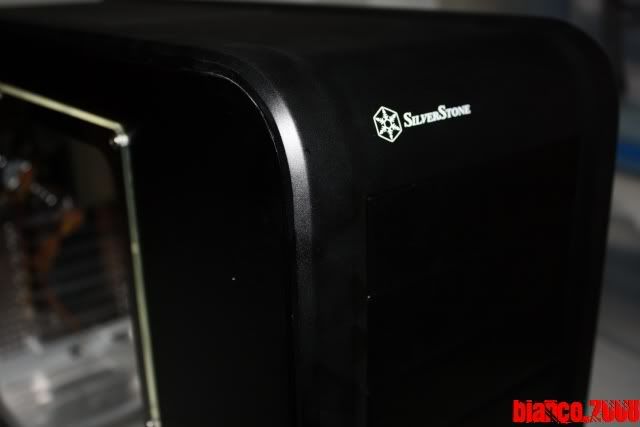

btw, was it you that asked how to remove the silverstone logo?
the answer is - acetone (nail polish removed)... haha
after erasing.... looks better... something's not right though...
http://i253.photobucket.com/albums/h...02_17_0216.jpg

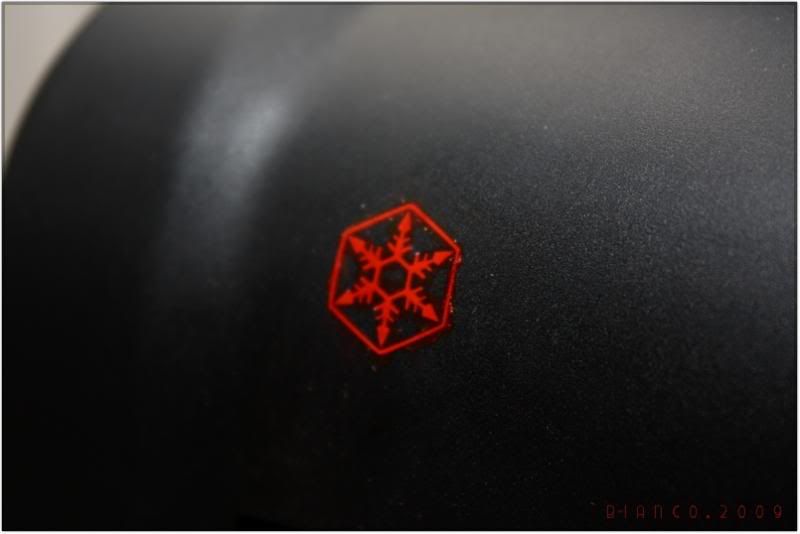

ah.. better
http://i253.photobucket.com/albums/h...02_17_0217.jpg
Oo Nice one!
Any updates on the other goodies =P
:DQuote:
Originally Posted by GregSG
huge razer bag... what's a razer product that need and fit nicely in such a big bag???
http://i253.photobucket.com/albums/h...05_16_0446.jpg

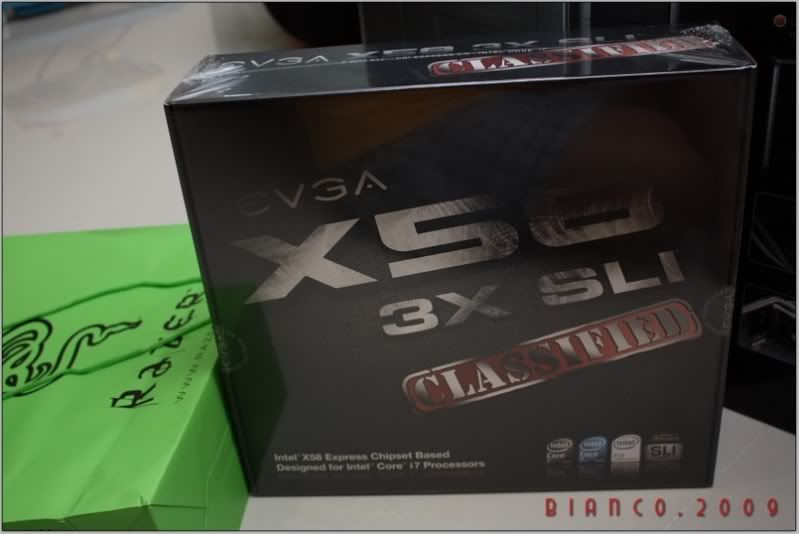

hehe. not really razer... :p
http://i253.photobucket.com/albums/h...05_16_0447.jpg
what can i say? after consciously dismissing the thought of getting the board... the ever reliable bro pulled it off! what a surprise. thanks froze!
http://i253.photobucket.com/albums/h...05_16_0450.jpg
box badges
http://i253.photobucket.com/albums/h...05_16_0453.jpg
guaranteed fresh!
http://i253.photobucket.com/albums/h...05_16_0455.jpg
box opened
http://i253.photobucket.com/albums/h...05_16_0458.jpg

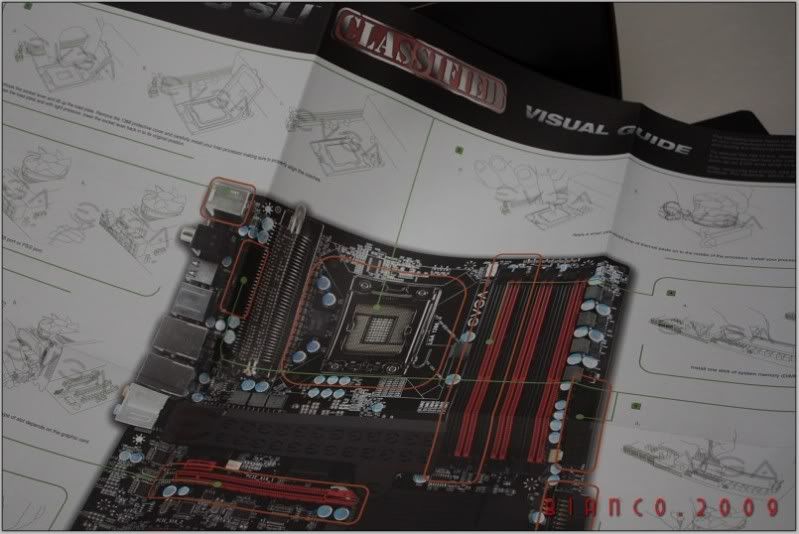

right on top is the visual quick guide
http://i253.photobucket.com/albums/h...05_16_0475.jpg

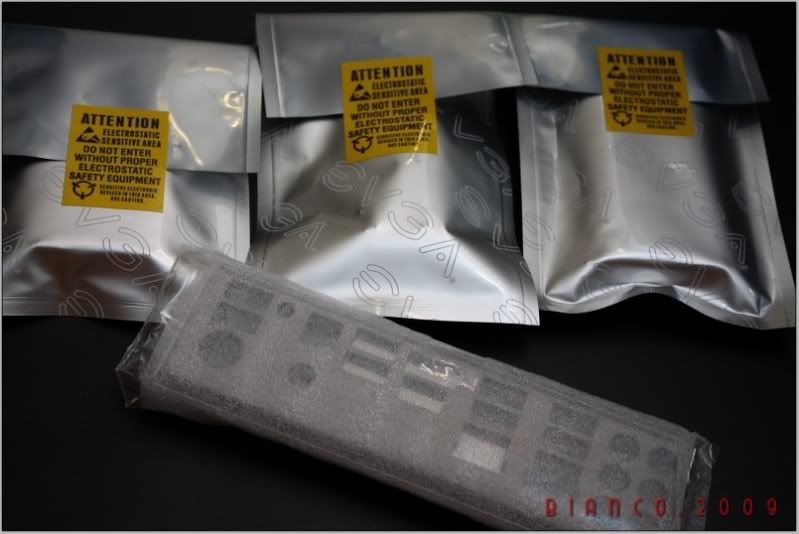

opposite it are these
http://i253.photobucket.com/albums/h...05_16_0459.jpg

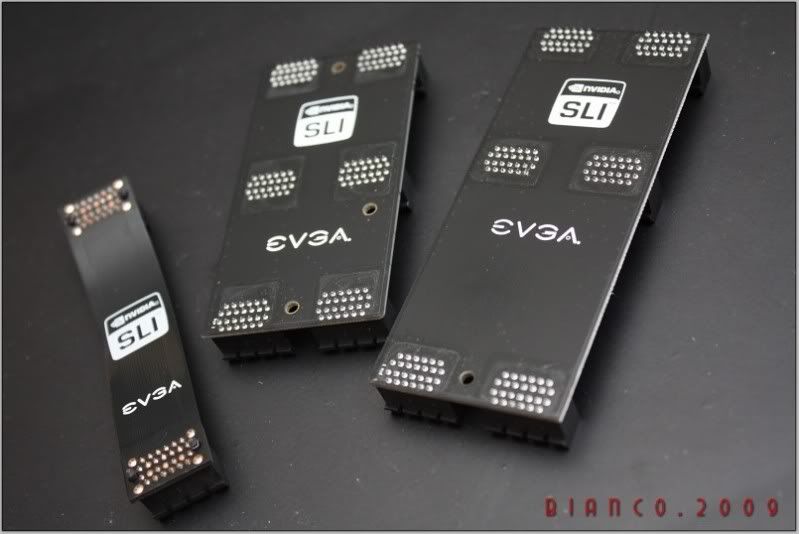

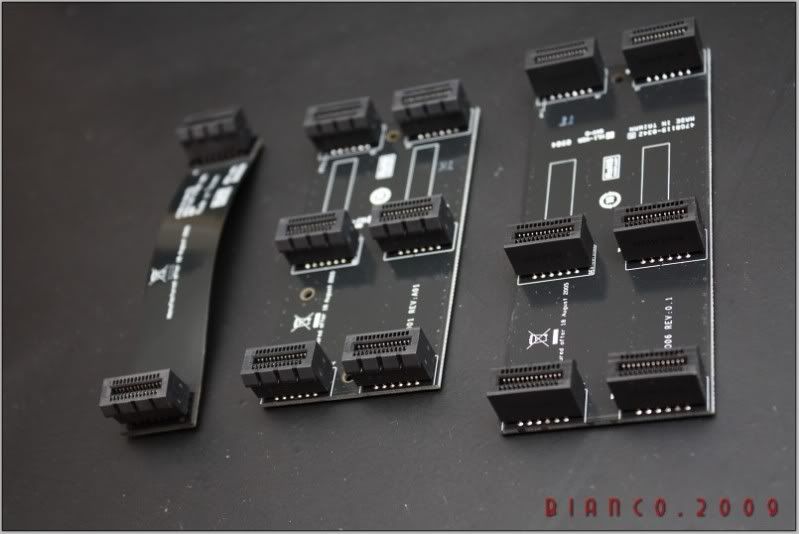

3 different sli connectors
http://i253.photobucket.com/albums/h...05_16_0467.jpg
turned over
http://i253.photobucket.com/albums/h...05_16_0470.jpg

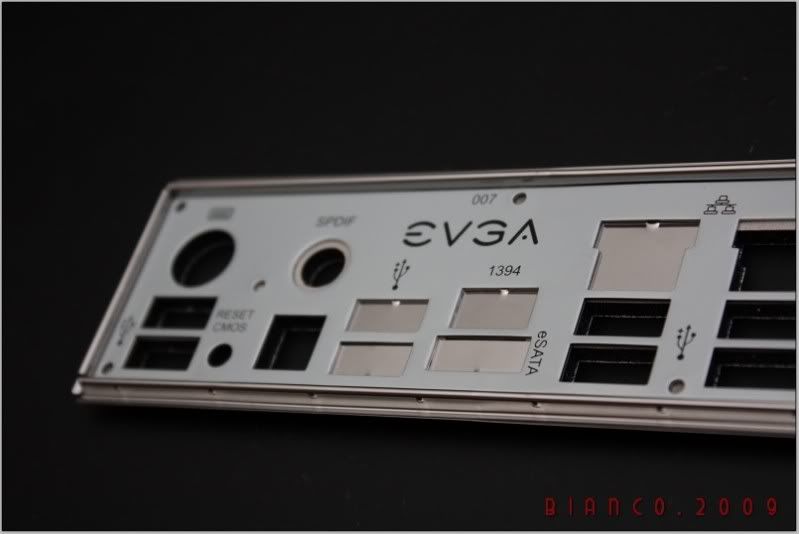

backpanel cover
http://i253.photobucket.com/albums/h...05_16_0472.jpg

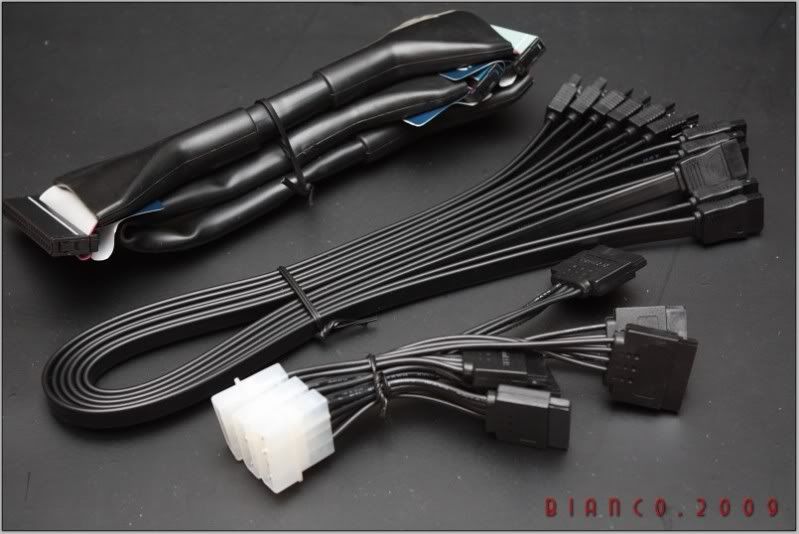

neatly packed cables
http://i253.photobucket.com/albums/h...05_16_0465.jpg

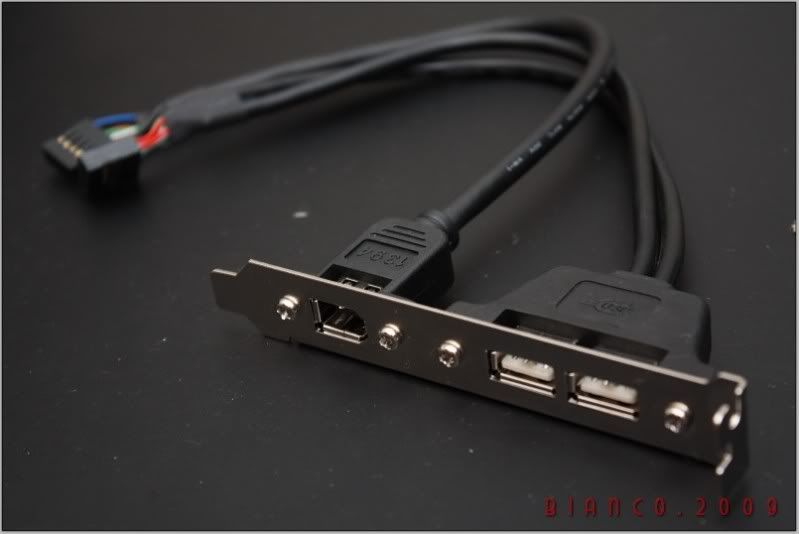

additional usb and firewire ports
http://i253.photobucket.com/albums/h...05_16_0480.jpg
manual, driver disc and case badge sticker (too bad the sticker ain't red)
http://i253.photobucket.com/albums/h...05_16_0481.jpg

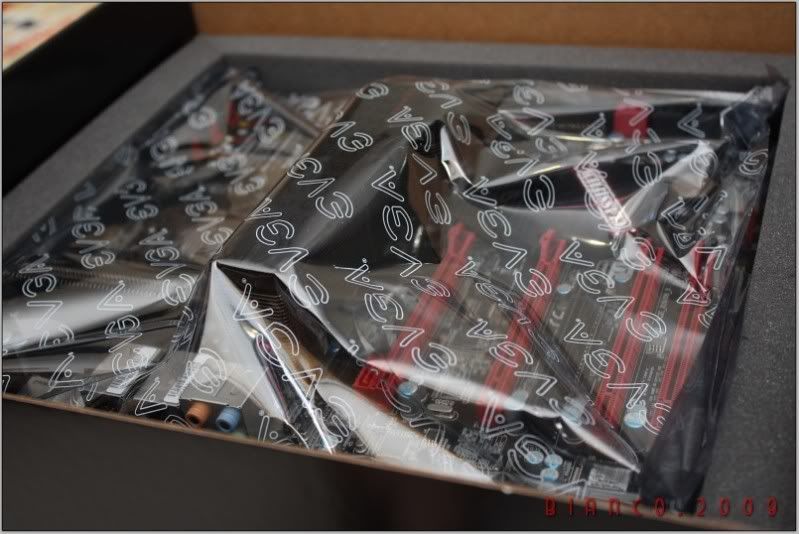

and then....
!wow!
http://i253.photobucket.com/albums/h...05_16_0478.jpg

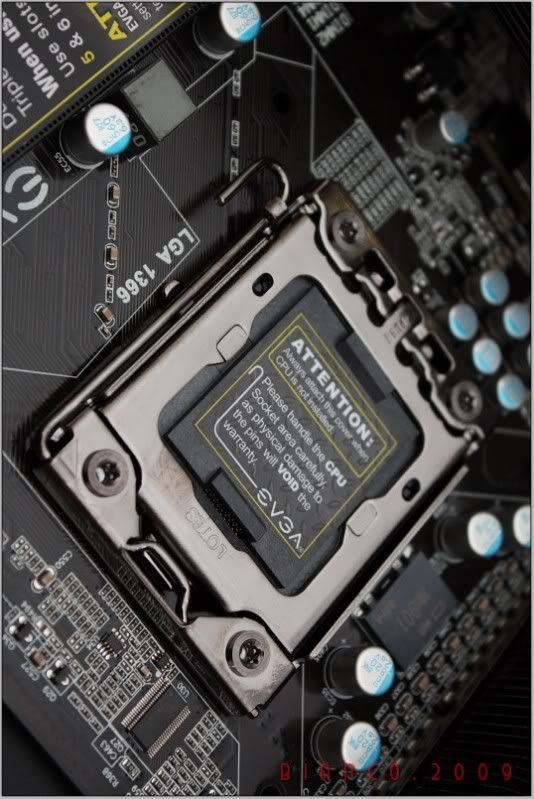

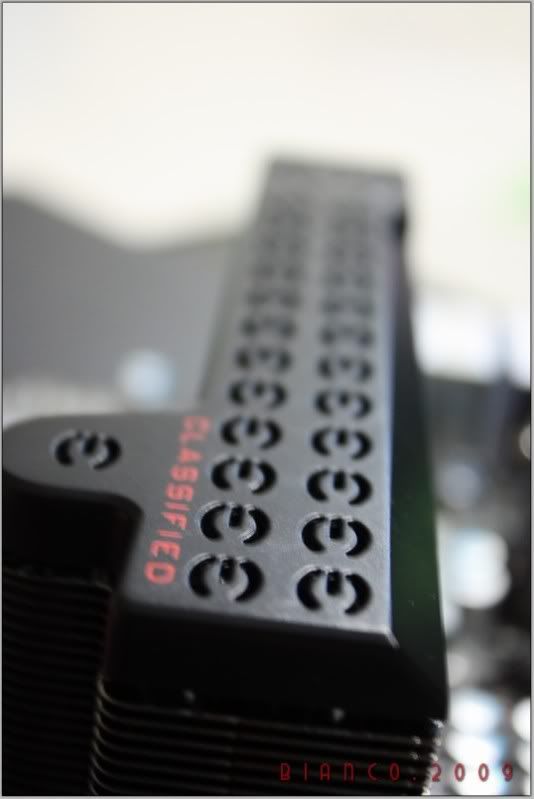

cpu socket and northbridge heatsink
http://i253.photobucket.com/albums/h...05_16_0517.jpghttp://i253.photobucket.com/albums/h...05_16_0523.jpg
second 8pin power connection
http://i253.photobucket.com/albums/h...05_16_0496.jpg

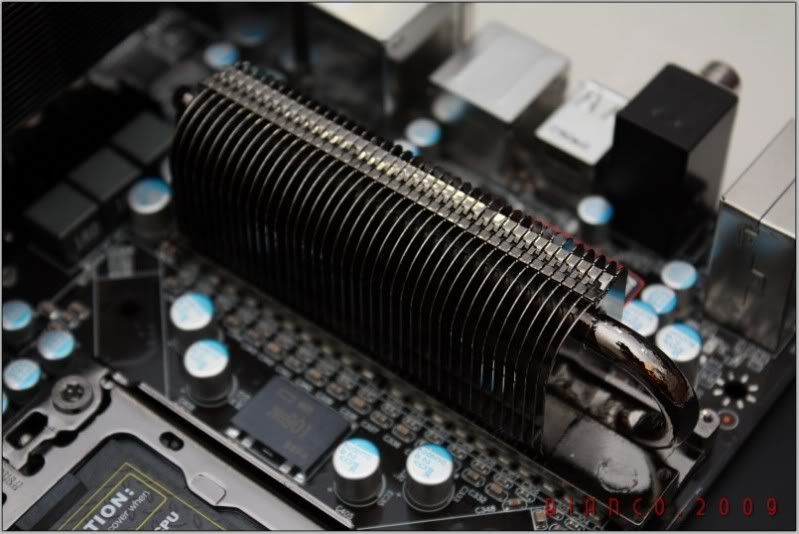

mosfet heatsink
http://i253.photobucket.com/albums/h...05_16_0515.jpg

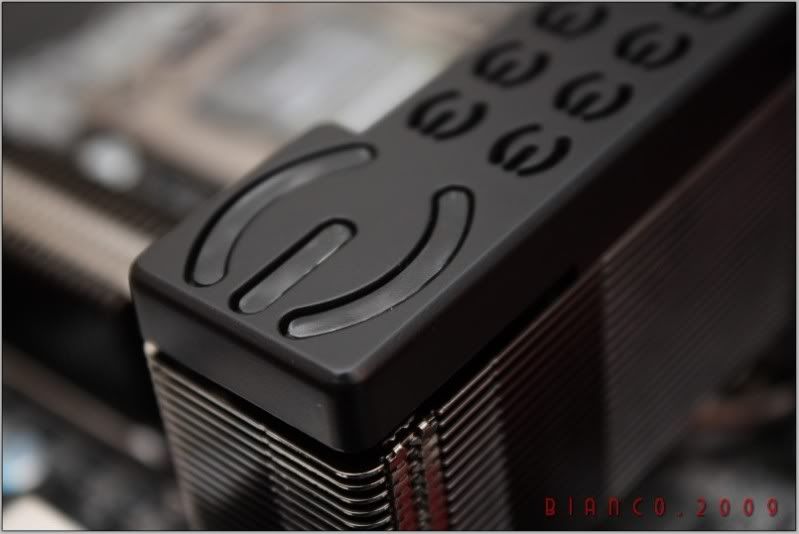

the pulsating e (not yet though)
http://i253.photobucket.com/albums/h...05_16_0501.jpg

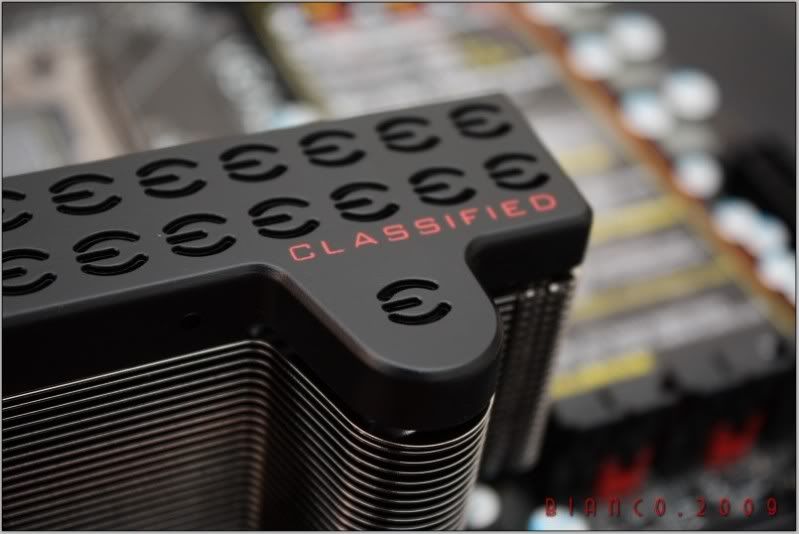

northbridge heatsink tail (that can block long pcie cards that you might want to put in the first pcie slot)
http://i253.photobucket.com/albums/h...05_16_0500.jpg

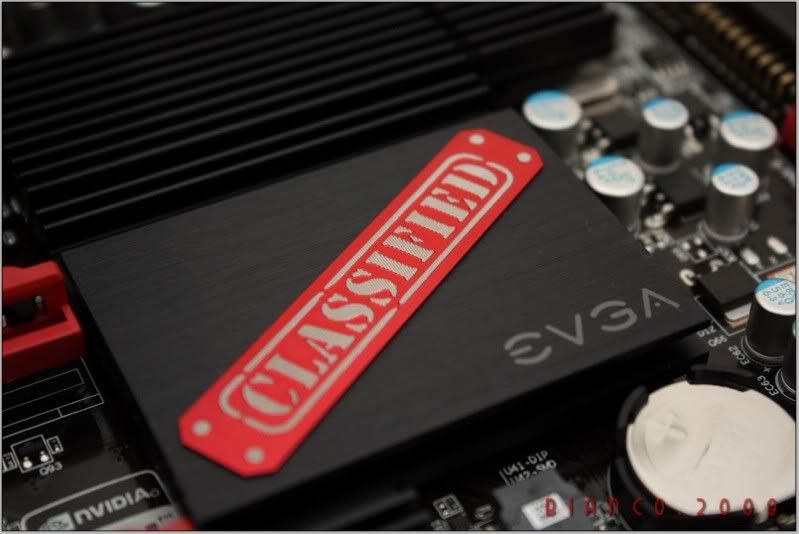

southbridge heatsink (no nf200 chip under here)
http://i253.photobucket.com/albums/h...05_16_0499.jpg

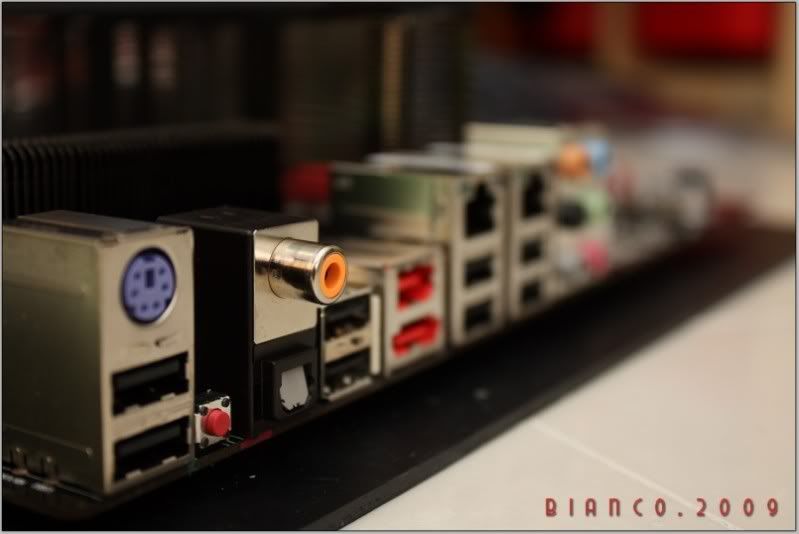

backpanel connections
http://i253.photobucket.com/albums/h...05_16_0512.jpg

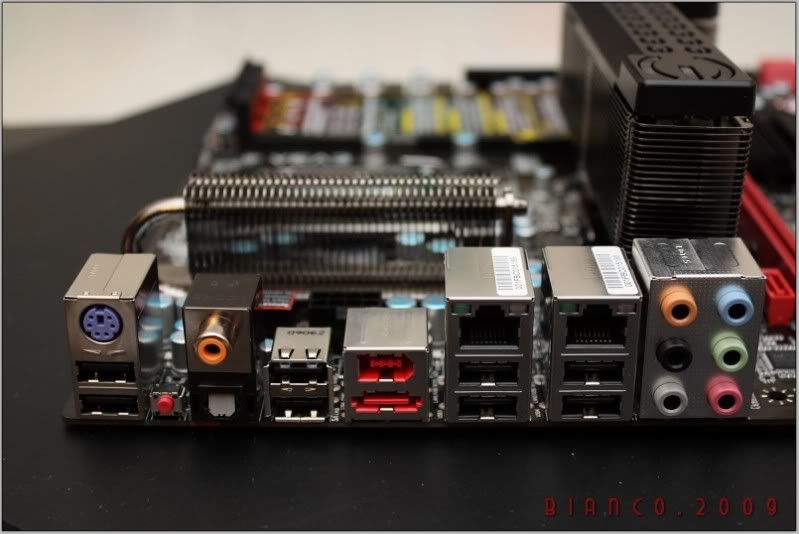

the rest of the backpanel connections
http://i253.photobucket.com/albums/h...05_16_0495.jpg

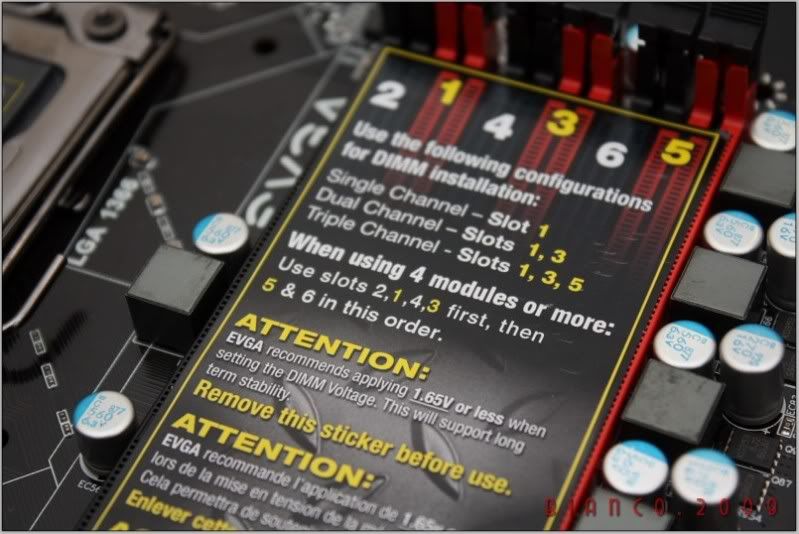

memory slots
http://i253.photobucket.com/albums/h...05_16_0519.jpg

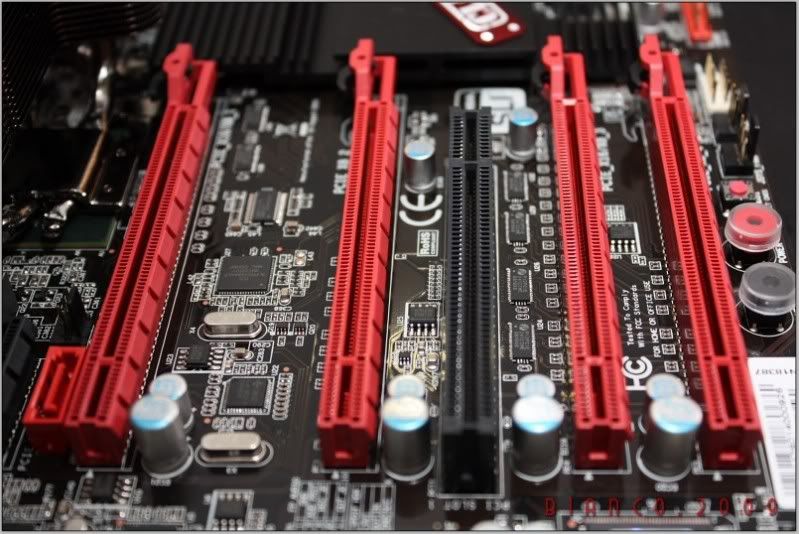

expansion slots
http://i253.photobucket.com/albums/h...05_16_0537.jpg

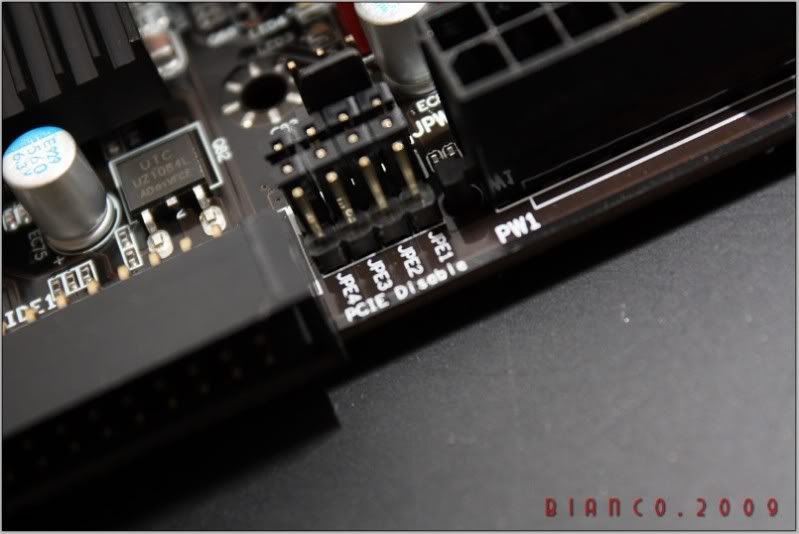

jumpers for enabling/disabling pciex lanes
http://i253.photobucket.com/albums/h...05_16_0534.jpg

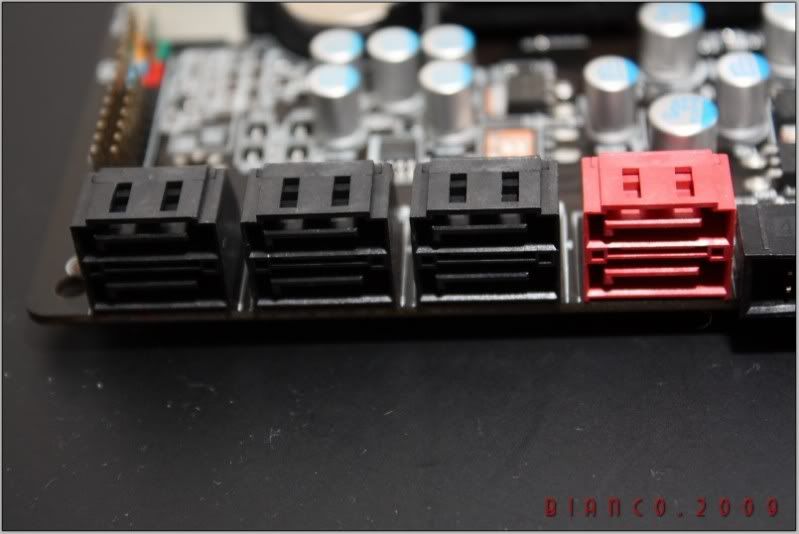

sata ports
http://i253.photobucket.com/albums/h...05_16_0531.jpg

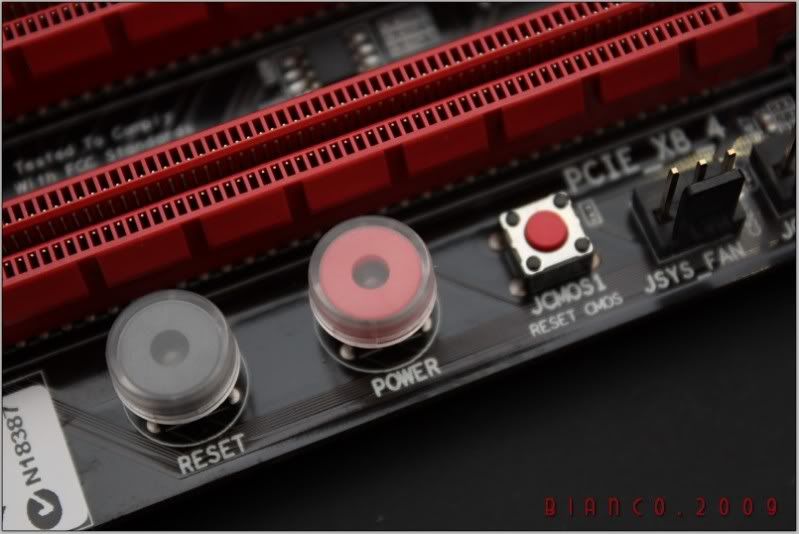

onboard switches
http://i253.photobucket.com/albums/h...05_16_0542.jpg

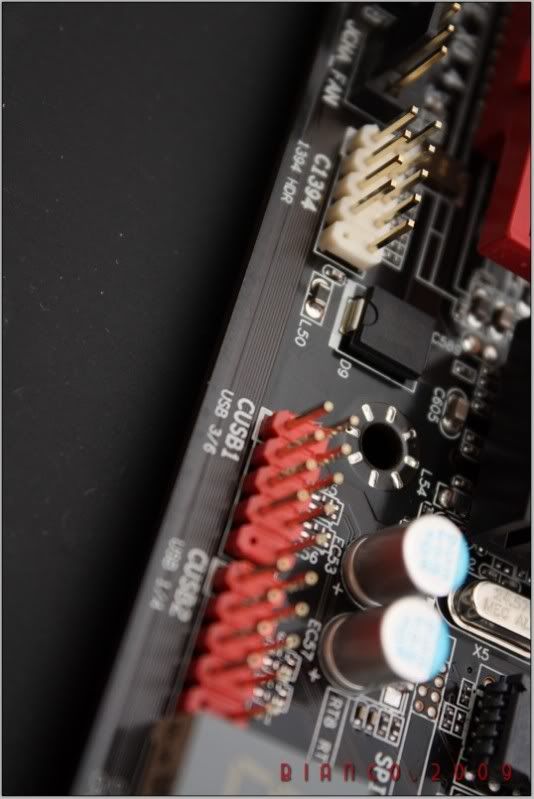

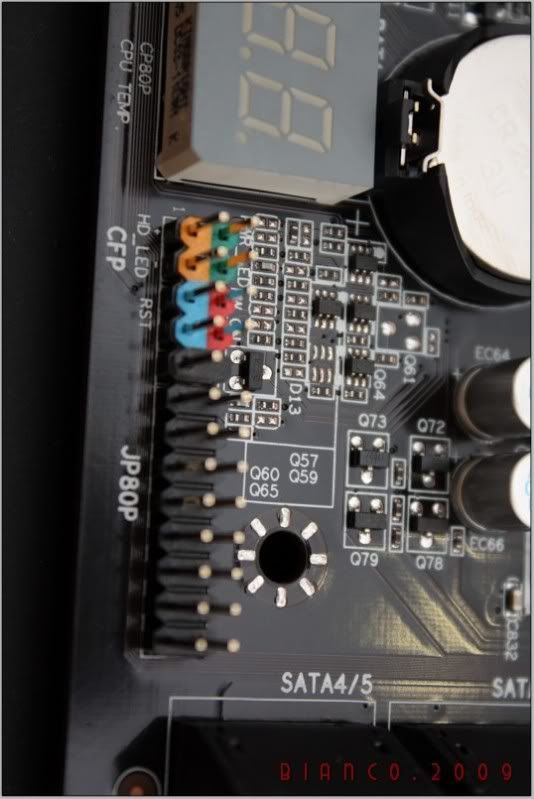

frontpanel connection headers
http://i253.photobucket.com/albums/h...05_16_0543.jpghttp://i253.photobucket.com/albums/h...05_16_0544.jpg

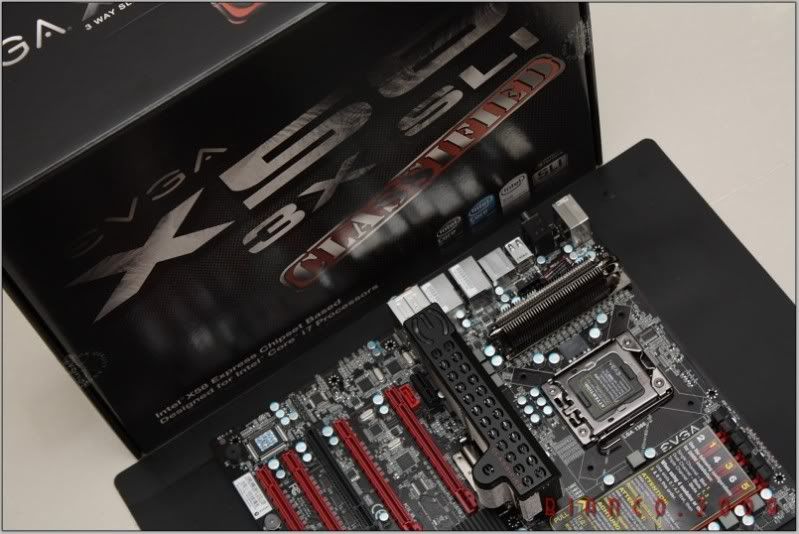

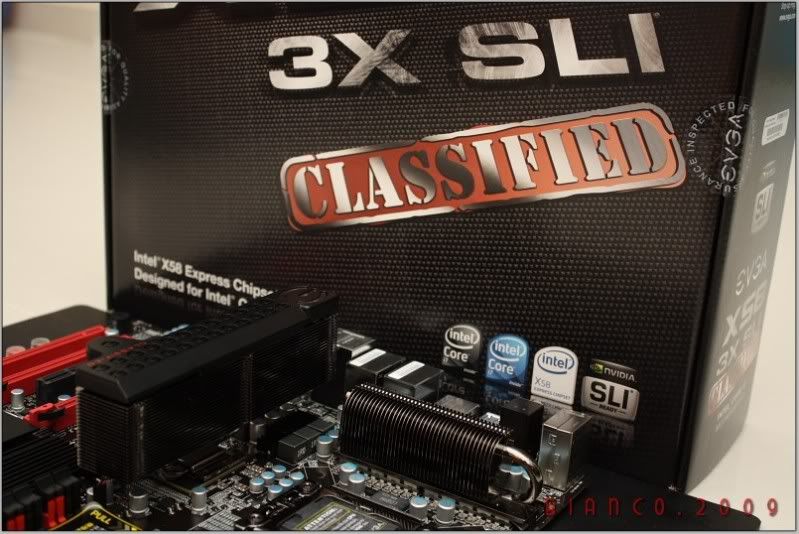

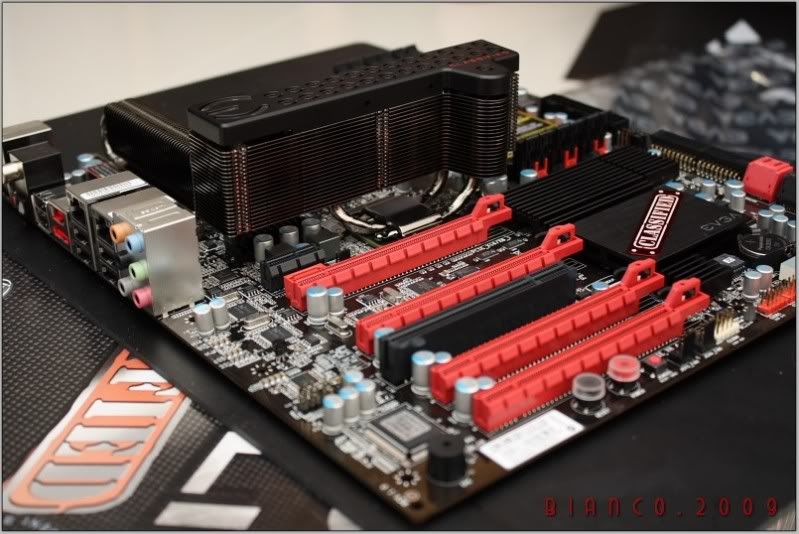

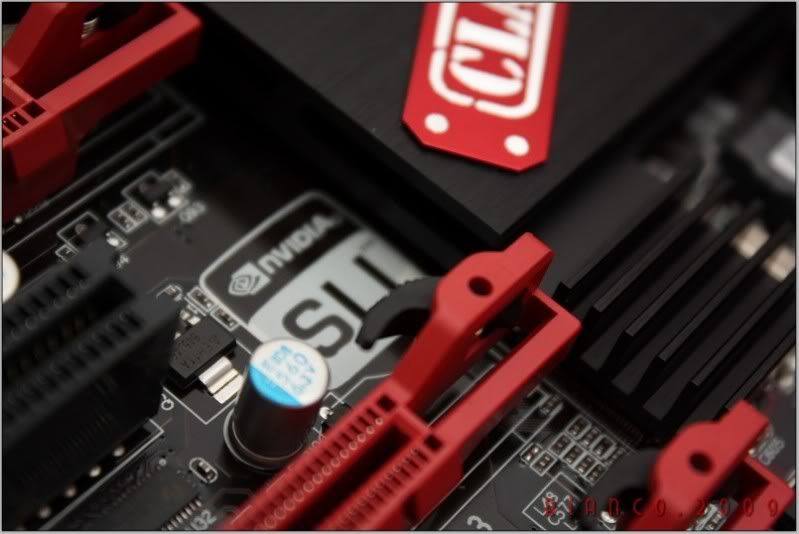

more shots...
http://i253.photobucket.com/albums/h...05_16_0505.jpg
http://i253.photobucket.com/albums/h...05_16_0508.jpg
http://i253.photobucket.com/albums/h...05_16_0548.jpg
http://i253.photobucket.com/albums/h...05_16_0565.jpg
http://i253.photobucket.com/albums/h...05_16_0566.jpg
Whoa ... this is going to look top notch with that nice red powdercoat finish inside.
thanks shazza. hopefully it'd turn out as great as your system. :)Quote:
Originally Posted by shazza
Can't wait to see the case put together ... that's gonna look good with the Classified installed in it. :up:

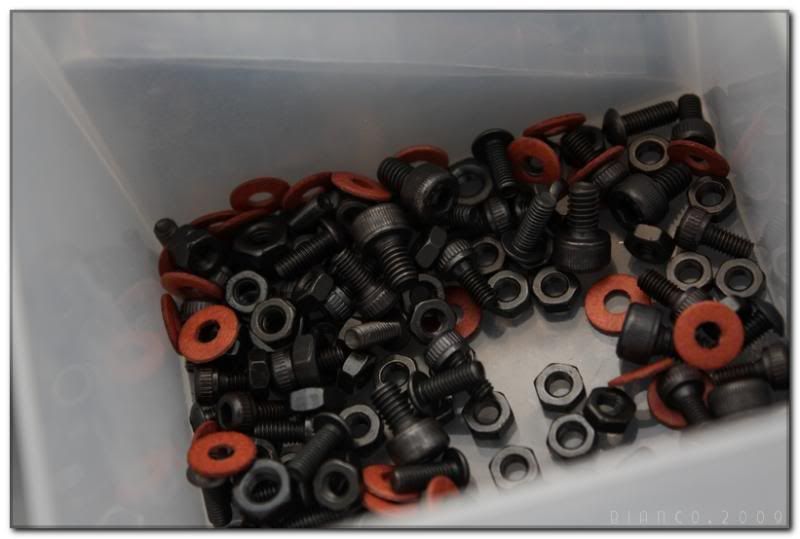

and then it was time to assemble the case, will be using screws and bolts instead of rivets
http://i253.photobucket.com/albums/h...01_08_0826.jpg

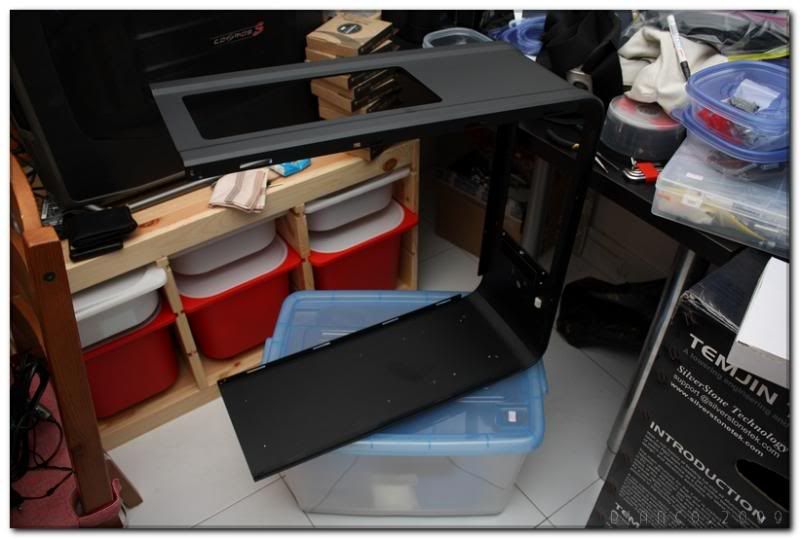

starting up
http://i253.photobucket.com/albums/h...01_08_0828.jpg

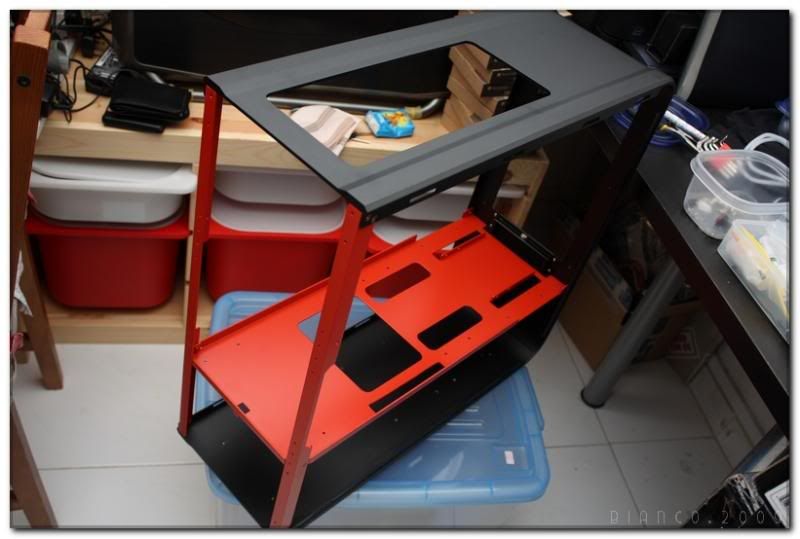

back rails and midplate in
http://i253.photobucket.com/albums/h...01_08_0835.jpg
mobo tray upper track screwed on
http://i253.photobucket.com/albums/h...01_08_0853.jpg
mobo tray lower track, prep for riveting, no grips available only masking tape :o
http://i253.photobucket.com/albums/h...01_08_0854.jpg
mobo tray assembled
http://i253.photobucket.com/albums/h...01_08_0887.jpg

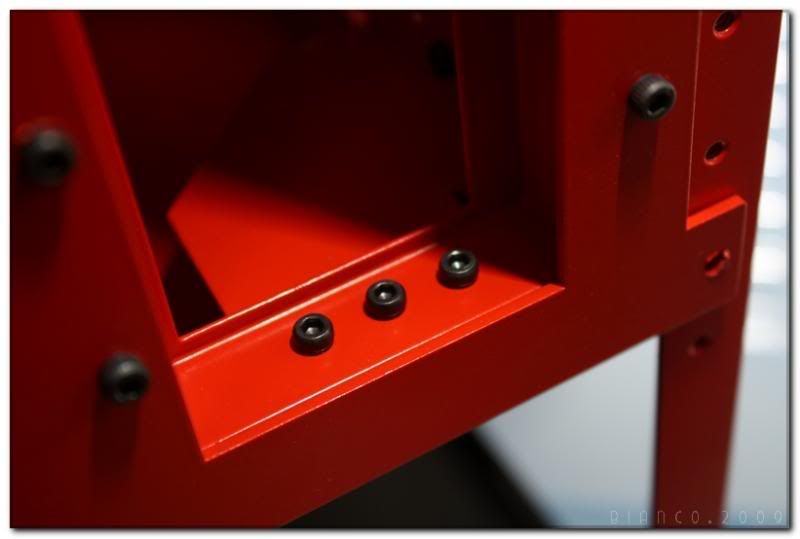

detail on the fastening for backplate and expansion bracket
http://i253.photobucket.com/albums/h...01_08_0896.jpg

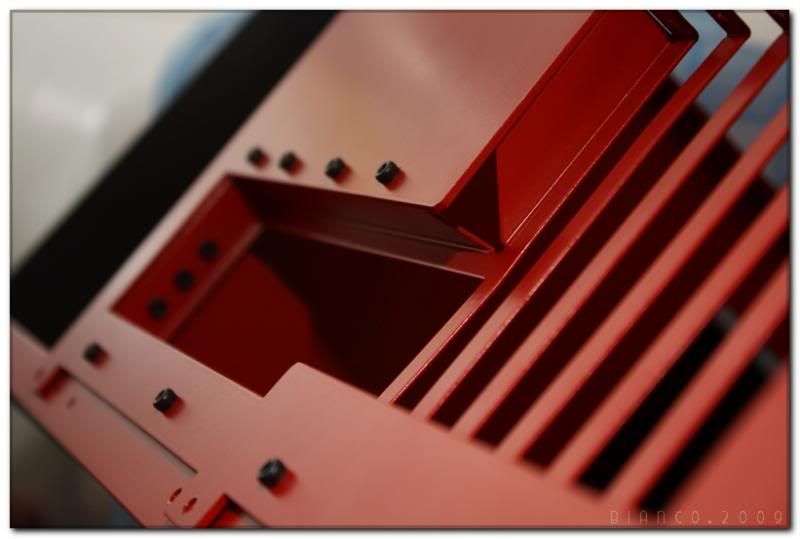

and another one
http://i253.photobucket.com/albums/h...01_08_0909.jpg
mobo tray fitted in the chassis
http://i253.photobucket.com/albums/h...01_08_0889.jpg

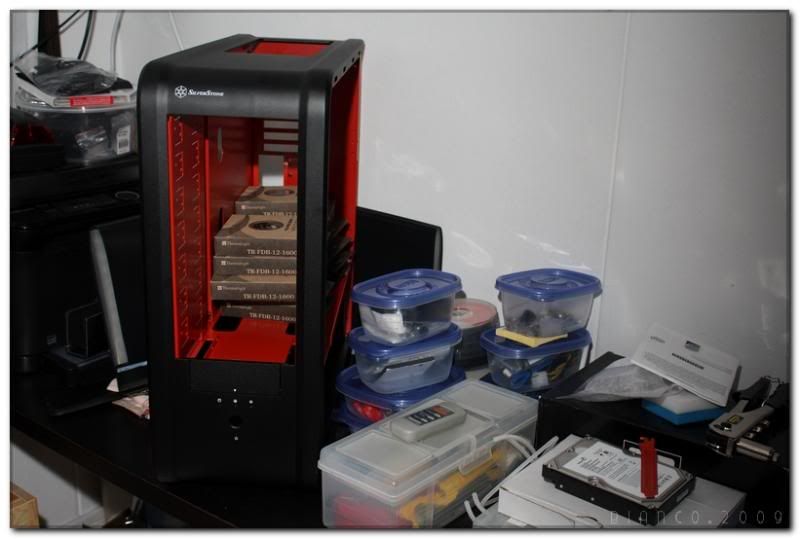

temporary holder for thermalright fans
http://i253.photobucket.com/albums/h...01_08_0946.jpg
done for now...
http://i253.photobucket.com/albums/h...01_08_0977.jpg
excellent stuff there coming together bro well done :clap:
What size screws and bolts are you using to replace the rivets?
this black and red build = badass :cool: :toast:
